***** Unit is being sold as it is currently at this price ****
plan was to do some repairs and upgrades - paint, and other items.. then price will be set at 84,500.00 Truck has passed a safety inspection.
2017 FRTR M-2 260HP Cummins. Allison RDS-2200 with Park position. Air Brake Package. Exhaust Brake. 18K Airliner rear suspension with Dump. 50 gallon tank. 3 piece chrome bumper. Visor. Air Horns. Air ride Driver seat, two man passenger bench.Tilt - Telescoping wheel. Idle up, Cruise control. AM/FM USB. A/C. Aluminum wheels, 255/70R 22.5 Tires. 25,500 GVWR
Inspection notes. Brakes 40#% fronts. Rears 50% Tires 15/32 17/32 Rear 15/32 13/32 17/32 11/32 New Windshield. Needs A/C Compressor. pass side light tail board bent. pass side lower mirror cracked. )( unit has check engine light on, dealer to repair and get light off. )

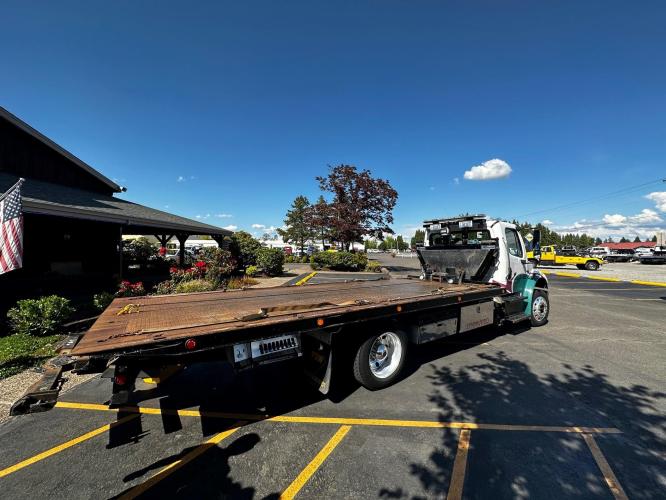

Chevron 20.5' Steel LCG (Low Center of Gravity) Carrier w/ Wheel Lift, 3/16 Deck Plate, 3x2 Corten Tube Crossmembers on 8 inch Centers, (4) Rear Chain Locks, (2) Front Chain Locks, (6) Floor Plate Chain Locks (3 per side), 8,000lb Worm Gear Winch, 3/8" x 50' Winch Cable, Illuminated Dual Controls, FMVSS 108 Lamp Group Shock Mounted Lighted, Direct Mount Pump, Cable Roller Guide w/ Tensioner, Winch Free Spool Extension, Back-Up Alarm, (2) Safety Chains, Mechanical Anti-tilt, Black Body Paint, 102" Wide Body, Inboard Tilt Cylinders, Floor Level Roll Formed w/ Punched Stake Pockets, 4,000lb Wheel Lift w/ Releasable L Arms, Fully Hydraulic Wheel Lift, (2) Safety Straps & Ratchets, (2) Rear Safety Chains, Body Lock w/ Nylatron Roller Bearings, & 12,000lb Deck Load Rating. Body Serial# 20L12S00470HJ16
3/16” Deck Plate (10-20, Steel)
Conventional Wheel-Lift (10-16)
Slide In Steel Tube L-Arms (10-16)
Standard Approach Plate (Steel)
Standard Bed (Steel)
102" Wide (12-40, Steel)
20.5’ (10-16) body length
9,000 Lb. Planetary (Required on 20-1/2’ LCG, 10-16)
9-Spool Capable (for SidePuller)
Air Free Spool, Driver & Passenger Side - Deck Winch(10-16)
Air Remote Control - 1 Function (Req. Air on Chassis)
Air Remote Control - Each Additional Function
Floor Level sides with stake pockets
Dual - 48” Steel Tool Box w/SS Doors
ACC: Air Hose Reel
ACC: Air Hose, 50
ACC: Fire Extinguisher, 5 lb.
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M: Toolbox Brackets, No Air Fitting, Pair
B/M: Trash Can Ring, 4-Gallon, Aluminum, for Carrier
BOD: Mudflaps, 24" x 24", Pair
FSP: GoLight Directional Spotlight, Wireless Remote Control, LED, Permanent Mount
HAL06 LED Strobe Amber clear Pair w/flasher controller
LB: Legion, 12-Head, Red, 60"
LIT: ICC Lights, 3/4", Red, Round for DOT Light on Pylon
LIT: PTO Light
LIT: Strip Lights, 36" White, LED, in Toolboxes, Pair
LIT: Strobes, Amber, HAL09, Clear-Lens, LED, for Tailboard Sides, Pair
LIT: Strobes, Amber, PAL06, Pair, Mounted on top of Midship Turn Signal Boxes
LIT: Strobes, Amber, ST-6 Super-Thin Grille Lights, Pair, with Chrome Bezels and Backing Plates
LIT: Worklights, 4" Round, LED HD, Pair, Mounted at Winch.
LIT: Worklights, Rectangular, LED, Heavy-Duty Aluminum Housing, Pair, for Lower Worklight (Required on LCG)
LIT: Worklights, Square, 6-LED, 1900 Lumens, Black Housing, Pair
PTO Miller Mount DS/BU Allison Trans 2100, 2500
Pylon, Lightbar, 60", SP9000
SP: SidePuller 9000
TOW: Bridle, Chain, Cluster Hook Assemblies
TOW: Winch Cable, 3/8", 100', Steel Core, Self-Locking Hook
TOW: Winch Cable, 3/8", 50', Steel Core, Self-Locking Hook - Deck - new
WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
additional items and or notes.
4 additional chain locks between the existing deck-centered layout..
Lightbar is RED, HALO/PALO in RED
2x ITD Drop-Down Dolly Bunks
9x chrome torpedo style Amber PLASTIC lens LED cab lights
4x Maxxima Dual color red/amber for mirror brackets
4x 3/4" screw pin anchor shackles for Sidepuller (no paint)
3x QuickFist tool holders for broom, shovel, digger bar
Pry bar: tapered point on one end, flattened on the other, min 48". "Digger bar"
2x Small lynch clips for W-bracket
4x Maxxima dual color red/amber to top of each mirror bracket, 1 front, 1 rear.
Alternate ST-6 Red/Amber in the grille
Strobe Rear STT underbody
RED PALO for front fenders
Square LED for SP9K LB mount sides
dolly cross rails Storage above winch with W bracket;.
Mount air reel in the passenger tool box, upside down, and forward in the passenger box for clearance.
Drop Down Dolly Bunks-steel storage box to go on top
Cab marker and space 9x torpedo-style lights on top of the cab
cab switches for PTO & Lighting: 4 switches. L to R: PTO, All strobes including Lightbar, Upper work, Lower work.
Mount Go-Light on bracket between lightbar mount and SP sheave head.
Paint SP8000 Black to match deck
Sidepuller feet (not inner extension) yellow
