• A/C Condition New
• Air Conditioning Yes
• Axle Single
• Cab Standard Cab
• Collisionmitigationsystem No
• Color Black
• Cruise Control Yes
• Differential Lock No
• Dot Yes
• Drive 4x2
• Driver Position Left Hand Drive
• Dual Breathers No
• Dual Exhuast No
• Engine CUMMINS
• Engine Size 6.7
• EnginesizeUnit Engine Liter
• Exhaust Brake Yes
• Front Axle Lbs 7000
• FrontaxlelbsUnit Pound
• Fuel Type Diesel
• Gross Vehicle Weight 19500
• Gross Vehicle Weight Rating Class 5
• GrossvehicleweightUnit Pound
• Headache Rack No
• Heated Mirror Yes
• Horsepower 360
• HorsepowerUnit Horsepower
• Hours Meter Inaccurate 0
• Lift Axle No
• Mileage 301
• MileageUnit Mile
• Navigation No
• Num Speeds 6 Spd
• Overhaul No
• Power Locks Yes
• Power Steering Yes
• Power Windows Both
• Ratio 4.44
• Rear Axle Lbs 13500
• RearaxlelbsUnit Pound
• Rebuilttitle No
• Suspension Spring
• Tilt Telescope Yes
• Tires 225/70R 19.5
• Transmanufacturer AISIN
• Transmission Automatic
• Turbo Yes
• Wet Kit No
• Wheels Aluminum

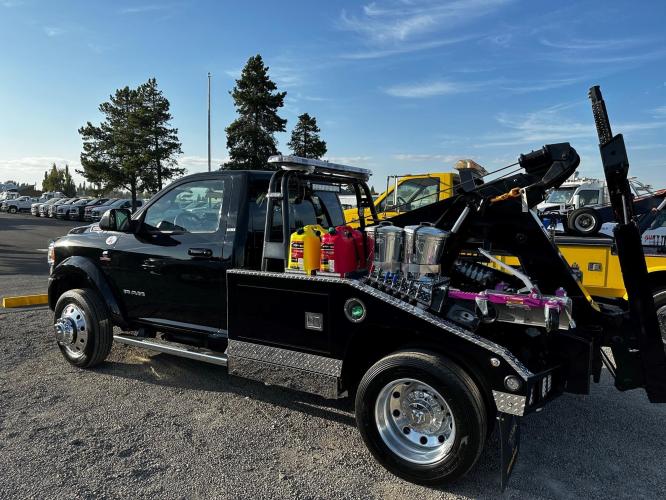

2022 RAM 5500 SLT 6.7L 360HP @ 3,000 rpm, 750 lb-ft. 6 Speed Auto. Engine Block Heater, A/C, AM/FM/CD, Bluetooth Cruise Control, Power Windows, Power Door Locks w/ Keyless Entry, 40-20-40 Split Bench Seat, ,hrome Cab Steps, 22 Gallon Fuel Tank, 225/70R19.5 Tires w/ 19.5 Aluminum wheels. Engine Retarder, Basic Warranty: 3 yr / 36k miles, Engine Warranty: 5 yr/100K. 4.10 Rear Axle Ratio. Low Deflection package. Factory Backup Camera 60 CA. 19,500 GVWR.



Century 312 PT - Dual Winches. Integrated Boom & Wheel Lift System Vulcan -express Hydraulic Hook-Up. Clutch Pump In-Cab Remote Control Pendant on Cord with 8 Functions. Dual Manual Controls 1 Pair of Safety Straps. (2) 3/8" x 100' Cable Assembly Tool Compartment, Left & Right Hand Side Adjustable Modular Body Power Boom Elevation with Holding Valve, 8,000 lb. Variable Speed Hydraulic Winches Safety Chains in Rear Pockets. 5/16, Grade 70. 360° Directional Boom End Swivel Cable Tensioner. Federal Standard #108 Light Group Wiring Harness with Junction Box . Mud Flaps Back-Up Alarm. Power Fold for Stinger Storage Self Centering Crossbar with 3" Pivot Pin r.oller Guided Hose Tracking System Pre-assembled and Tested. Boom Specifications; Lift Height at Maximum Elevation Retracted 78", Extended 105" Reach Past Tailgate Minimum Elevation (Extended) 50" Maximum Elevation (Extended) 22" Boom Rating at Boom Swivel Retracted 16,000 lbs. Extended 4,000 lbs. Maximum Boom Elevation 33° WHEEL LIFT SPECIFICATIONS Retracted Distance from Tailgate at Normal Tow Position 51" Extended Distance from Tailgate at Normal Tow Position 85 1/2" Maximum Hydraulic Extension 33 3/4" Lift Rating 4,000 lbs. Tow Rating 7,500 lbs. Serial # 3121J226881

Carbon Steel Sides (120500225)
Accessories
Deweze Clutch Pump & Bracket
Trailer Ball Adapter (812/ Express G2)

Installation
Auxillary Fuel Tank
Body Dress Up Kit (LD)
Distributor/Customer Supplied Items
Dolly storage mounting
Engine Driven Pump (Clutch Pump)
Fire Extinguisher
Fold Down Light Bar Bracket
In-Dash Switch Panel
Install Trailer Ball Adapter (LD)
Jump Start Kit
Light Bar (LD/CC)
Light Duty Wrecker (Domestic Chassis)
Light duty bracket(s) installation
Misc. Labor
Switch Panel Harness (Required for all LD Installs)
Work Lights (Pair)


Paint
Paint Side Pods (Steel/Aluminum)


DAA
ACC: ARB Air Compressor High Output On-Board- plus labor
ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
ACC: Air Inflate Kit: (F)68272; (W)68271; (G)61387
ACC: Air reel Enclosed- (ReelCraft™ 50' 1/4") -rear of Carrier subframe.
ACC: Boltcutters, 24"
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238
ACC: Driver Essentials Bag
ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22
ACC: First Aid Kit: (F)ACE6060; (W)50503L; (G)20229
ACC: Flashlight with DC Charger, Streamlight LED PolyStinger
ACC: Fuel Can, Diesel, 5-Gallon, Yellow
ACC: Fuel Can, Gas, 5-Gallon, Red
ACC: Jack, 2-Ton Aluminum Racing, AFF
ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
ACC: Lockout Kit, Basic
ACC: Lug Wrenchs, 14" Metric/20" Standard
ACC: Pry Bar, 60"/51" (F)AMES1160100; (W)50020; (G)PPB-51
ACC: Safety Vest, ANSI Class 3, Orange, X-Large
ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ACC: Splitting Maul (F)AMES1113115200; (W)Maul Axe; (G)TJ-8H
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M Alum. Dolly bar & Lumber, Pry bar, shovel Equipment Rack for Deck 60" CA
B/M: 2019 RAM Front JSK BRAKT Two Piece assembly
B/M: Bracket Kit, Steel - required for all Light-Duty Wreckers
B/M: Bungee Strap, Single
B/M: Circuit Breaker Bracket & Dodge breaker bracket
B/M: Fuel Can Bracket, 5-Gallon, Deck-Mount, Aluminum, Single
B/M: GoJak Brackets, Deck Mount, FSW, Aluminum, Pair
B/M: Lightbar, Fold-Down aluminum brakets, Pair, -Tubular Pylon
B/M: Trash Can Ring, 4-Gallon, Deck-Mount, Aluminum
BOD: Body Dress-Plate, Front Wrecker Body Panels, Chevron, Diamond Plate
BOD: Body Dress-Plate, Lower Contour, WCTE Diamond Plate
BOD: Chain Pocket Guards, Diamond Plate, Pair
BOD: Exhaust Tip, Chrome, for Dodge (41217)/Ford (351817) Applications
BOD: Mudflap Weights, FSW, Stainless Steel, Pair
BOD: Mudflaps, 24" x 18", Pair
BOD: Pylon, Wrecker, Aluminum Tubular, 33", Dodge/Ford (pre-2017) Deck-Mount, Powder-Coated Black Chrome (Short Wheel Base Application)
BOD: Rail Caps, Diamond Plate, Pair
FT: Dodge 5500 60" CA Transfer Flow Tank, 40 Gallon
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"
LB: ECCO™ 12 head Amber ALT. Flashers, WL, STT 3 year warranty
LIT: 25" Double Stack LED Light bar work lite- 20AMP
LIT: Breaker, 80-Amp, add 1 for each Jumpstart connection
LIT: Control Panel, 9-Button with TA Option, Brooking (F) FSW-995 KIT; (W)BR995; (G) GWTE-995 KIT
LIT: Jumpstart,Front- Brooking Flush-Mount Kit, with 25' Cables
LIT: Junction Box, 10-Pole
LIT: PTO Light, LED
LIT: Pigtail, 2-Prong
LIT: Tow Light, Wireless, TowMate, Limelight 22", LED - Warranty issues customer contacts TowMate directly.
LIT: Worklight Low-Profile 2,100 Lumens.1.6"l X 5.9"- 6 LED Lower work lights
LIT: Worklights, Round, 550 Lumens, Liquid Silver Finish, for Aluminum Pylon, Pair
SH: Air Coupler, Front Alum. Bracket (F) 27808; (W) Auto Coupler; (G) 68237
SH: Air Coupler, Rear (Wrecker) (F) 27808; (W) Auto Coupler; (G) 68273
SH: Shop Supplies
SL: Marker Bullet Light, 3/4", AMBR-Clear- for WRK or carrier Body
SL: Marker lights: ICC Lights, Three, 3/4", Red, Round DOT back of pylon
SL: Miller HD -Flasher control Power unit for LED Body & Strip Lights.
SL: Optional -Marker Lights, Clear-Lense, for Body.
SL: Strip Lights, 18", White, LED, in Wrecker Toolboxes, Pair
SL: Strip Lights, 36", Amber/White, LED, Pair, Undercab
SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, Mounted at Rear of Wrecker, Wire Harnesses
SL: Strobes,Grillle, Amber, M16 Super-Thin, Pair, Chrome Bezels, Backing Plates, Wire Harness
TB: Bunks, Dollie, 4:80, SS Door, Pair
TB: Tool box matting Roll Blk. * Partial Roll useage*
TB: Tray, Floorjack, Slide-In
TOW: Chain, Recovery, 20', 5/16", Grade 70, Clevis Grab Hooks, Single
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
TOW: Chains, Safety, Grade 80 Self-Locking Hooks, Pair
TOW: Dollies, Collins, 4:80 Tires, Aluminum Wheels, Aluminum Crossrails, Complete Set
TOW: Dolly, GoJak 6200, LH, Vehicle Positioning
TOW: Dolly, GoJak, 6200, RH, Vehicle Positioning
TOW: Flare Case (Case Only)
TOW: Flares, 6 (F)0730(x6); (W)7703605(x6); (G)100783(x6)
TOW: Lumber, 4" x 4"s, 48" & 60"
TOW: Ratchets, 2", Wide-Handle, Finger-Hook, Pair
TOW: Snatch Block, 4-Ton
TOW: Strap Kit with Bag, Motorcycle, Carrier, Canyon Dancer
TOW: Strap, Steering Wheel
TOW: Straps, Lasso, D-Ring, Pair
TOW: Tiedowns, Dollie, Ratchets and Straps, Pair
TOW: Trailer Ball Kit, Convert-A Ball
TOW: Winch Cable, 3/8", 100', Fiber Core, Self-Locking Hook
WH: Hubcap Tool




Notes
Hook up backup camera

body sides need to be painted black to match cab
Fold down light bar brackets and check clearance with Cab
Pylon powder coated -smoke grey
Lights in toolboxes tied to running lights
Alternating flashers rear- on a dedicated switch
Strobes on a dedicated switch
