• A/C Condition New
• Air Conditioning Yes
• Axle Single
• Axle Configuration Set Back Axle
• Cab Standard Cab
• Collisionmitigationsystem No
• Color White
• Cruise Control Yes
• Drive 4x2
• Driver Position Left Hand Drive
• Dual Breathers No
• Dual Exhuast No
• Engine CUMMINS
• Engine Brake No
• Engine Size 6.7
• EnginesizeUnit Engine Liter
• Exhaust Brake Yes
• Front Axle Lbs 10000
• FrontaxlelbsUnit Pound
• Fuel Type Diesel
• Glider Kit No
• Gross Vehicle Weight 25500
• Gross Vehicle Weight Rating Class 6
• GrossvehicleweightUnit Pound
• Headache Rack No
• Heated Mirror Yes
• Horsepower 300
• HorsepowerUnit Horsepower
• Hours Meter Inaccurate 0
• Lift Axle No
• Mileage 211
• MileageUnit Mile
• Navigation No
• Num Speeds 6 Spd
• Overdrive Yes
• Overhaul No
• Power Locks Yes
• Power Steering Yes
• Power Windows Both
• Ratio 4.88
• Rear Axle Lbs 19000
• RearaxlelbsUnit Pound
• Super Singles No
• Suspension Air Ride
• Tilt Telescope Yes
• Tires 255/70R 22.5
• Transmanufacturer ALLISON
• Transmission Automatic
• Transmission Type Allison RDS
• Turbo Yes
• Wet Kit No
• Wheel Base 222
• WheelbaseUnit Inch
• Wheels Aluminum

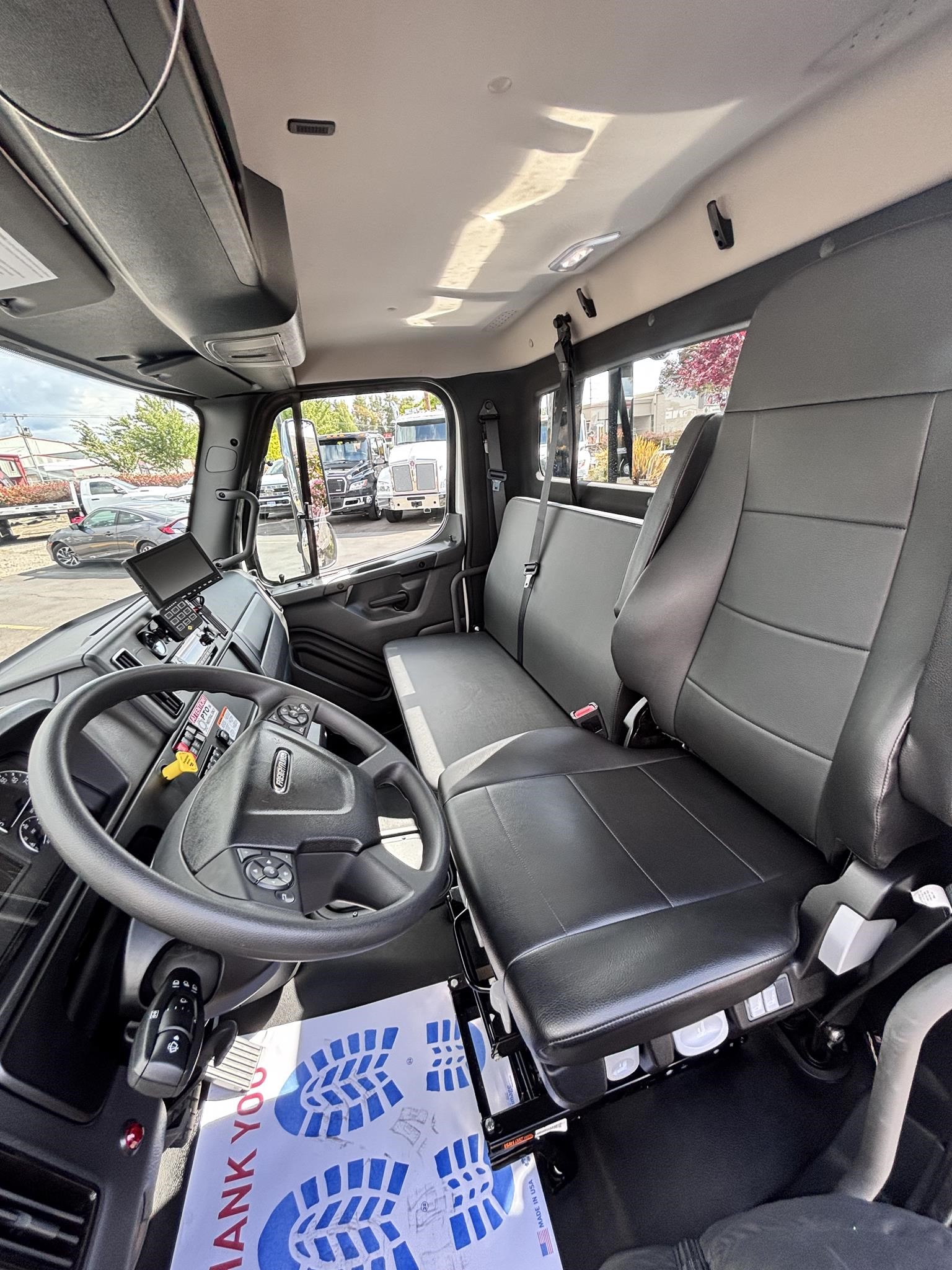

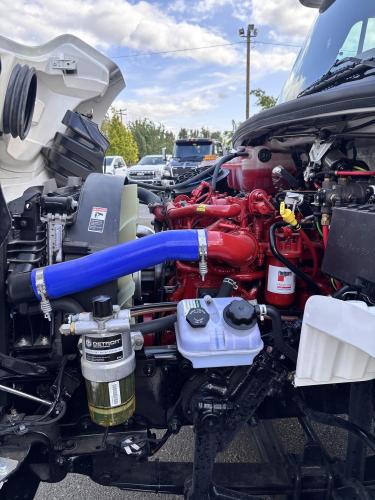

FRTR M-2 300HP Cummins 6.7L. Allison Automatic RDS- 2200 with Park position. Air Brake package. 18,000lb Air ride suspension with in-cab dump valve. Dual Aluminum fuel tanks 50 gallon, Visor, Chrome 3-piece bumper. Air Ride driver, fixed passenger two-man bench seat,. idle up, cruise control. AM/FM USB port. A/C- heater, Air compressor, Air ride cab mounts. Power windows, power locks. Power mirrors. PTO switch. Overhead consoles. Tilt wheel. 22.5 Aluminum wheels. 255/70R 22.5 Michelin tires. Body up fitter switches,5 QTY. Dual 26" Hadley Air Horns. ( Roof) 156" CA - 19,000lb Rear axle, 18,000lb Air liner Rear suspension with Dump valve. 10.000lb front axle. 25,500 GVWR.

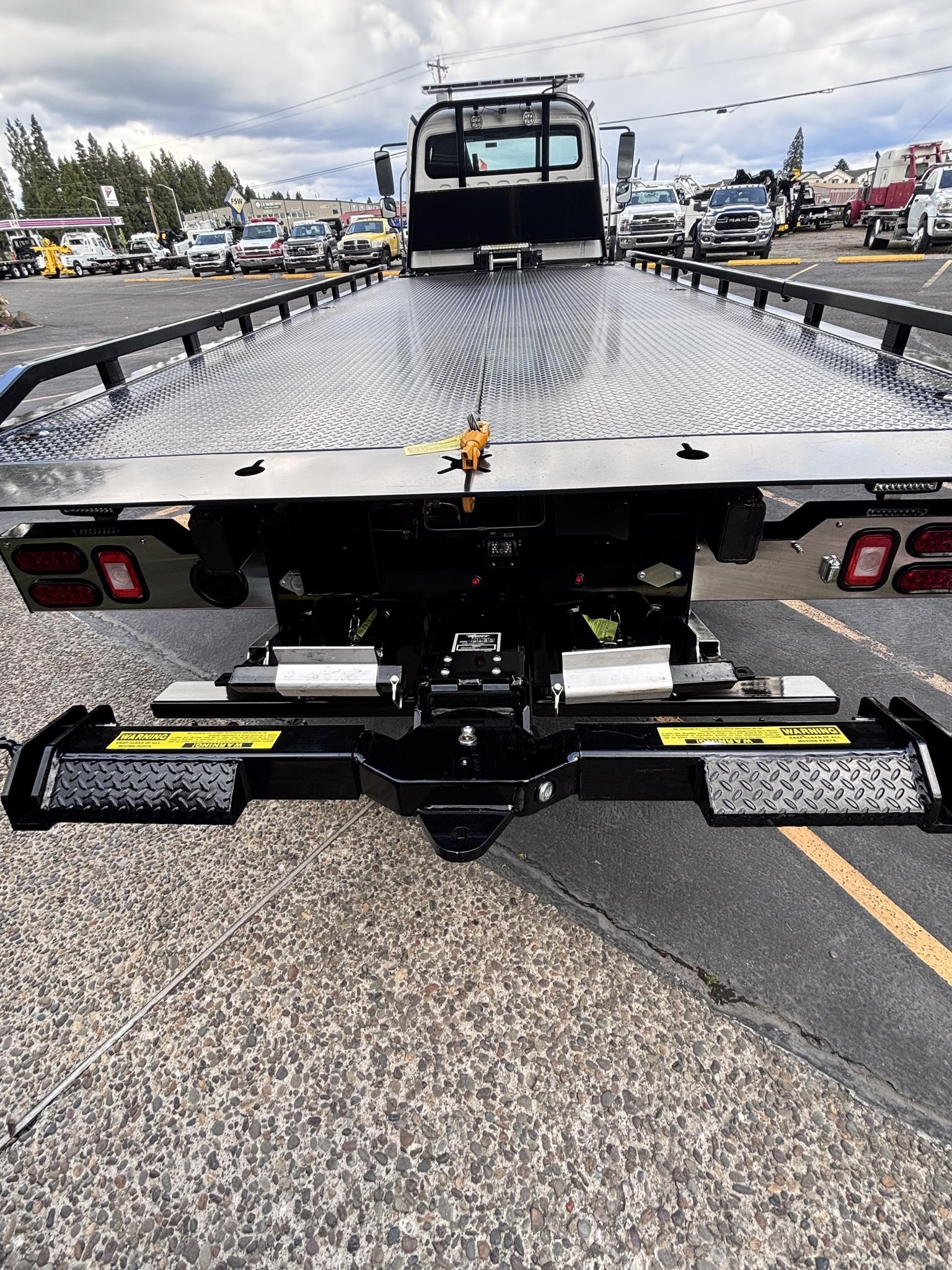

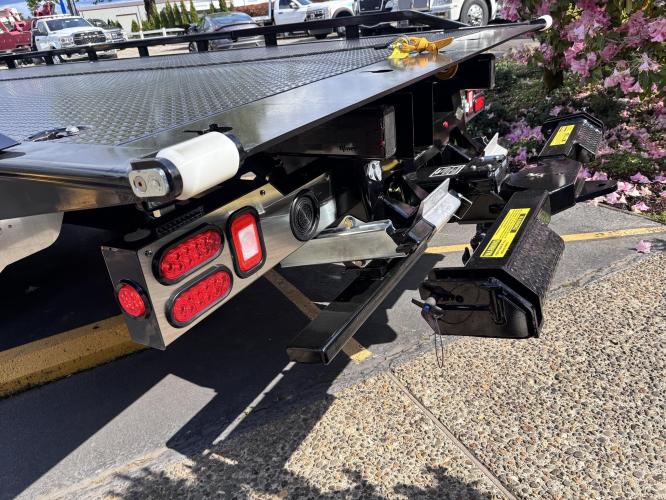

Chevron 22' Steel LCG (Low Center of Gravity) Carrier w/ Wheel Lift, 3/16 Deck Plate, 3x2 Corten Tube Crossmembers on 8 inch Centers, (4) Rear Chain Locks, (2) Front Chain Locks, (6) Floor Plate Chain Locks (3 per side), 8,000lb Worm Gear Winch, 3/8" x 50' Winch Cable, Illuminated Dual Controls, FMVSS 108 Lamp Group Shock Mounted Lighted, Direct Mount Pump, Cable Roller Guide w/ Tensioner, Winch Free Spool Extension, Back-Up Alarm, (2) Safety Chains, Mechanical Anti-tilt, Black Body Paint, 102" Wide Body, Inboard Tilt Cylinders, Floor Level Roll Formed w/ Punched Stake Pockets, 4,000lb Wheel Lift w/ Releasable L Arms, Fully Hydraulic Wheel Lift, (2) Safety Straps & Ratchets, (2) Rear Safety Chains, Body Lock w/ Nylatron Roller Bearings, & 12,000lb Deck Load Rating. Body Serial# ST12L2H246019

Conventional Wheel-Lift (10-12)
Standard Bed (Steel)

102" Wide (12- Steel)
11 Chain Lock Package - Deck Centered (steel)
22’ (10-16)
3/16” Deck Plate (Steel)
5-Light Configuration (10/12 Series)
6-Spool Capable
Air Free Spool, Driver & Passenger Side - Deck Winch(10-16)
Chain Baskets
DP 12k Planetary
Floor Level Roll Formed w/ Removable Steel Tube Rail (Steel)
Roller Tip (Steel)
Steel Tube Drop-in L-Arms (4000 Lb., 10-20, 408G2)
Marker Lights - 2.5" Round


Accessories
9-Wire Loop Cable Option (10-40)
Muncie Hot Shift PTO (Allison 1000/2000 or Aisin)


Installation
10 - 16 Car Carrier
Factory PDI for Car Carrier
Fire Extinguisher
Front Mudflaps or Quarter Fenders (CC)
General Chassis Modification
Hot Shift PTO - LD, CC, HD
Jump Start Kit
Light Bar (LD/CC)
Misc. Labor
Strobe Light Kit (Mini or Whelen 10x10s)
Toolbox (each, CC)
Work Lights (Pair)


Paint
Bed - Factory Black (10-40, Steel)


DAA
ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
ACC: Air Inflate Kit: (F)68272; (W)68271; (G)61387
ACC: Air Protection Valve 90PSI required when adding air outlets
ACC: Camera, 7” LCD System HD -System Miller Industries Using ( 2) Camera
ACC: Cone, 18", Single: (F)CN-186R; (W)53858A; (G)100476
ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M: Bungee Strap, Single
B/M: Cone Mounting Bracket, Single, Behind Carrier Control Stations
B/M: Fuel Can Bracket, Dual, Steel, GWTE, for Dodge
B/M: Toolbox Brackets, LH/RH, with Air Fittings and E-Brake Cable Hole
B/M: Trash Can Ring, 4-Gallon, Aluminum, for Carrier
BOD: DEF Tank Cover, Stainless Steel, for 2016-Current Freightliner
BOD: Pylon, Carrier, Bed-Mount, 2.5" Marker Lights, SS Light Panels, Wire Harnesses
BOD: Quarter fender set -Stainless Steel -
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"

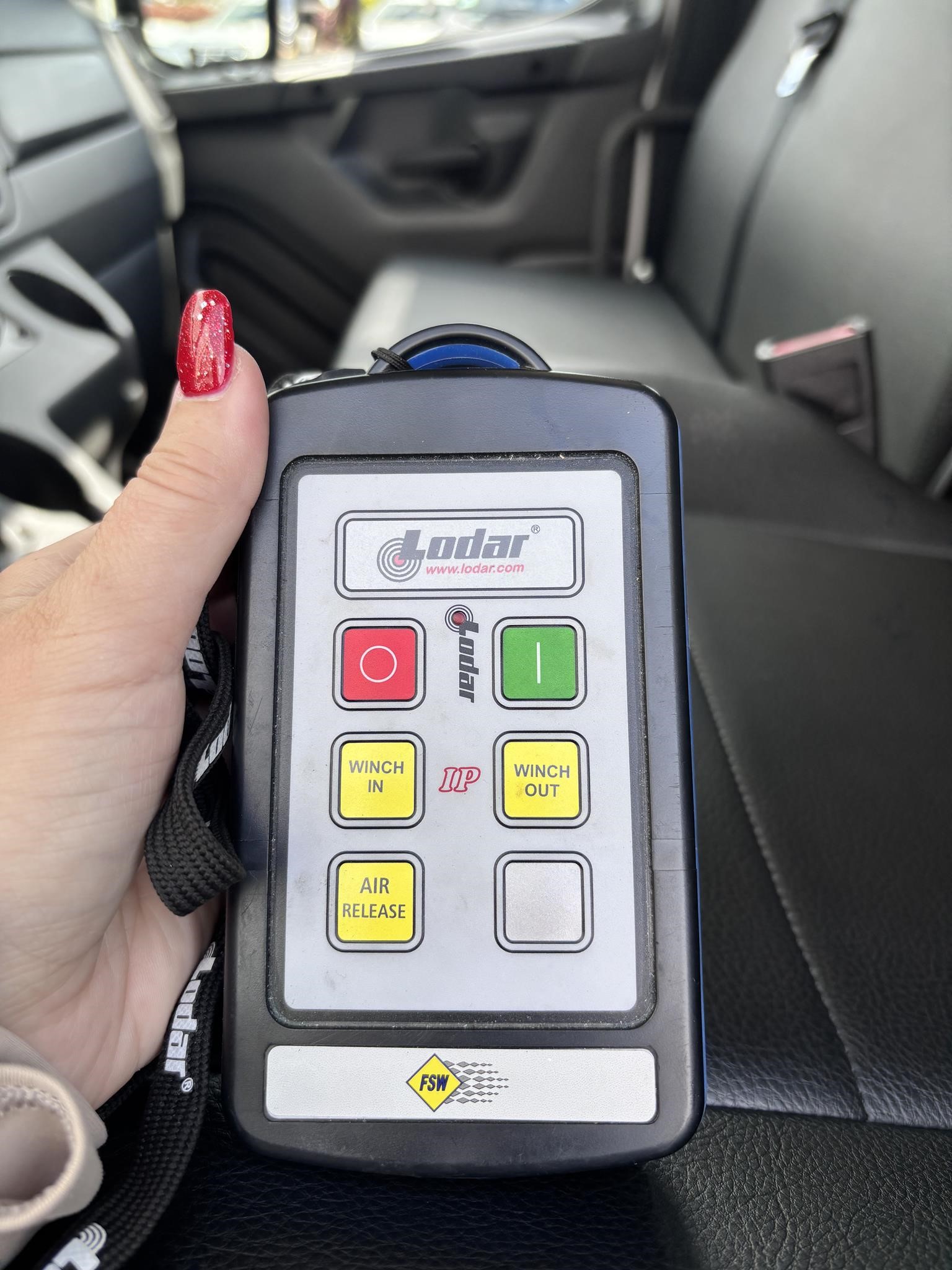

HYD: Lodar - 2-Function Winch-Air Free release (FSW Group) & Bridge
LB: Allegiant-Serial™24H w/TA 5 year warranty includes FS 12FXN controller for TA
LIT: 20" Wide LED LTB work lite @ Winch (Single row) ECCO
LIT: Breaker, 80-Amp, add 1 for each Jumpstart connection
LIT: Electrical Package, All except Hino & International - Main Harnesses + ATC Fuse Blocks
LIT: Jumpstart, Associated Box-Mount, Rear - No Cables (Add Cables Separately)
LIT: Jumpstart, Associated Cables, 500-Amp, 30' - Cables Only (add Flush- or Box-Mount separately)
LIT: Jumpstart, Front-Associated Flush-Mount, - No Cables (Add Cables Separately)
LIT: PTO Light, LED
LIT: Work light- 6" Rectangular LED Work Lamp w/ Amber Strobe ( Pair)
LIT: Worklights, Rectangular, 9-LED, Pair, as Upper Worklight Application.
SH: Air Coupler Plumbed to Toolbox Arm, Passenger Side
SH: Air Coupler, Front Alum. Bracket (F) 68226; (W) Auto Coupler; (G) 68237
SH: Air Coupler, Passenger-Side Control Station Carrier (F) 68226; (W) Auto Coupler; (G) 68237
SH: Shop Supplies
SL: Amber-CLR. Micro pulse-Grille flasher, w/C-bezels, back-plate & harness ( pair)
SL: Park/Turn, Sequential, Amber, Oval, 6", Midship, Pair, with Grommets and Pigtails (no Dodge)
SL: RED-Micro pulse Super-Thin-Grille strobes w/Chrome bezels, backing plate & harness
SL: Strip Lights, 36", Amber/White, LED, Pair, Undercab
SL: Strip Lights, 36", White, LED, in Carrier Toolboxes, Pair
SL:Park/Turn Midship Turn Signal Boxes, Aluminum, Pair
TB: Tool box matting Roll Blk. * Partial Roll useage*
TB: Tool box matting or PolyFloor, Installation

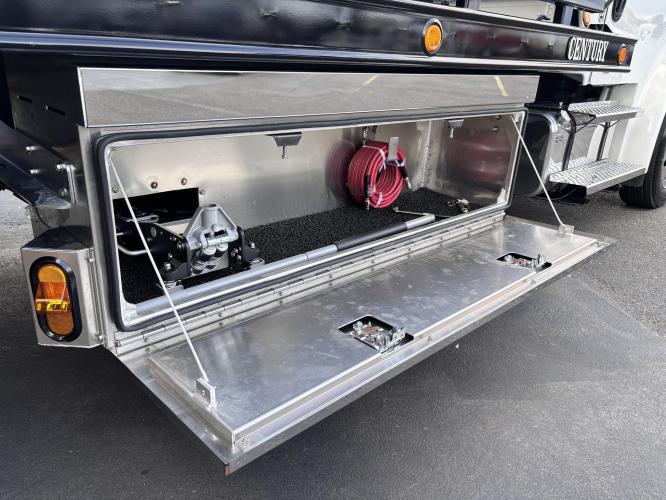

TB: Toolbox, Aluminum, 65" x 18", SS Door, Integrated Top Tray
TB: Tray, Floorjack, Slide-In
TOW: Winch Cable, 3/8", 50', Steel Core, Self-Locking Hook
WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"
