• A/C Condition New
• Air Conditioning Yes
• Axle Tandem
• Cab Extended Cab
• Collisionmitigationsystem No
• Color White
• Differential Lock Yes
• Drive 6x2
• Driver Position Left Hand Drive
• Dual Breathers Yes
• Dual Exhuast Yes
• Dually Yes
• Engine CUMMINS
• Engine Brake Yes
• Front Axle Lbs 20000
• FrontaxlelbsUnit Pound
• Fuel Type Diesel
• Glider Kit No
• Gross Vehicle Weight 66000
• Gross Vehicle Weight Rating Class 8
• GrossvehicleweightUnit Pound
• Hassleeper Yes
• Heated Mirror Yes
• Horsepower 565
• HorsepowerUnit Horsepower
• Hours Meter Inaccurate 0
• Lift Axle Yes
• Lift Axle Type Mid
• Mileage 2981
• MileageUnit Mile
• Navigation Yes
• Num Speeds 18 Spd
• Numberofbeds 1
• Overdrive Yes
• Power Locks Yes
• Power Steering Yes
• Power Windows Both
• Ratio 3.91
• Rear Axle Lbs 46000
• RearaxlelbsUnit Pound
• Sleeper Flat Top Sleeper
• Sleeper Size 58
• SleepersizeUnit Inch
• Suspension Air Ride

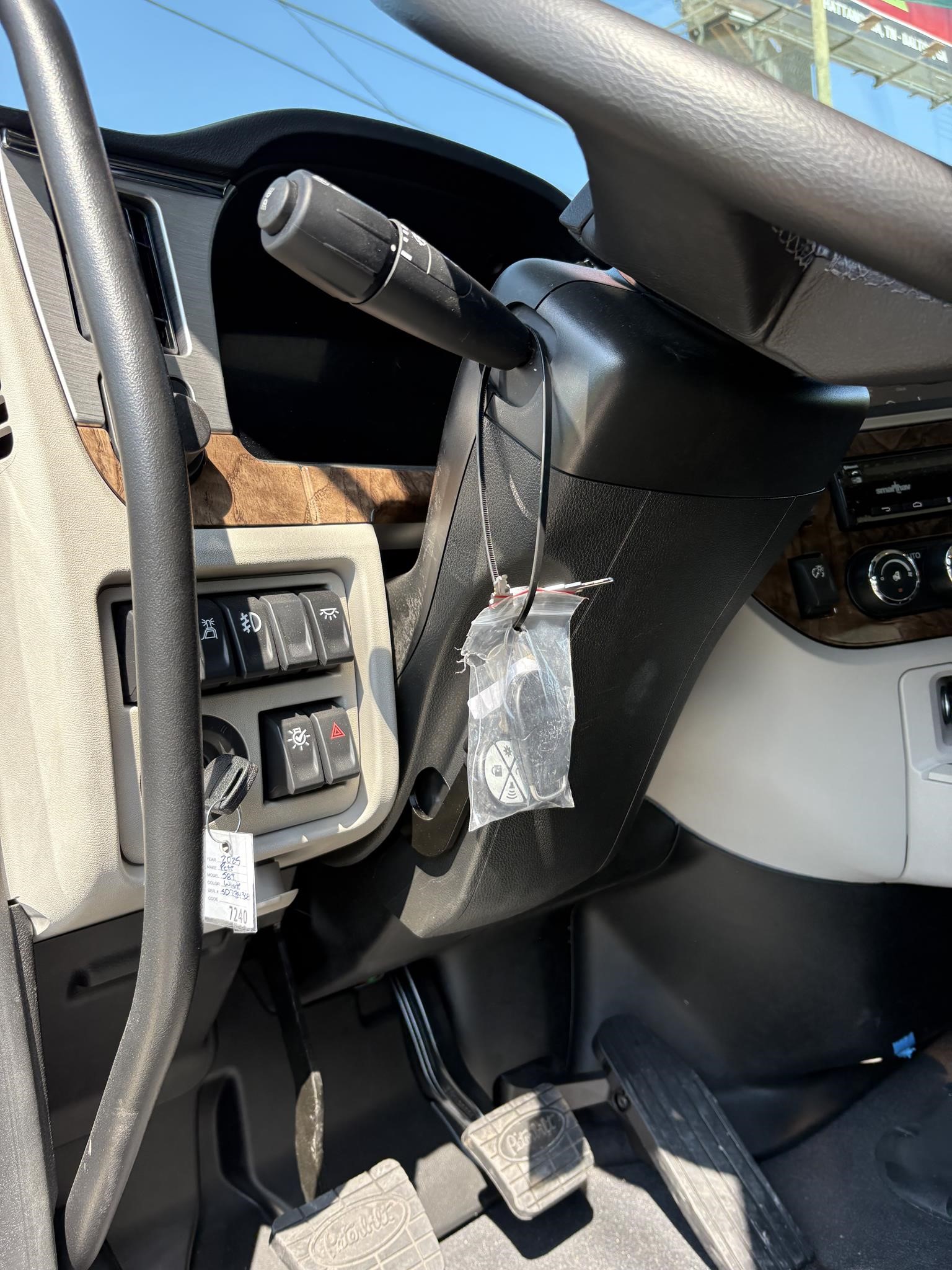

• Tilt Telescope Yes
• Tires 11R 24.5
• Transmanufacturer EATON-FULLER
• Transmission Manual
• Turbo Yes
• Wet Kit No
• Wheel Base 347
• WheelbaseUnit Inch
• Wheels Aluminum

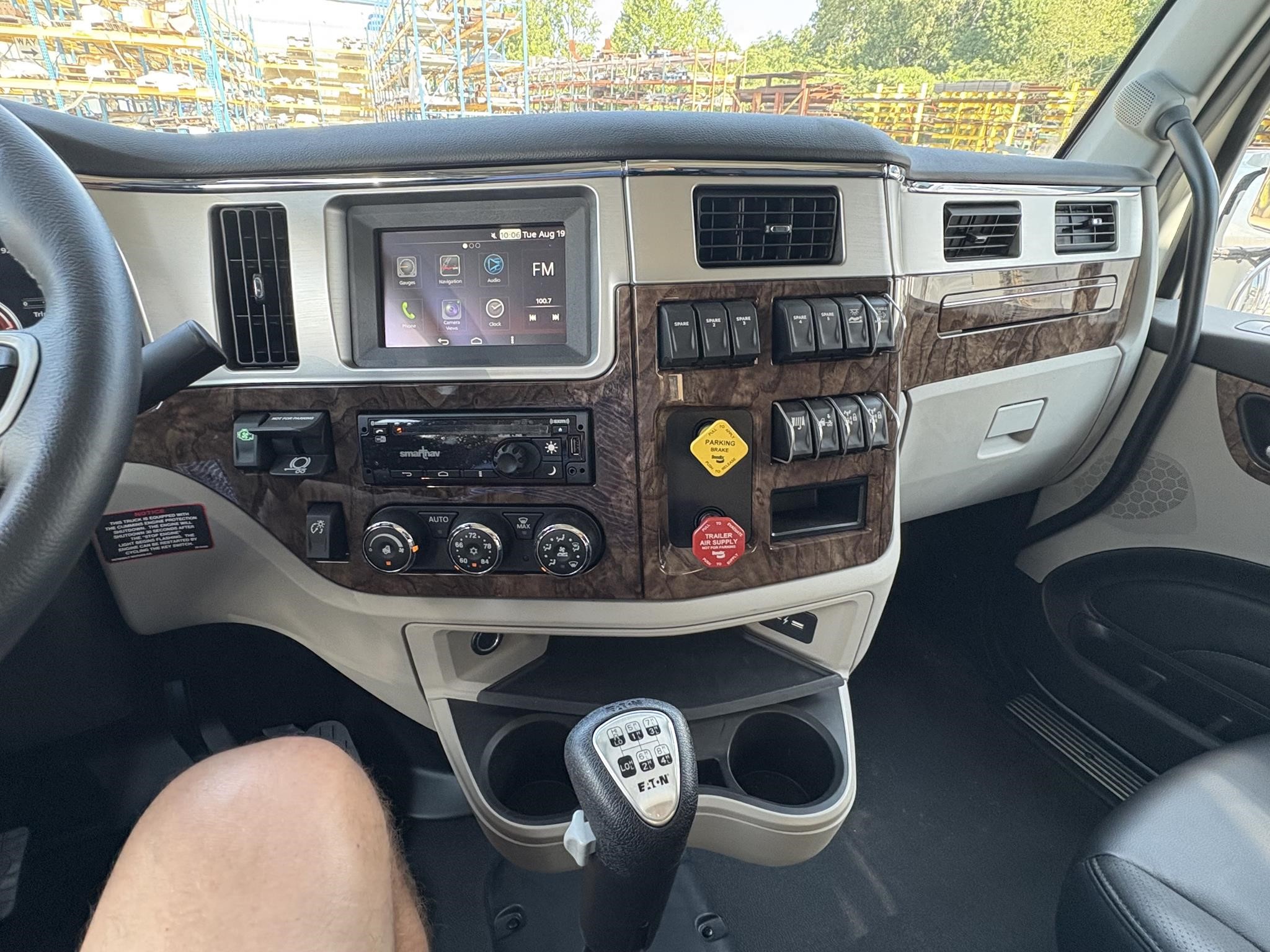

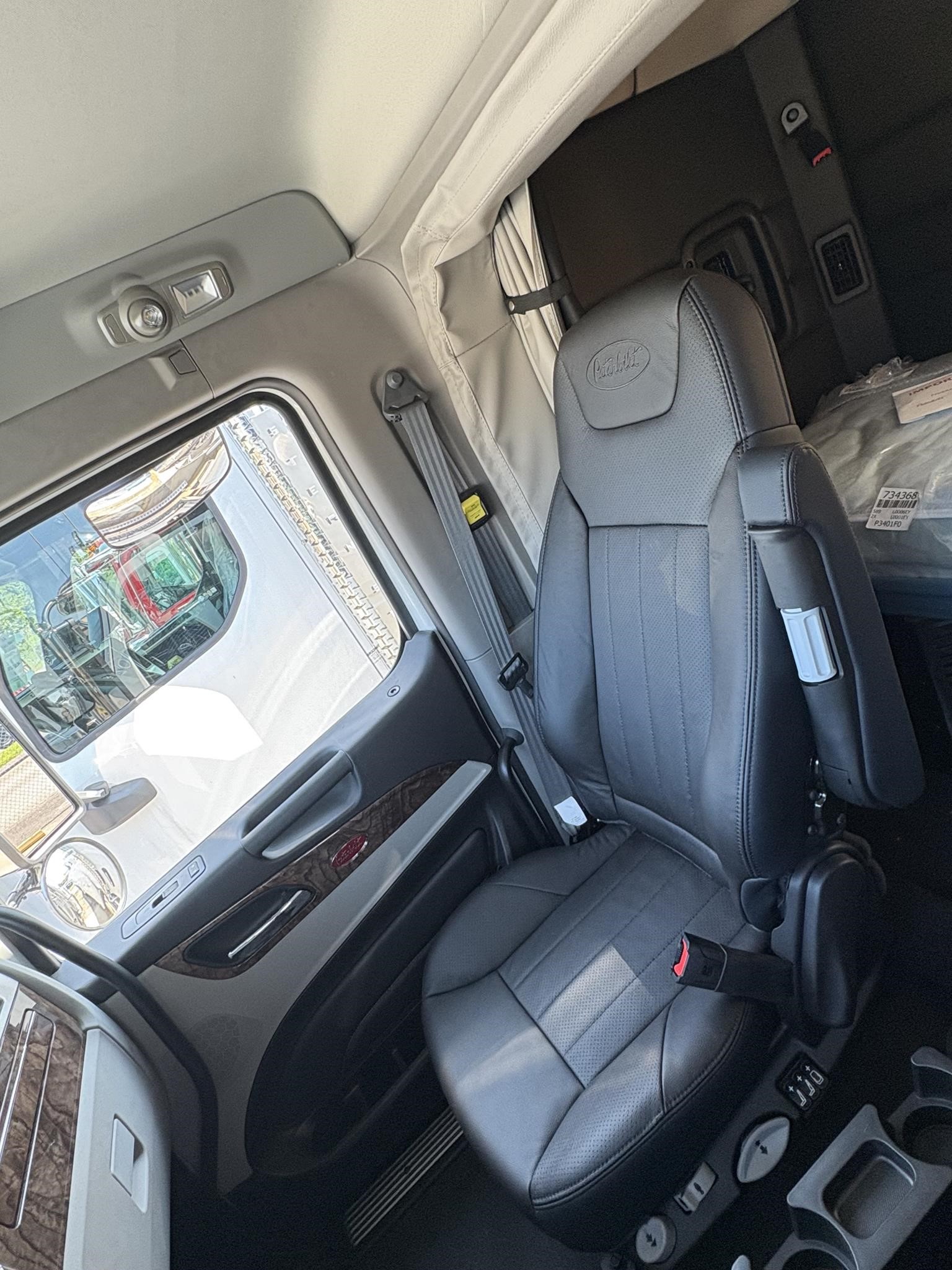

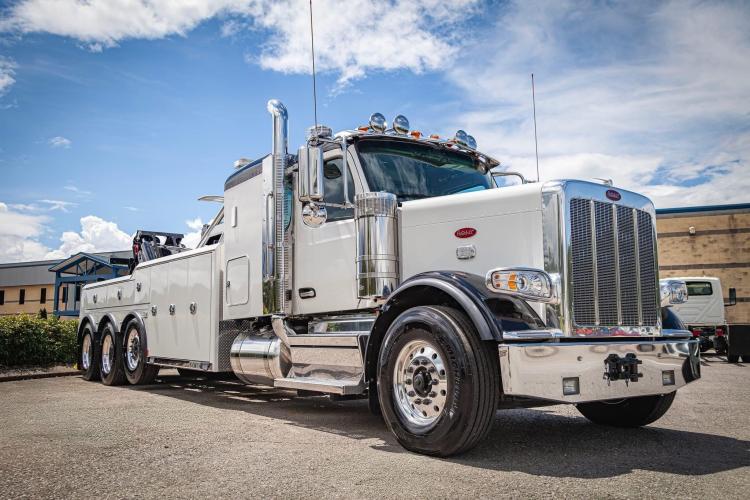

ISX15 565 HP  Fuller RTLO16918B 18 Speed.Dana Spicer 20,000 lb, 3.5in Drop, with 20K Front suspension,n. 26in Aluminum 100 Gallon Fuel Tank RH BOC. 26in Aluminum 90 Gallon Fuel Tank LH U/C, DEF Tank Small, Alum Cab 123in BBC Alum Hood SFFA, 10-3/4in Steel Rails 403-444in.Full Steel Inner Liner.Heavy-Duty Iron Front Spring Brackets Fwd & Rear.Dana Spicer 46,000 lb, Ratio 3.91 Rear Axle. Diff Lock Both Axles. SBM Valve. Synthetic Axle Lubricant All Axles. 46,000lb Air Trac Pete Suspension. Bendix AD-IS Air Dryer with Heater. Polished Alum Air Tanks Outside Frame Rails.Aluminum Space Saver Battery Box LH BOC.DPF Cab Entry Aluminum Non-Slip Step RH Under Cab. Heavy Duty External Tow Eye. 58"Inch Low Roof Sleeper w/w/ w/Platinum  Interior. Intebrake (Furnished on Engine).(2) 15in SS Air Cleaners, Cowl Mtd, SS Caps. Thermal Insulation Package in Cab.Thermal Insulation Pkg - 58in Low Roof Slpr. ( Platinum) Adjustable Steering Column - Tilt/Telescope.Leather Steering Wheel. Platinum Interior - Will be Grey. Rear Window Back of Sleeper Dark Tint, Power Lift Windows - Both Doors. Combo Fresh Air Heater/Air Conditioner.Sleeper Heater/Air Cond w/w/ w/Controls in Sleeper. Cup Holder (Floor Mounted).Outside Sunvisor Stainless Steel. Aero Mirrors Ea Side Htd & Mtrzd 4-Way Adjustable. (4) Hadley Air Horns Rect-(2) 26in & (2) 29in. ConcertClass Audio System with CD. Bright Bezel Gauges ipo Black. Marker Lights (5) Bus LED Bullet. Fog Lights (2) Peterbilt. (1) 6in Spotlight Round Halogen LH. Switch on Dash for Light in Sleeper. 347" Wheelbase. Suspension Pressure Gauge. keyless entry. Stainless Steel Gravel Guards. (2) 15" Stainless Air Cleaners.  Air Disc brake package.  315/80R  22.5s Fronts. Pusher 285/75R 24.5s.  Rears BR 11R 24.5s. . 80,600 GVWR - _ ( Black Leather seats. Arctic Grey with Woodgrain option-Cab)

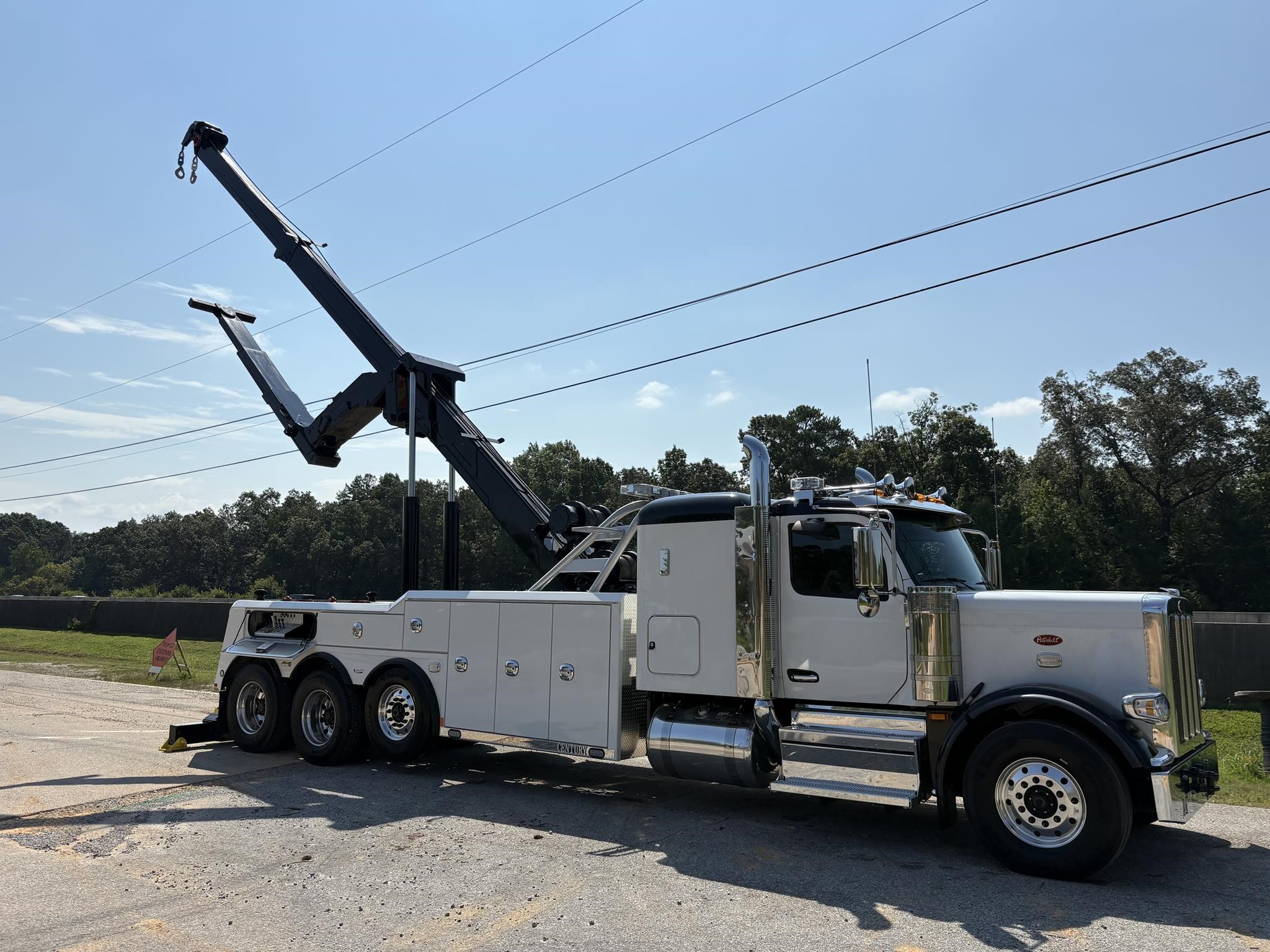

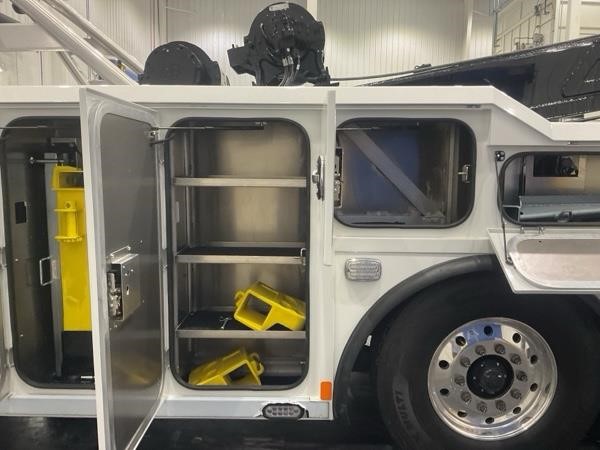

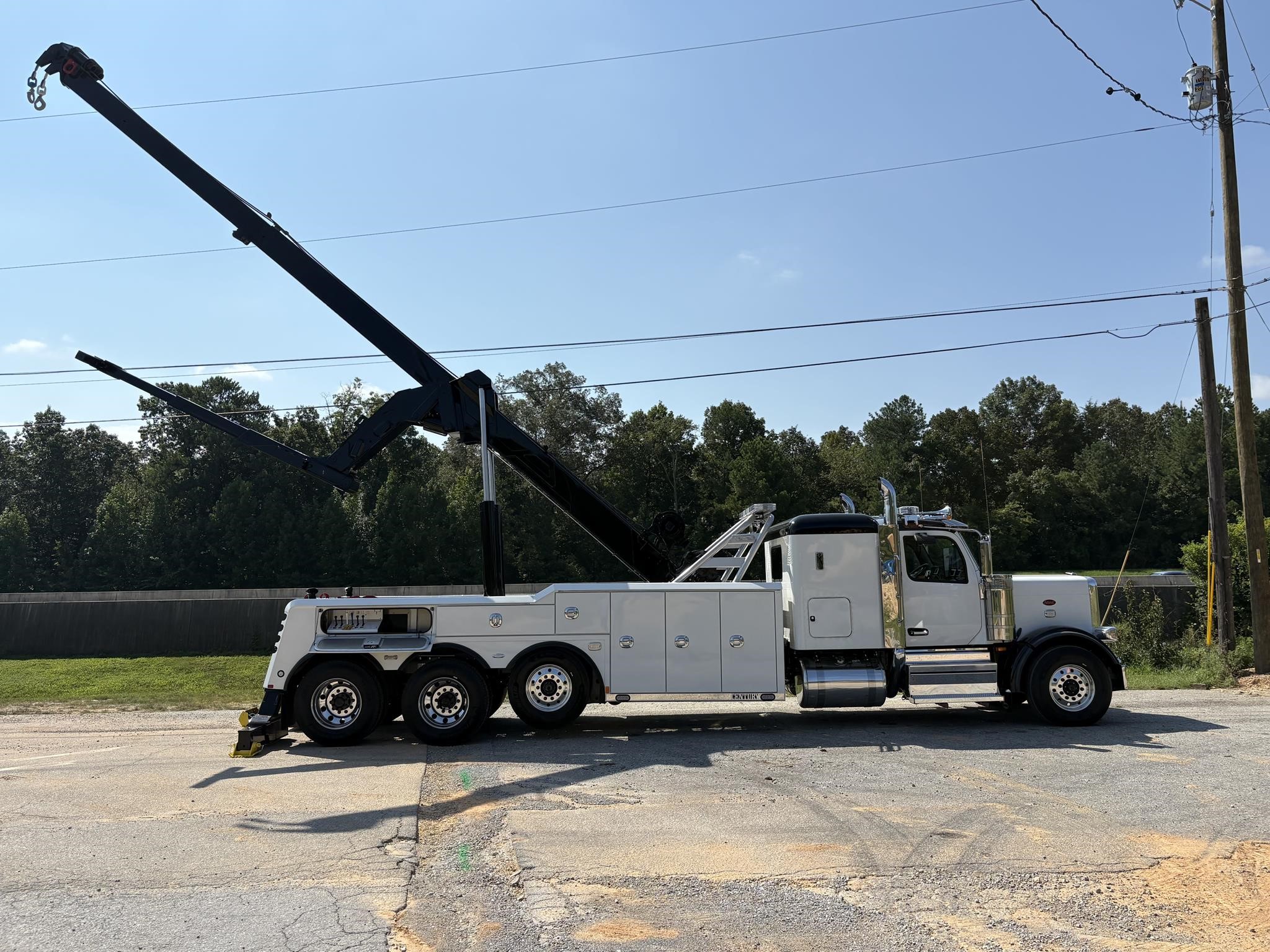

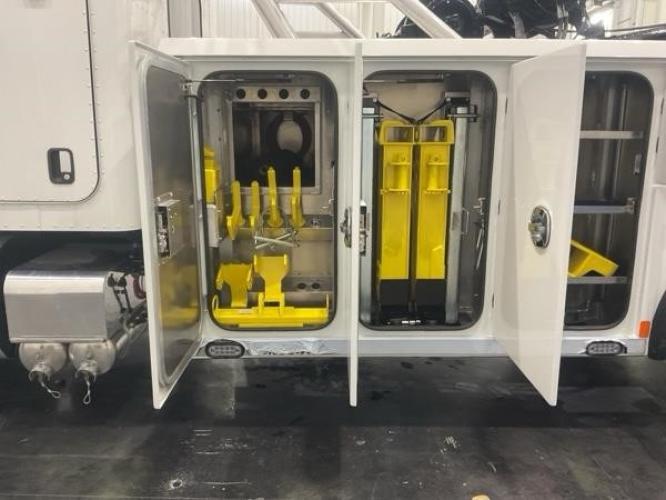

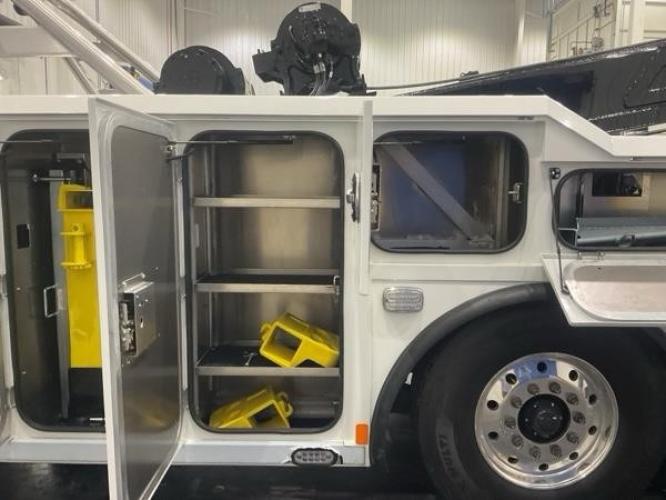

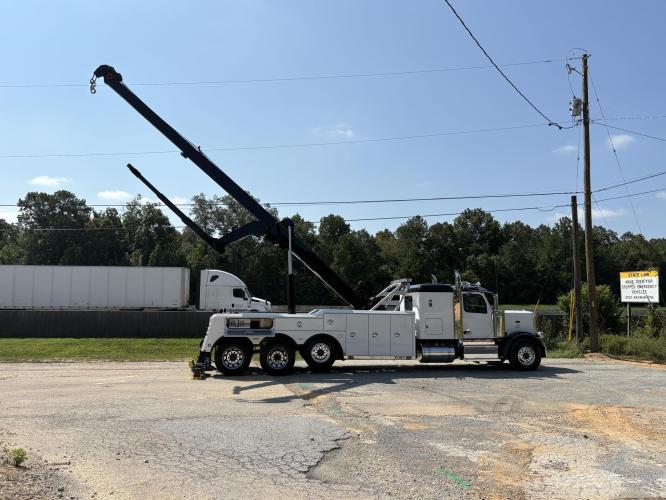

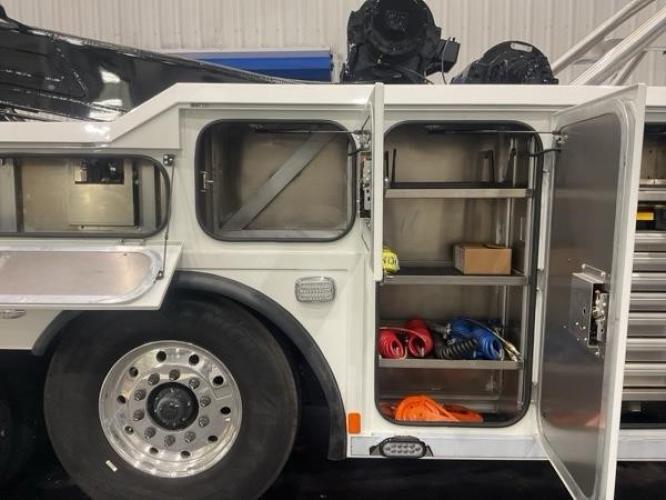

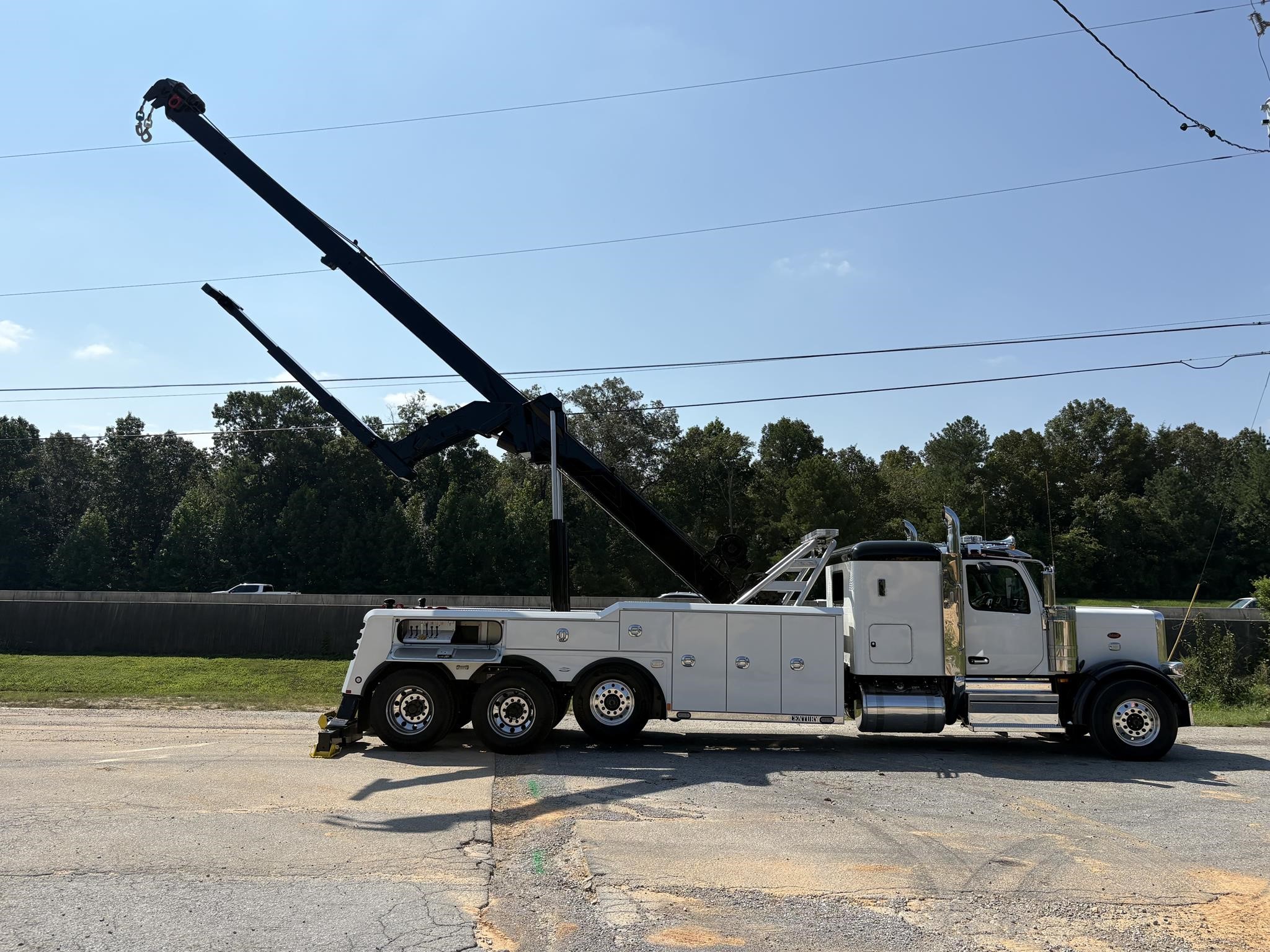

Century Model 9055T XL Boom Structural Rating (S.A.E.) Retracted 30� 100,000 lbs. 50 ton Maximum Angle 40� Maximum Hook Height (inches) 259" Reach Past Tailboard at 30� Boom Angle (inches) 125" BOOM SPECIFICATIONS - 9055 3-STAGE Boom Structural Rating (S.A.E.) Retracted 30� 100,000 lbs. Extended 18,000 lbs. Maximum Angle 39� Maximum Hook Height (inches) 299" Reach Past Tailboard at 30� Boom Angle (inches) 199" WINCH SPECIFICATIONS Winch Capacity (2) 50,000 lbs. Winch Type Planetary 2-Speed Cable Specifications 3/4" x 250' 6x37 I.W.R.C. UNDERLIFT SPECIFICATIONS Capacity Fully Extended to C.L. of Forks 17,000 lbs. @ 136" Capacity Fully Retracted to C.L. of Forks 55,000 lbs. @ 62" Underlift Tilt 10� + 7� - Tow Rating 80,000 lbs. OPTIONAL LOWRIDER UNDERLIFT SPECIFICATIONS Capacity Fully Extended to C.L. of Forks 18,000 lbs. @ 160" Capacity Fully Retracted to C.L. of Forks 55,000 lbs. @ 72" Underlift Tilt 10� + 7� - STANDARD BODY FEATURES 96" Wide Aluminum Modular Body Dual Control Stations Hydraulic Pressure Gauges (Drivers Side) Tailboard Recovery Anchors Tailboard Fork & Chain Storage Safety Chains in Rear Pockets 3 Large Forward Compartments Compartments Over the Wheel Well Push to Open/Push to Close Latches Power Toolbox Compartment Locks LED Federal Standard #108 Lighting Flexible Wire Loom LED Toolbox Lights Rubber Fenderettes Mud Flaps Chain Rack Fork Holders Recessed Air & Electrical Hook-Ups Adjustable Shelves Rubber Isolators Enclosed Inner Wheel Wells 3-Piece Light Pylon Aluminum Tread-Plate Walkway "D" Rings (Tailboard Mount) Power Touch System Includes 15-Function Wired and Wireless Controls, In-Cab Underlift Control, and Front & Rear Function Switch Panels STANDARD BOOM FEATURES Power Elevation Power Extension Dual Planetary Hydraulic Winches Air Cable Tensioners Air Free Spool Diagonal Rear Spades Flipper Foot Spades Dual Hydraulic Pump 360� Sheave Heads Cable Tie Backs Fork Riser Brackets STANDARD UNDERLIFT FEATURES Power Elevation Power Extension Power Tilt Hydraulic Fold 3-Stage Design 2 Piece Pivot Pin Upper/Lower Thrust Washer Handheld Lanyard Low Profile Crossbar 70� Pivoting Crossbar Low Profile Fork Holders 8 Pairs of Cast Steel Forks 1 Pair of Spring Lift Adapters 1 Pair of Hook Adapters. Body
90551A250095


204" CB Tri Axle (Century)
9055 Coach Low Rider (160” Reach)

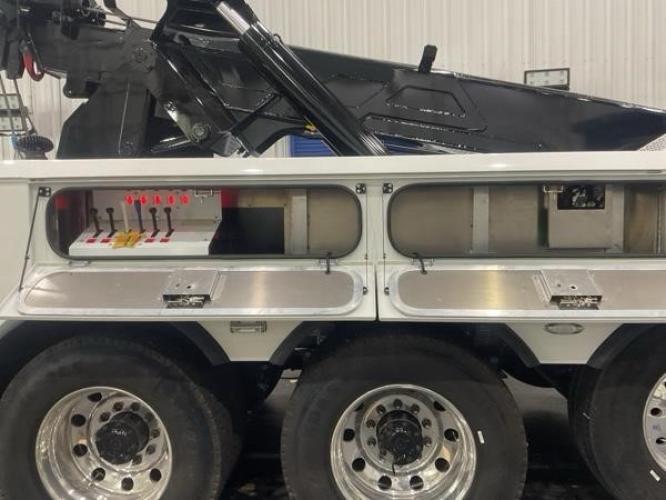

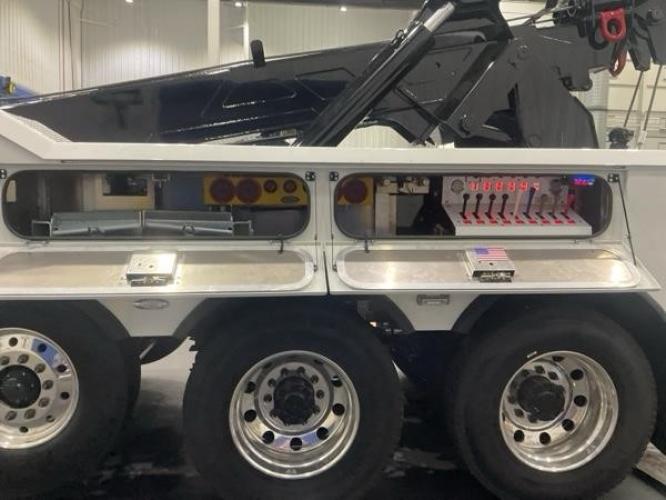

Backlit Control Station
Hydraulic Extendable Rear Outriggers
Keypad and Wireless Remote (20 - 50 ton)
Pass Through Box (See Limitations)
Tailboard D-Rings


Accessories
230” CA/204” CB - Dura Glow LED Strip Lights (Century)
25,000 Lb. Tire Lift (50-75 Ton)
38” Aluminum HD Pylon
9055XL Stainless Tailboard Dress Up Kit
Air Line Storage Kit
Air/Electric PTO (6/8 Bolt, 50 Ton, HD)
Aluminum Tube Lighting Wing Kit
Bus Lift Storage System (Fold Down)
Color Control Handle Kit

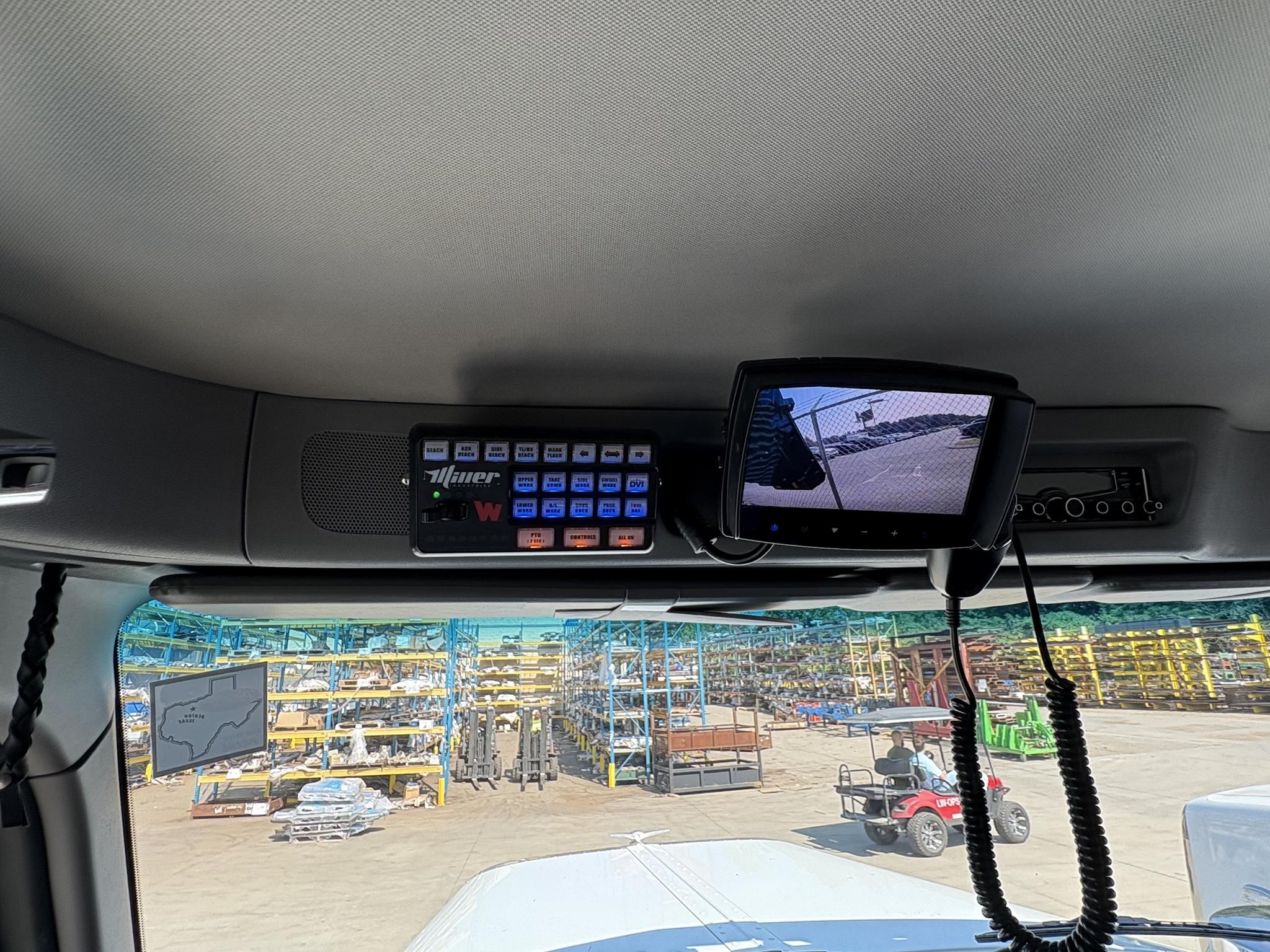

Dual Reverse Camera with Monitor
Evolution Snatch Block - 12 Ton
Fifth Wheel Plate (requires 124002211)
LED - Under Body Strip Light Kit(12V)
LED - Work Lights - Lower 70MM (Pair)
LED Side Light (Pair Installed)
LED Underlift Work Lights (Pair)
Pintle Hook Attachment
Seamless Toolbox Matting - Black (HD)
Stainless Trim Kit - 3 Door (Century HD and CX/VX 120" CA)
Swivel LED Work Light Kit 90MM

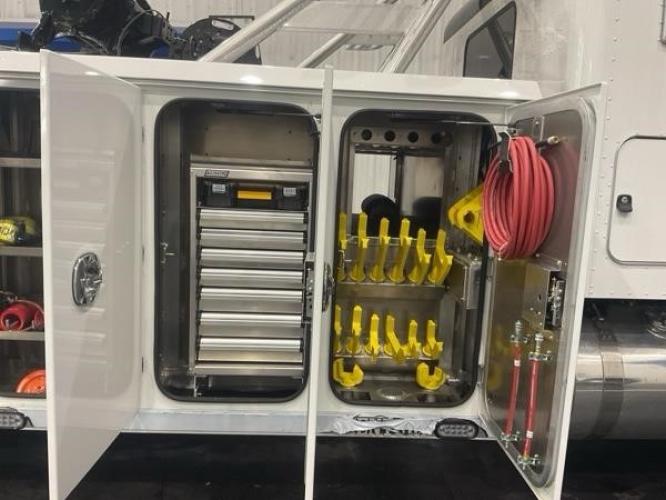

Tool Cabinet - 7 Drawer With Removable Storage Tray
Tow Bar Light - 36" - Wireless
Upper LED Work Light Kit 90MM (Pylon Mount)
Whelen 10”x10” Lights w/o Brackets
Whelen Freedom IV WeCanX 16 Head Light Bar
Whelen M6 Light Kit - Body (Pair)
Whelen M6 Light Kit - Cab (Pair)


Installation
7035 / 9055
Additional Work Lights (Pair)
Aluminum Tailboard Kit
Crossover/Tunnel Box
Dual Camera System
Dual Snatch Block Storage Kit (Each)
Electric / Air Shift PTO - HD
Factory PDI for Heavy Duty
LED / M6 Lights (Pair Body Mounted)
LED Flasher Control Box
LED Strip Light Kit
Light Bar - 72" / HD
Live Air to Tailboard
M6 Lights (Pair Cab Mounted)
Mini Strobe Light Kit
Misc. Labor
Stainless Door Guard (Pair)
Tailboard Remote
Tire Lift Storage Kit
Tool Cabinet Install
Toolbox Mat


Paint
1 - Color Aluminum Body (9055 / V-100)
1 - Optional One Color Center Section (7035 - 9055)
