STOP!!! READ>>>>>> This is one of kind Kustom build for this customer when new Unit is parked inside, one owner complete Service records.. unit is an absolute 12 out of 10.. Please no Gwakers, and or tire kickers.. California Cream puff.

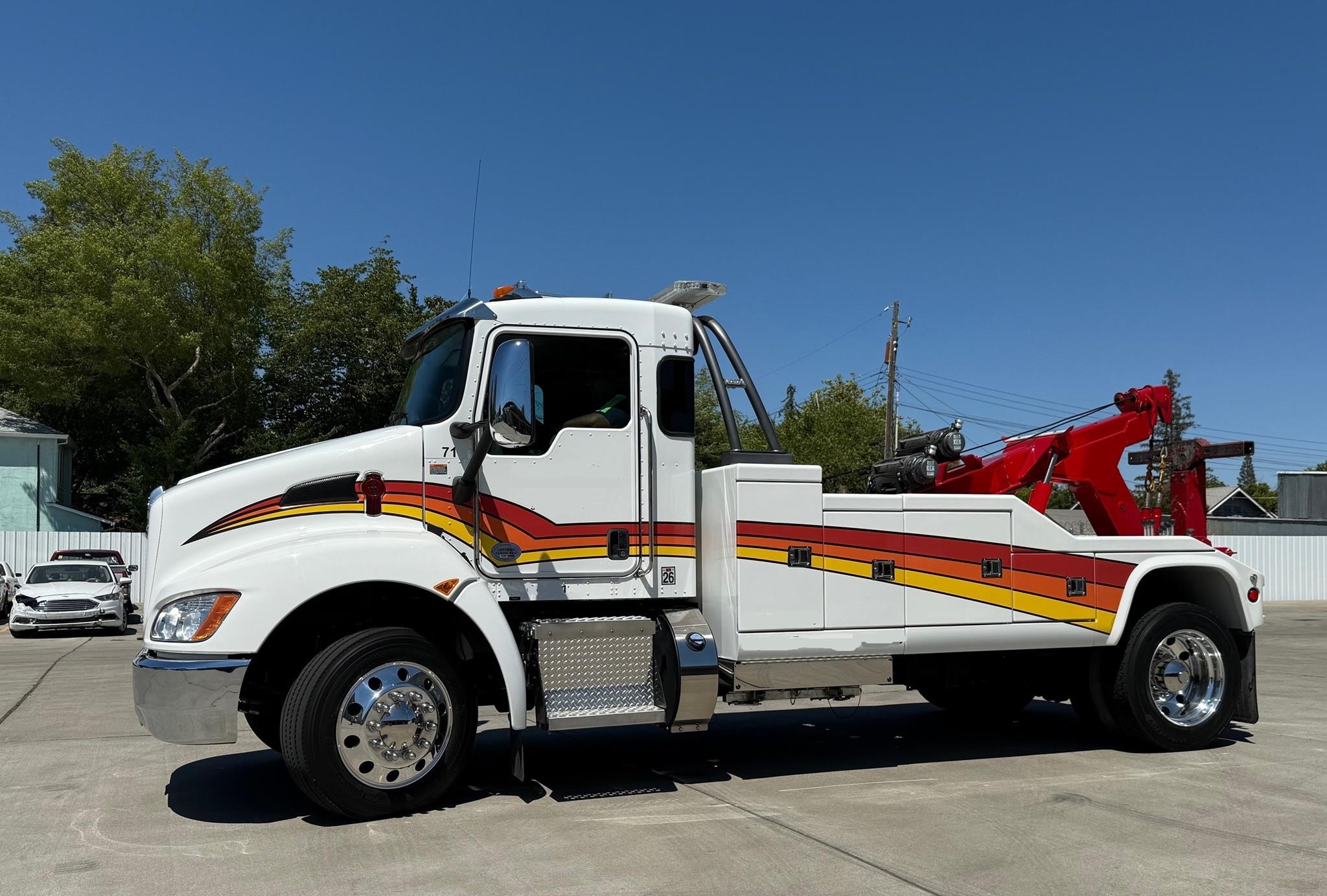

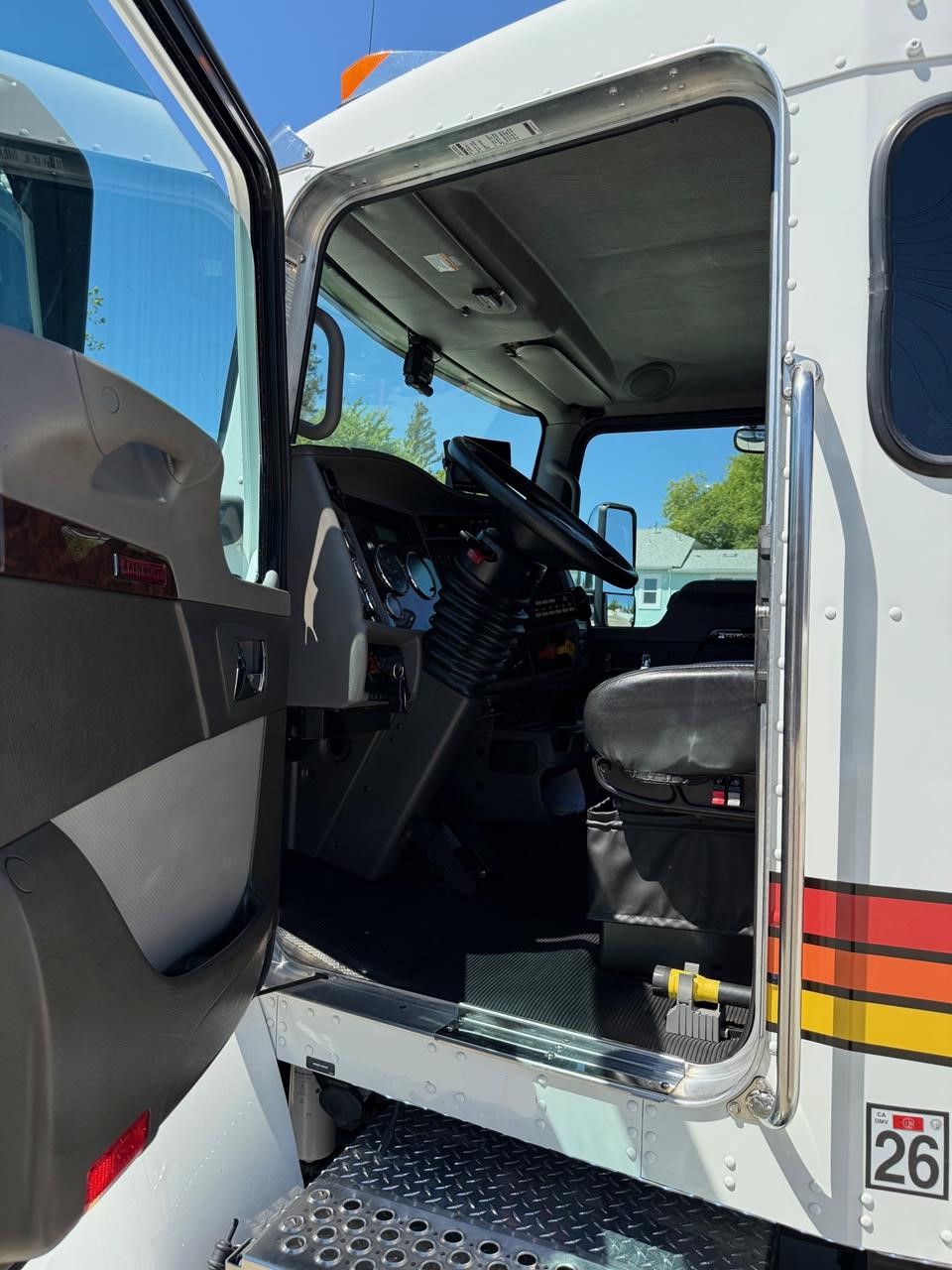

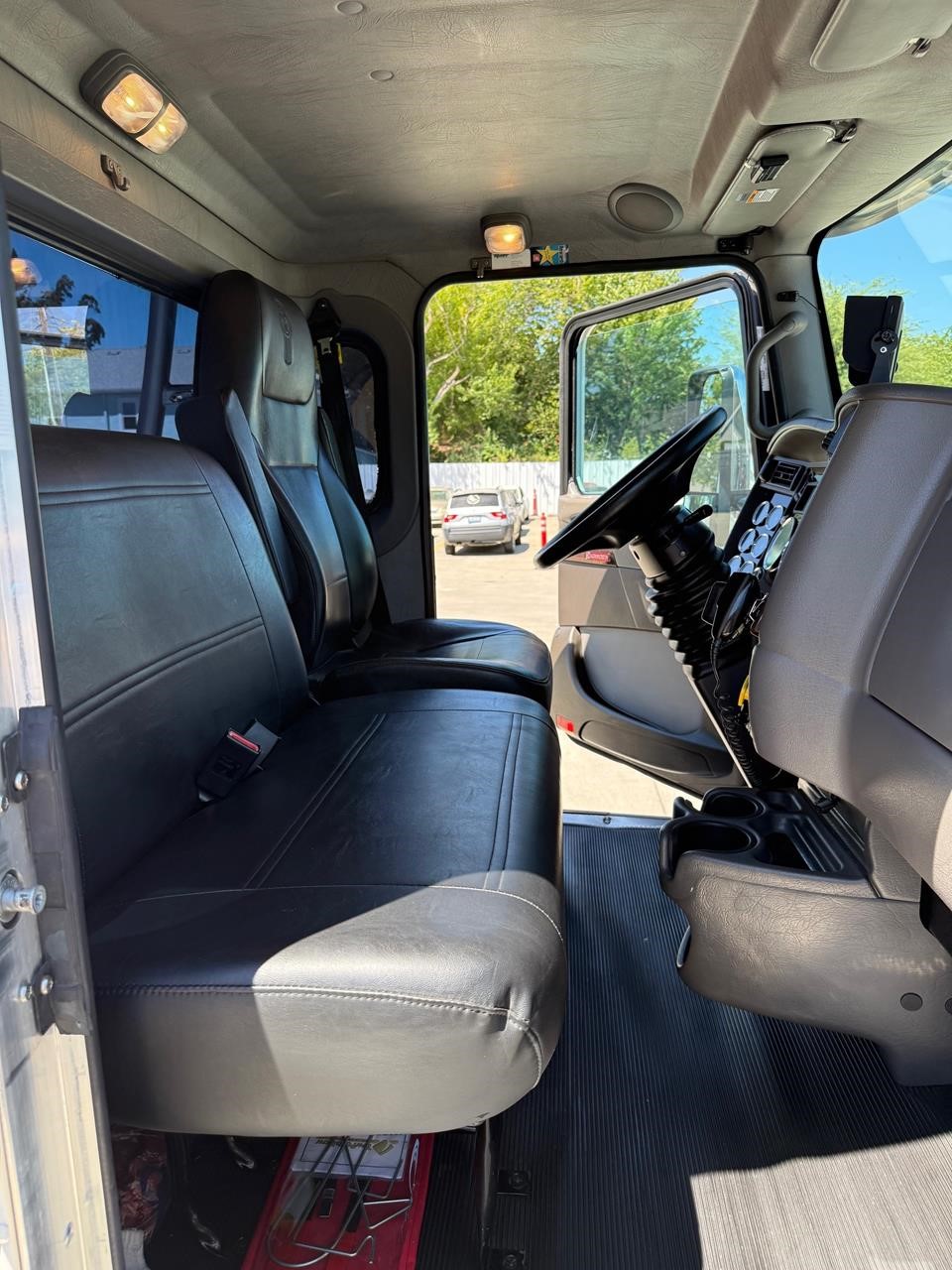

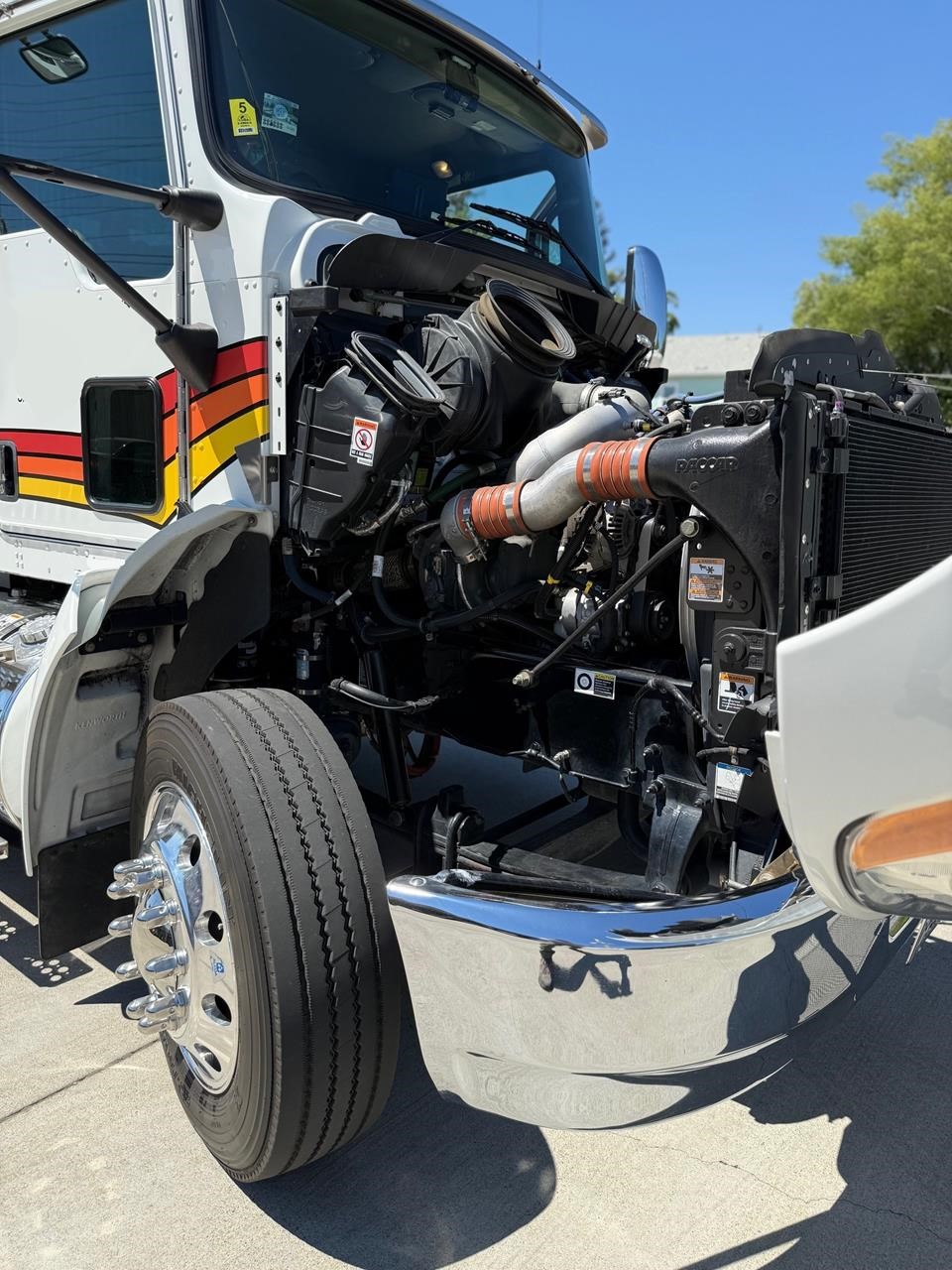

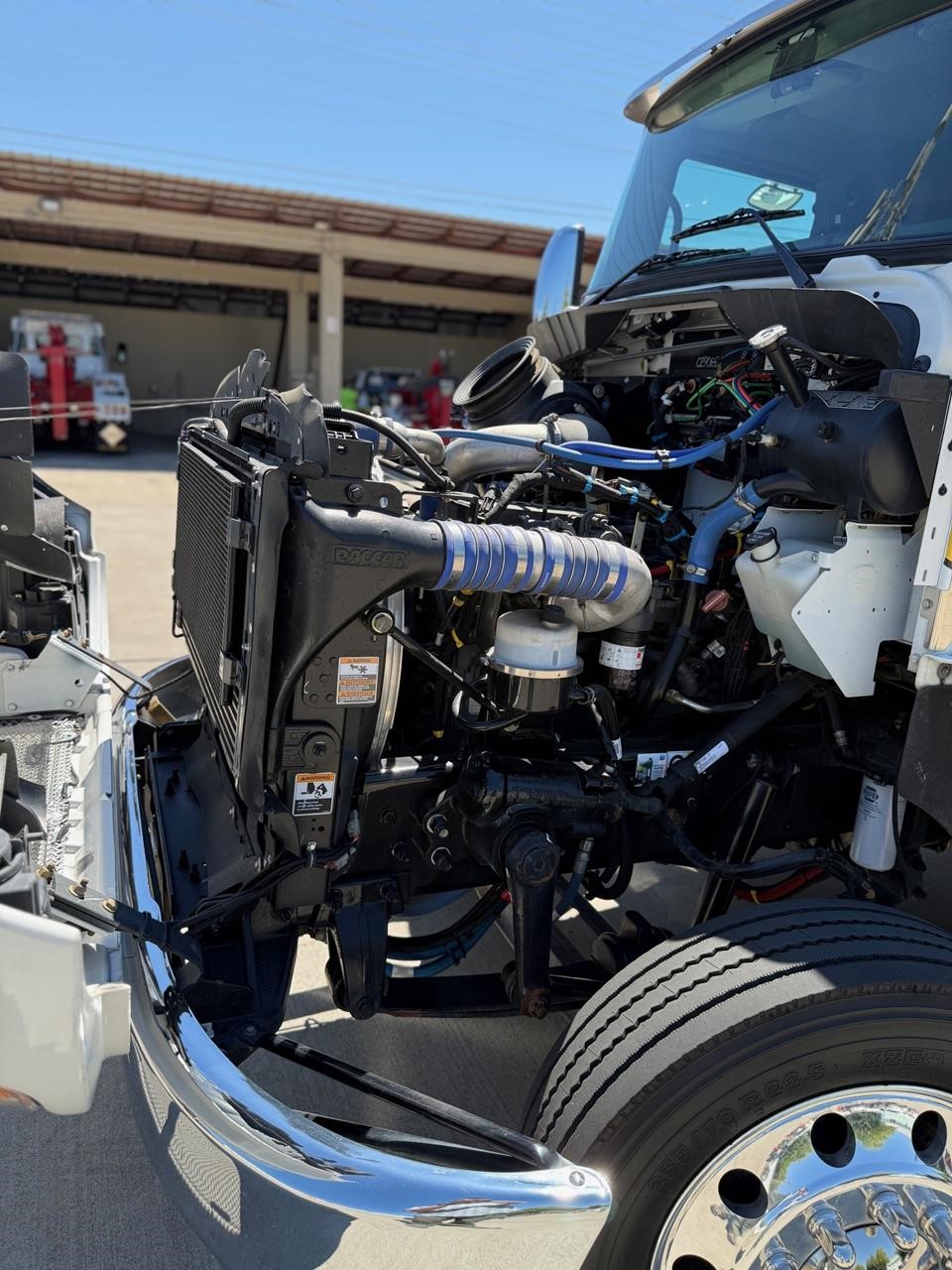

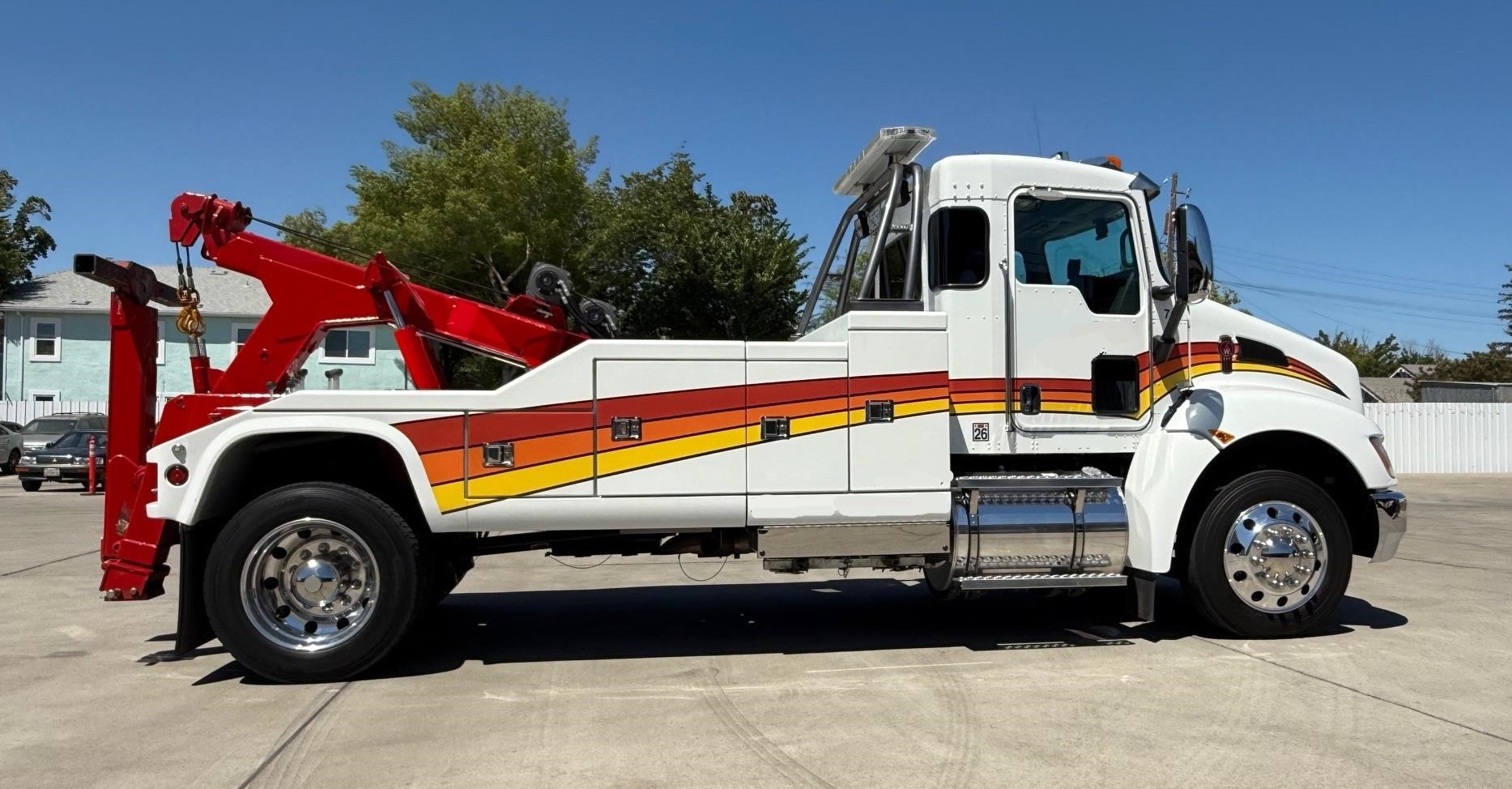

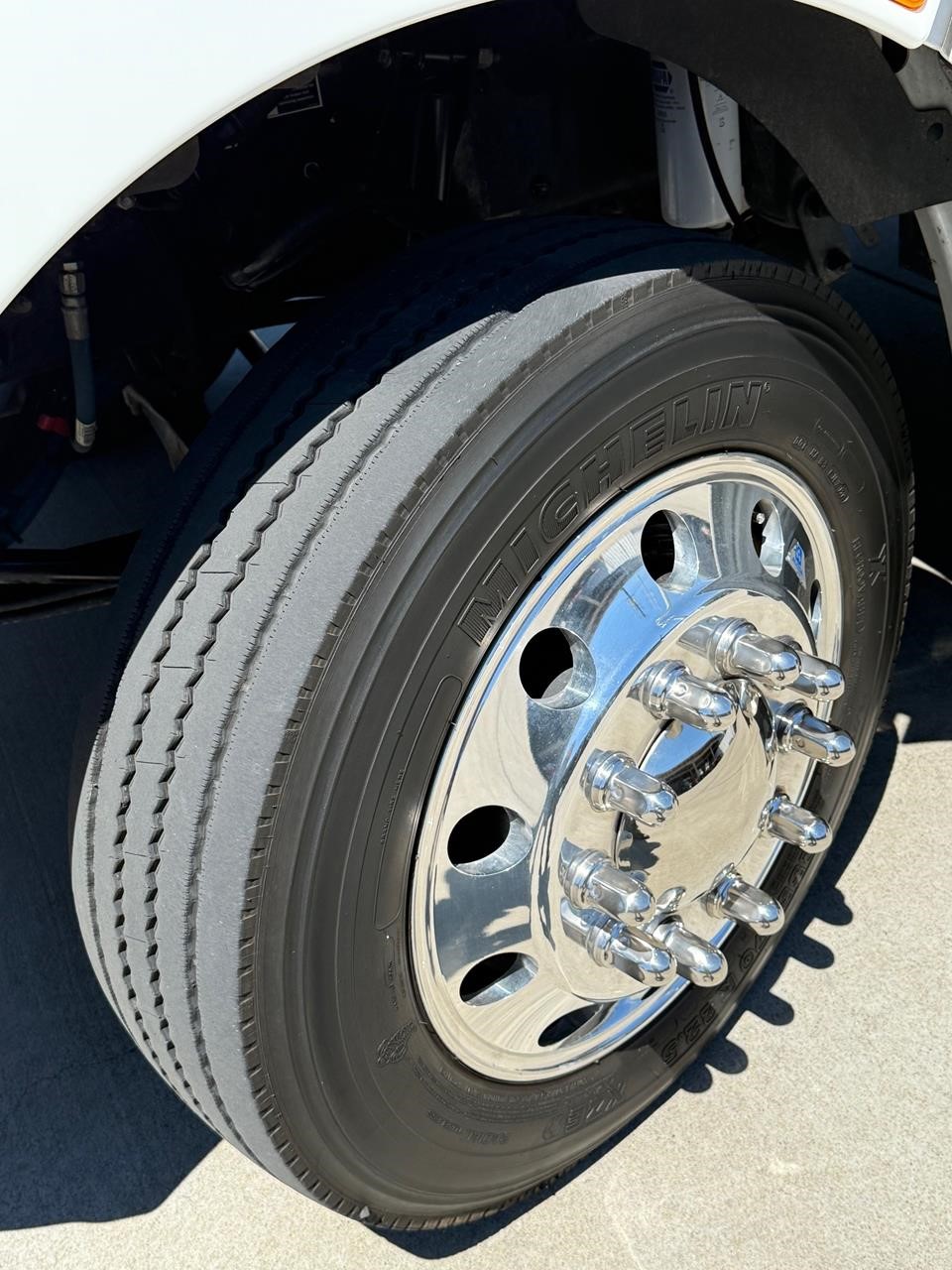

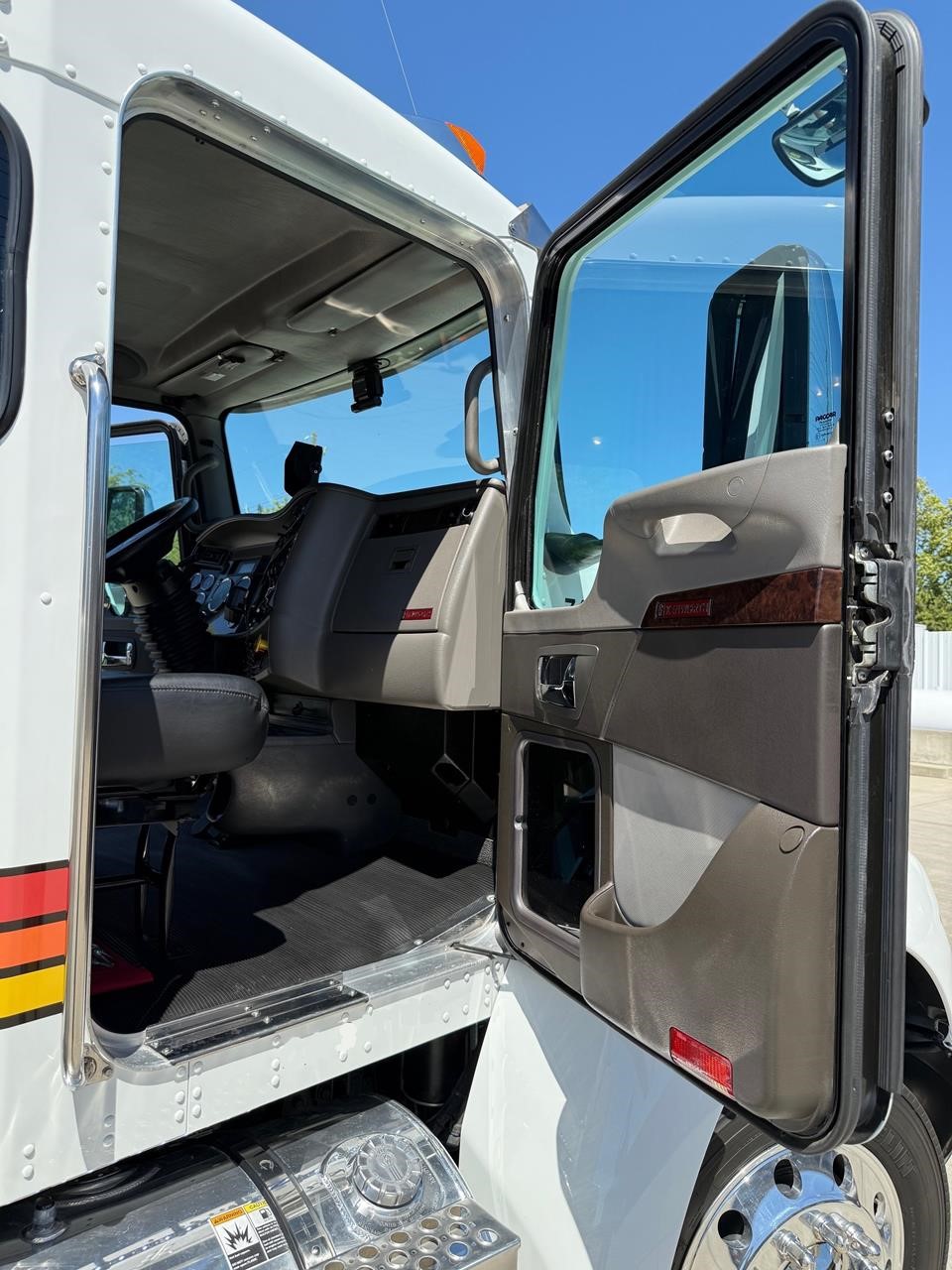

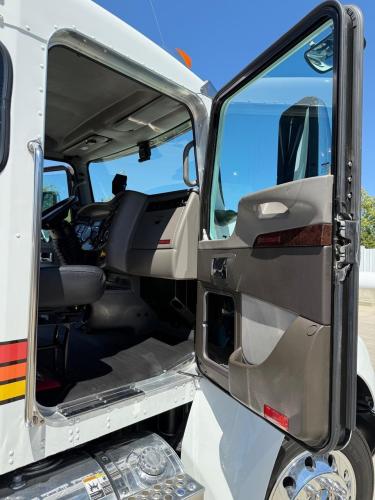

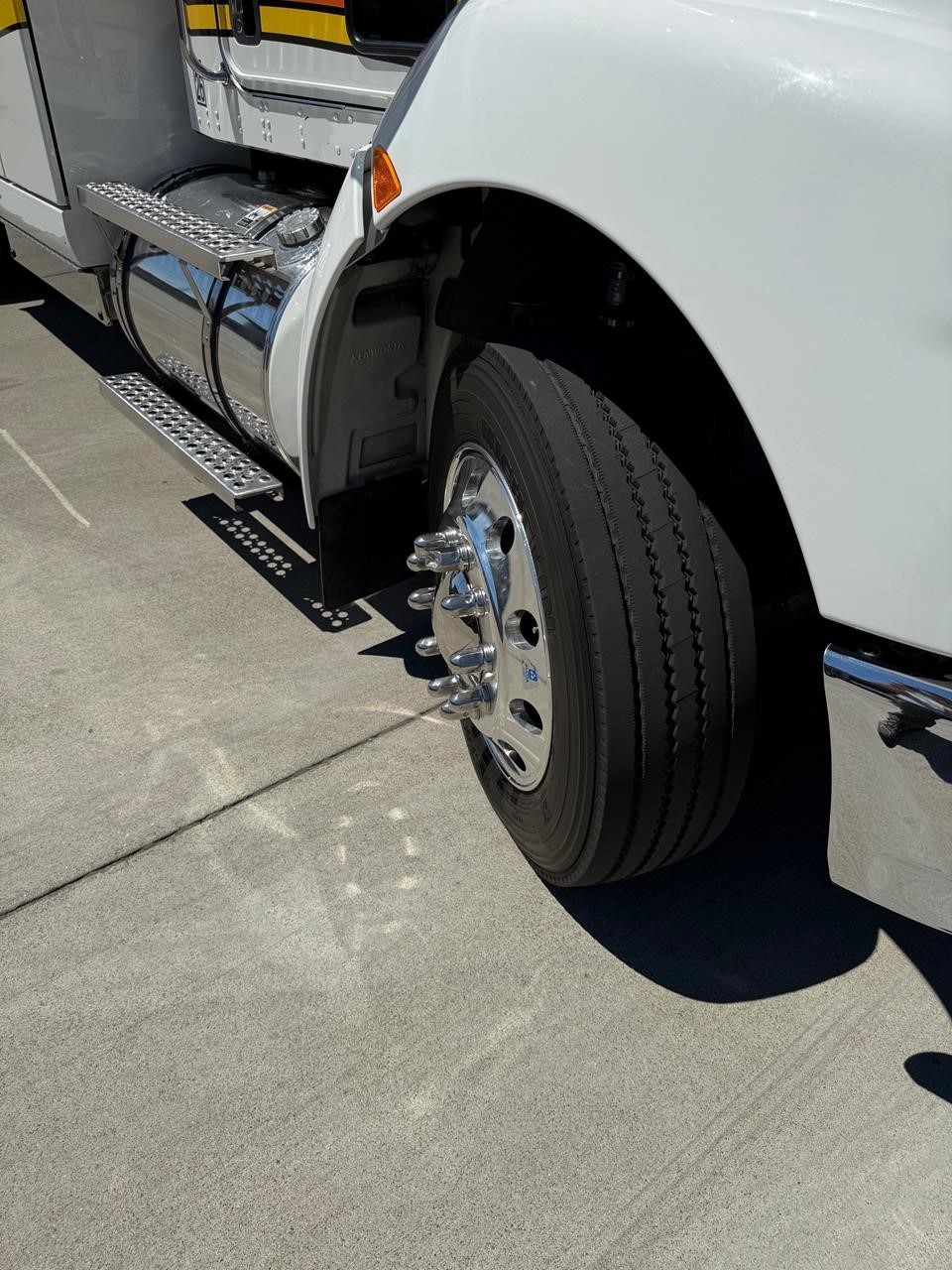

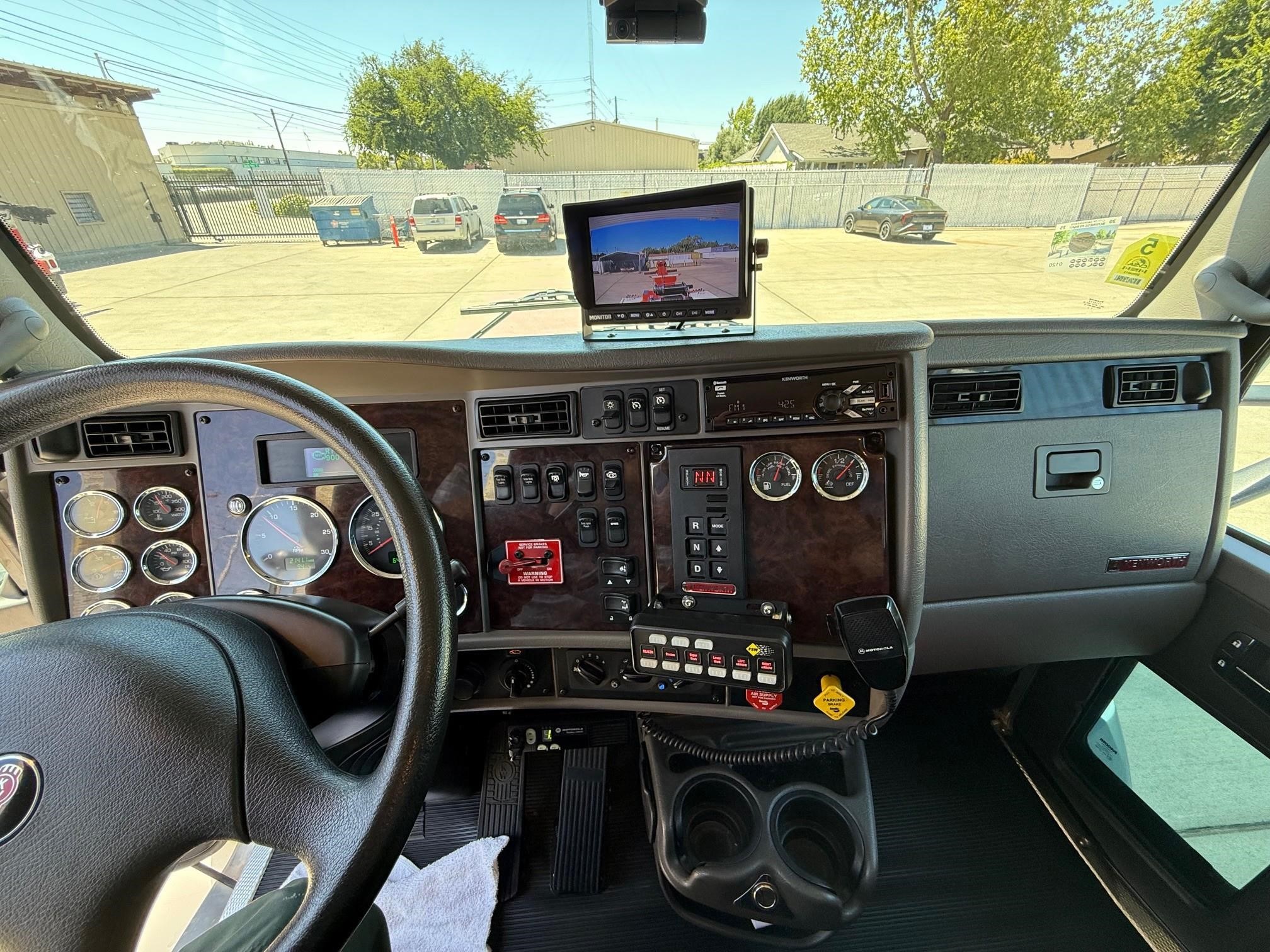

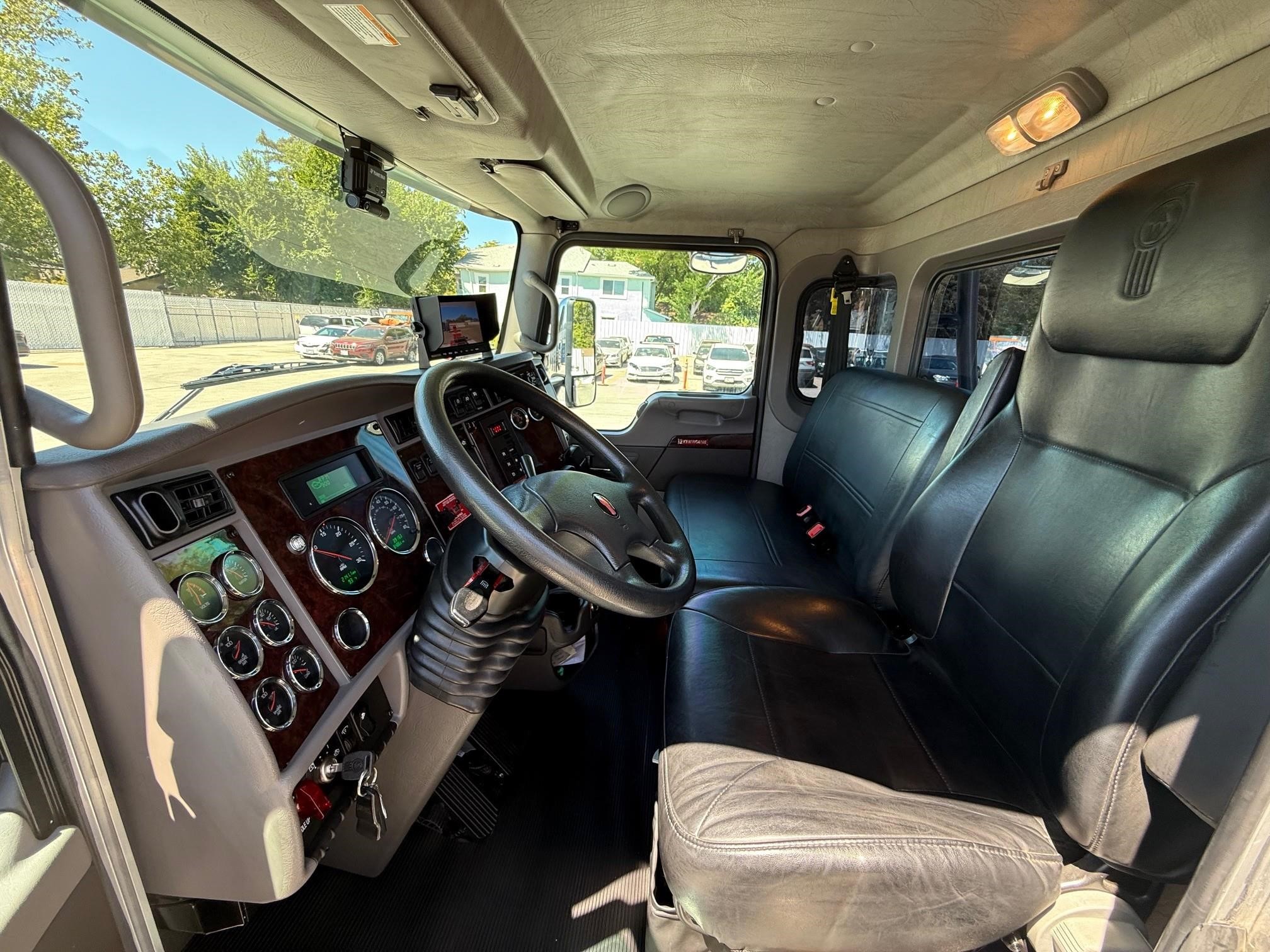

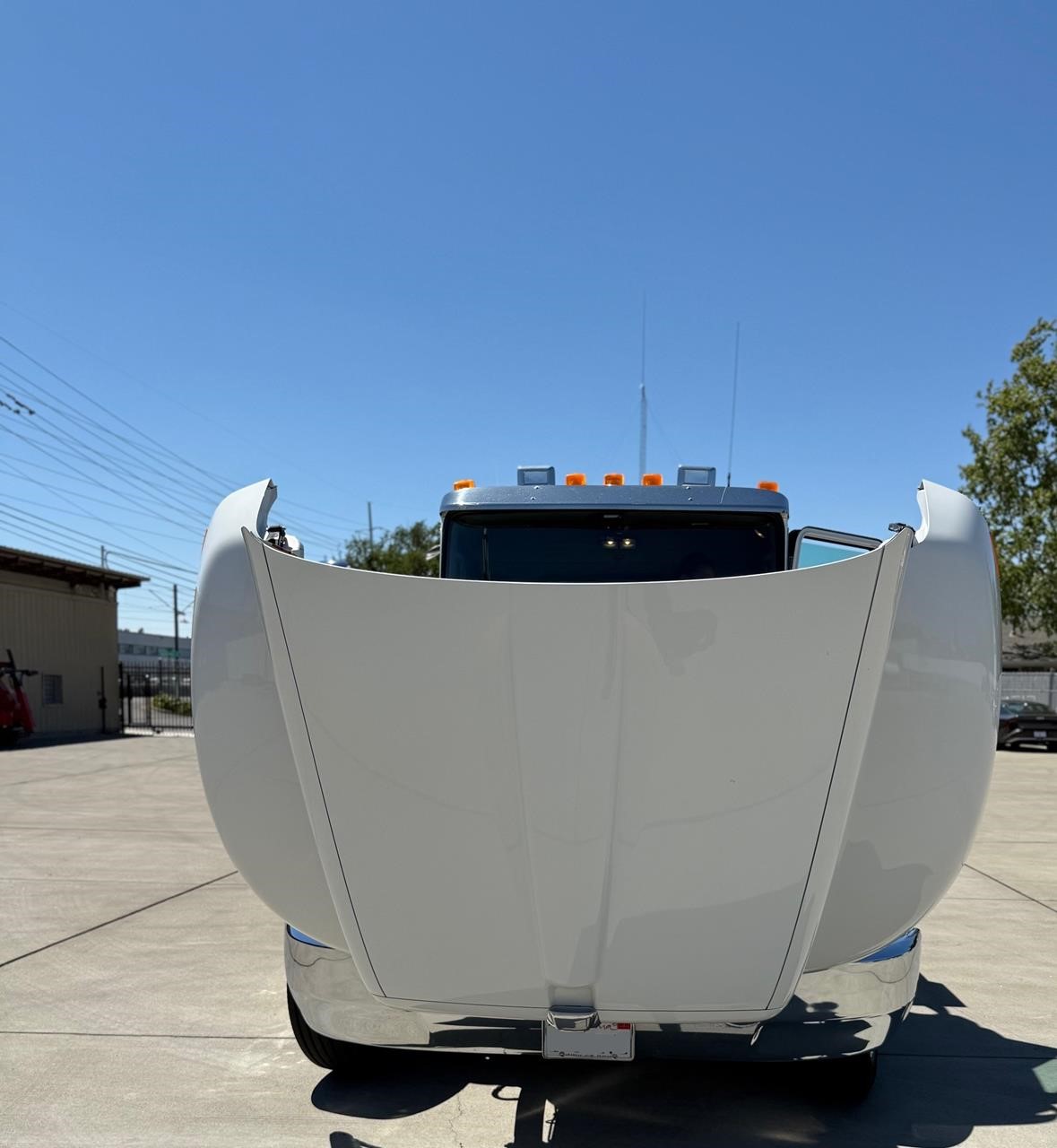

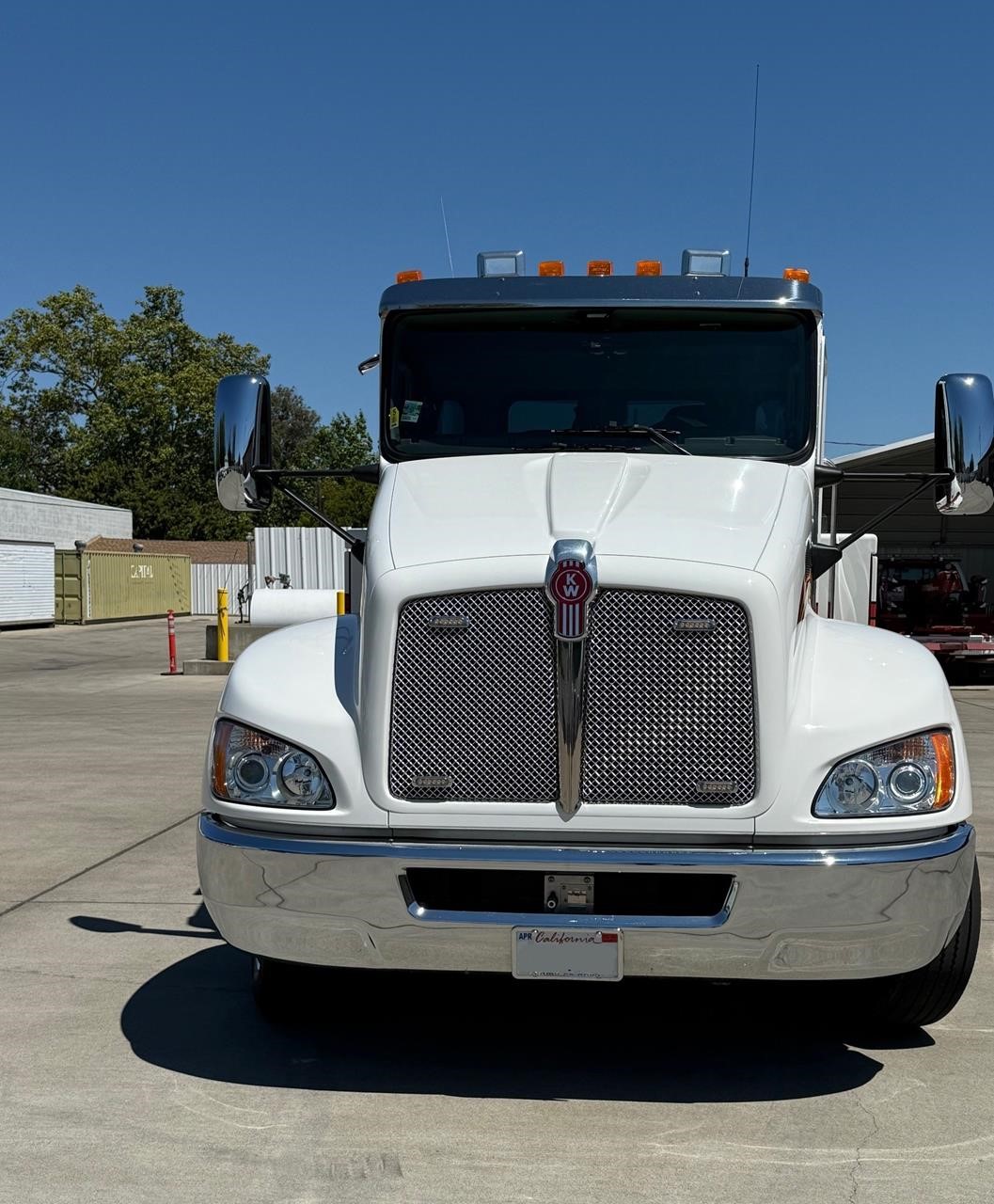

2020 Kenworth 270 Corner Glass cab. PX-7 300HP Exhaust Brake. Visor, Dual Air Horns, Air Ride Driver seat with Dual Arm Rests. Two-man passenger, Chrome bumper, Air Ride cab. Winch Brake. Tractor package, Air Brake package. 75 Gallon Aluminum "D" Fuel tank. Tilt Telescoping wheel, AM/FM Stereo.USB, Bluetooth, Idle, Cruise control. 22.5 Aluminum wheels. 255/70R 22.5 Tires, 22,000lb Axle - RATED at 20K, 4.88 Ratio, 10,000lb Front axle. 23,000lb Air Ride suspension with Dump valve..Battery Diamond Plate box..Power windows, Power Locks, Power Mirrors, Heated. PTO Switch. Air Suspension Gauge. Burl wood dash. Derated to - 26,000lb GVWR

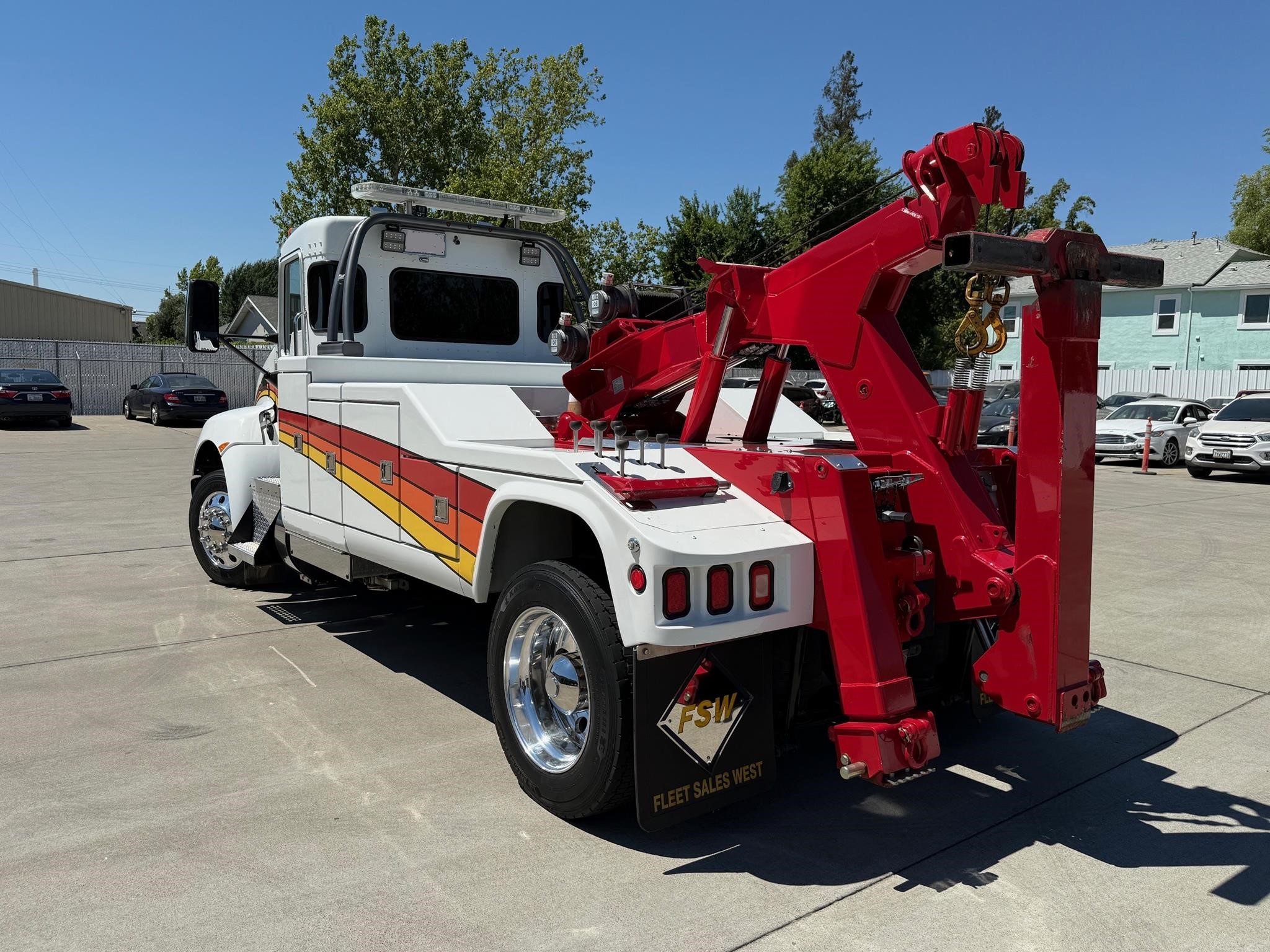

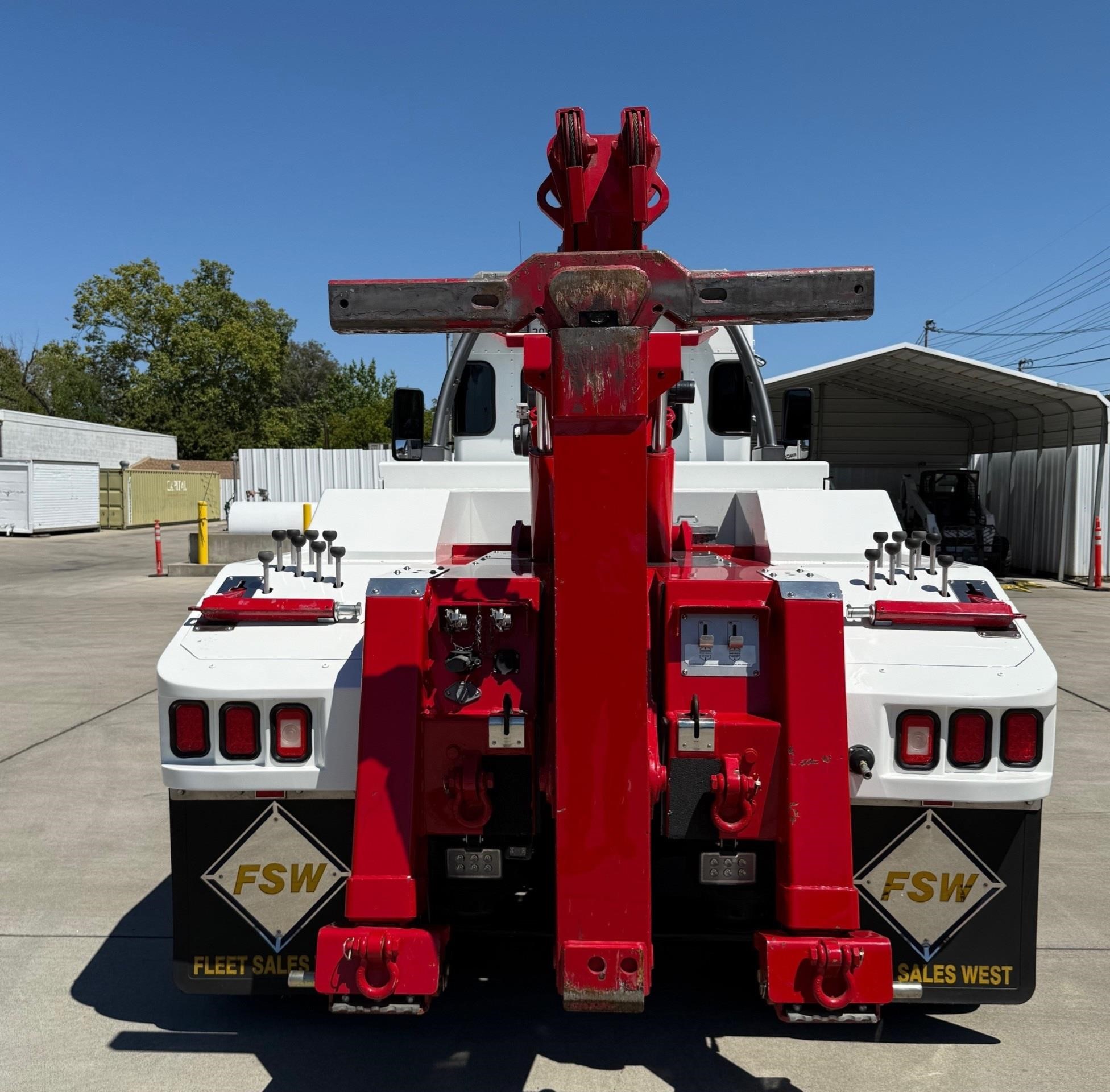

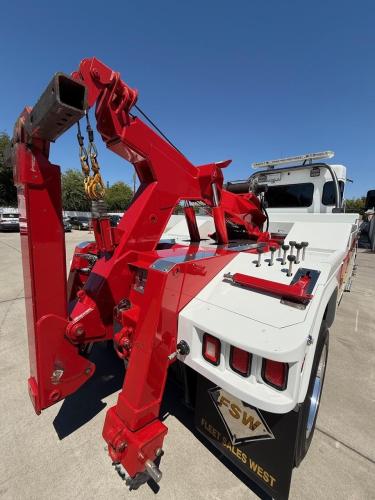

Chevron LMD 512 T 12 Ton Integrated Wrecker (Next Generation)

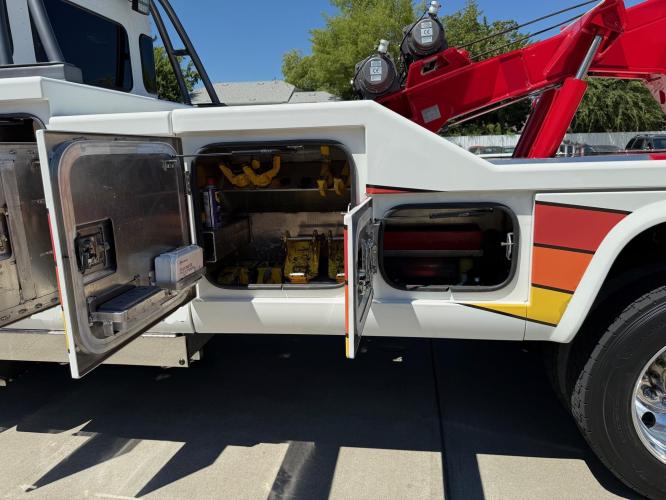

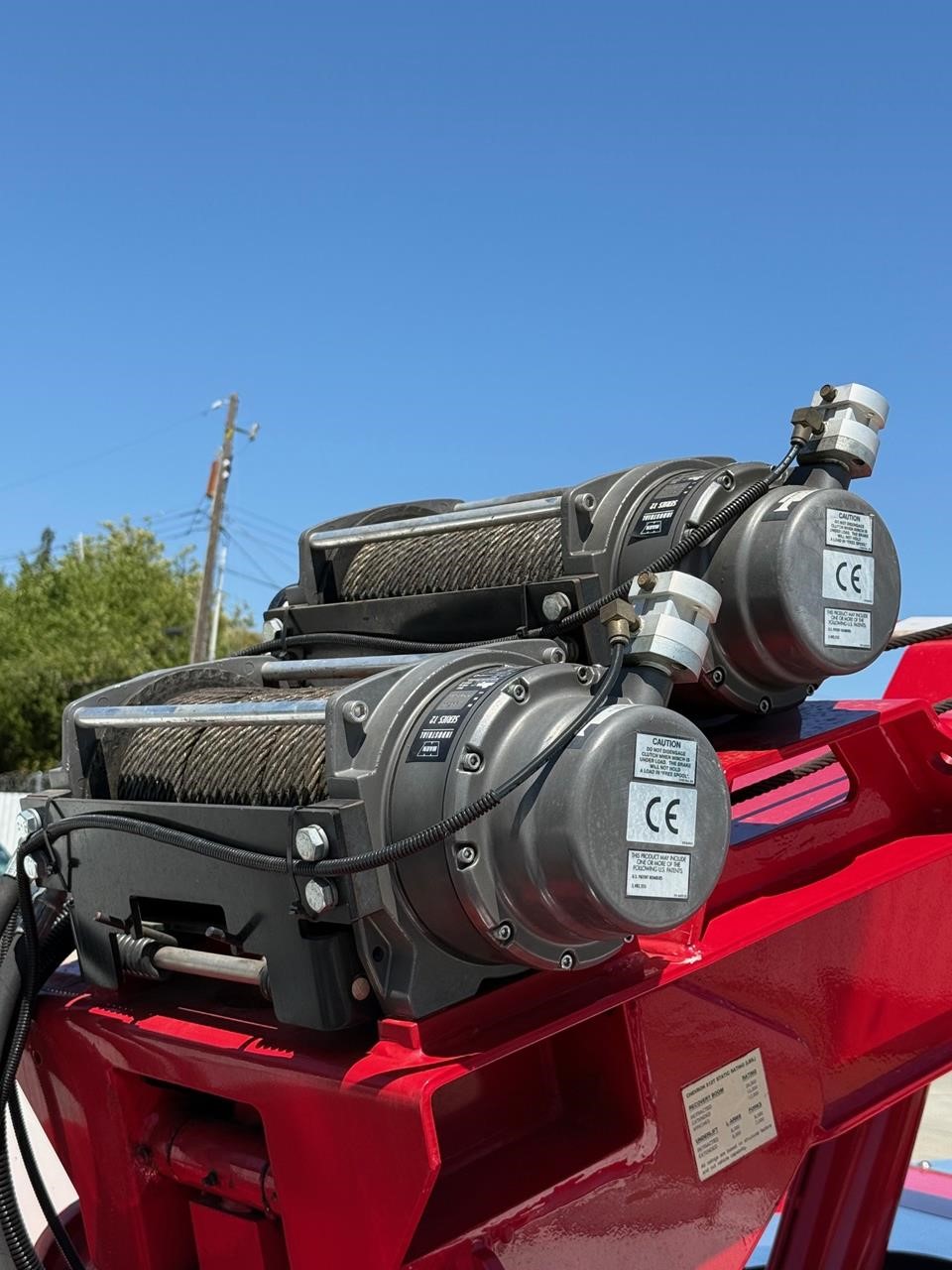

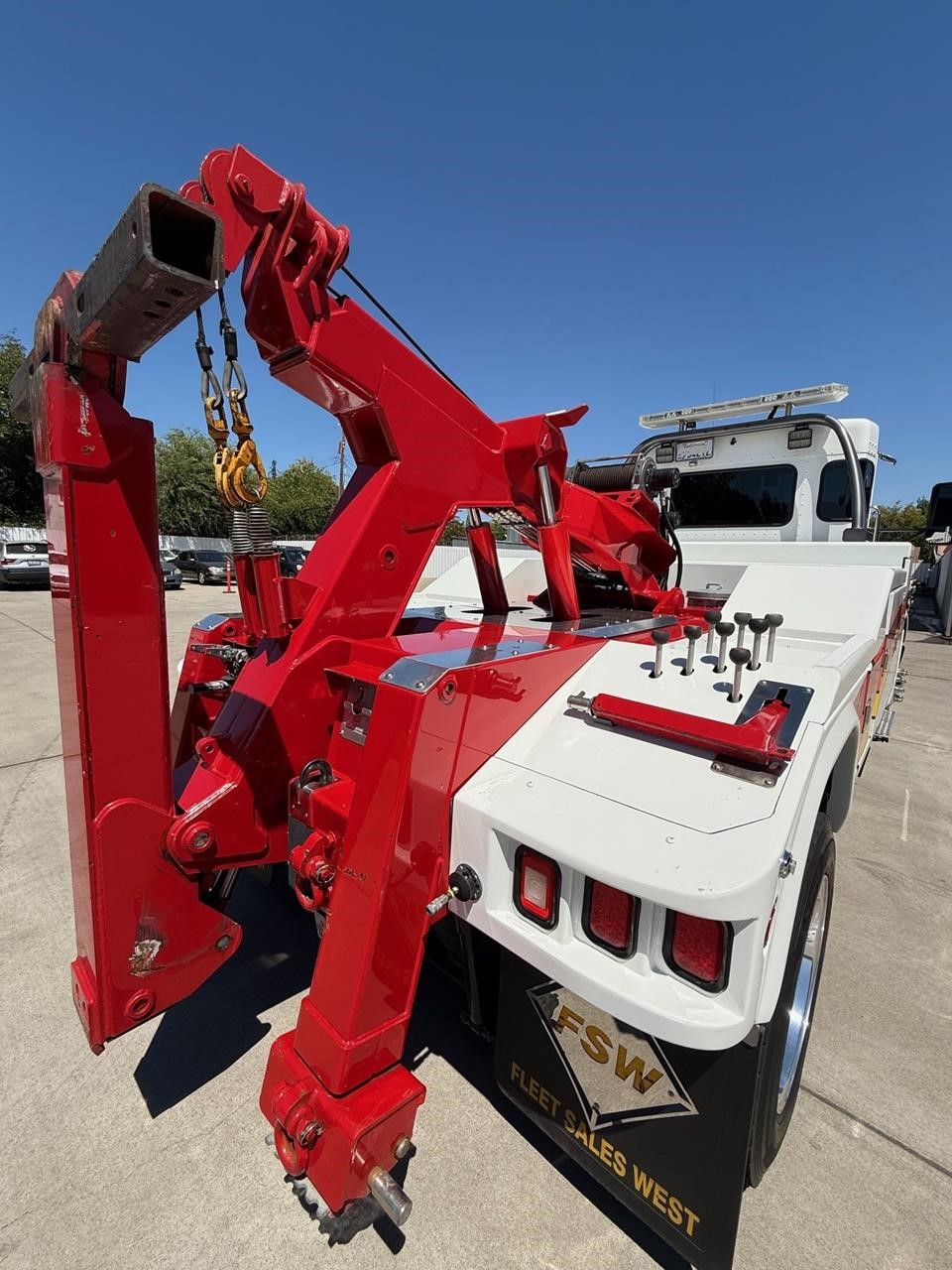

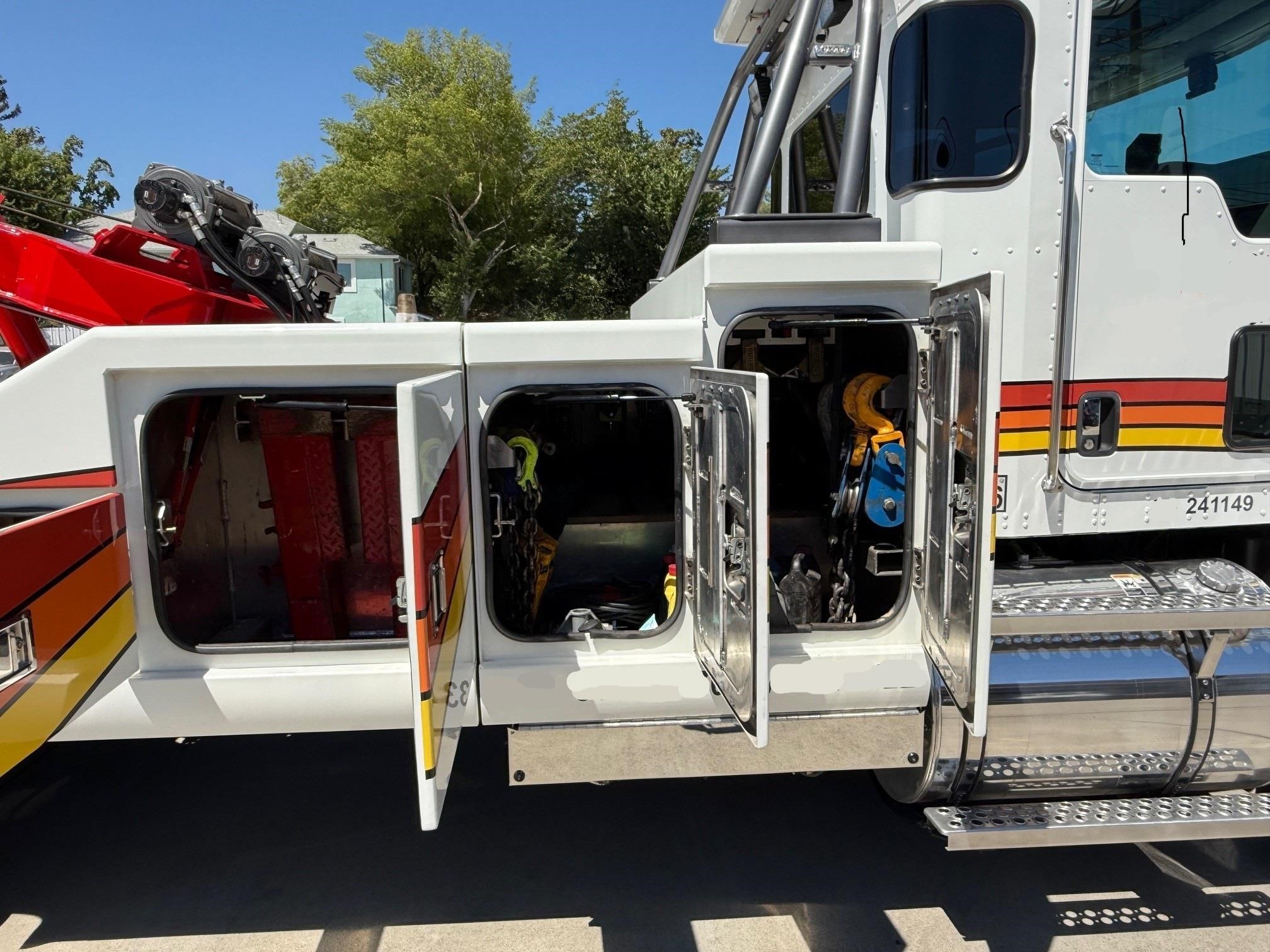

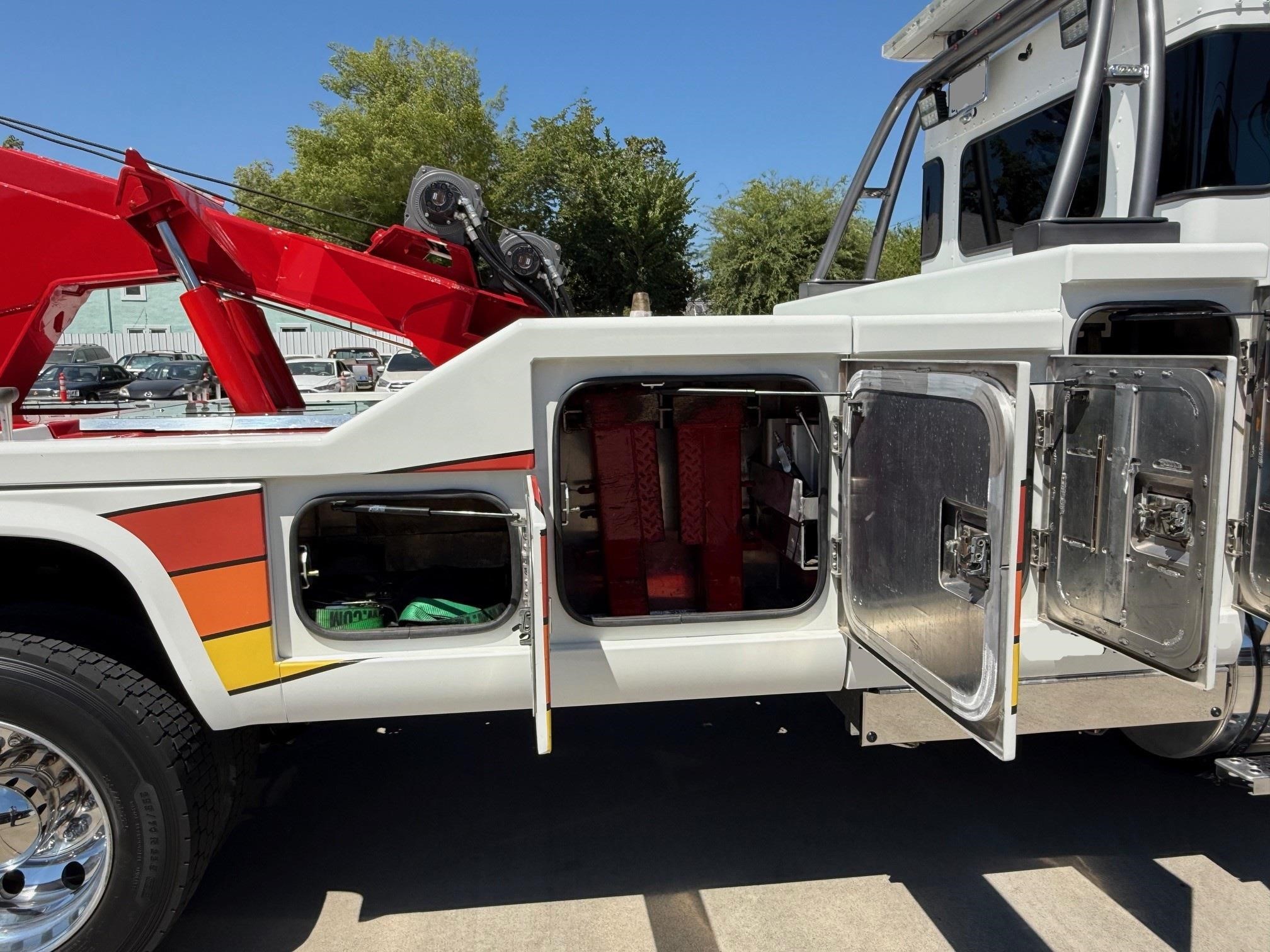

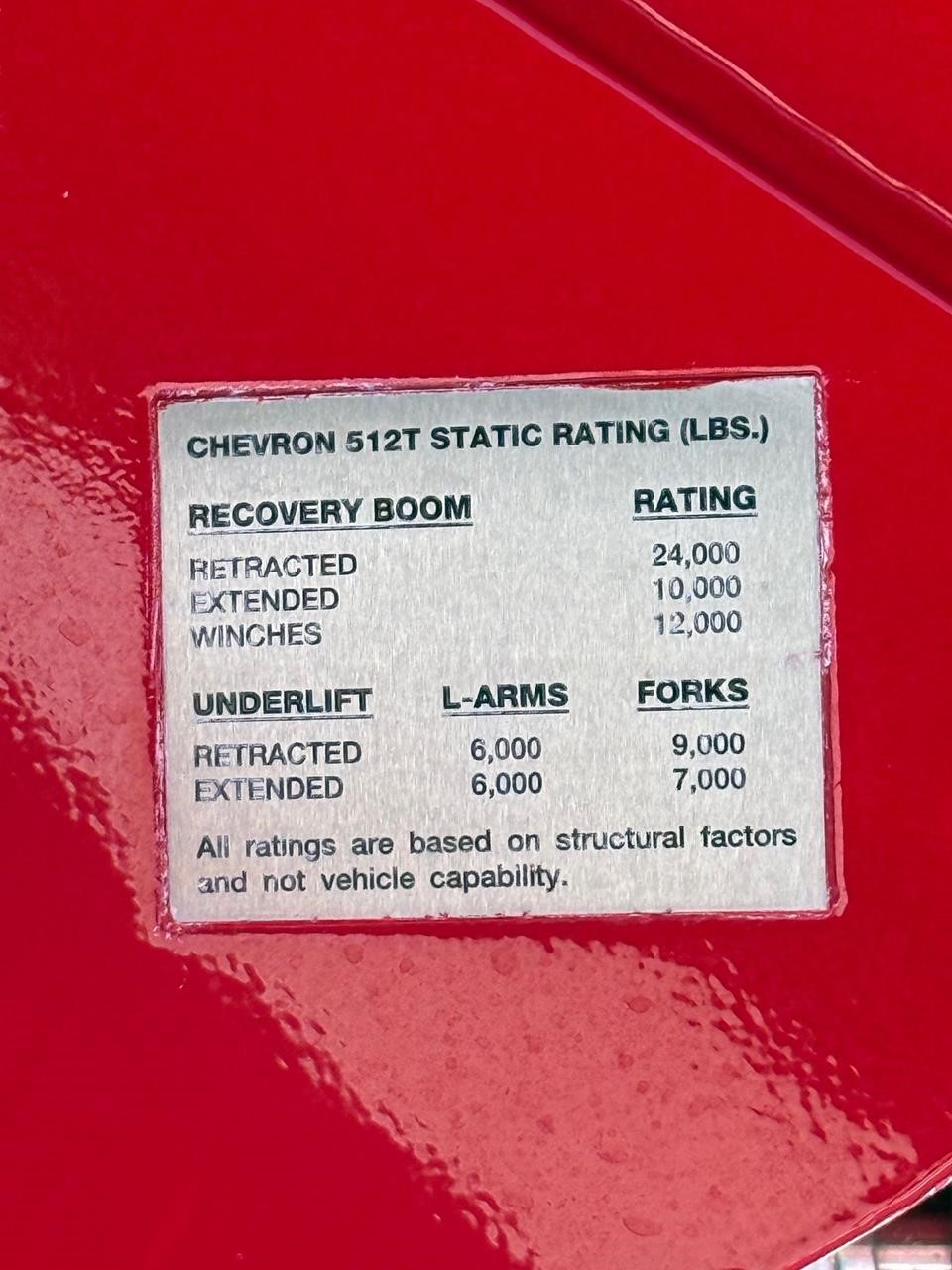

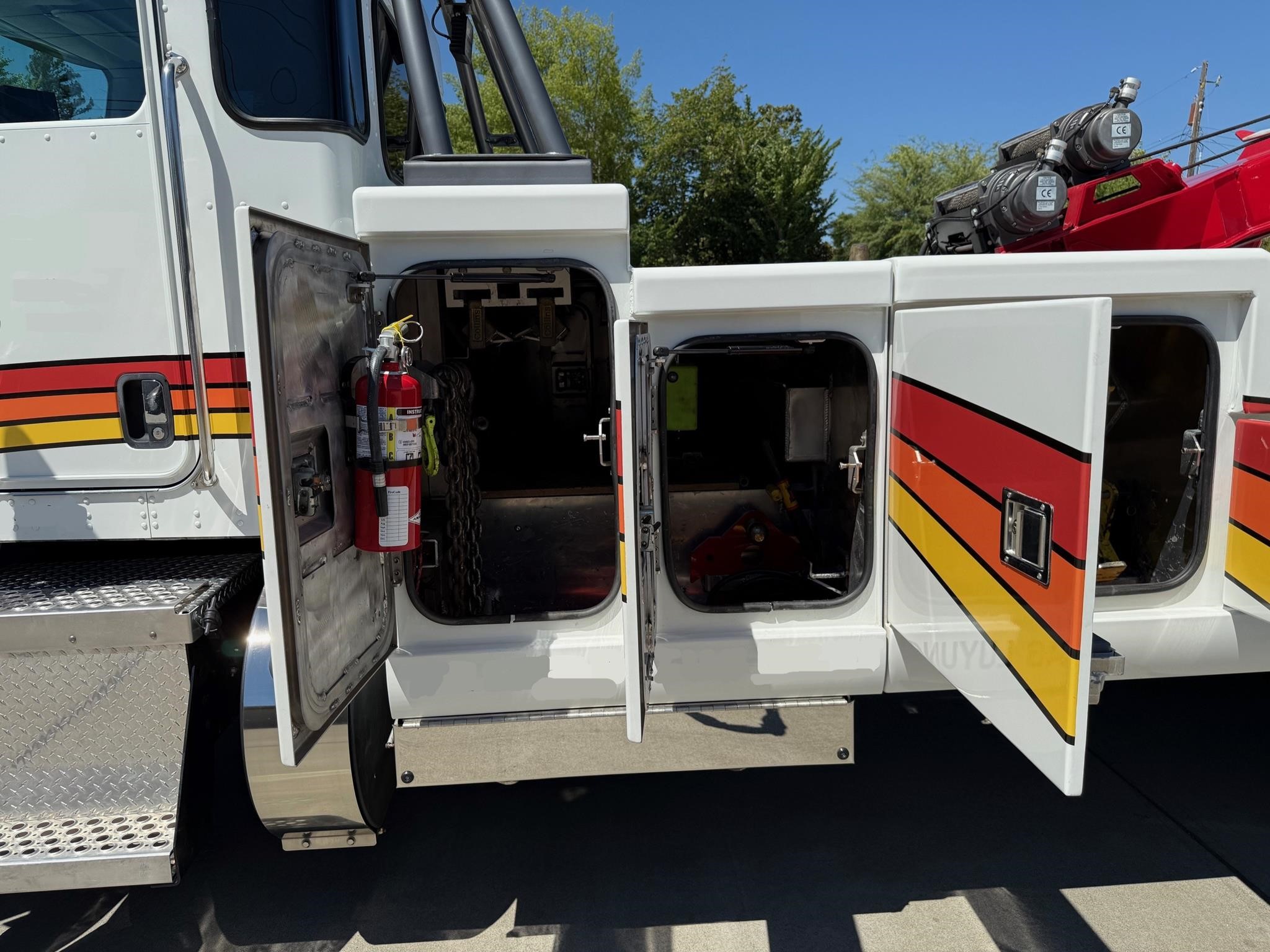

Aluminum modular body sides with two tool compartments each side. Aluminum 28 in. tunnel through box with tool compartment lights. Tool compartment door closures on all doors “Warn” 12,000 lb. Planetary winches. 7/16” x 150 ft Cable per Drum. Cable Tensioners. Air Free Spool Winches (2) Switches on the Rear tailboard. 108” CA 6000 lb. L-arms. Elevated fork holders. Wheel straps and ratchets. Safety chain pockets. Safety chains.FMVSS 108 lighting (L.E.D.). Junction box with wire harness; pilot-operated holding valves. Lubrication fittings on all pivot points. Dual rear controls. Rear shackles. Tow light plugs. Backup alarm. Mudflaps. 3-inch forks.4-inch forks; Spring shackle adapters. Low-profile offset fork holders. Under lift crossbar extensions. L-Arm Storage Pockets (Slope of Rear Deck). Body width is 96 inches, boom elevation is 41 degrees, boom reach past the tailboard is 71 inches, and under lift reach from tail. board to center of fork; 78.5 inches; Negative tilt range;10 degrees; Control valve; Sectional, 15 GPM, 2200 PSI; Oil reservoir; 13 gallons; Oil filters (2); 15 GPM, 10 Microns; BOOM;Retracted;24,000; Extended;10,000; Winch (1st layer); 12,000; Under lift; Retracted (forks) 9,900 Extended (forks); 7,000; Tow Capacity (rolling) 20,000. Body Serial # .5120171D19
Hydraulic Rear Spades (512TA)
Lanyard Remote Control (Standard Crossbar)
For Glow light package two color
Accessories
Glad Hand & Seven Pin Connector (If not OEM from Chassis)
Muncie Hot Shift PTO (Allision or Aisin - 6 Bolt)
Pintle Attachment - LD
Paint
1-Color Center Section Viper Red. - Special
Dealer Added Accessories.
ACC: Air Hose Reel
ACC: Boltcutters, 24"
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238
ACC: Camera, Two Backup 7” LCD System HD Applications
ACC: Cone, 18", Single: (F)CN-186R; (W)53858A; (G)100476
ACC: Driver Essentials Bag
ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22
ACC: First Aid Kit: (F)ACE6060; (W)50503L; (G)20229
ACC: Flashlight with DC Charger, Streamlight LED PolyStinger
ACC: Fuel Can, Diesel, 5-Gallon, Yellow
ACC: Fuel Can, Gas, 5-Gallon, Red
ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
ACC: Lockout Kit, One-Hand Jack Kit
ACC: Lug Wrenches, 14" Metric/20" Standard
ACC: Pry Bar, 60"/51" (F)AMES1160100; (W)50020; (G)PPB-51
ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ACC: Splitting Maul (F)AMES1113115200; (W)Maul Axe; (G)TJ-8H
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit

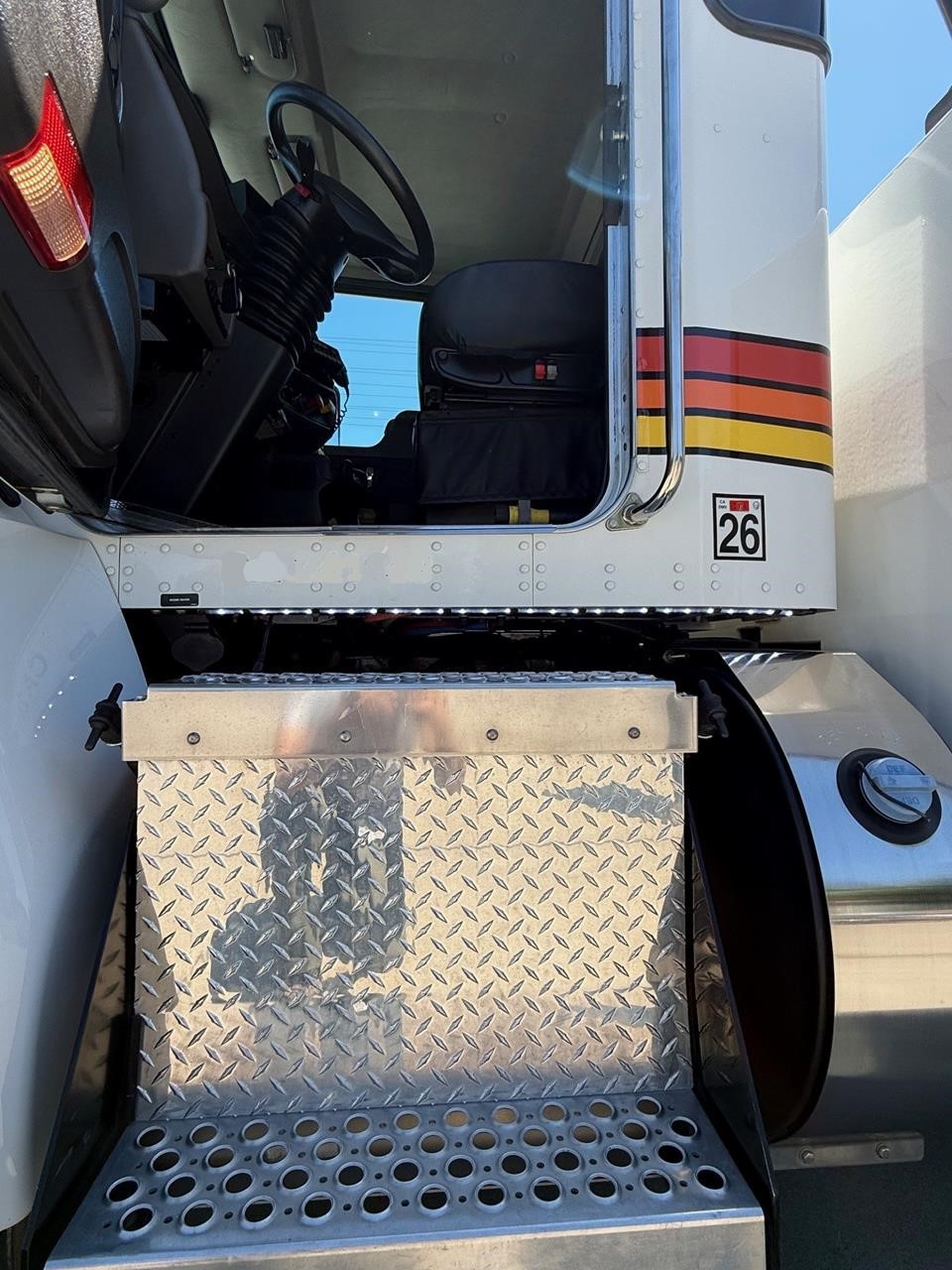

B/M: Bracket Kit, Aluminum, required for all Medium-Duty Wreckers
B/M: Fuel Can Rack, 1-Can, Aluminum, behind Streamliner Toolbox
B/M: Jumpstart/Air Coupler Bracket, Universal
B/M: Switch Panel Bracket, BR995, Peterbilt
B/M: Trash Can Ring, 4-Gallon, Deck-Mount, Aluminum
BOD: Chain Pocket Guards, Stainless Steel, Pair
BOD: Mudflap Weights, FSW, Stainless Steel, Pair
BOD: Mudflaps, 24" x 18", Pair
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"
LB: Torrent, 14-Head, Amber with Alternating Rear Flashers, 60"
LIT: Breaker, 80-Amp, add 1 for each Jumpstart connection
LIT: Control Panel, 9-Button with TA Option, Brooking (F) FSW-995 KIT; (W)BR995; (G) GWTE-995 KIT
LIT: Jumpstart, Brooking Flush-Mount Kit, Front, with 25' Cables
LIT: Junction Box, 10-Pole
LIT: Tow Light, Wireless, TowMate, Limelight 22", LED - Warranty issues, customer contacts TowMate directly.
LIT: Worklights, Rectangular, LED HD, Pair, for Lower Worklight (Required on LCG)
LIT: Worklights, Round, 6", High-Intensity, 4800 Lumens, Pair
SH: Air Coupler, Rear (Wrecker) (F) 27808; (W) Auto Coupler; (G) 68273
SH: Shop Supplies
SL: GLOW Lights, Amber, Installed In Channel on Wrecker or Carrier
SL: Knight rider Light package -Headlight Package
SL: Miller HD -Flasher control Power unit for LED Body & Strip Lights.
SL: Strip Lights, 18", White, LED, in Wrecker Toolboxes, Pair
SL: Strip Lights, 36", Amber/White, LED, Pair, Undercab
SL: Strobes, Amber Grille Lights, ST-6 Super-Thin, Pair, Chrome Bezels, Backing Plates, Wire Harness
SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, Mounted at Rear of Wrecker, Wire Harnesses
SL: Strobes, Amber, Rectangular, 12-LED, High-Intensity, Pair, Wire Harness
TB: Bunks, Dollie, 4:80, SS Door, Pair
TB: PolyFloor, Installation
TB: PolyFloor, Red, 50 Squares
TOW: Chain, Recovery, 20', 5/16", Grade 70, Cradle Grab Hooks, Single
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
TOW: Chains, Safety, Grade 80 Self-Locking Hooks, Pair
TOW: Dollies, Collins, 4:80 Tires, Aluminum Wheels, Aluminum Crossrails, Complete Set
TOW: Flare Case (Case Only)
TOW: Flares, 6 (F)0730(x6); (W)7703605(x6); (G)100783(x6)
TOW: Lumber, 4" x 4"s, 48" & 60"
TOW: Ratchets, 2", Wide-Handle, Finger-Hook, Pair
TOW: Snatch Block, 4-Ton, Yoke
TOW: Strap Kit with Bag, Motorcycle, Wrecker, B/A
TOW: Strap, Steering Wheel
TOW: Straps, Chevron, Keyhole, Pair
TOW: Tiedowns, Dollie, Ratchets and Straps, Pair
TOW: Trailer Ball Kit, Convert-A Ball
TOW: Trailer Hitch Plate, Chevron, Standard
TOW: Winch Cable, 3/8", 150', Fiber Core, Self-Locking Hook
WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"
Notes

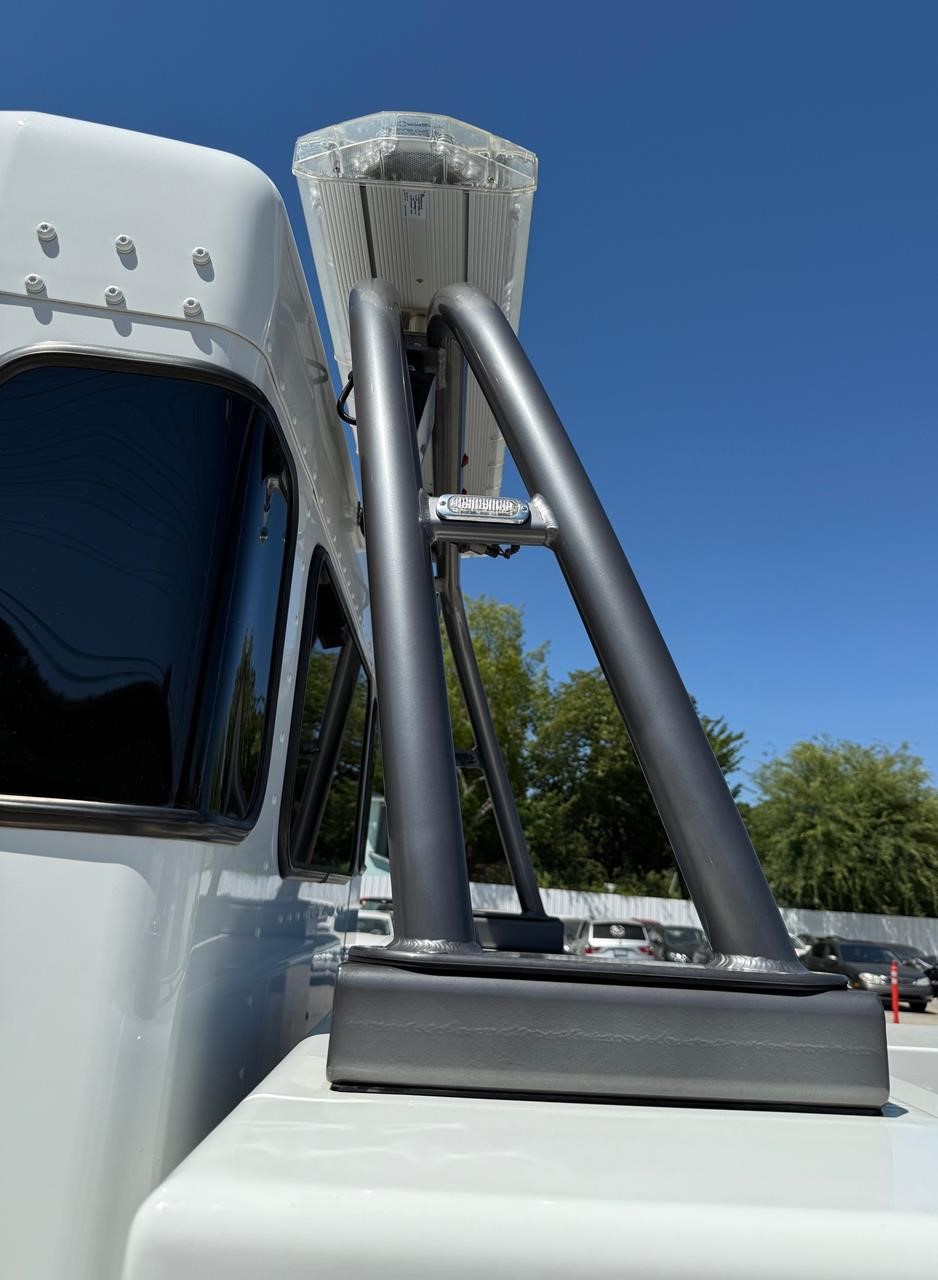

38” HD Aluminum Pylon Tubular.
40” Step Up Tunnel box Aluminum.
Paint for side boxes, Tunnel white. -
Glow lights installed on the bottom of tool boxes set to Amber for Running
White for Area lights on a separate switch.
