L6

All Carriers

Specifications

• A/C Condition: New
• Air Conditioning: Yes
• Axle: Single
• Axle Configuration: Set Front Axle
• Cab: Standard Cab
• Collisionmitigationsystem: No
• Color: Black
• Cruise Control: Yes
• Differential Lock: No
• Dot: Yes
• Drive: 4x2
• Driver Position: Left Hand Drive
• Dual Breathers: No
• Dual Exhuast: No
• Engine: CUMMINS
• Engine Arrangement: 6.7
• Engine Brake: No
• Engine Size: 6.7
• EnginesizeUnit: Engine Liter
• Exhaust Brake: Yes
• Front Axle Lbs: 10000
• FrontaxlelbsUnit: Pound
• Fuel Type: Diesel
• Glider Kit: No
• Gross Vehicle Weight: 25500
• Gross Vehicle Weight Rating: Class 6
• GrossvehicleweightUnit: Pound
• Headache Rack: No
• Heated Mirror: Yes
• Horsepower: 260
• HorsepowerUnit: Horsepower
• Hours Meter Inaccurate: 0
• Lift Axle: No
• Mileage: 211
• MileageUnit: Mile
• Navigation: No
• Num Speeds: 6 Spd
• Overdrive: Yes
• Overhaul: No
• Power Locks: Yes
• Power Steering: Yes
• Power Windows: Both
• Ratio: 4.88
• Rear Axle Lbs: 19000
• RearaxlelbsUnit: Pound
• Rebuilttitle: No
• Super Singles: No
• Suspension: Air Ride
• Tilt Telescope: Yes
• Tires: 255/70R 22.5
• Transmanufacturer: ALLISON
• Transmission: Automatic
• Transmission Rebuilt: No
• Transmission Type: Allison RDS
• Turbo: Yes
• Wet Kit: No
• Wheels: Aluminum

General Description & Dealer Notes

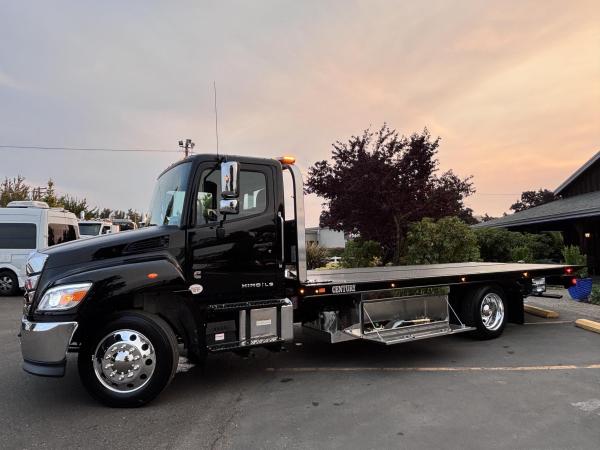

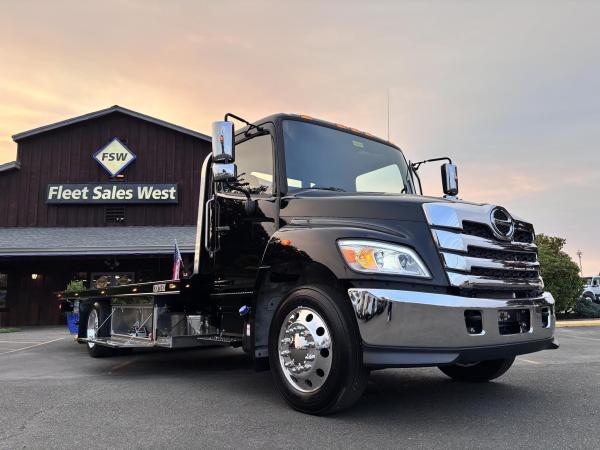

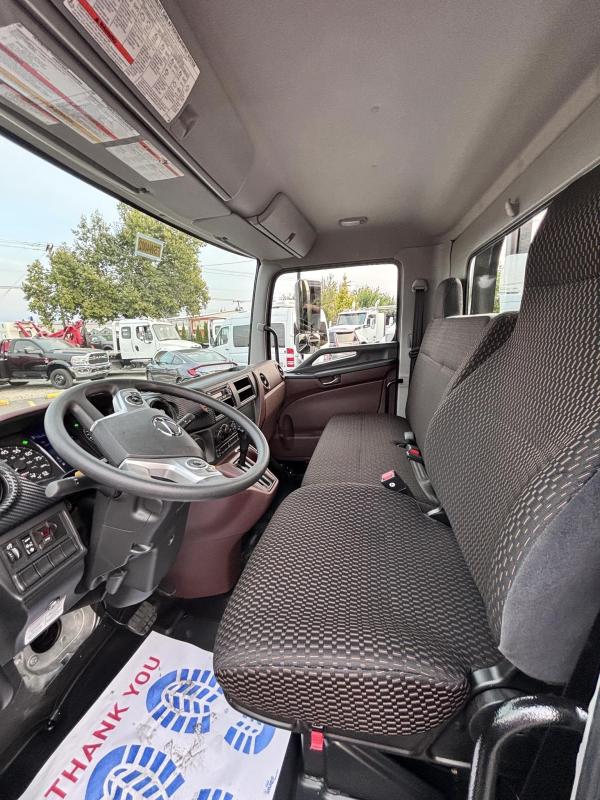

2025 Hino L-6 260 HP Auto. Allison Automatic. Exhaust Brake, Air Brake package. 10,000lb front Axle 12K Front Suspension. 19,000lb Rear Axle, 5.13 Ratio. 52 52-gallon aluminum tank. 19,000lb Air suspension. Power Group, AM/FM Bluetooth.. Air ride driver seat. Two man Bench seat, cruise control, Idle up, chrome bumper -Aluminum wheels, Power Mirrors. Tilt wheel.. WB 22.5 25570R Tires. GVWR 25,950 149” CA ---- 5-year 300K Engine and After-treatment. 7-year unlimited -Allison Warranty-

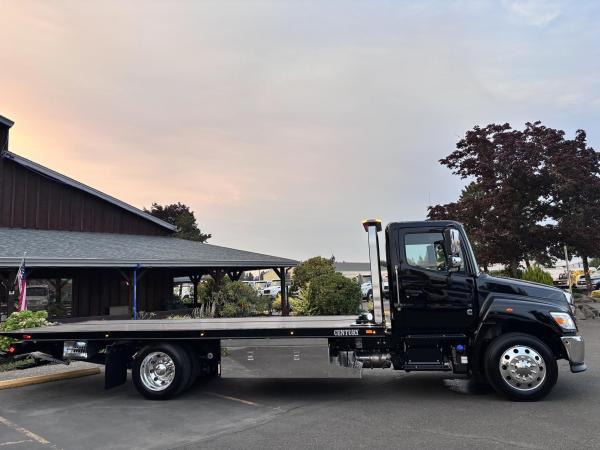

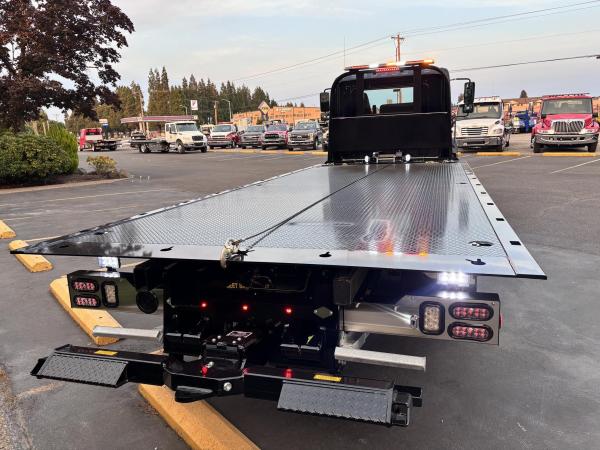

Century LCG 12 21.5' Steel LCG (Low Center of Gravity) Carrier w/ Wheel Lift, 3/16 Deck Plate, 2x2 Corten Tube Crossmembers on 8 inch Centers, (4) Rear Chain Locks, (2) Front Chain Locks, (6) Floor Plate Chain Locks (3 per side), 8K Ramsey winch, 3/8" x 50' Winch Cable, Illuminated Dual Controls, FMVSS 108 Lamp Group Shock Mounted Lighted, Direct Mount Pump, Cable Roller Guide w/ Tensioner, Winch Free Spool Extension, Back-Up Alarm, (2) Safety Chains, Mechanical Anti-tilt, Black Body Paint, 102" Wide Body, Inboard Tilt Cylinders, Floor Level Roll Formed w/ Punched Stake Pockets, 4,000lb Wheel Lift w/ Releasable L Arms, Fully Hydraulic Wheel Lift, (2) Safety Straps & Ratchets, (2) Rear Safety Chains, Body Lock w/ Nylatron roller Bearings, & 12,000lb Deck Load Rating, Body Serial # ST12L2F253036

Conventional Wheel-Lift (10-16)
Floor Level Roll Formed with Punched Stake Pockets (Steel)
Marker Lights - Pee Wee Lights
Slide In Steel Tube L-Arms (10-16)
Standard Approach Plate (Steel)
Standard Bed (Steel)
0- Lights on Pylon
102" Wide (12-40, Steel)
11 Chain Lock Package - Deck Centered (steel)
21.5’ (10-16)
3/16” Deck Plate (Steel)
5-Light Configuration (10/12 Series)
6-Spool Capable
8K Ramsey Worm Gear
Chain Baskets
Passenger Side Winch Clutch Release - Manual


Accessories
Muncie Hot Shift PTO (Allison 1000/2000 or Aisin)


Installation
10 - 16 Car Carrier
Axle Cover & Lugs (Single or Tandem)
Front Mudflaps or Quarter Fenders (CC)
Hot Shift PTO - LD, CC, HD
In-Dash Switch Panel
Light Bar (LD/CC)
Misc. Labor
Rotation Kit (CC)
Switch Panel Harness (Required for all LD Installs)
Toolbox (each, CC)
Work Lights (Pair)


Paint
Bed - Factory Black (10-40, Steel)


DAA
ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238
ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22
ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M: Circuit Breaker Bracket & Under dash breaker bracket
B/M: Jumpstart/Air Coupler Bracket, Universal
B/M: Toolbox black powder coated (Pair) no Air fitting hole
BOD: Mudflaps, 24" x 24", Pair LCG application
BOD: Pylon, Carrier, Bed-Mount, No Lights, SS Panels, Wire Harness
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"
LB: New Maxxima light bar 60" LED Tow Bar, Amber w/Work Lights, Stop/Tail/Turn, & Traffic Director
LIT: PTO Light, LED
LIT: Worklights, 4" Round, LED HD, Pair, Mounted at Winch, 1200 Lumens
LIT: Worklights, Rectangular, LED HD, Pair, for Lower Worklight (Required on LCG)
SH: Air Coupler, Front Alum. Bracket (F) 68226; (W) Auto Coupler; (G) 68237
SH: Shop Supplies
SL: Marker lights ICC Light Bar, Red, Clear-Lens, LED
SL: Optional -Marker Lights, Clear-Lense, for Body.
SL: Park/Turn, Amber, 6", Midship, Dodge Application, Oval, LED, Pair with Grommets and Pigtails
SL: Strip Light, 45", White, LED, Mounted on Cab Protector
SL: Strip Lights, 36", White, LED, in Carrier Toolboxes, Pair
SL:Park/Turn Midship Turn Signal Boxes, Aluminum, Pair
TB: Tool box matting Roll Blk. * Partial Roll useage*
TB: Toolbox, Aluminum, 65" x 18", SS Door, Integrated Top Tray
TB: Tray, 18" Z-Bracket, FSW, Aluminum, SS Logo Plates
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
TOW: Snatch block 2 ton w- 30" Chain - 3" Sheave Size For -5/16" - 3/8"
TOW: Tiedown, Cluster, with Chain Ratchet
WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"
