BUSINESS CLASS M2 106 PLUS

All Carriers

Specifications

• A/C Condition: New
• Air Conditioning: Yes
• Axle: Single
• Cab: Extended Cab
• Collisionmitigationsystem: No
• Color: White
• Cruise Control: Yes
• Differential Lock: No
• Drive: 4x2
• Driver Position: Left Hand Drive
• Dual Breathers: No
• Dual Exhuast: No
• Engine Brake: No
• Engine Size: 6.7
• EnginesizeUnit: Engine Liter
• Exhaust Brake: Yes
• Front Axle Lbs: 10000
• FrontaxlelbsUnit: Pound
• Fuel Type: Diesel
• Glider Kit: No
• Gross Vehicle Weight: 25500
• Gross Vehicle Weight Rating: Class 6
• GrossvehicleweightUnit: Pound
• Headache Rack: No
• Heated Mirror: Yes
• Horsepower: 300
• HorsepowerUnit: Horsepower
• Hours Meter Inaccurate: 0
• Mileage: 211
• MileageUnit: Mile
• Navigation: No
• Num Speeds: 6 Spd
• Overdrive: Yes
• Overhaul: No
• Power Locks: Yes
• Power Steering: Yes
• Power Windows: Both
• Ratio: 4.63
• Rear Axle Lbs: 19000
• RearaxlelbsUnit: Pound
• Super Singles: No
• Suspension: Air Ride
• Tilt Telescope: Yes
• Tires: 255/70R 22.5
• Transmanufacturer: ALLISON
• Transmission: Automatic
• Transmission Rebuilt: No
• Transmission Type: Allison RDS
• Turbo: Yes
• Wet Kit: No
• Wheels: Aluminum

General Description & Dealer Notes

M-2 Alum. 132" BBC Cab;Plus Cummins 6.7L Engine 300HP 660lbs Torque. Cummins Exhaust brake.Horton HT650 Frontal Air On/off Engine fan. Clutch. 2200 RDS Automatic Transmission 6 Speed. Phillips-TEMRO 750-Watt/115-Volt block heater. dash-mounted T-Handle Cable Shift Control w/ park brake position. Synthetic Transmission Fluid.Synthetic 75W-90 Front Axle lube 10,000# front suspension. ARS-19.0-2 19,000# R-SERIES single rear axle. 4.63 Rear Axle Ratio.SYNTHETIC 75W-90 rear Axle lube. Airliner 18,000# Rear Suspension. Manual Dump Valve for Air Suspension.with Gauge. - Air brake package. Air Dryer w/Heater. 120KSI (Frame). 50 Gallon/Rectangular fuel tank, aluminum: Alliance Fuel filter/Water separator with Primer pump. 255/70R22.5 Tires. Alum. 22.5X8.25 10-Hub pilot disc wheels. Dual West Coast Bright mirrors. 8" bright finish convex mirrors mounted under primary mirrors. Non-operating wing windows. Opal Gray Vinyl Interior. (2) Cup Holders; Heater, Defroster & Air Conditioner. Power windows. Single passenger seat. Air ride driver seat, Rear bench seat, Cordura cloth option. Adjustable Tilt and Telescoping Steering Column. (6) IGN Controlled Extra Switches to junction block AND 1 Circuit at 30 Amp. Windshield Wiper motor with a Delay marker light. Switches the self-canceling turn signal. Switch with dimmer, Washer/wiper, and hazard in Handle. Idle up, Cruise control. 22.5 Aluminum wheels 25,500 GVWR.

Cordua Cloth - Seats- Keyless entry, 150" CA Gauge for Air Ride suspension.


Cummins 5-year 300K PPI Engine & after-treatment Warranty. Allison 7-year unlimited Transmission warranty.

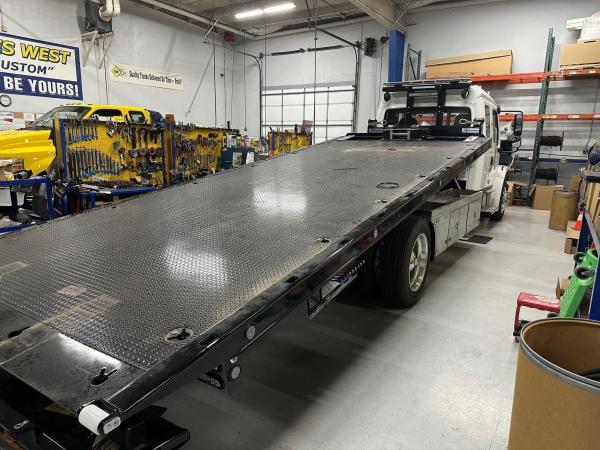

Chevron 22' Steel LCG (Low Center of Gravity) Carrier w/ Wheel Lift, 3/16 Deck Plate, 3x2 Corten Tube Crossmembers on 8 inch Centers, (4) Rear Chain Locks, (2) Front Chain Locks, (6) Floor Plate Chain Locks (3 per side), 8,000lb Worm Gear Winch, 3/8" x 50' Winch Cable, Illuminated Dual Controls, FMVSS 108 Lamp Group Shock Mounted Lighted, Direct Mount Pump, Cable Roller Guide w/ Tensioner, Winch Free Spool Extension, Back-Up Alarm, (2) Safety Chains, Mechanical Anti-tilt, Black Body Paint, 102" Wide Body, Inboard Tilt Cylinders, Floor Level Roll Formed w/ Punched Stake Pockets, 4,000lb Wheel Lift w/ Releasable L Arms, Fully Hydraulic Wheel Lift, (2) Safety Straps & Ratchets, (2) Rear Safety Chains, Body Lock w/ Nylatron Roller Bearings, & 12,000lb Deck Load Rating. Body Serial#


approach_plate_steel Standard Approach Plate (Steel)
standard_bed_steel Standard Bed (Steel)
0_pyl_light 0- Lights on Pylon
102_wide_std 102" Wide (12-40, Steel)
DC10 15 Chain Lock Package - Deck Centered (steel)
21.5_deck_length 21.5’ (10-16)
316DECKPLATE 3/16” Deck Plate (Steel)
5-Light-10/12 5-Light Configuration (10/12 Series)
8,000 Lb. Worm 8K Ramsey Worm Gear
9_spool_sp 9-Spool Capable (for SidePuller)
dcwas_deck_sp Air Free Spool, Driver & Passenger Side - Deck Winch & SP (10-16)
09008149_bed Chain Baskets
AGDS Combo AutoGrip Wheel-Lift/Dock Stabilizer (10-16)
FLAlumBladeS Floor Level Removable Aluminum Blade Rail
STD-Lights zMarker Lights - 2.5" Round


SPO
installation of SP
Installation of SP unit including installation of Air Free for Winch and Wireless set up.

Accessories
129003005 Muncie Hot Shift PTO (Allison 1000/2000 or Aisin)


Installation
CC1 10 - 16 Car Carrier
128050014 Axle Cover & Lugs (Single or Tandem)
128005025 Front Mudflaps or Quarter Fenders (CC)
128005016 Hot Shift PTO - LD, CC, HD
128020047 In-Dash Switch Panel
128005021 Jump Start Kit
light_bar_LD_CC Light Bar (LD/CC)
128030010 Misc. Labor
128005042 Rotation Kit (CC)
ChassisMisc Shock Absorber Upper Mount Relocation (CC)
128005050 Switch Panel Harness (Required for all LD Installs)
128005042 Toolbox (each, CC)
128050018 Work Lights (Pair)


Paint
std_black Bed - Factory Black (10-40, Steel)


DAA
(F)7092RMA-600; (W)69711; (G)RR30806 ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
(F)68272; (W)68271; (G)61387 ACC: Air Inflate Kit: (F)68272; (W)68271; (G)61387
118181 ACC: Air Protection Valve 90PSI required when adding air outlets
(F/W)60699; (G)RR00561A ACC: Boltcutters, 24"
(F)OSB77003+81251; (W)00526CRNM; (G)AME63-15+16X60 ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238
(F)CN-186R; (W)53858A; (G)100476 ACC: Cone, 18", Single: (F)CN-186R; (W)53858A; (G)100476
(F)466425; (W)B500T; (G)USA10-22 ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22
(F)ACE6060; (W)50503L; (G)20229 ACC: First Aid Kit: (F)ACE6060; (W)50503L; (G)20229
76162 ACC: Flashlight with DC Charger, Streamlight LED PolyStinger
(F/W)81054; (G)85056 ACC: Fuel Can, Diesel, 5-Gallon, Yellow
(F/W)81033; (G)85053 ACC: Fuel Can, Gas, 5-Gallon, Red
T84025 ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
OHJS4 ACC: Lockout Kit, One-Hand Jack Kit
(F)W2 +W1; (W)35635 + 35630; (G)KEN35663 +KEN35662 ACC: Lug Wrenchs, 14" Metric/20" Standard
(F)AMES1160100; (W)50020; (G)PPB-51 ACC: Pry Bar, 60"/51" (F)AMES1160100; (W)50020; (G)PPB-51
(F)AMES1572700; (W)Shovel; (G)Ame73-1564500 ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ITD1086 ACC: Trash Can, 4-Gallon, Steel
(F/W)1005; (G)USA 10-23 ACC: Triangle Kit
(F/W) 38-TS10/15/21; (G) 38-10/15/21 B/M: Bungee Strap, Single
5143-423 B/M: Circuit Breaker Bracket
ASY 7033-00 B/M: Cone Mounting Bracket, Single, Behind Carrier Control Stations
5179-00 B/M: Fuel Can Rack, 2-Can, Aluminum, behind toolboxes
6466-00 + 6467-00 B/M: Lumber Rack, Aluminum, for Streamliner Toolbox
FSW00048-1 + FSW00049-1 B/M: Toolbox Brackets, LH/RH, with Air Fittings and E-Brake Cable Hole
ASY-5805-00 B/M: Toolbox L Brackets: Center Support for boxes with Ext. fenders
6763-00 BOD: DEF Tank Cover, Stainless Steel, for 2016-Current Freightliner
FSW-Diamond (x2) BOD: Mudflap Weights, FSW, Stainless Steel, Pair
242412GKL (x2) BOD: Mudflaps, 24" x 24", Pair LCG application
(F) FCV520P-20; (W) HBV125 HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"
92250-8+ 5143-427 HYD: Lodar to Add 1 Each wireless FXN - & Bridge over standard 1FXN System
LS2207 + 5143-427 + 5143-656 HYD: Lodar-3-FXN-Carrier-Wrecker-wheelift= (FSW Lodar with Air Free) & Bridge
ALGT61D-TOW5FC-TA + 660100S56 5143-652 LB: Allegiant-Serial™24H w/TA 5 year warranty includes FS 12FXN controller for TA
TLED-U66 LIT: 25" Double Stack LED Light bar work lite- 20AMP
M63318YCL LIT: Amber-Clear turn 18" -running light for 78" GWTE boxes (pair)
2501080 LIT: Breaker, 80-Amp, add 1 for each Jumpstart connection
FSW01000/FSW01007/782-5316(x2)/GKFSW00156/FSW00090 LIT: Electrical Package, All except Hino & International - Main Harnesses + ATC Fuse Blocks
WHNS-JS LIT: Jumpstart,Front- Brooking Flush-Mount Kit, with 25' Cables
M09300RCL LIT: PTO Light, LED
TM22G LIT: Tow Light, Wireless, TowMate, Limelight 22", LED - Warranty issues customer contacts TowMate directly.
TLED-W4 FSW01005 LIT: Work light- 6" Rectangular LED Work Lamp w/ Amber Strobe ( Pair)
MWL-28 (x2) + FSW01005 (Winch) LIT: Worklights, 4" Round, LED HD, Pair, Mounted at Winch, 1200 Lumens
WLD-6B074-00 (x2) LIT: Worklights, High-Intensity, LED for SP Units, 3200 Lumens, Pair
(F) 27808; (W) Auto Coupler; (G) 68237 SH: Air Coupler, Front (F) 27808; (W) Auto Coupler; (G) 68237
(F) 27808; (W) Auto Coupler; (G) 68273 SH: Air Coupler, Passenger-Side Control Station Carrier (F) 27808; (W) Auto Coupler; (G) 68237
Shop Supplies SH: Shop Supplies
M50935 (Shop Labor) SL: LED MARKER Flasher control Module
M63318RCL-A SL: Marker lights ICC Light Bar, Red, Clear-Lens, LED
Clear Light Package SL: Optional -Marker Lights, Clear-Lense, for Body.
MLS-4569-A SL: Strip Light, 45", White, LED, Mounted on Cab Protector
MLS-3654WYCL-27 (x2) + GKFSW01008 SL: Strip Lights, 36", Amber/White, LED, Pair, Undercab
MLS-3654-A (x2) +GKFSW01001 (x2) SL: Strip Lights, 36", White, LED, in Carrier Toolboxes, Pair
ST6-A/A(x2) + ST6-FCB(x2) + 5143-175(x2)+ FSW01003 SL: Strobes, Amber Grille Lights, ST-6 Super-Thin, Pair, Chrome Bezels, Backing Plates, Wire Harness
M53A/CBx2 + GKFSW01004 (x2) SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, Mounted in Recessed Midship Turn Signal Boxes, Wire Harness
M53A/CBx2 + GKFSW01004 (x2) SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, for Tailboard Sides, Wire Harness
5334-00-Personalized SP: Dress-Up Kit with Company Name, Stainless Steel, for SP8000
SP Freight SP: Freight, SidePuller
ITD4518 SP: SidePuller 9000 for Carrier w/factory controls
WE-78" ECO box (LH) TB: Alum 78" ECO (BKTS for Equipt Driver side) Barn Doors
WE-78ECOBOX (RH) TB: Alum Tool box 78" (Bracketed for Equipt) Pass side
WE-EXTEN. FOR ECO 78" BOX TB: Alum. Toolbox ext 78" Eco Box ( Pair) with Turn signal housing
PVM-BLK TB: Tool box matting Roll Blk. * Partial Roll useage*
6996-00+6997-00 TB: Tray, 18" Z-Bracket, FSW, Aluminum, SS Logo Plates
38-200CG TOW: 8-Point Tiedown, Chain/Chain
VCRTJ-3L TOW: Bridle, Chain, Cluster Hook Assemblies
G711-8FCT TOW: Bridle, Polyester, 8" J-Hooks/T-Hooks
11A-516G720 TOW: Chain, Recovery, 20', 5/16", Grade 70, Clevis Grab Hooks, Single
G711-6J TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
(F)Cases; (W)JKCCASE TOW: Flare Case (Case Only)
(F)0730(x6); (W)7703605(x6); (G)100783(x6) TOW: Flares, 6 (F)0730(x6); (W)7703605(x6); (G)100783(x6)
4x4x48 + 4x4x60 TOW: Lumber, 4" x 4"s, 48" & 60"
SBH-4.5-4T TOW: Snatch Block, 4-Ton
FSW Motorcycle Bag TOW: Strap Kit with Bag, Motorcycle, Carrier, Canyon Dancer
AS326-CDR-TPN TOW: Strap, Axle, 26", Single
SWC03-CLH-TPN TOW: Strap, Steering Wheel
26108-RC/RTJ-TP TOW: Tiedown, Cluster, with Chain Ratchet
900 + 004 TOW: Trailer Ball Kit, Convert-A Ball
4-38PS100LH TOW: Winch Cable, 3/8", 100', Fiber Core, Self-Locking Hook
FCC-3750-SLH TOW: Winch Cable, 3/8", 50', Fiber Core, Self-Locking Hook
Q1401 (x2) WH: Hub Covers, Front, Stainless Steel, Pair
Q2020 (x2) WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
31568 WH: Hubcap Tool
SP33 WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
SP17 WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"



Notes
Remote functions carrier: Winch - Air Free
SP , winch, Legs,
Air release winch on SP & Deck. On wireless,

Matting in toolboxes - Black


Cross over strap Assembly set up.
