• Cab Extended Cab
• Color RED
• Driver Position Left Hand Drive
• Dually Yes
• Engine Brake Yes

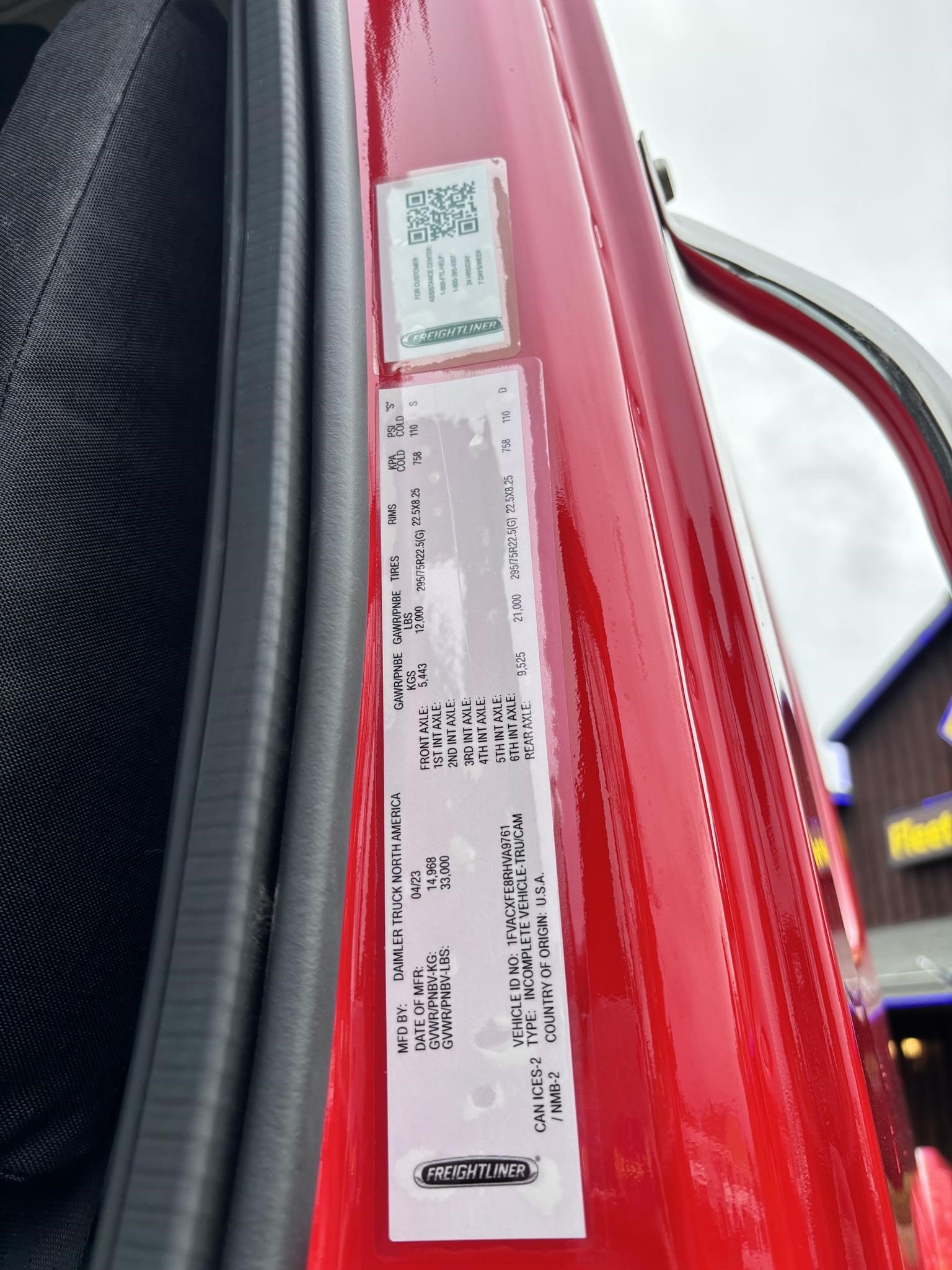

• Gross Vehicle Weight 33000
• GrossvehicleweightUnit Pound
• Heated Mirror Yes
• Horsepower 350
• HorsepowerUnit Horsepower
• Hours Meter Inaccurate 0

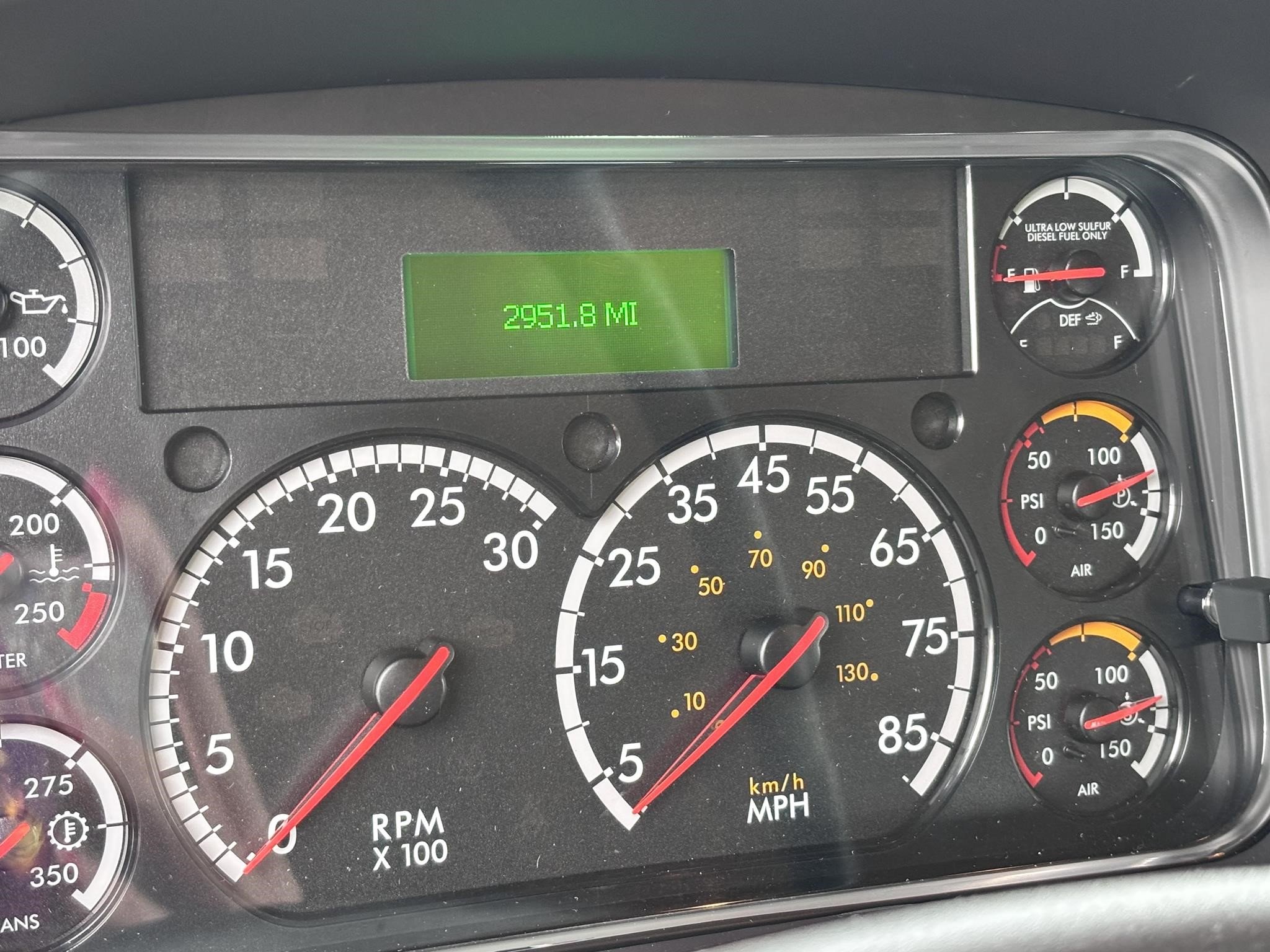

• Mileage 211
• MileageUnit Mile
• Suspension Air Ride
• Wheels Aluminum

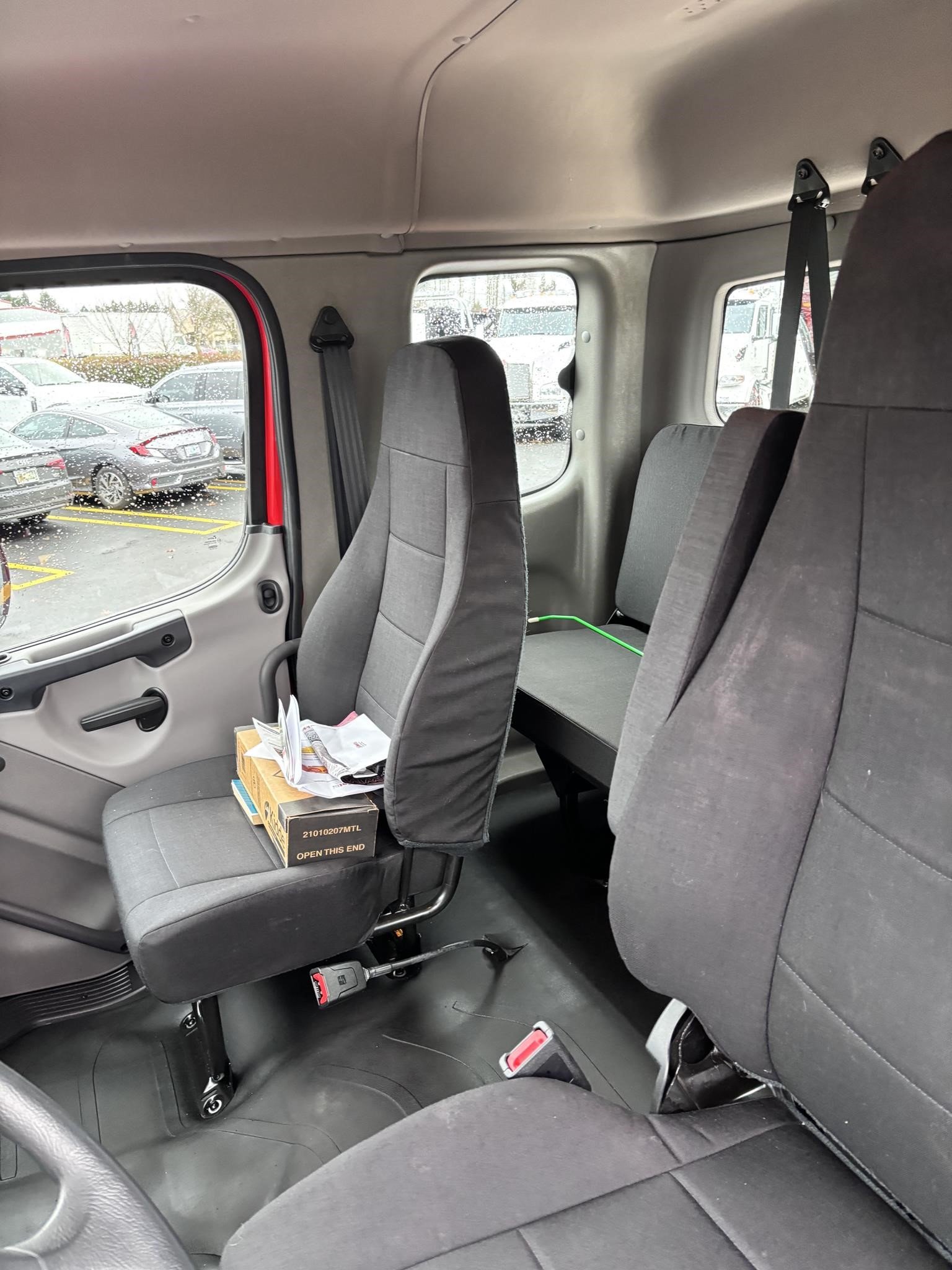

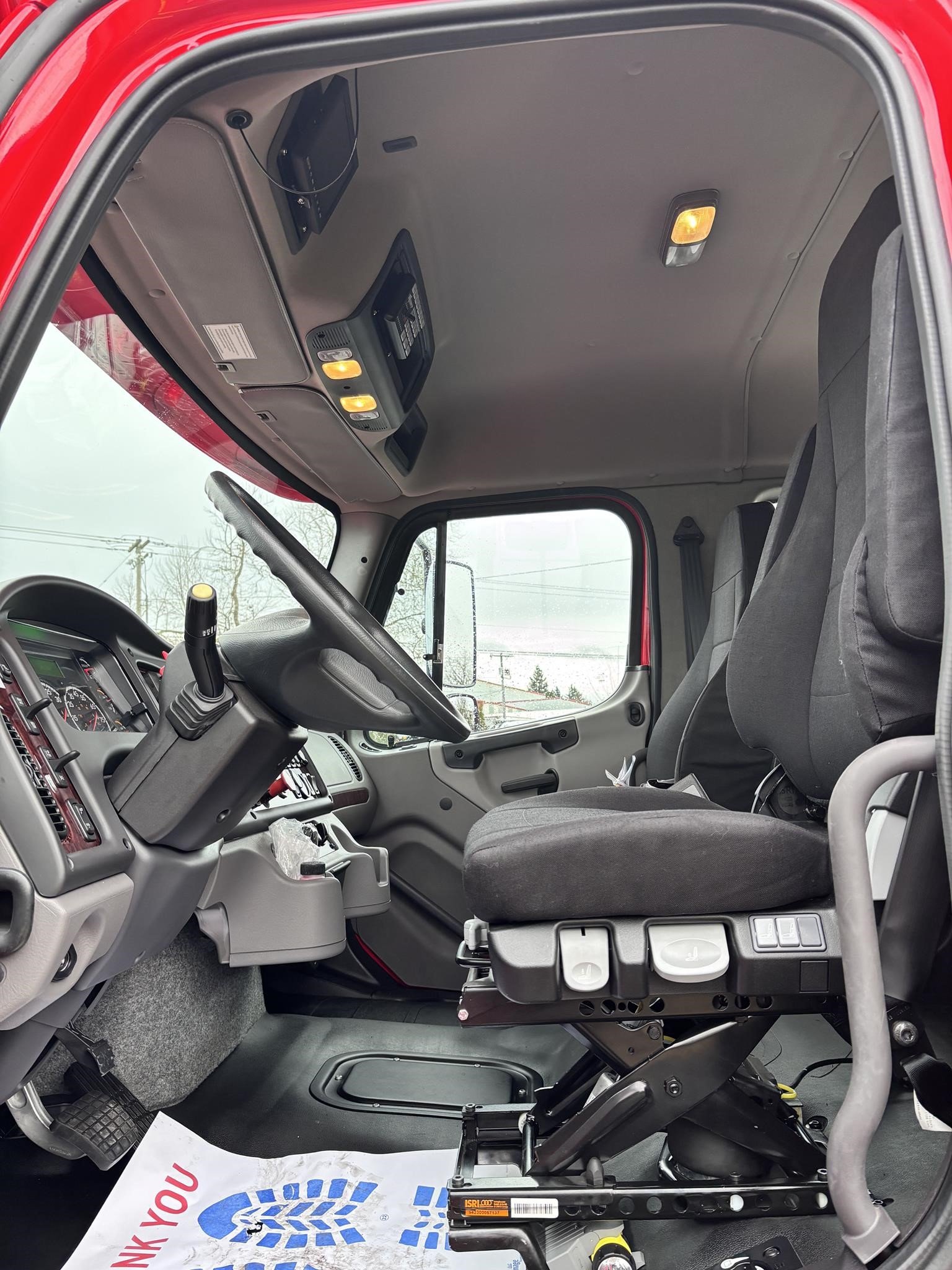

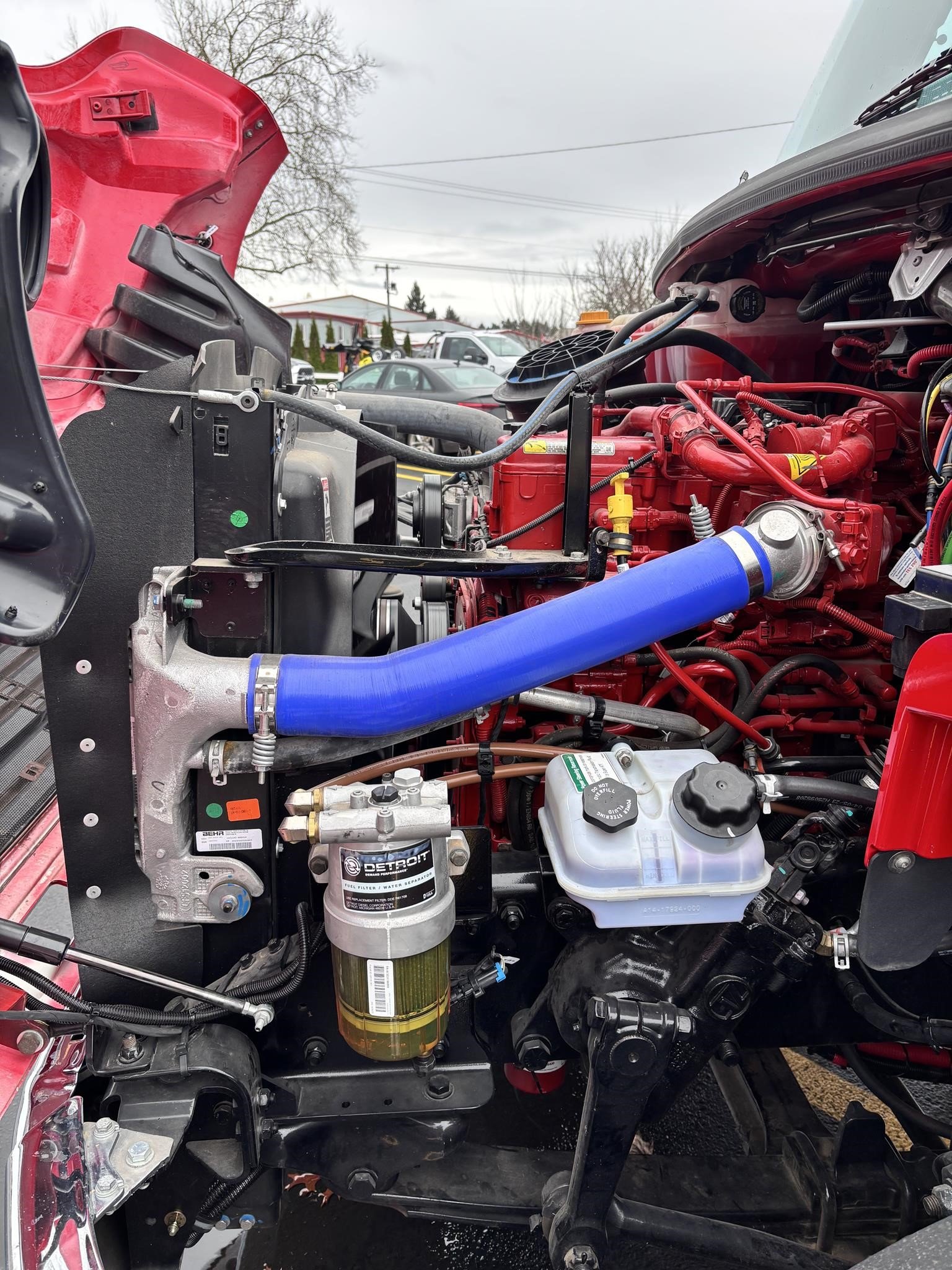

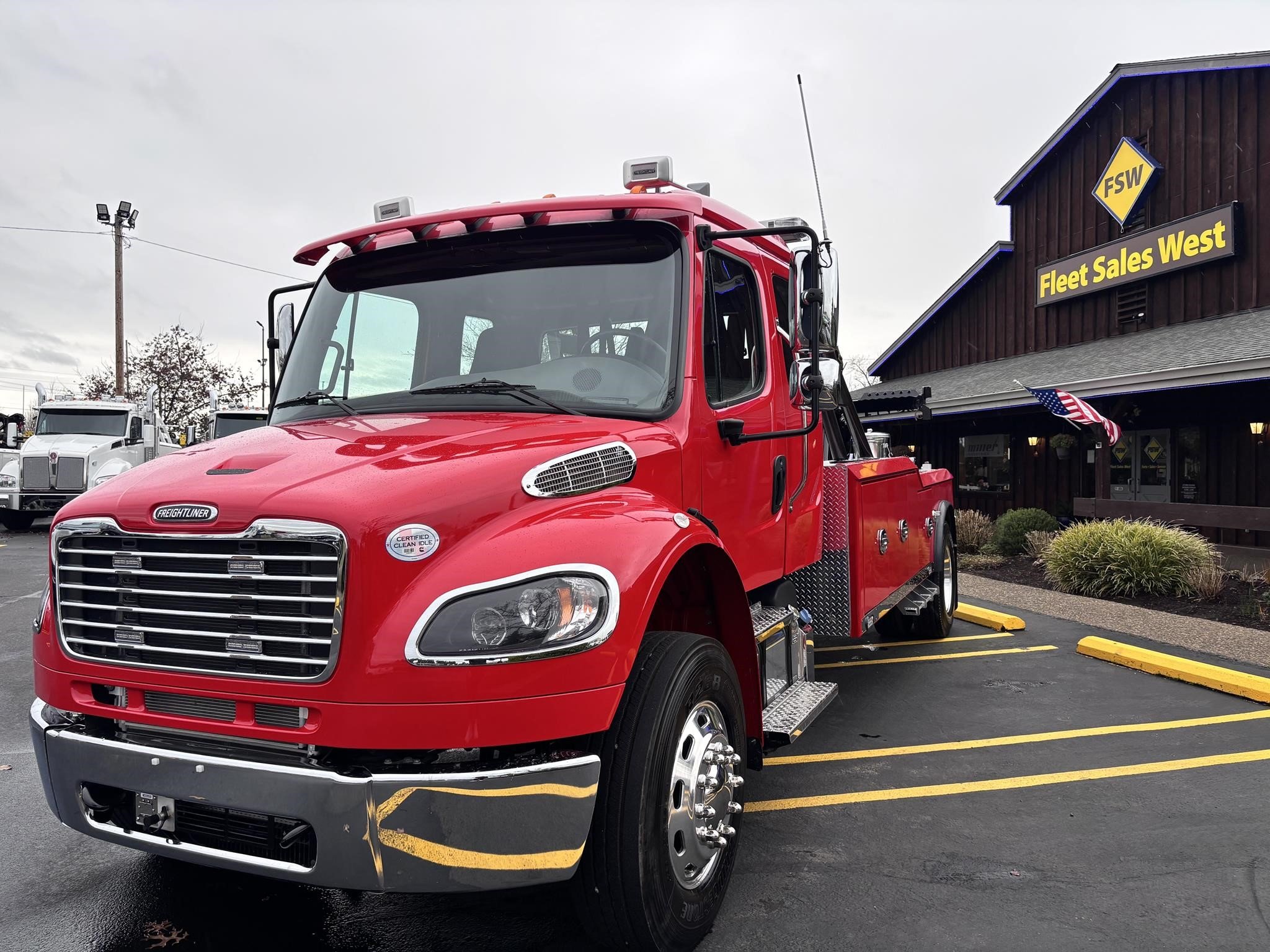

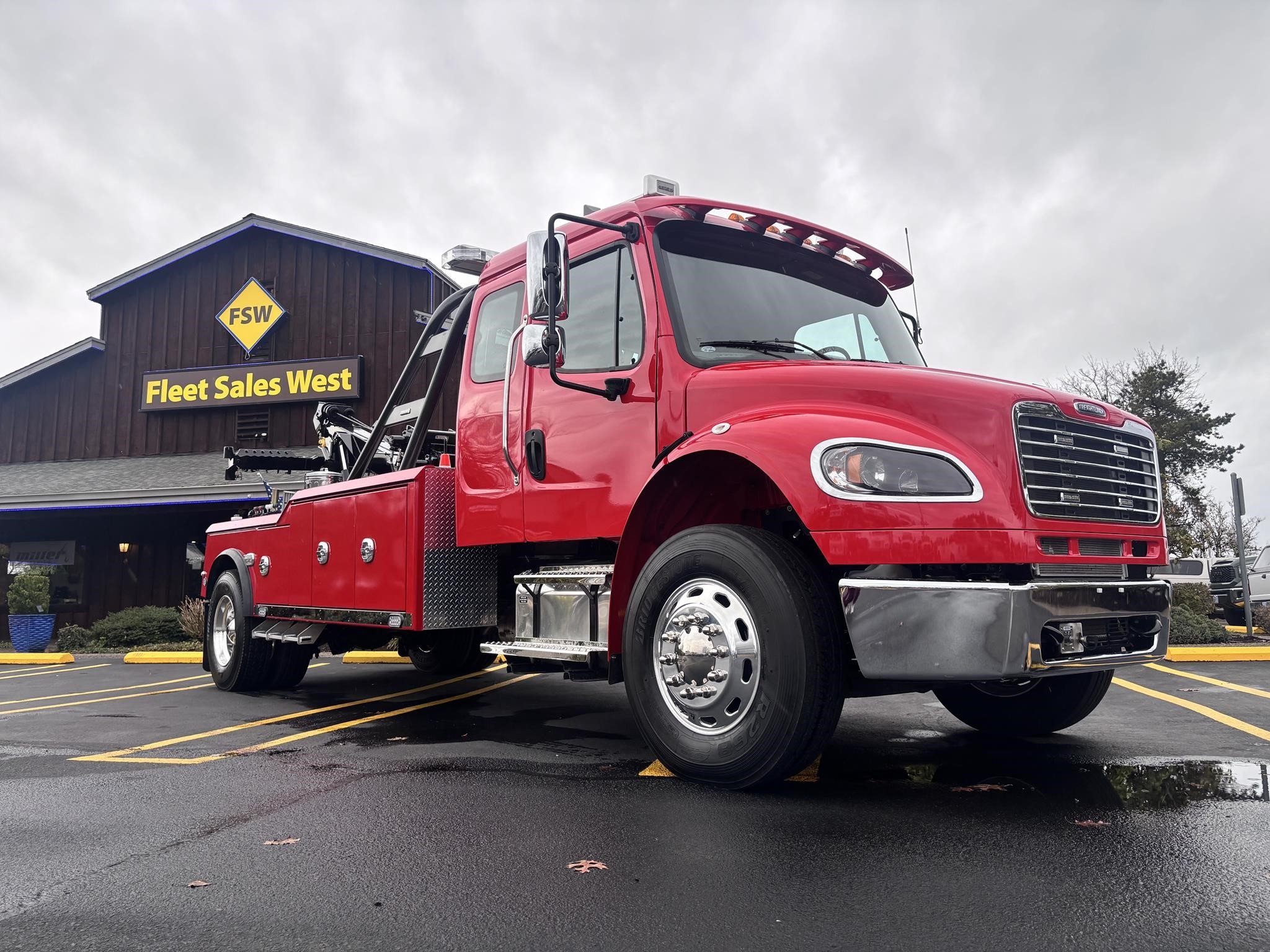

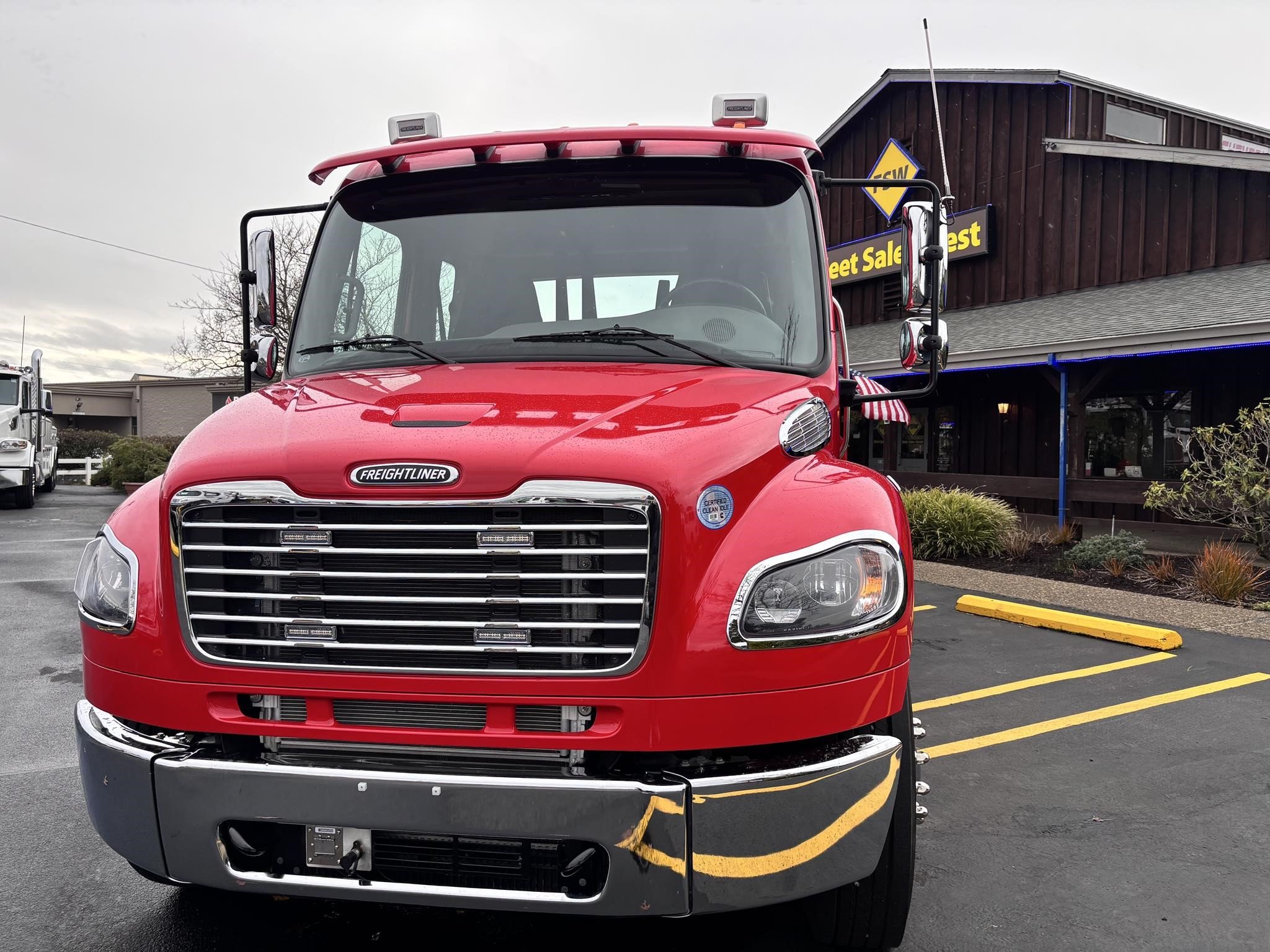

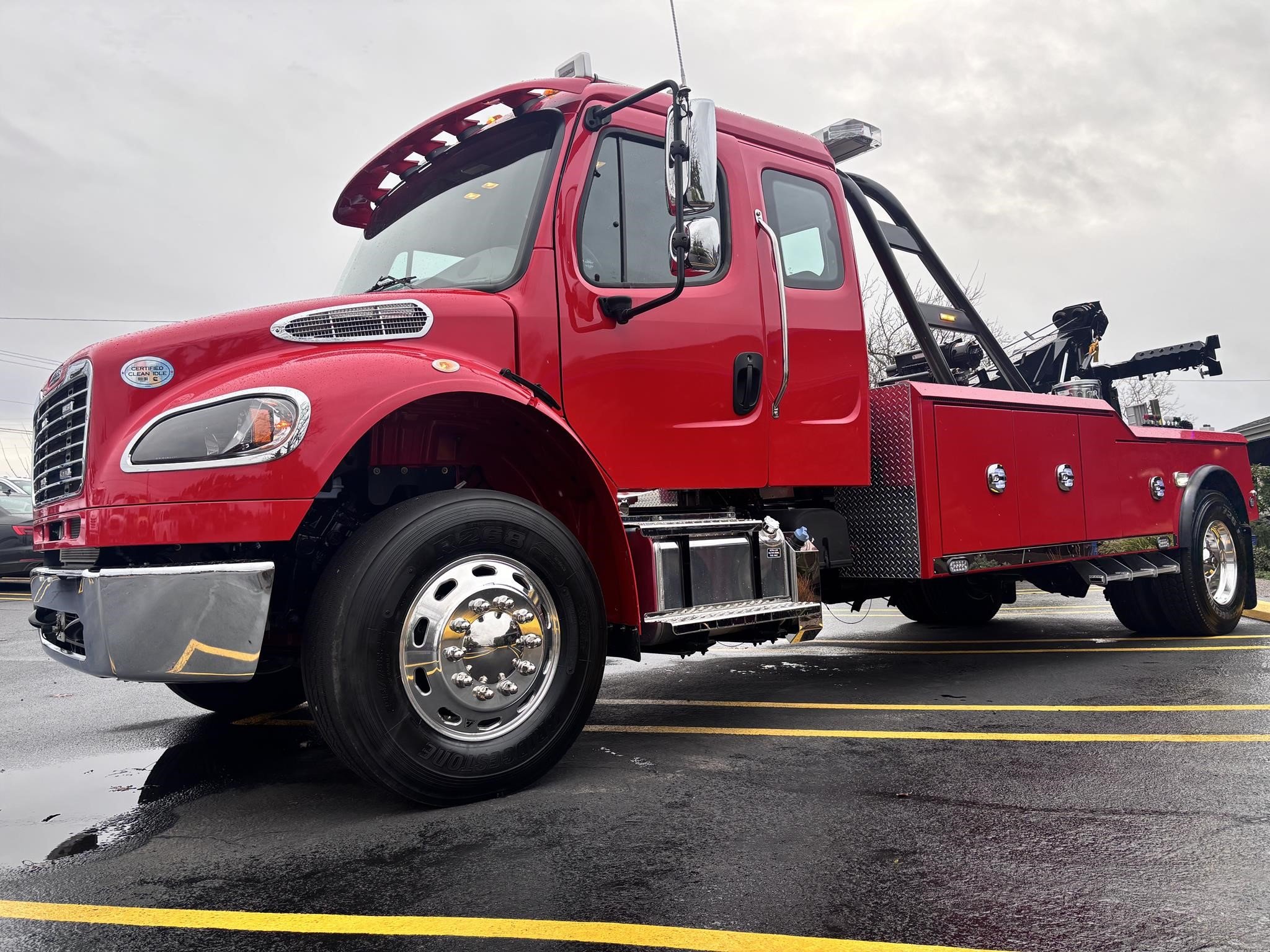

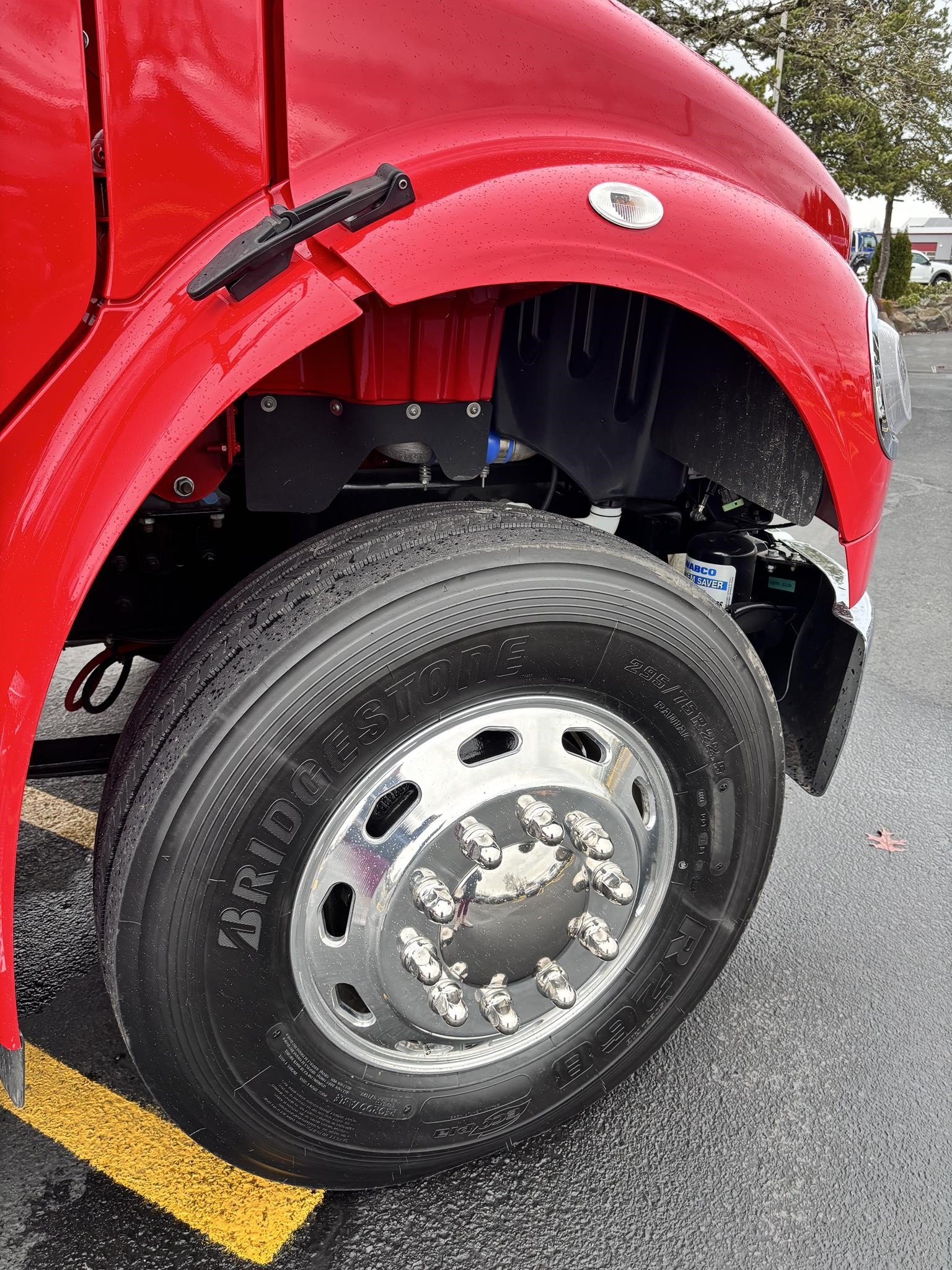

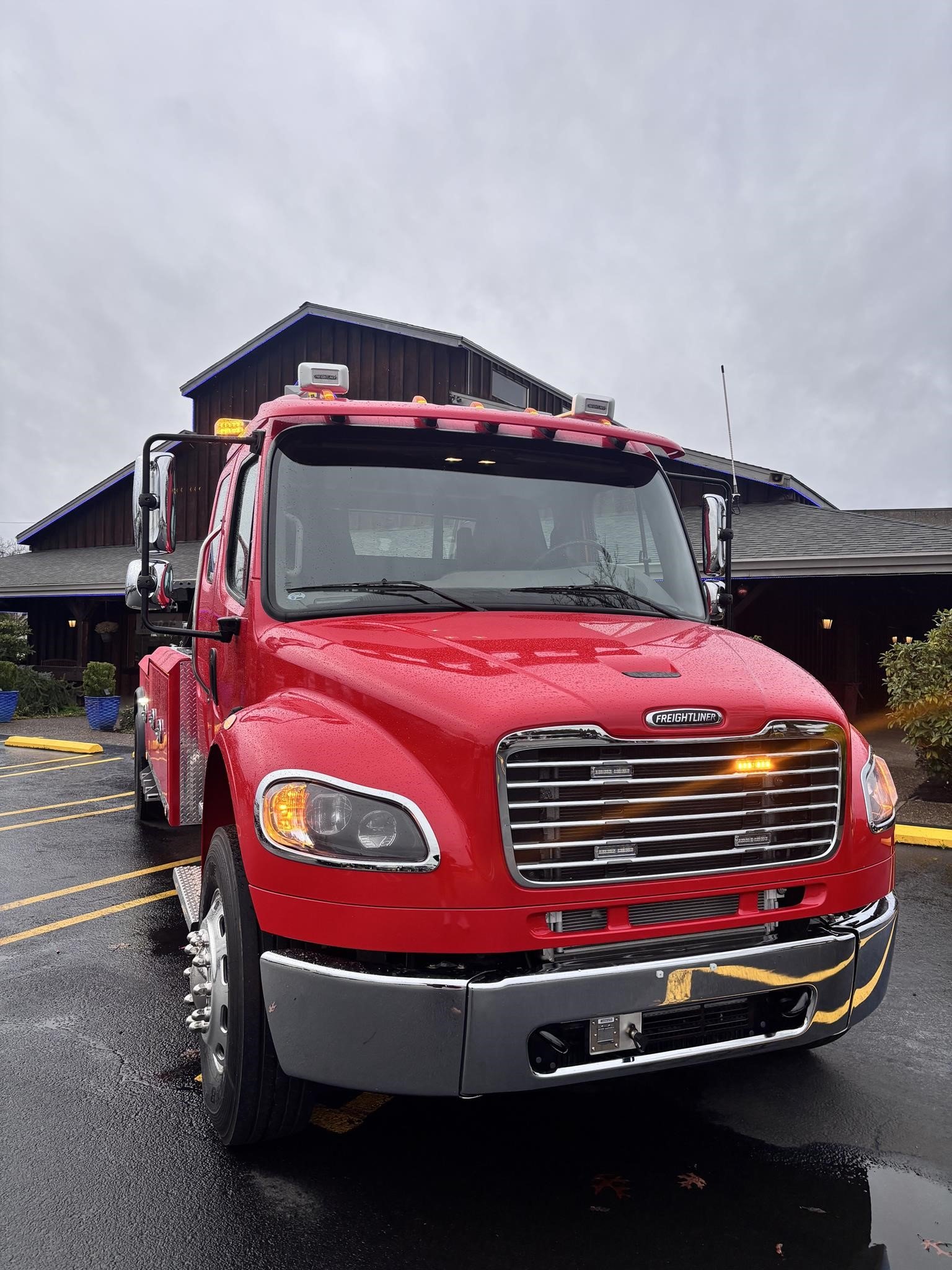

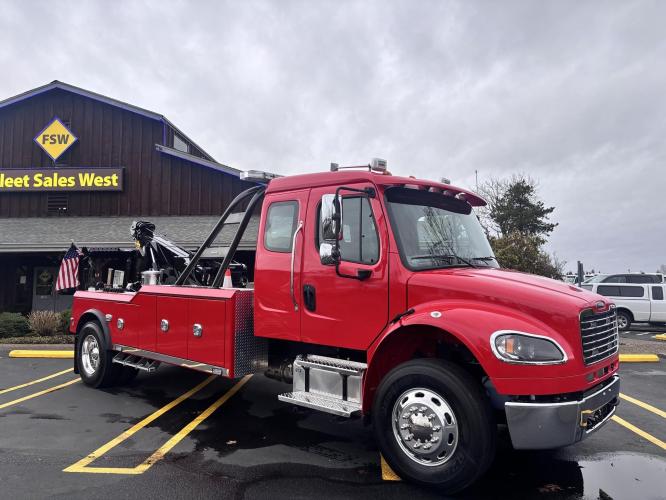

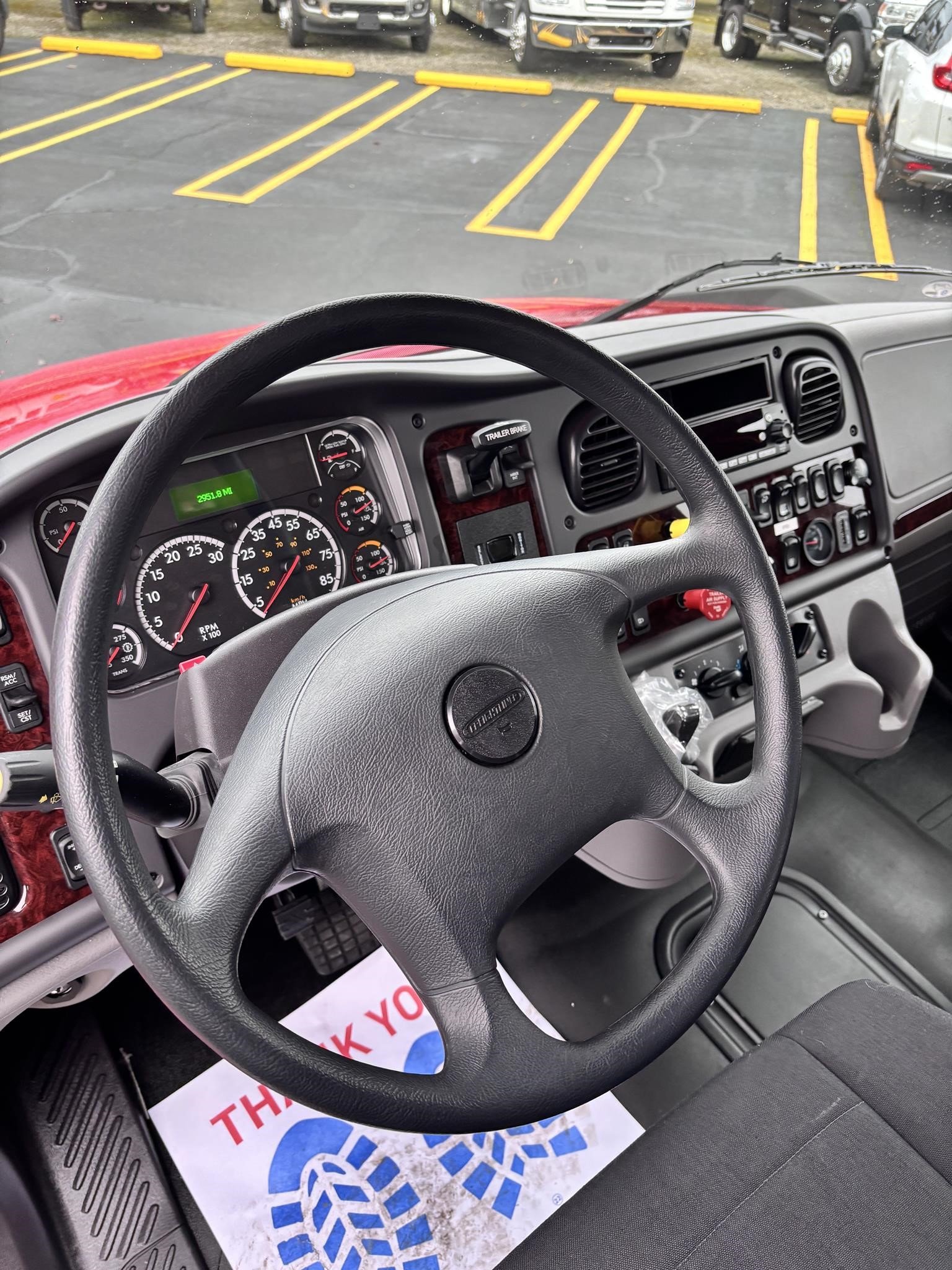

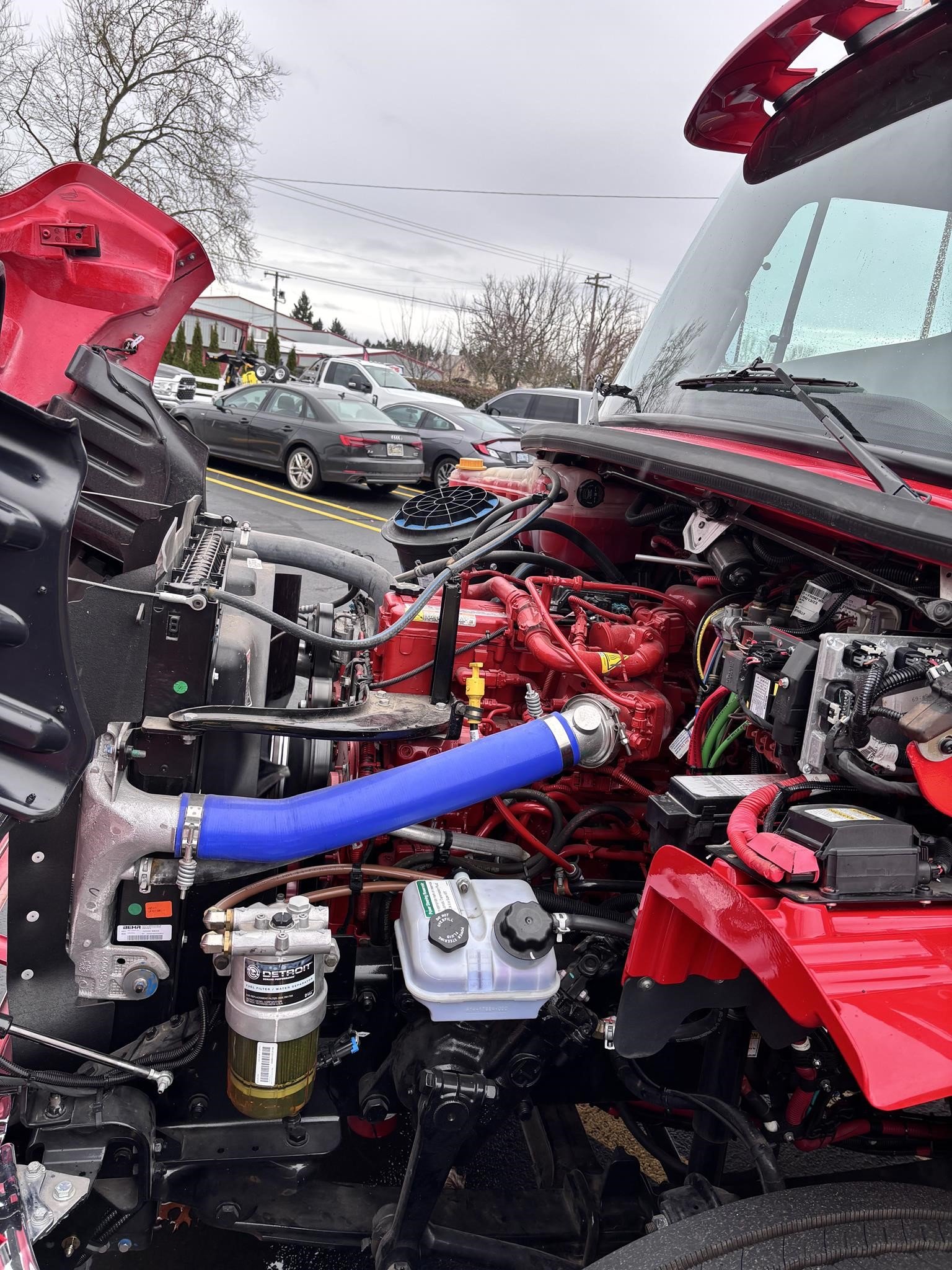

132BBC Alumiunm cab. Air Ride Cab Mounts. ISL 9 350HP Cummins Allison automatic RDS 3000 six-speed. air brake air ride Compression -brake, Low, High, settings. , tractor package, aluminum wheels 12k front axl,e 12,000lb front suspension. 21000lb rear axle 4.33 Ratio. . 23k Air ride with dump valve,, and gauge.. Locking Rear differential. Visor, chrome 3-piece bumper. Air Dryer with heater. Air connections to EOF. air ride driver seat cordura cloth high back passenger seat, Rear bench seat. . Locking rear Diff. Tractor package. LED POD headlights. block heater. Tilt & Telescoping Steering wheel. Dual 50-gallon Aluminum fuel tanks. Dual 26" Hadley Air horns. Power Mirrors. Power windows, Powier locks. Idle up, Cruise control, PTO Switch. Trailer hand control valve. A/C. YOKOHAMA 101ZL 295/75R22.5 14 PLY Tires. 33,000 GVWR 139 CA 224" WB

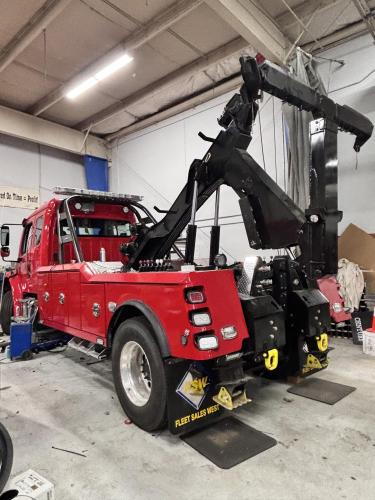

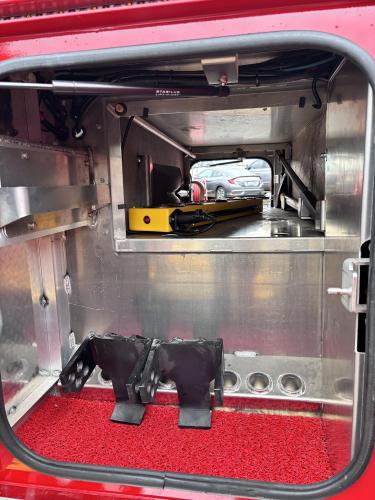

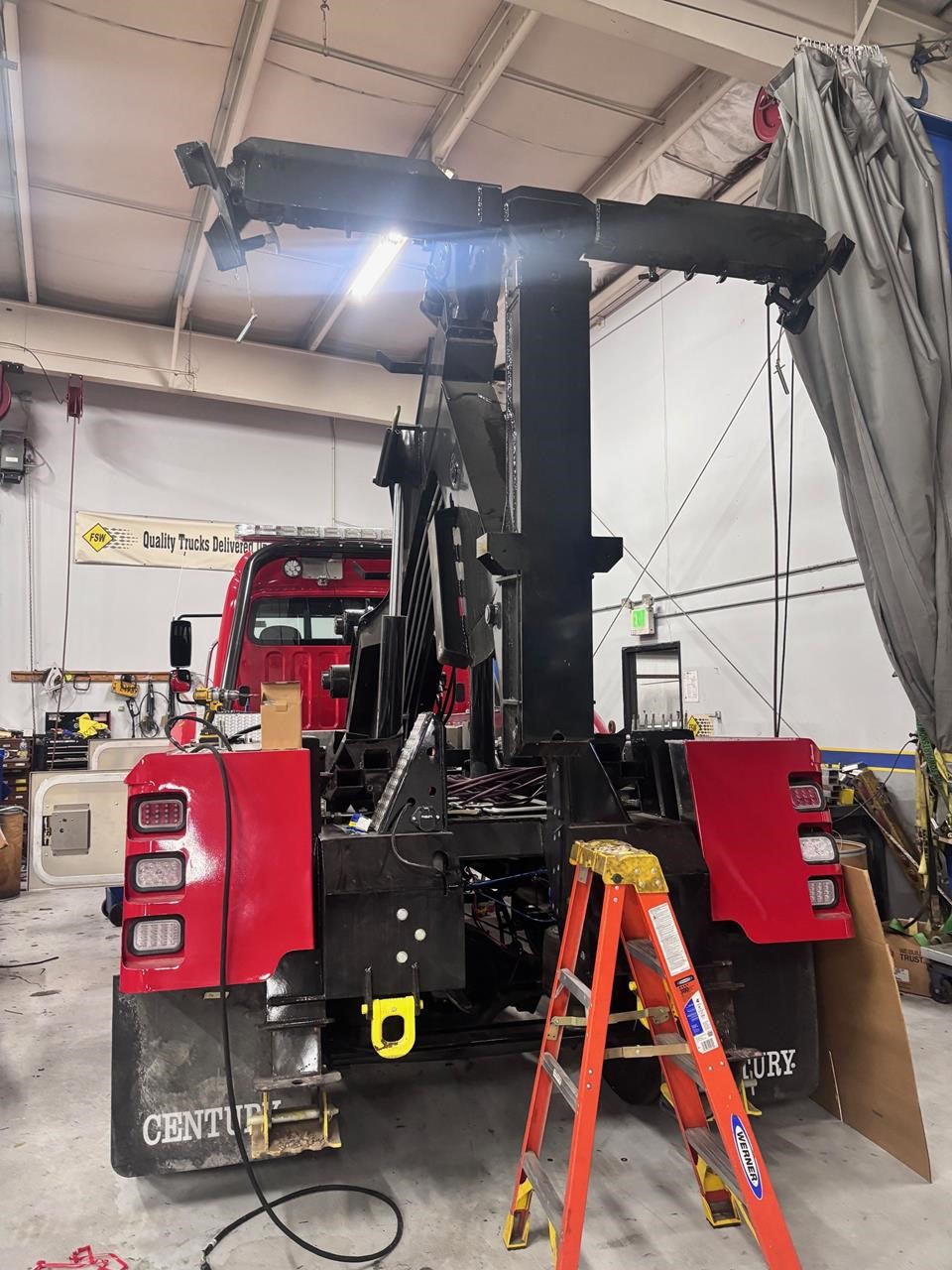

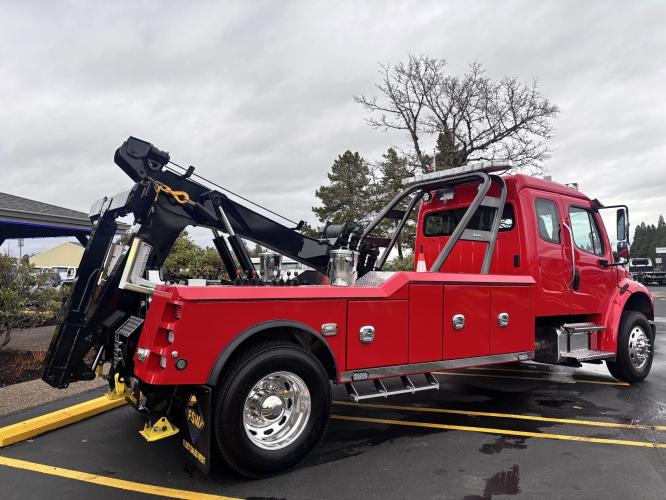

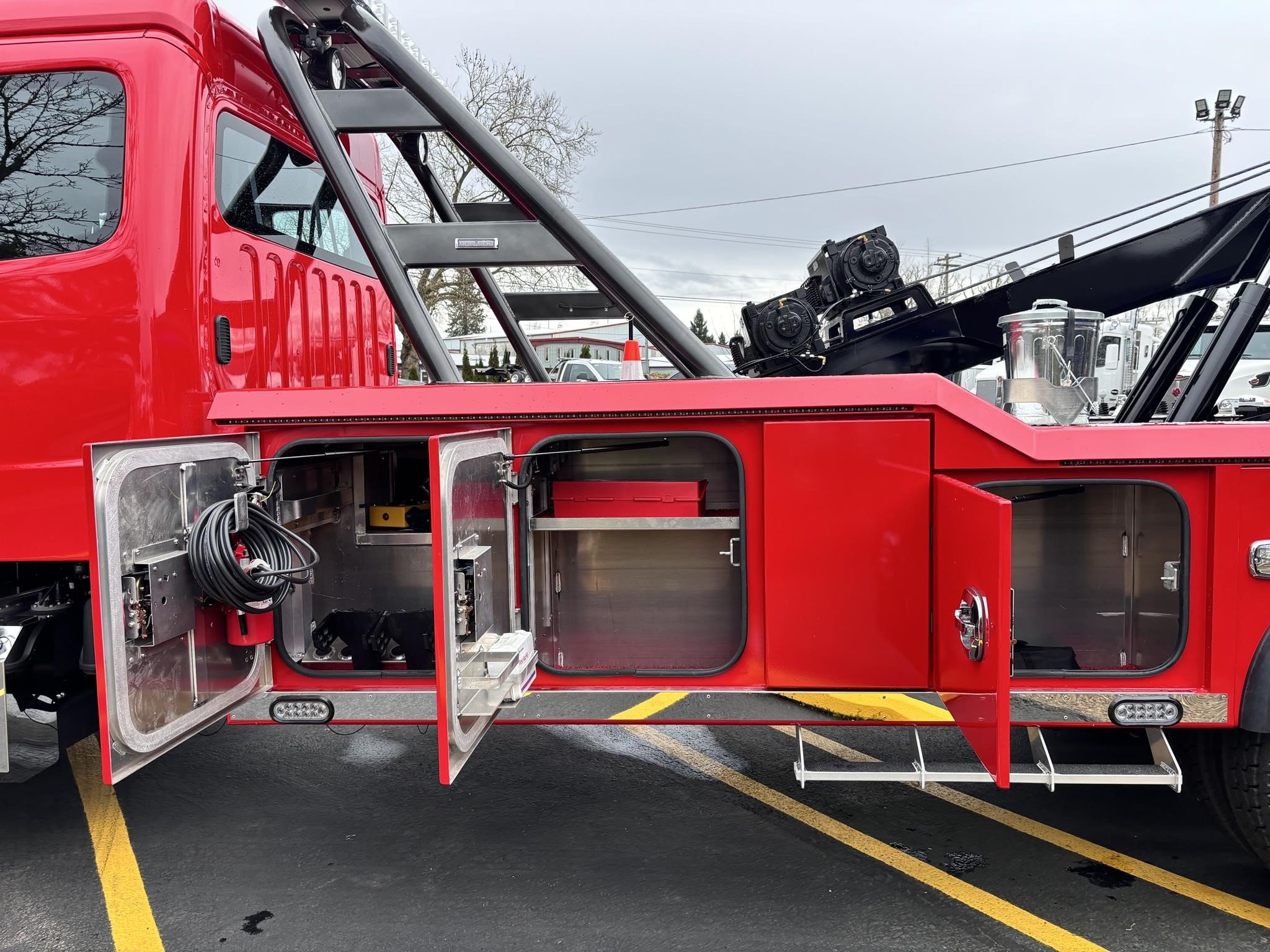

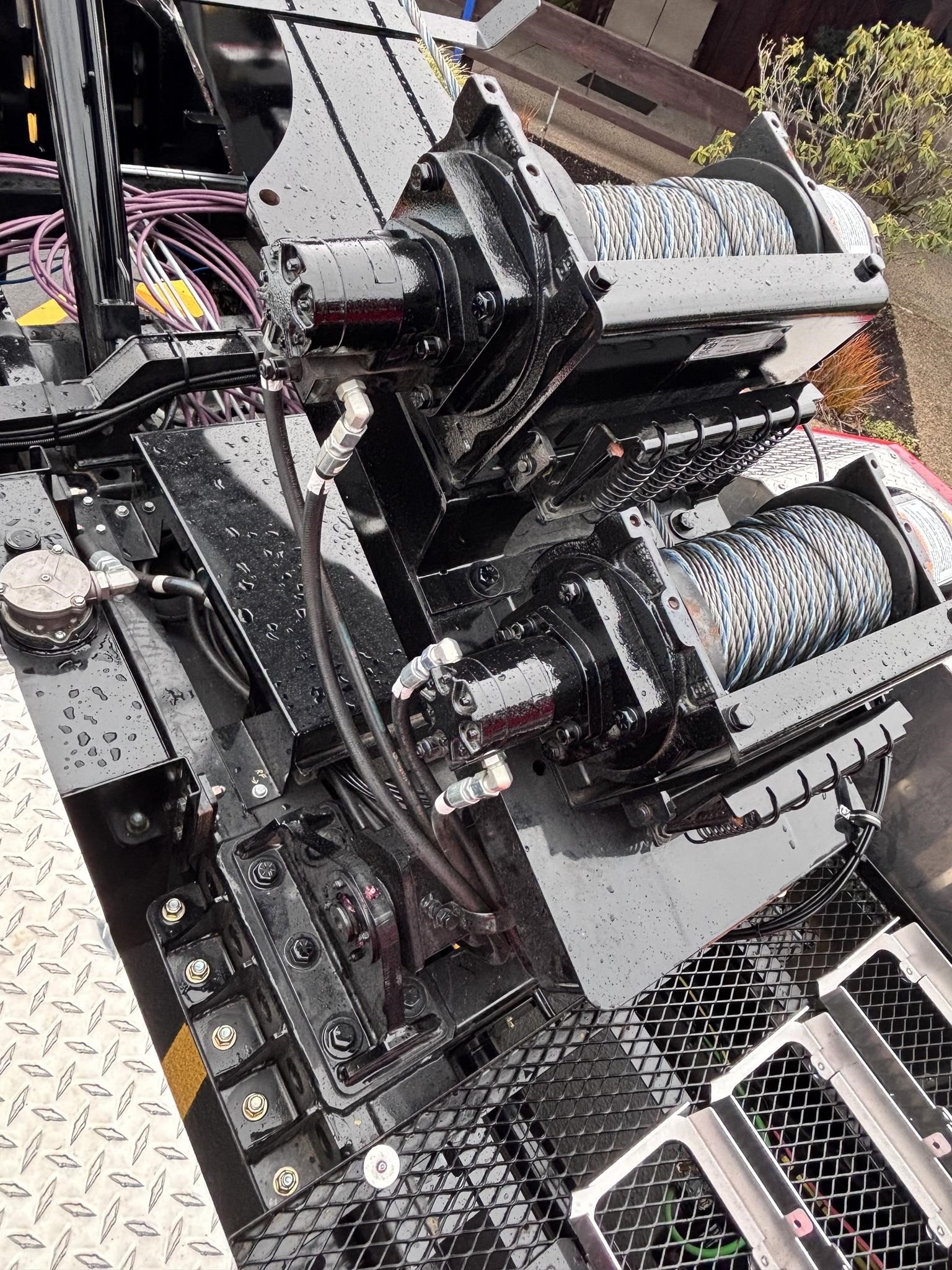

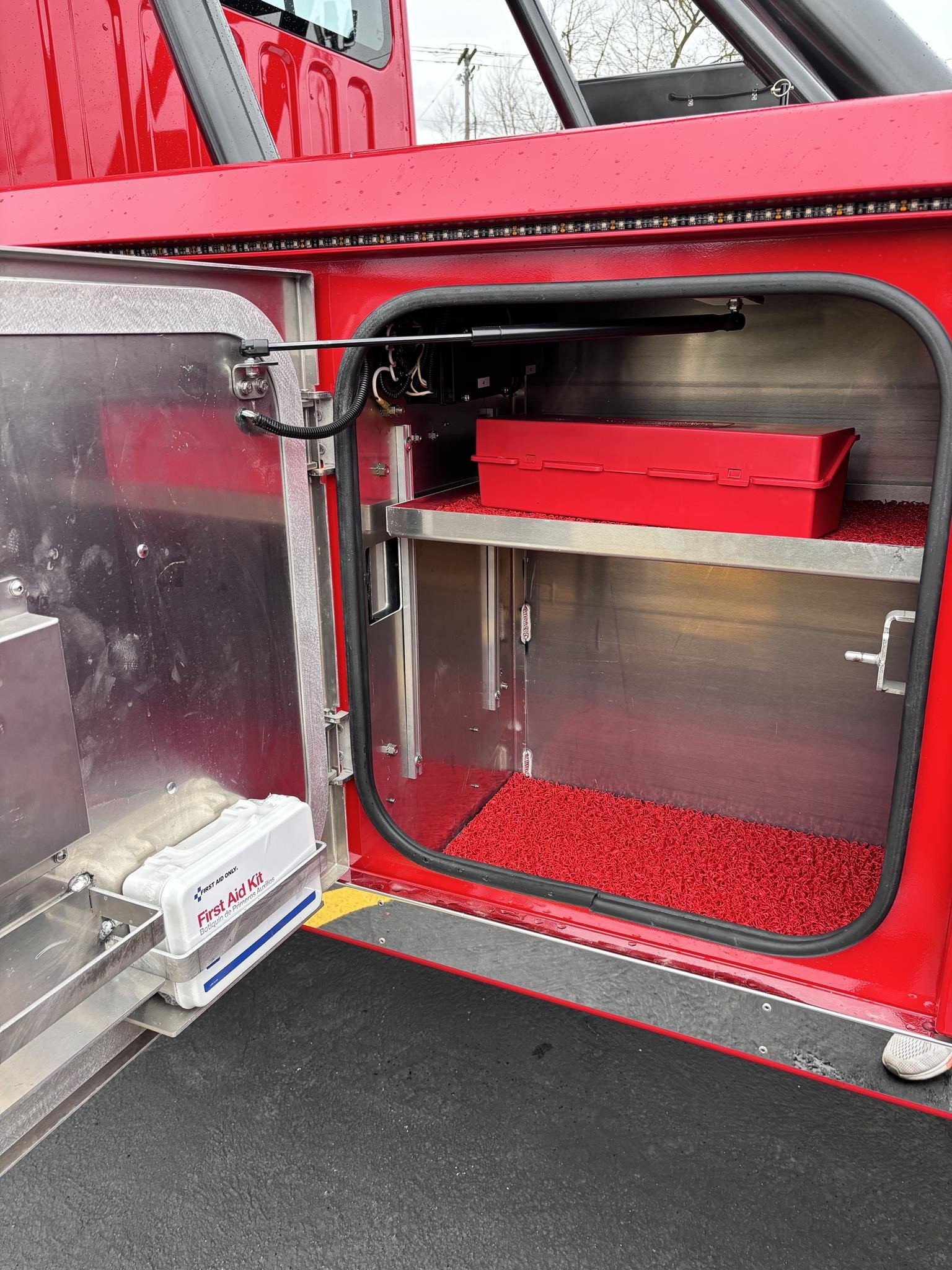

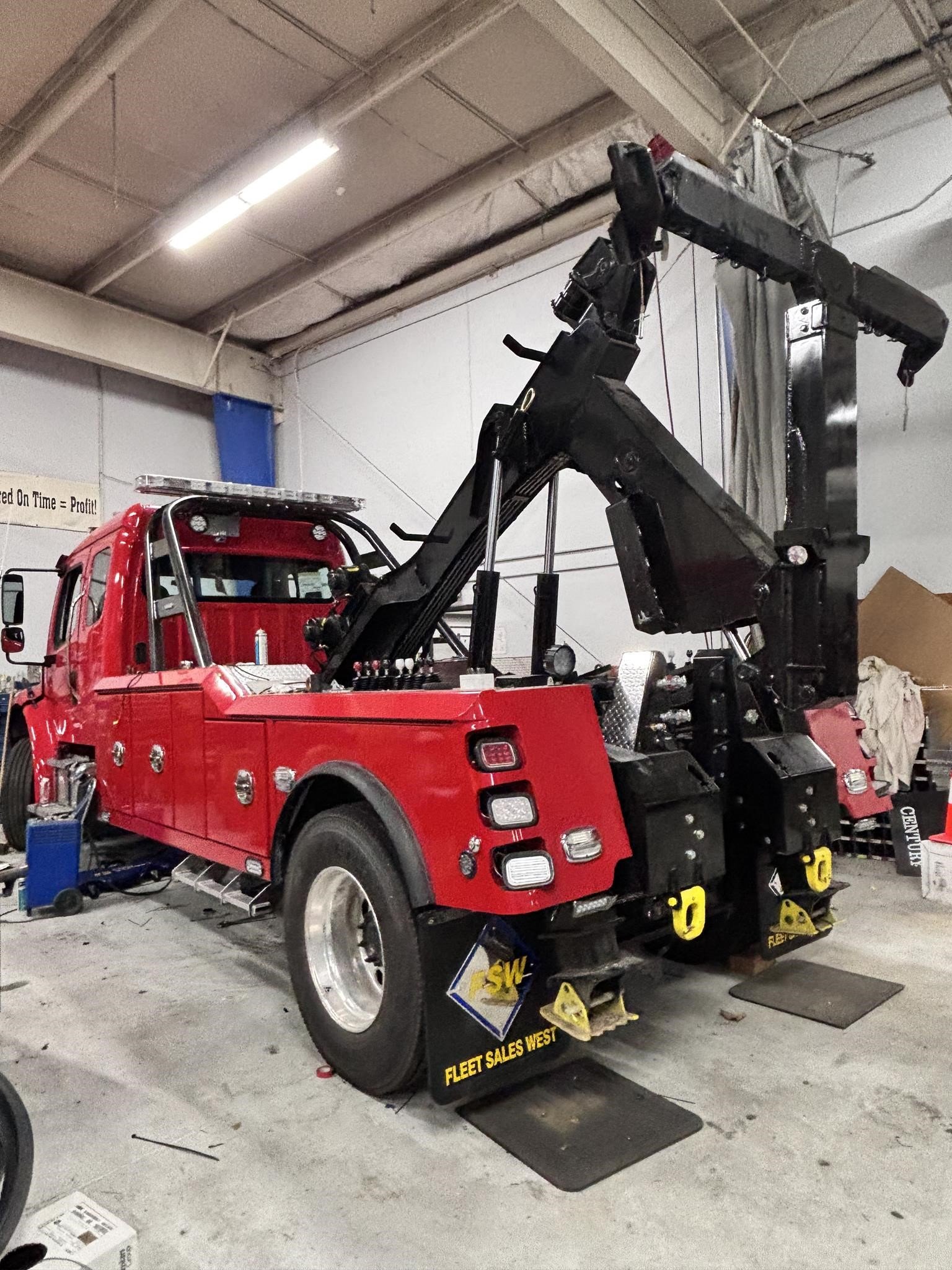

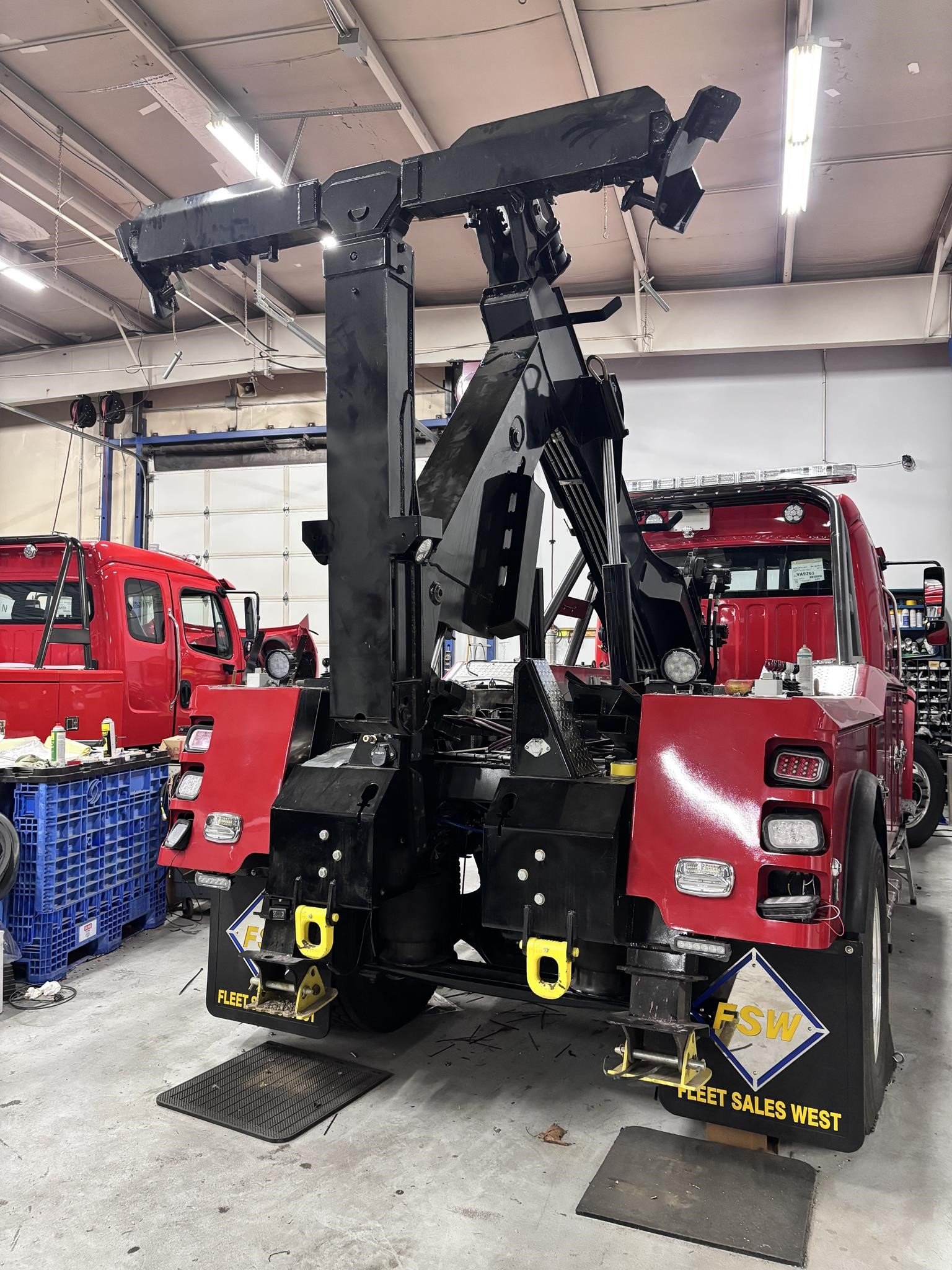

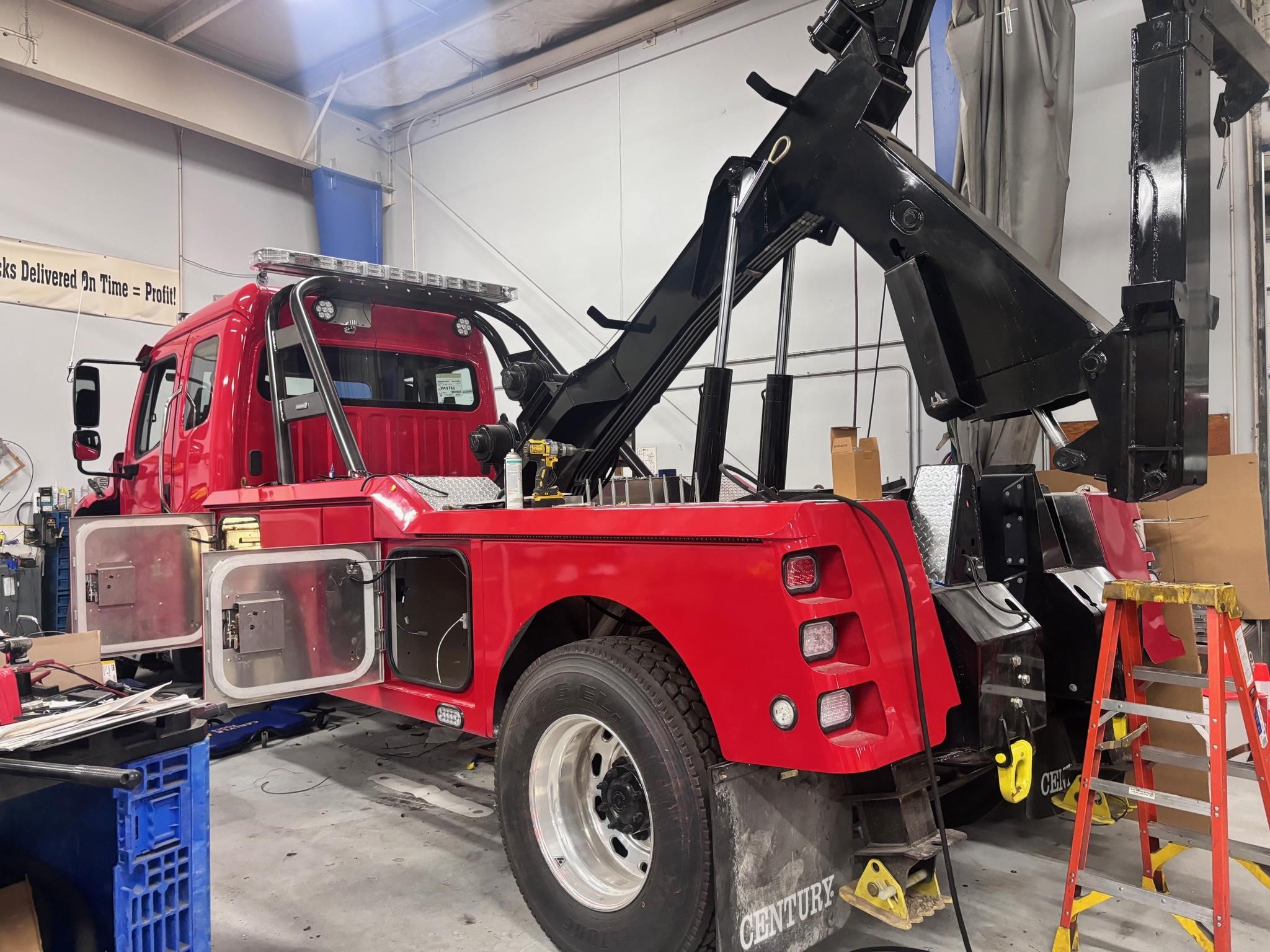

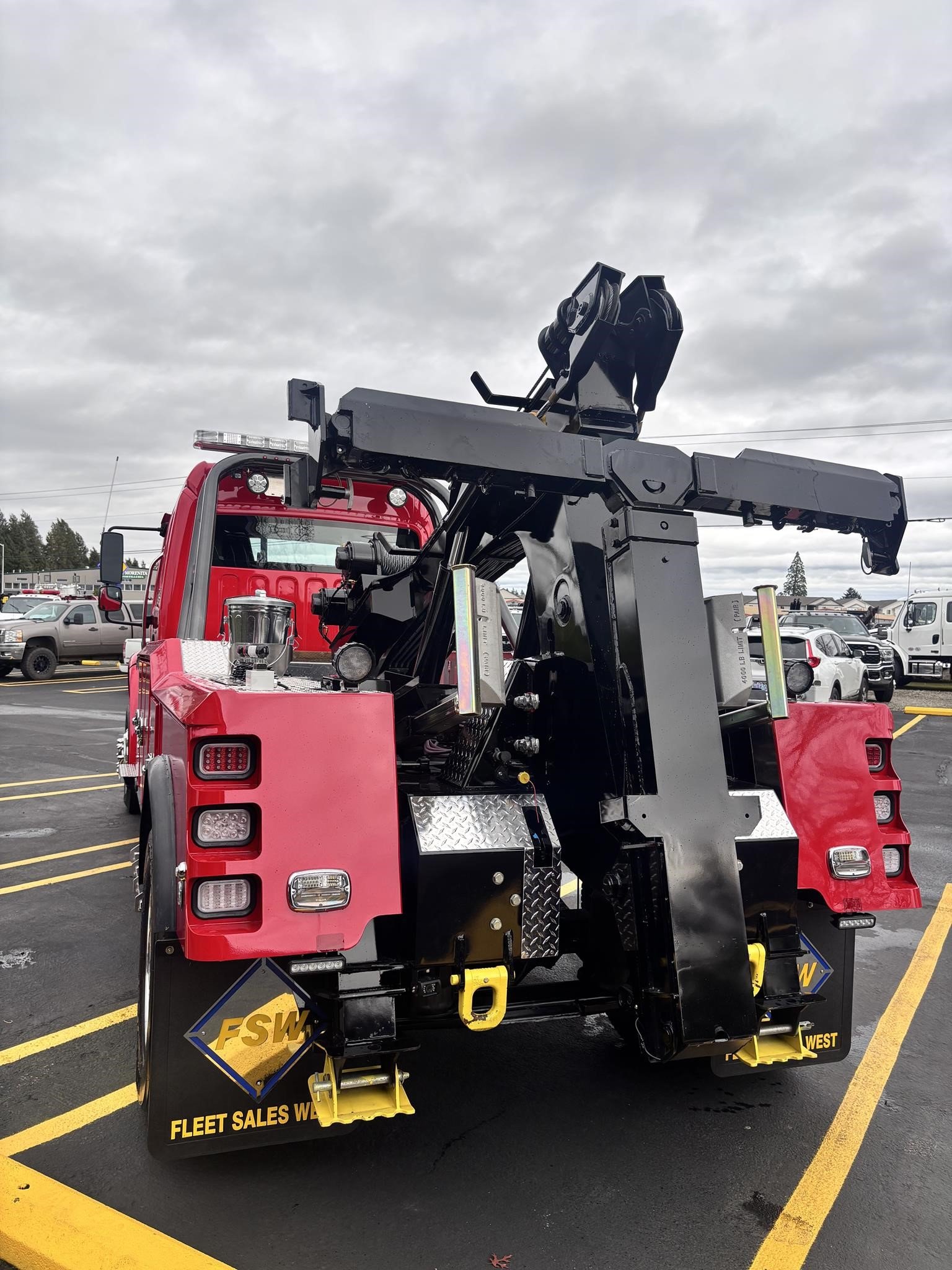

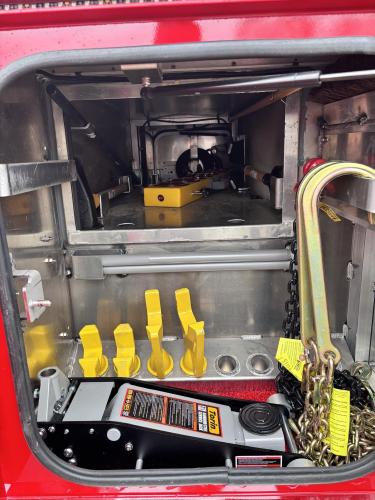

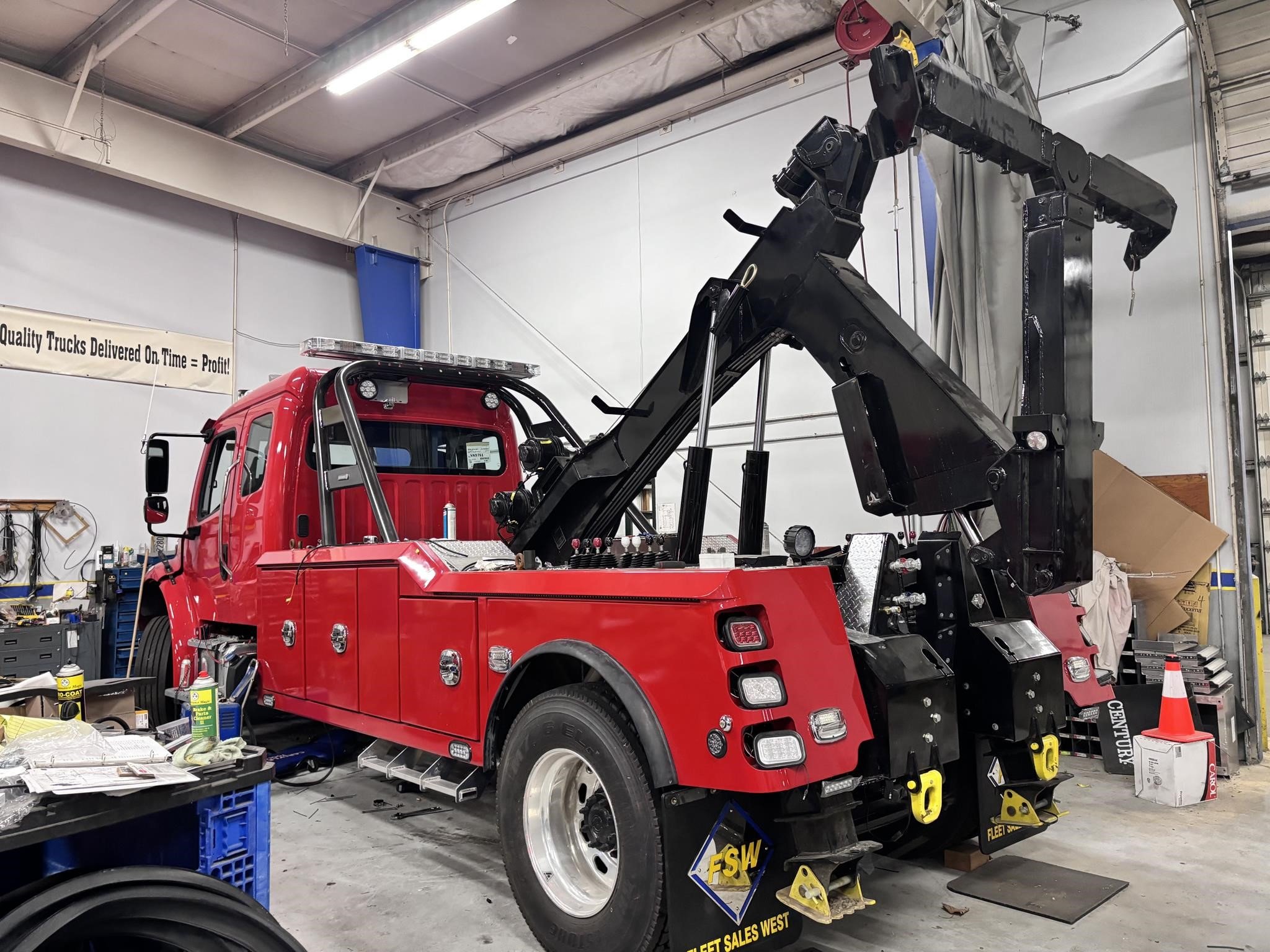

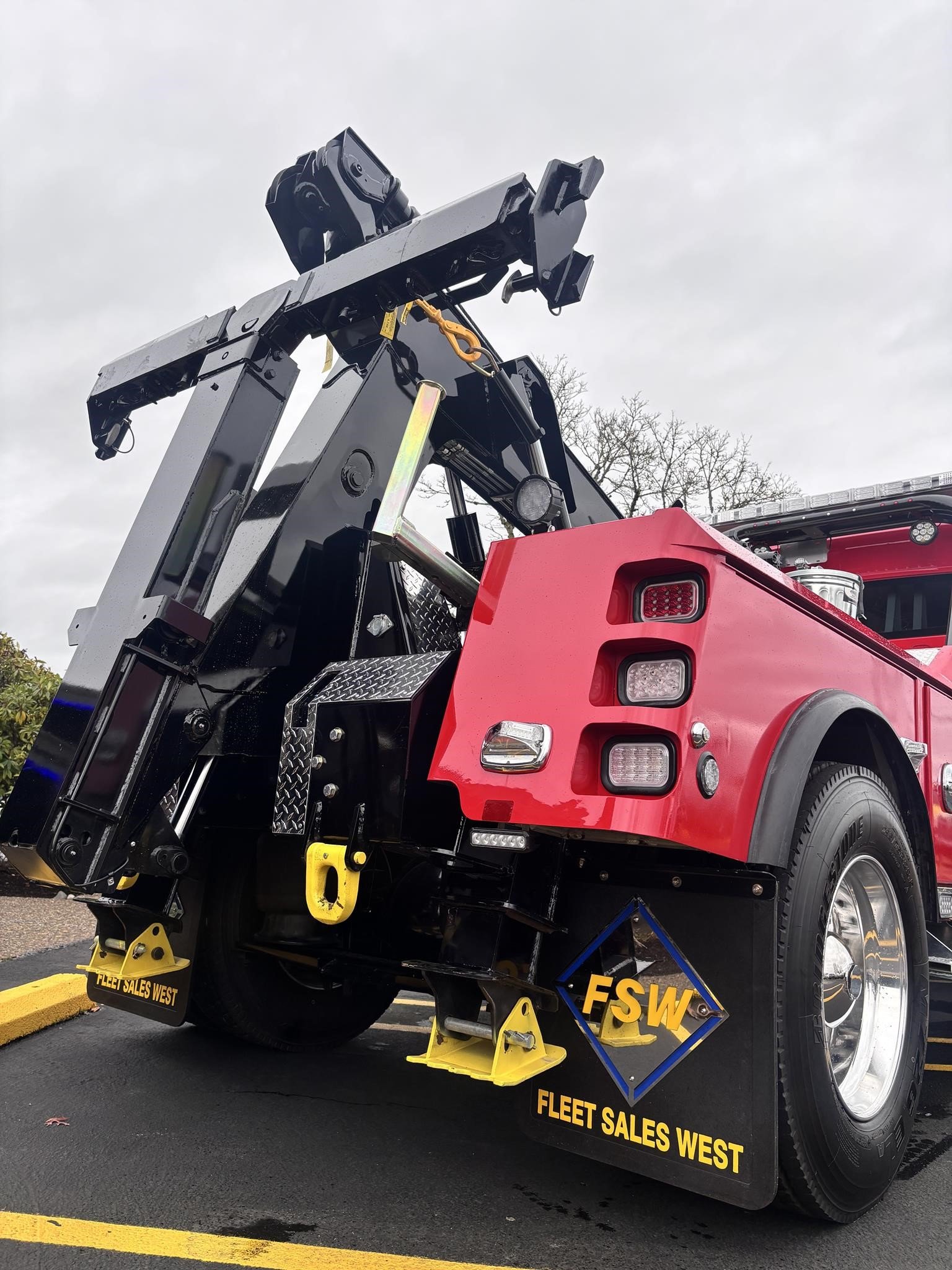

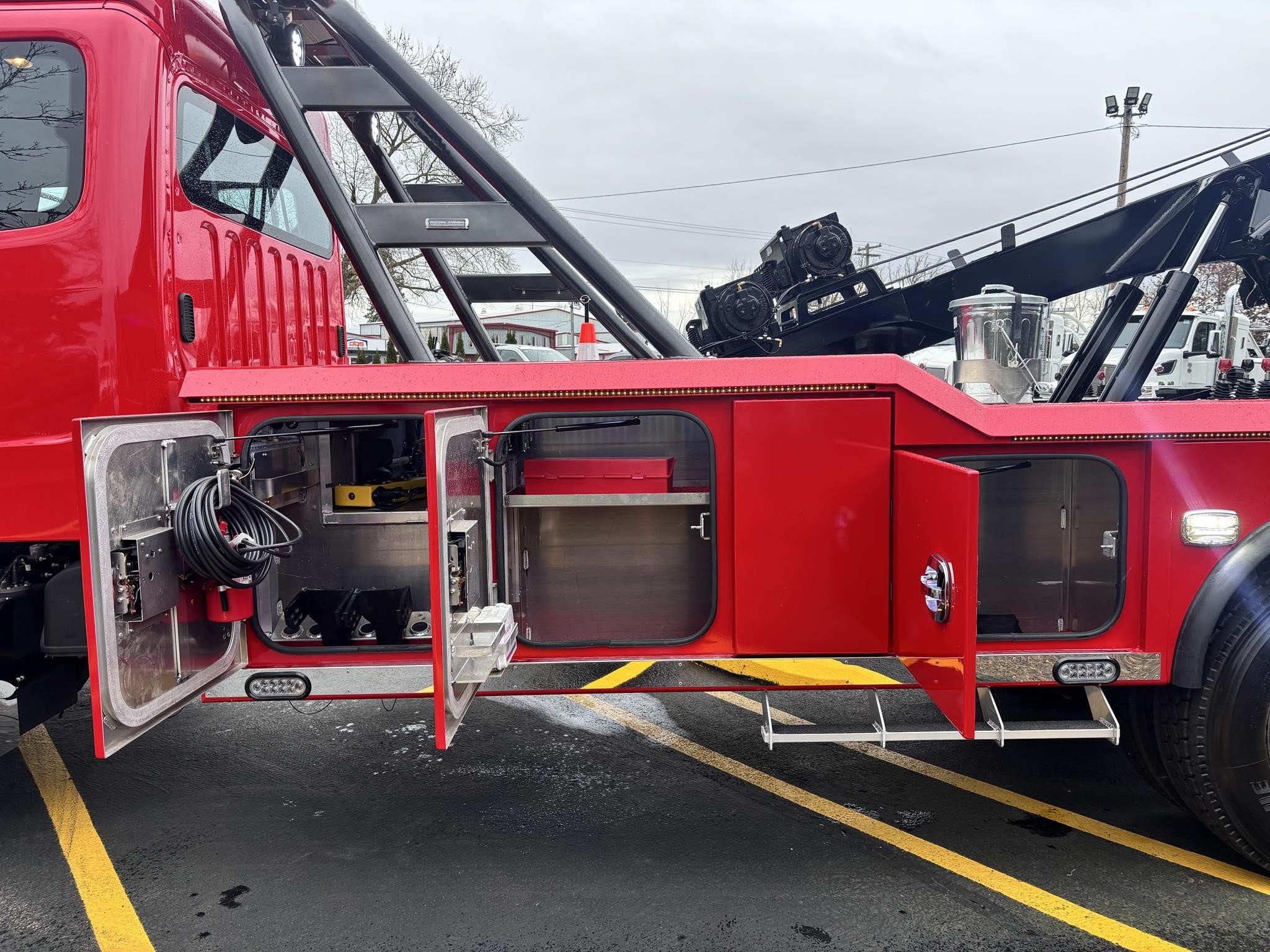

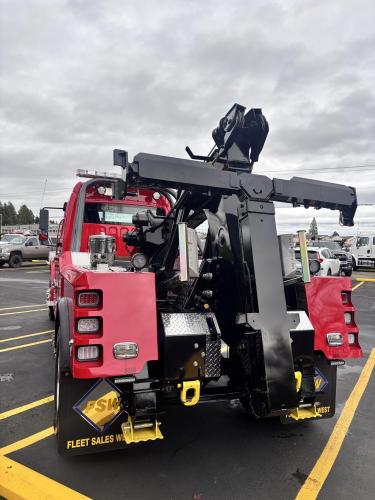

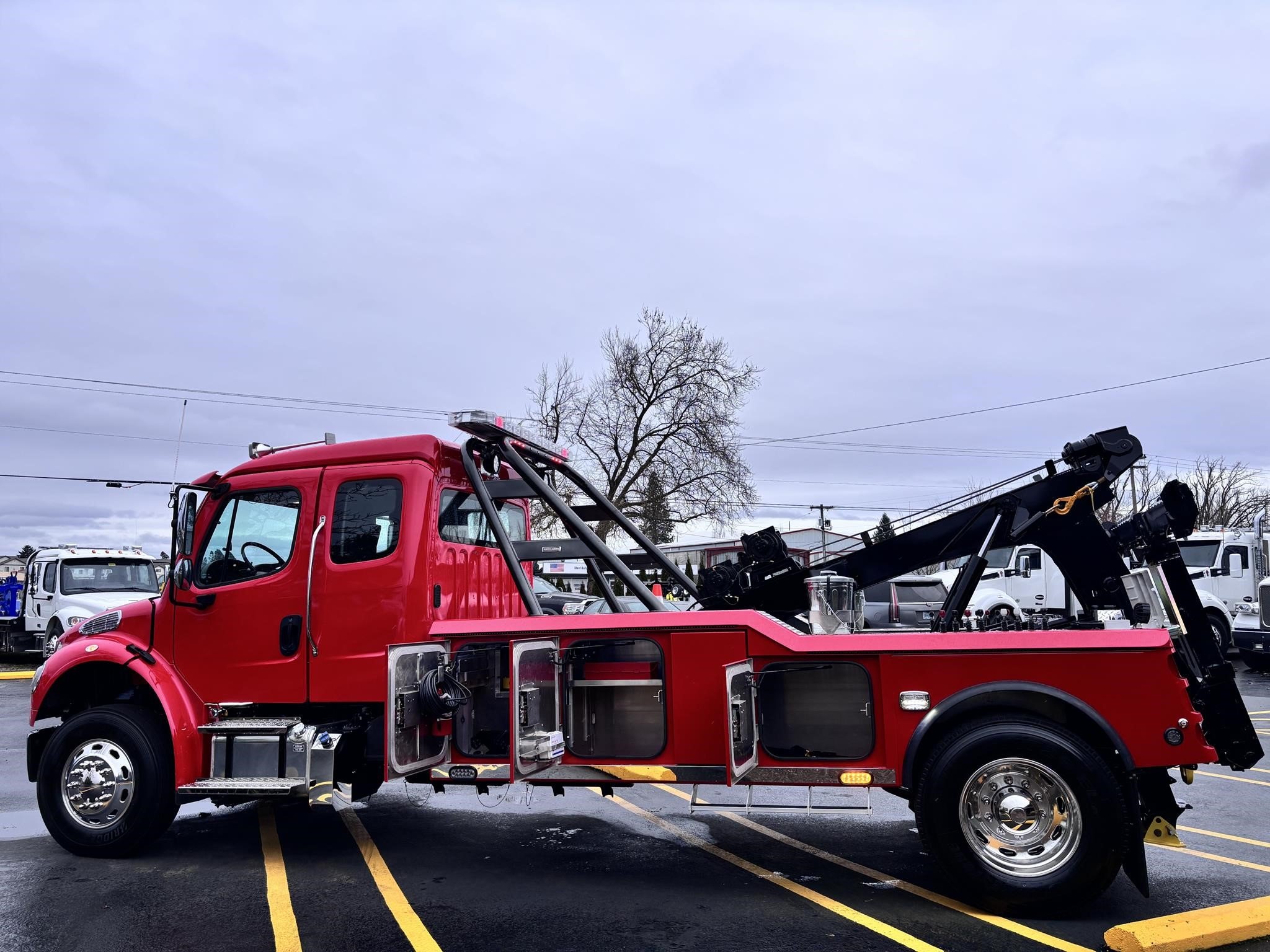

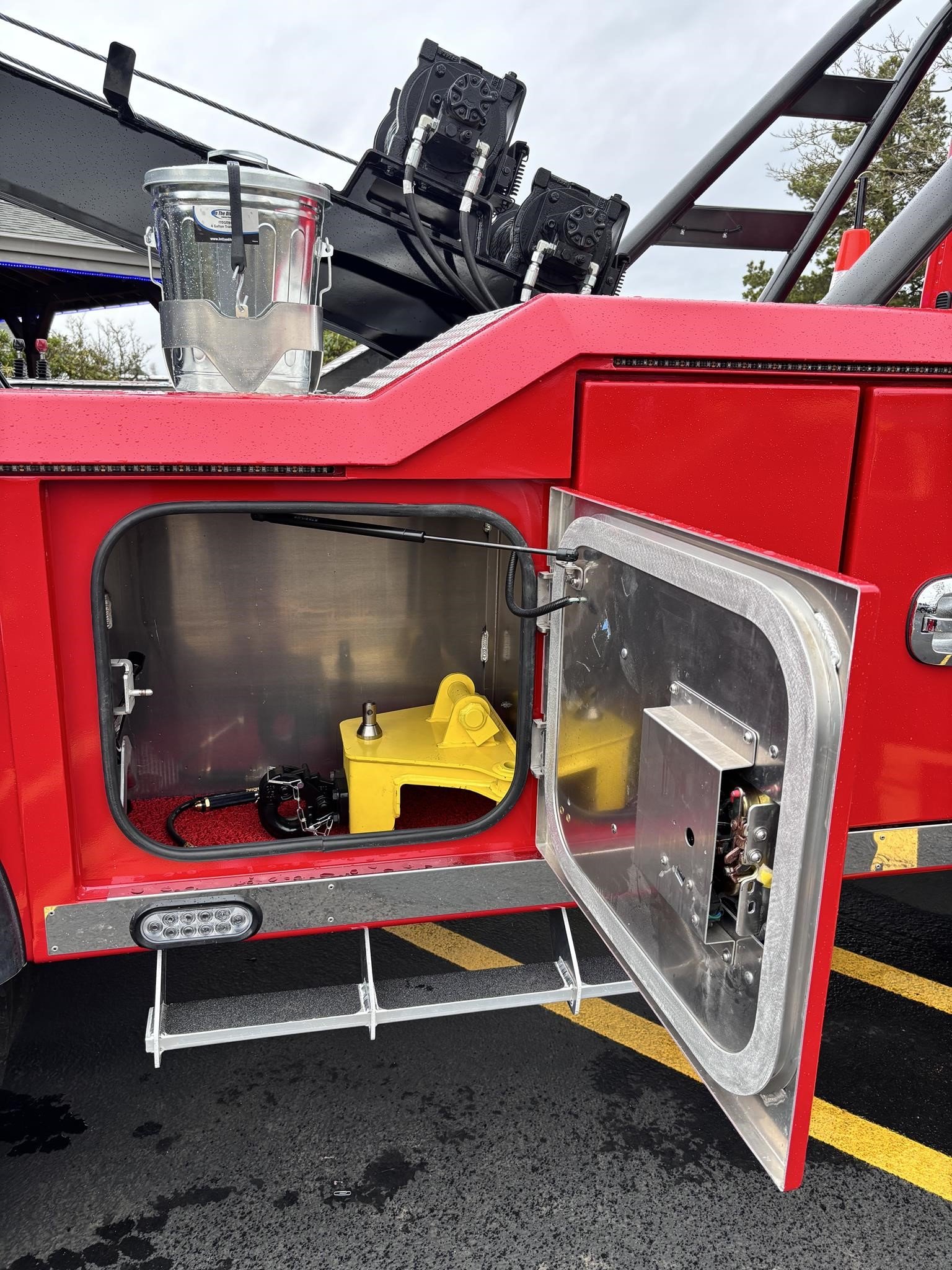

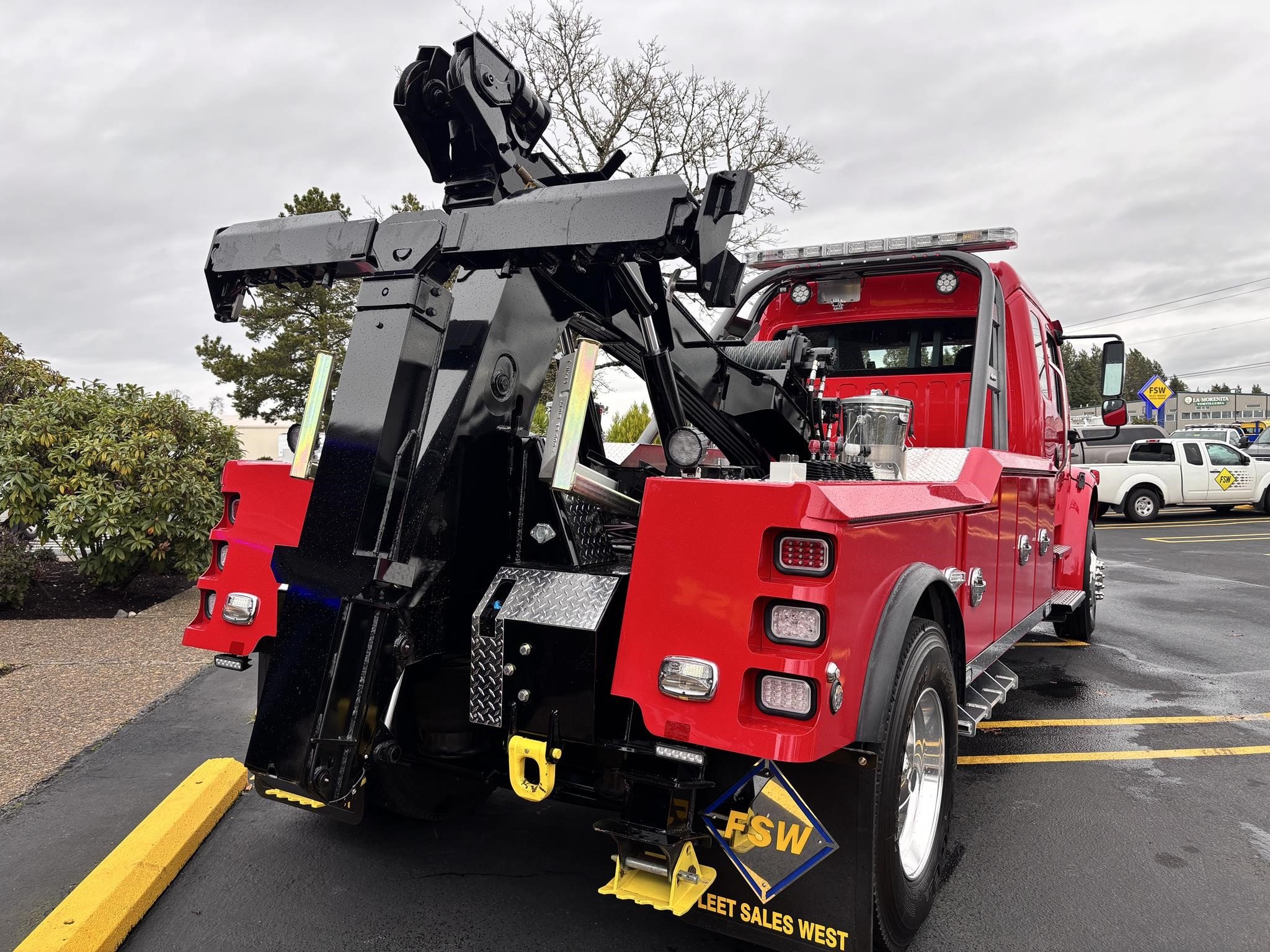

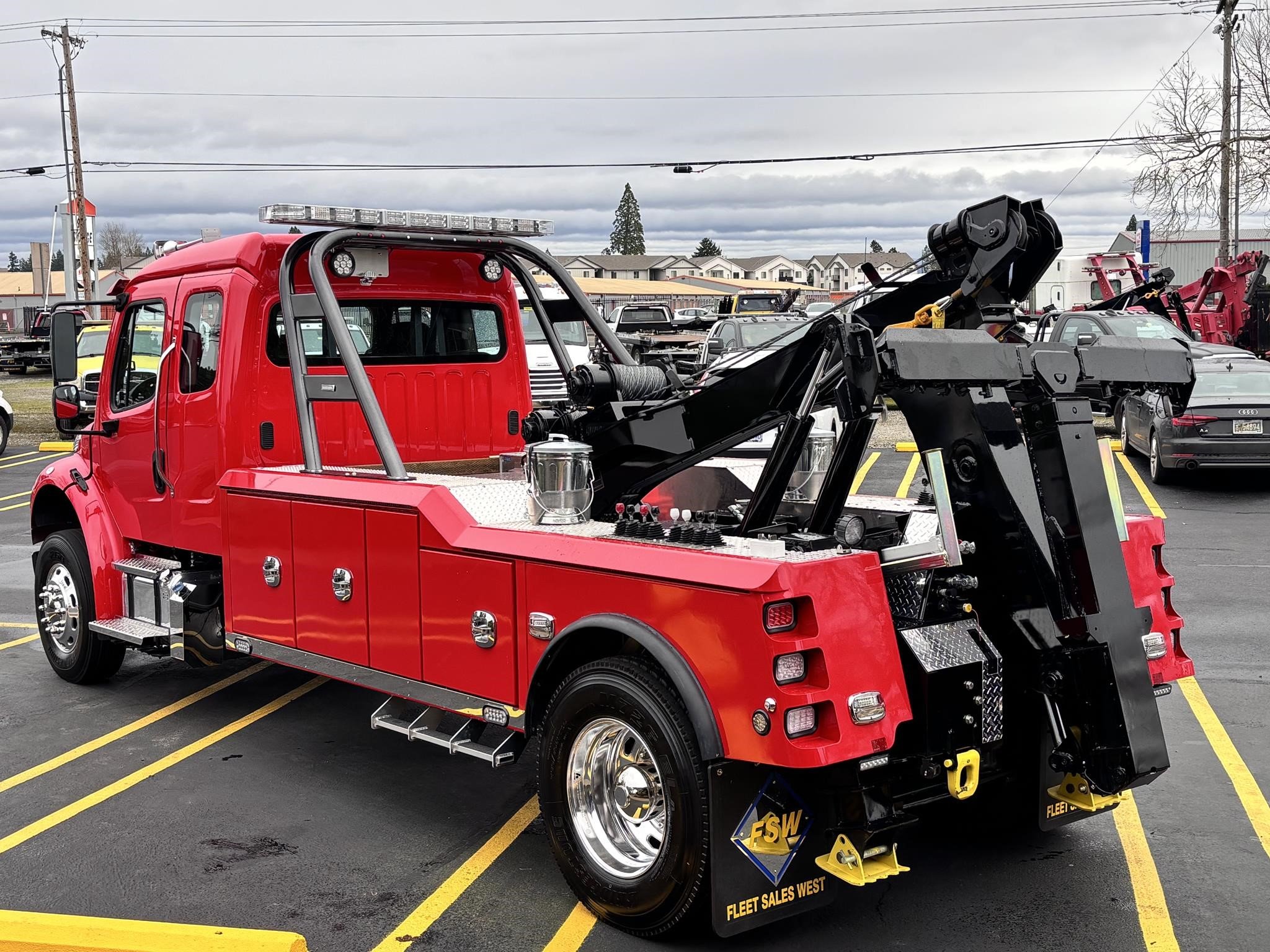

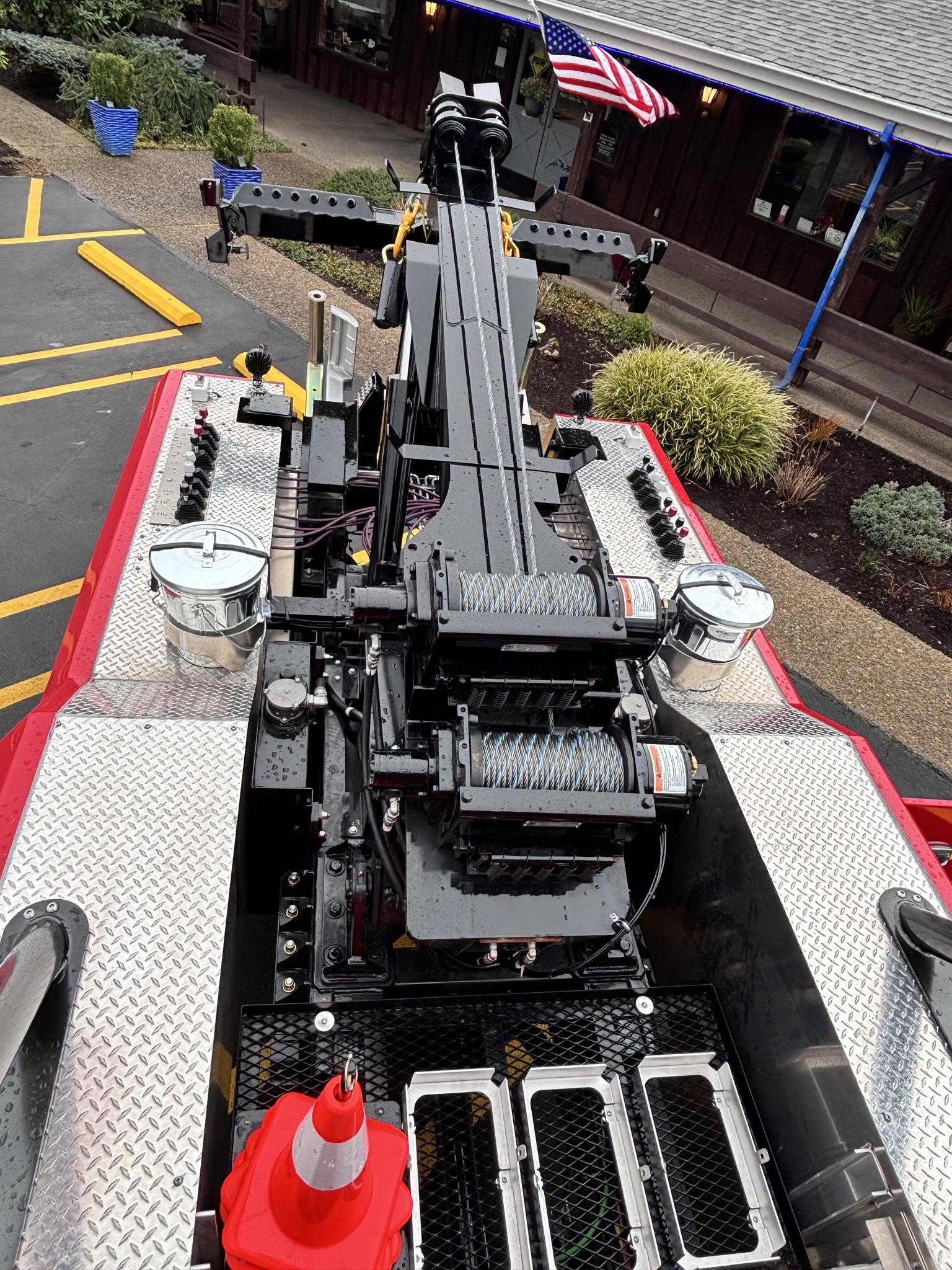

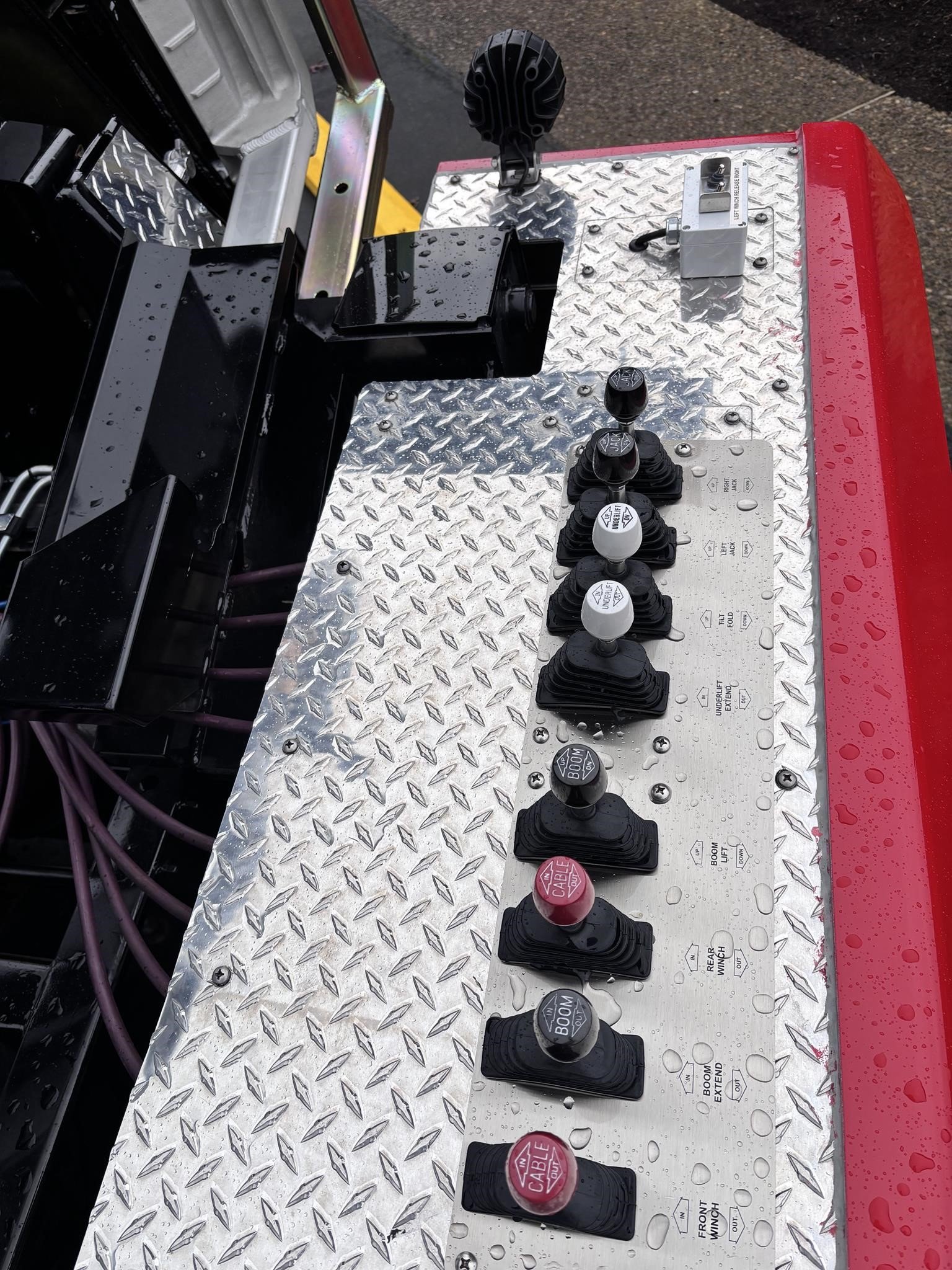

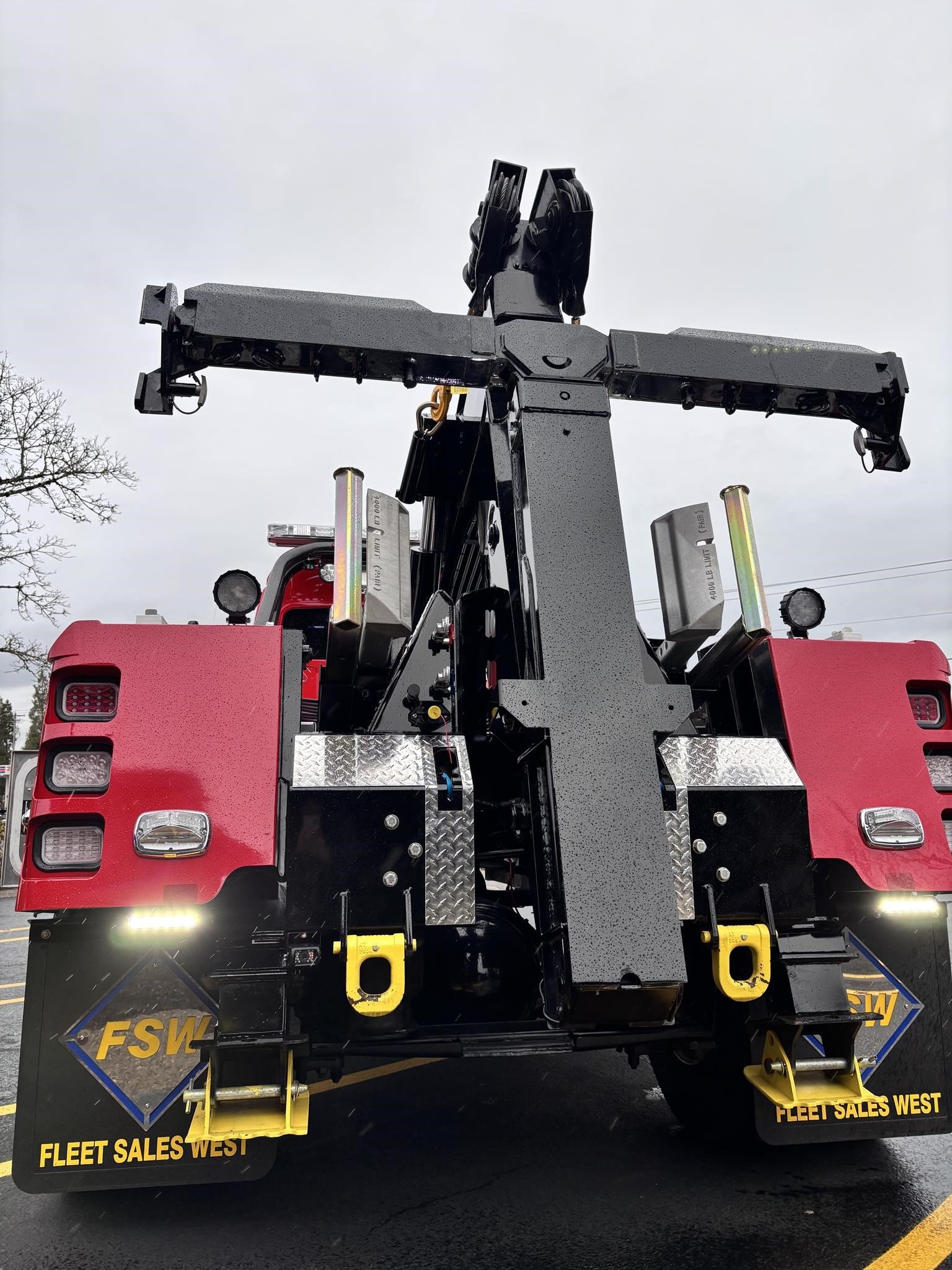

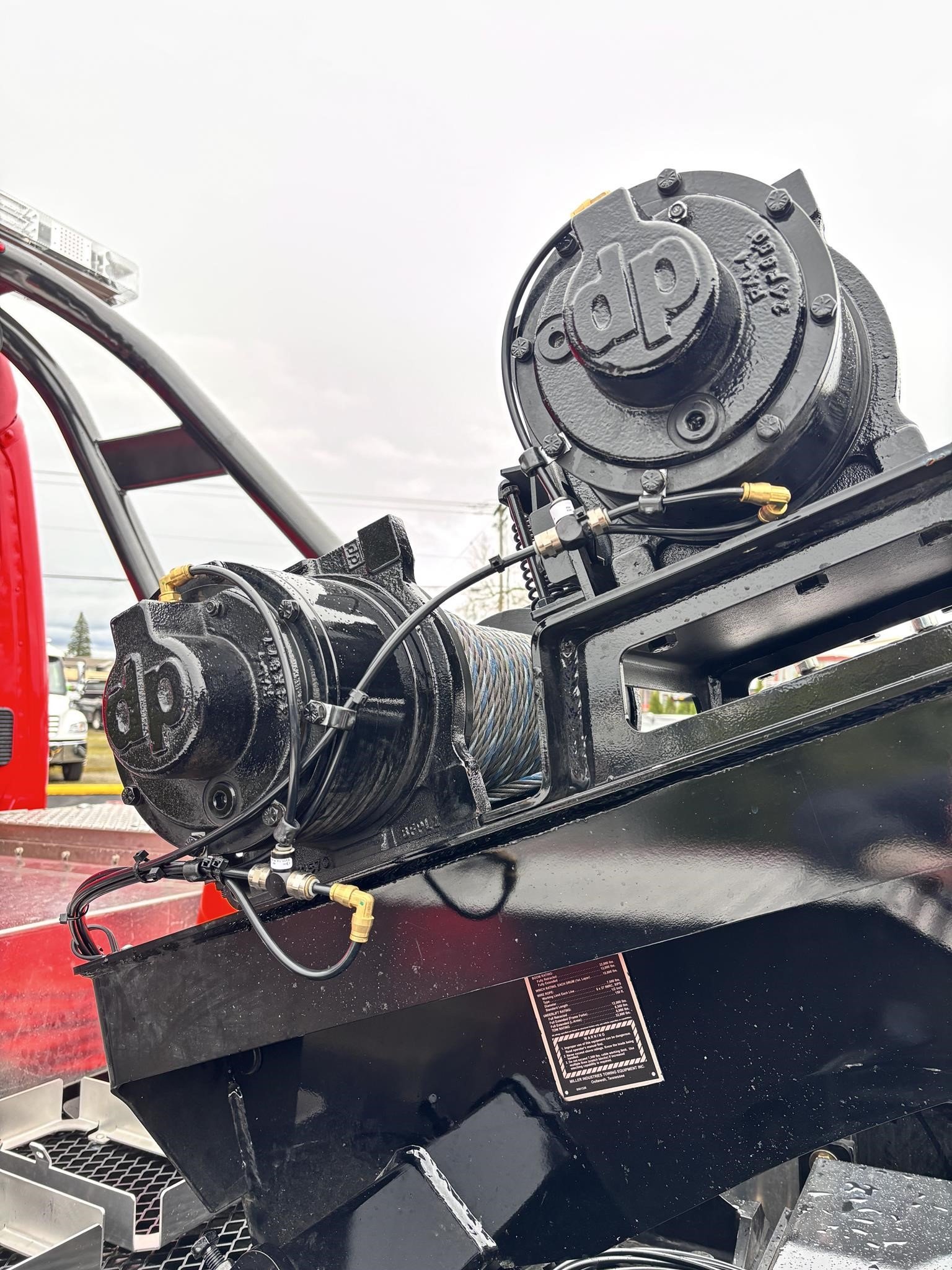

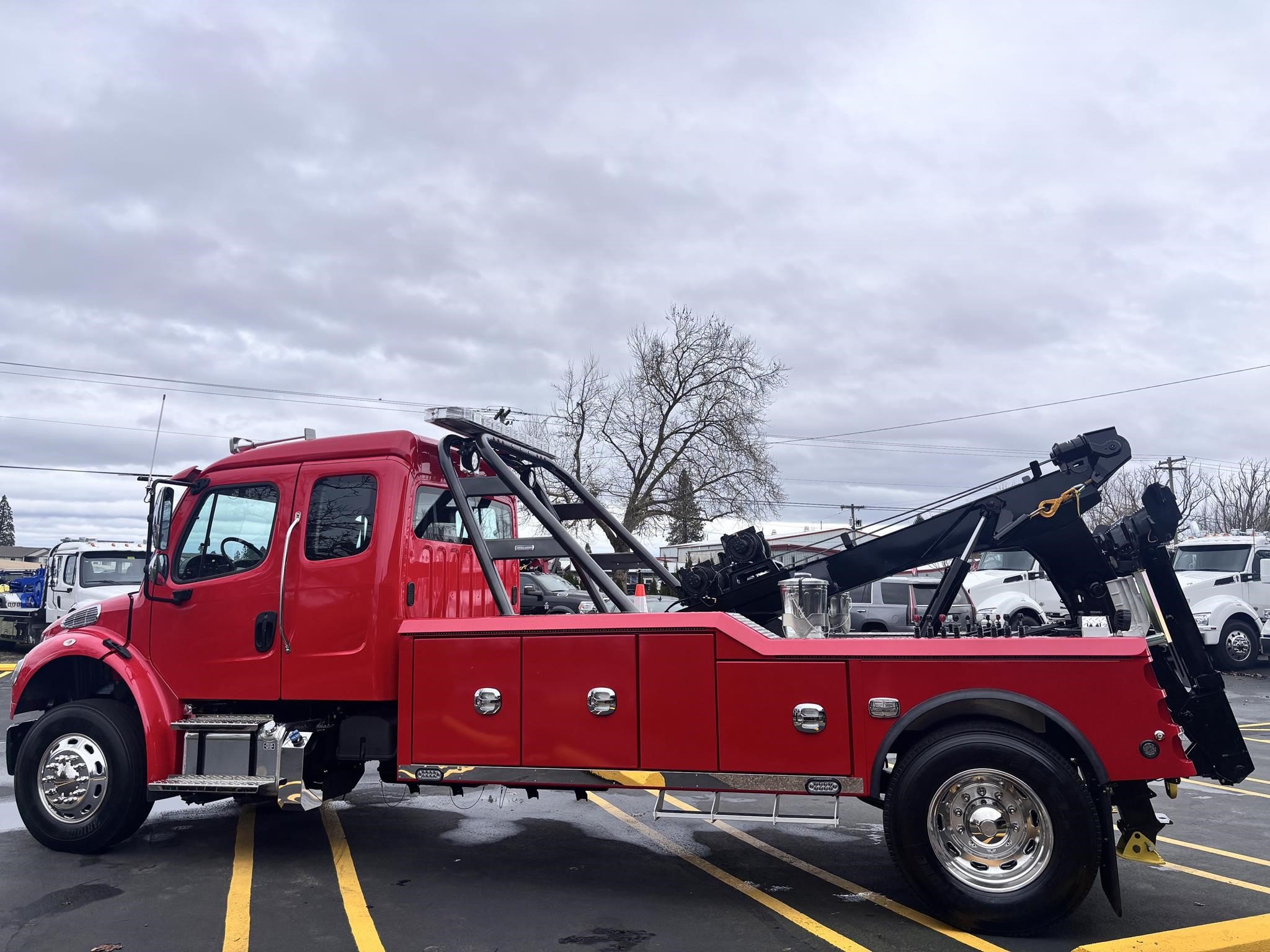

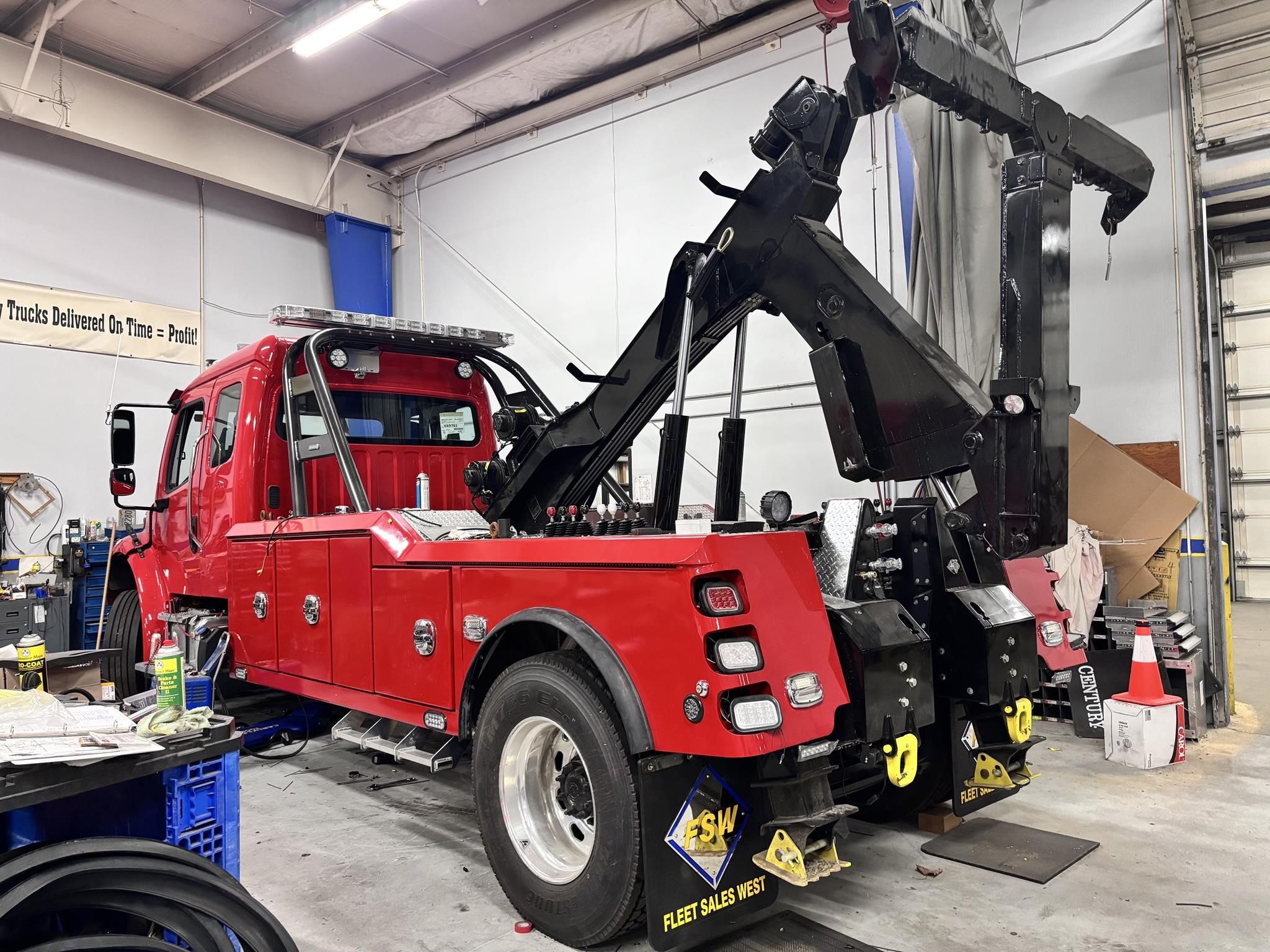

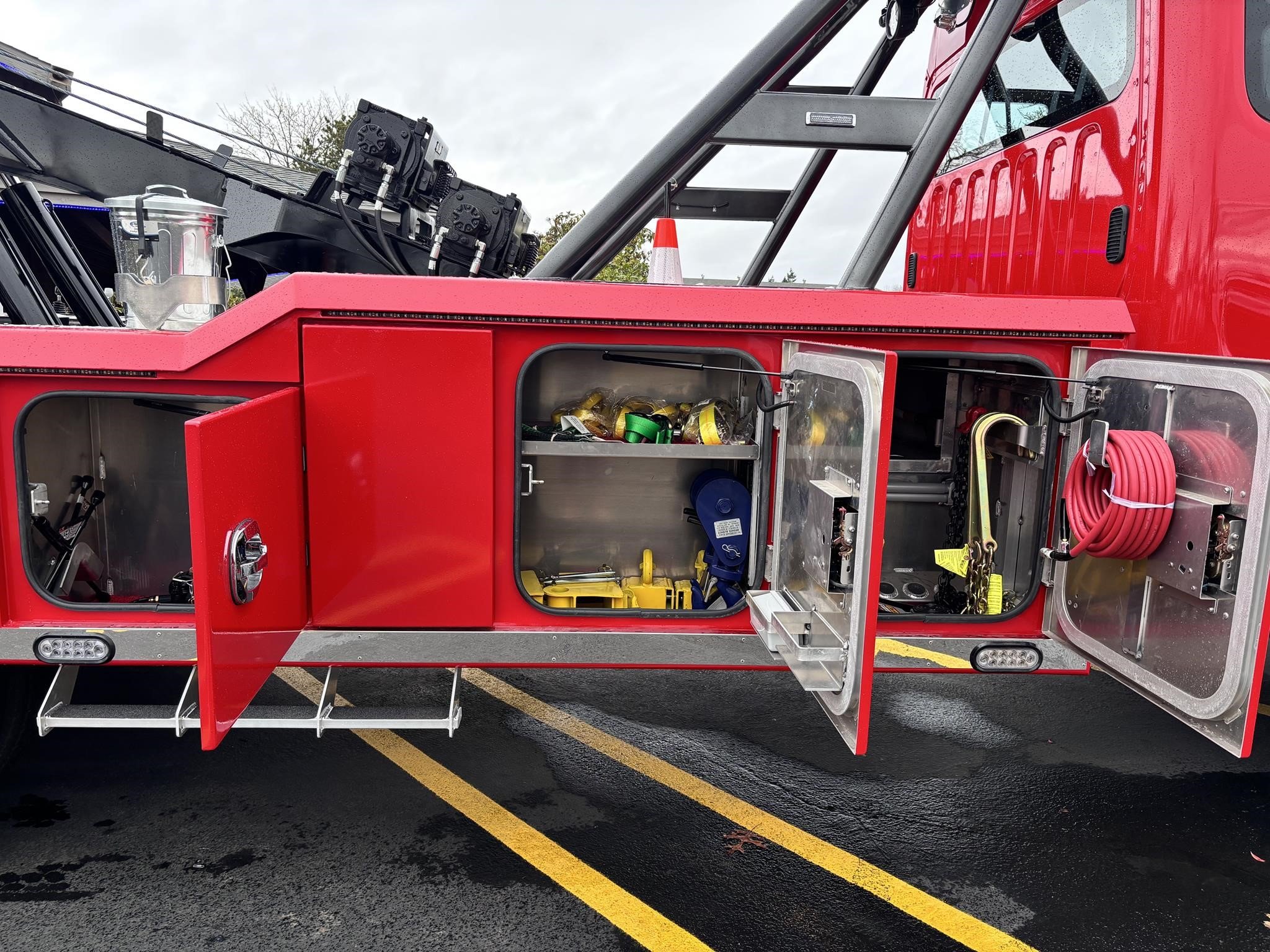

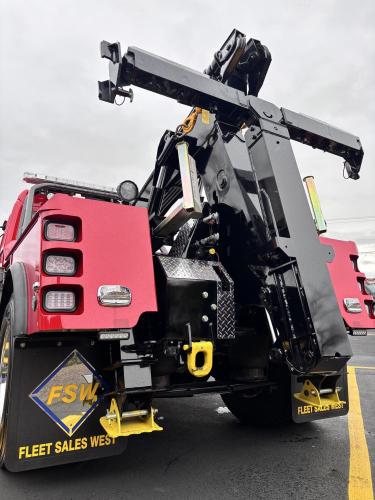

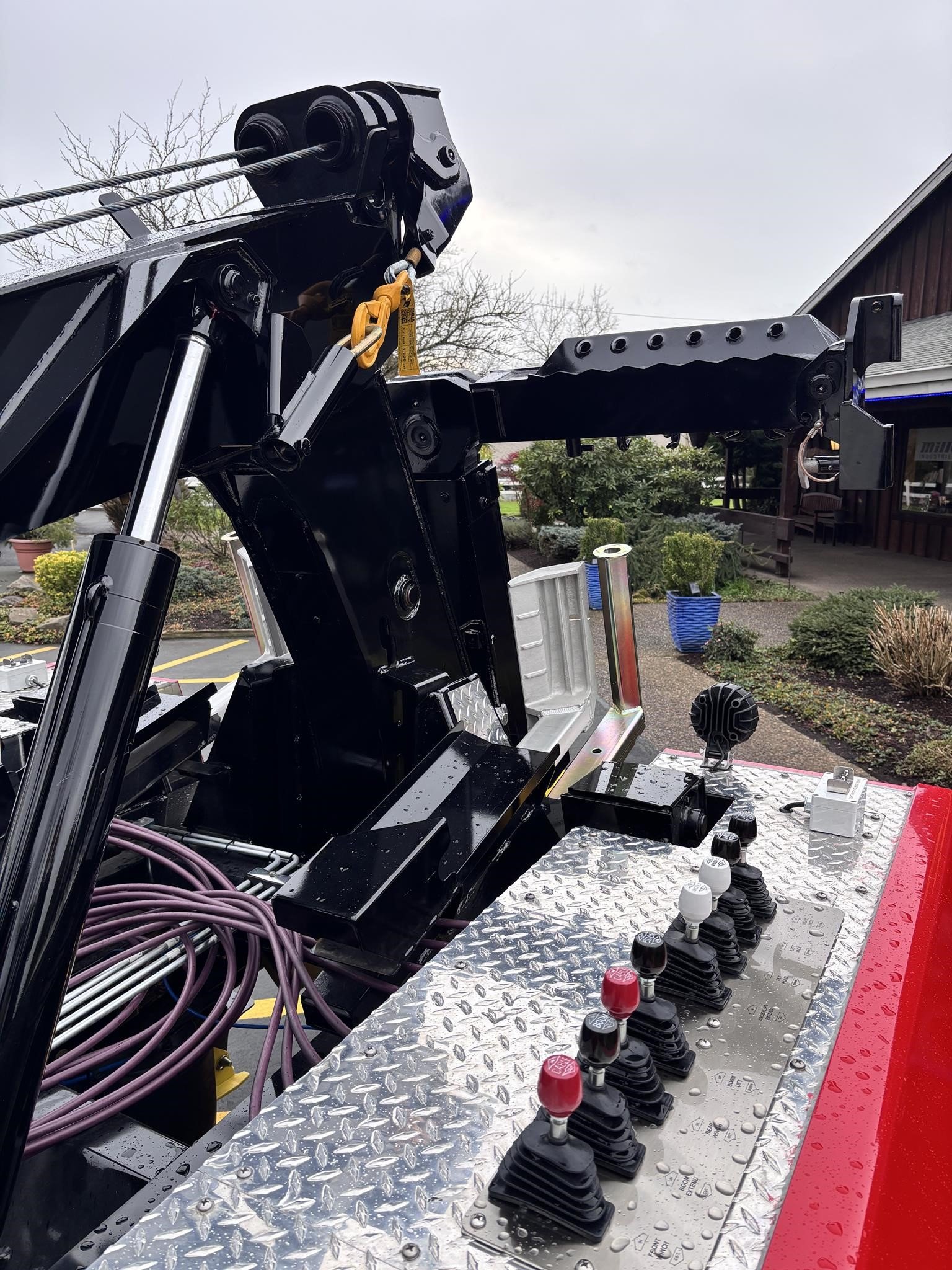

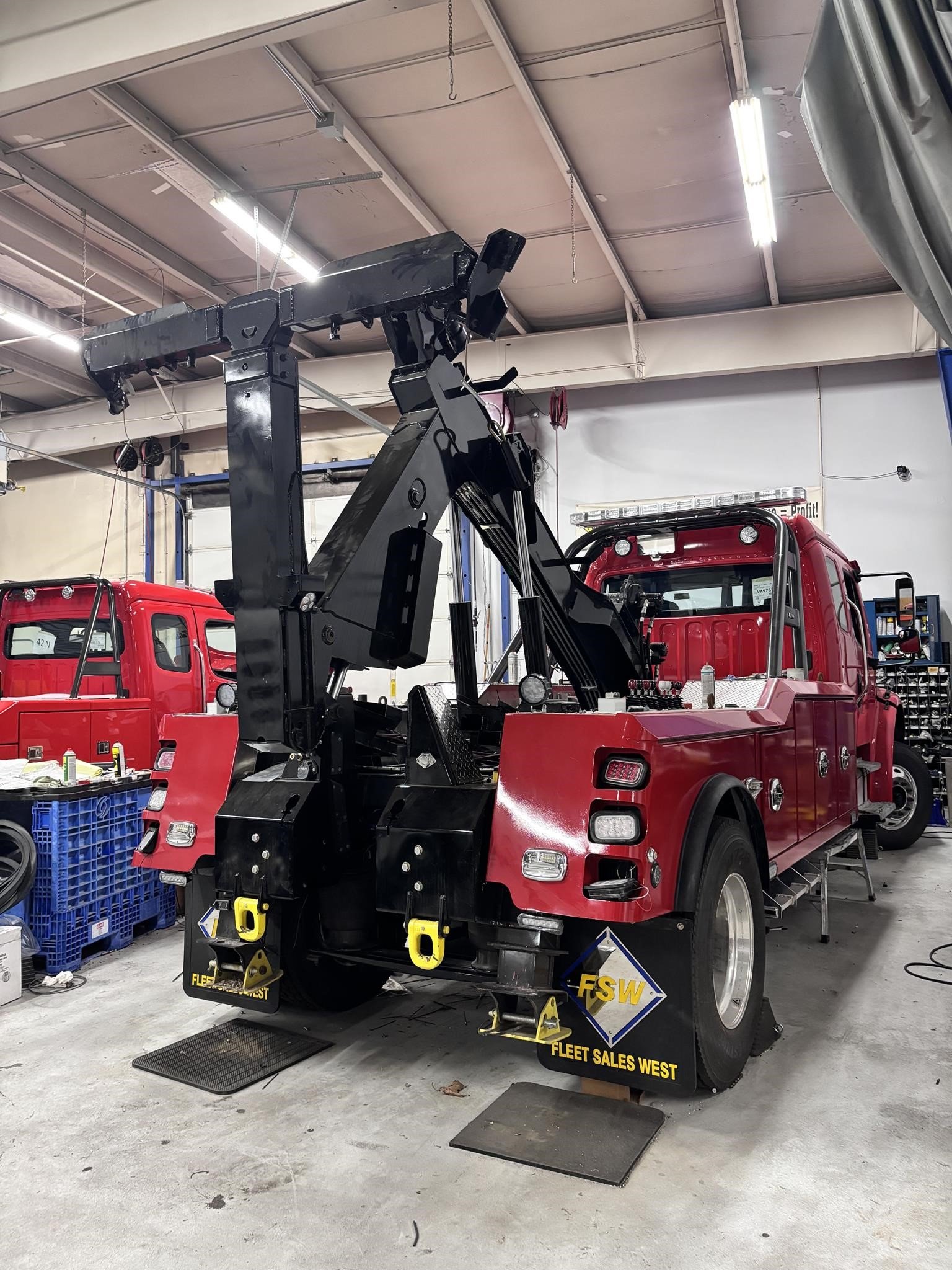

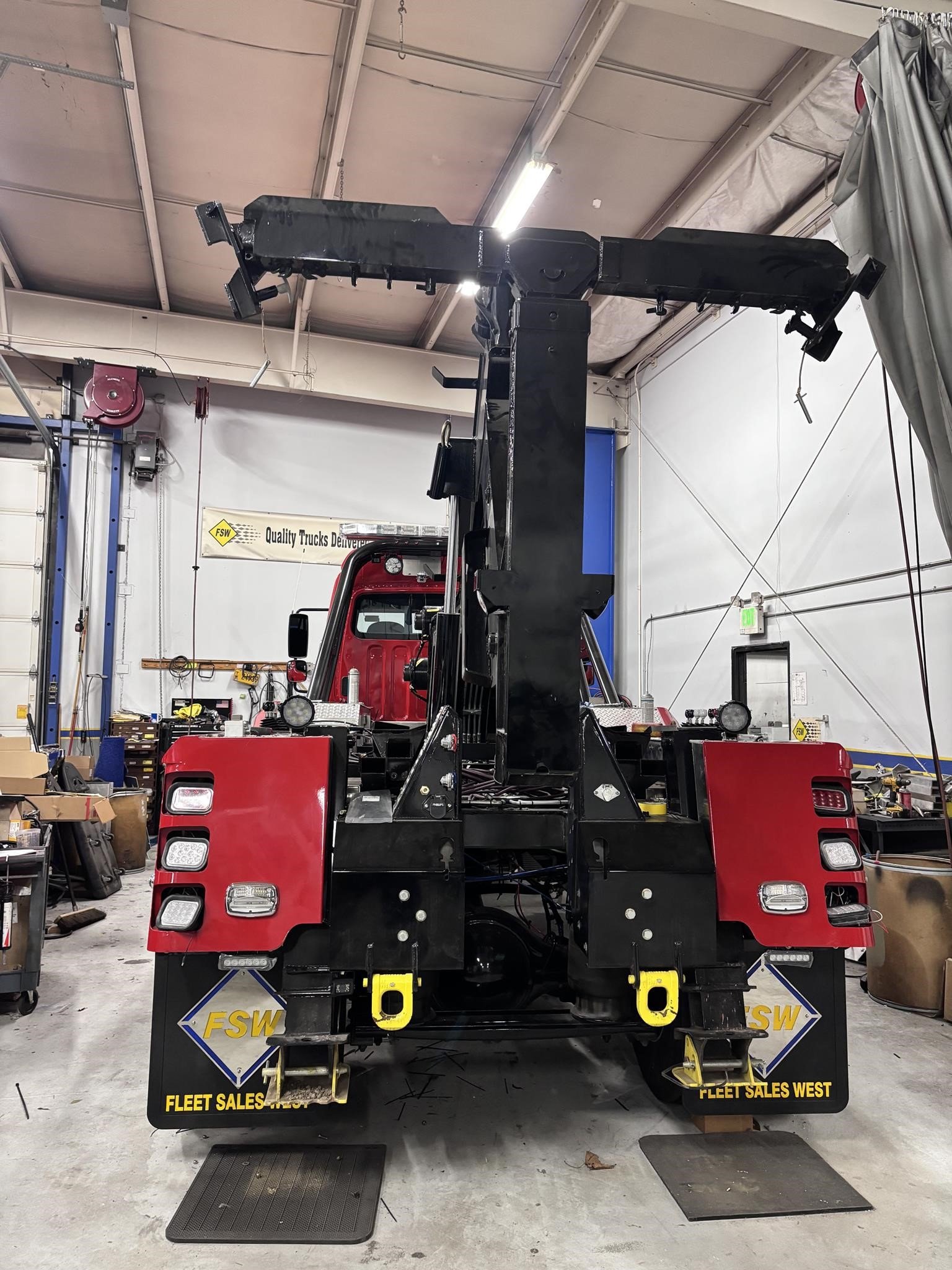

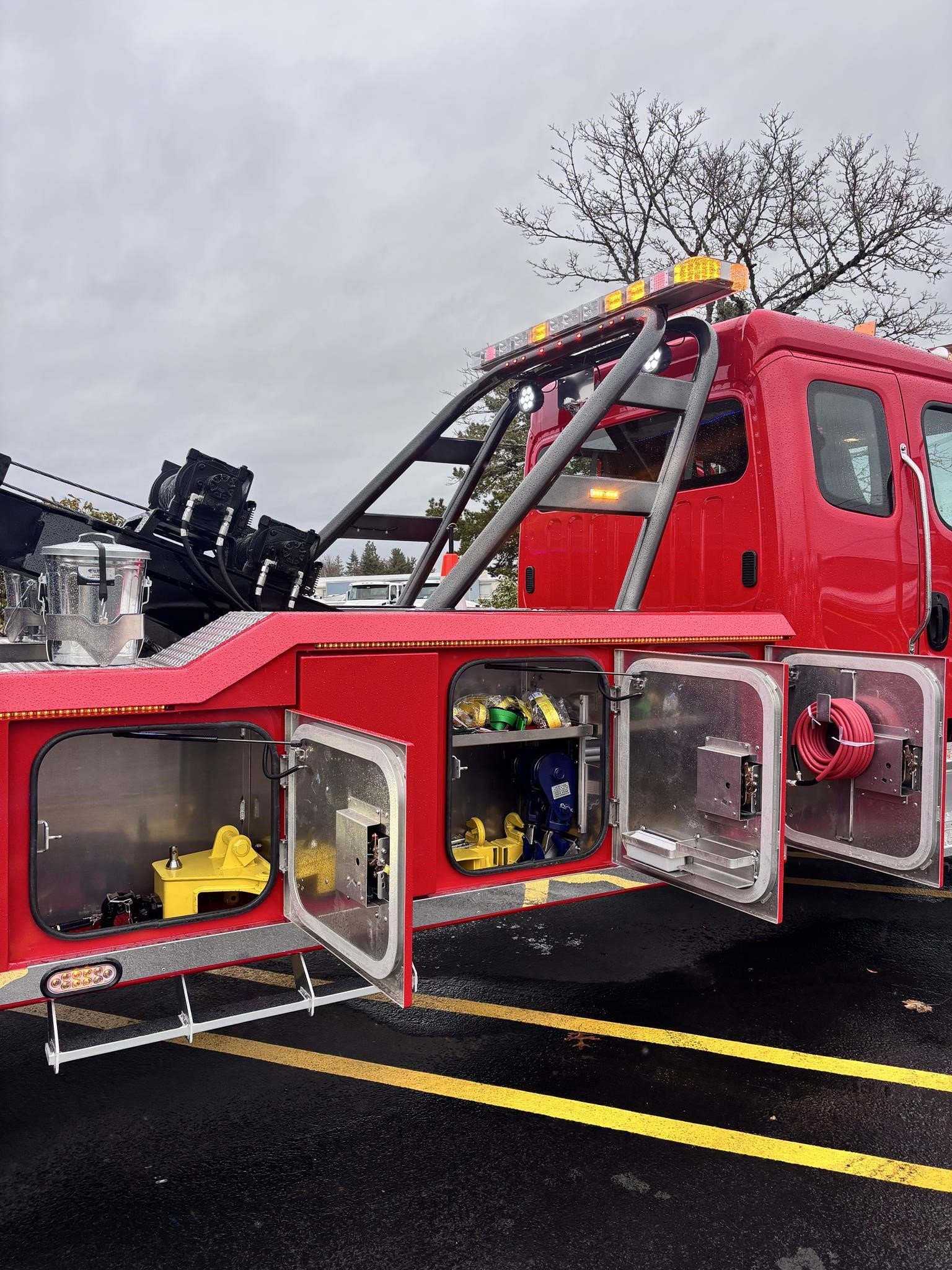

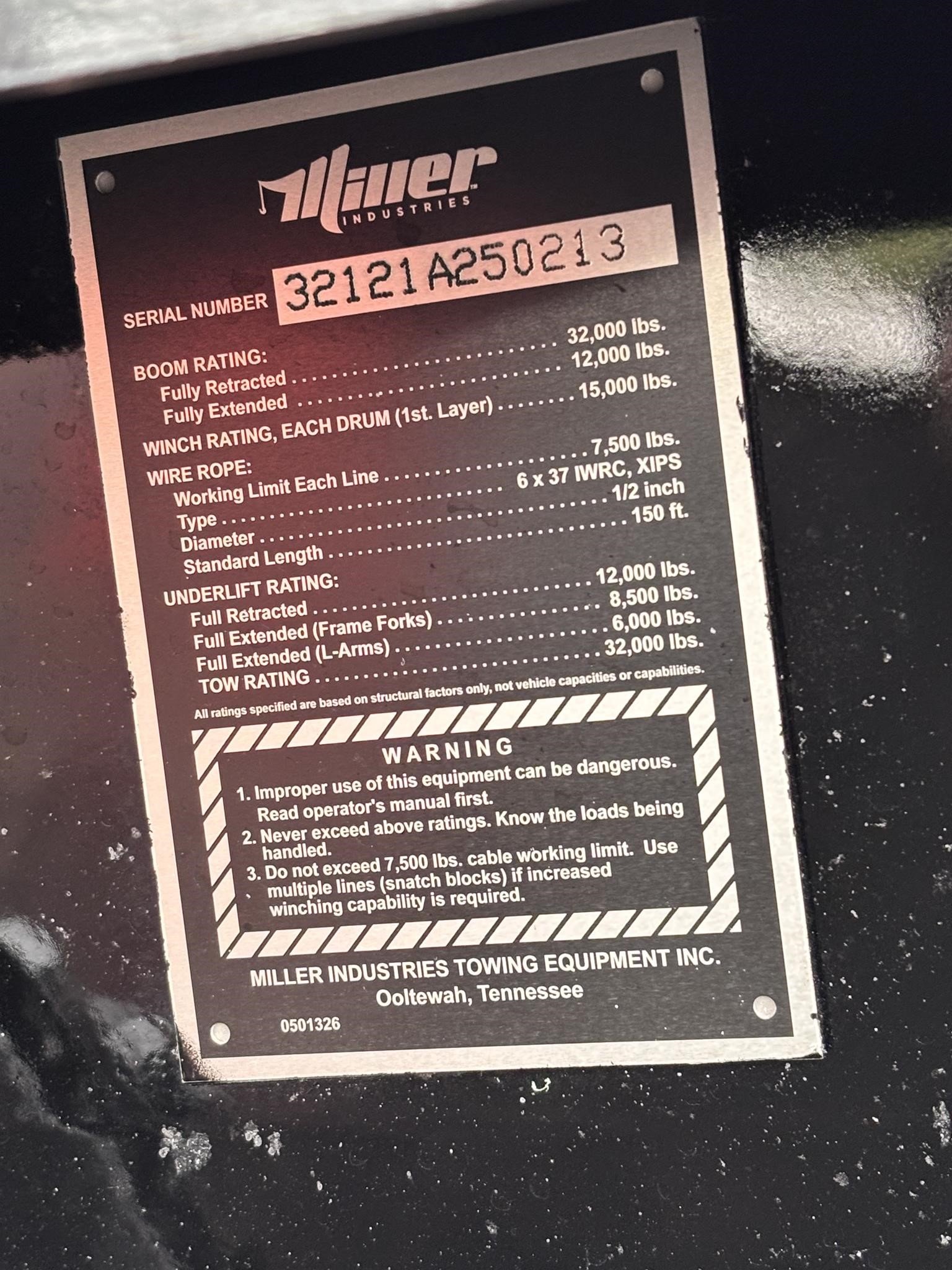

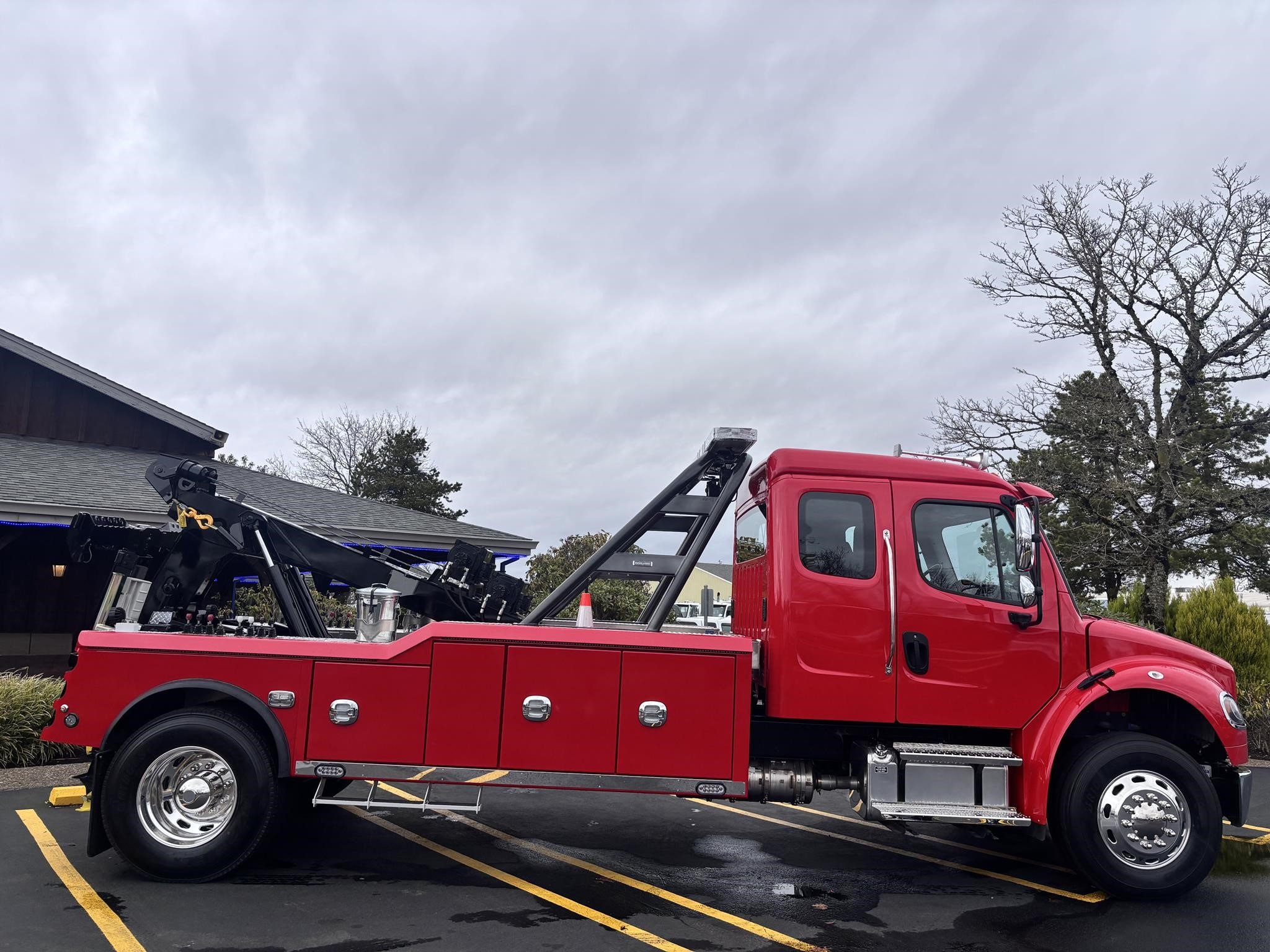

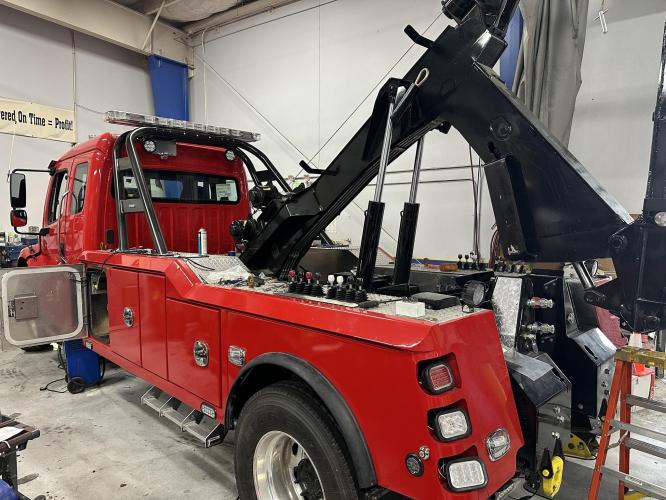

Century 3212 CENTURY MODEL 3212 CX 138" CA Body option. BOOM SPECIFICATIONS; Retracted 32,000 lbs.; Extended 12,000 lbs. Maximum Angle 36° Maximum Hook Height160" Maximum Reach past Tailboard at 30°54" UNDERLIFT SPECIFICATIONS; Fully Retracted (with Forks)12,000 lbs. Fully Extended (with Forks)8,500 lbs. Extended or Retracted with L-Arms6,000 lbs. Underlift Reach to Center of Fork Holder. At Normal Tow Position 84" Positive Tilt20° Negative Tilt10° Tow Rating32,000 lbs. WINCH RATING & CABLE Rating (first layer of drum) each Winch15,000 lbs. Diameter and Length (each winch)1/2" x 150' Type6 x 37 IWRC STANDARD FEATURES 138" Aluminum (LOW PROFILE CX Body) Modular Body. with 3 Compartments Per SideLanyard Controls for Underlift & Boom. on the Passenger Side Manual Control Station on the Drivers SideChrome Double Action Latches. Dual Hydraulic Pump 3 Sets of Lift Forks. Hydraulic Rear Jacks with Flipper FeetRubber Fenderetts. 6,000 lb. L-Arms with Pivoting ReceiversSafety Chains, Door ClosuresTailboard "D" Rings, LED Tool, Compartment LightingFederal Standard 108 Lighting, Cable Tiebacks LED Taillights, Mud Flaps, Clear LED Lights Body. Body Serial # 32121A250213


138” CA CX2/VX Body
138” CA - Dura Glow LED Strip Lights (CX/VX)
LED - Work Lights - Underlift (Pair)
Muncie Hot Shift PTO (MD, HD)
Pintle Hook / 5th Wheel (3212/V-30/2465/V-24)
Stainless Trim Kit 138" CA CX/VX
Whelen M6V Series Light Kit - Body (Pair)


Installation
3212 / V30 / 1016-GII
Axle Cover & Lugs (Single or Tandem)
Dual Camera System
Fire Extinguisher
Hot Shift PTO - LD, CC, HD

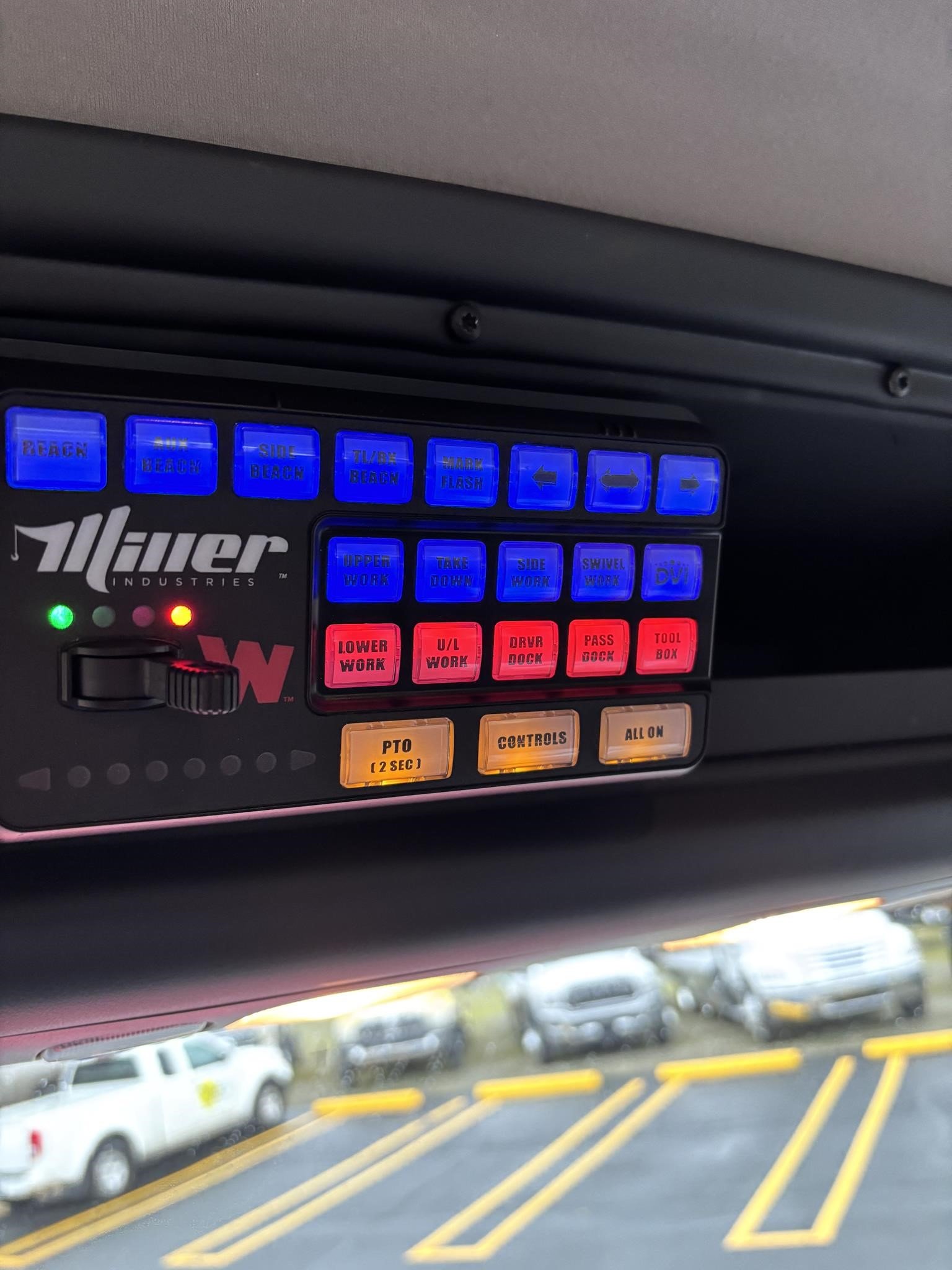

In-Dash Switch Panel
Jump Start Kit
LED / M6 Lights (Pair Body Mounted)
LED Flasher Control Box
LED Strip Light Kit

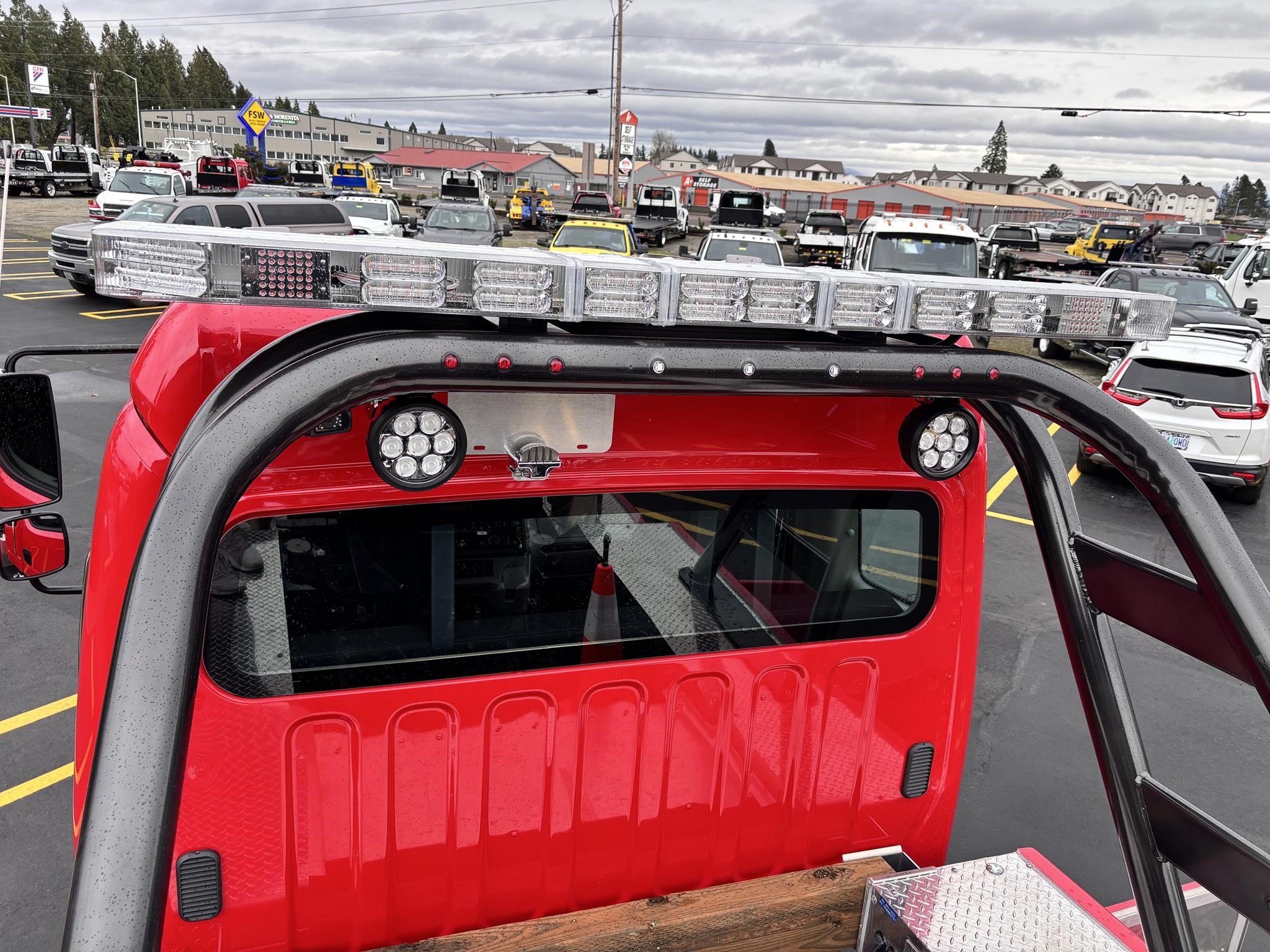

Light Bar - 72" / HD
Misc. Labor
Stainless Door Guard (Pair)
Strobe Light Kit (Mini or Whelen 10x10s)
Tailboard Dress Up Kit
Toolbox Mat
Work Lights (Pair)


Paint
3212/V30 Optional Paint 1 Color
CX/VX Boxes 1 Color To Match Cab


DAA
ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
ACC: Air Inflate Kit: (F)68272; (W)68271; (G)61387
ACC: Air Protection Valve 90PSI required when adding air outlets
ACC: Air reel Enclosed- (ReelCraft™ 50' 1/4") -rear of Carrier subframe.
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238

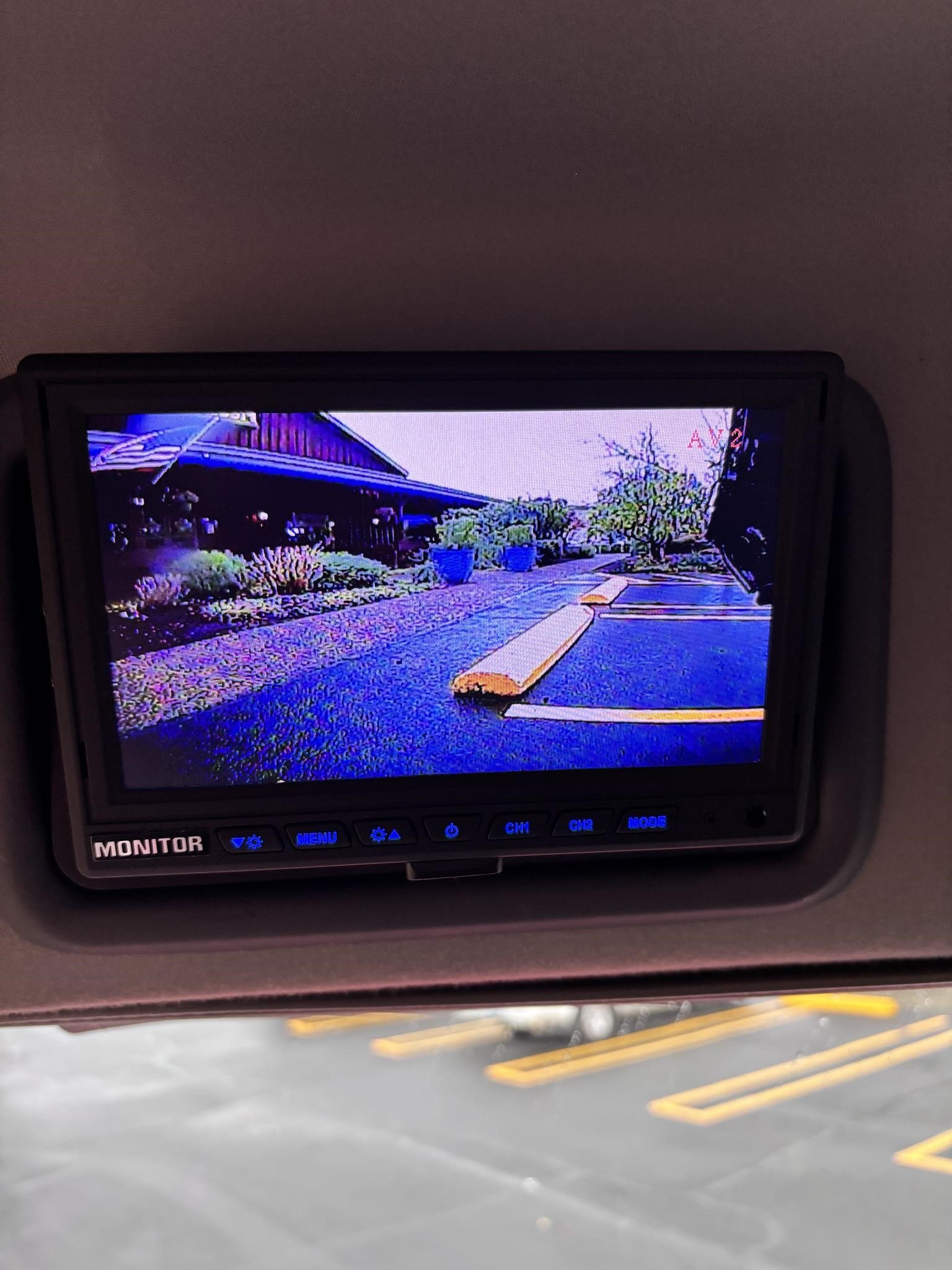

ACC: Camera, 7” LCD System HD -System Miller Industries Using ( 2) Camera
ACC: Cone, 18", Single: (F)CN-186R; (W)53858A; (G)100476
ACC: Digging Bar for Washington Trucks
ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22
ACC: First Aid Kit: (F)ACE6060; (W)50503L; (G)20229
ACC: Flashlight with DC Charger, Streamlight LED PolyStinger
ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
ACC: Lockout Kit, One-Hand Jack Kit
ACC: Lug Wrenchs, 14" Metric/20" Standard
ACC: Pry Bar, 60"/51" (F)AMES1160100; (W)50020; (G)PPB-51
ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ACC: Splitting Maul (F)AMES1113115200; (W)Maul Axe; (G)TJ-8H
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M: Bracket Kit, Aluminum, required for all Medium-Duty Wreckers
B/M: Circuit Breaker Bracket & Dodge breaker bracket
B/M: Fuel Can Rack, Steel, behind Toolbox
B/M: Jumpstart/Air Coupler Bracket, Universal
BOD: Chain Pocket Guards, Stainless Steel, 2-Piece, Pair
BOD: DEF Tank Cover, Stainless Steel, for 2016-Current Freightliner
BOD: Mudflap Weights, FSW, Stainless Steel, Pair
BOD: Mudflaps, 24" x 18", Pair

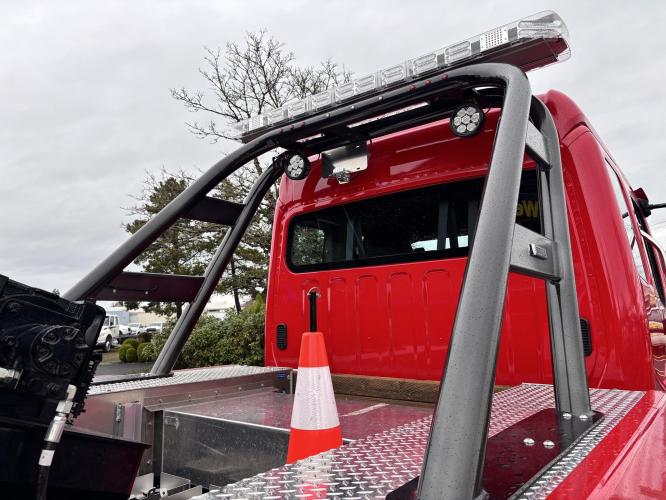

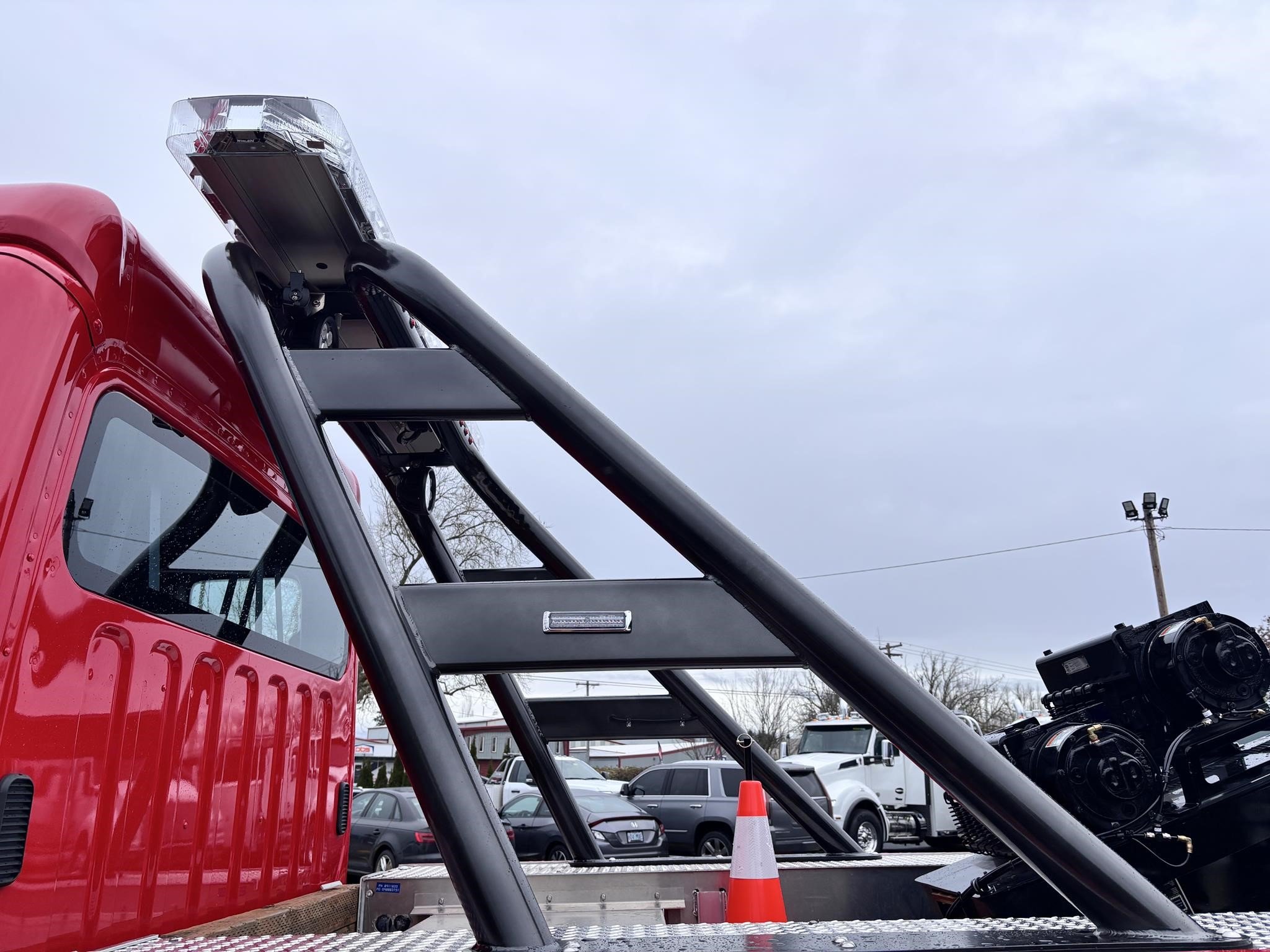

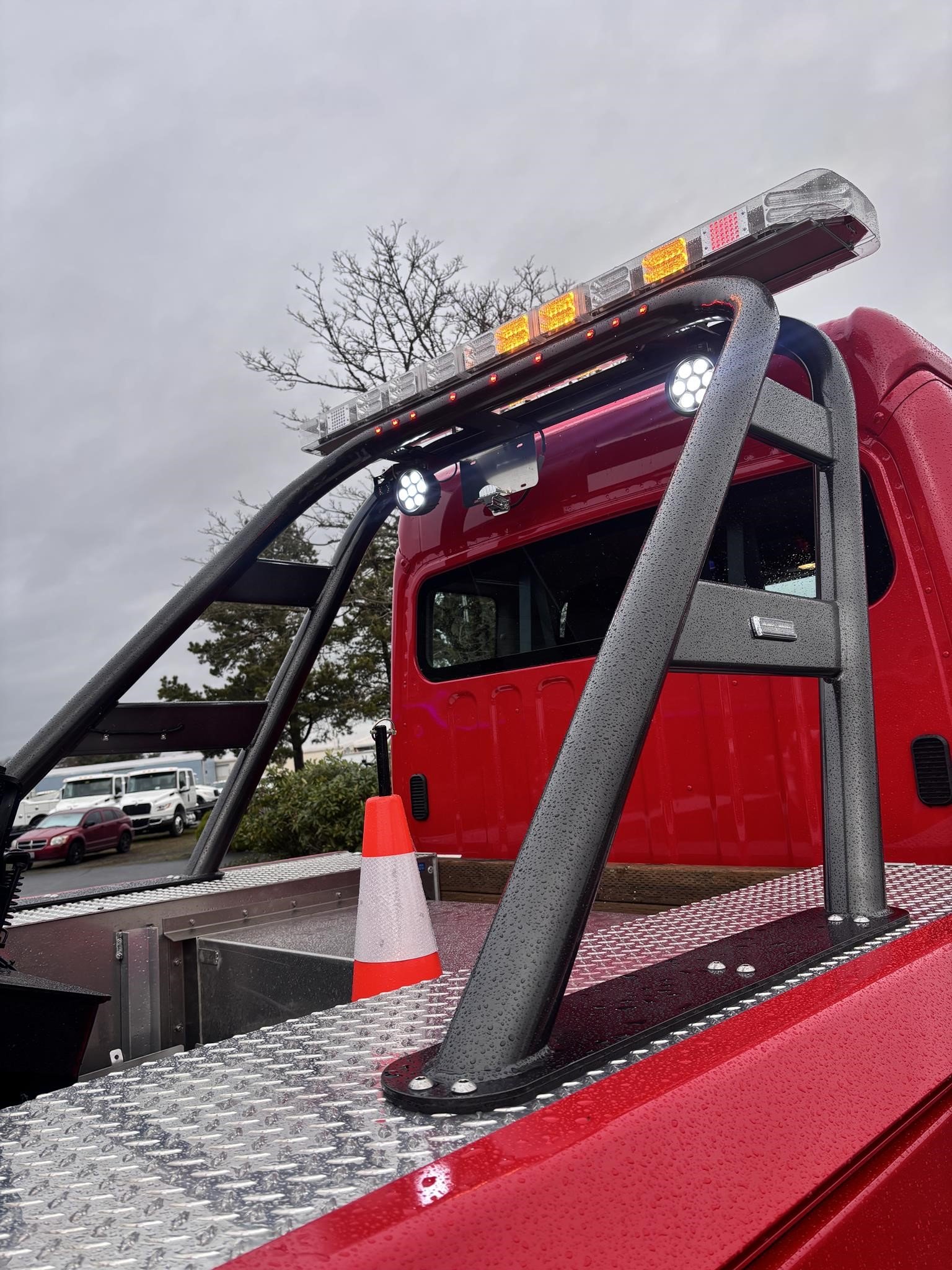

BOD: Pylon, Wrecker, Aluminum Tubular, 33", Dodge/Ford (pre-2017) Deck-Mount, Powder-Coated Black Chrome (Short Wheel Base Application)
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"
LB: Allegiant-Serial™24H w/TA 5 year warranty includes FS 12FXN controller for TA
LIT: Amber-White 36" Strip lights for Glow pacakge 78" GWTE Boxes (6)
LIT: Electrical Package, All except Hino & International - Main Harnesses + ATC Fuse Blocks

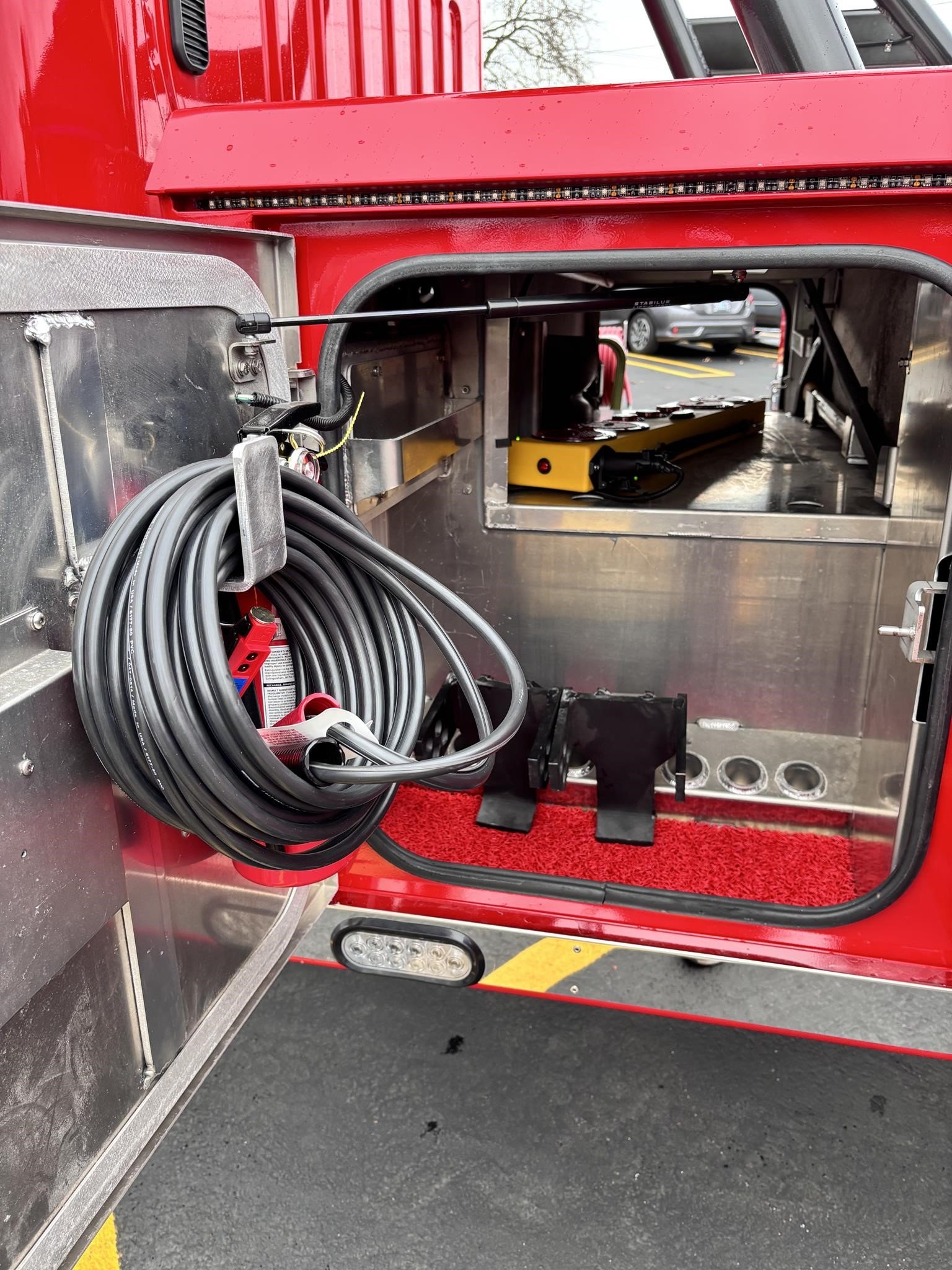

LIT: Jumpstart, Associated Cables, 500-Amp, 30' - Cables Only (add Flush- or Box-Mount separately)

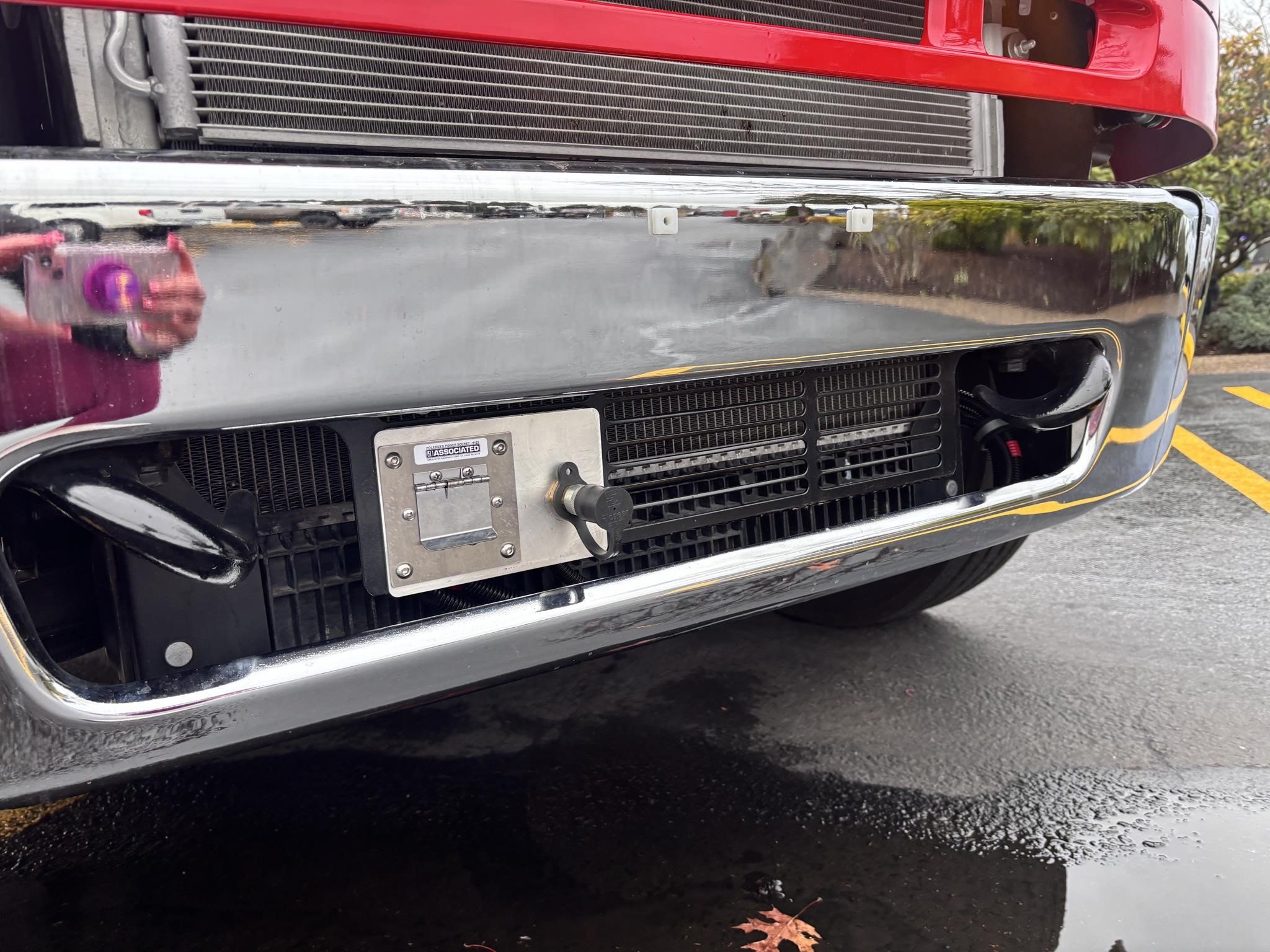

LIT: Jumpstart, Front-Associated Flush-Mount, - No Cables (Add Cables Separately)
LIT: Junction Box, 10-Pole
LIT: PTO Light, LED
LIT: Rect.Tailboard Lights w/ Glow Edge Package -QTY 6
LIT: Wide Load Light Bar, Wireless, 36", TowMate, LED, with Back-Up Lights
LIT: Worklight Low-Profile 2,100 Lumens.1.6"l X 5.9"- 6 LED Lower work lights
LIT: Worklights, Round, 6", High-Intensity, 4800 Lumens, Pair
LT: 6" Round LED Upper Flood Work 7000LUM. Alum. ( pair) 70 WATT
SH: Air Coupler, Rear (Wrecker) (F) 27808; (W) Auto Coupler; (G) 68273
SH: Shop Supplies
SL: Amber-CLR. Micro pulse-Grille flasher, w/C-bezels, back-plate & harness ( pair)
SL: Marker lights: ICC Lights, Three, 3/4", Red, Round DOT back of pylon
SL: Miller HD -Flasher control Power unit for LED Body & Strip Lights.
SL: Optional -Marker Lights, Clear-Lense, for Body.
SL: Strip Lights, 18", White, LED, in Wrecker Toolboxes, Pair
SL: Strip Lights, 36", Amber/White, LED, Pair, Undercab
SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, Mounted at Rear of Wrecker, Wire Harnesses
SL: Strobes, Amber/Red, Rectangular, 6-LED, High-Intensity, Pair
TB: PolyFloor, Red, 50 Squares
TB: Tray, Floorjack, Slide-In
TOW: Chain Kit, Axle, 3/8" x 6' with Sling Connectors, QuickBinder Plus Ratcheting Load Binder
TOW: Chain, Recovery, 20', 5/16", Grade 80, Cradle Grab Hooks, Tagged & Certified, Single
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
TOW: Hooks, Self-Locking, 5/16", Grade 80, for Safety Chain, Pair
TOW: Lumber, 4" x 4"s, 48" & 60"
TOW: Snatch Block, 8-Ton

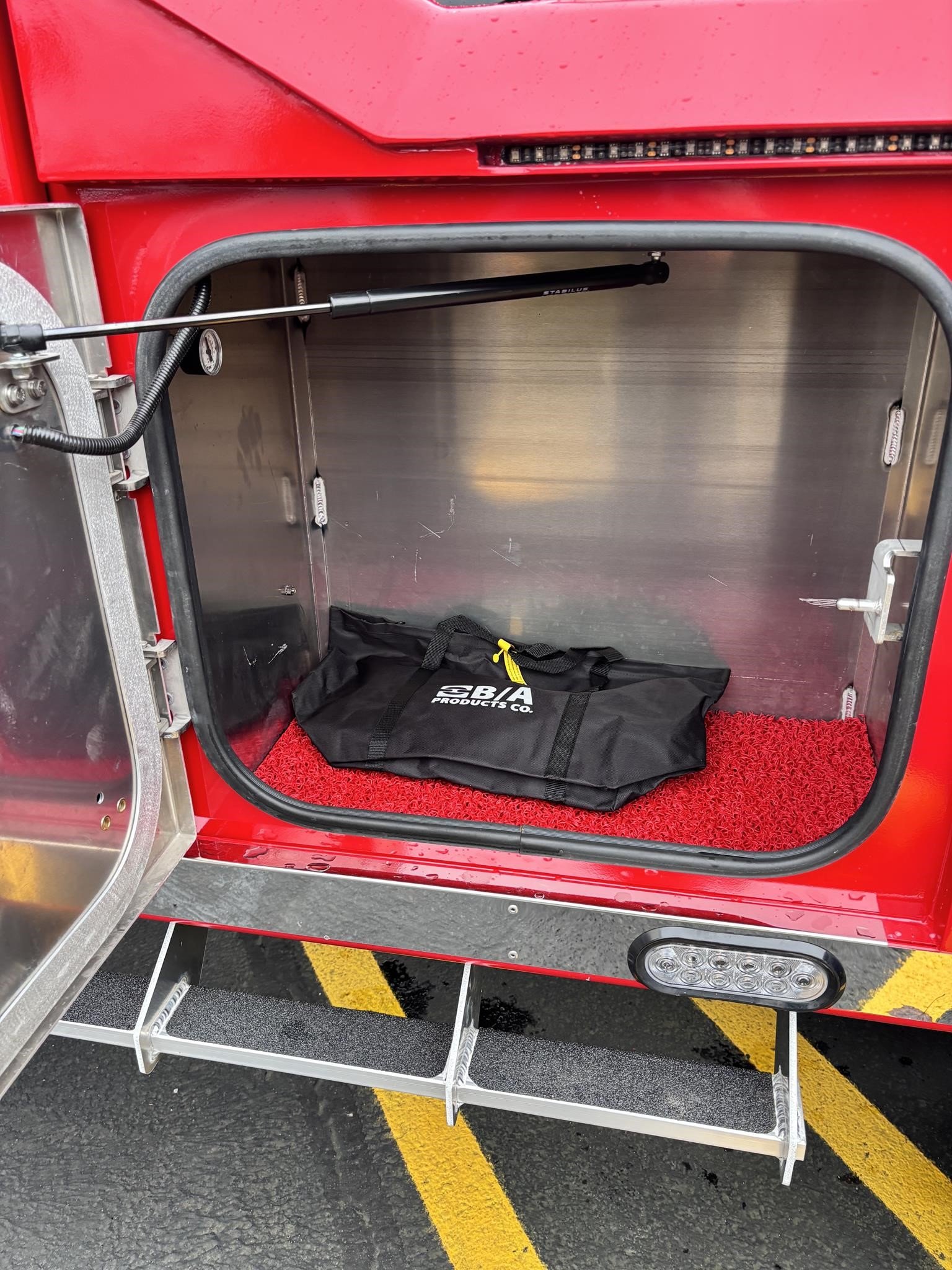

TOW: Strap Kit with Bag, Motorcycle, Wrecker, B/A
TOW: Strap, Axle, 26", Single
TOW: Strap, Steering Wheel
TOW: Winch Cable, 7/16", 150', Steel Core, Self-Locking Hook
WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"




Notes
Truck to be built and delivered at Fleet Sales West in Woodburn, OR. Includes a 10-day trip permit from the State of Oregon. Purchaser is responsible for tax and licensing in Washington State. Trades subject to re-evaluation at time of delivery of trade to Fleet Sales West. Custom built trucks are subject to change depending on, but not limited to: model year, fitment, and/or vendor supply.

ADDITIONAL DAA

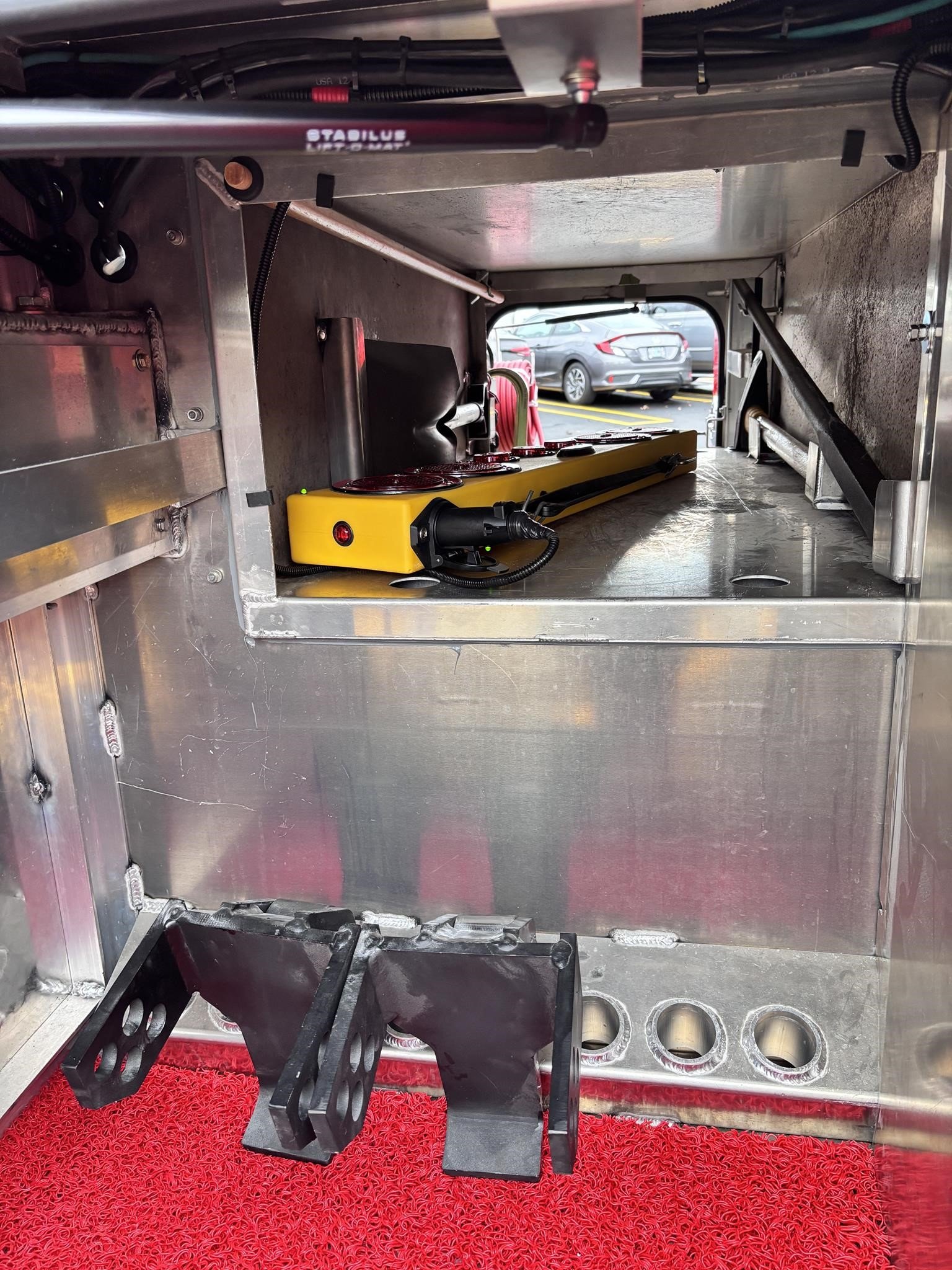

Aluminum Under Cab Storage Box and brackets

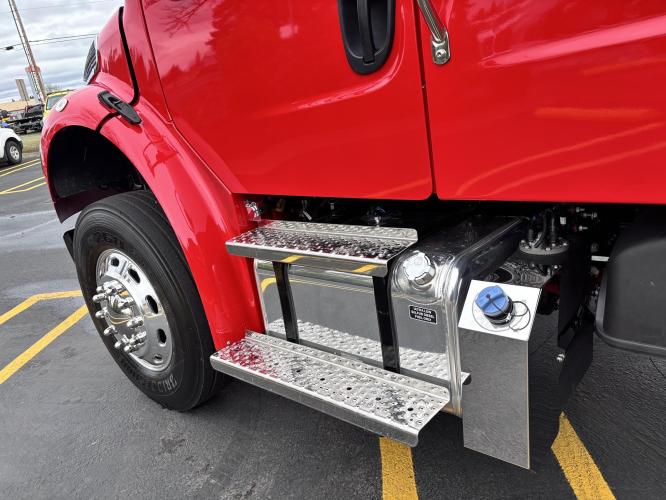

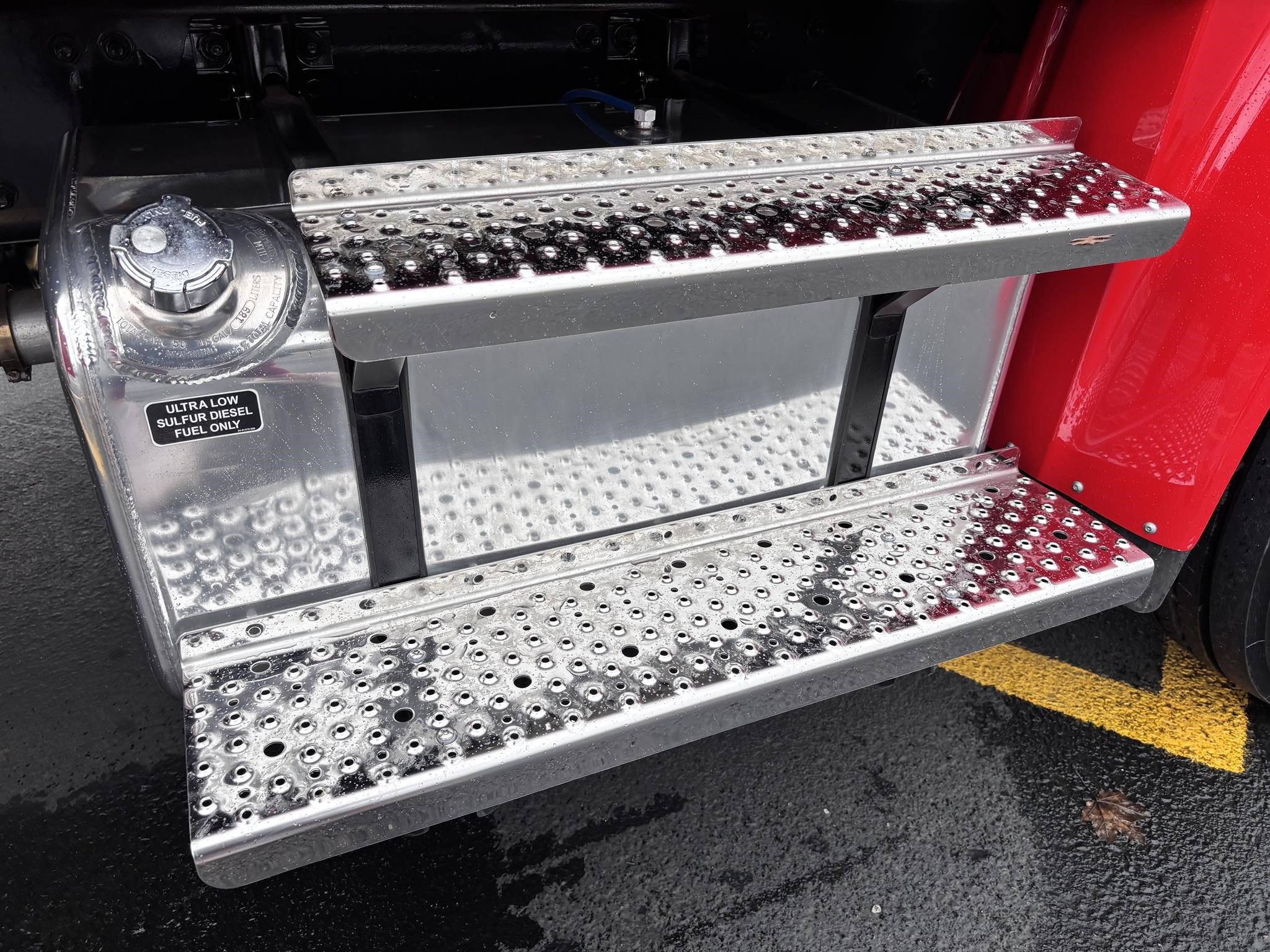

Under body aluminum steps (2)
Mount M-6 V AC front wheel wheel like we used to mount docking lights
Mount M6V AC 2nd set on rear tail board



BUILDER NOTES
Expanded mesh center section storage - cones and dunnage
W0706510 mounted on top of body

PAINT NOTES
GLOSS BLACK Center Section from Factory
WHITE Body Sides to match Cab
GLOSS BLACK Pylon powder coat… dark grey
SAFETY YELLOW Attachments

Red matting in the boxes
