• Axle Single
• Dot Yes
• Drive 4x4
• Driver Position Left Hand Drive
• Dual Breathers No
• Dual Exhuast No
• Engine DURAMAX
• Engine Arrangement 6.6
• Engine Brake No
• Engine Size 6.6
• EnginesizeUnit Engine Liter
• Exhaust Brake Yes
• Front Axle Lbs 7000
• FrontaxlelbsUnit Pound
• Gross Vehicle Weight 19500
• Gross Vehicle Weight Rating Class 5
• GrossvehicleweightUnit Pound
• Horsepower 350
• HorsepowerUnit Horsepower
• Mileage 345
• MileageUnit Mile
• Num Speeds 6 Spd
• Overdrive Yes
• Overhaul No
• Rear Axle Lbs 13500
• RearaxlelbsUnit Pound
• Rebuilttitle No
• Suspension Spring
• Tires 225/70R 19.5
• Transmanufacturer ALLISON
• Transmission Automatic
• Transmission Type Allison RDS
• Turbo Yes

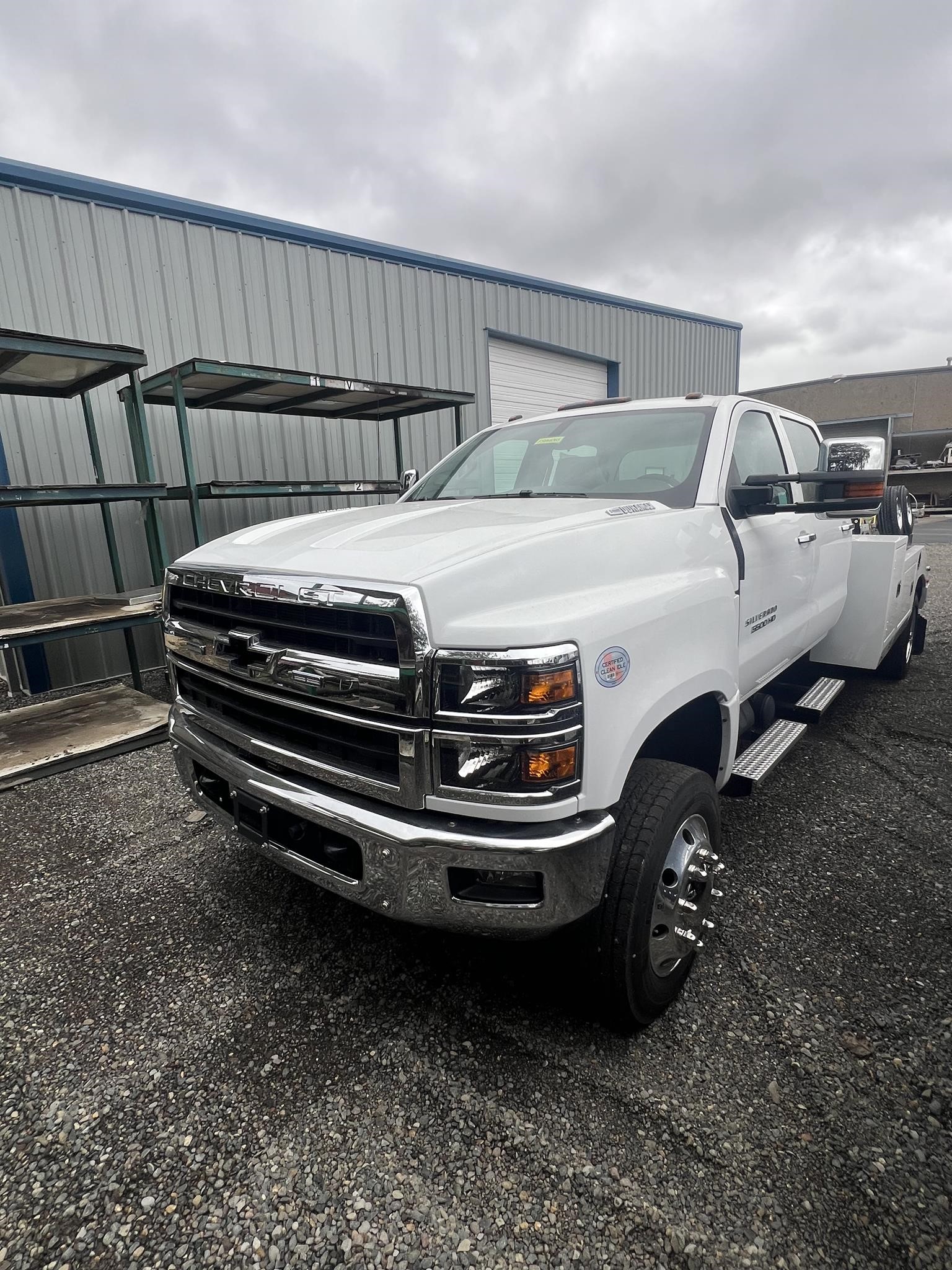

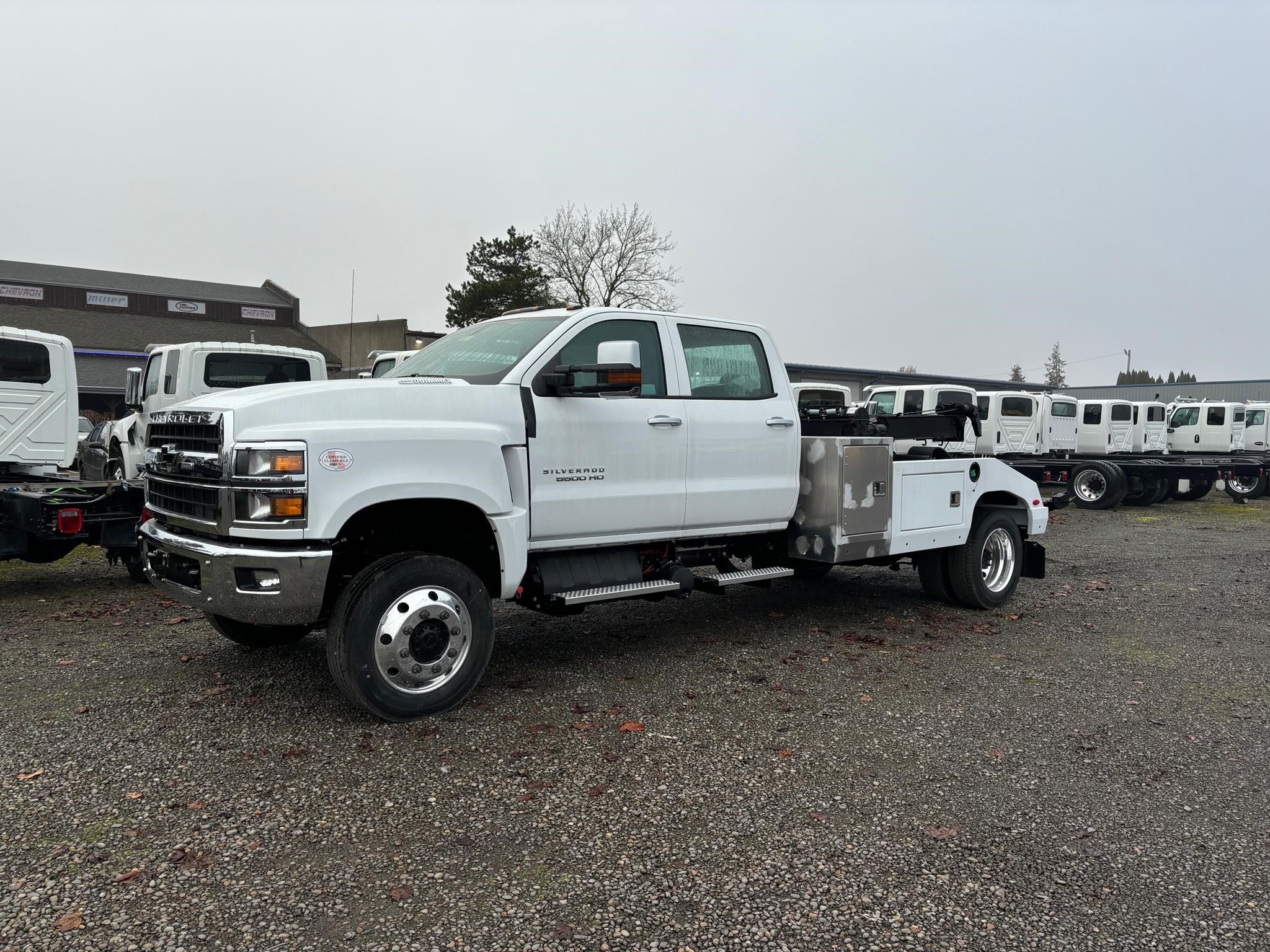

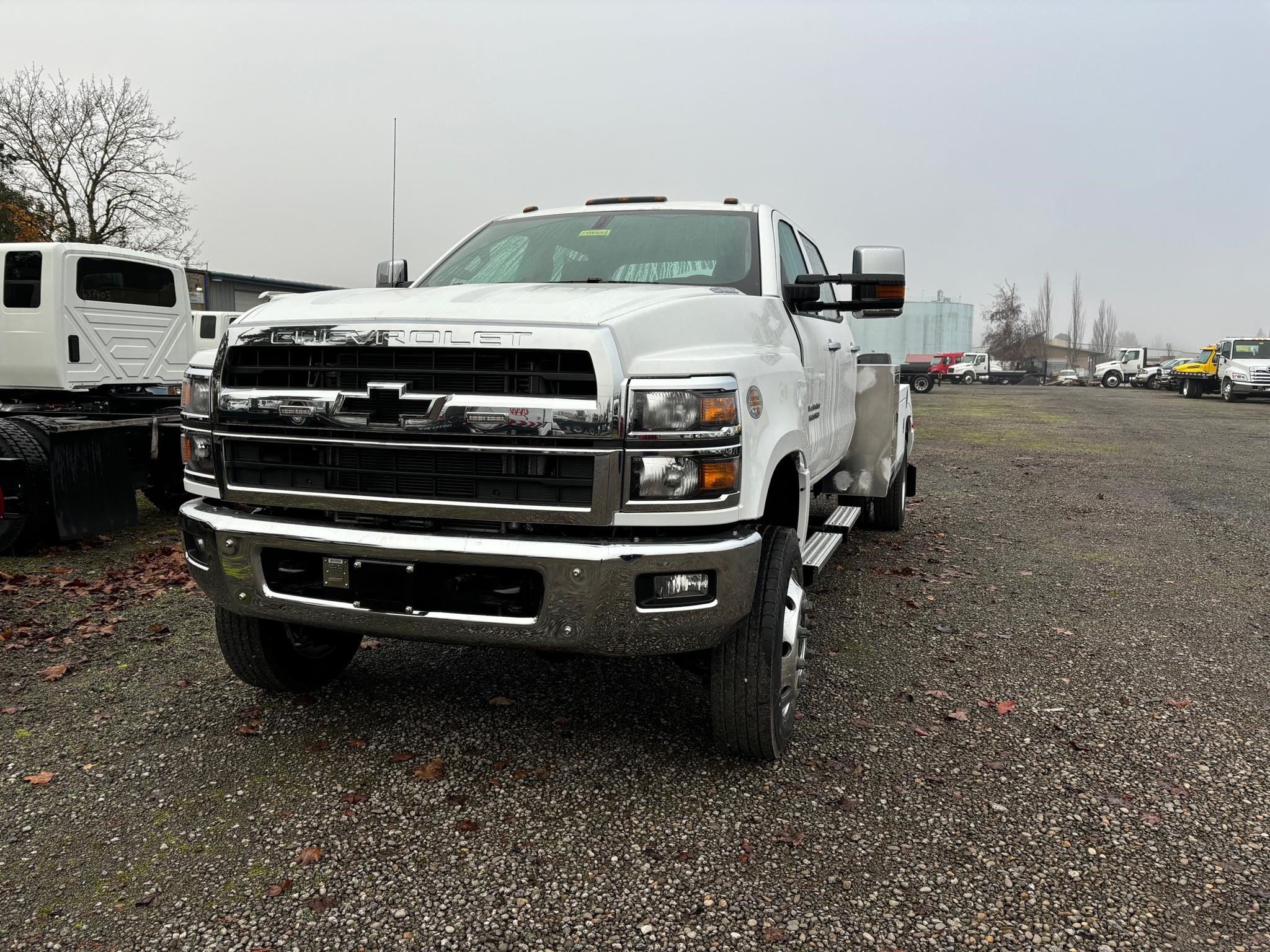

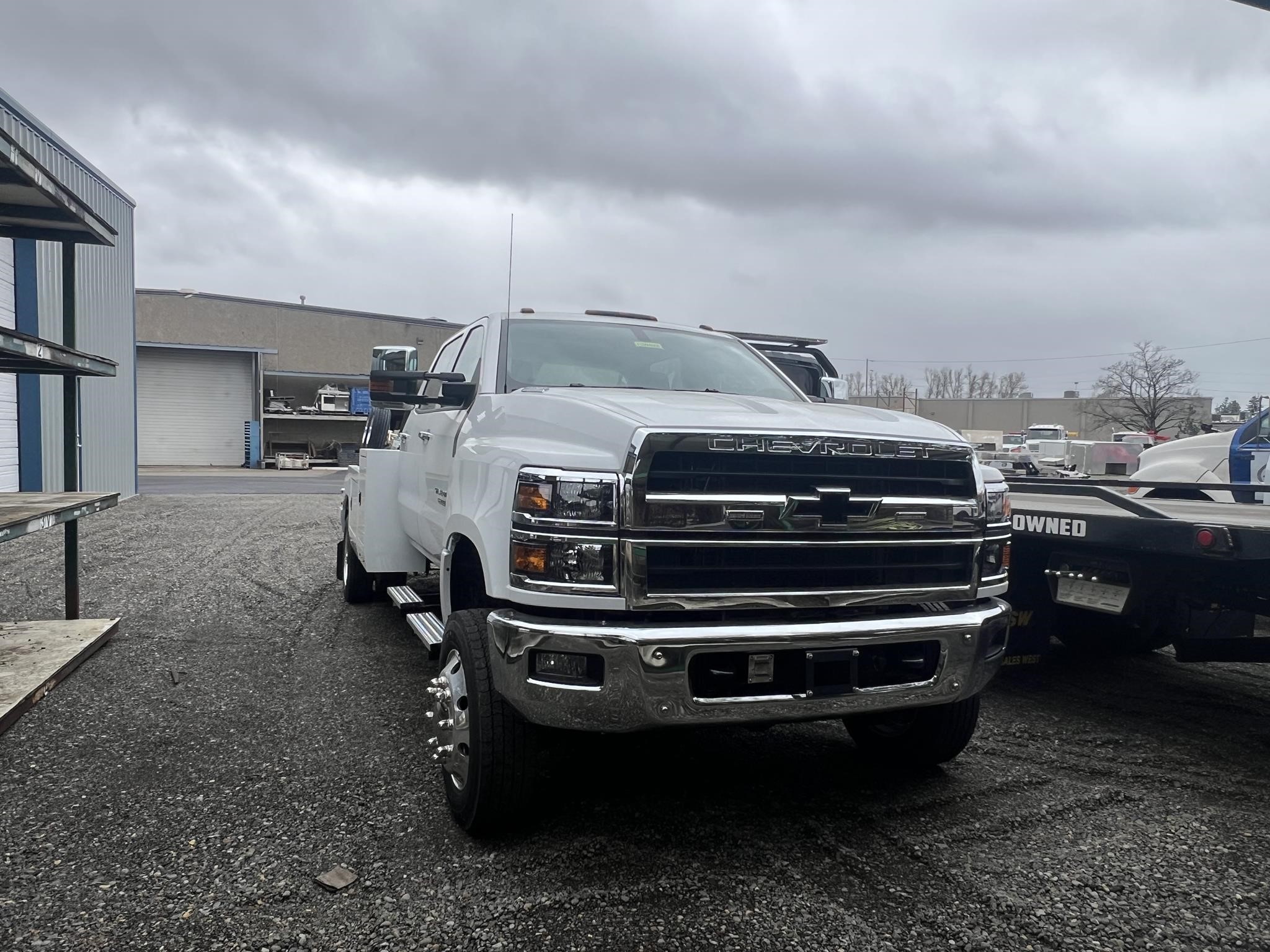

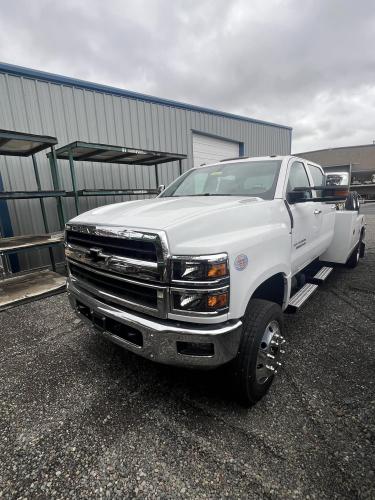

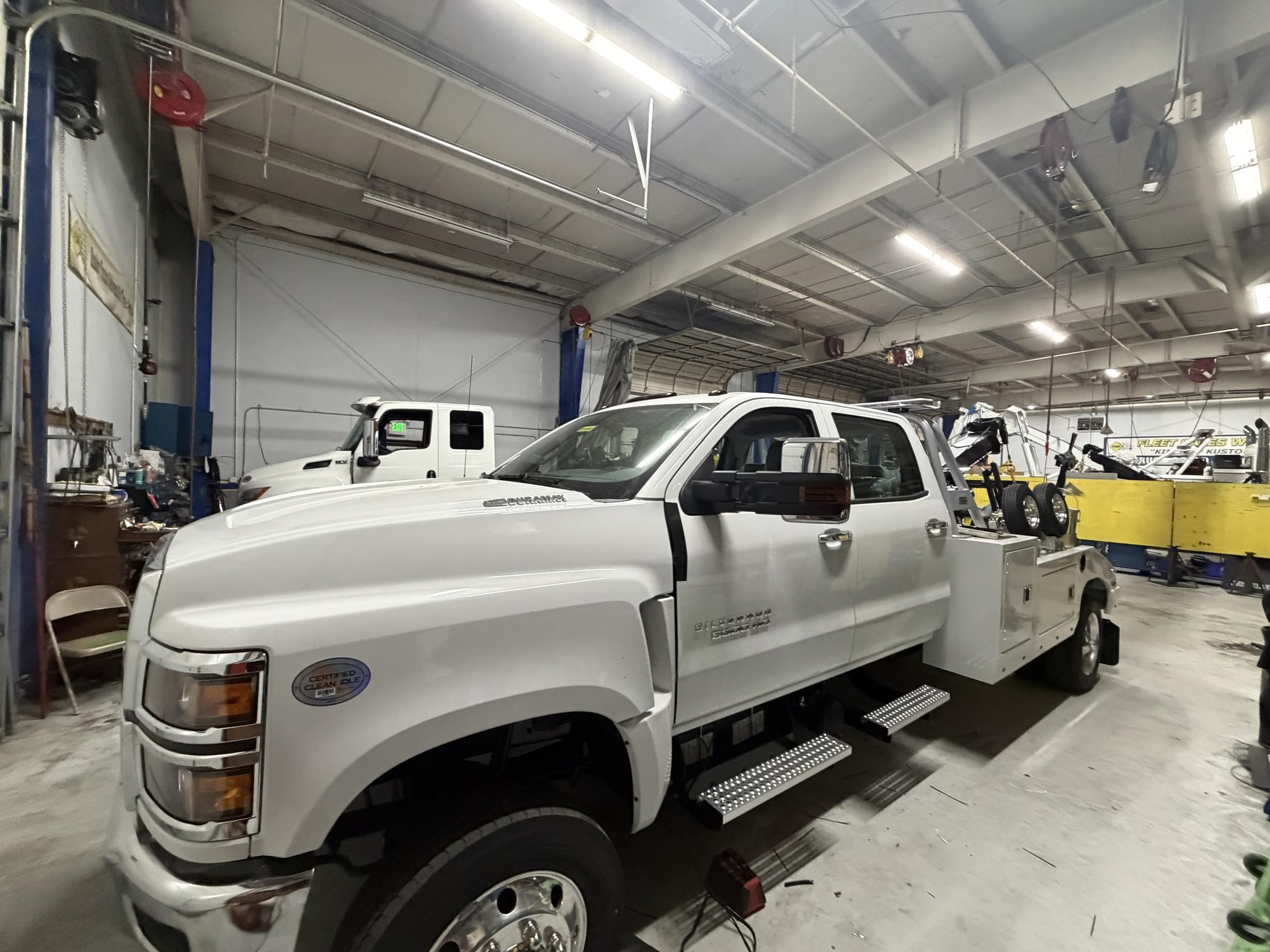

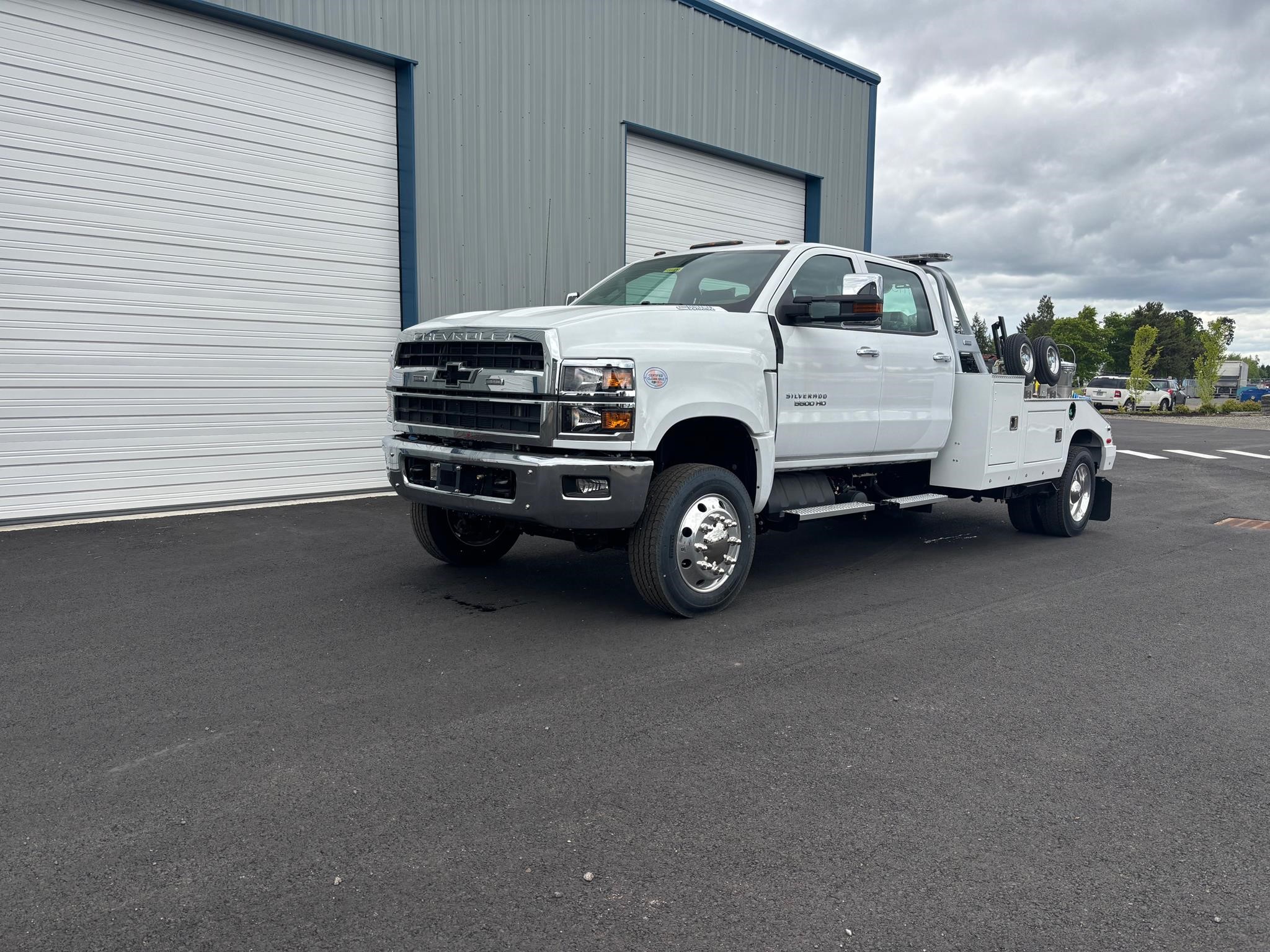

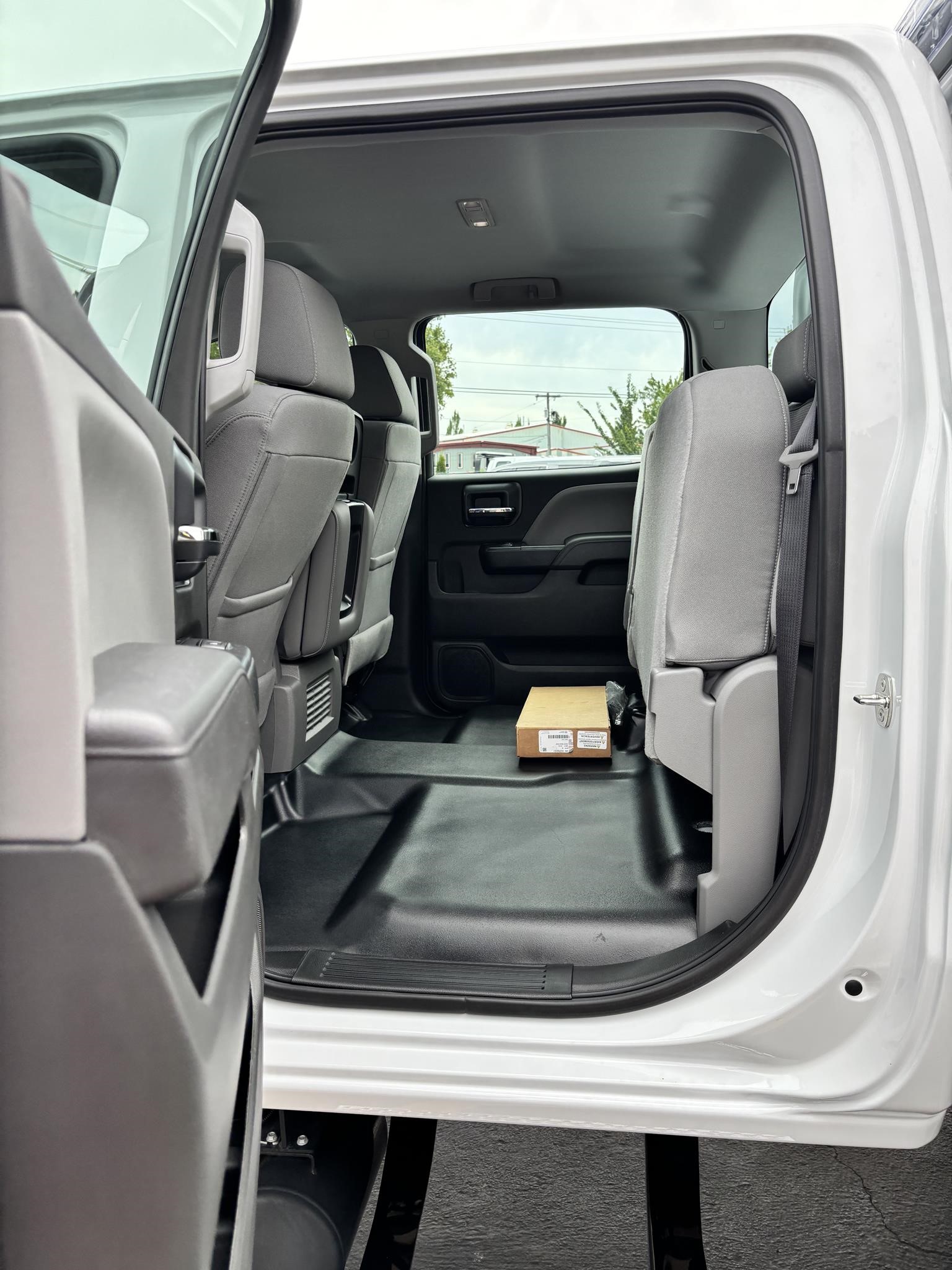

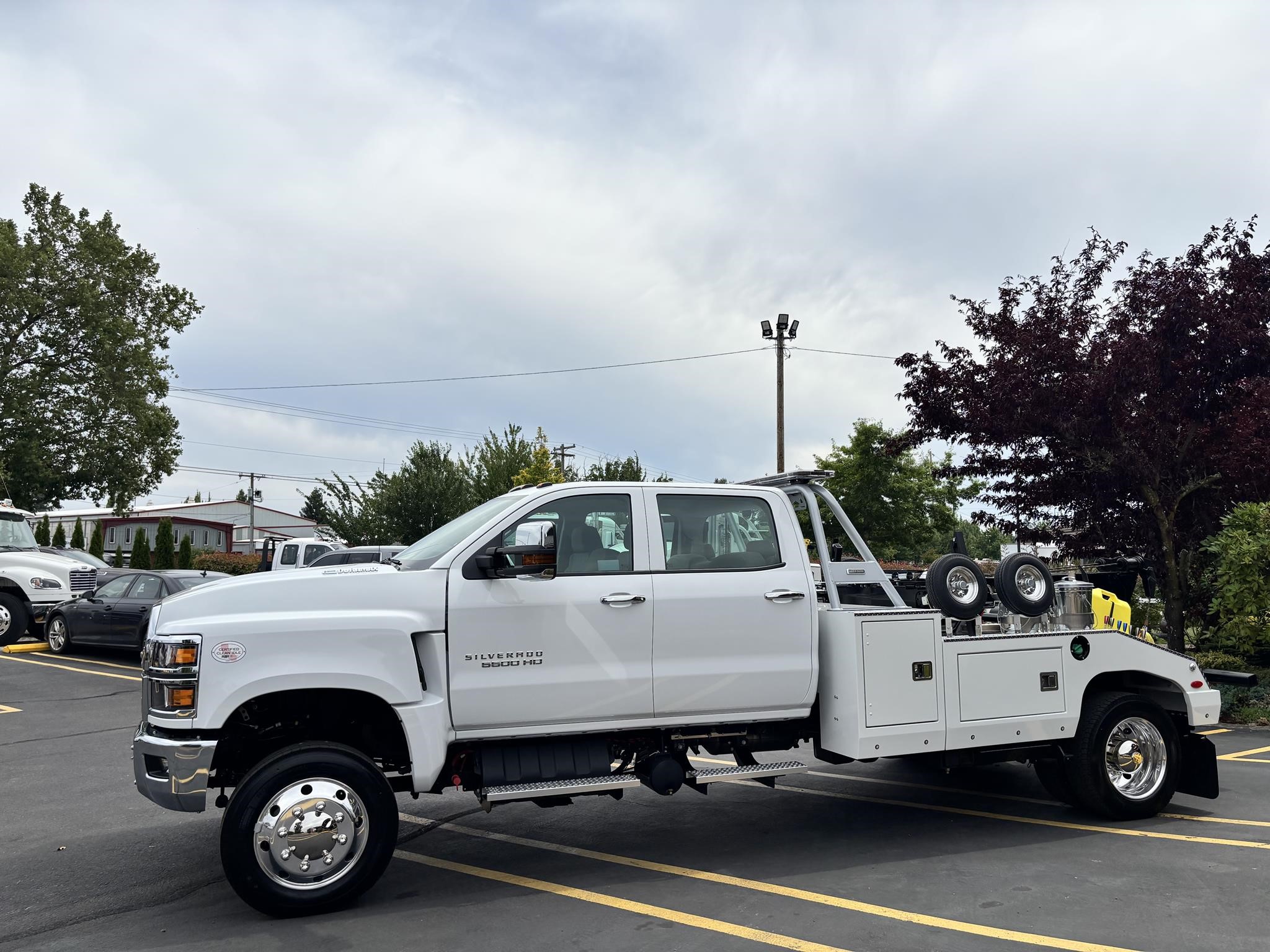

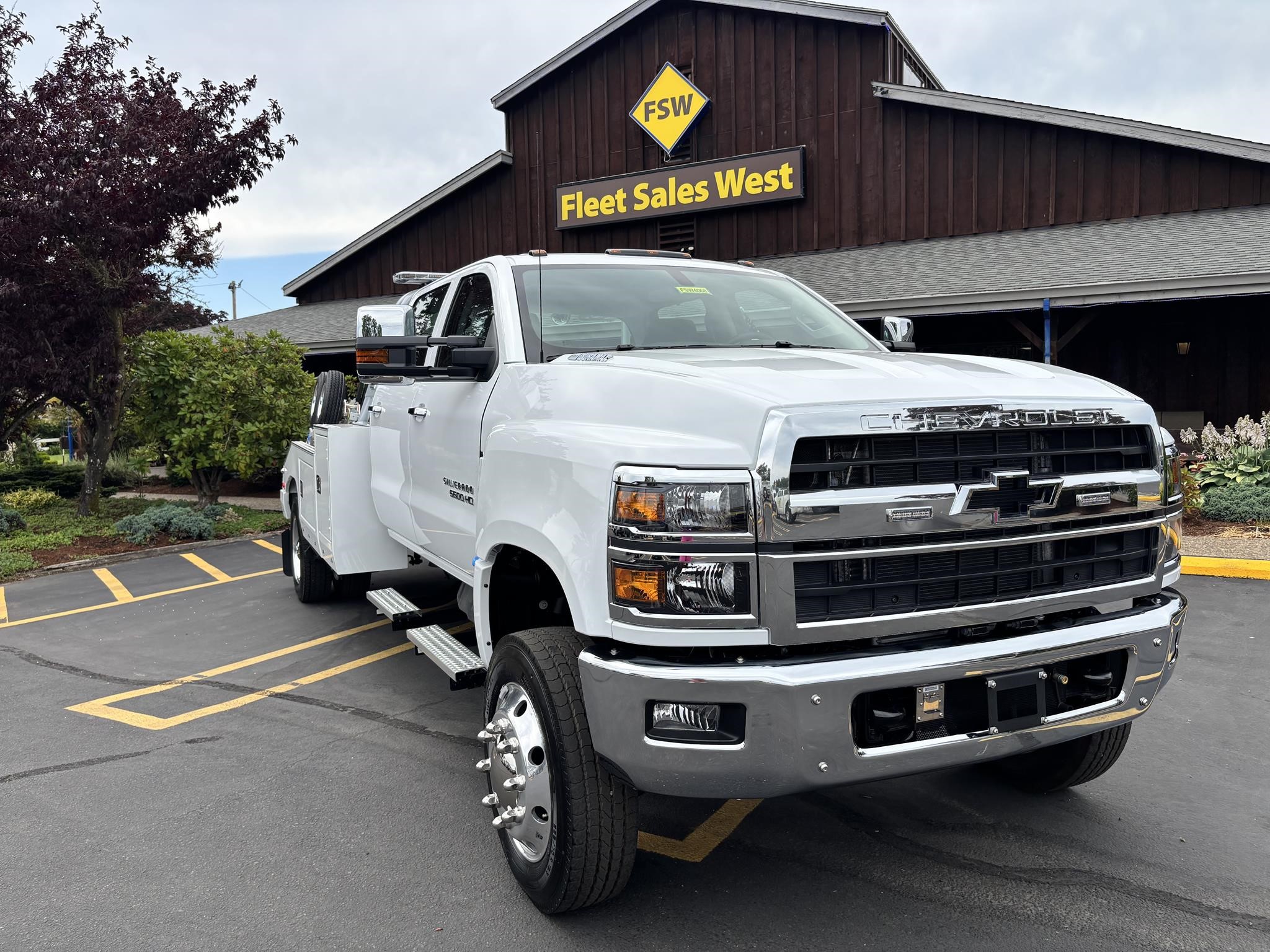

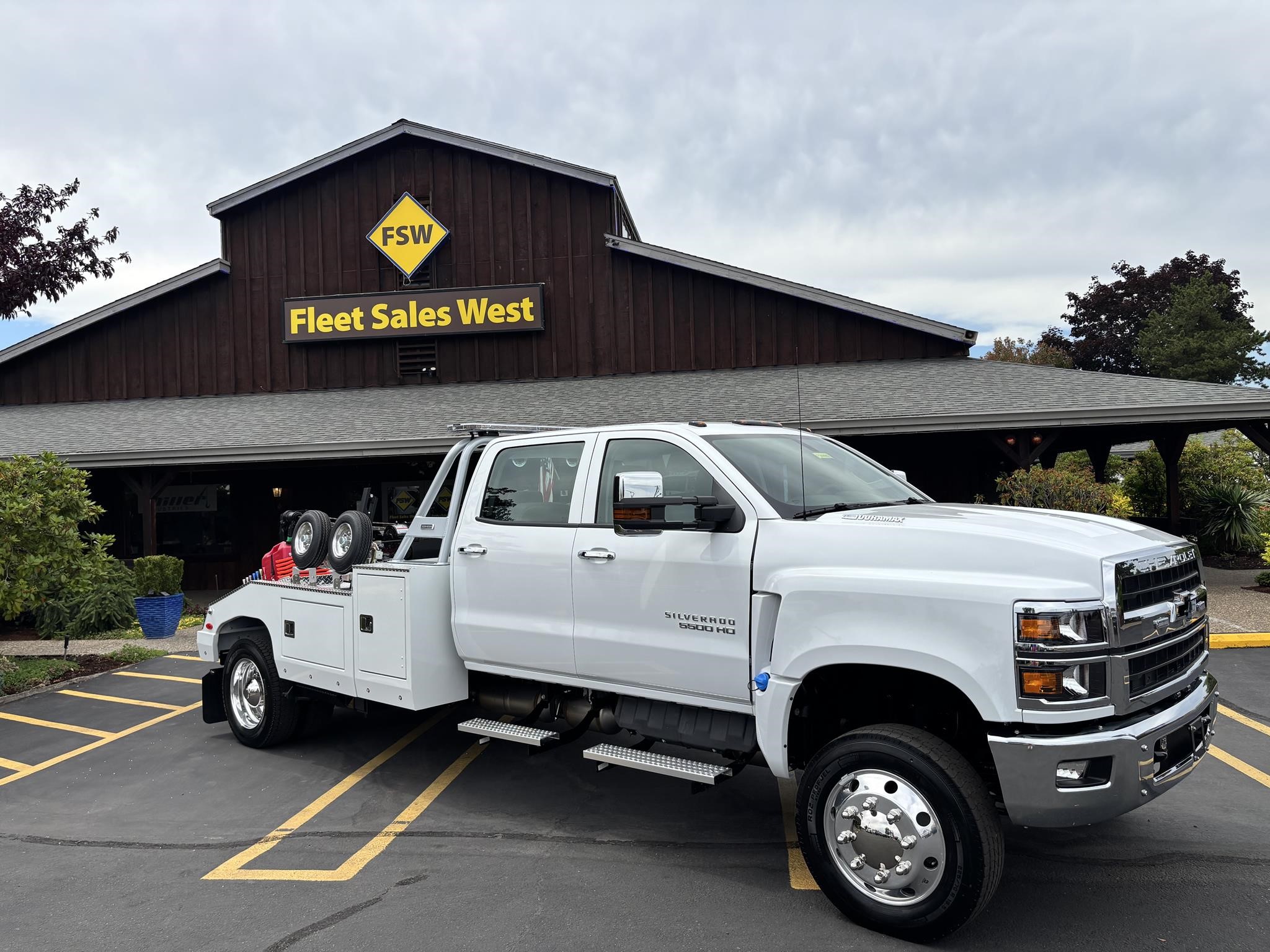

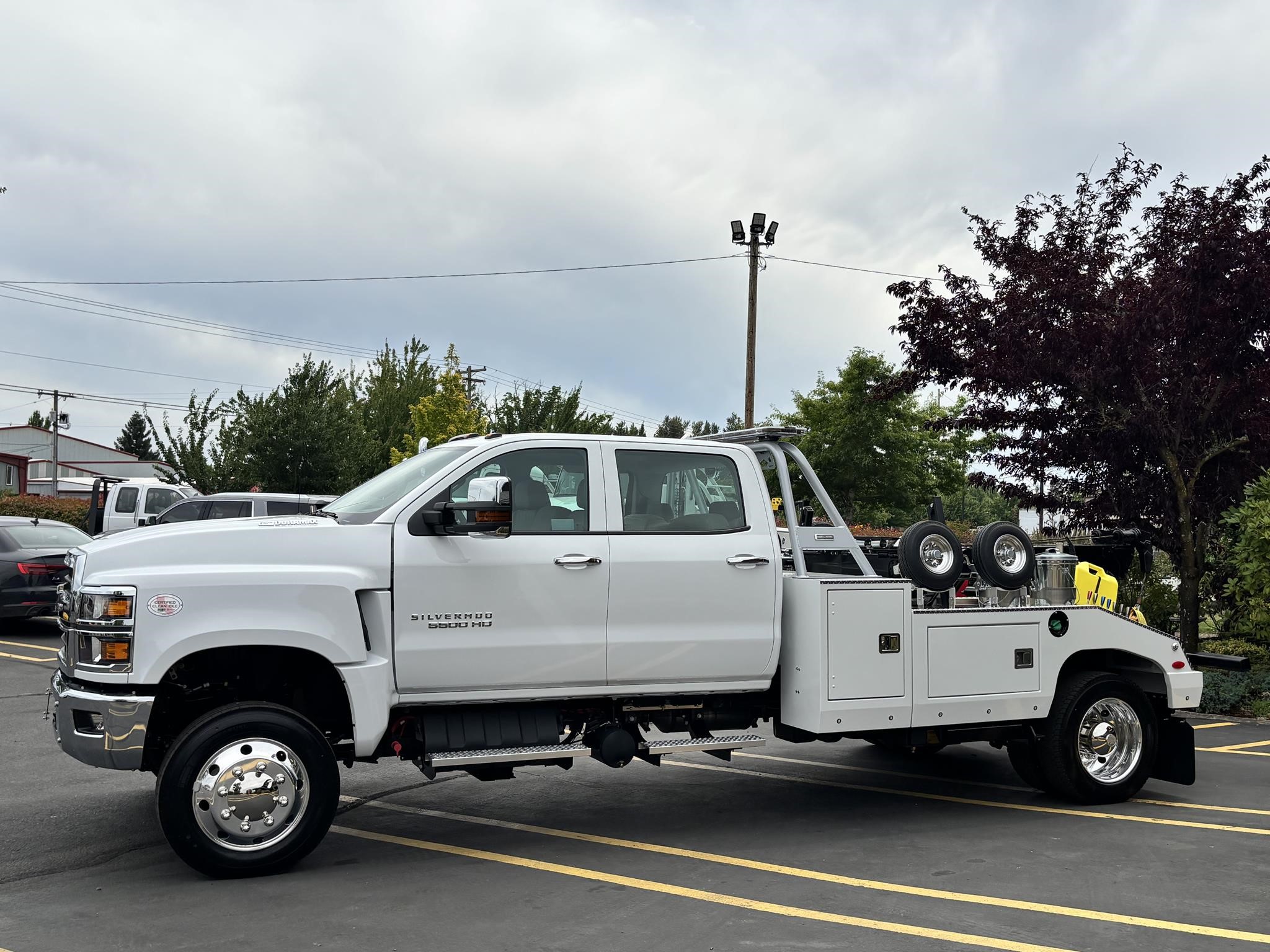

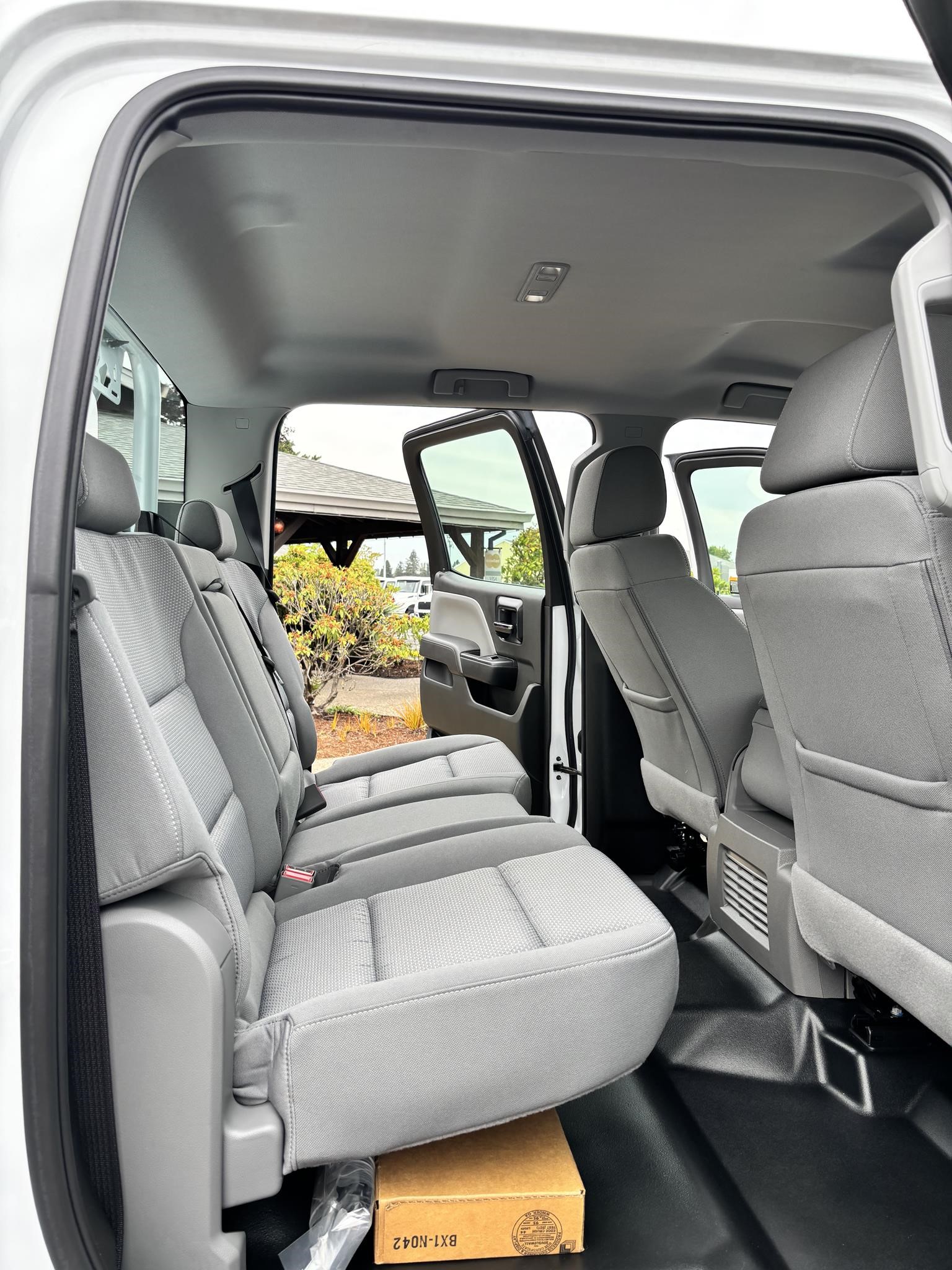

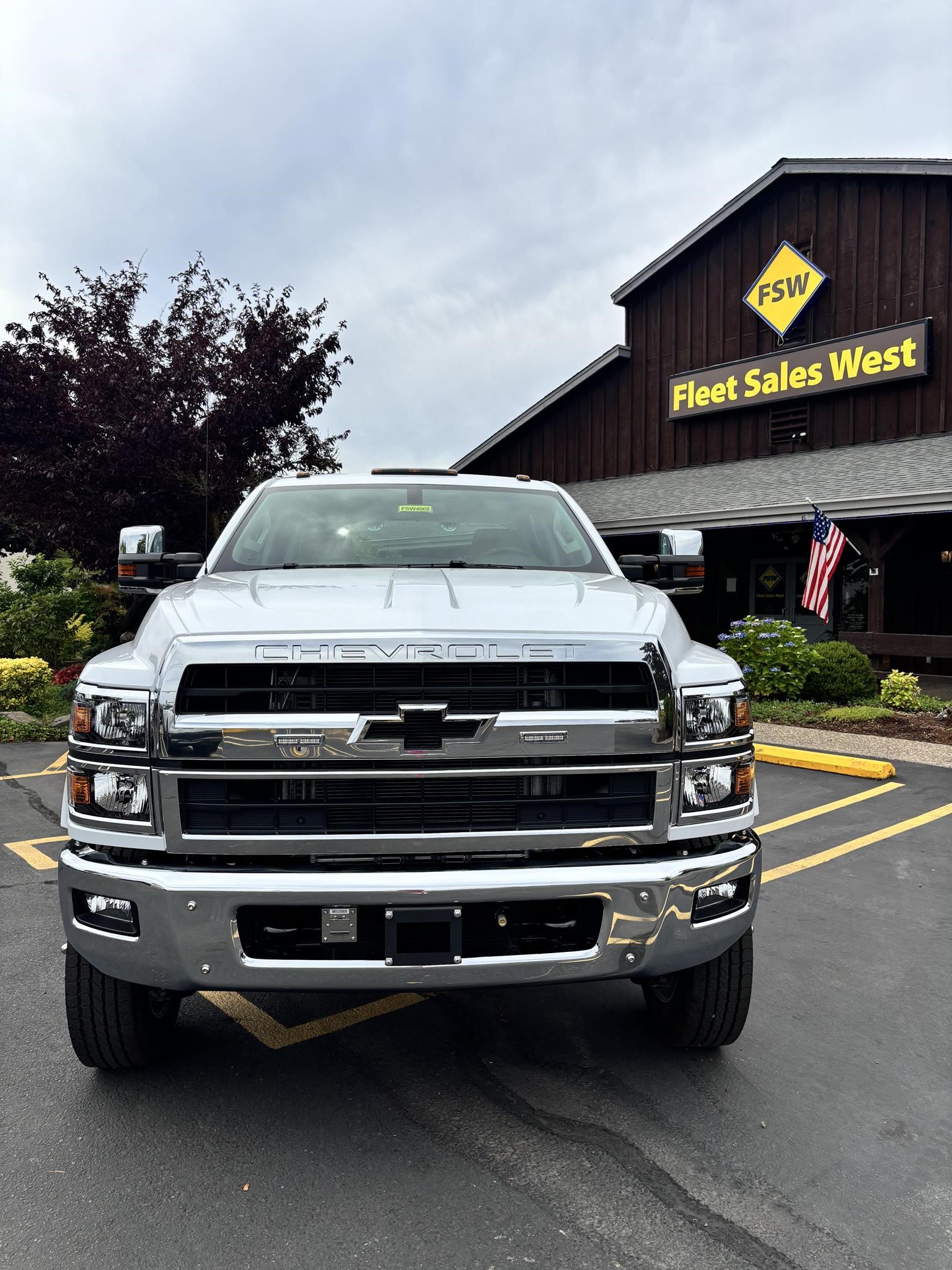

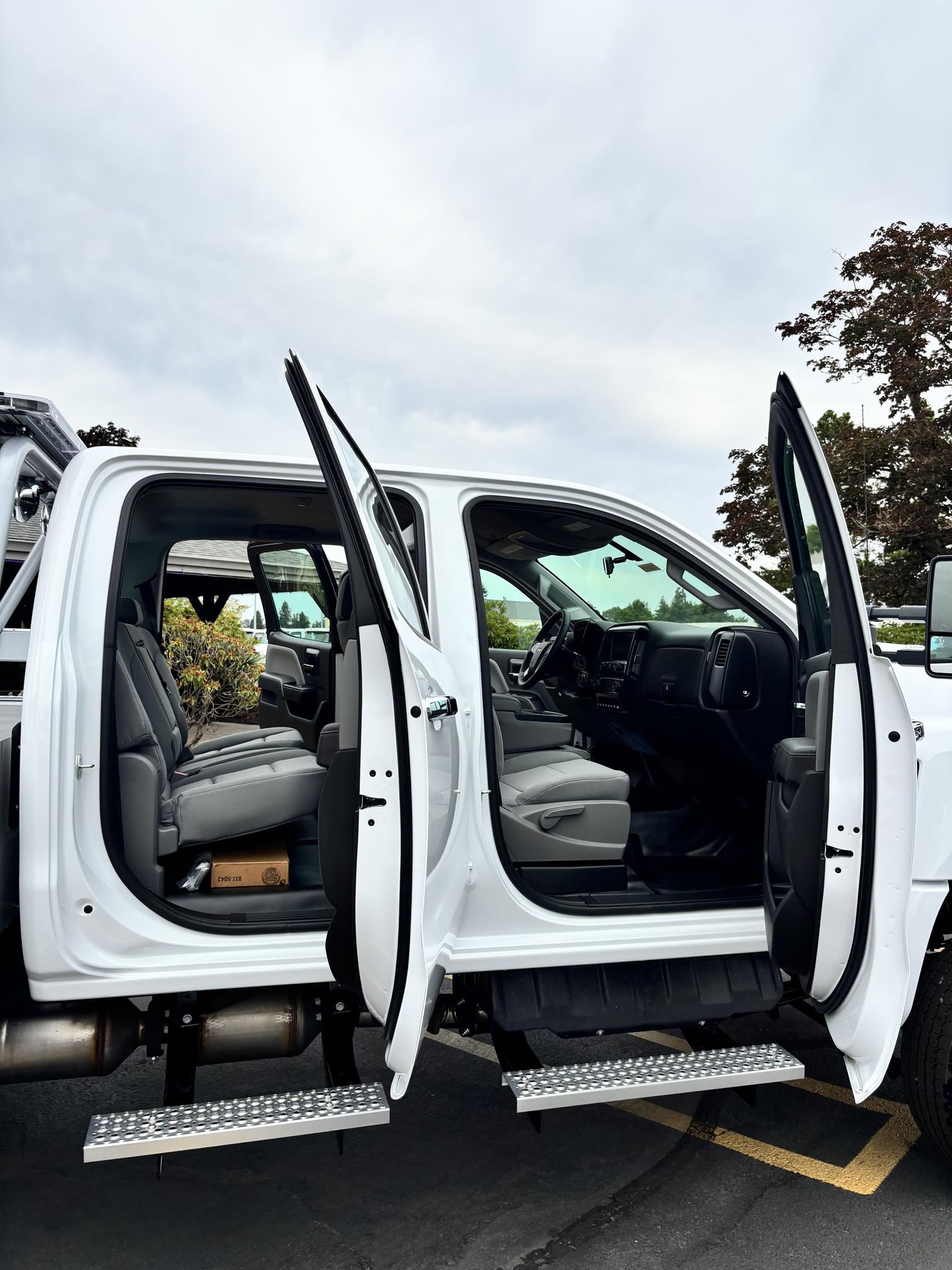

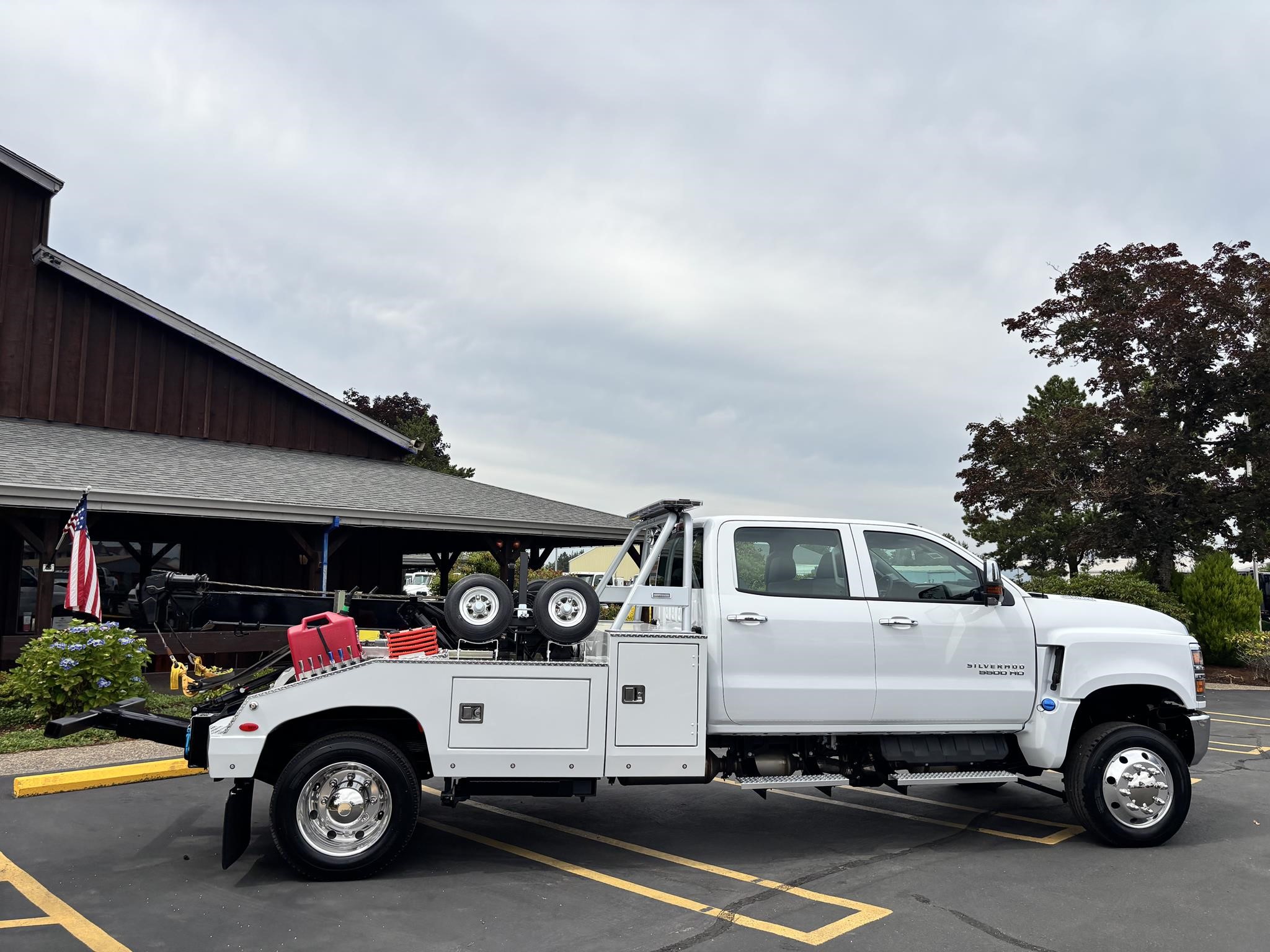

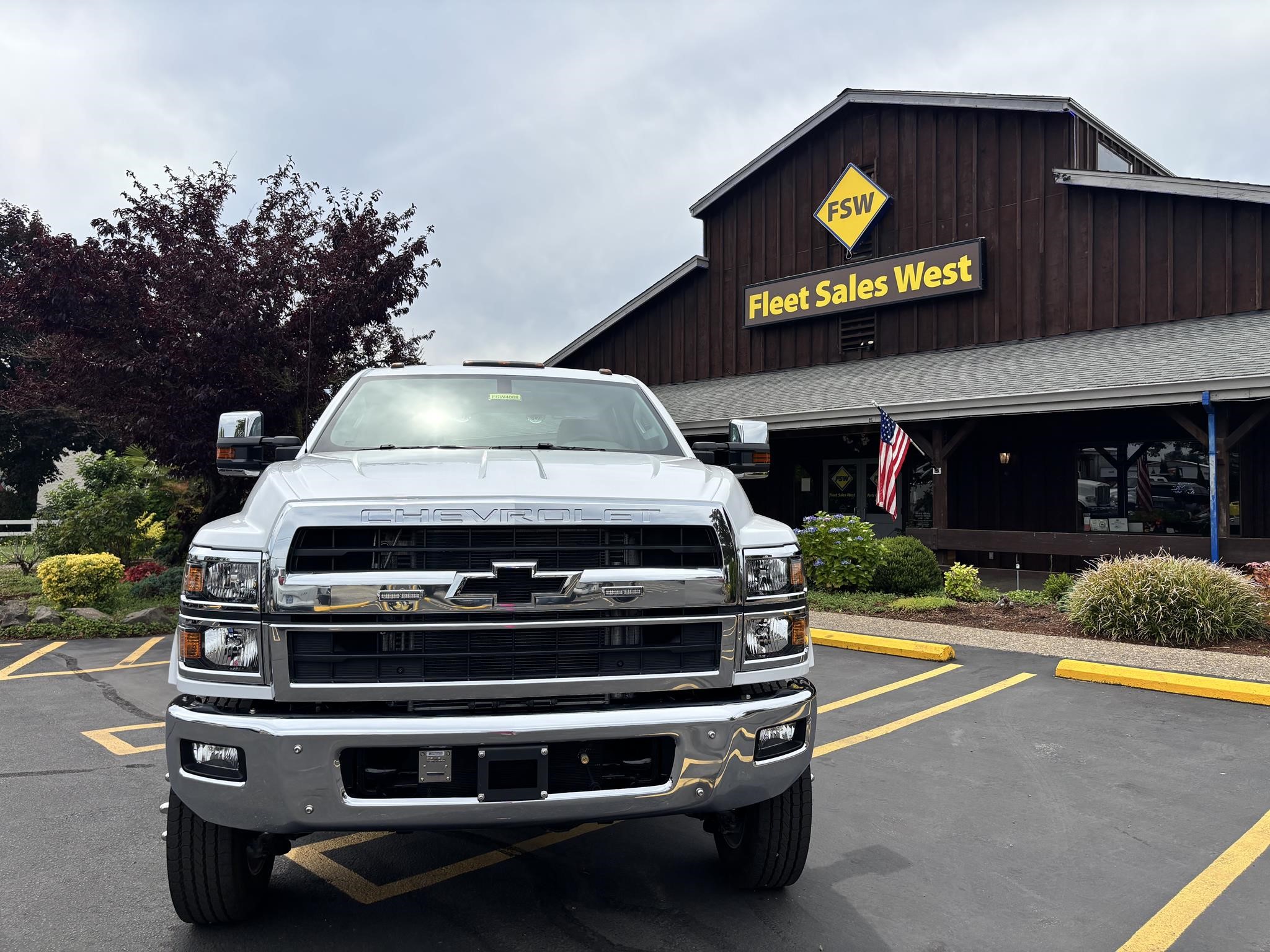

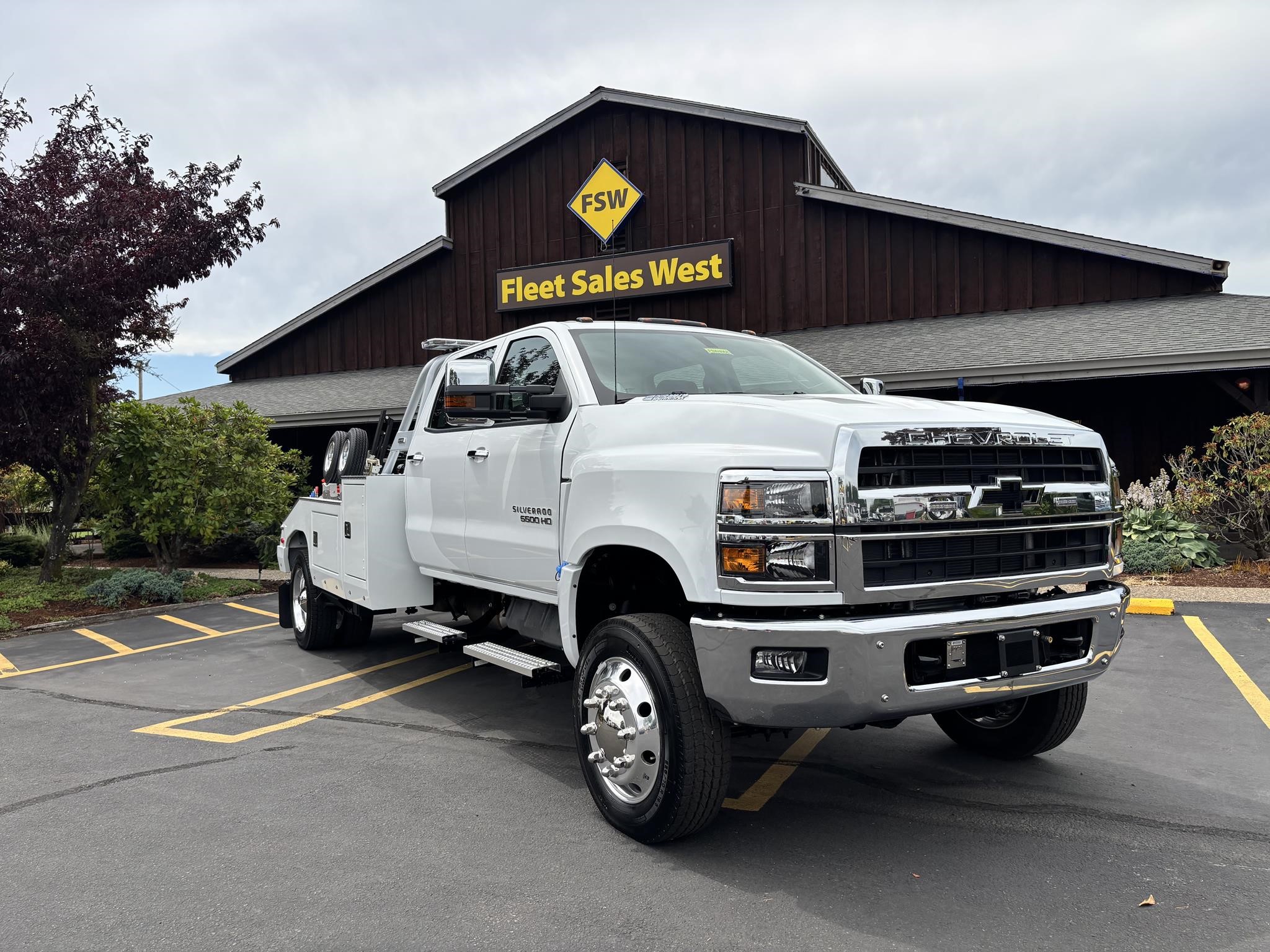

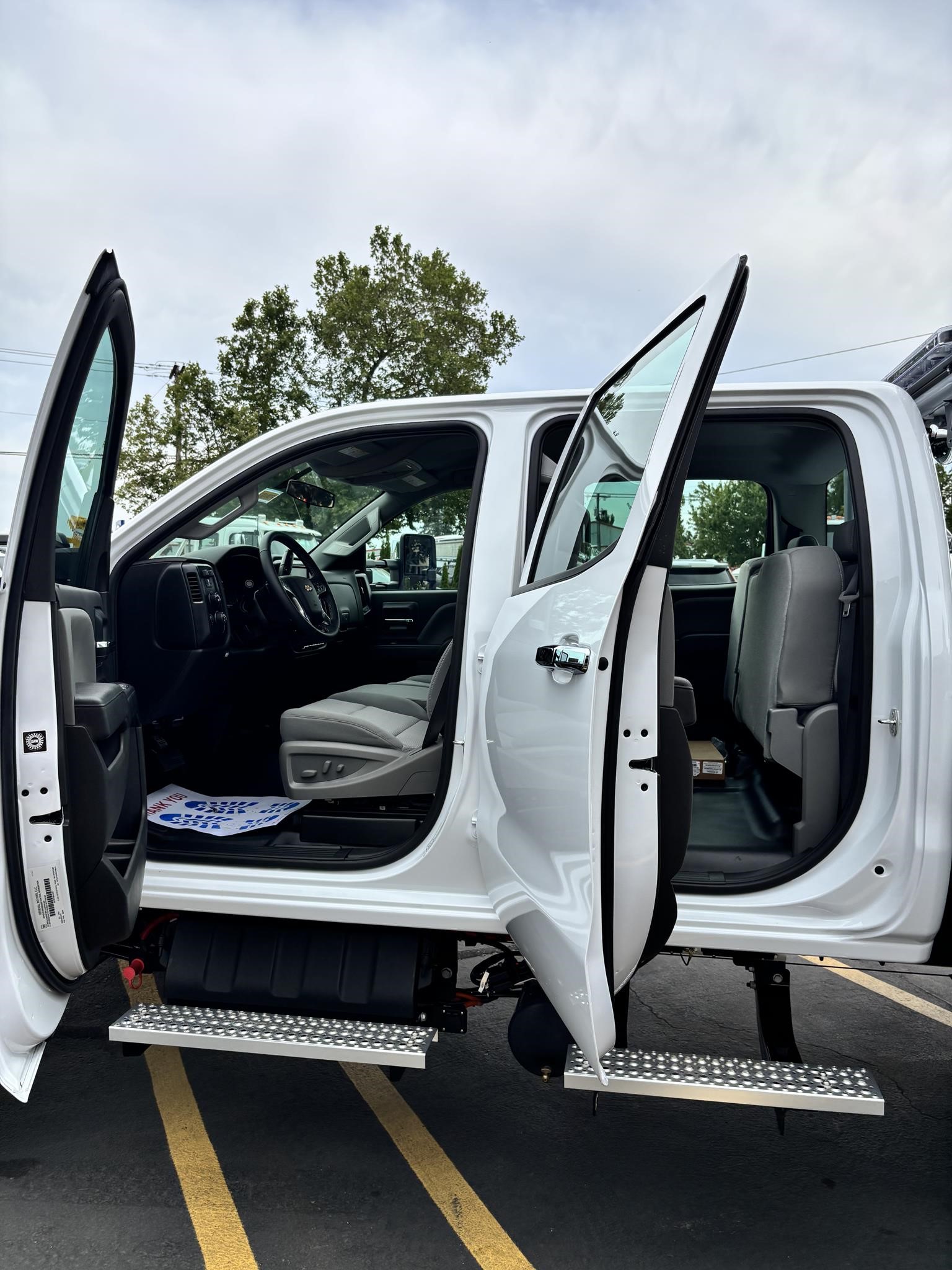

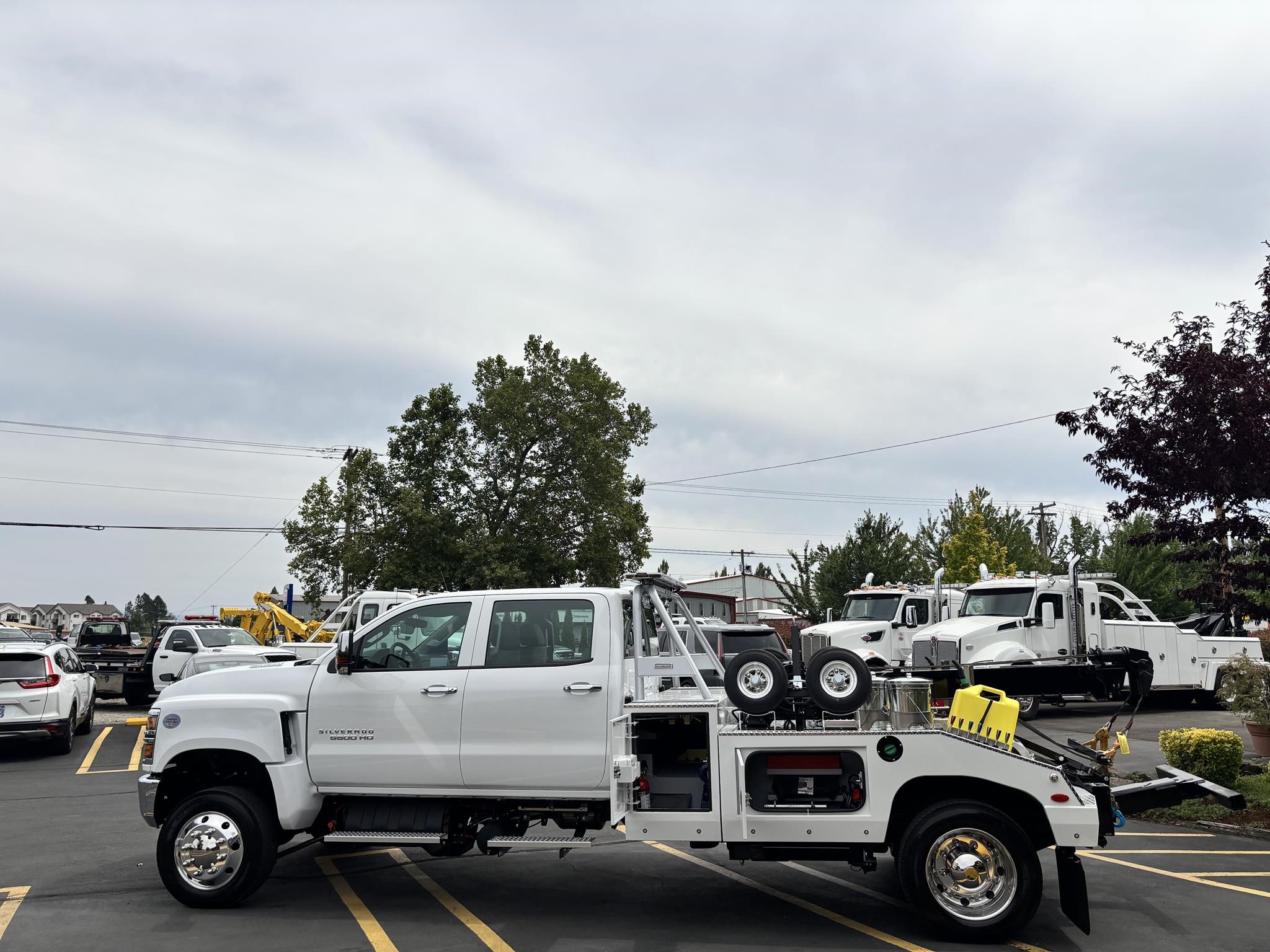

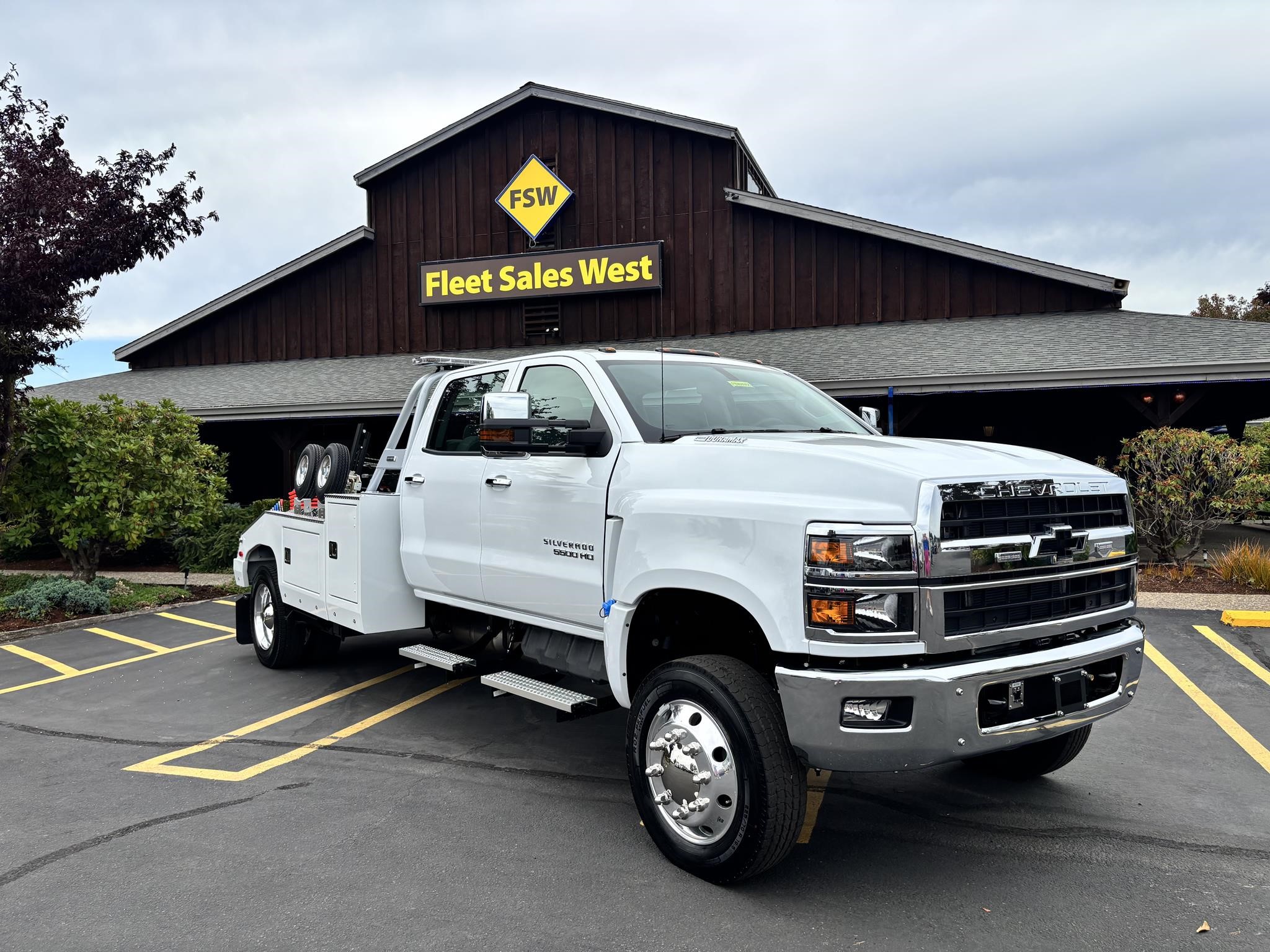

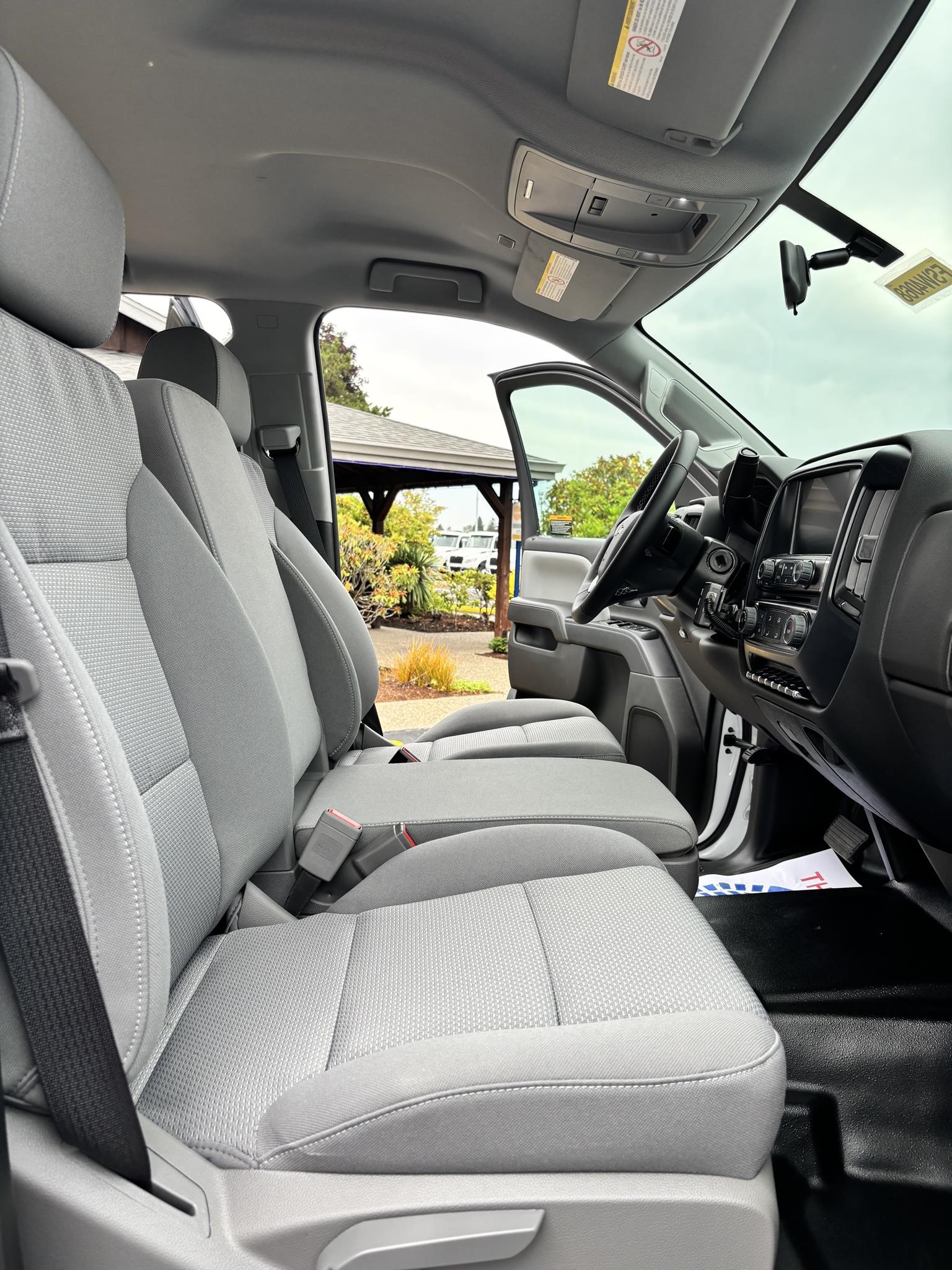

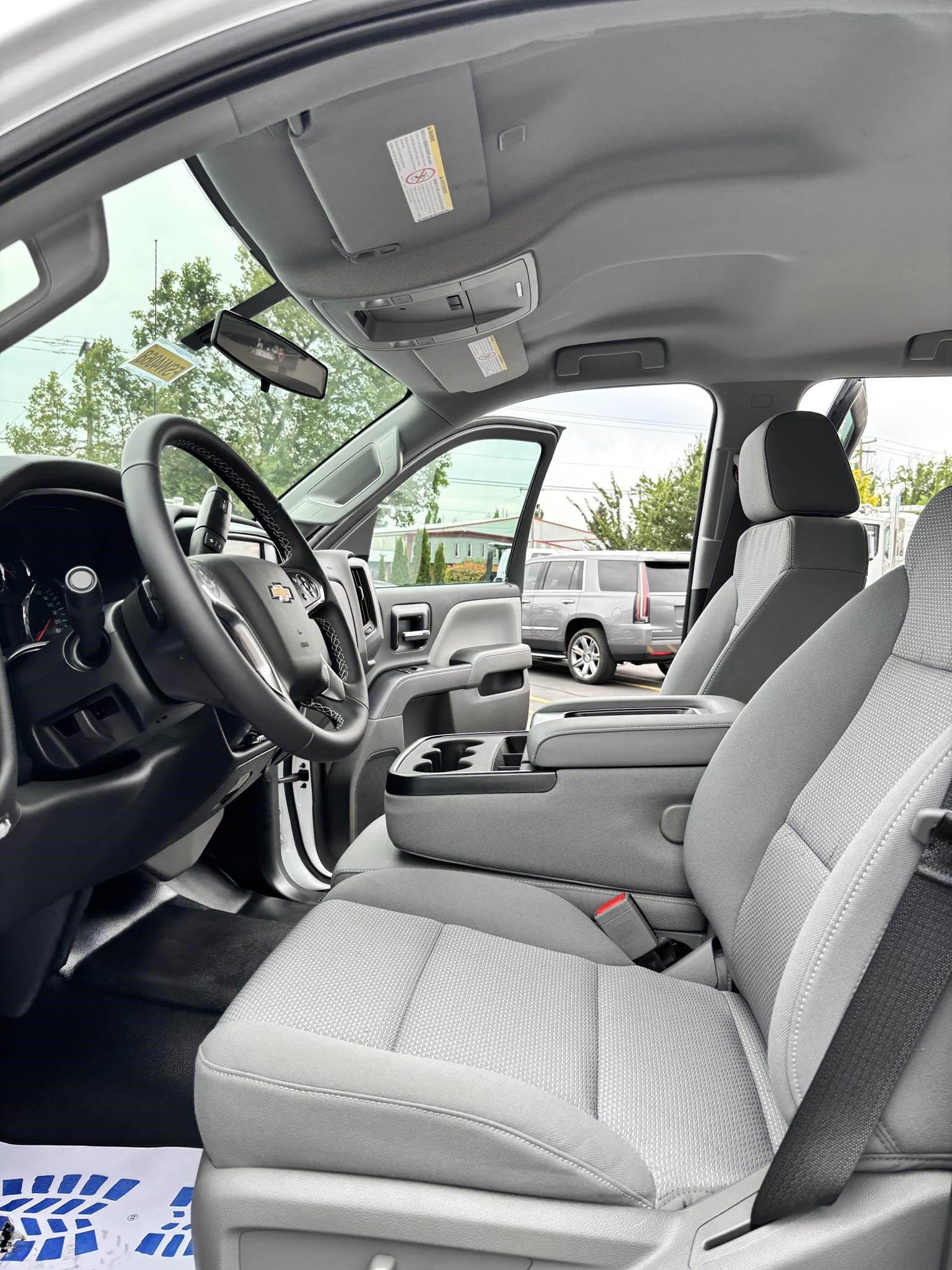

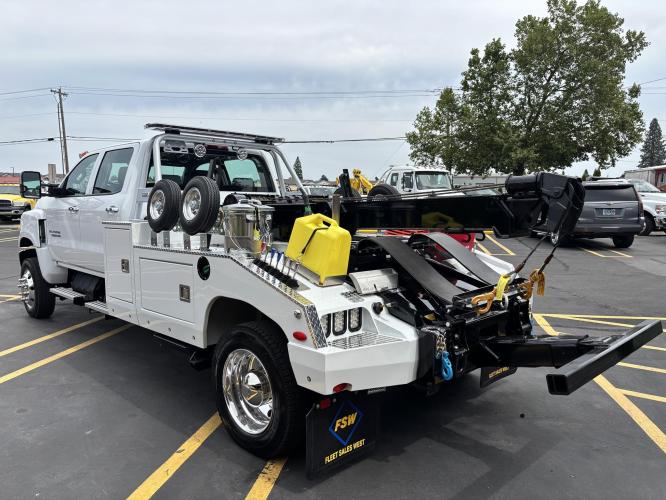

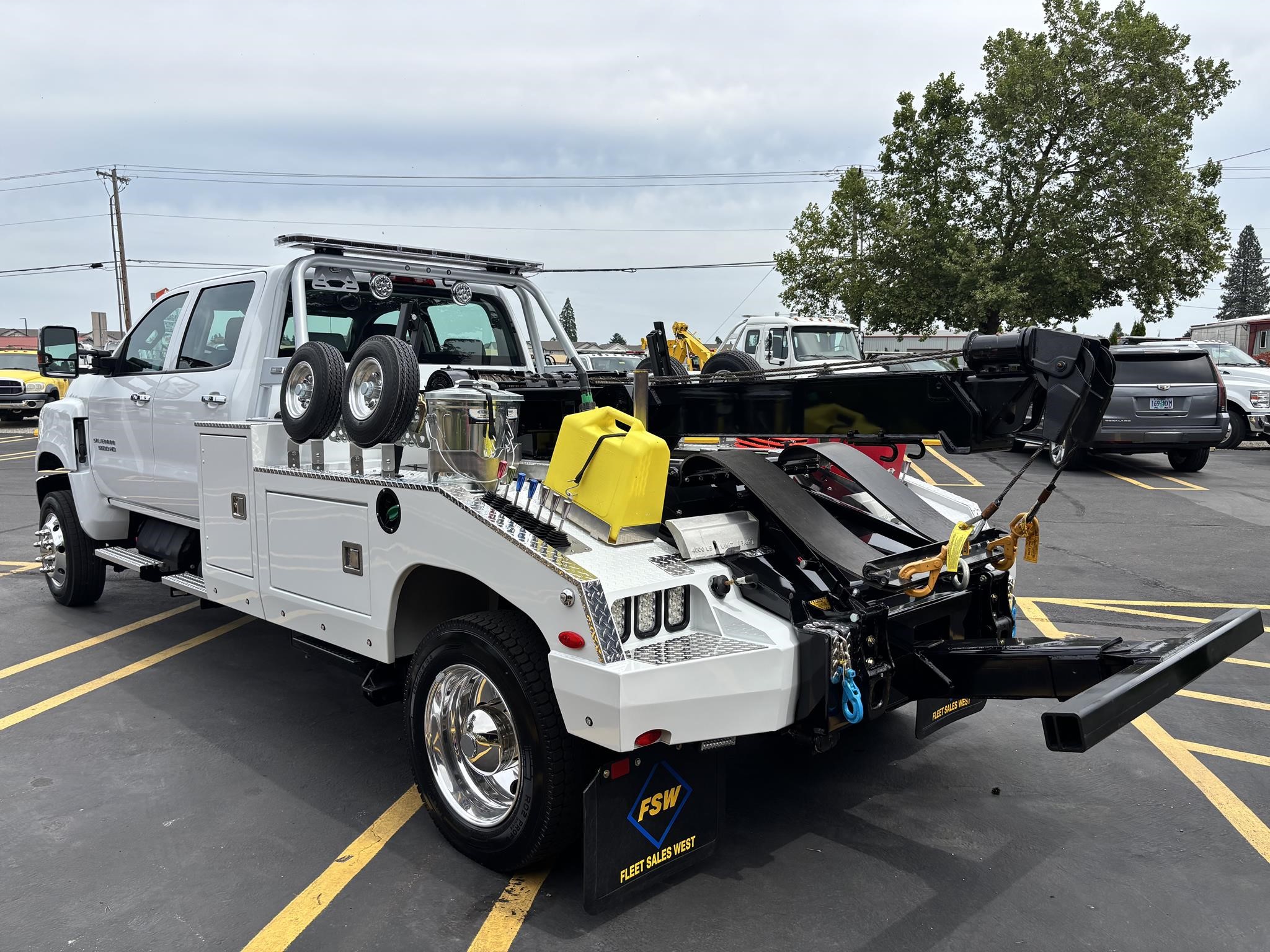

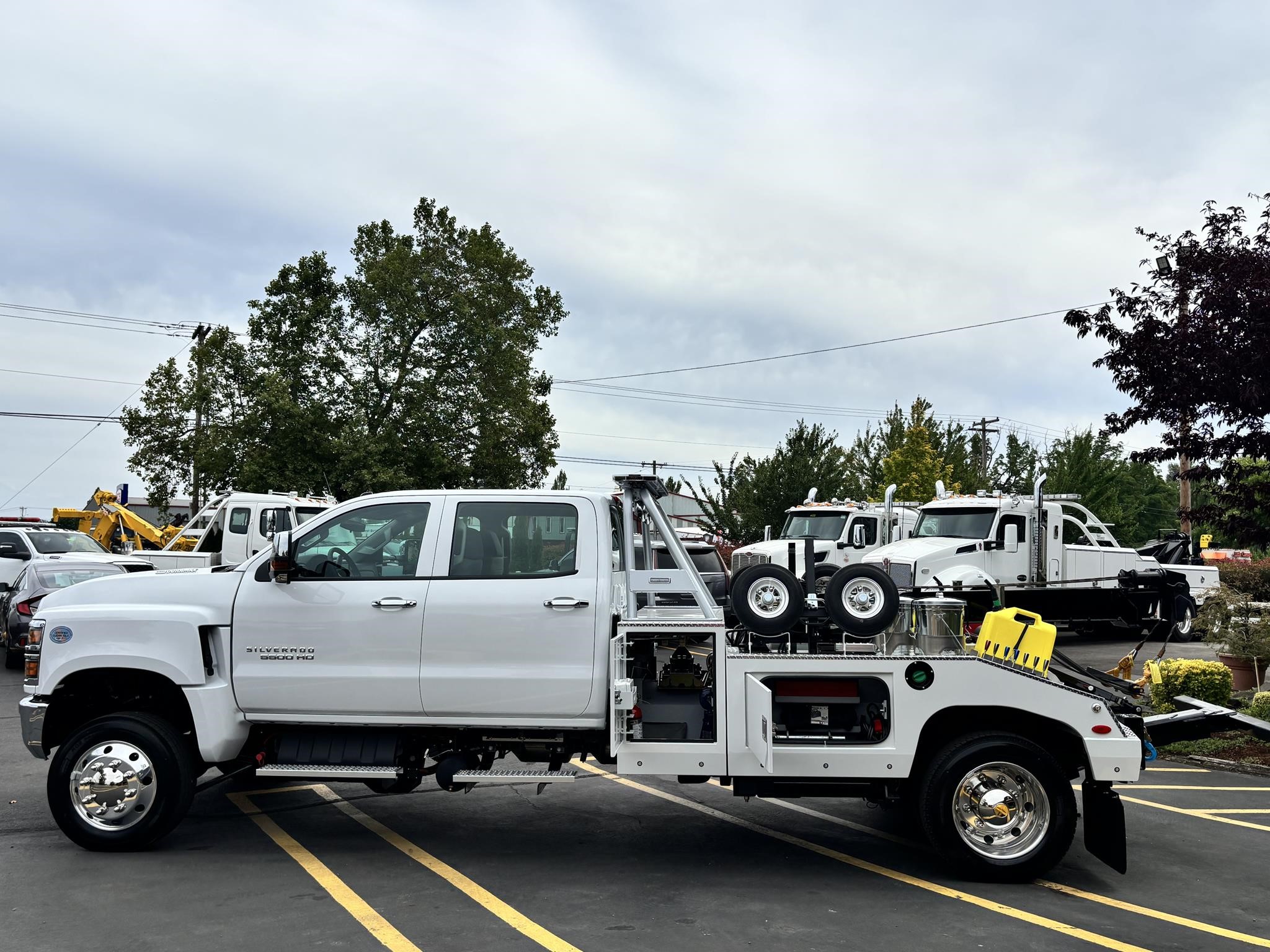

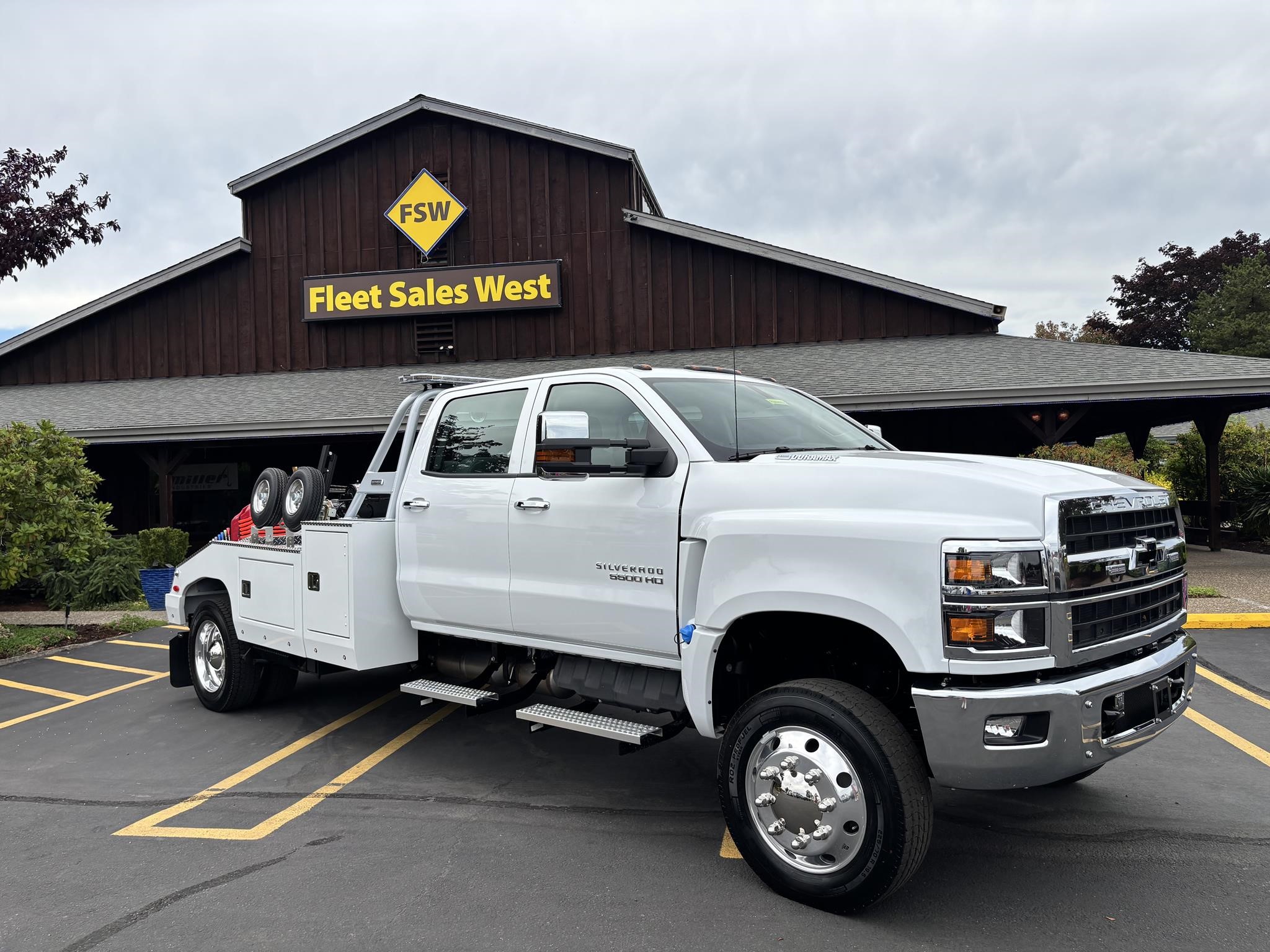

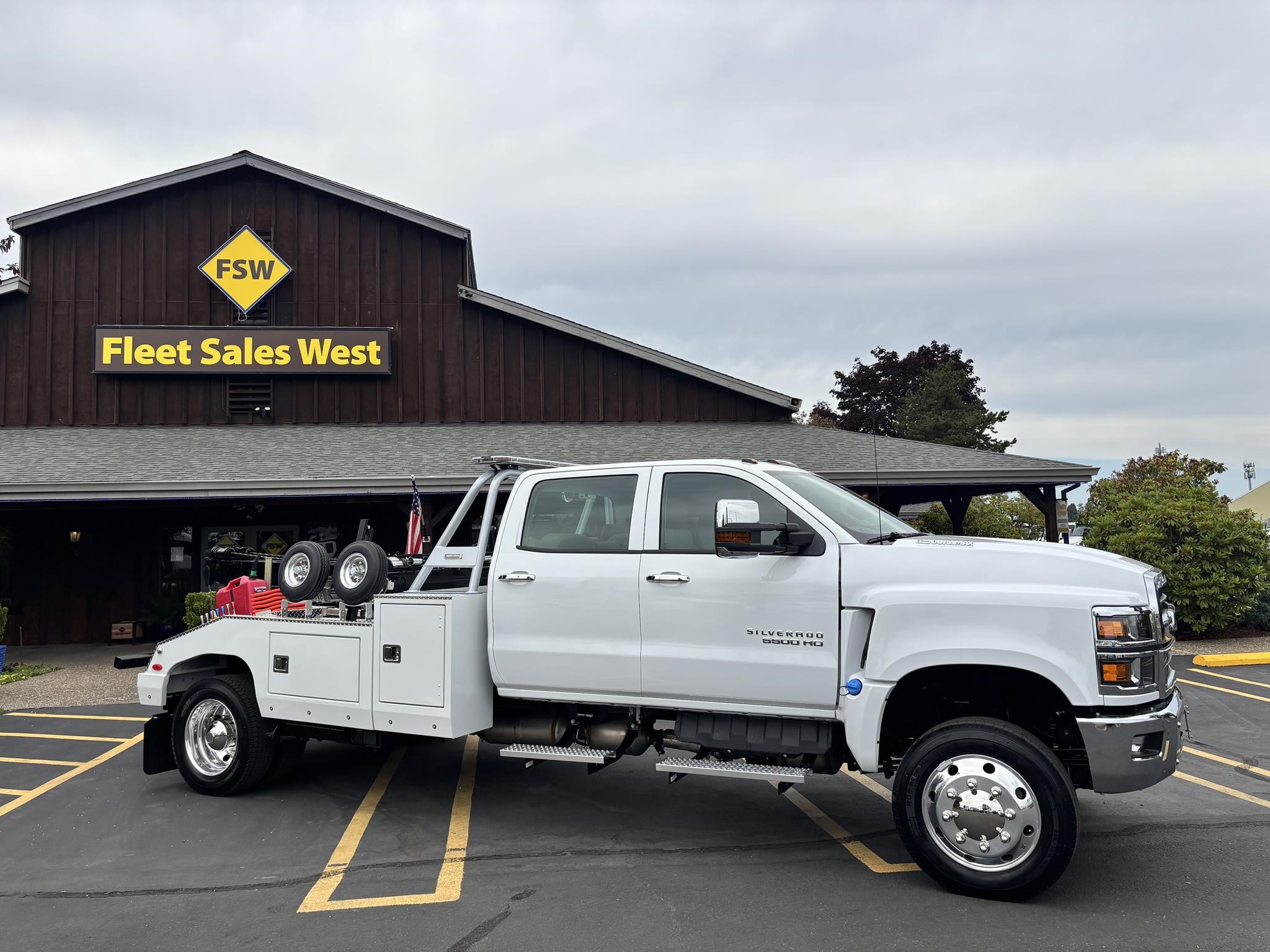

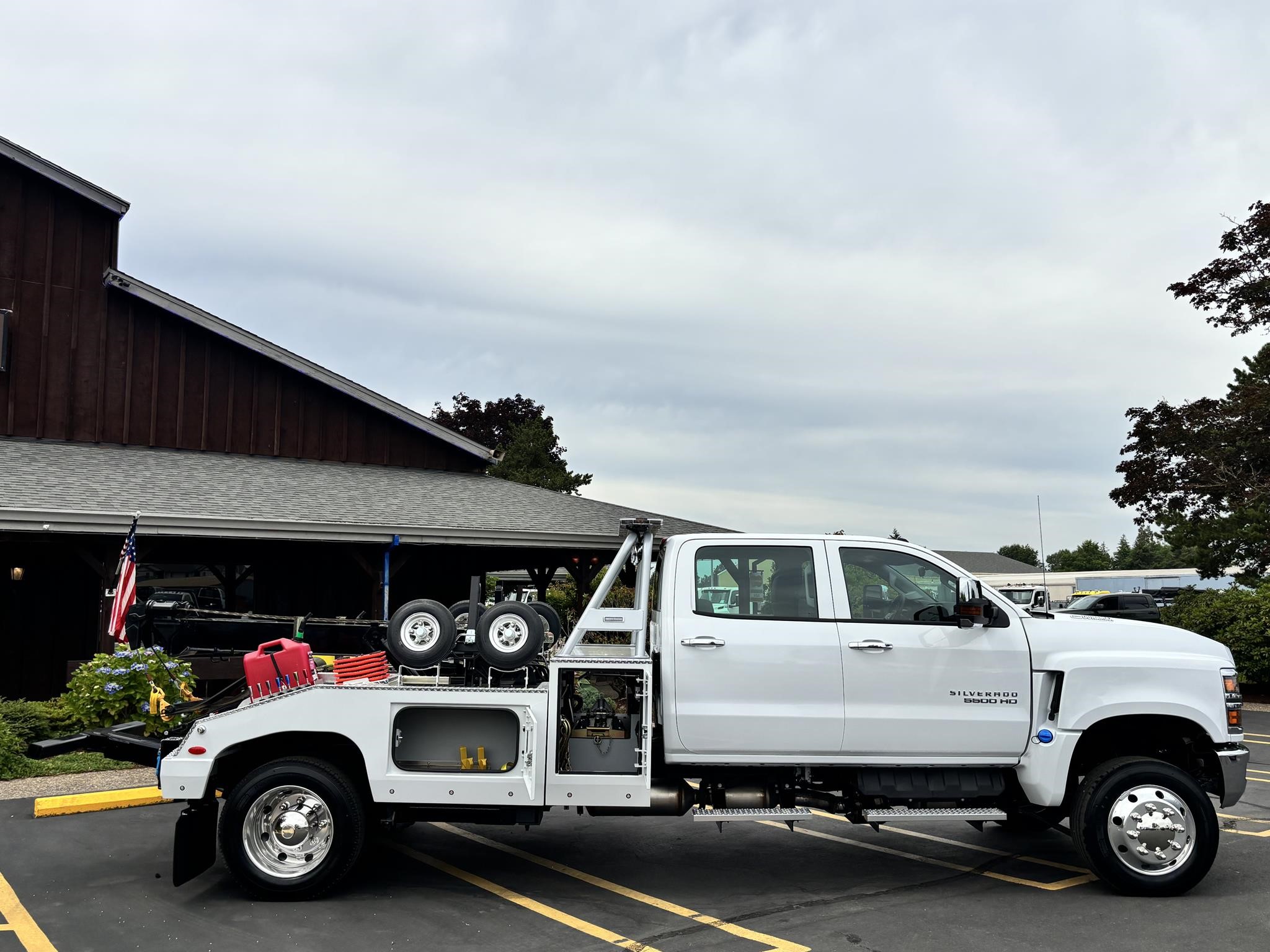

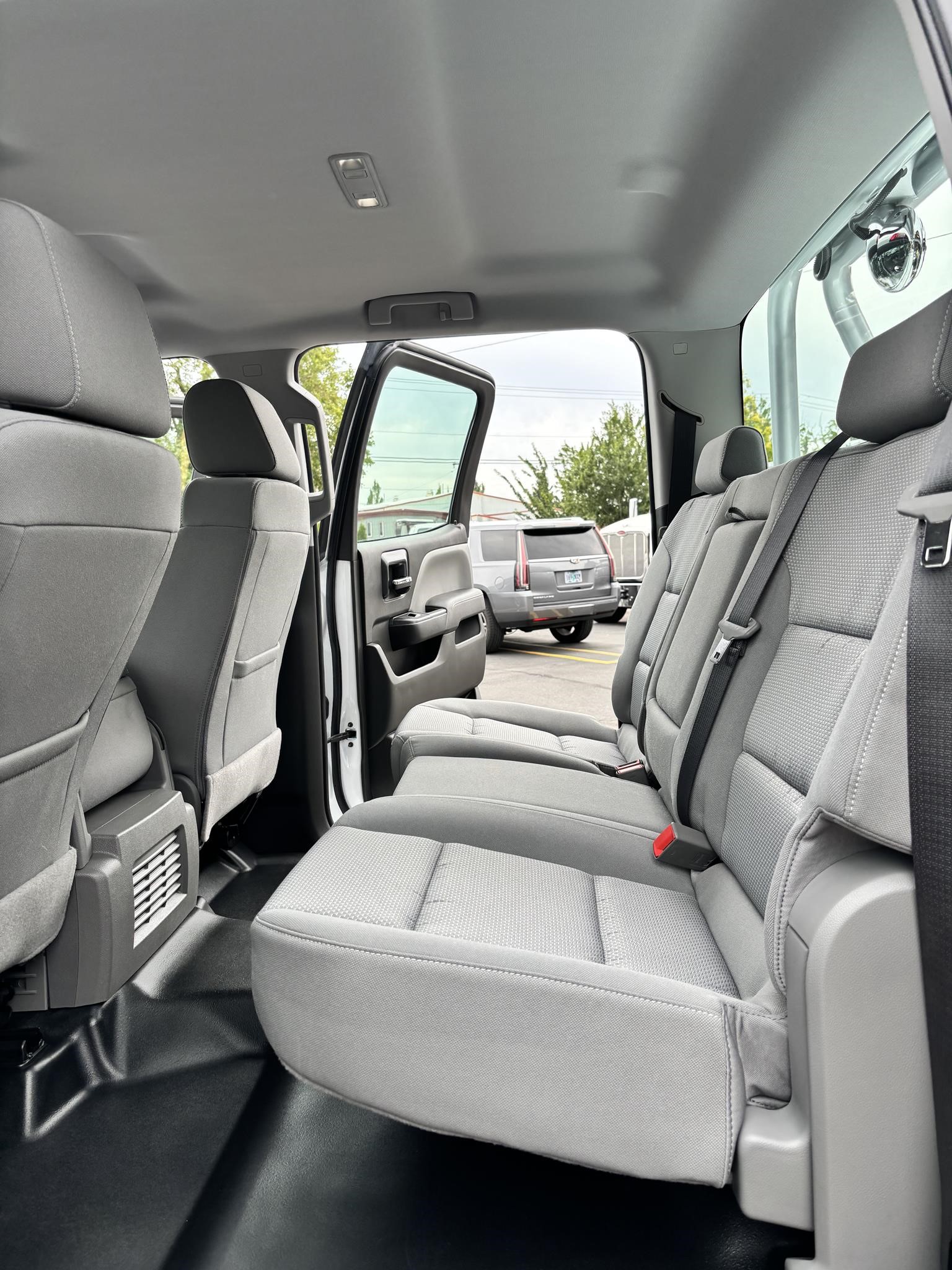

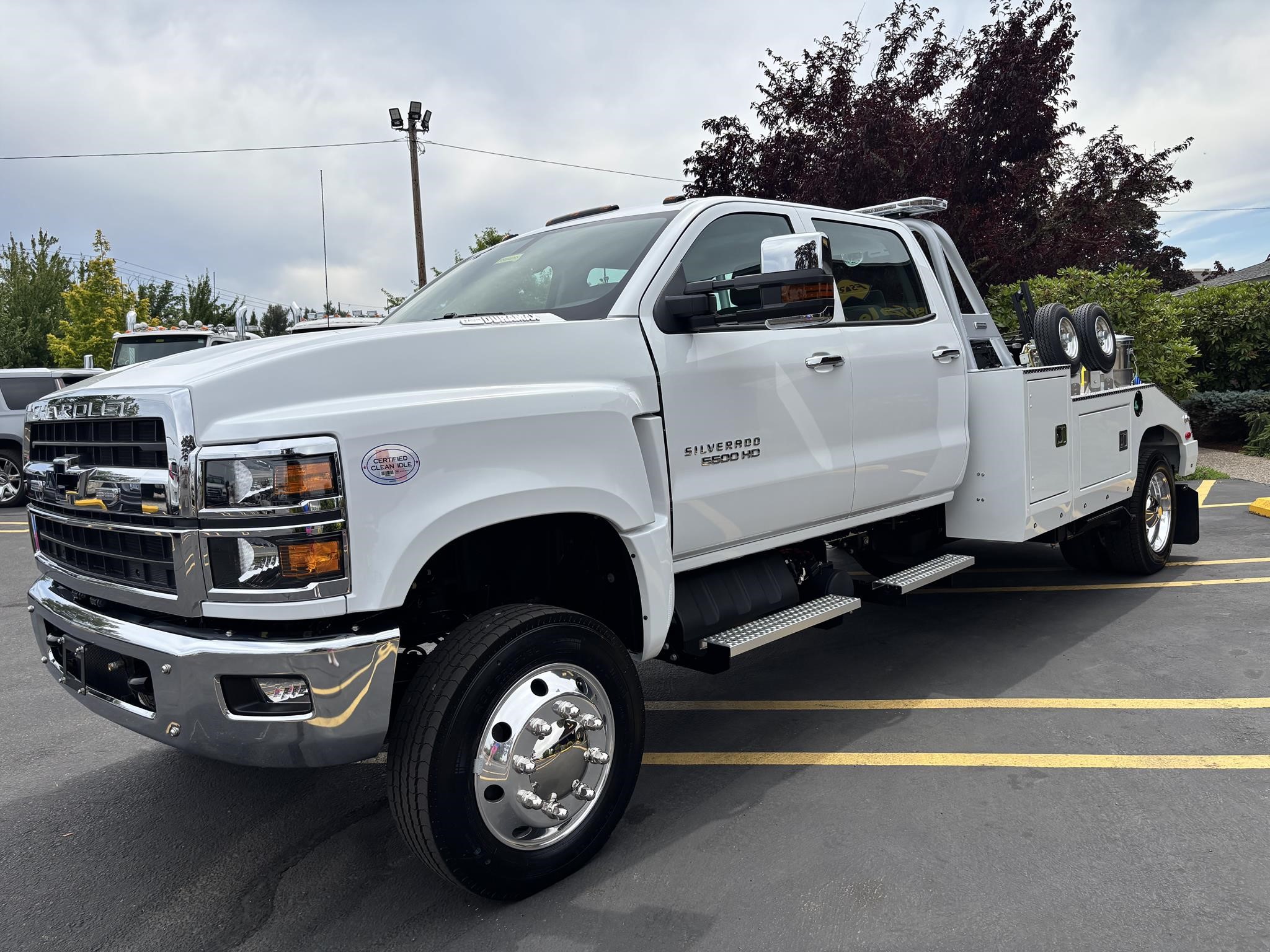

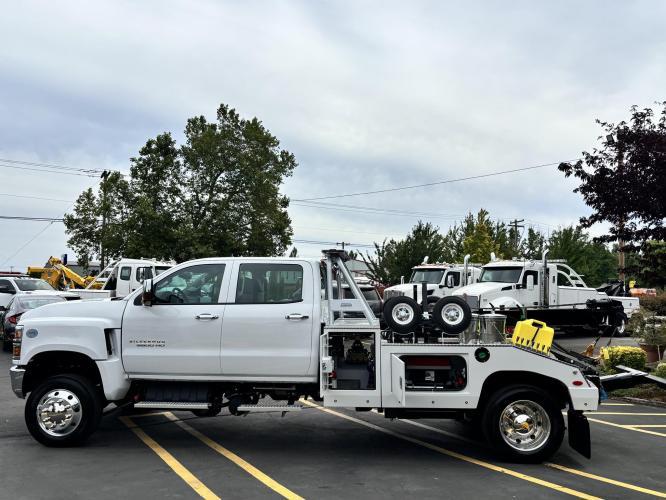

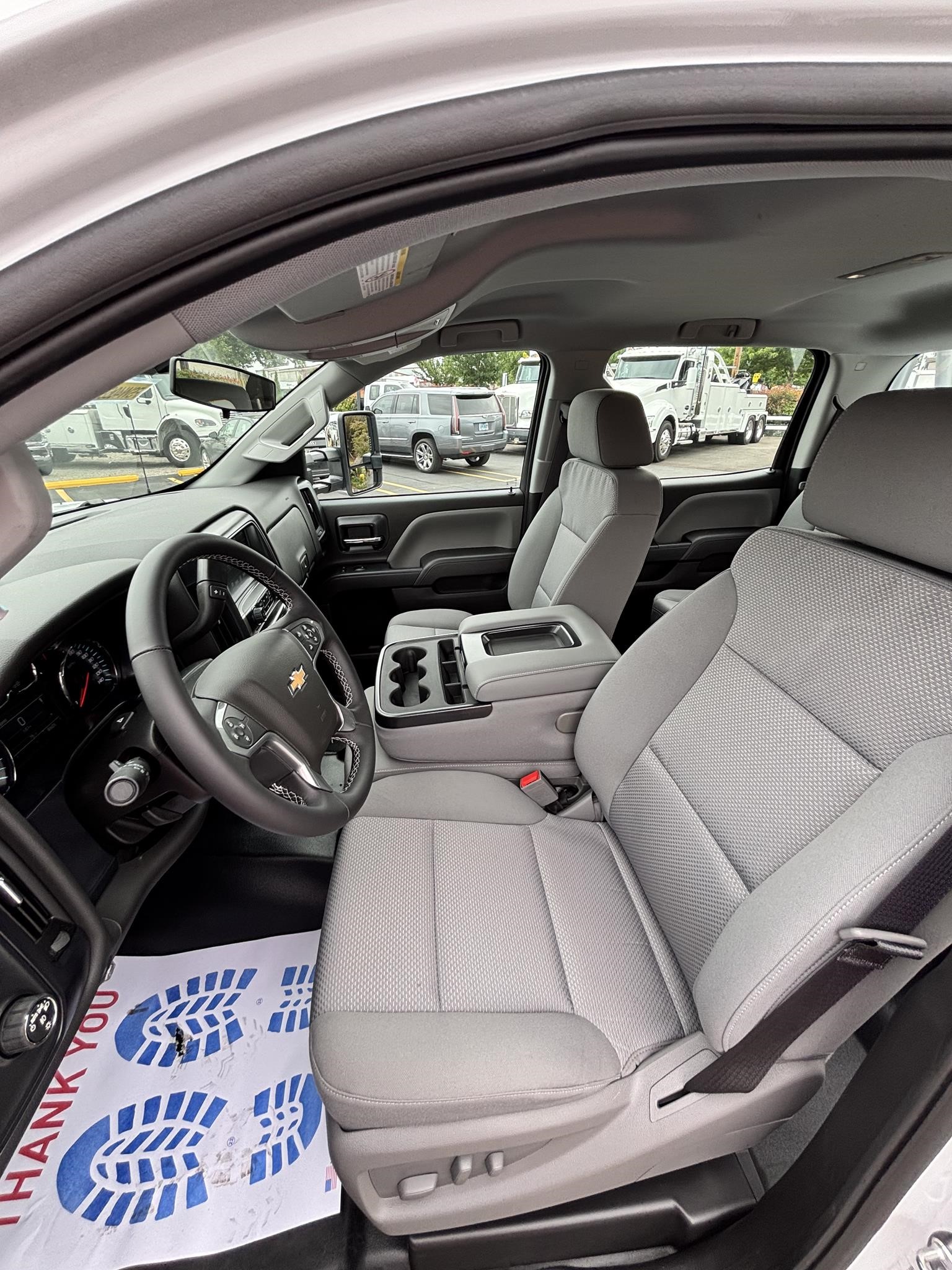

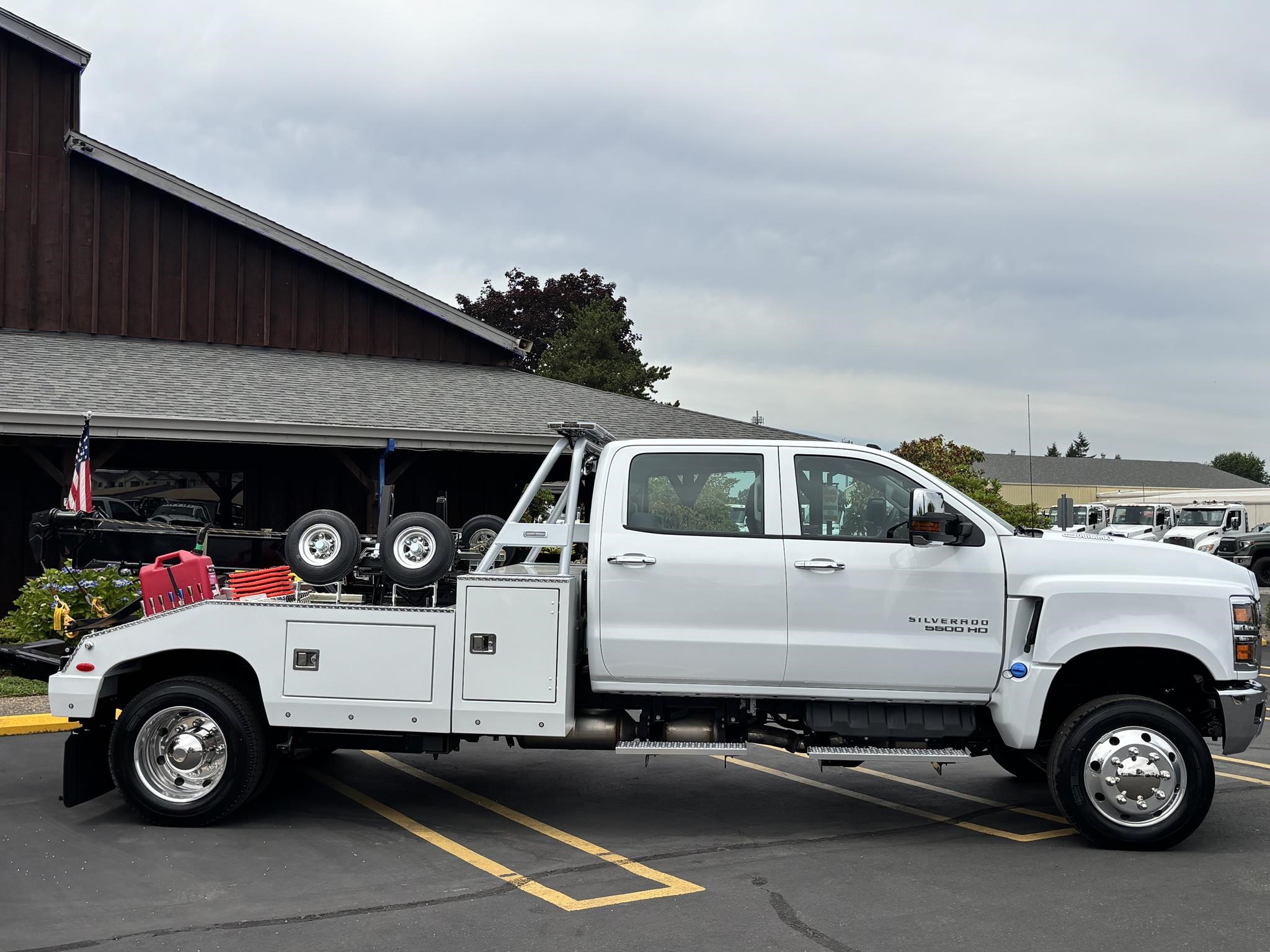

2024 Chevy 5500 Crew Cab 4x4 Package 6.6L 360HP Duramax. Exhaust Brake. 7500lb Front axle. Rear axle 13,500 lbs. Chrome Bumper. Chrome Grille. Driver suspension seat, two-man pass seat. Rear Seat. Aluminum wheels. 120" CA.

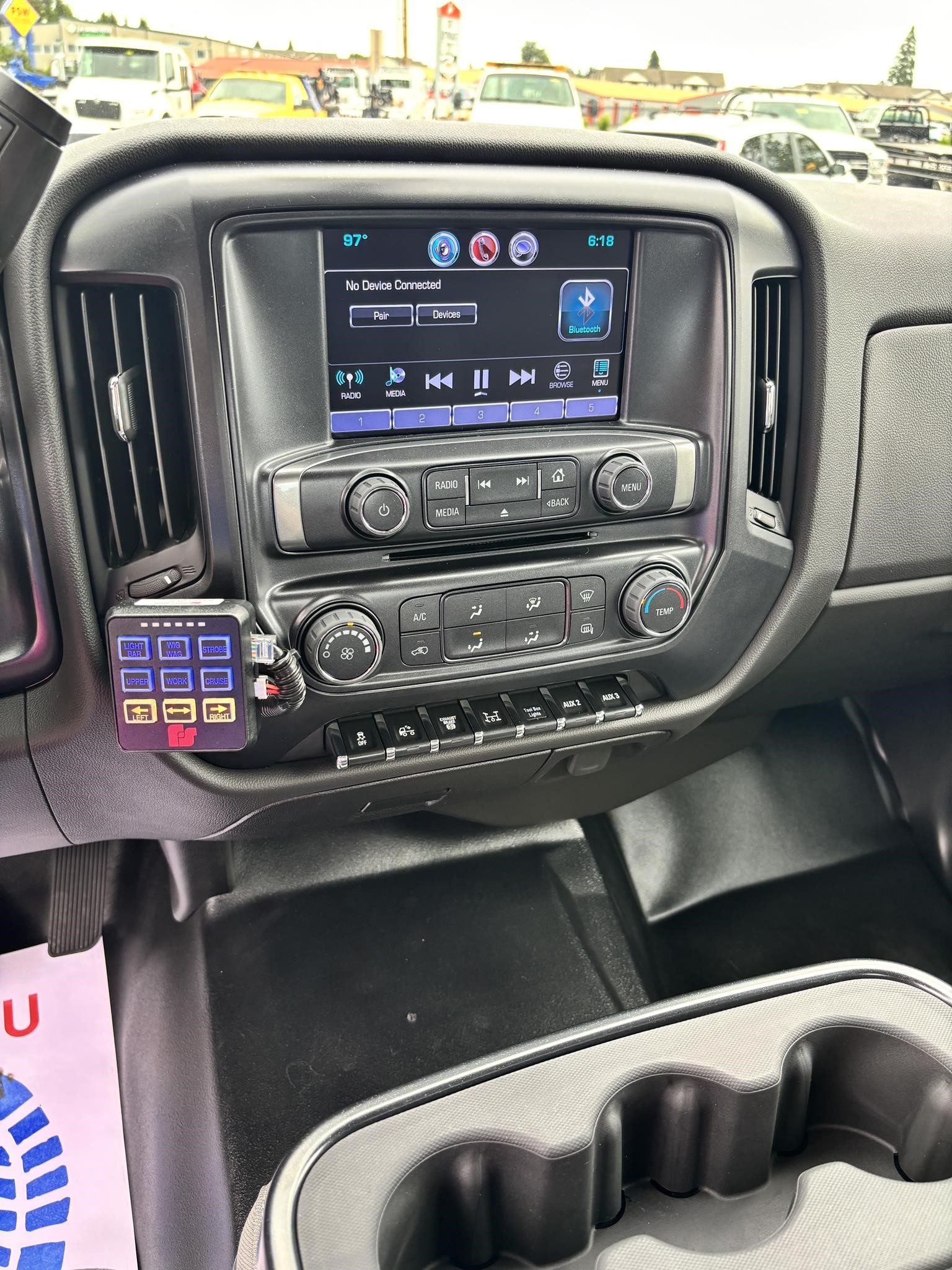

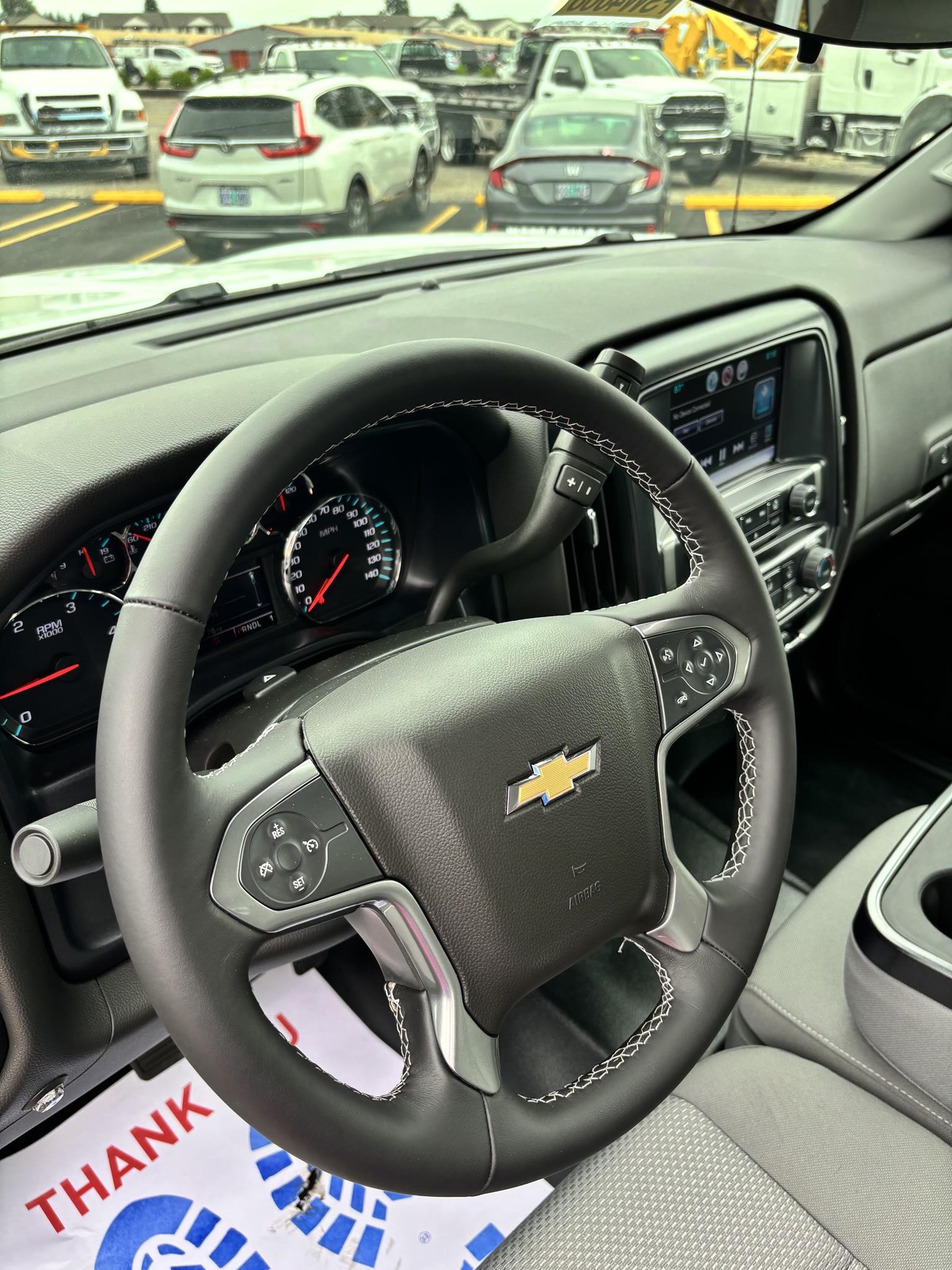

Allison RDS 2700. Tilt Wheel. Power Windows, power locks, Idle up, Cruise Control. AM/FM USB. Additional switch panel. Rear backup camera. Keyless Entry. Mirrors, outside heated power-adjustable vertical trailering, upper glass, manual-folding and extending, chrome Mirror caps, aluminum.Cab steps, Front stabilizer bar. 13,500lb Rear Spring suspension, 13,5000lb limited slip Rear axle option. A/C. Audio system, 7" diagonal color touch-screen with Chevrolet Infotainment

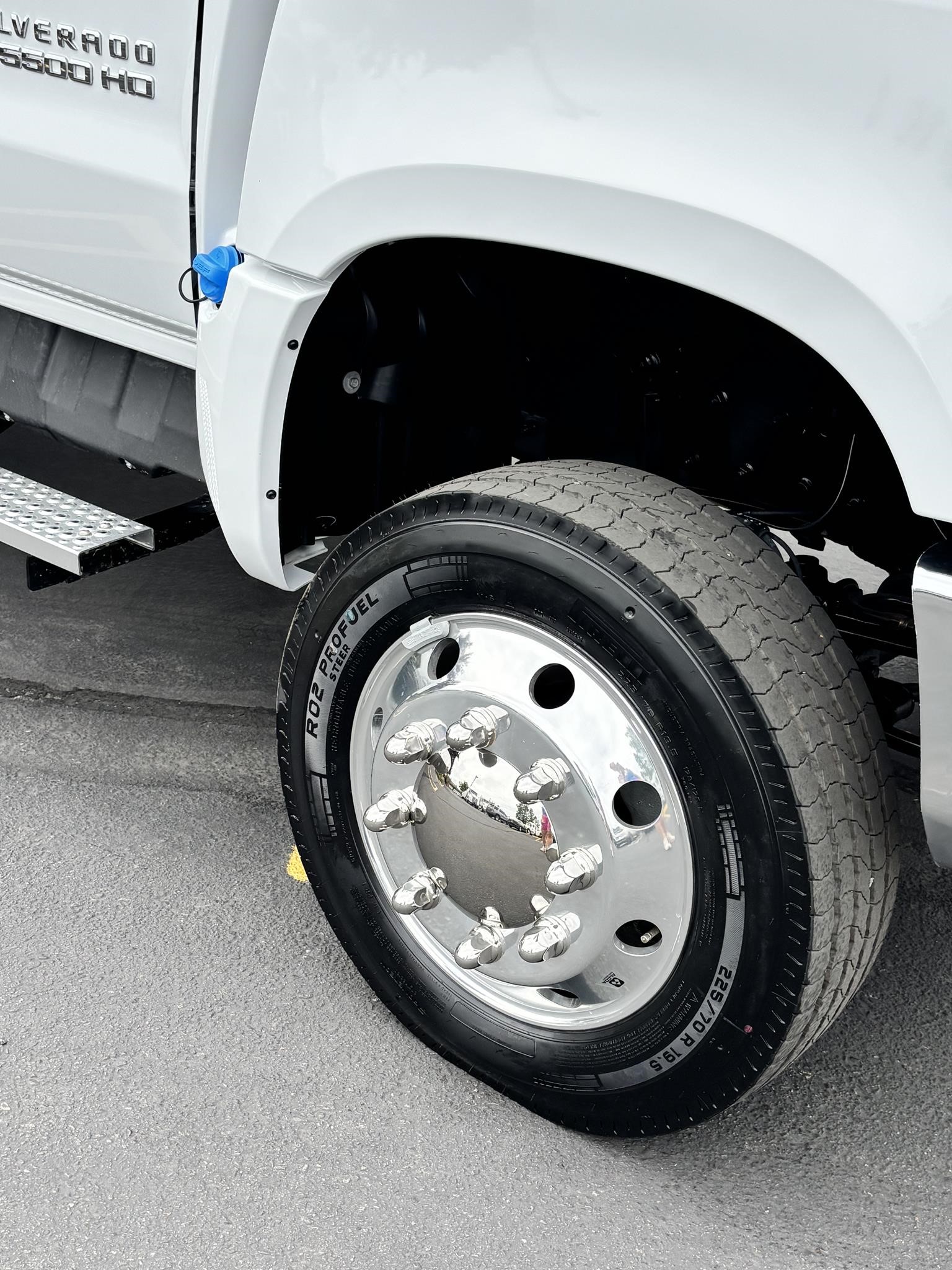

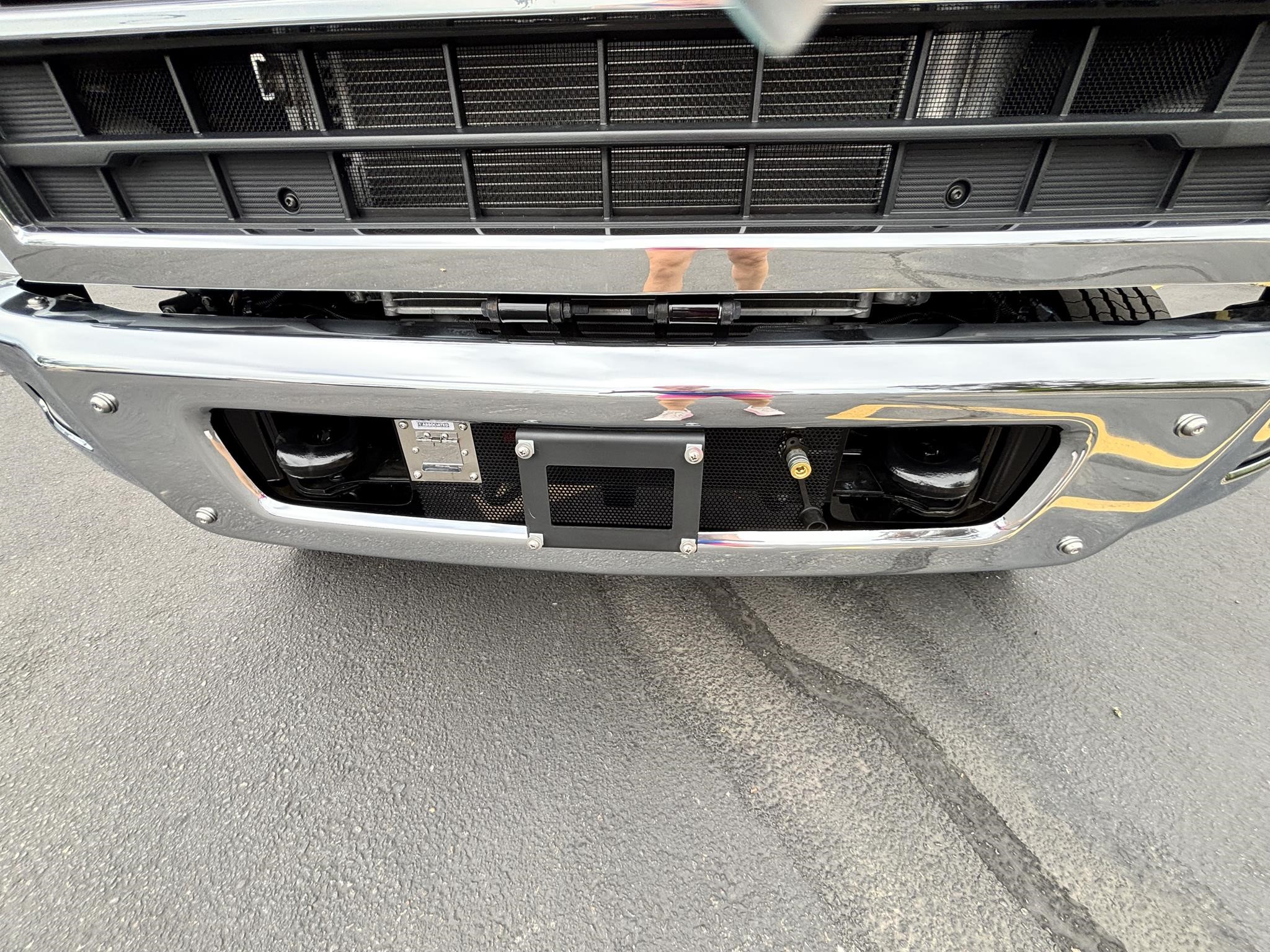

Air Dryer, heated, Engine block heater, Air Compressor Accessory Drive, Rugged Duty Service Transmission, Automatic close-ratio 6 SPD with double overdrive, Allison, A1700RDS, Fuel tank, front, 25 gallon, Skid Plate, steel, frame-mounted, protects the transfer case from the ground, Power Take Off, engine control provisions, Wheels, 19.5" x 6.75", aluminum, 8-holes, hub piloted, 26,000 lb. GCWR (11,793 kg), 5500 HD Series, Fog lamps, front, halogen, Grille, chrome, Grille guard screen, stone protection, Bumper, front chrome, Recovery hooks, front, frame-mounted, black, License plate kit, front, Tires, front 225/70R19.5G highway blackwall Continental. Bluetooth for phone, personal cell phone connectivity to vehicle audio system, 19,500 GVWR.
Warranty Note: <<< Preliminary 2024 Warranty >>> Basic Years: 3, Basic Miles/km: 36,000, Drivetrain Years (Allison Basic): 5 , Drivetrain Years: 5 , Drivetrain Miles/km (Allison Basic): Unlimited Drivetrain Miles/km: 100,000, Drivetrain Note: , Duramax Diesel, Corrosion Years (Rust-Through): 6, Corrosion Years: 3 , Corrosion Miles/km (Rust-Through): 100,000 Corrosion Miles/km: 36,000, Roadside Assistance Years: 5, Roadside Assistance Miles/km: 100,000 Maintenance Note: 1 Year/1 Visit.

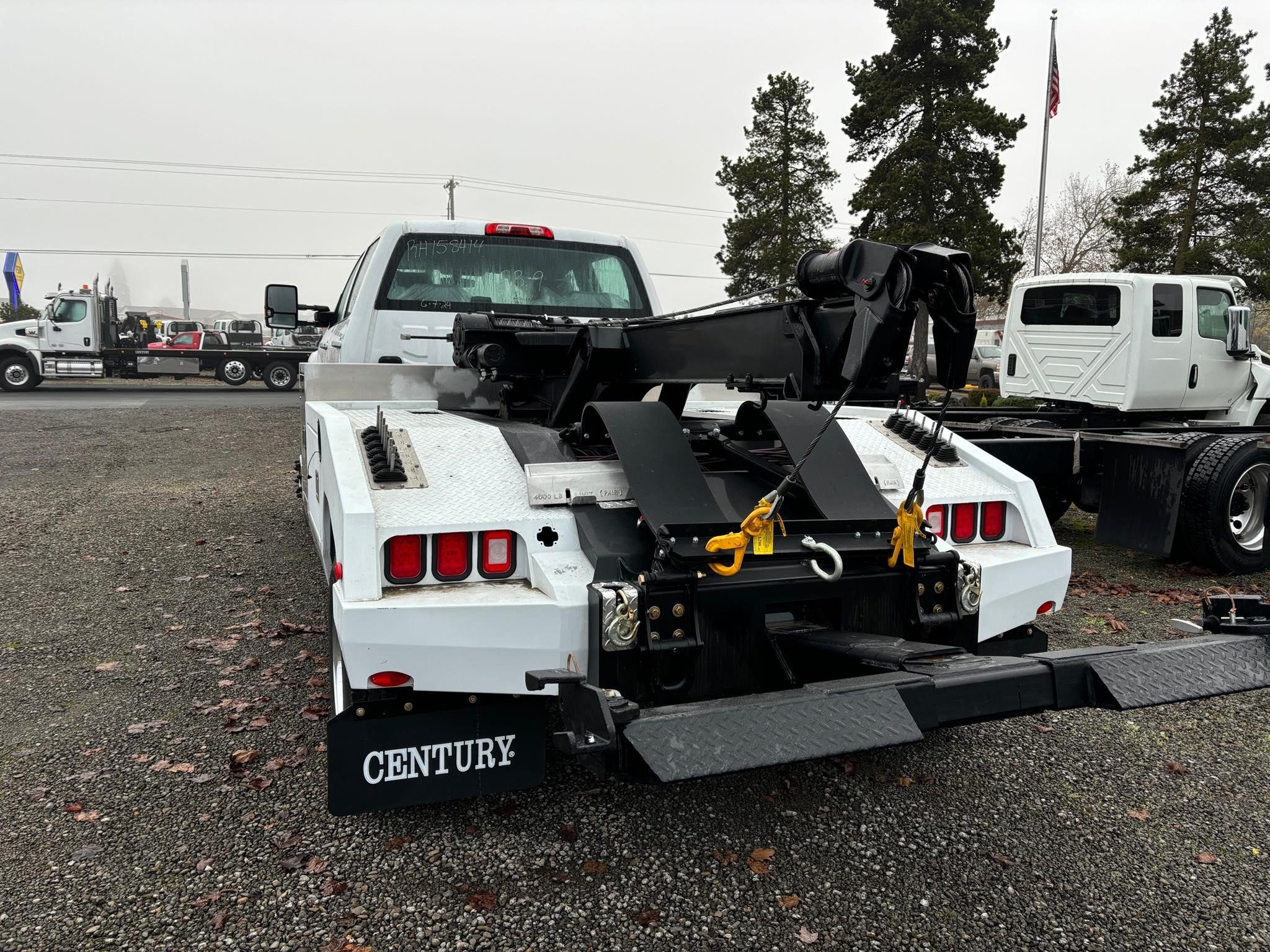

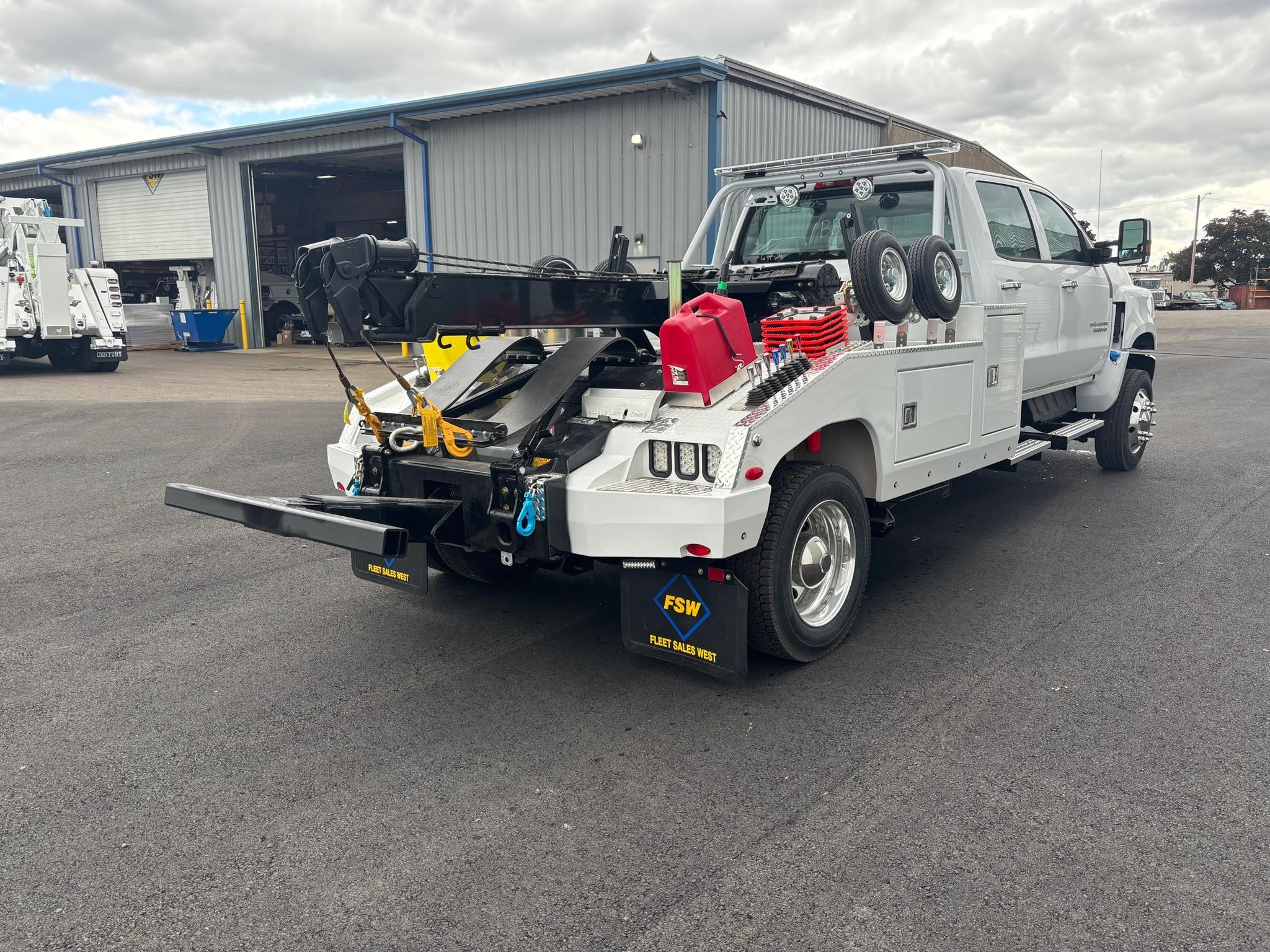

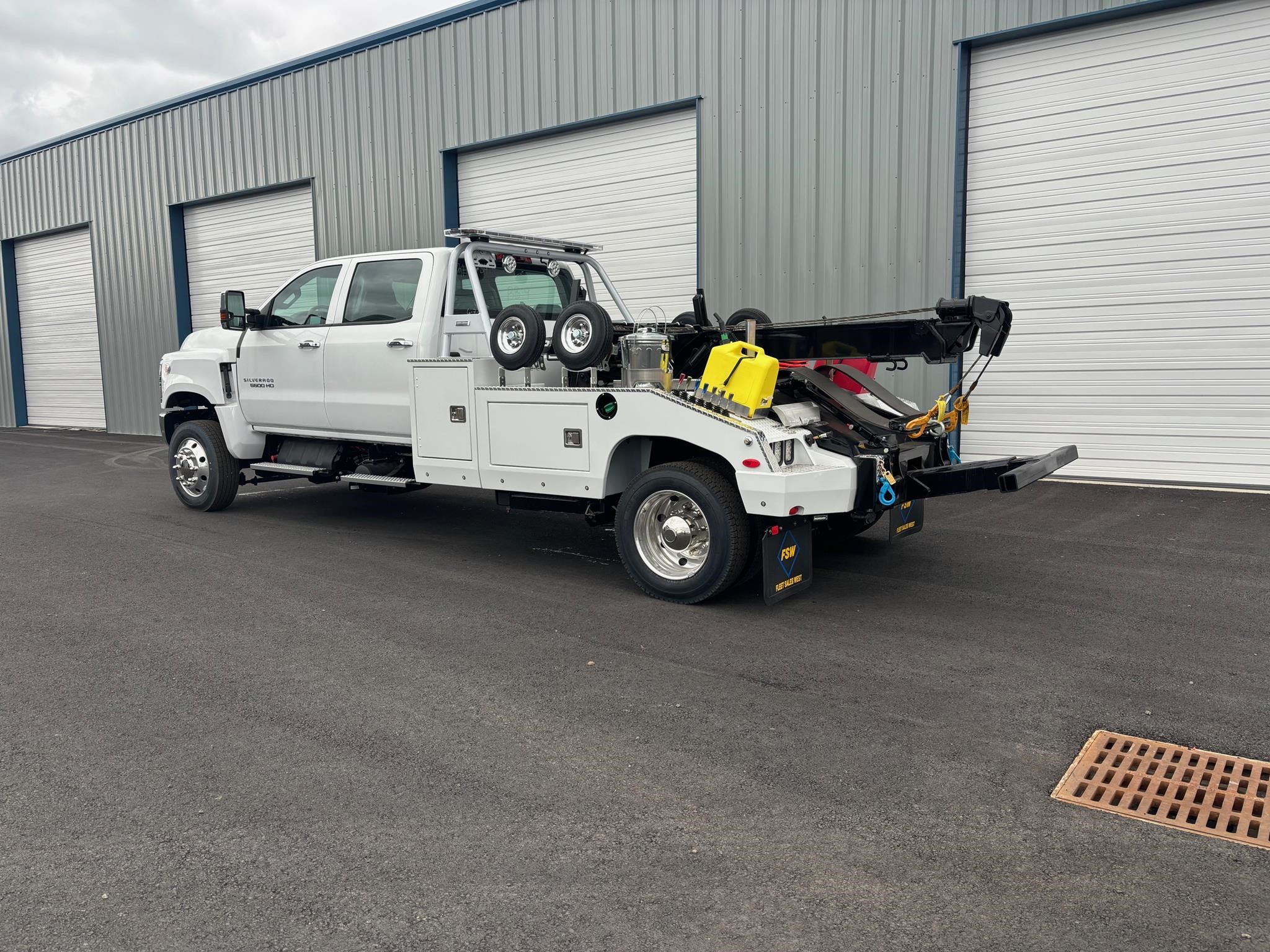

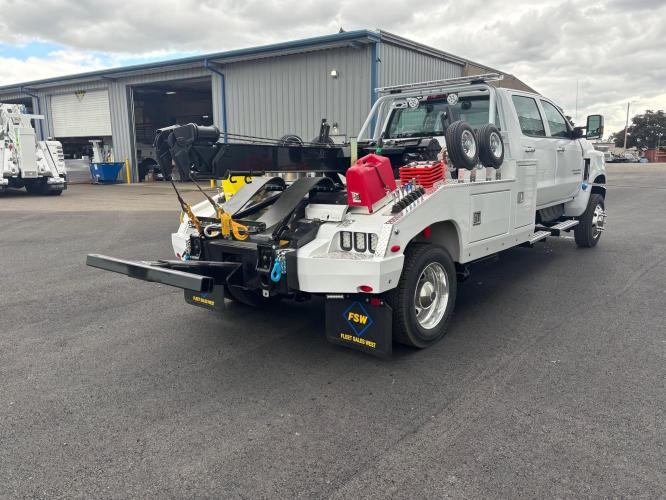

Century 612

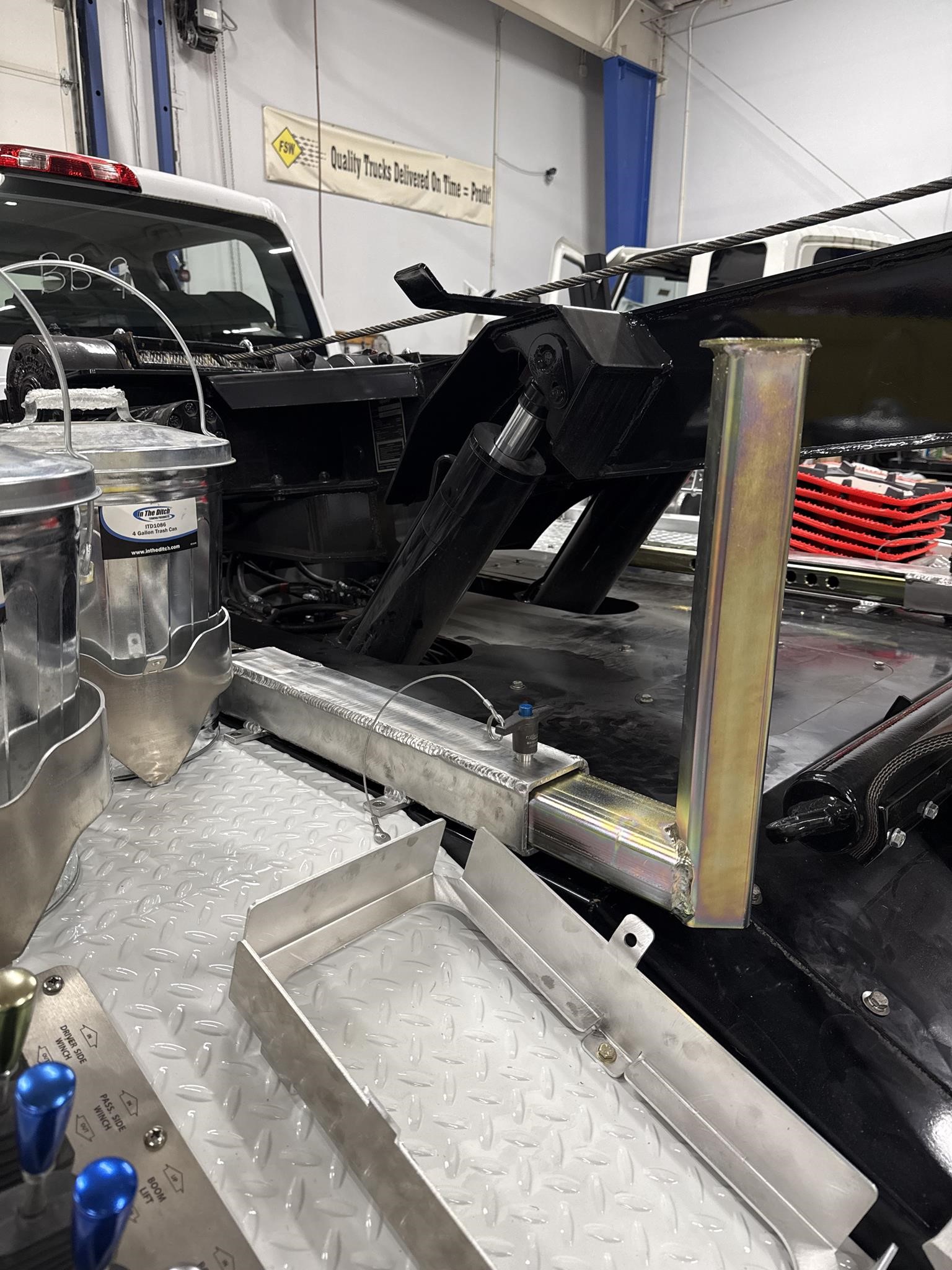

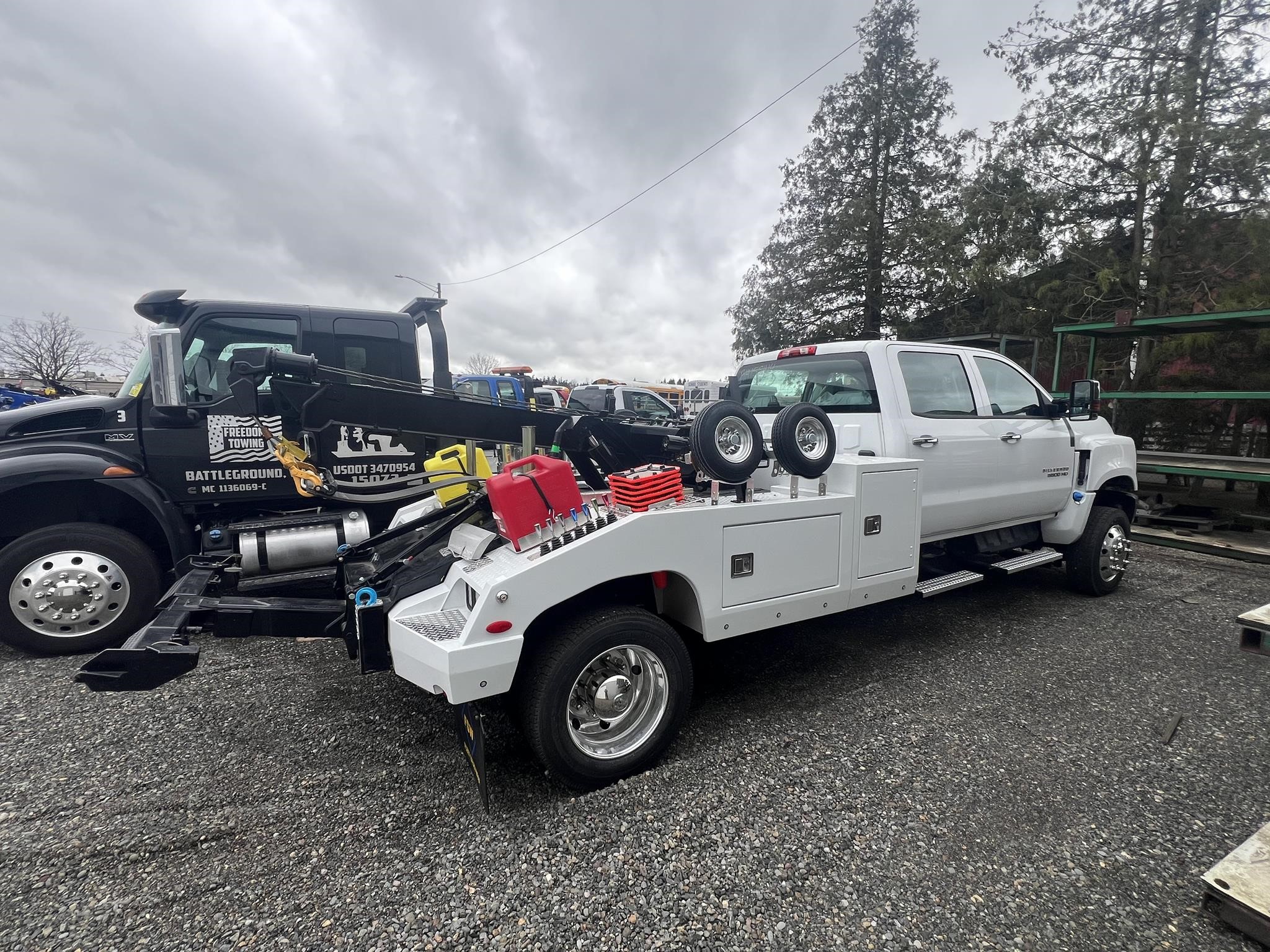

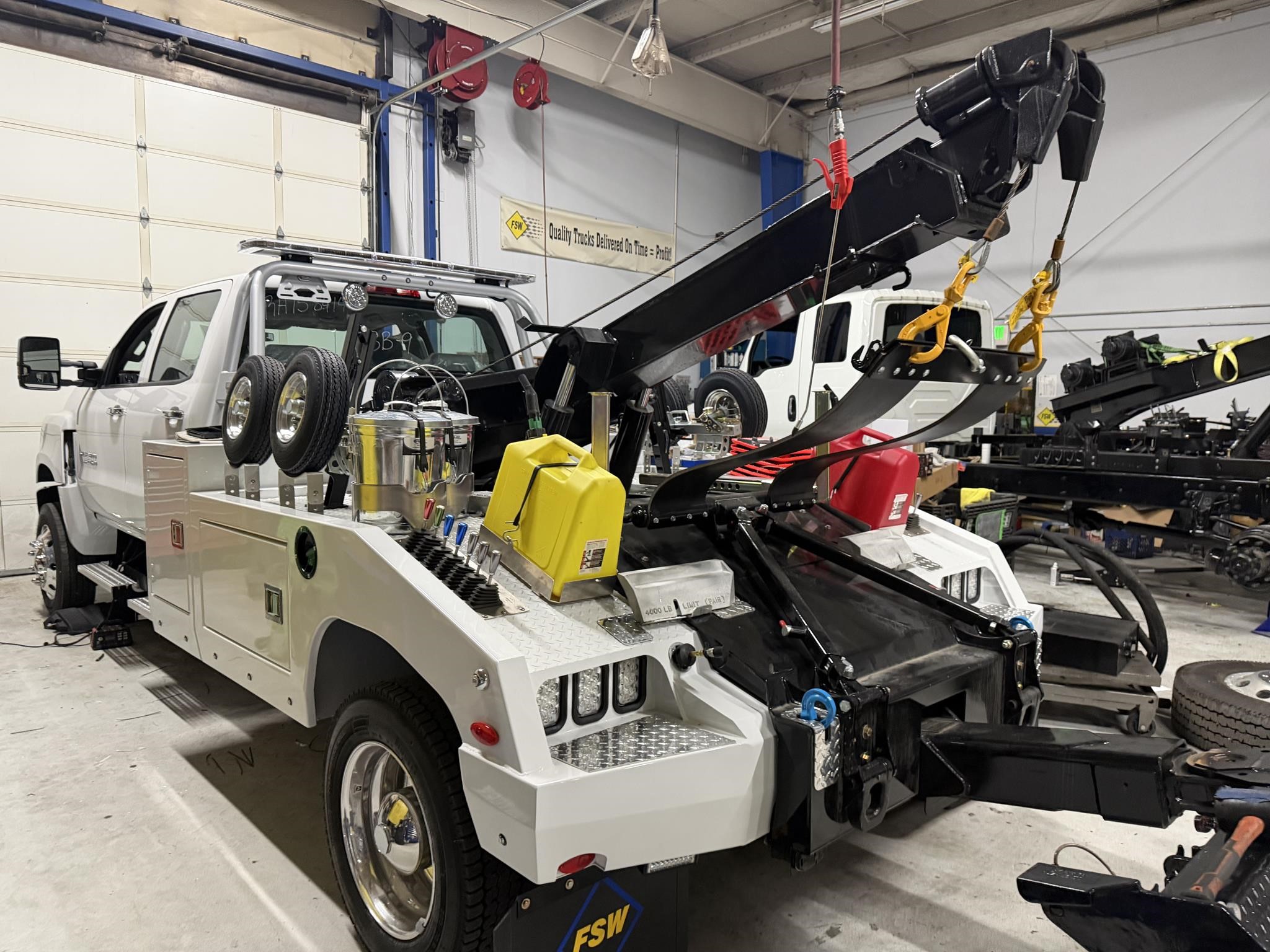

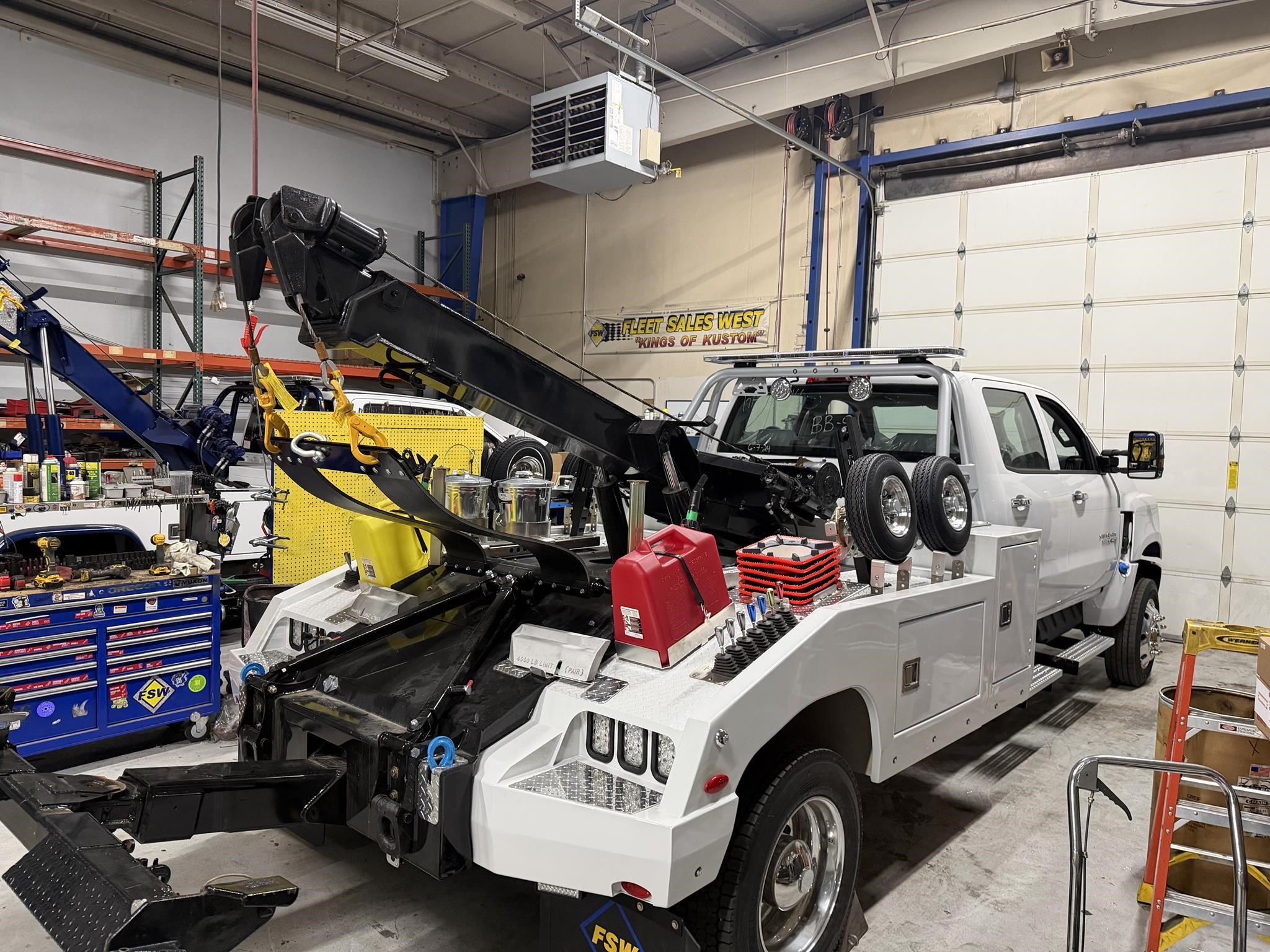

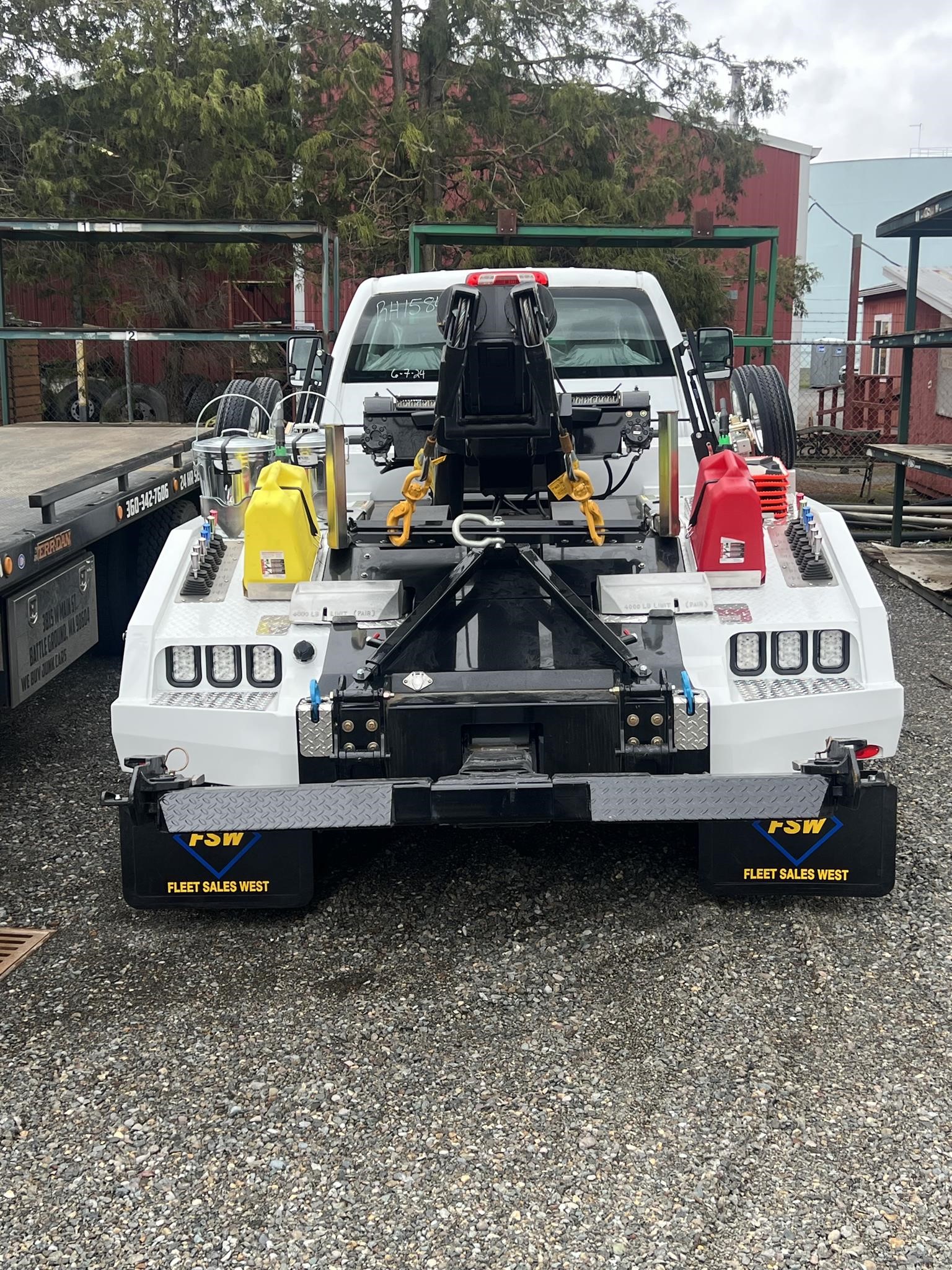

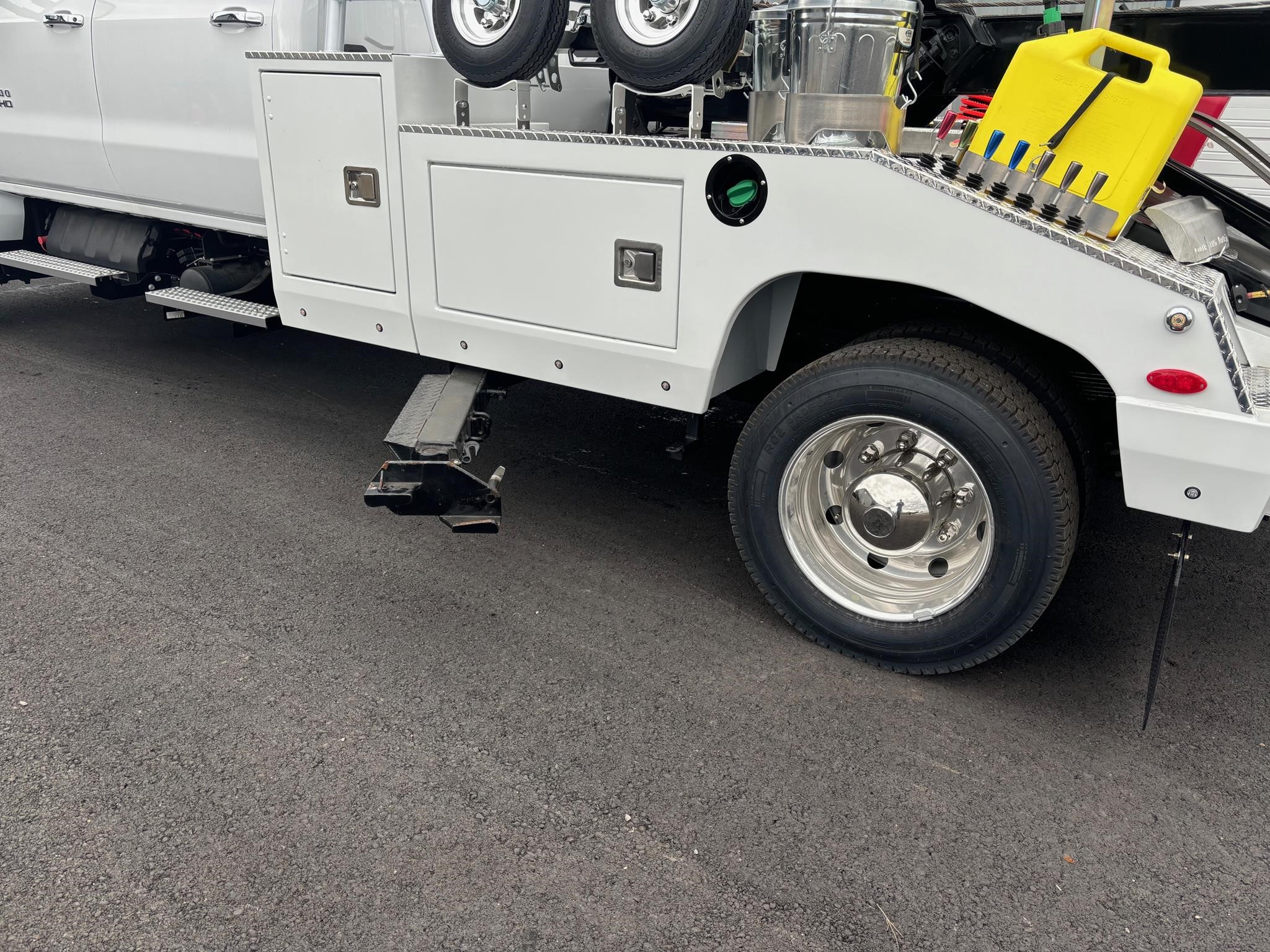

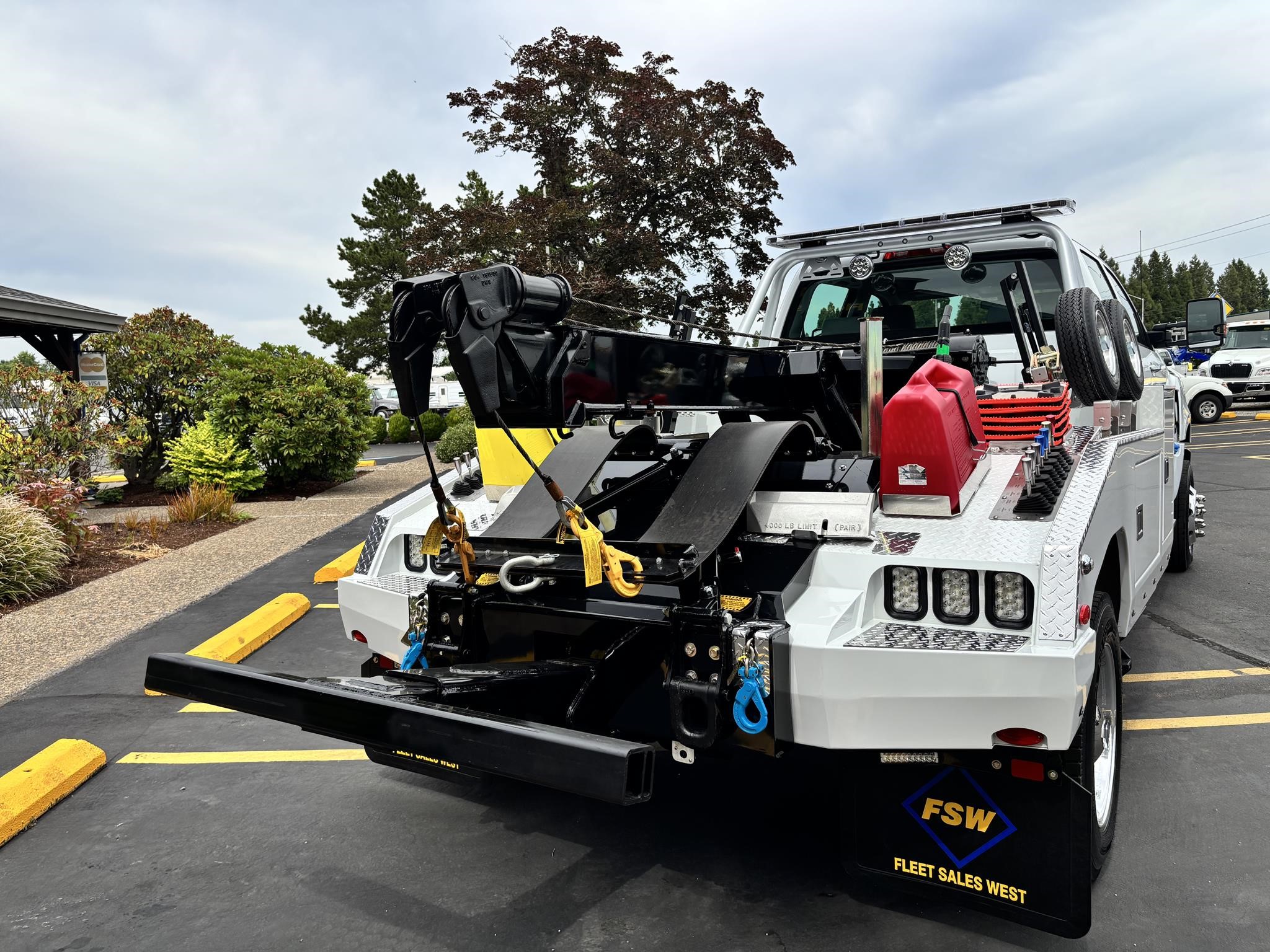

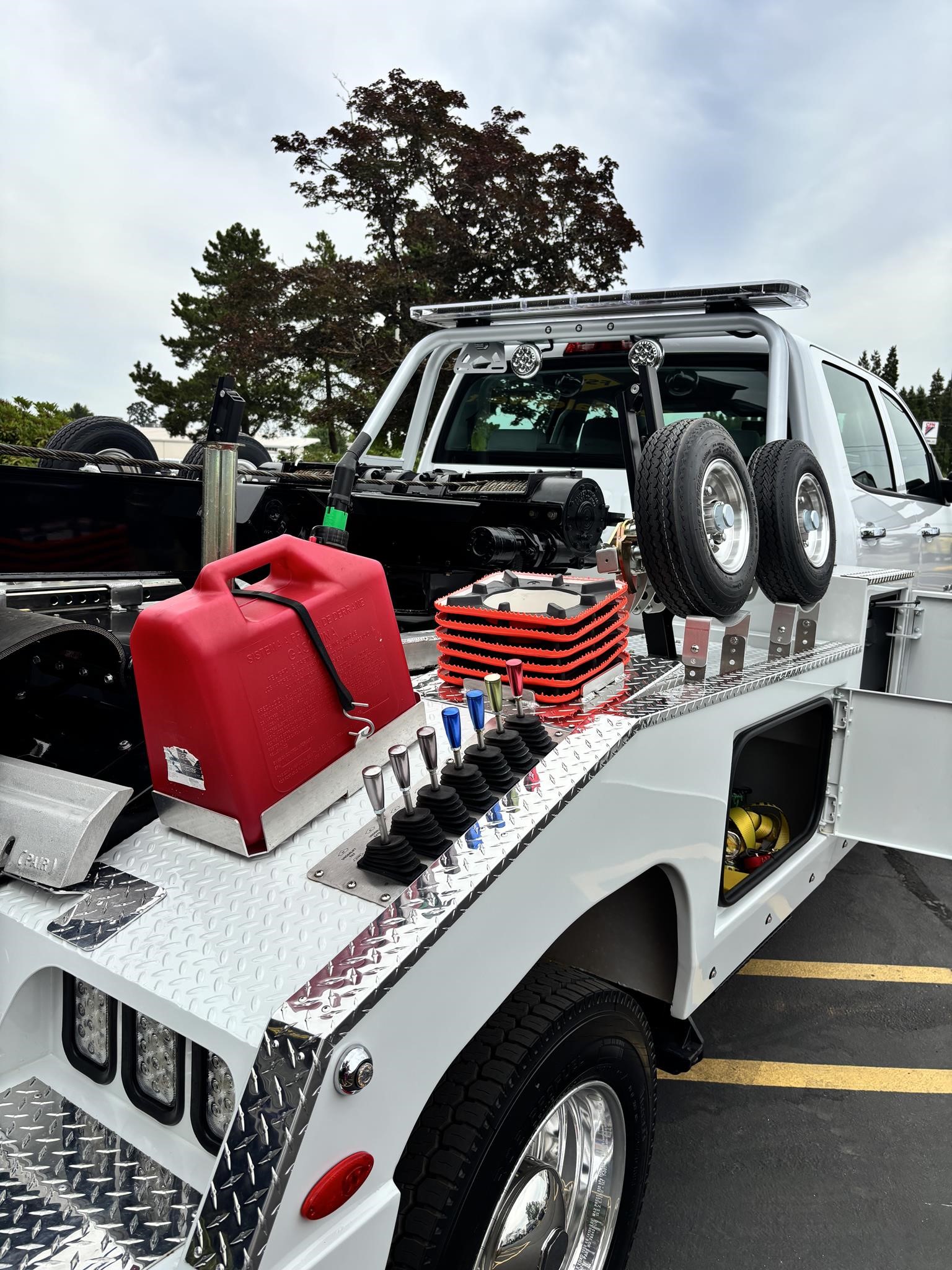

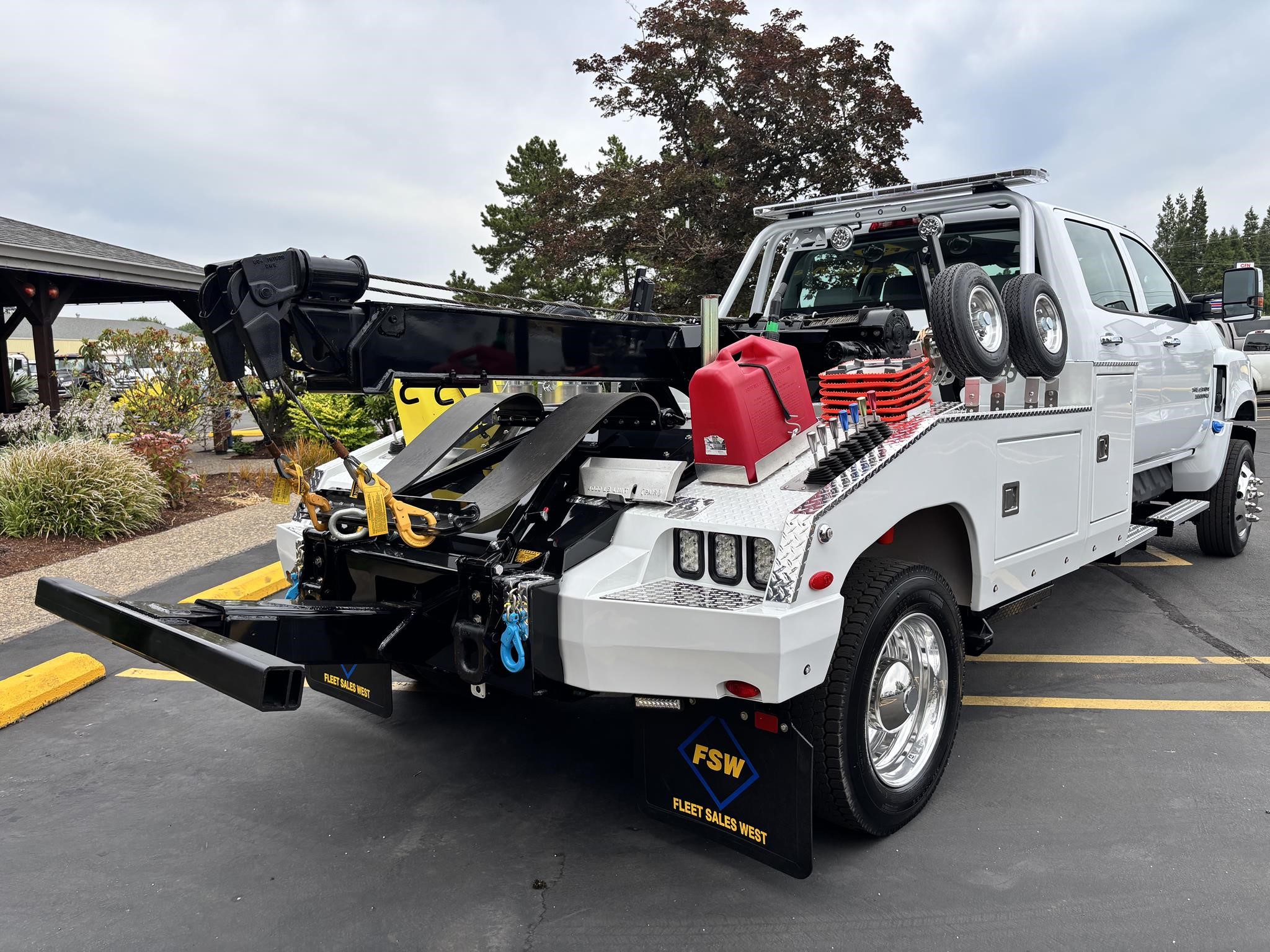

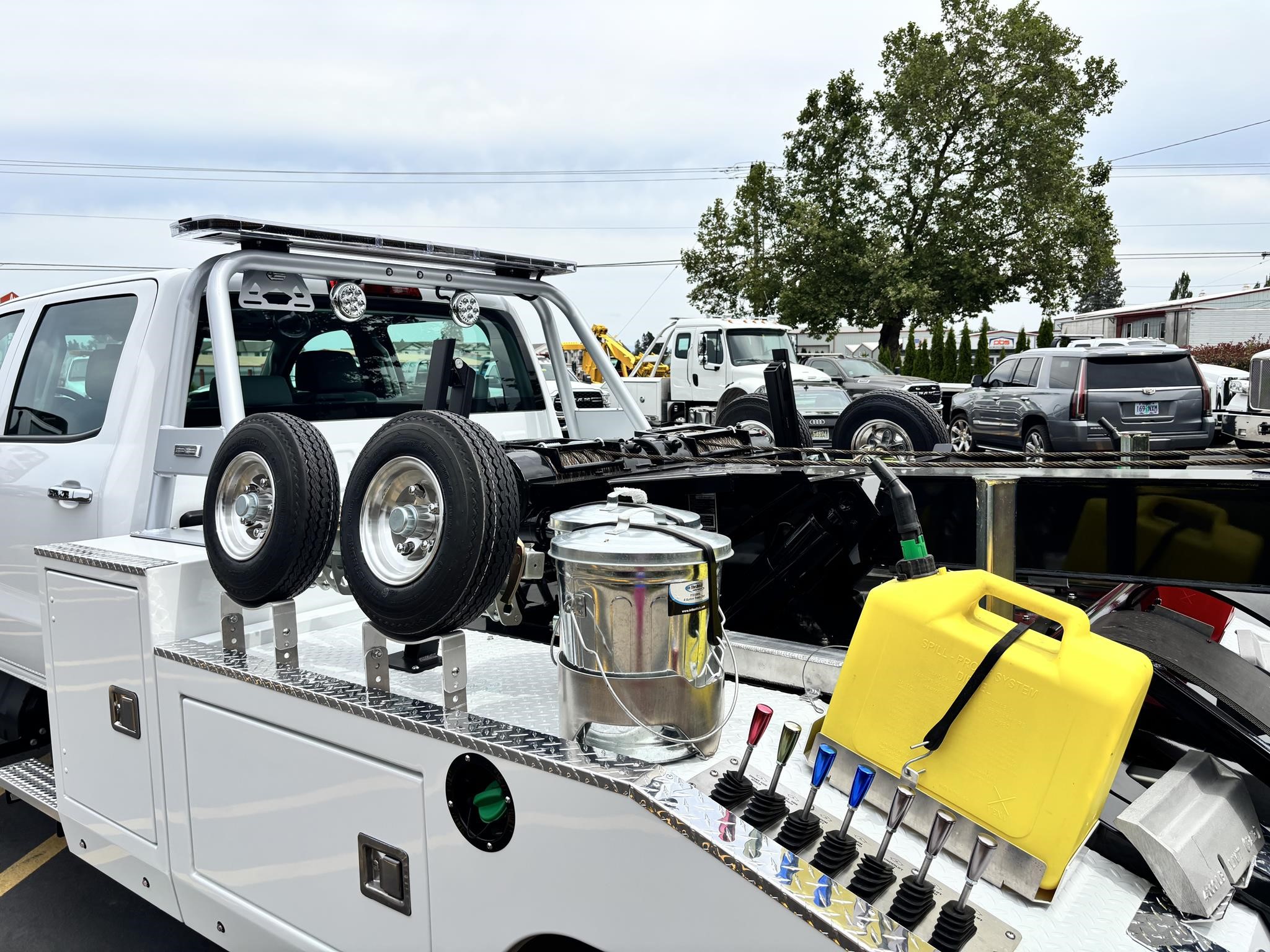

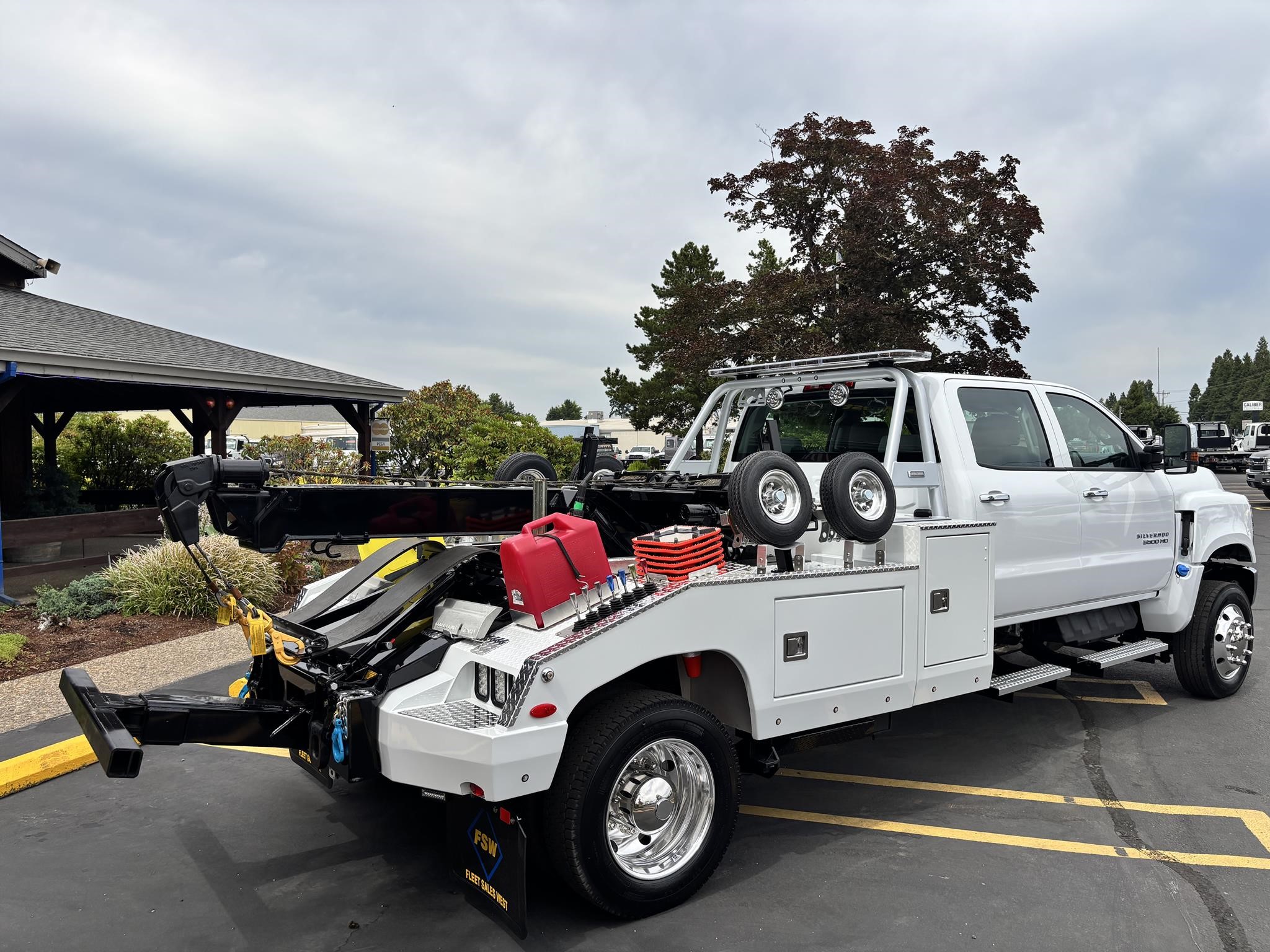

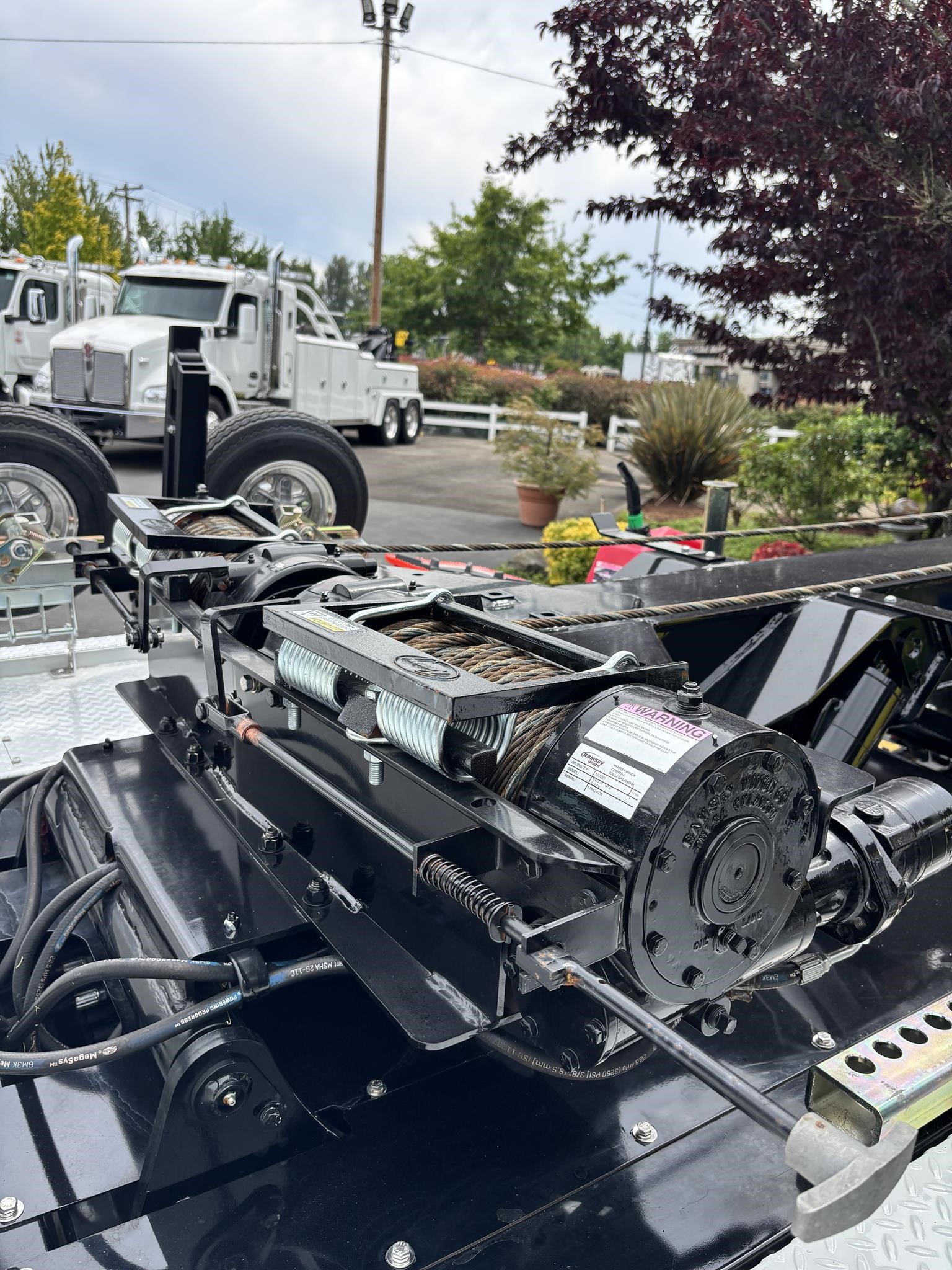

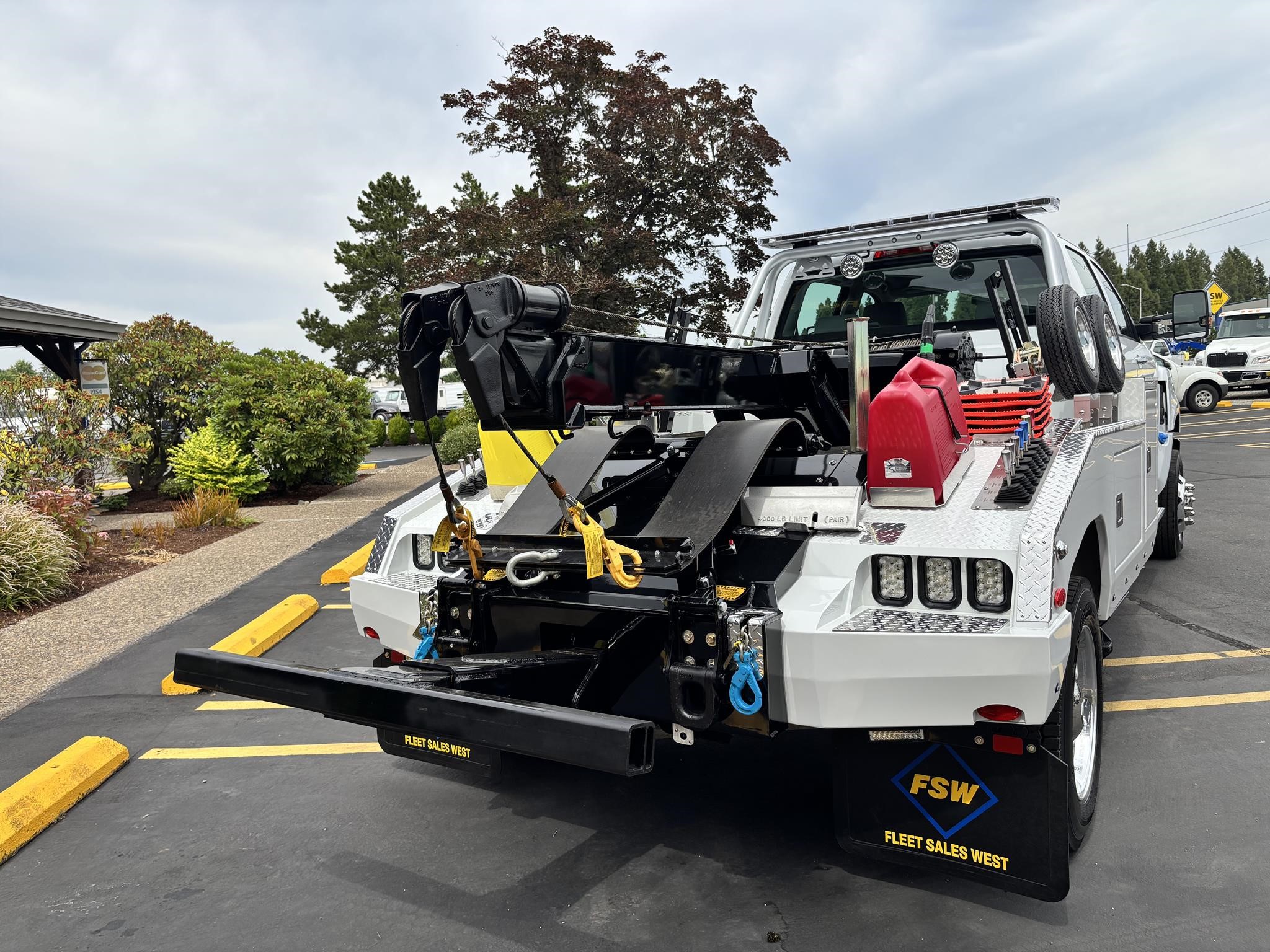

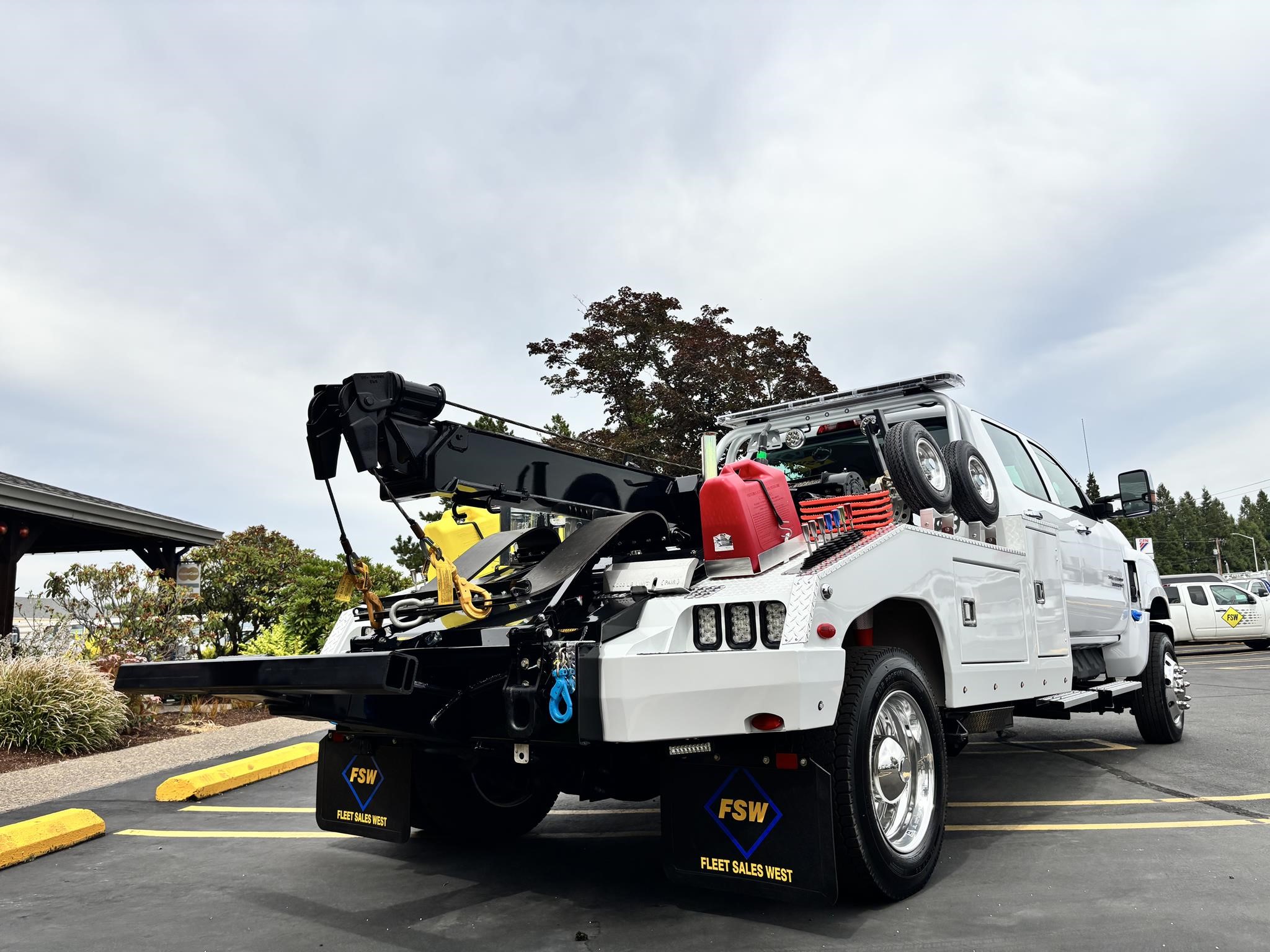

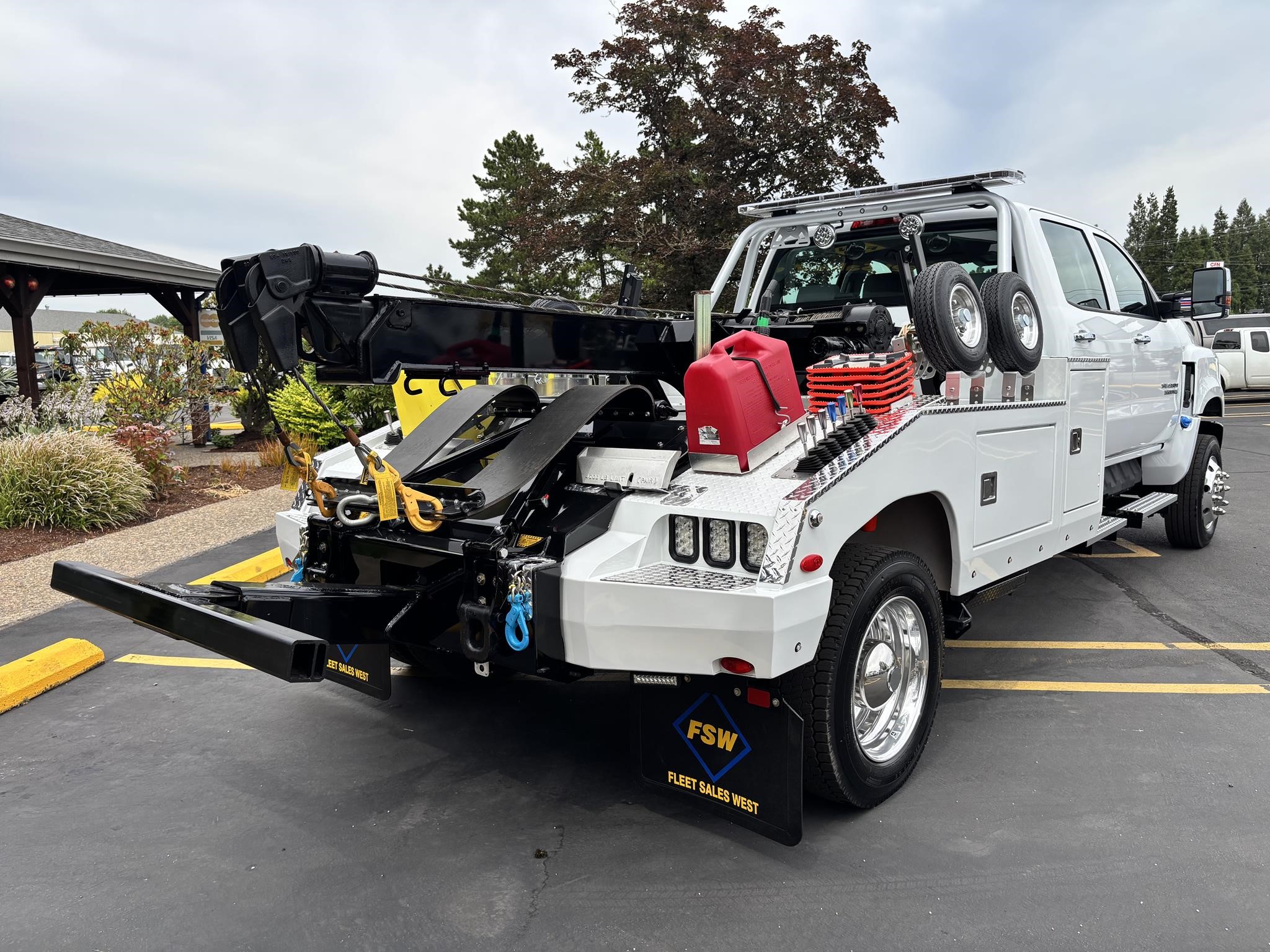

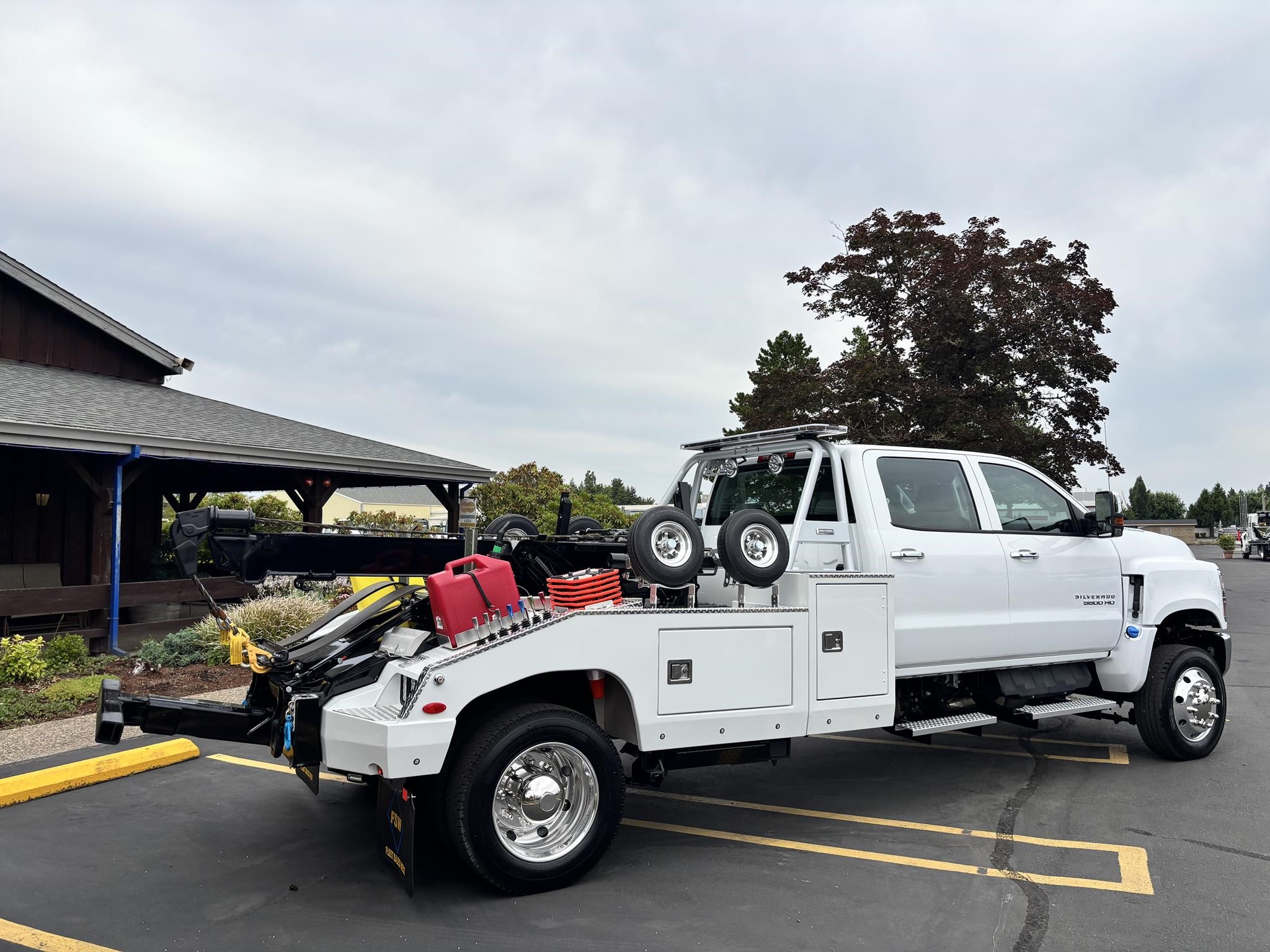

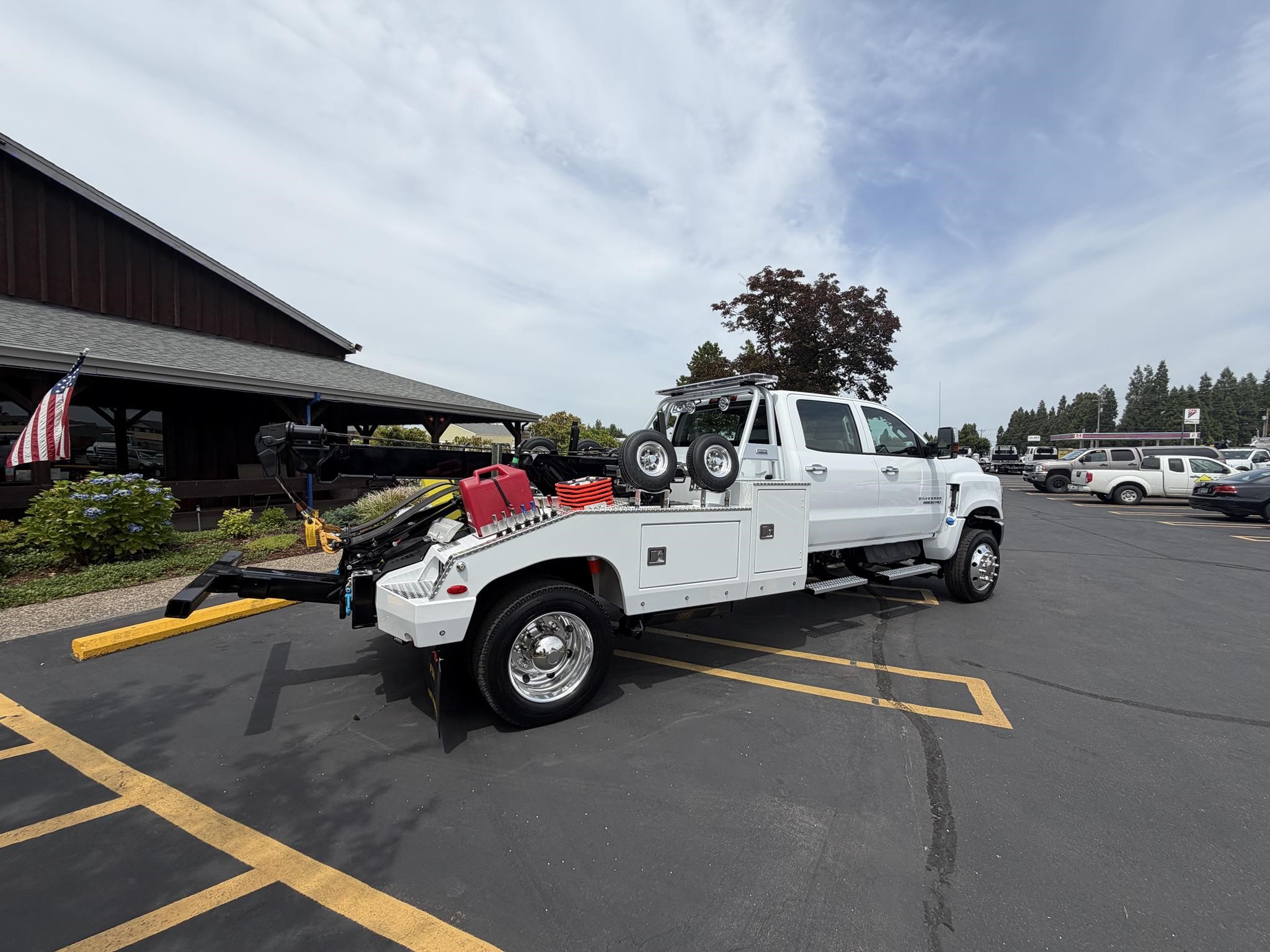

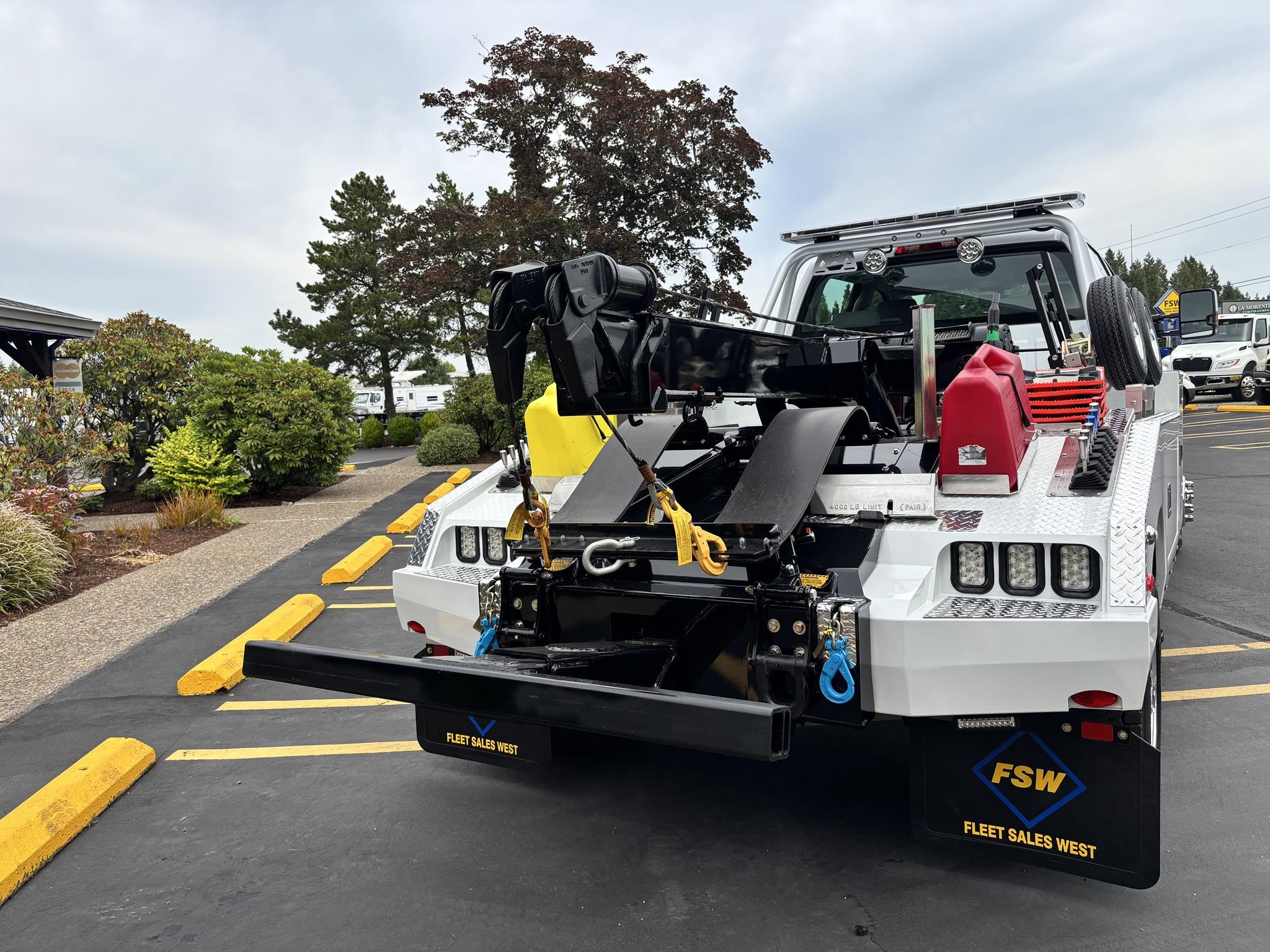

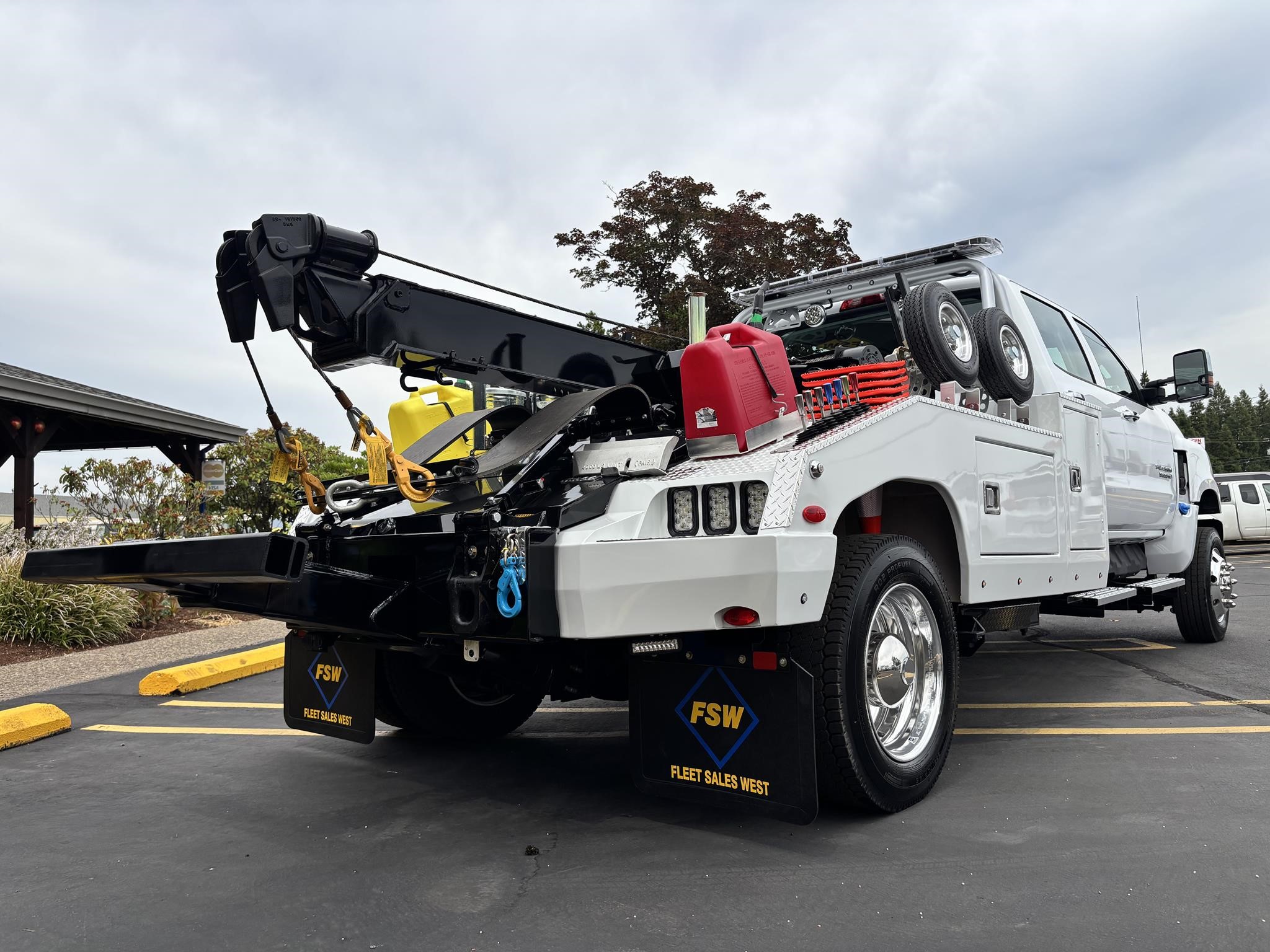

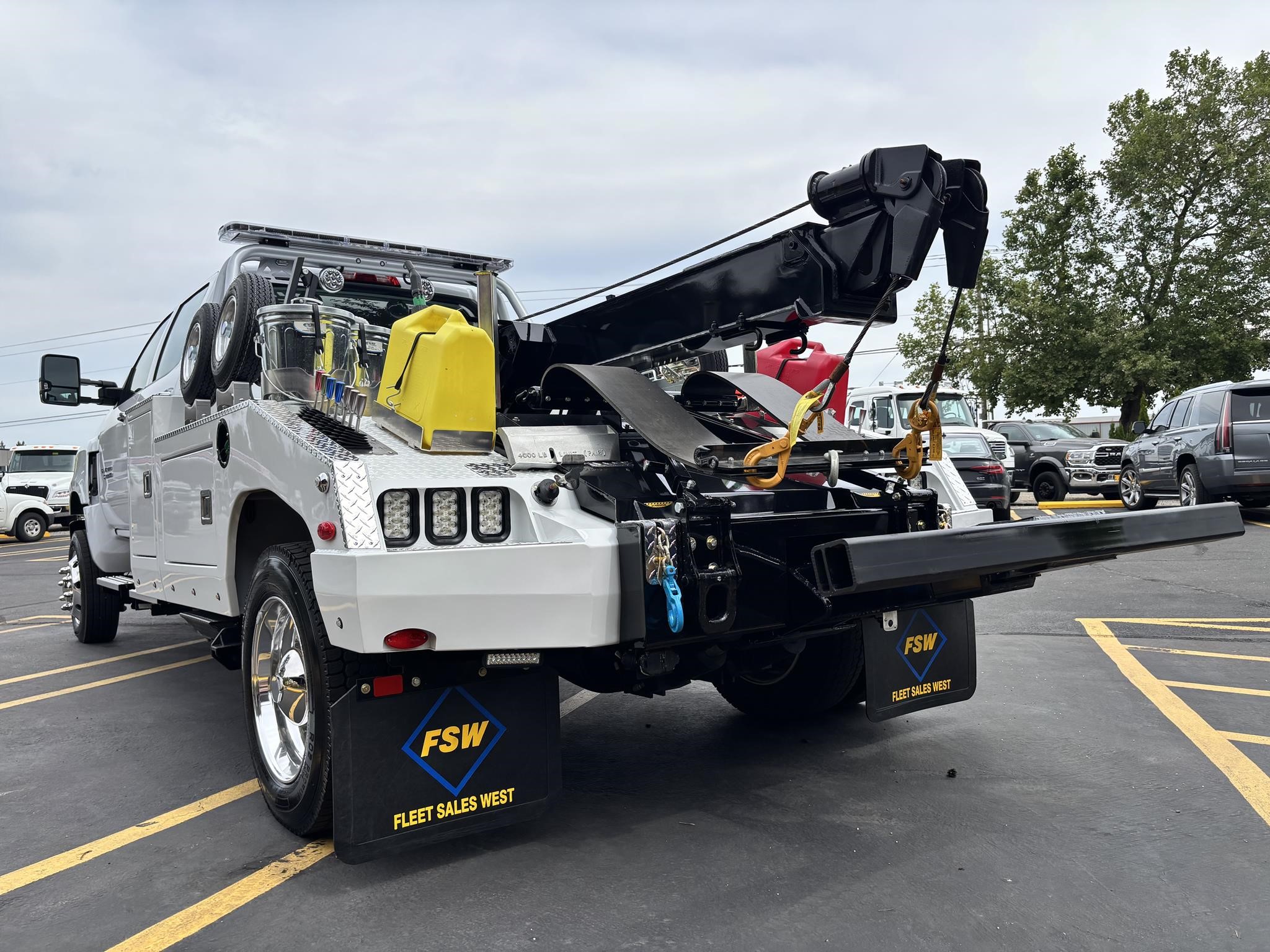

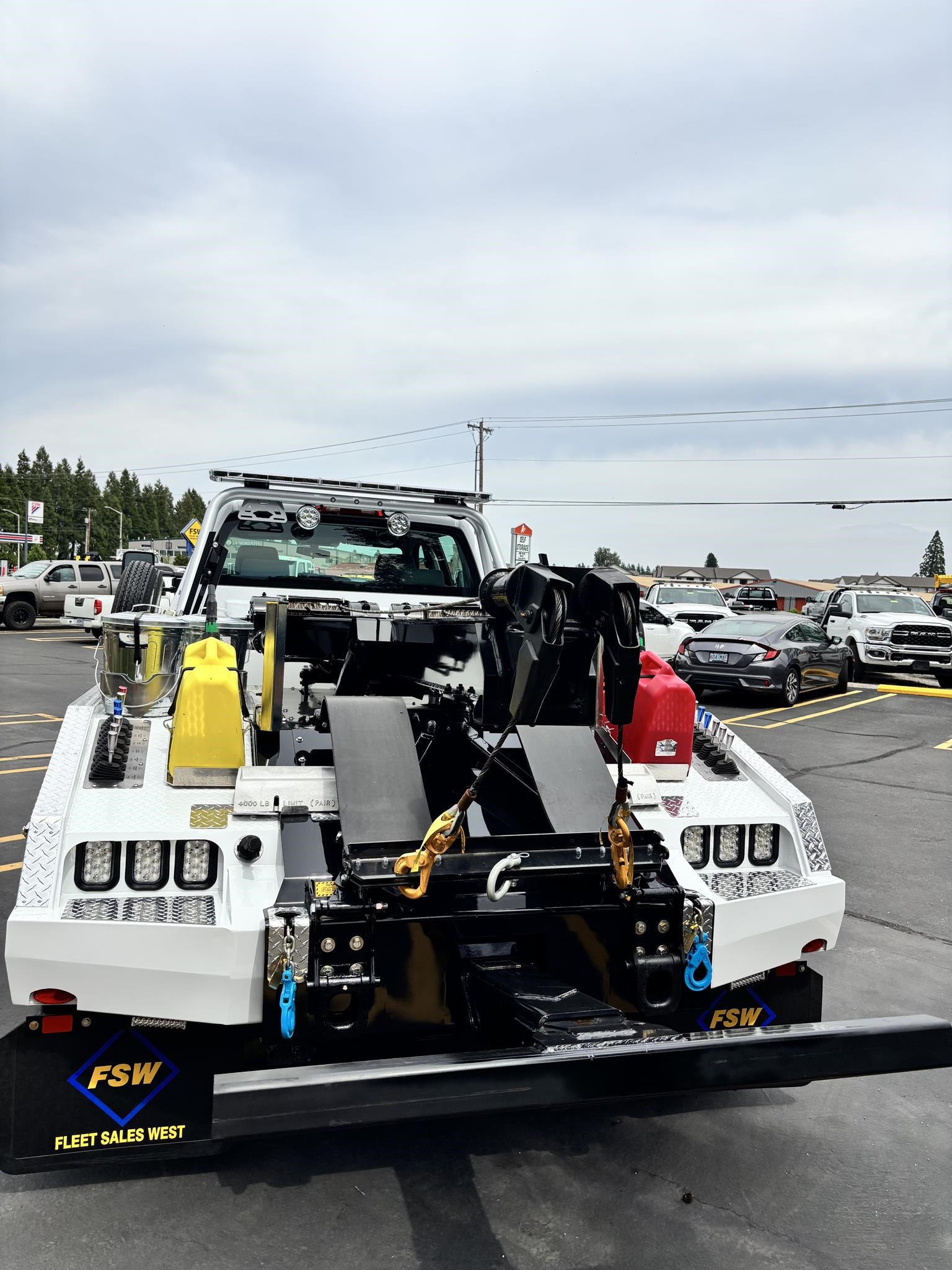

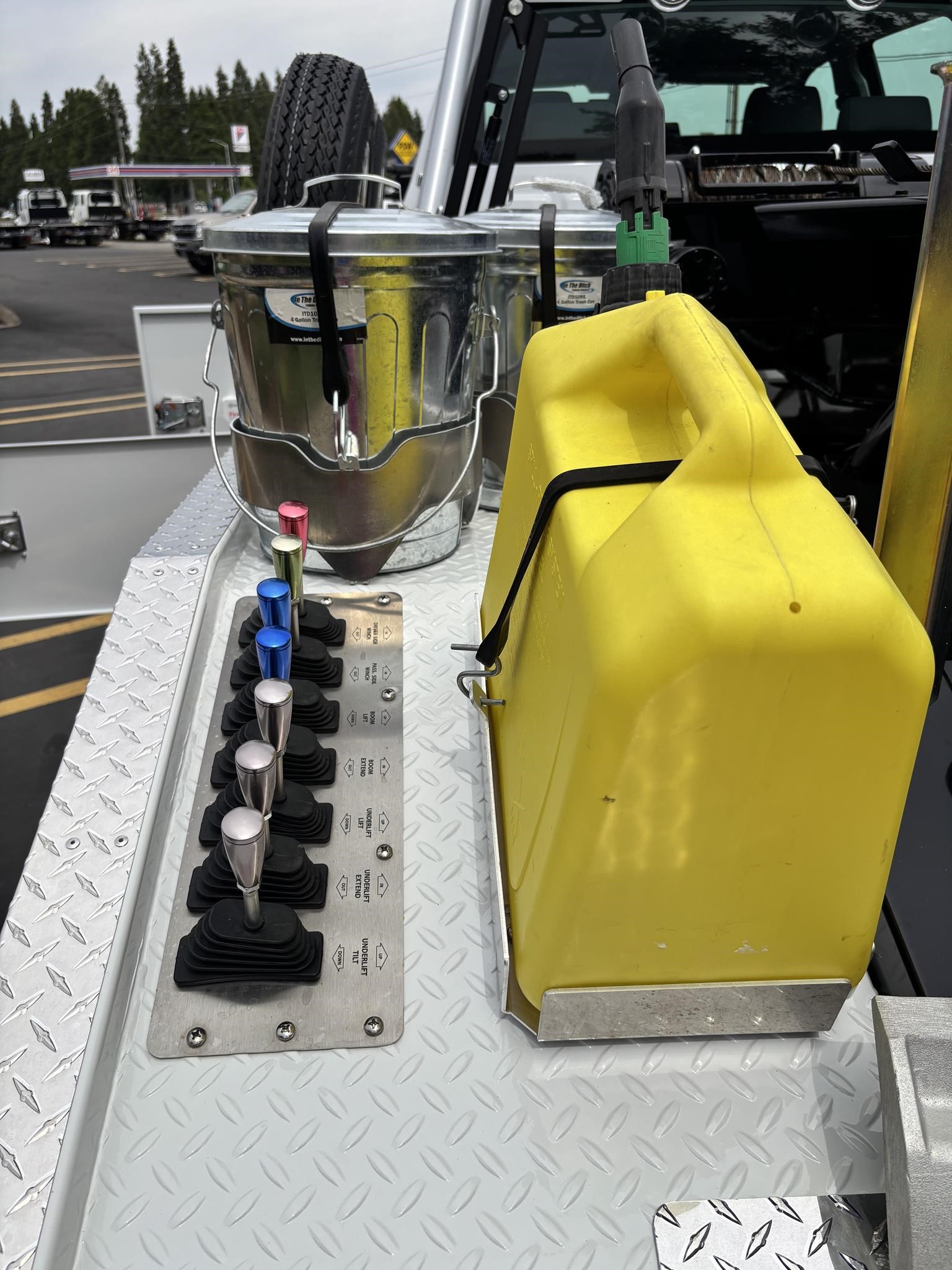

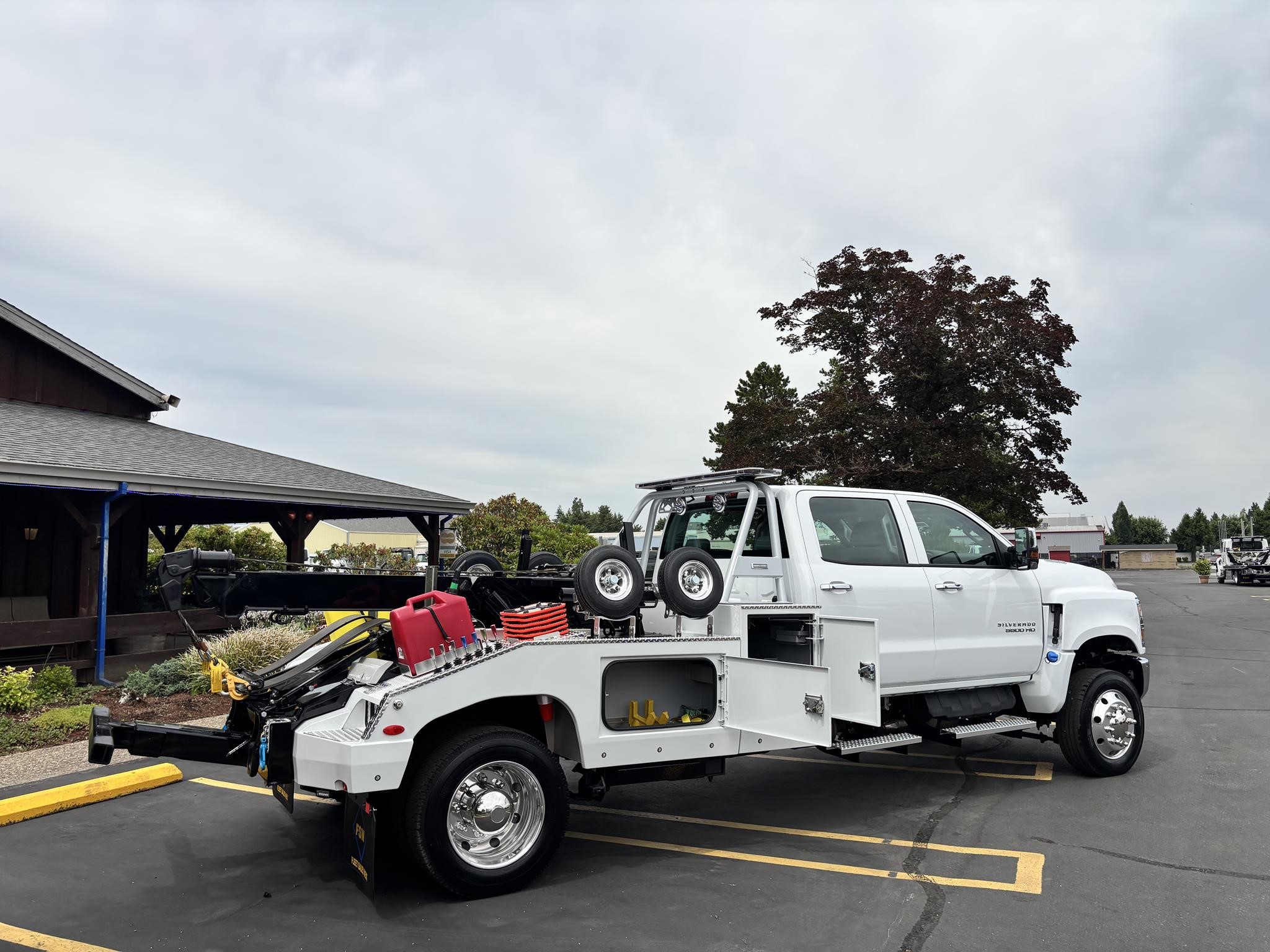

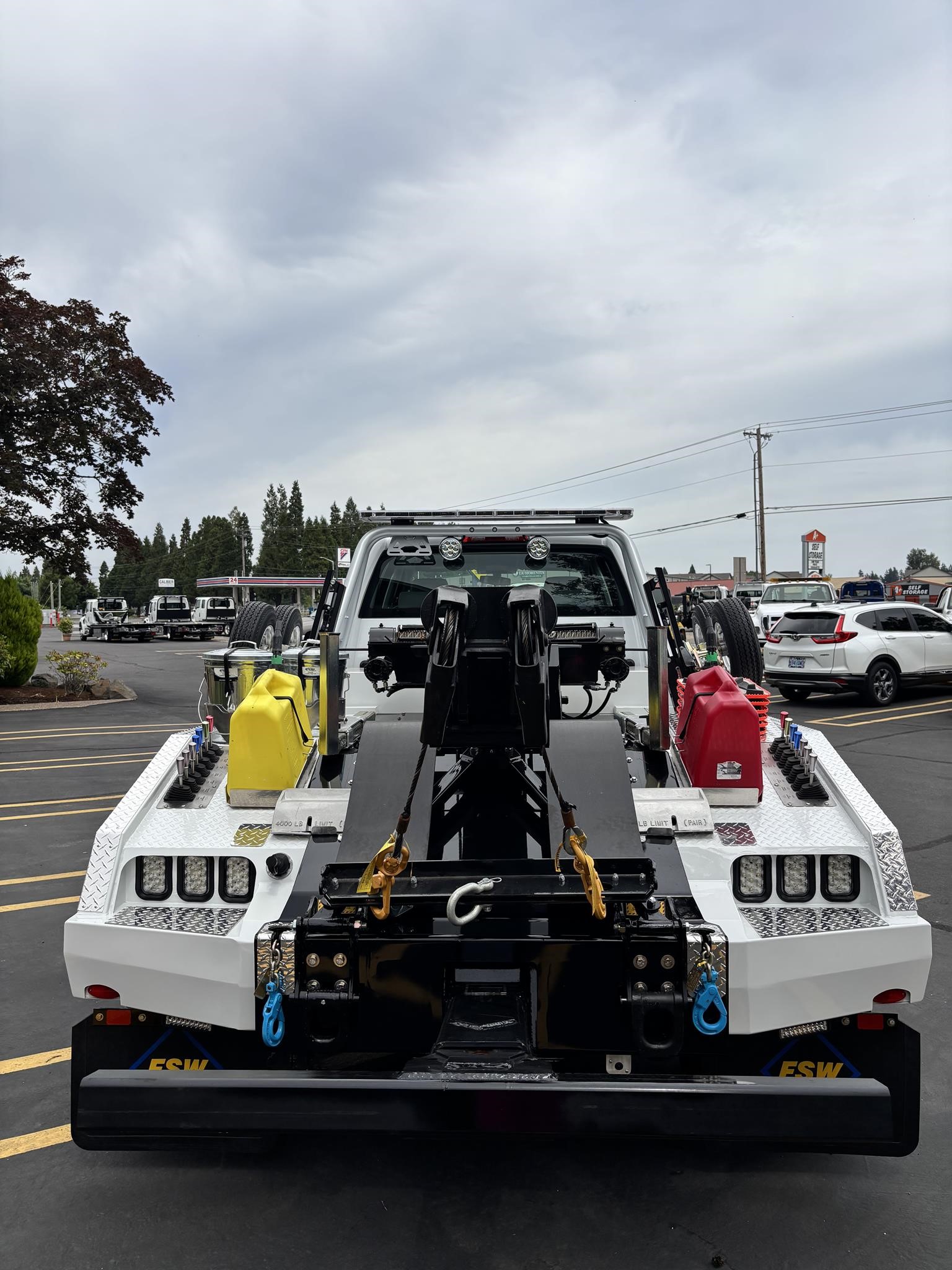

Century Model 612 . 12-ton Hydraulic Recovery boom. With Dual 12,000lb hydraulic winches 150 ft. winch cable (612), 360-degree directional boom end swivels, Power boom elevation with holding valve. Power boom extension, Lubrication fittings on all shafts and other moving parts.. 90" wide, low profile body 9" sills Two rear-tie back loops. Dual control stations, 3" lift forks and fork holders. Backup alarm, Lightweight 3-way pivot L-Arm System, Driver and passenger side tool compartments. Federal standard #108 lighting Wiring harness with junction box, Hydraulic pump, Safety chains with built in pockets EZ service hydraulic filter, Spring-loaded winch clutch releases. CENTURY FORMULA 6500/600 SERIES Wheelift/underlift. Retracted 9,000lbs on Frame Forks. 6,500lb Extended. Straps and Ratchets for wheel lift. Standard "L" arms. body Serial #SN 602-3585-C06 FMVS 108 Lamp Group.

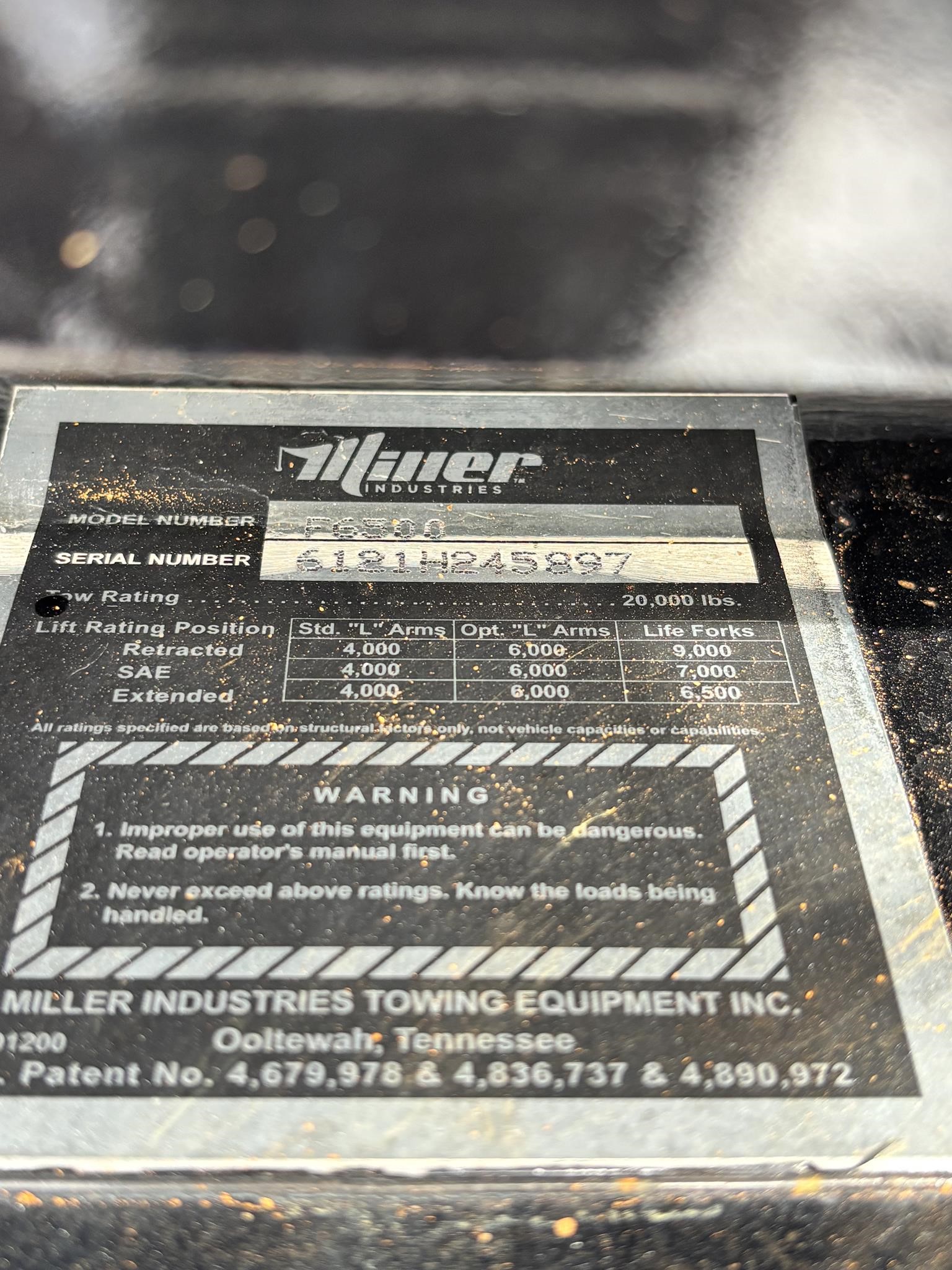

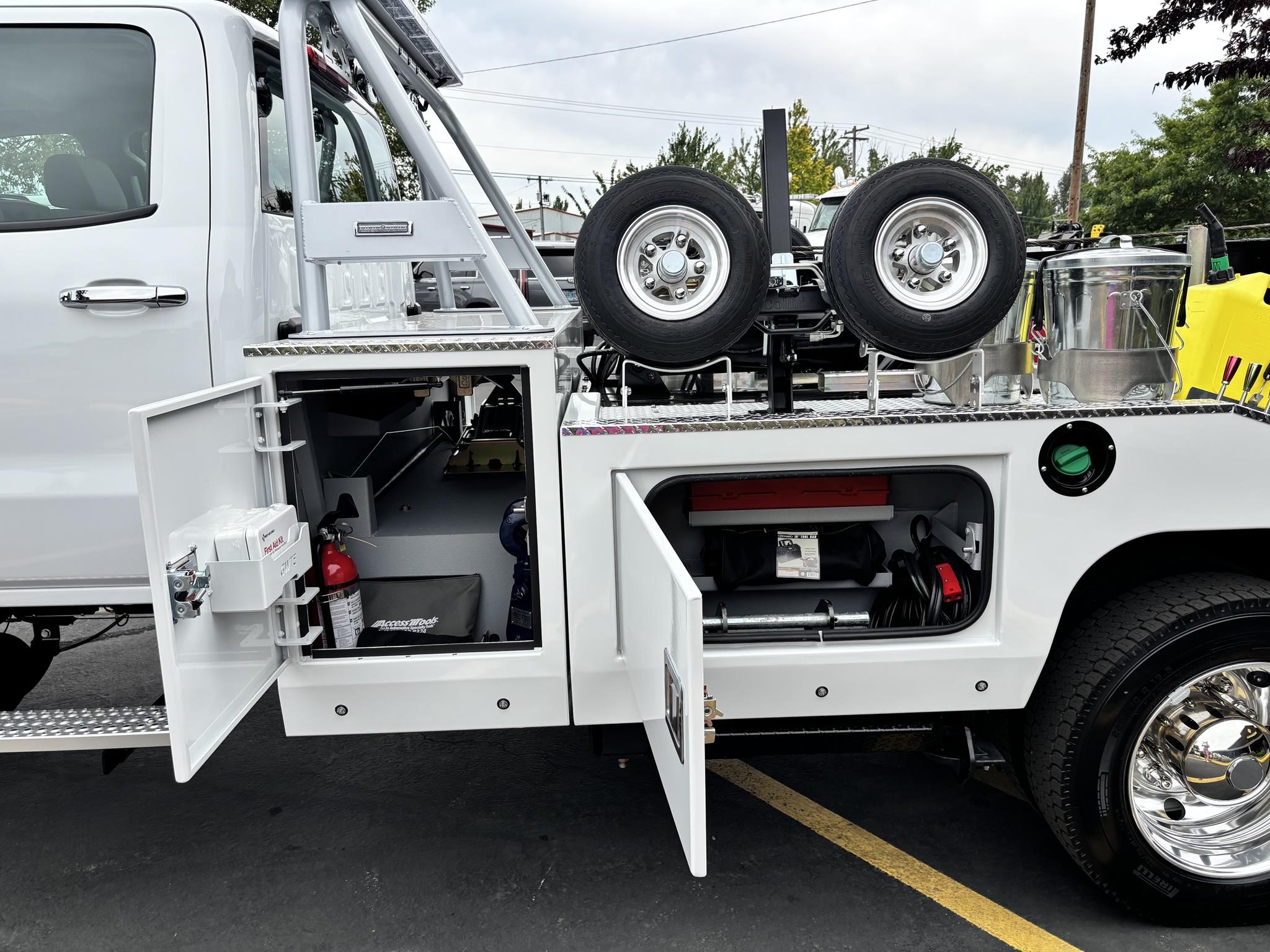

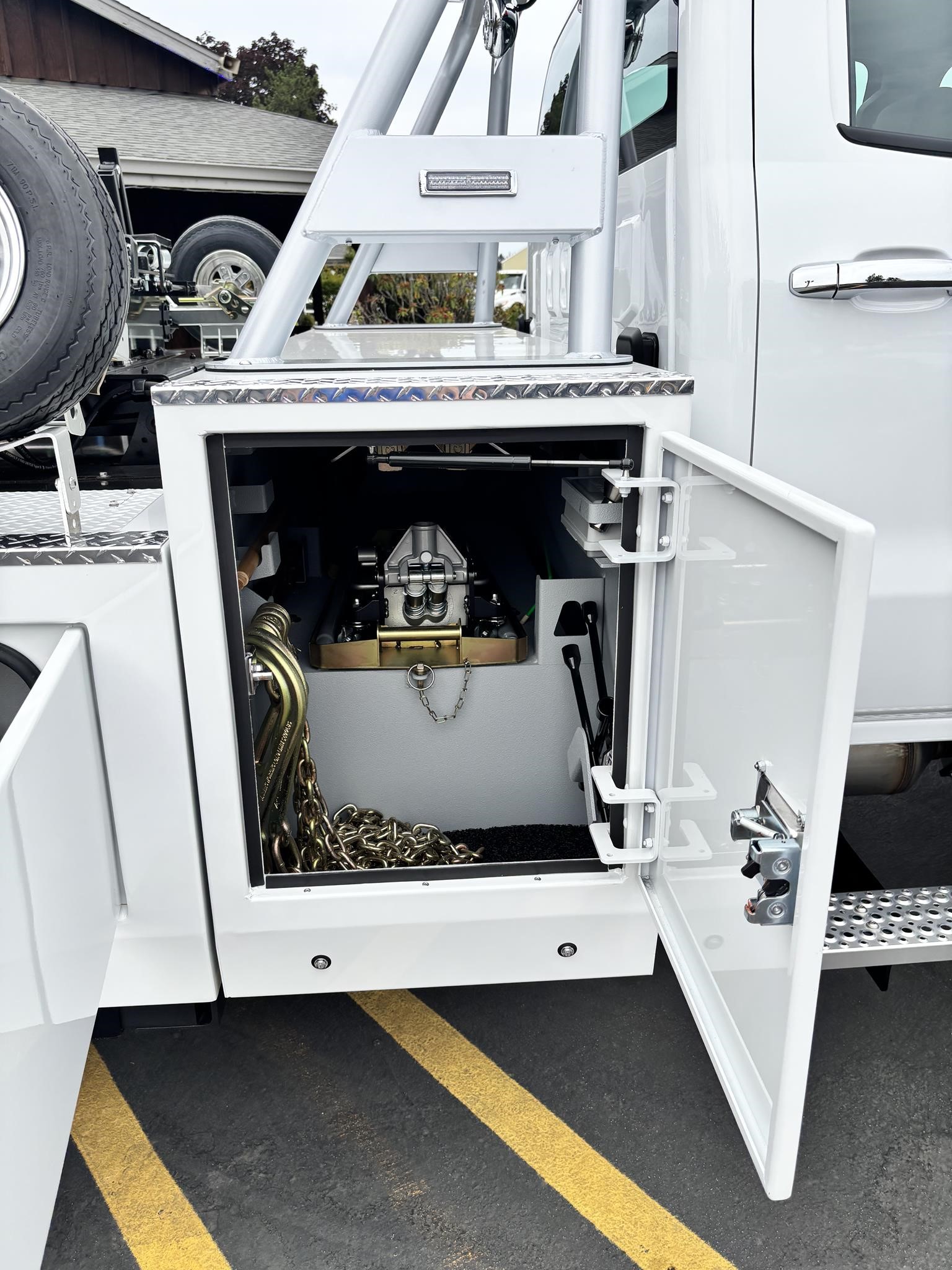

Side Boxes, Serial $ 6121H245897

Carbon Steel Sides (Conventional)


Accessories
4 x 4 Wheel Lift Spacers (4 Wheel Drive Vehicles, FI)Std F6500
6,000 Lb. Steel L-Arms (892/894 Require Part# 124002301)
Anchor Spade Kit F6500
Fork Storage Bracket
Formula II L-Arms & Outer Crosstubes for Formula 6500
Muncie Hot Shift PTO (Allison 1000/2000 or Aisin)
Rear Body Dress Up Kit for Conventional Modular Body
Towing Sling w/ Storage Brackets- F6500 series and FI Series
Trailer Ball Adapter (6500)


Installation
Body Dress Up Kit (LD)
Dolly storage mounting
Fire Extinguisher
Fork Storage Rack (LD)
Hot Shift PTO - LD, CC, HD

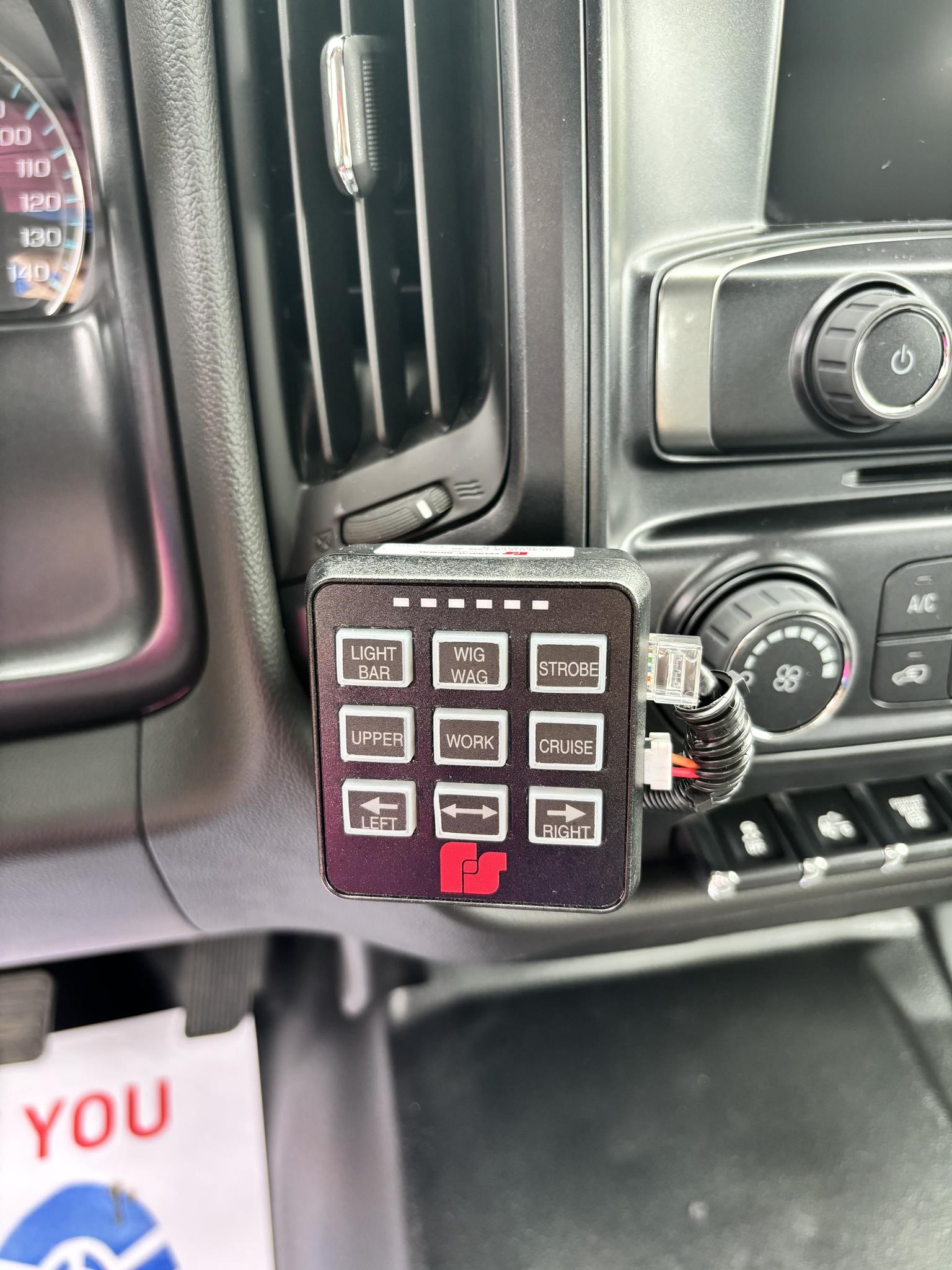

In-Dash Switch Panel
Jump Start Kit
LD Shelf Kit Install

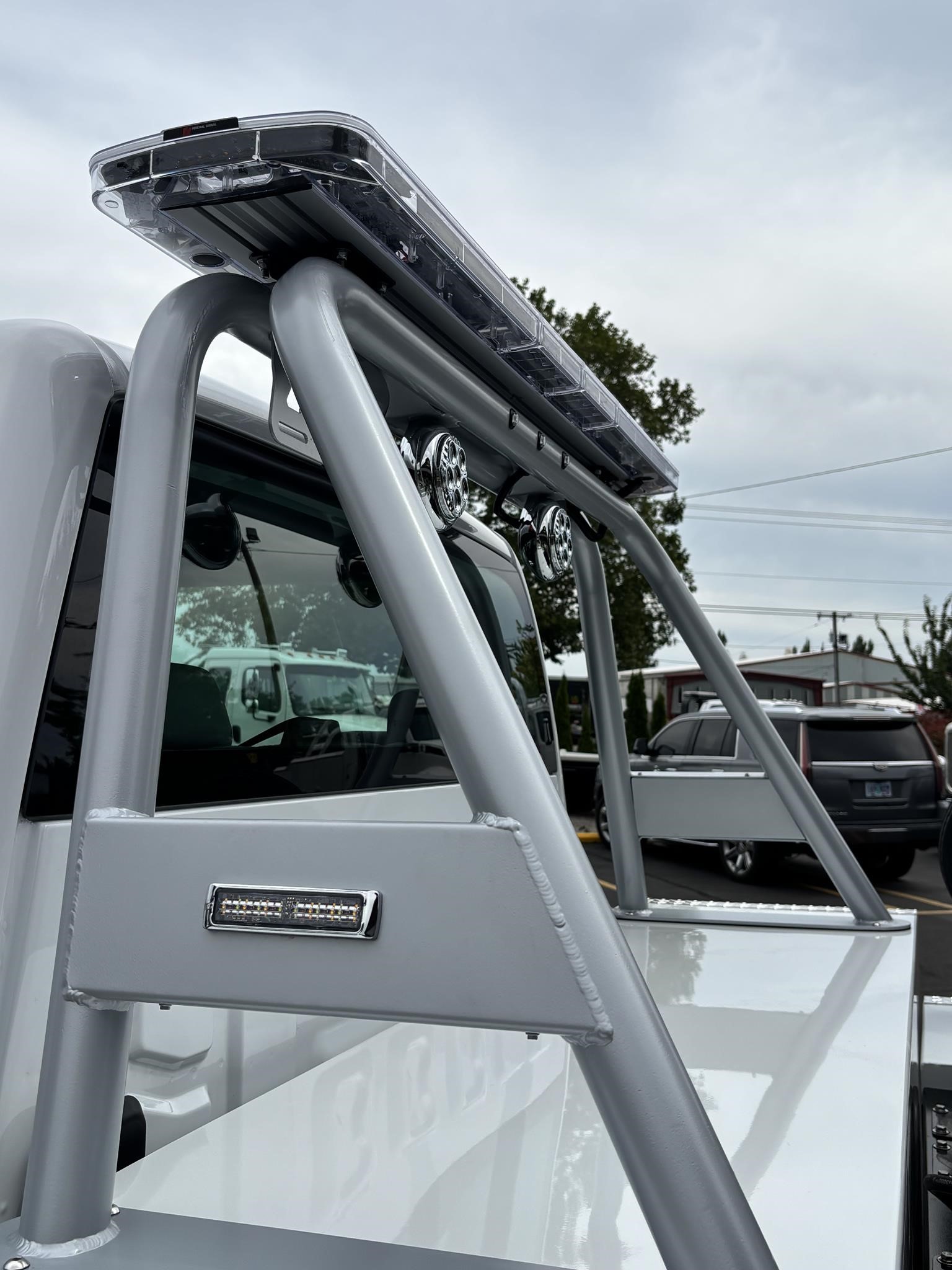

Light Bar (LD/CC)
Light Duty Wrecker (Domestic Chassis)
Light duty bracket(s) installation
Misc. Labor
Saddle Box (Each) LD
Switch Panel Harness (Required for all LD Installs)
Tow Sling (LD)
Work Lights (Pair)


Paint
Black Gloss Finish Paint (LD)
Paint Side Pods (Steel/Aluminum)


DAA
ACC: Air Hose Reel
ACC: Air reel Enclosed- (ReelCraft™ 50' 1/4") -rear of Carrier subframe.
ACC: Boltcutters, 24"
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238
ACC: Cone, 18", Single: (F)CN-186R; (W)53858A; (G)100476

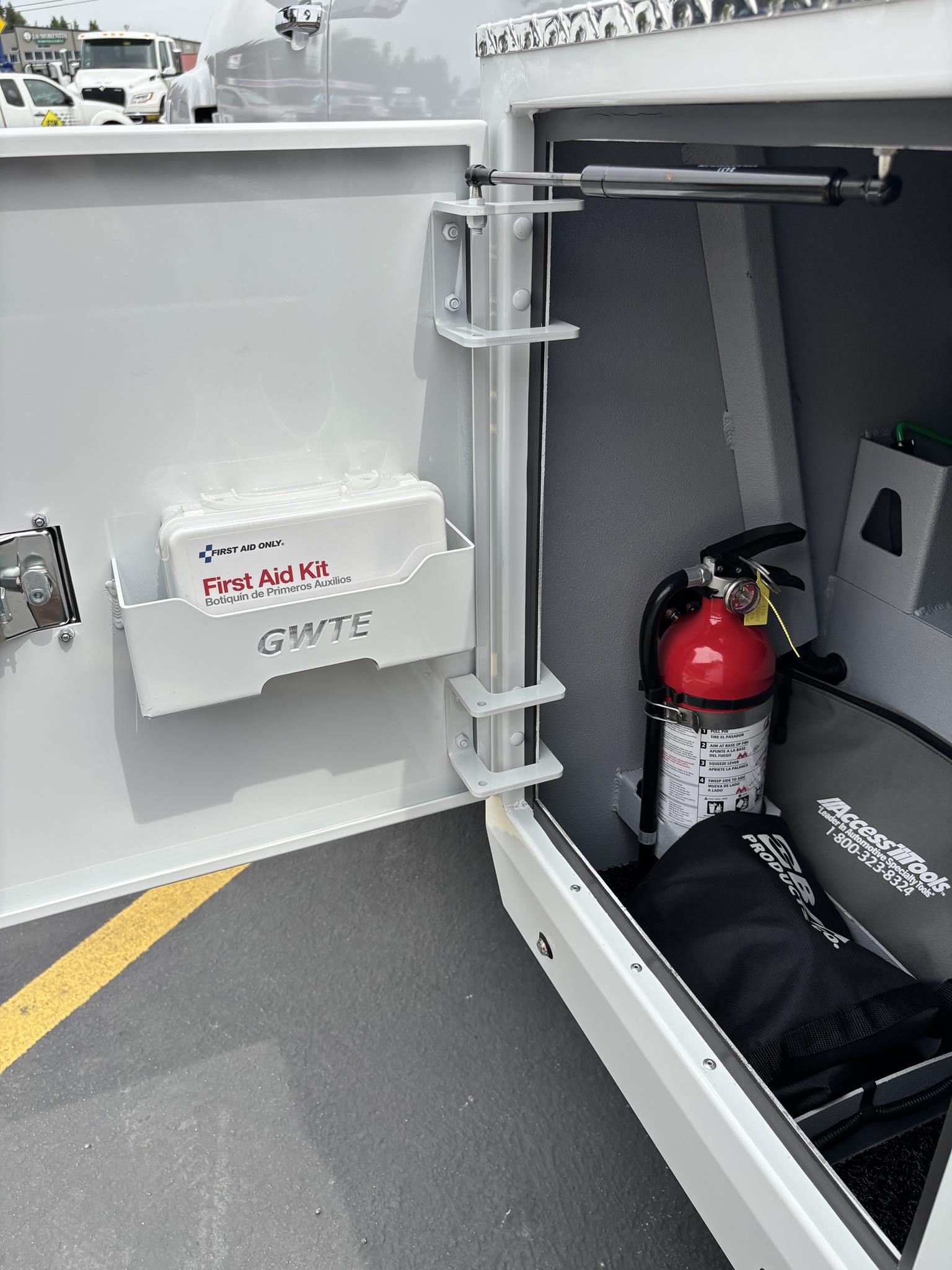

ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22

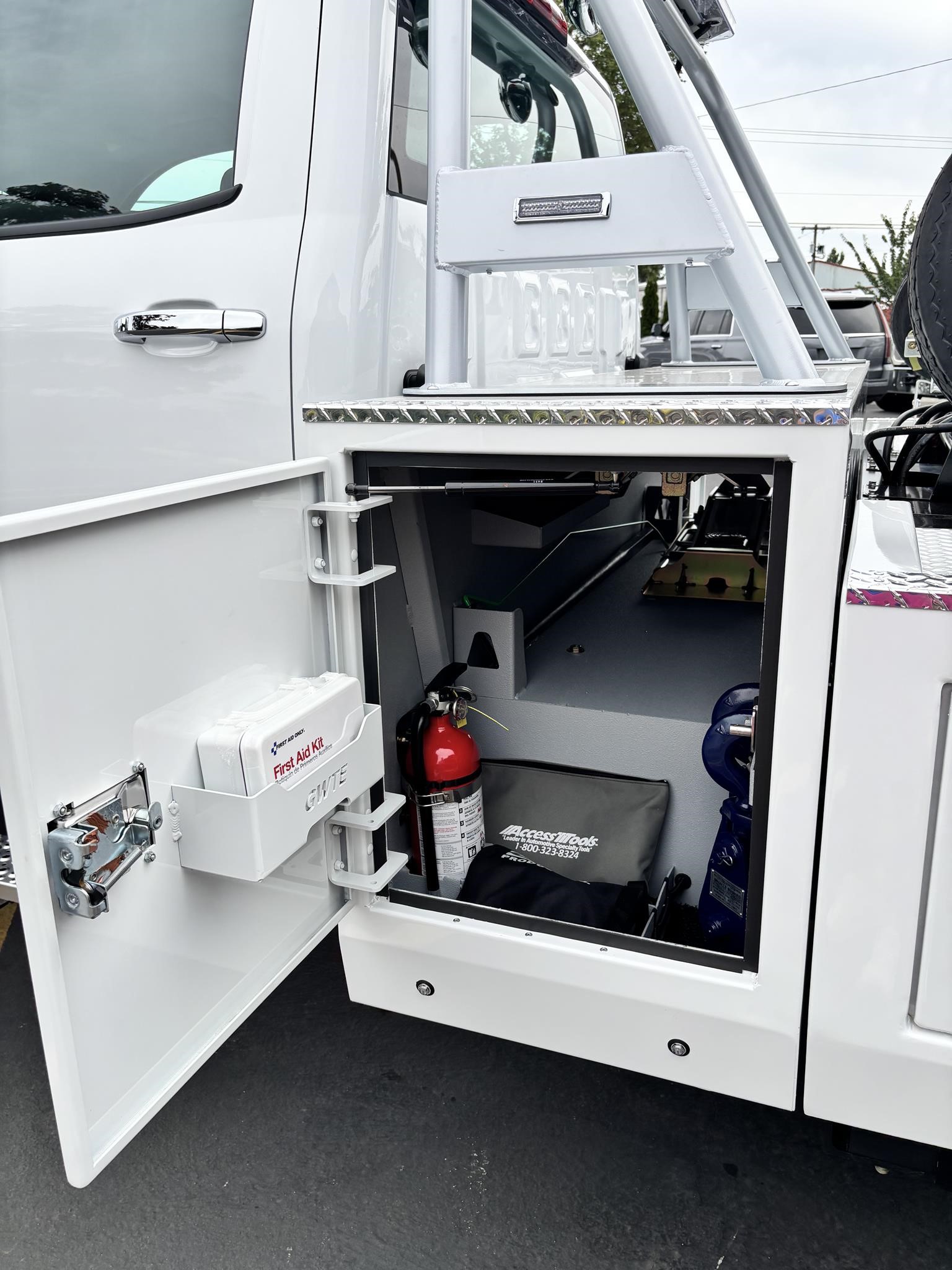

ACC: First Aid Kit: (F)ACE6060; (W)50503L; (G)20229

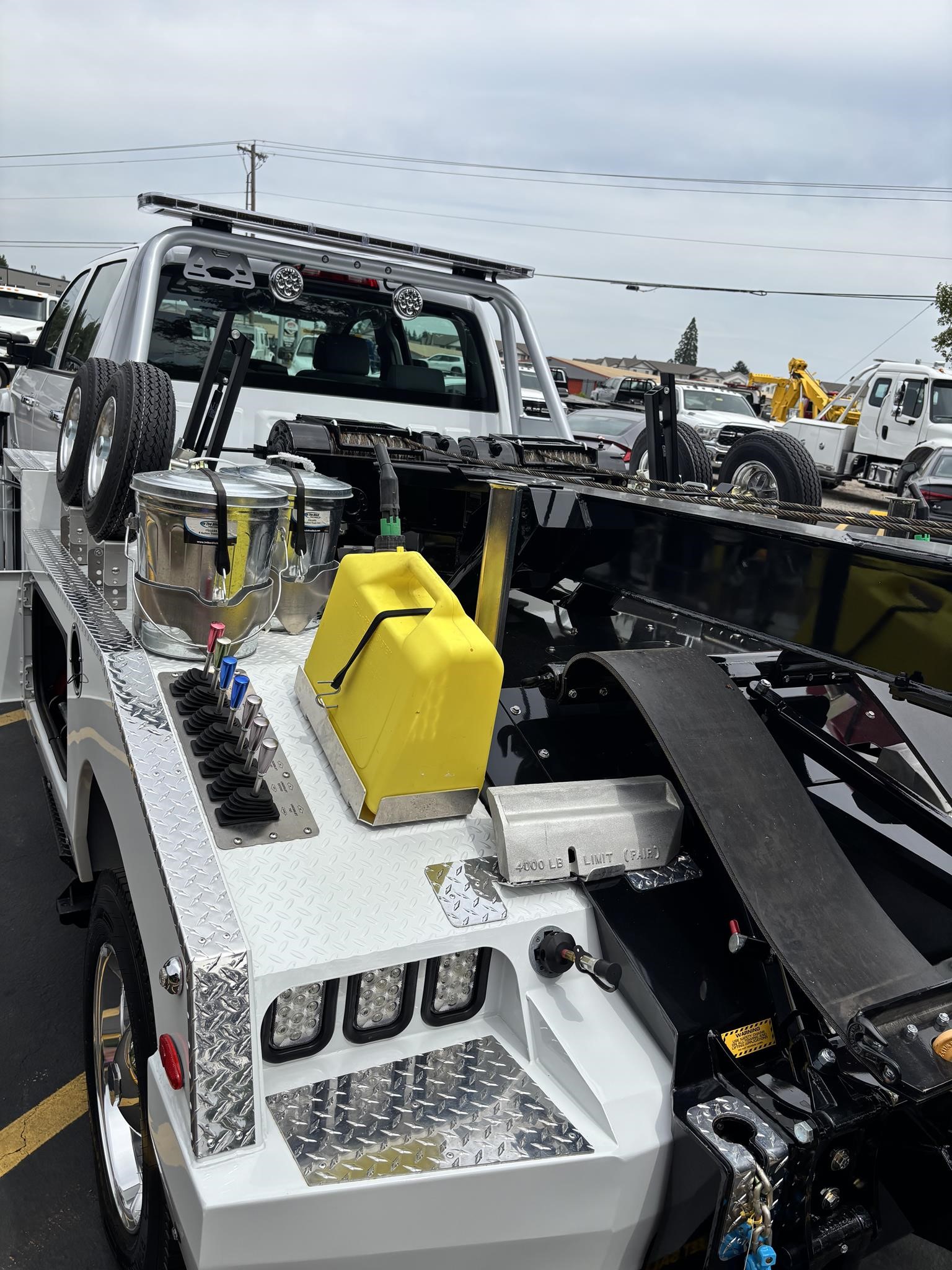

ACC: Fuel Can, Diesel, 5-Gallon, Yellow
ACC: Fuel Can, Gas, 5-Gallon, Red
ACC: Jack, 2-Ton Aluminum Racing, AFF
ACC: Lockout Kit, One-Hand Jack Kit
ACC: Lug Wrenchs, 14" Metric/20" Standard
ACC: Pry Bar, 60"/51" (F)AMES1160100; (W)50020; (G)PPB-51
ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ACC: Splitting Maul (F)AMES1113115200; (W)Maul Axe; (G)TJ-8H
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M: Bracket Kit, Steel - required for all Light-Duty Wreckers
B/M: Circuit Breaker Bracket
B/M: Dollie Axle Mount, Sliding, for Tunnel Box
B/M: Fuel Can Bracket, 5-Gallon, Deck-Mount, Aluminum, Single
B/M: Jumpstart/Air Coupler Bracket, Universal
B/M: Trash Can Ring, 4-Gallon, Deck-Mount, Aluminum

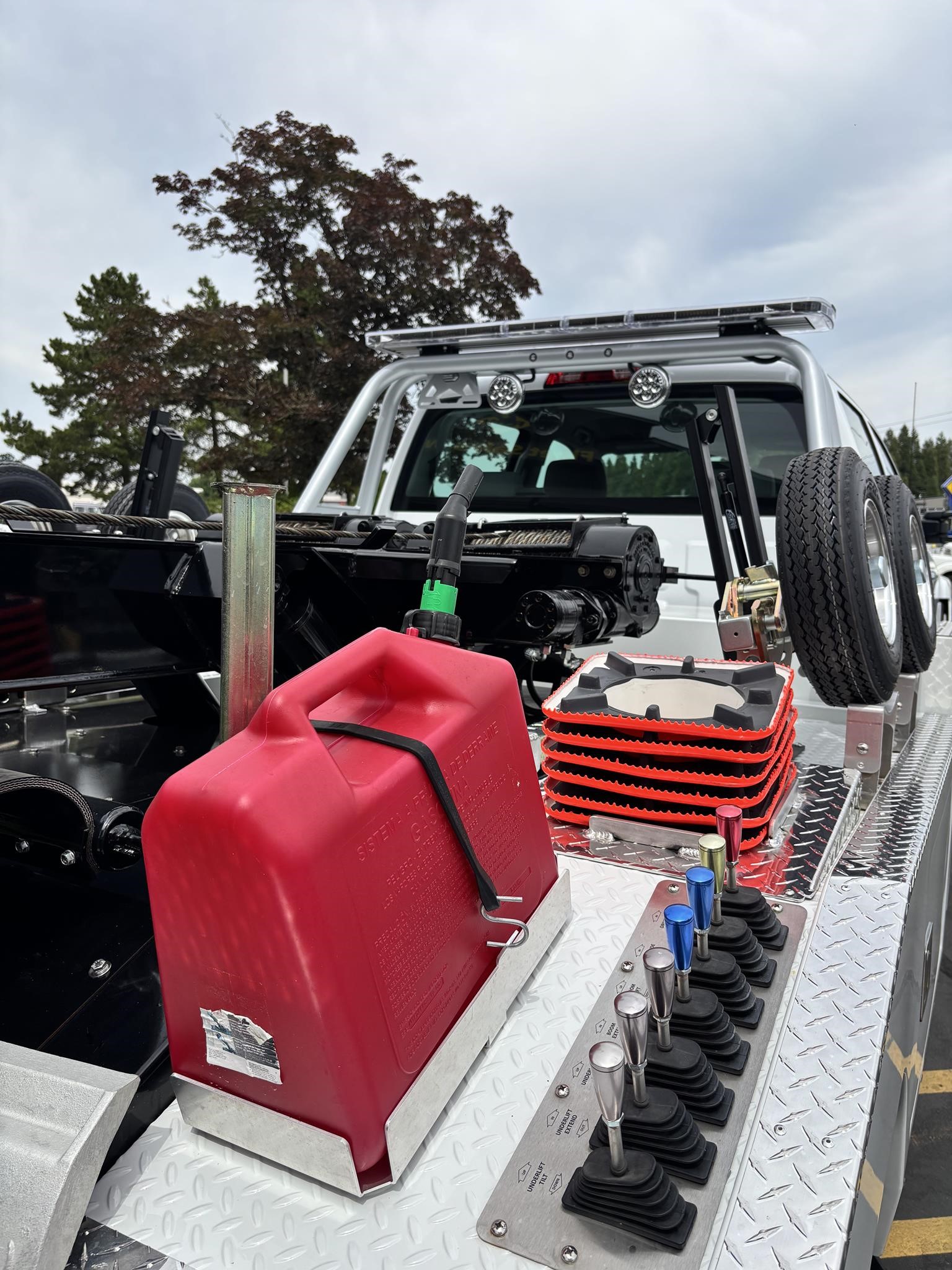

BOD: Complete Diamond plate package Tailboard, chain pockets, Rail caps
BOD: Mudflaps, 24" x 18", Pair

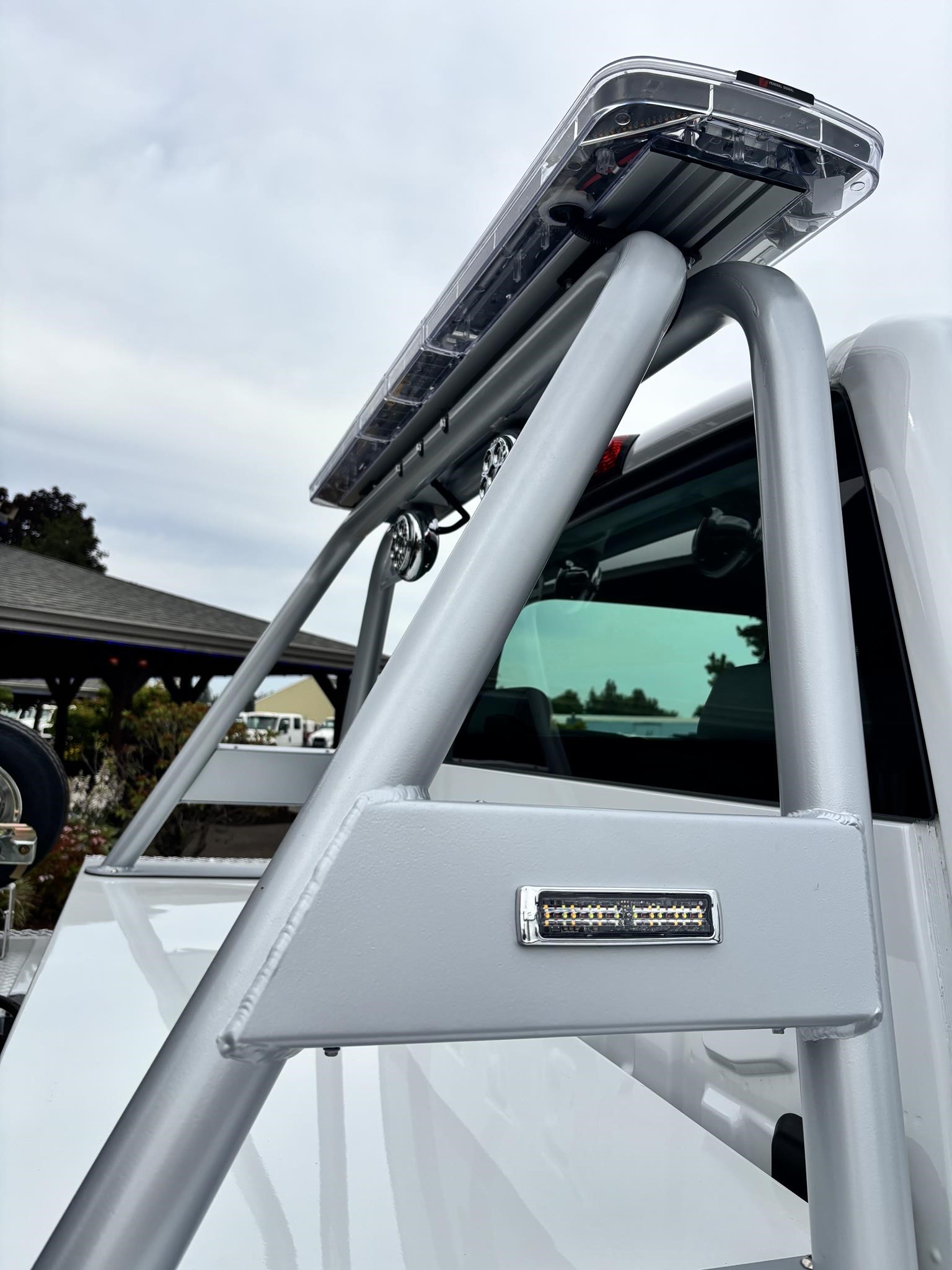

BOD: Pylon, Wrecker, Aluminum Tubular, 23", for Dodge/Ford (Pre-2017) Tunnel Box Mount
BOD: Rail Caps, Diamond Plate, Pair
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"
LB: Allegiant-Serial™24H w/TA 5 year warranty includes FS 12FXN controller for TA
LB: Legion, 12-Head, Amber, 60"
LIT: Jumpstart, Associated Cables, 500-Amp, 30' - Cables Only (add Flush- or Box-Mount separately)
LIT: Jumpstart, Front-Associated Flush-Mount, - No Cables (Add Cables Separately)
LIT: PTO Light, LED
LIT: Tow Light Bag with LED Tow Lights and Magnet Boots
LIT: Work light- 6" Rectangular LED Work Lamp w/ Amber Strobe ( Pair)
LIT: Worklights, Round, 550 Lumens, Liquid Silver Finish, for Aluminum Pylon, Pair
Recessed Cone Holder Bracket
SH: Air Coupler, Front (F) 27808; (W) Auto Coupler; (G) 68237
SH: Air Coupler, Rear (Wrecker) (F) 27808; (W) Auto Coupler; (G) 68273
SH: Shop Supplies
SL: Marker Bullet Light, 3/4", Amber for Wrecker Body
SL: Marker Lights, Clear-Lens, for Body Option
SL: Strip Lights, 18", White, LED, in Wrecker Toolboxes, Pair
SL: Strobes, Amber Grille Lights, ST-6 Super-Thin, Pair, Chrome Bezels, Backing Plates, Wire Harness
SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, Mounted at Rear of Wrecker, Wire Harnesses
SL: Strobes, Amber, Rectangular, 12-LED, High-Intensity, Pair, Wire Harness
TB: Bunks, Dollie, 4:80, SS Door, Pair
TB: PolyFloor, Installation

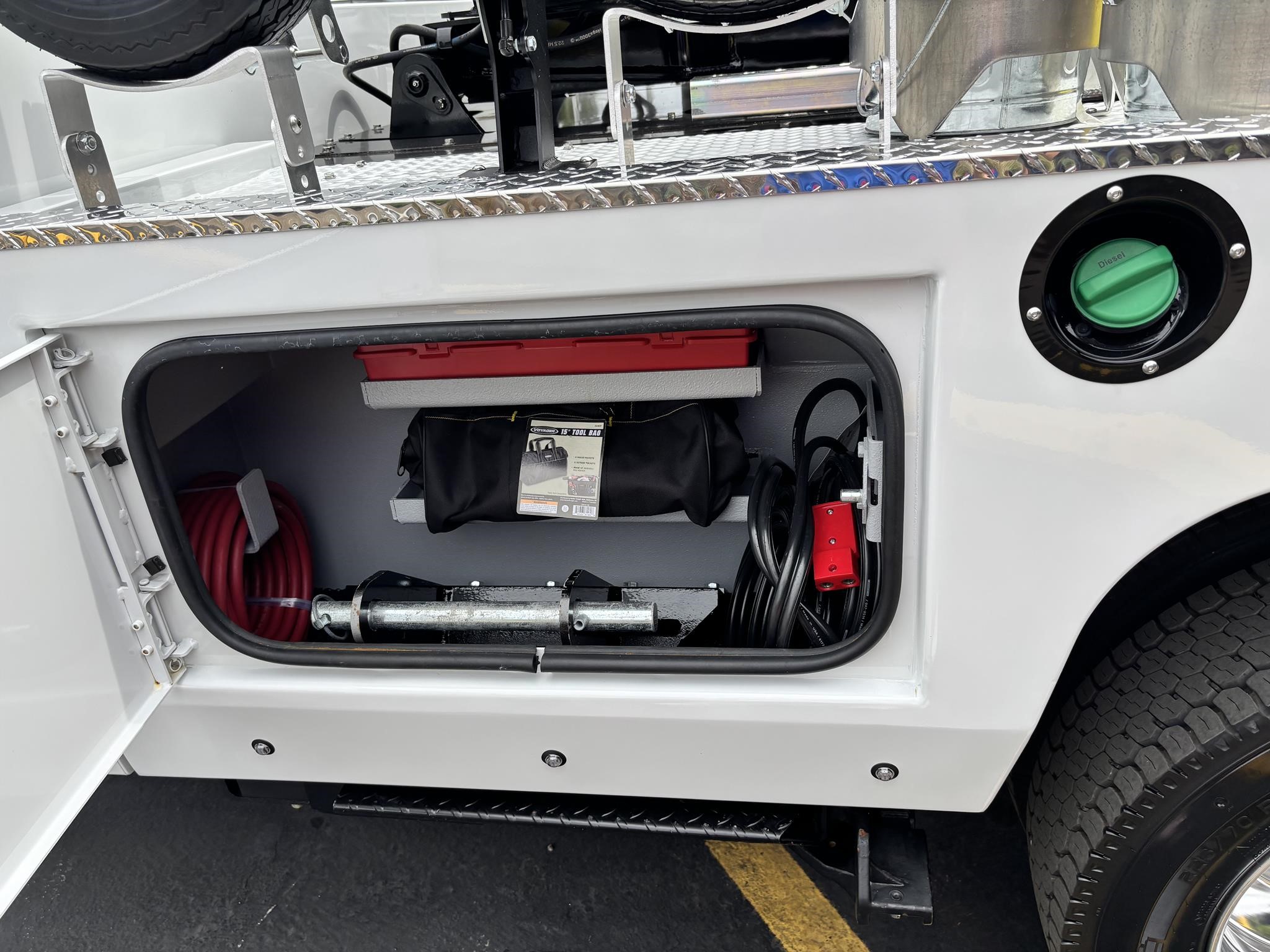

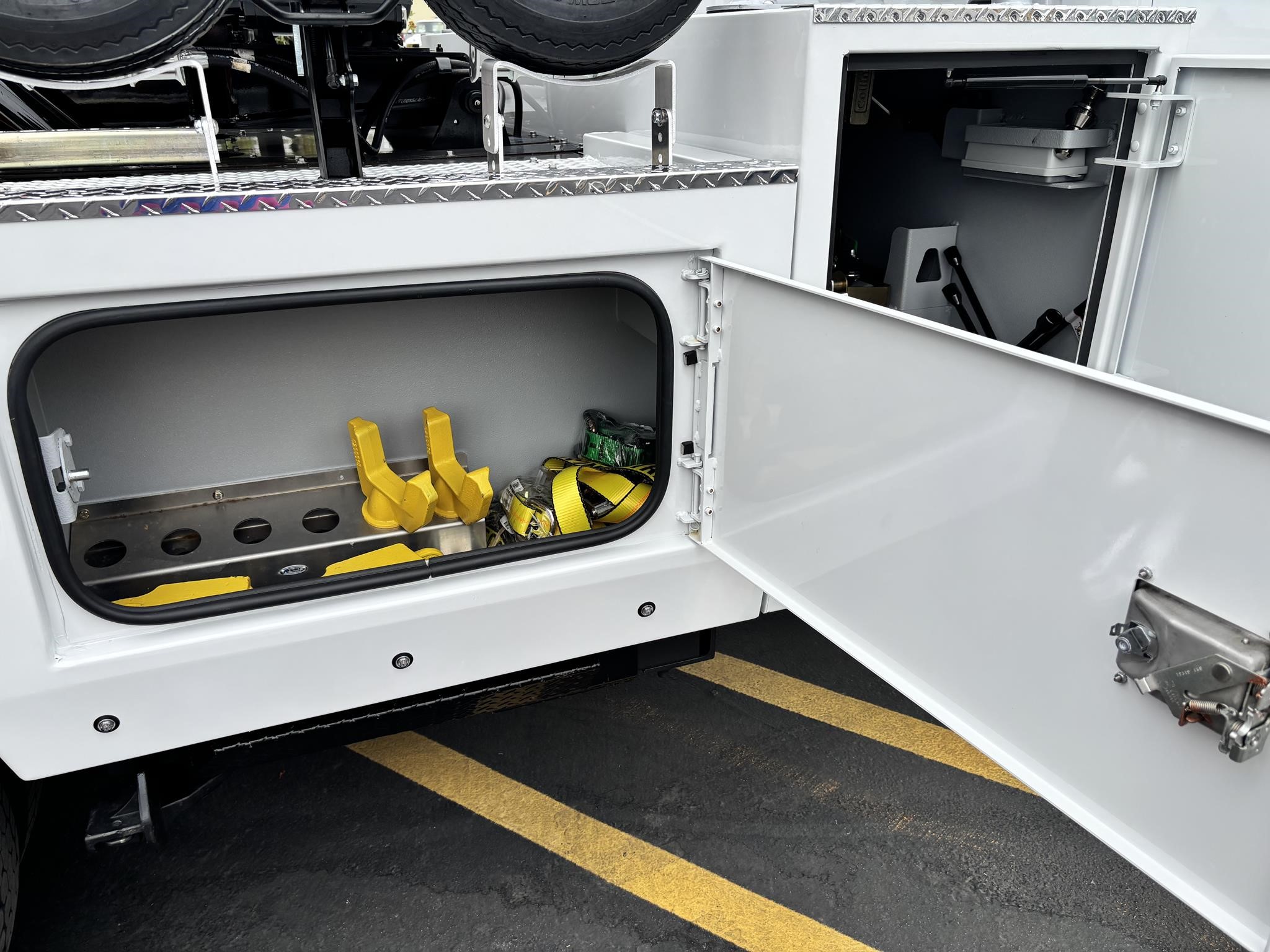

TB: Toolbox Alum. 60" x 18" w/Top Tray Driver side (Econo Version)

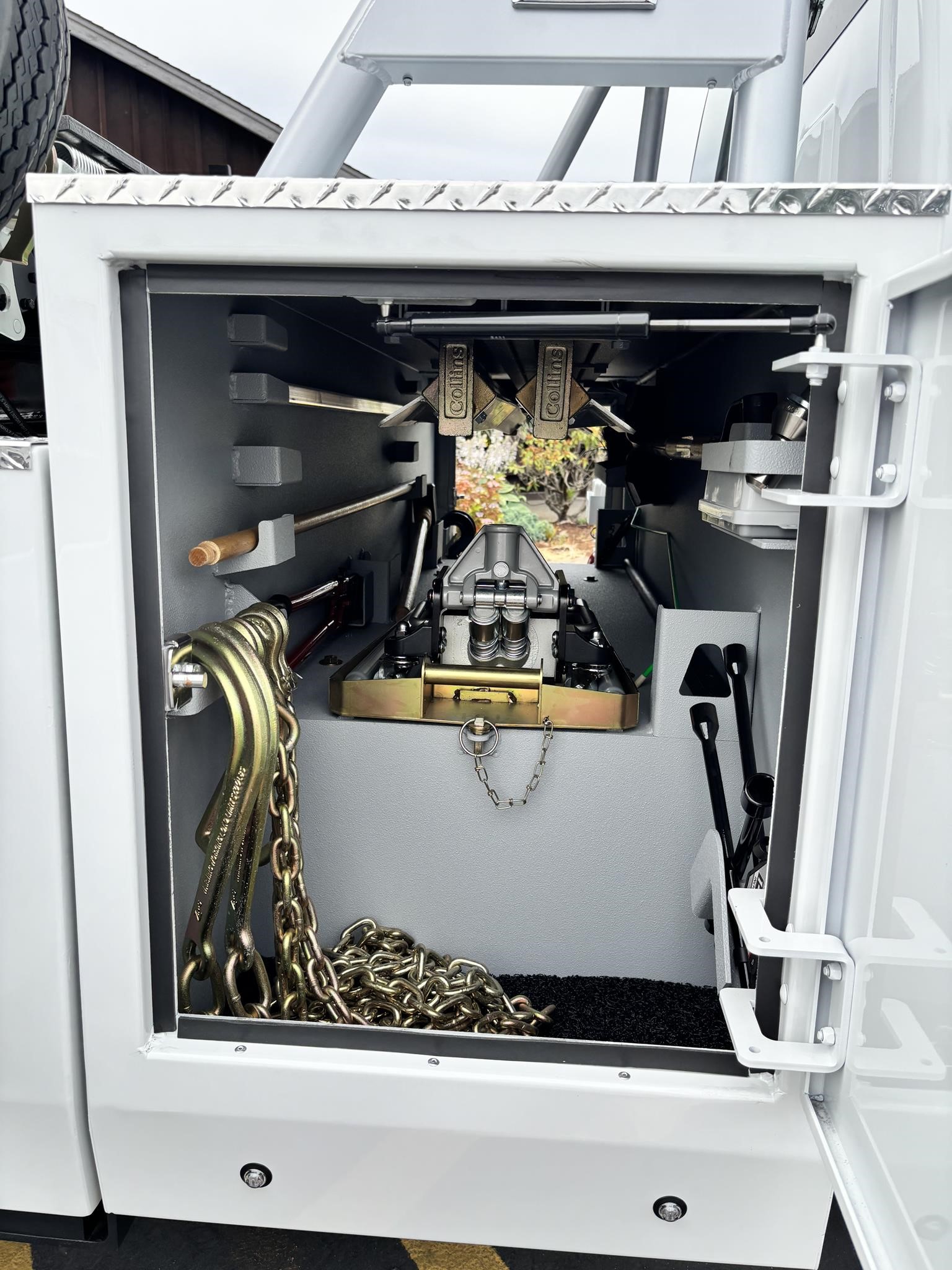

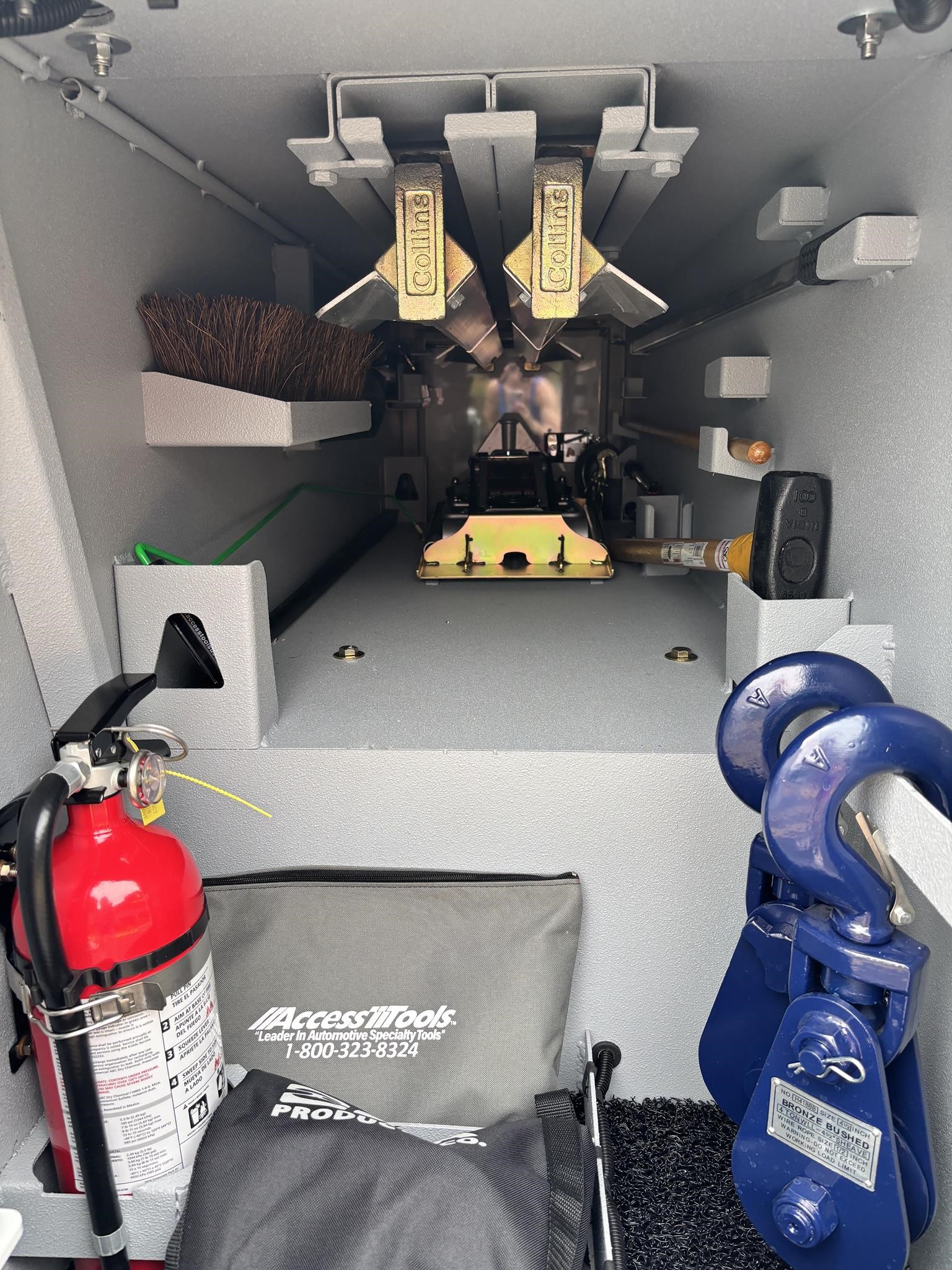

TB: Tunnel Box, 24" x 92", Century-Vulcan, with Brackets, GWTE
TOW: Chain, Recovery, 20', 5/16", Grade 70, Clevis Grab Hooks, Single
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair

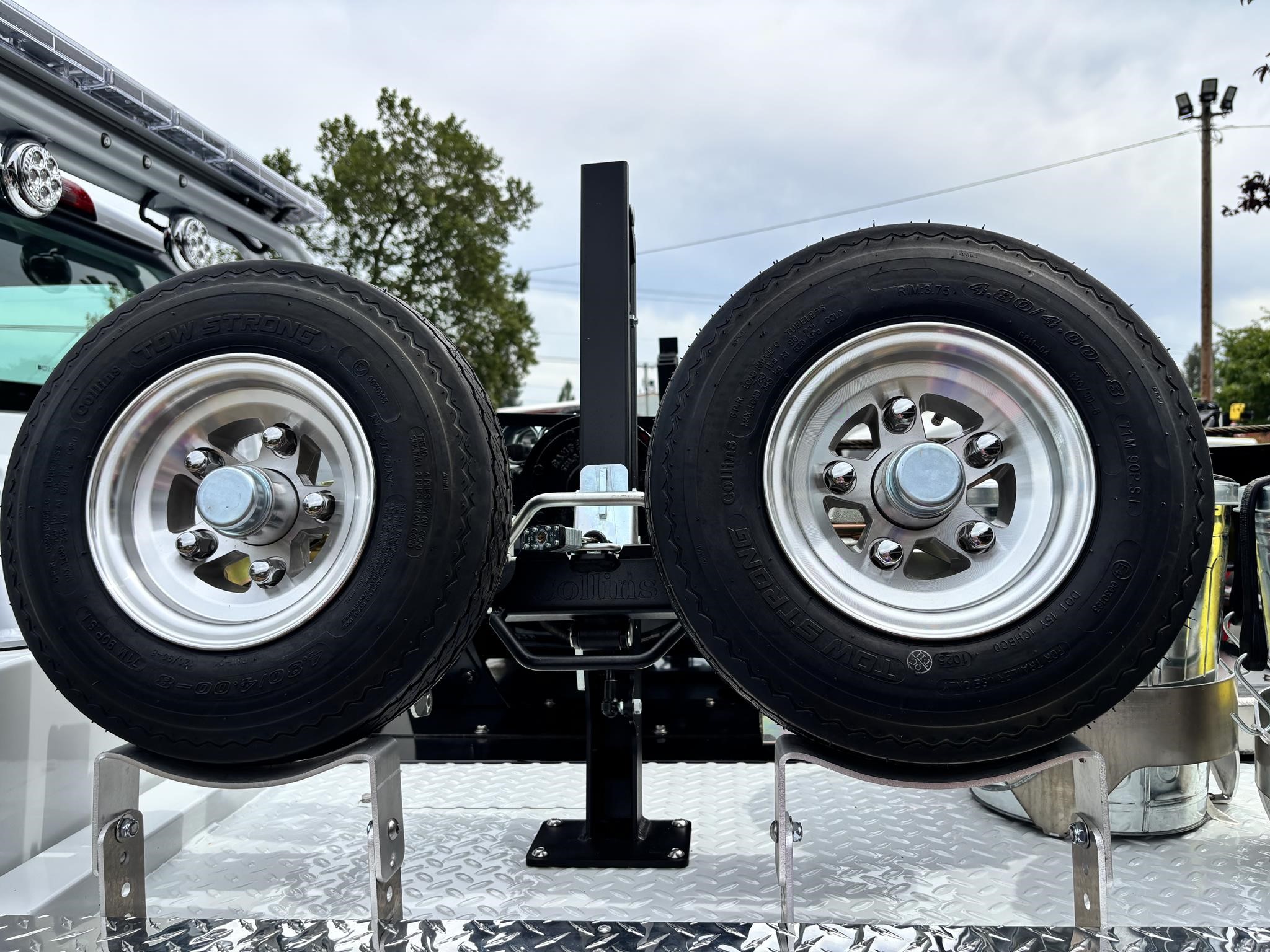

TOW: Dollies, Collins, 4:80 Tires, Aluminum Wheels, Aluminum Crossrails, Complete Set
TOW: Flare Case (Case Only)
TOW: Flares, 6 (F)0730(x6); (W)7703605(x6); (G)100783(x6)
TOW: Hooks, Self-Locking, 5/16", Grade 80, for Safety Chain, Pair
TOW: Lumber, 4" x 4"s, 48" & 60"
TOW: Snatch Block, 4-Ton
TOW: Strap Kit with Bag, Motorcycle, Wrecker, B/A
TOW: Strap, Steering Wheel
TOW: Trailer Ball Kit, Convert-A Ball
TOW: Winch Cable, 7/16", 150', Fiber Core, Self-Locking Hook
WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 8-Lug, Pair
WH: Lug Nut Cover, 30 mm, SS, 2-1/16"




Notes:
Body Sides GM White
Boom Black
Inside tool boxes, Zialatone
Chassis price includes $1200.00 radio upgrade

Amber- Light package light bar, strobes.
PM mounts Deck
Tube under body for grid storage - & Fork holder storage
Mount spade attachment inside the tunnel tool box front of Jack .
Fork storage side box or floor of tunnel driver's side . Or vice versa. Pass side . And a mount spade driver
HD L arms mounted on Deck
