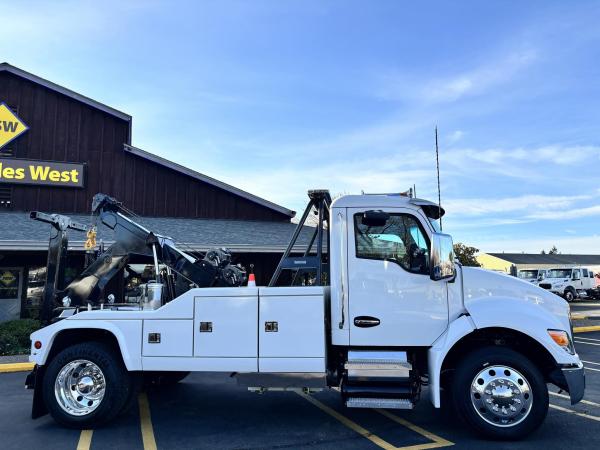

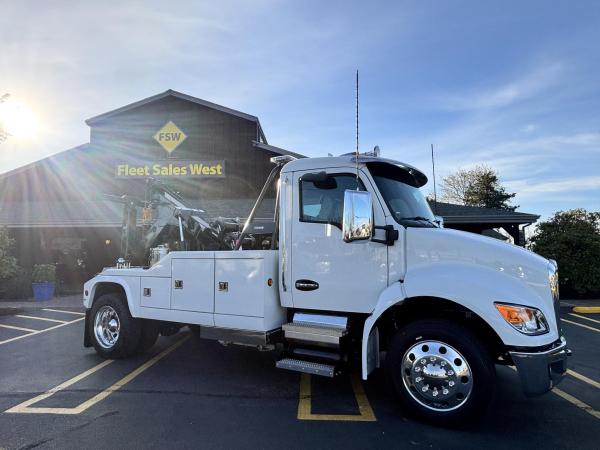

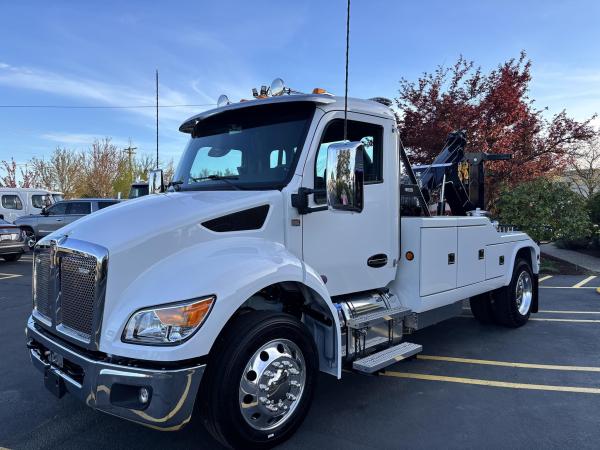

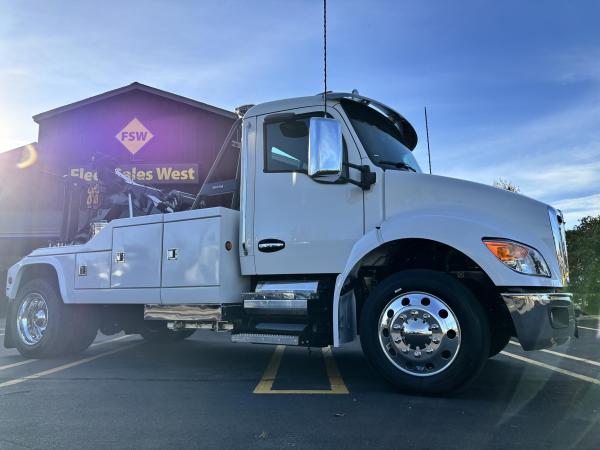

T280
All Wreckers
Equipment Overview
| Price | Contact for Price |
| Make | KENWORTH |
| Model | T280 |
| Year | 2024 |
| Stock # | 1001020460 |
Need Assistance?
503-982-5095Specifications
- A/C Condition: New
- Air Conditioning: Yes
- Axle: Single
- Cab: Standard Cab
- Collisionmitigationsystem: No
- Color: White
- Cruise Control: Yes
- Drive: 4x2
- Driver Position: Left Hand Drive
- Dually: Yes
- Engine: PACCAR
- Engine Type: PX7
- Exhaust Brake: Yes
- Front Axle Lbs: 10000
- FrontaxlelbsUnit: Pound
- Fuel Type: Diesel
- Glider Kit: No
- Gross Vehicle Weight: 2
- Gross Vehicle Weight Rating: Class 6
- GrossvehicleweightUnit: Pound
- Hassleeper: No
- Headache Rack: No
- Heated Mirror: Yes
- Horsepower: 325
- HorsepowerUnit: Horsepower
- Hours Meter Inaccurate: 0
- Mileage: 211
- MileageUnit: Mile
- Num Speeds: 6 Spd
- Overdrive: Yes
- Power Locks: Yes
- Power Steering: Yes
- Power Windows: Both
- Super Singles: No
- Suspension: Air Ride
- Tilt Telescope: Yes

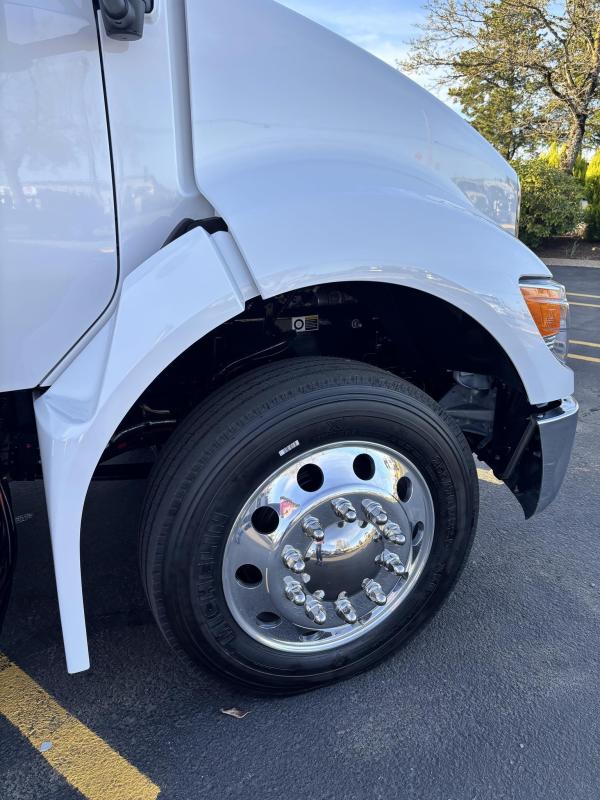

- Tires: 255/70R 22.5
- Transmanufacturer: ALLISON
- Transmission: Automatic
- Transmission Type: Allison RDS
- Turbo: Yes
- Wheel Base: 177
- WheelbaseUnit: Inch
- Wheels: Aluminum
General Description & Dealer Notes

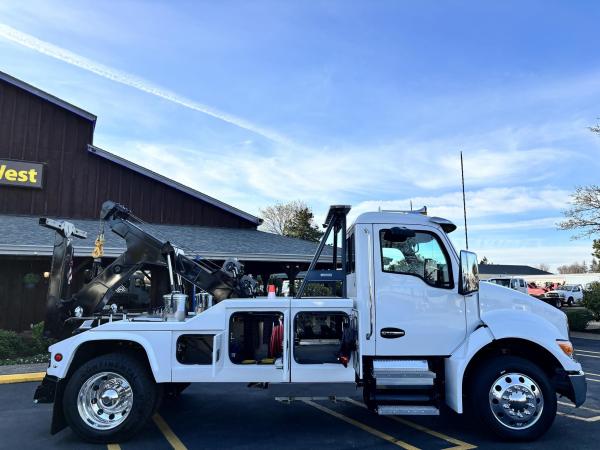

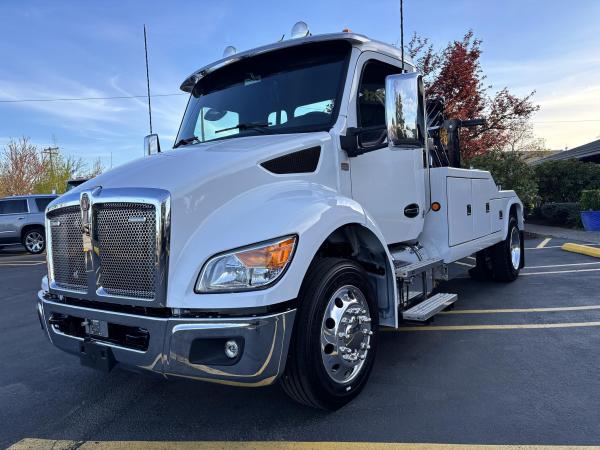

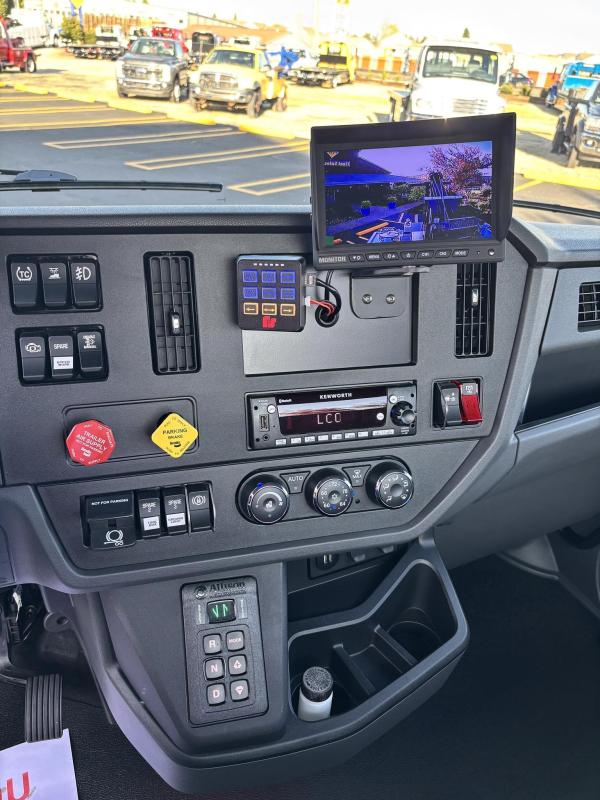

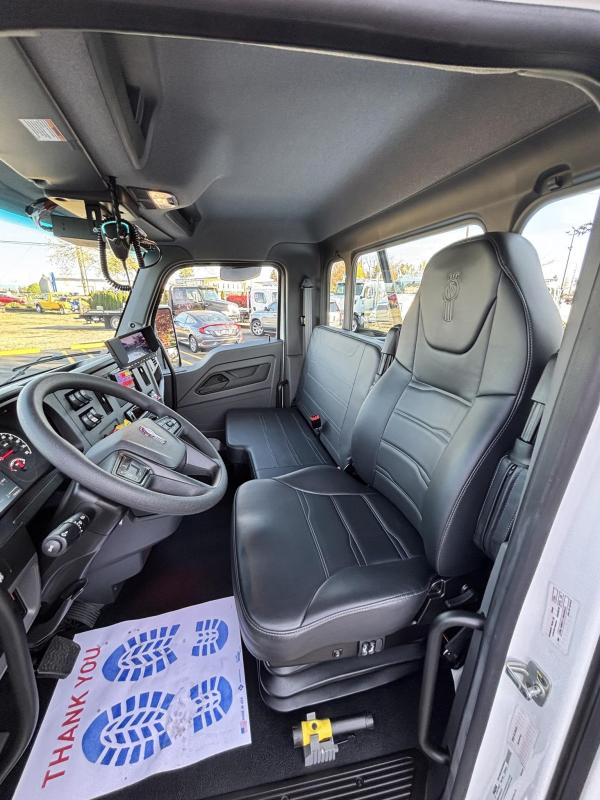

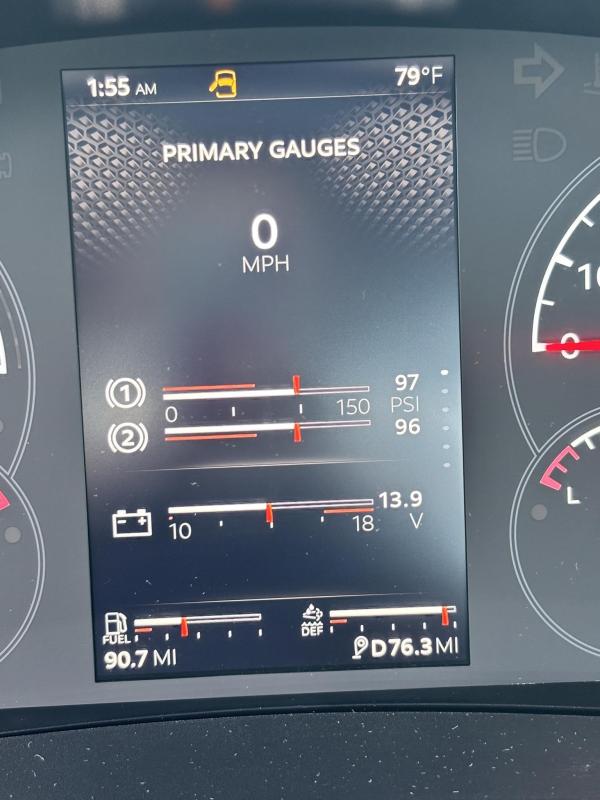

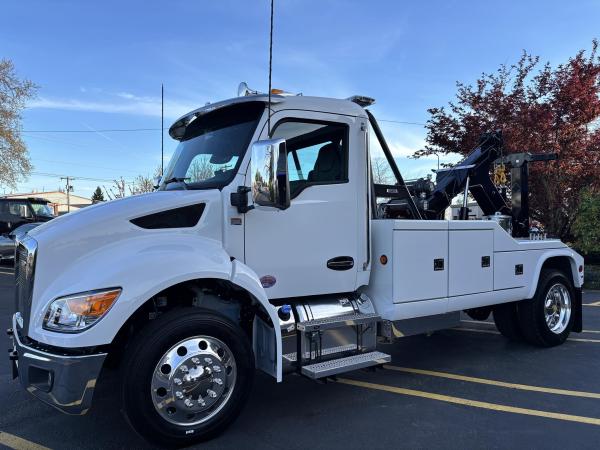

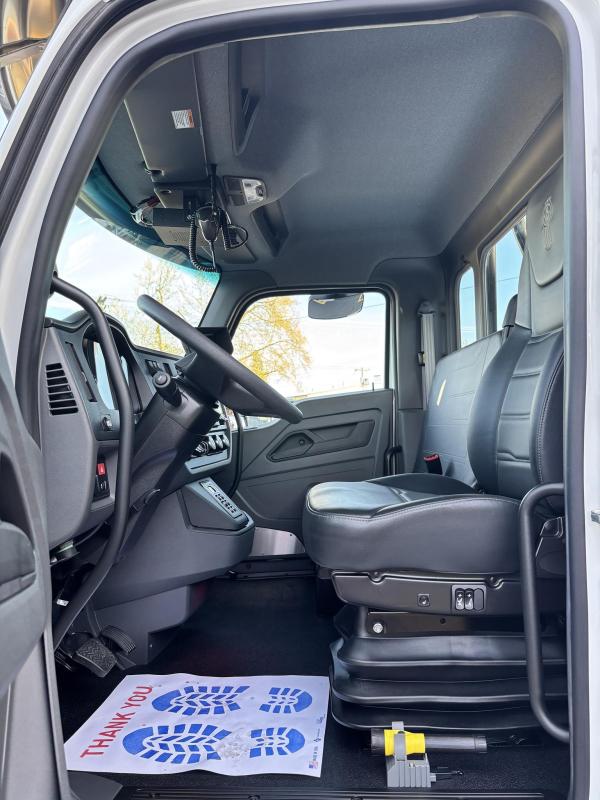

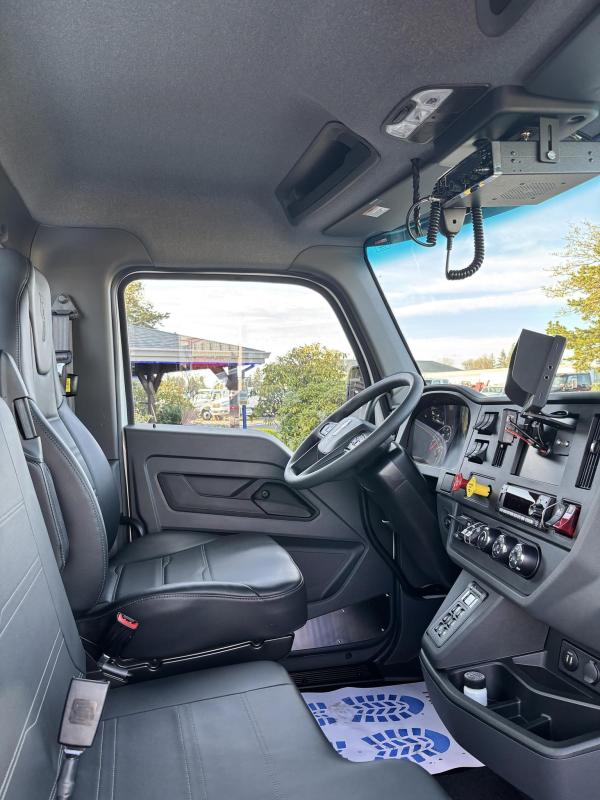

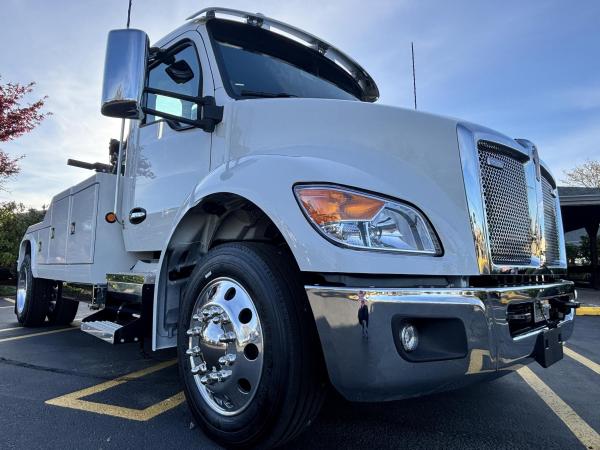

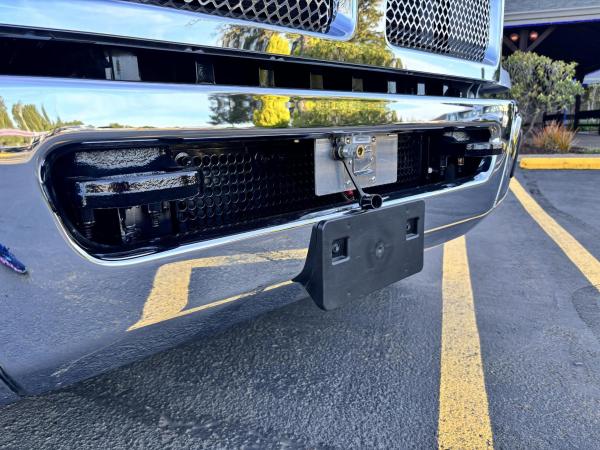

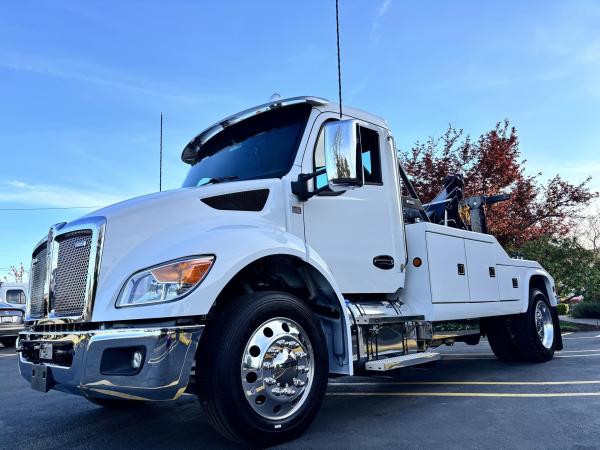

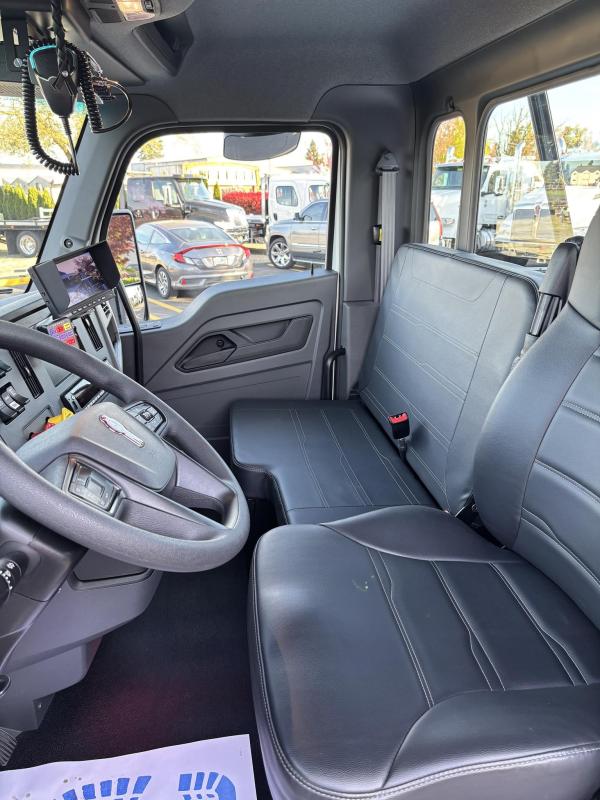

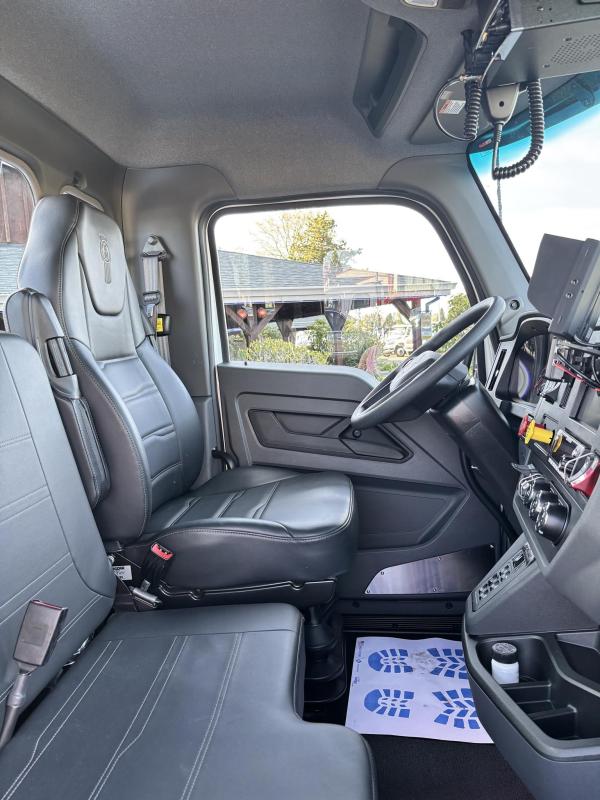

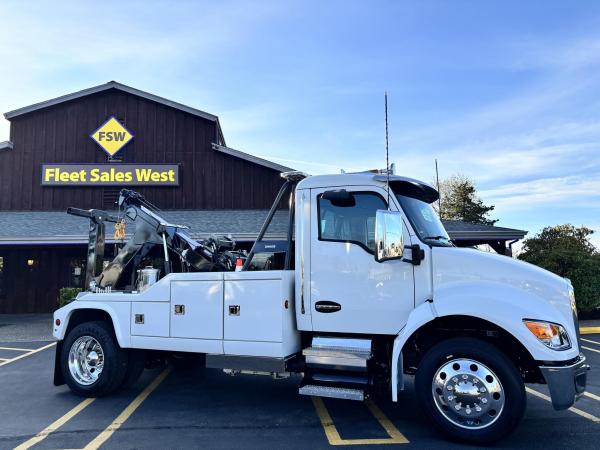

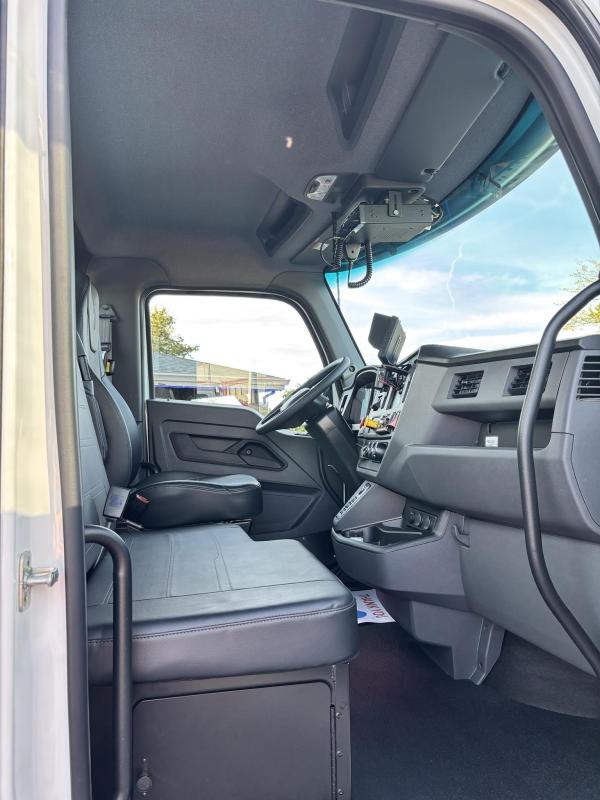

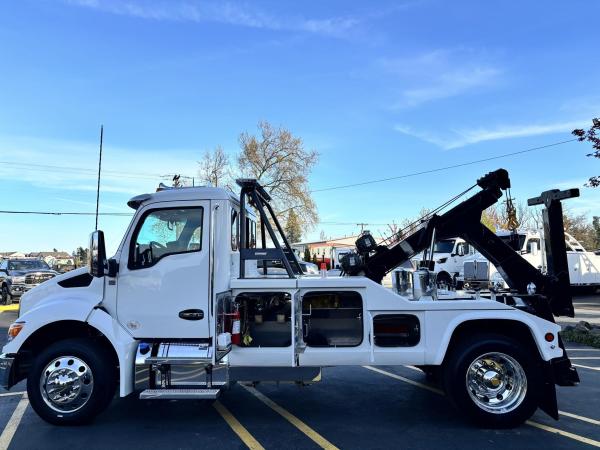

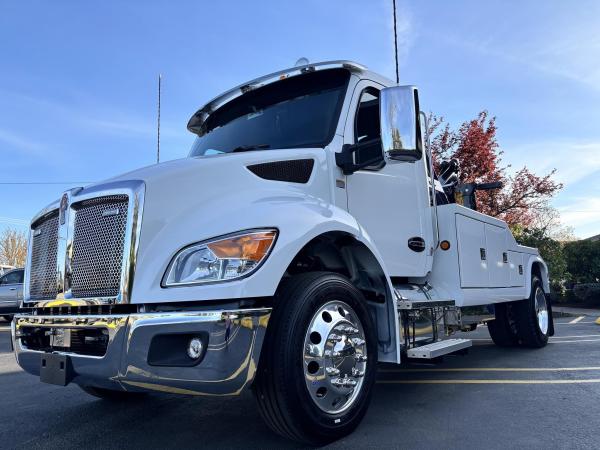

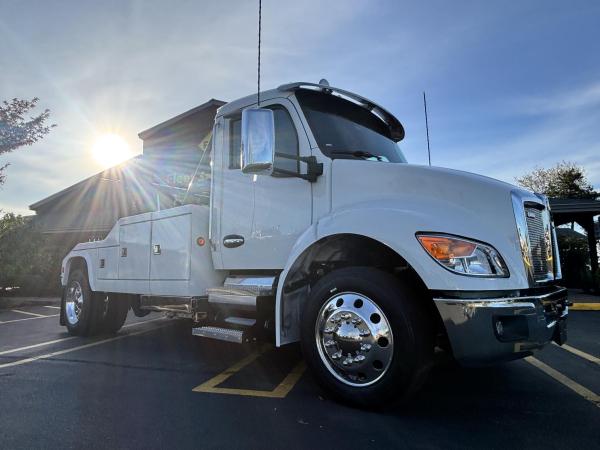

2024 Corner Glass cab. PX-7 325HP ( 750lbs Torque) RDS-3000 Push Button Allison. Exhaust Brake. Visor, Dual Air Horns, Air Ride Driver seat with Dual Arm Rests. Two-man passenger, black. Chrome bumper, Air Ride cab. Winch Brake. Tractor package, Air Brake package. Tilt Telescoping wheel, AM/FM Stereo.USB, Bluetooth, Idle, Cruise control. 22.5 Aluminum wheels. 255/70R 22.5 Tires, 21,000lb Axle -5.29 Rear axle Ratio, 10,000lb Front axle, 10,000lb Front suspension. 22,000lb Air Ride suspension with Dump valve..Battery Diamond Plate box..Power windows, Power Locks, Power Mirrors, Heated. PTO Switch. Air Suspension Gauge. Burl wood dash. 50-gallon aluminum fuel tank. . Derated to - Corner rear windows, keyless entry.. Air suspension, Pressure gauge. K W Driver info center. Aluminum wheels, 255/70R 22.5 Tires. 26,000 GVWRChevron LMD 512 T 12 Ton Integrated Wrecker (Next Generation)

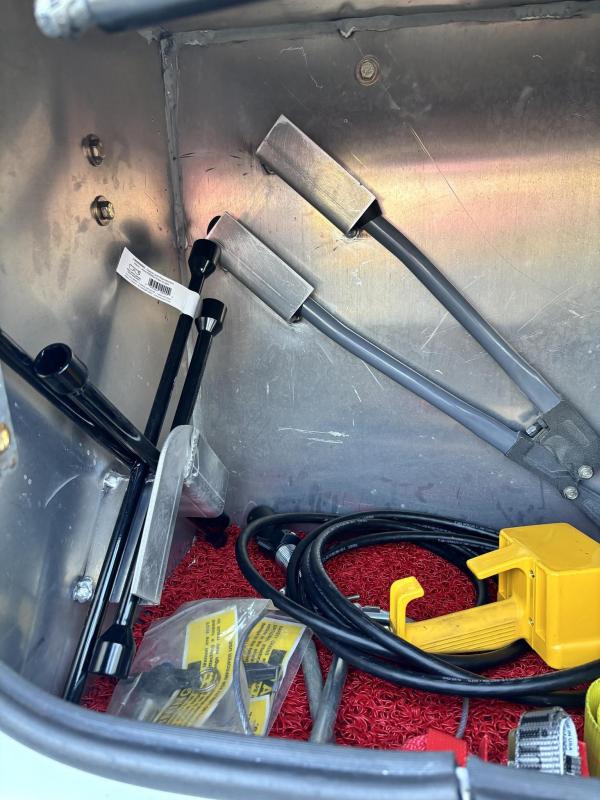

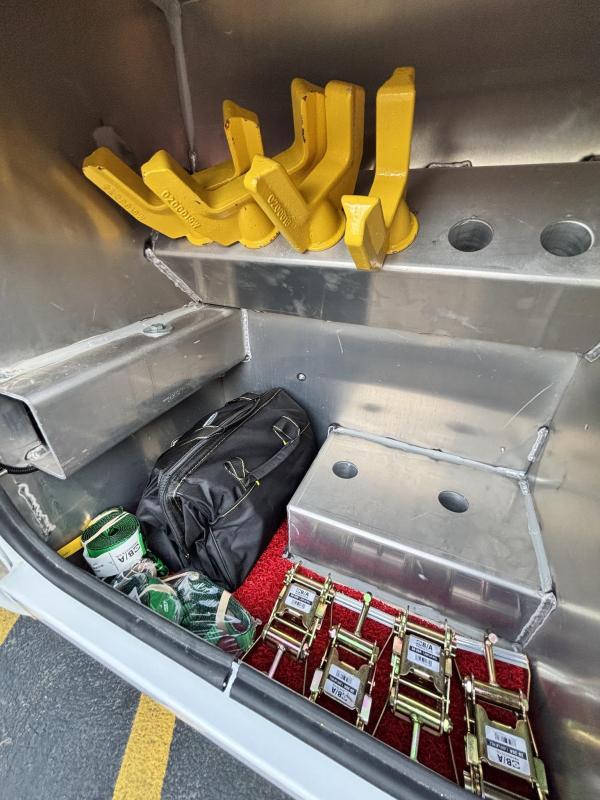

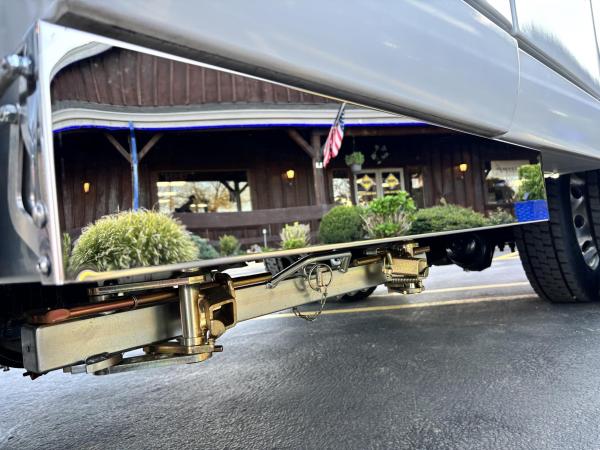

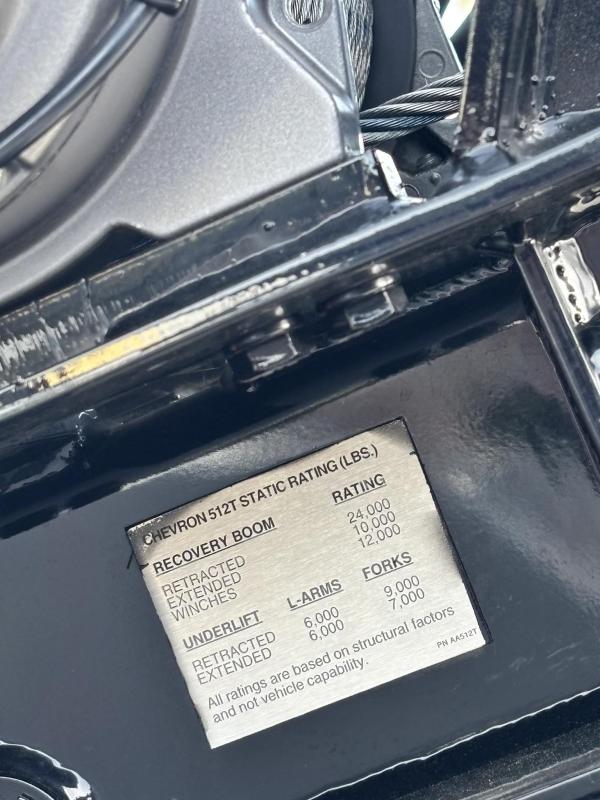

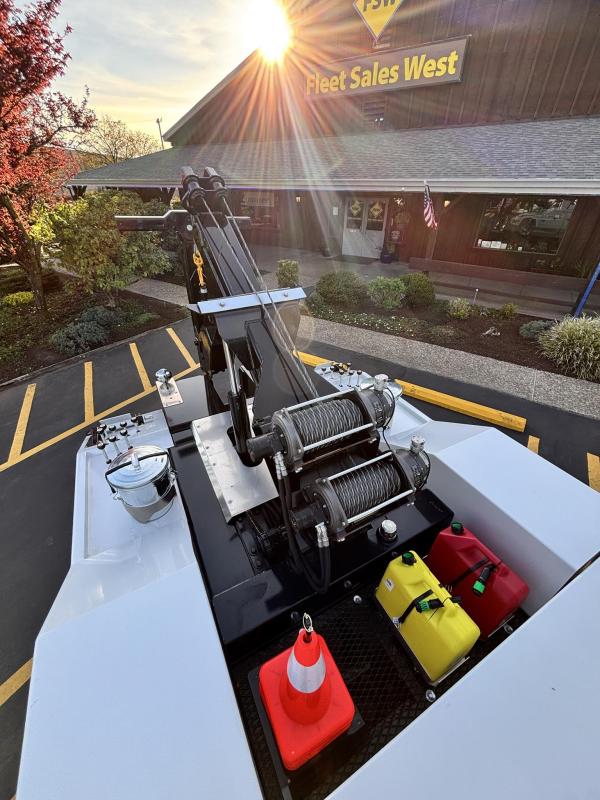

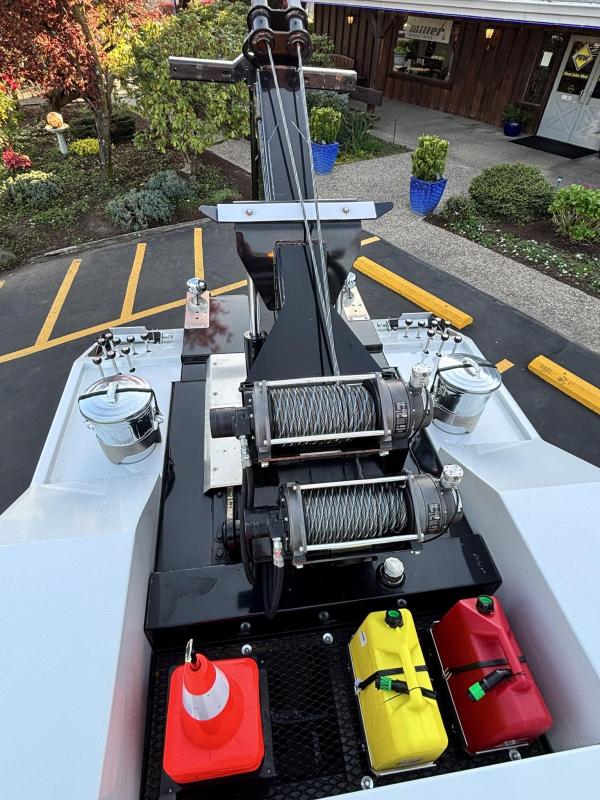

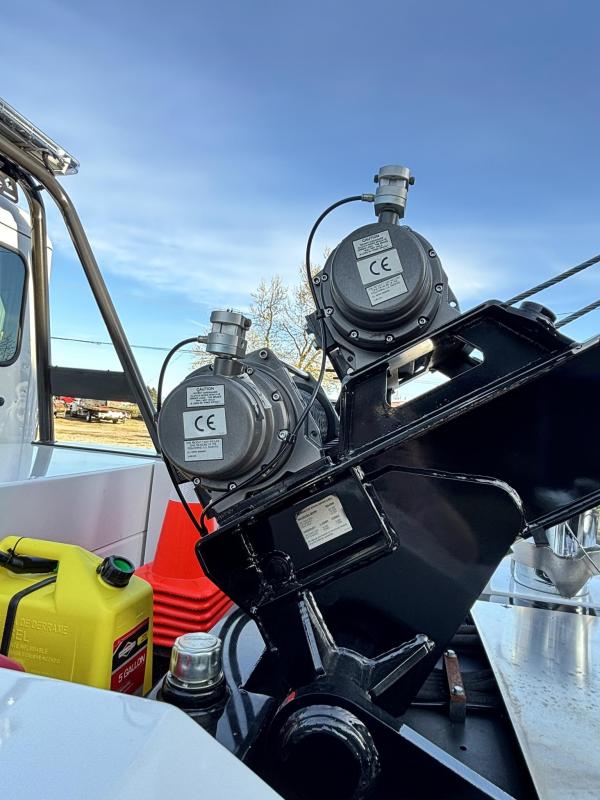

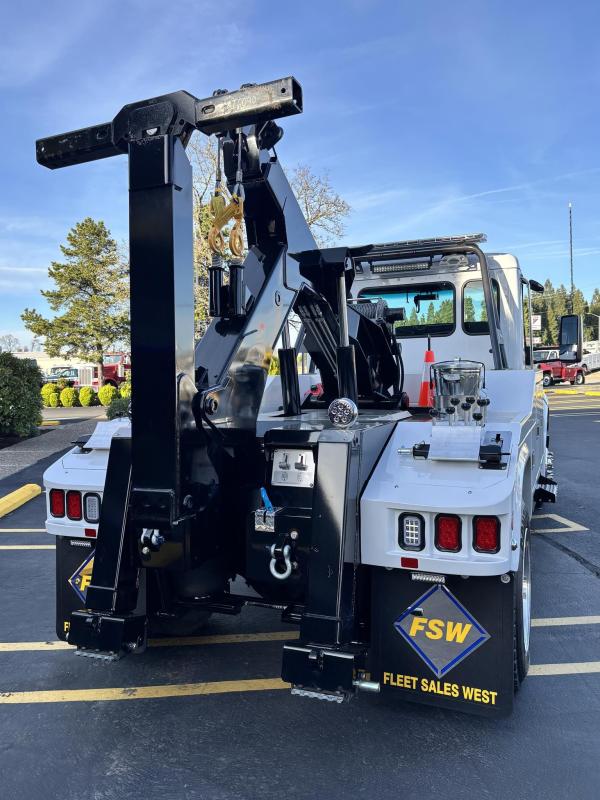

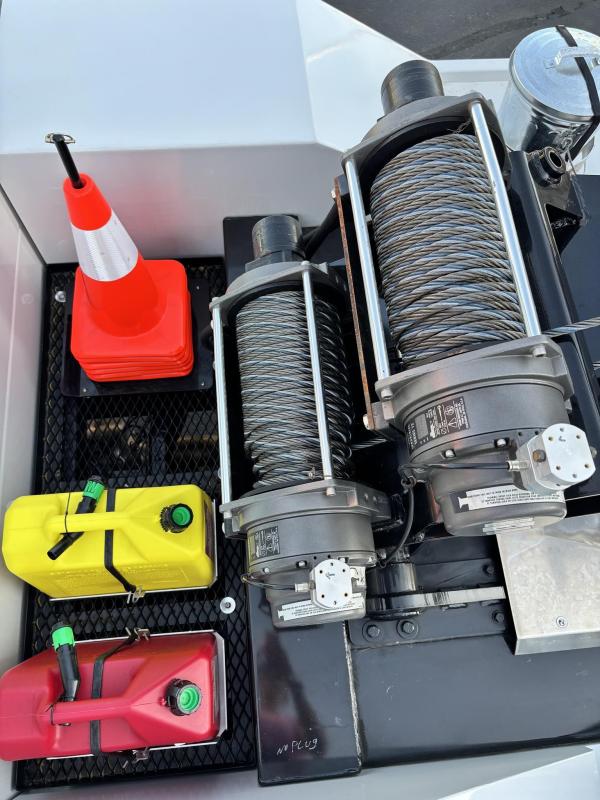

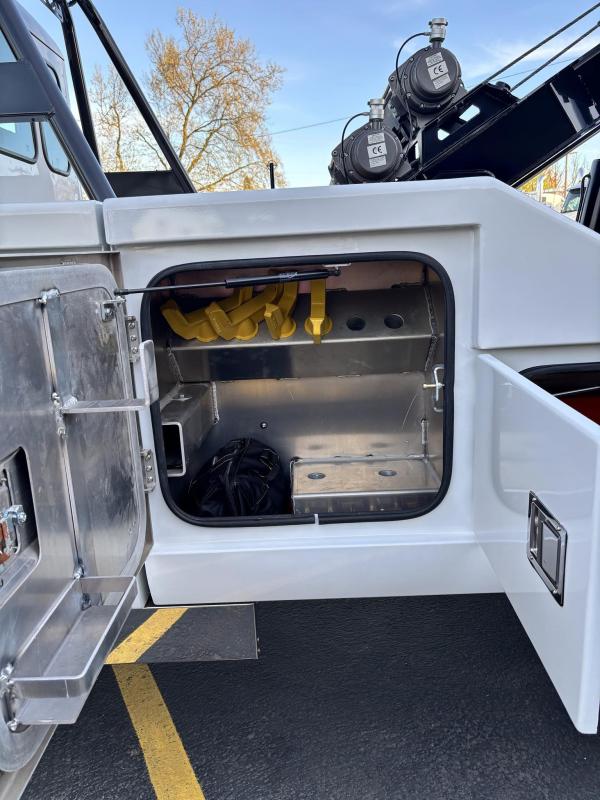

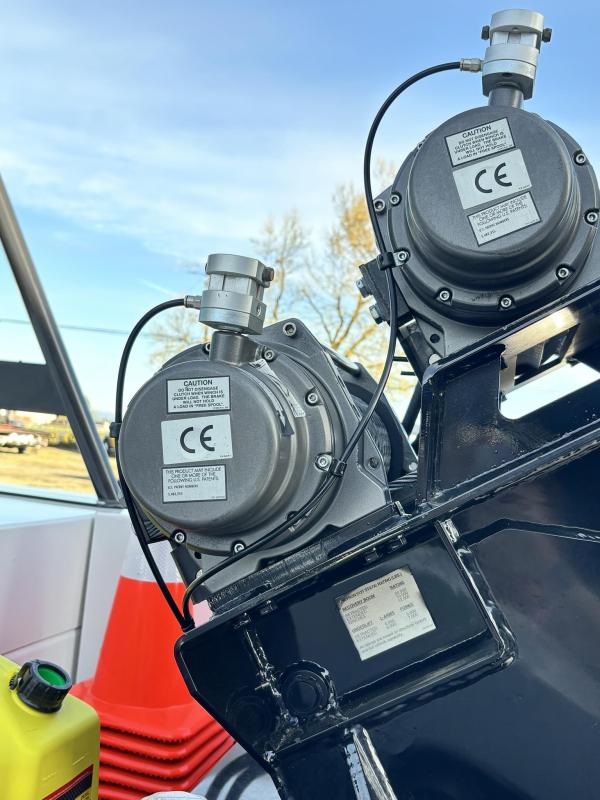

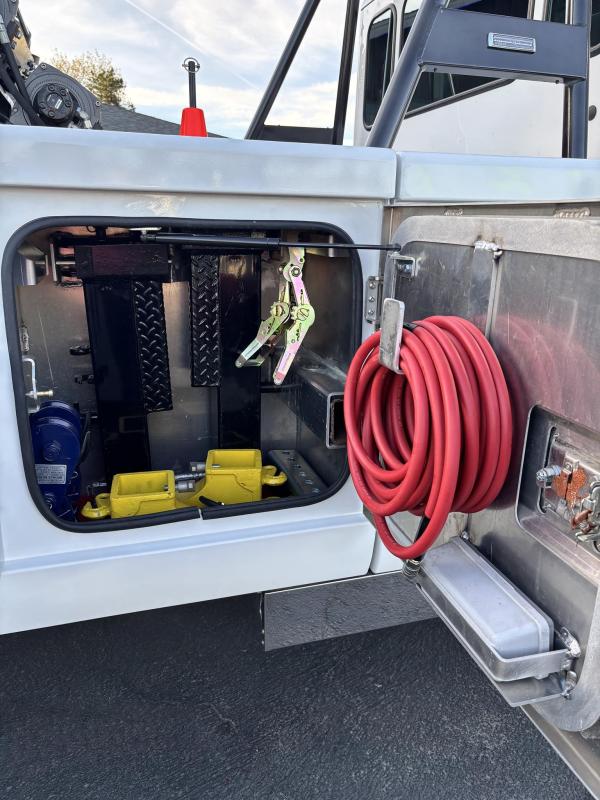

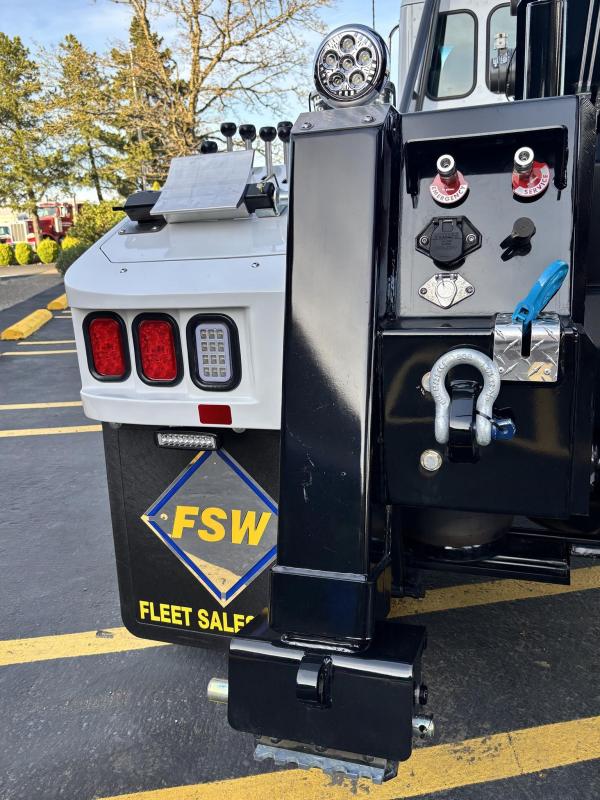

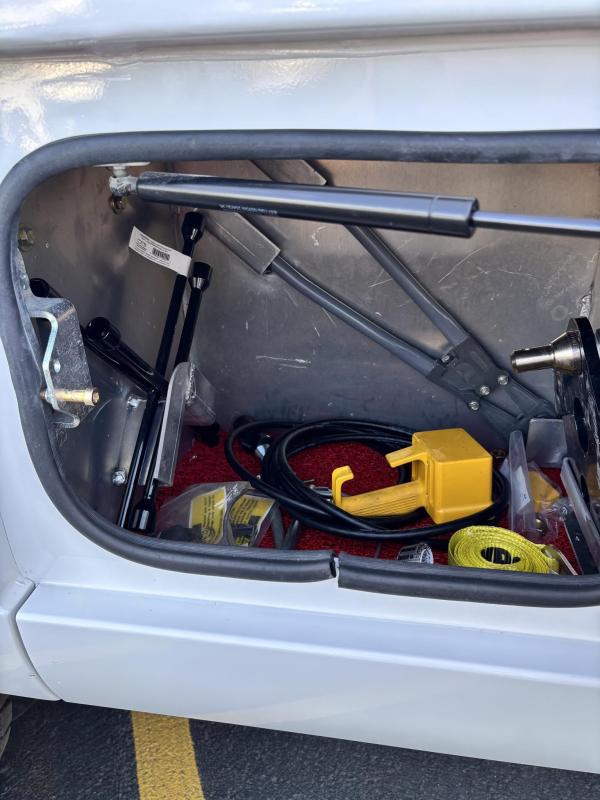

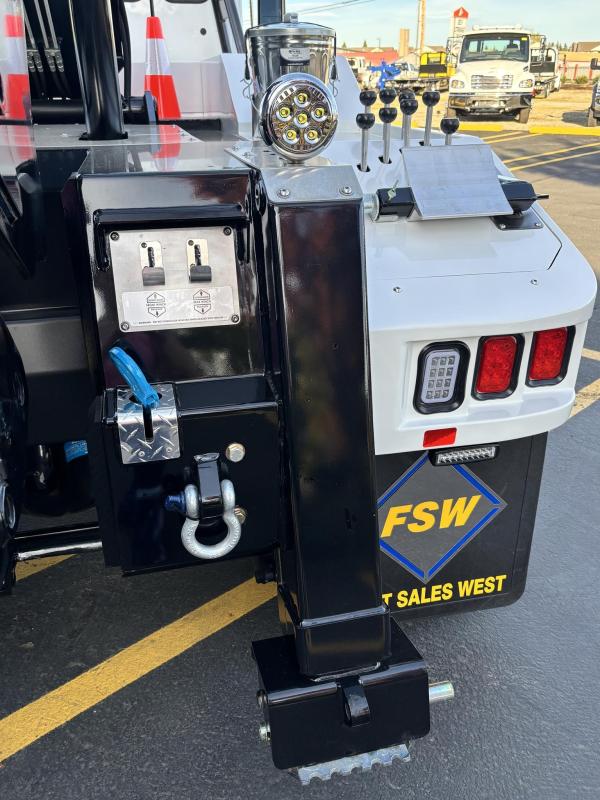

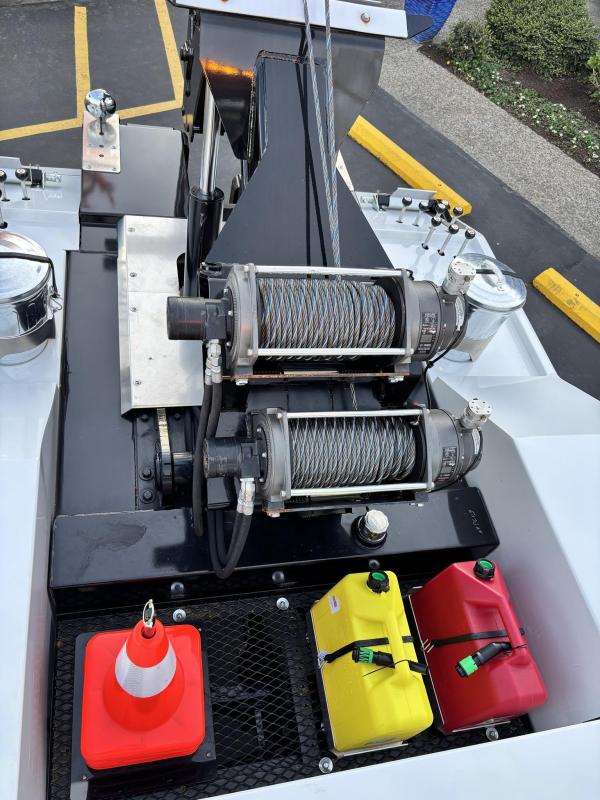

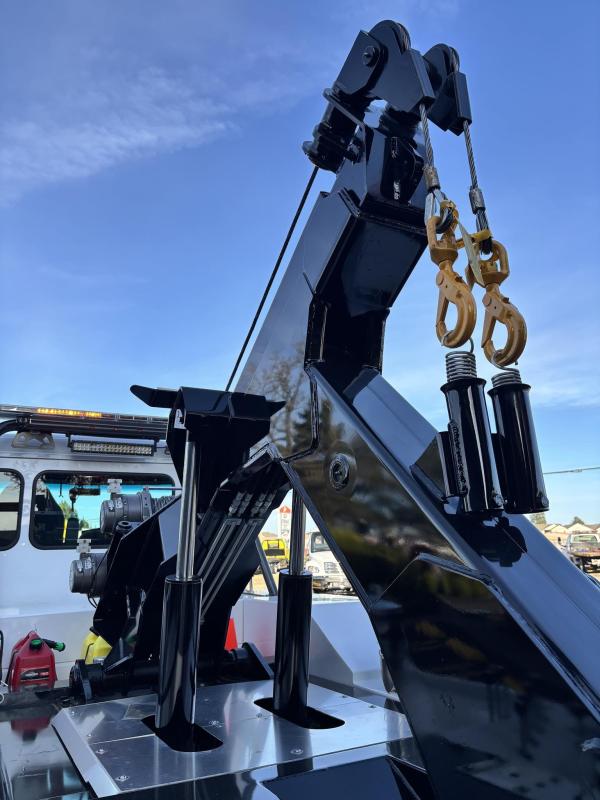

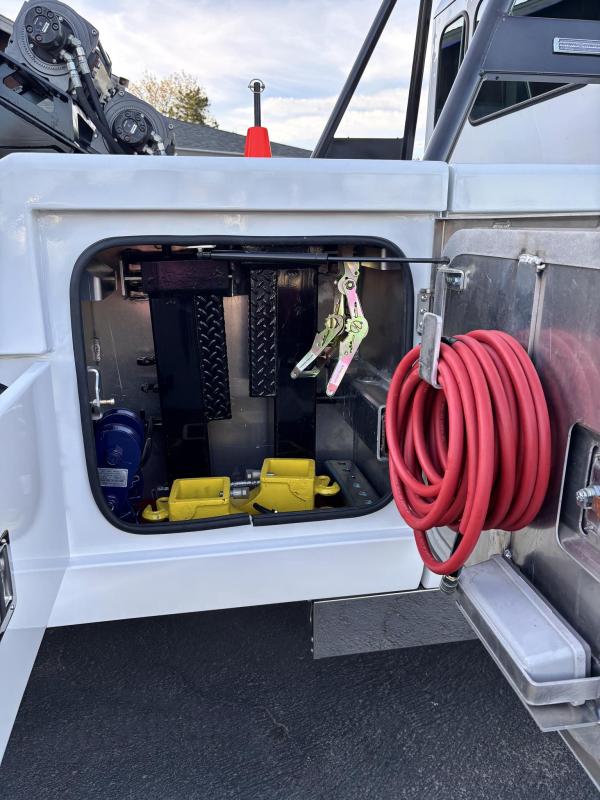

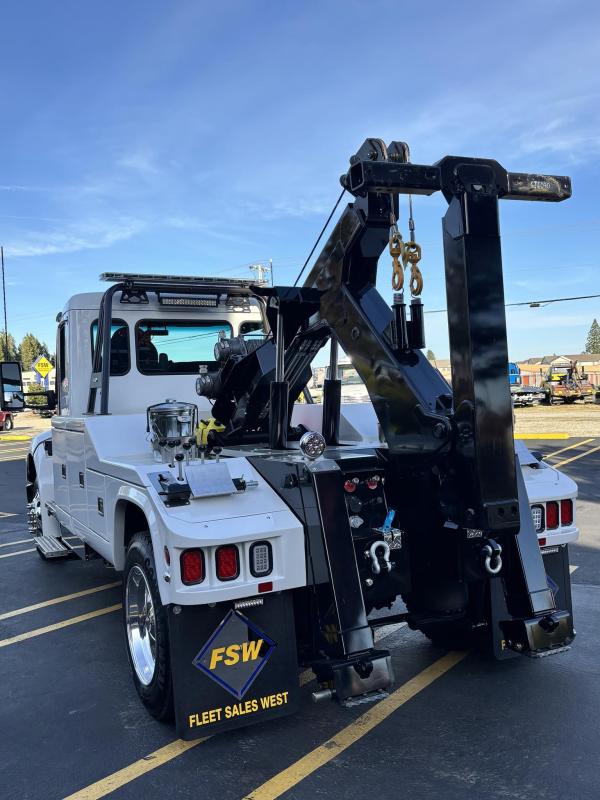

Aluminum modular body sides with two tool compartments on each side. Aluminum 28 in. tunnel through box with tool compartment lights. Tool compartment door closures on all doors “Warn” 12,000 lb. Planetary winches. 7/16” x 150 ft Cable per Drum. Cable Tensioners. Air Free Spool Winches (2) Switches on the Rear tailboard. 108” CA 6000 lb. L-arms. Elevated fork holders. Wheel straps and ratchets. Safety chain pockets. Safety chains.FMVSS 108 lighting (L.E.D.). Junction box with wire harness; pilot-operated holding valves. Lubrication fittings on all pivot points. Dual rear controls. Rear shackles. Two light plugs. Backup alarm. Mudflaps. 3-inch forks.4-inch forks; Spring shackle adapters. Low-profile offset fork holders. Under lift crossbar extensions. L-Arm Storage Pockets (Slope of Rear Deck). Body width is 96 inches, boom elevation is 41 degrees, boom reach past the tailboard is 71 inches, and under lift reach from tail. board to center of fork; 78.5 inches; Negative tilt range;10 degrees; Control valve; Sectional, 15 GPM, 2200 PSI; Oil reservoir; 13 gallons; Oil filters (2); 15 GPM, 10 Microns; BOOM;Retracted;24,000; Extended;10,000; Winch (1st layer); 12,000; Under lift; Retracted (forks) 9,900 Extended (forks); 7,000; Tow Capacity (rolling) 20,000. Body Serial # 5121H225002
Hydraulic Rear Spades (408/512TA)

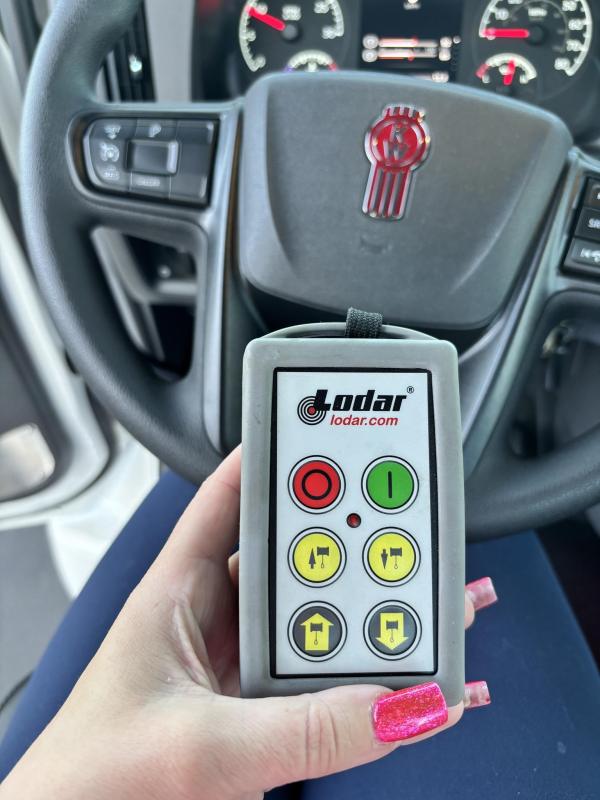

Lanyard Remote Control (Standard Crossbar)
Wireless Remote Control (Twin Line)
Accessories
Air & Electric Kit
Muncie Hot Shift PTO (Allision or Aisin - 6 Bolt)
Installation

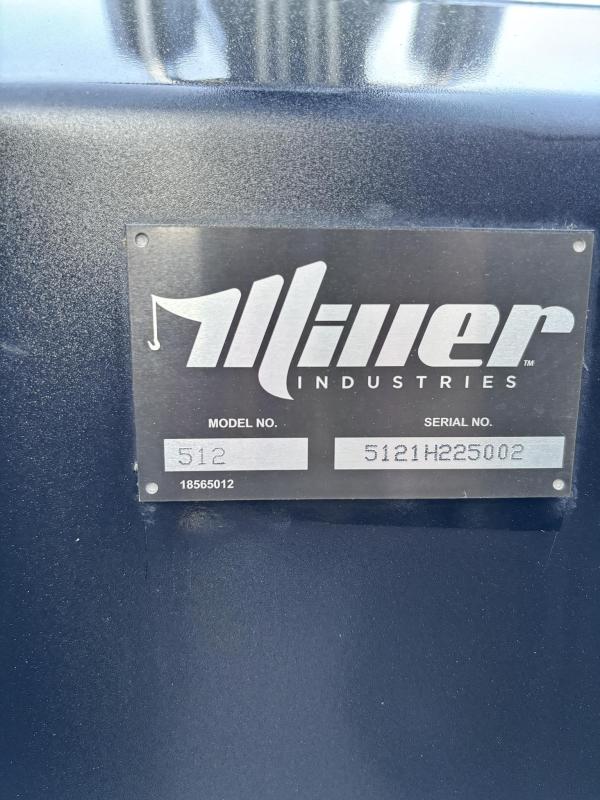

Chevron - 512
Body Dress Up Kit (LD)
Dollies

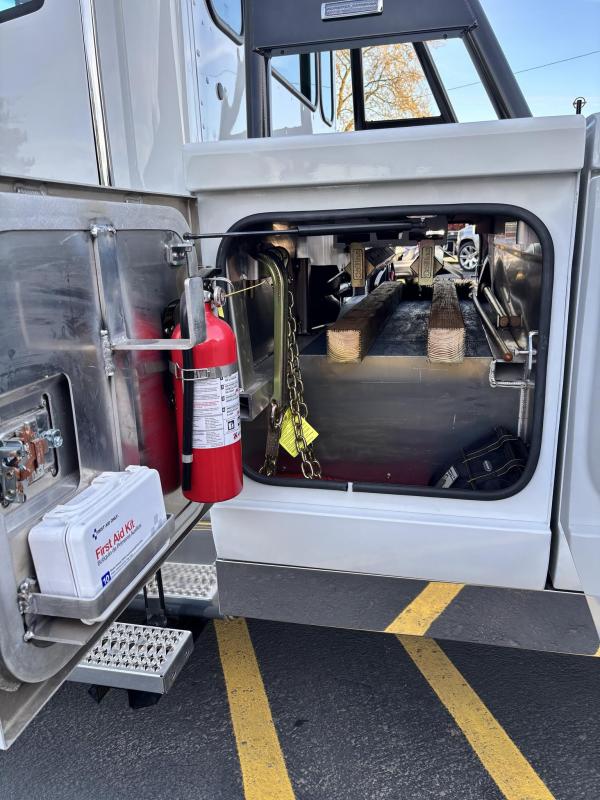

Fire Extinguisher

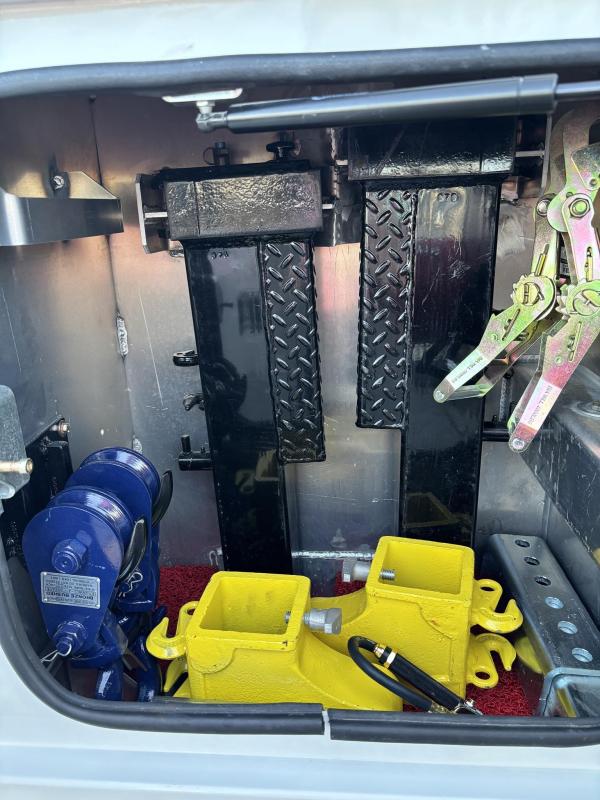

Fork Storage Rack (LD)
Hot Shift PTO - LD, CC, HD

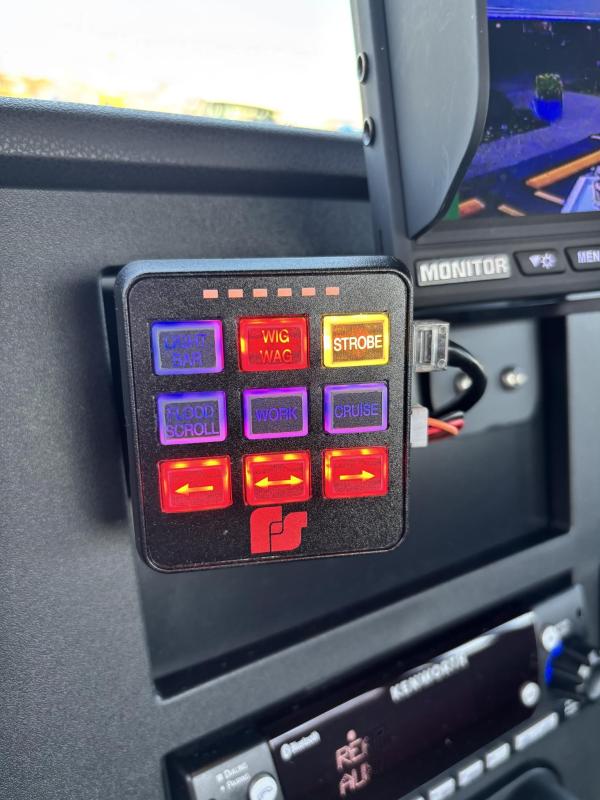

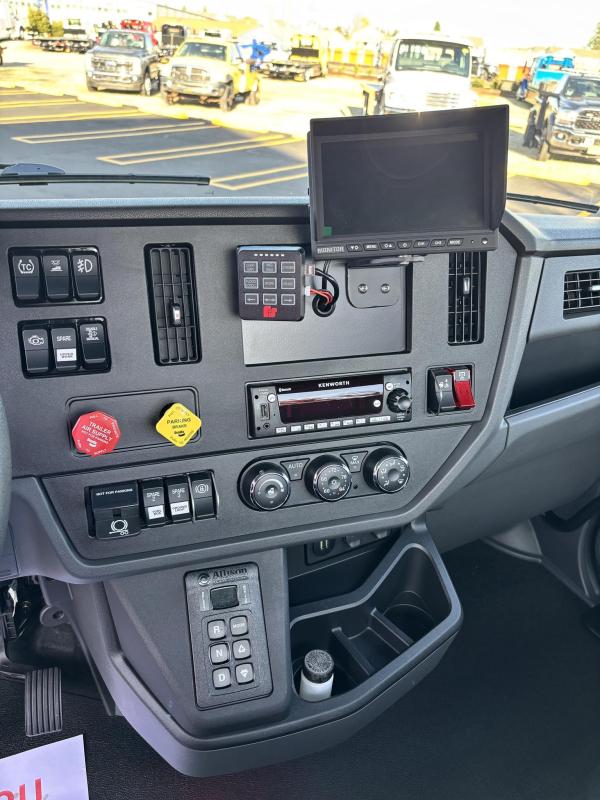

In-Dash Switch Panel
Install Trailer Ball Adapter (LD)
Jump Start Kit

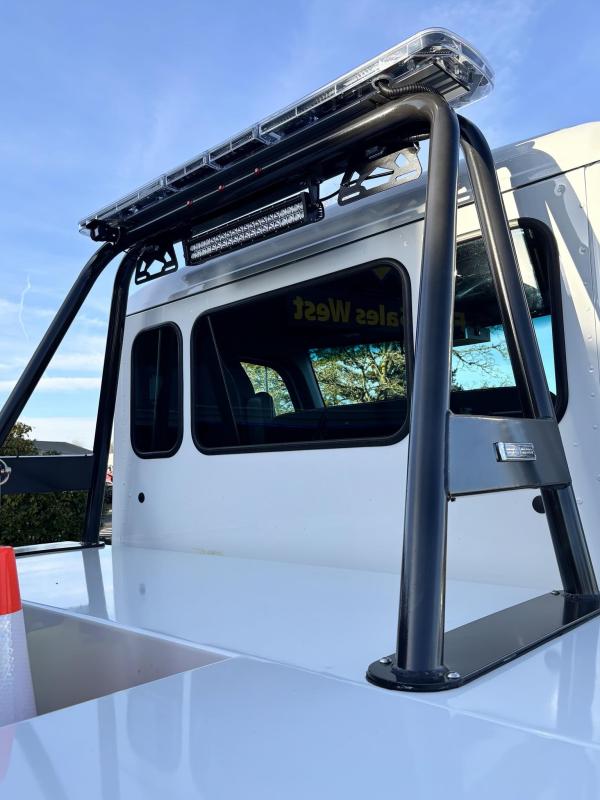

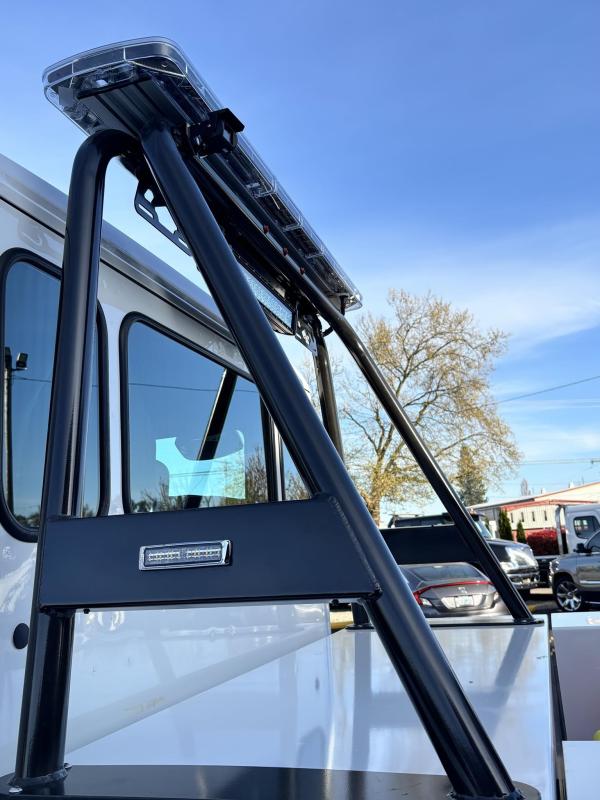

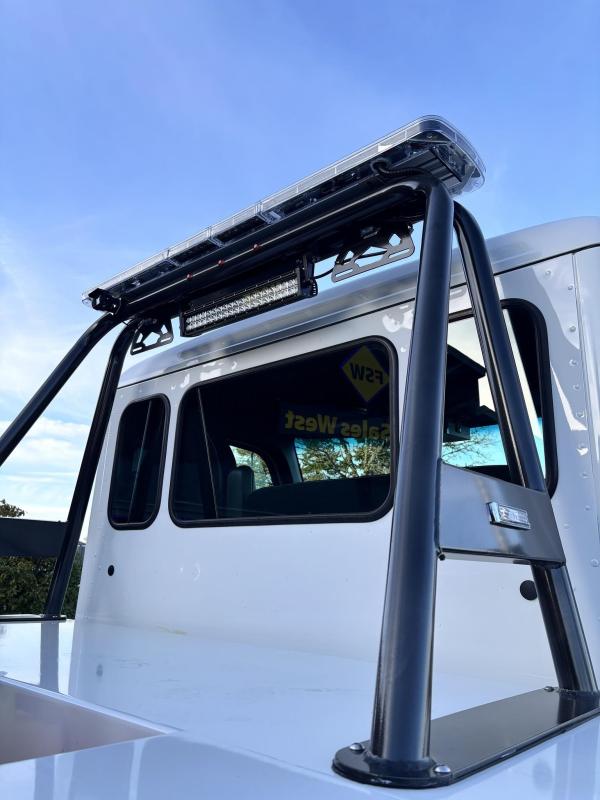

Light Bar (LD/CC)
Light duty bracket(s) installation
Live Air to Tailboard
Misc. Labor
Saddle Box (Each) LD
Snatch Block Storage Kit (Each)
Switch Panel Harness (Required for all LD Installs)
Work Lights (Pair)
Paint
Black Gloss Finish Paint (LD)
Paint - 1 Color - 108" CA Body (Chevron, LD)
DAA
ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
ACC: Air Inflate Kit: (F)68272; (W)68271; (G)61387
ACC: Boltcutters, 24"
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238

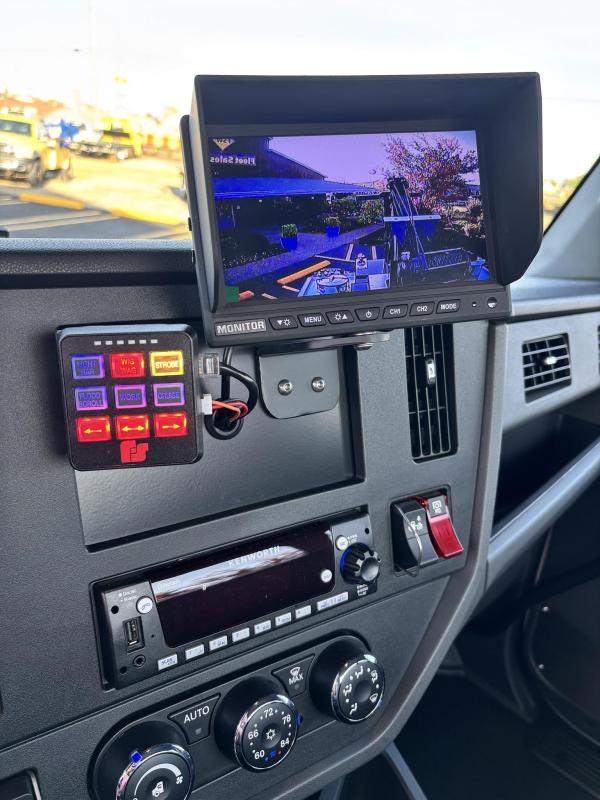

ACC: Camera, Two Backup 7” LCD System HD Applications
ACC: Cone, 18", Single: (F)CN-186R; (W)53858A; (G)100476
ACC: Driver Essentials Bag

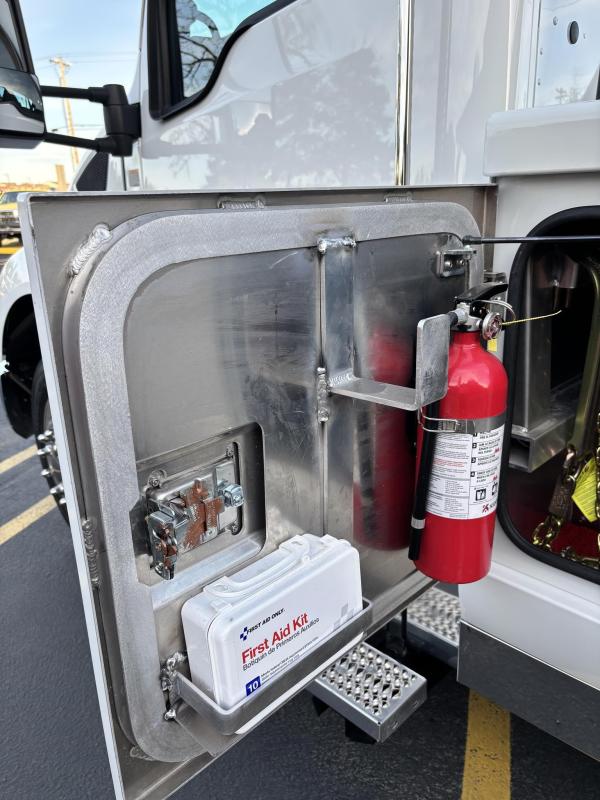

ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22
ACC: First Aid Kit: (F)ACE6060; (W)50503L; (G)20229
ACC: Flashlight with DC Charger, Streamlight LED PolyStinger
ACC: Fuel Can, Diesel, 5-Gallon, Yellow
ACC: Fuel Can, Gas, 5-Gallon, Red
ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
ACC: Lug Wrenchs, 14" Metric/20" Standard
ACC: Pry Bar, 60"/51" (F)AMES1160100; (W)50020; (G)PPB-51
ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ACC: Splitting Maul (F)AMES1113115200; (W)Maul Axe; (G)TJ-8H
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M: Bracket Kit, Aluminum, required for all Medium-Duty Wreckers
B/M: Dollie Axle Mount, Sliding, for Tunnel Box
B/M: Fuel Can Rack, Steel, behind Toolbox
B/M: Jumpstart/Air Coupler Bracket, Universal
B/M: Switch Panel Bracket, BR995, Peterbilt

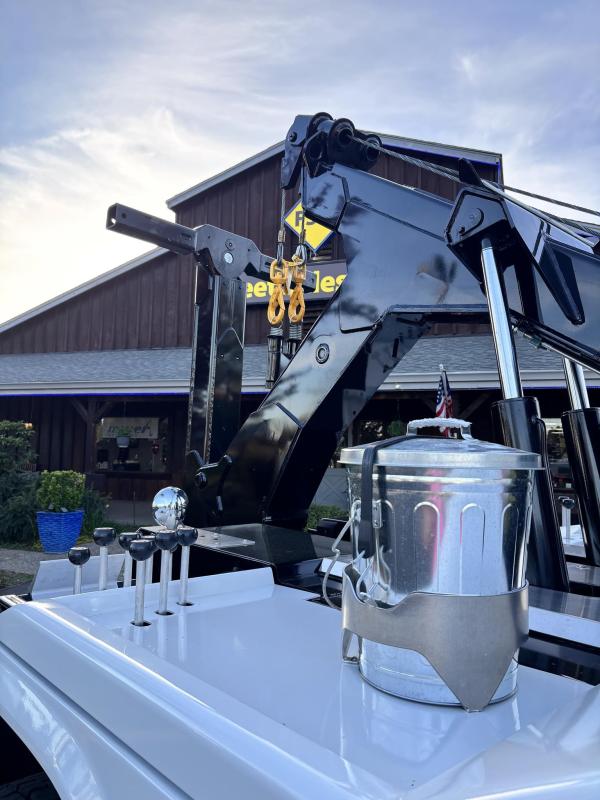

B/M: Trash Can Ring, 4-Gallon, Deck-Mount, Aluminum
BOD: Chain Pocket Guards, Stainless Steel, Pair
BOD: Mudflap Weights, FSW, Stainless Steel, Pair
BOD: Mudflaps, 24" x 18", Pair
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"
LB: Allegiant-Serial™24H w/TA 5 year warranty includes FS 12FXN controller for TA

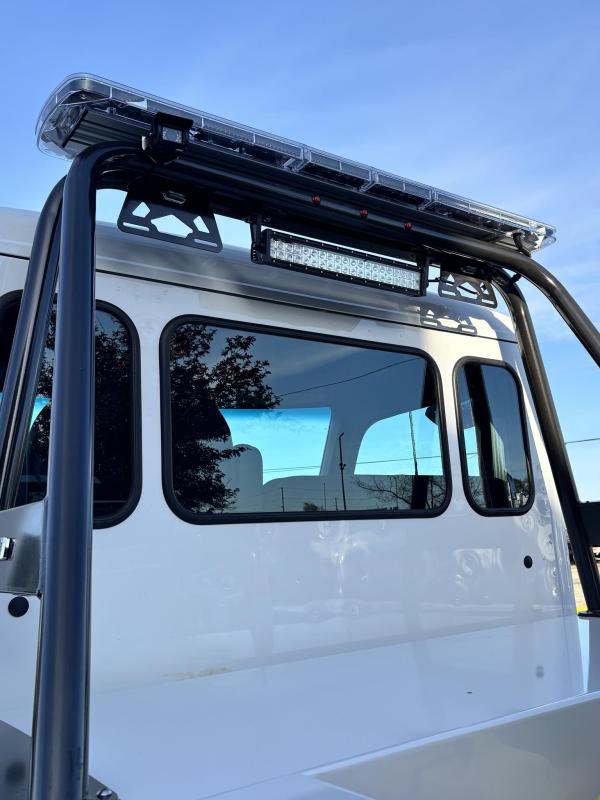

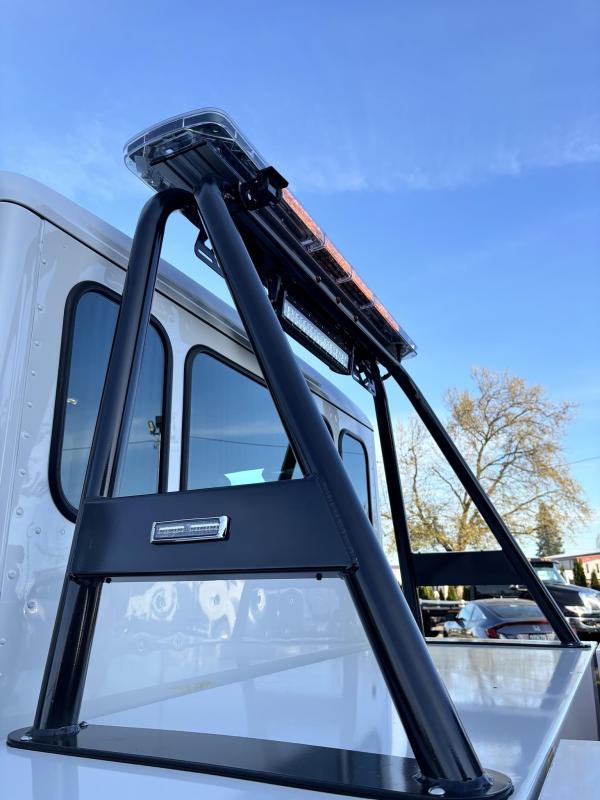

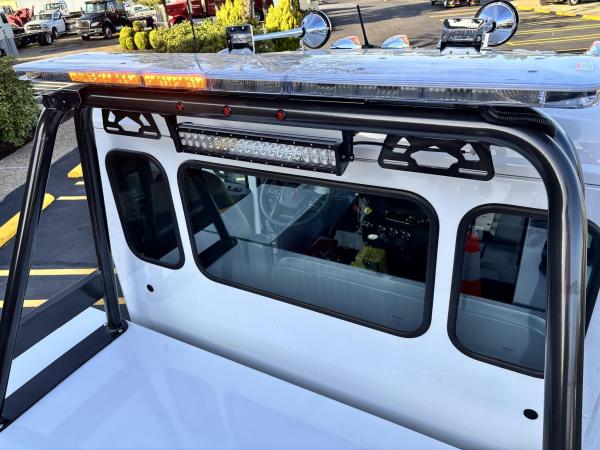

LIT: 25" Double Stack LED Light bar work lite- 20AMP
LIT: Breaker, 80-Amp, add 1 for each Jumpstart connection

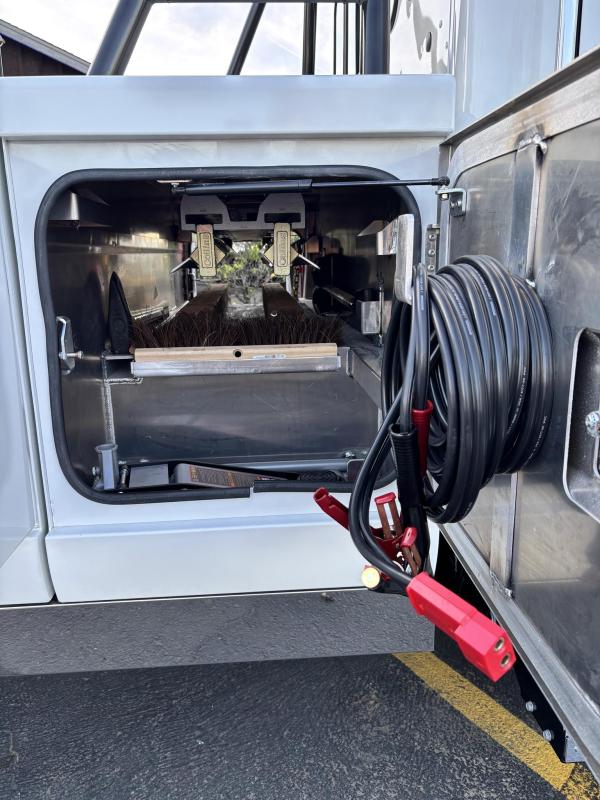

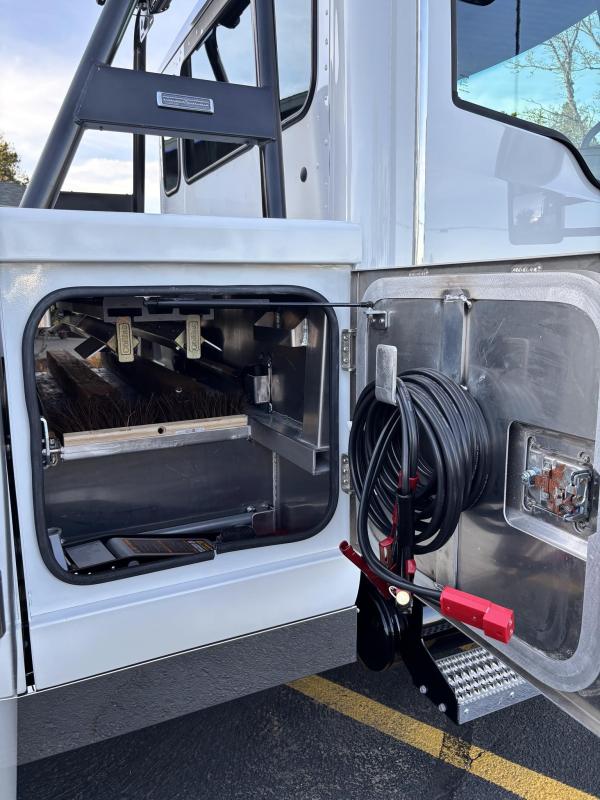

LIT: Jumpstart, Brooking Flush-Mount Kit, Front, with 25' Cables
LIT: Junction Box, 10-Pole
LIT: PTO Light, LED
LIT: Tow Light Bag with LED Tow Lights and Magnet Boots
LIT: Tow Lights, LED, 30' Cord, Round-Magnet
LIT: Work light- 6" Rectangular LED Work Lamp w/ Amber Strobe ( Pair)
LIT: Worklights, Round, 550 Lumens, Liquid Silver Finish, for Aluminum Pylon, Pair
SH: Air Coupler, Rear (Wrecker) (F) 27808; (W) Auto Coupler; (G) 68273
SH: Shop Supplies
SL: Back up lite W/Red Taillight Glow Edge 3"x5" x2
SL: LED MARKER Flasher control Module
SL: Strip Lights, 18", White, LED, in Wrecker Toolboxes, Pair
SL: Strip Lights, 36", Amber/White, LED, Pair, Undercab
SL: Strobes, Amber Grille Lights, ST-6 Super-Thin, Pair, Chrome Bezels, Backing Plates, Wire Harness
SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, Mounted at Rear of Wrecker, Wire Harnesses

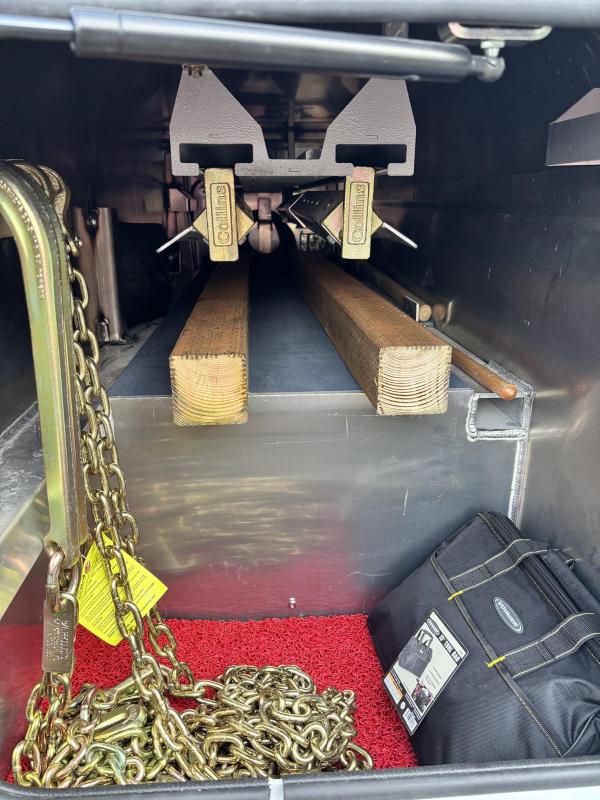

TB: Bunks, Dollie, 4:80, SS Door, Pair
TB: PolyFloor, Installation
TB: PolyFloor, Red, 50 Squares

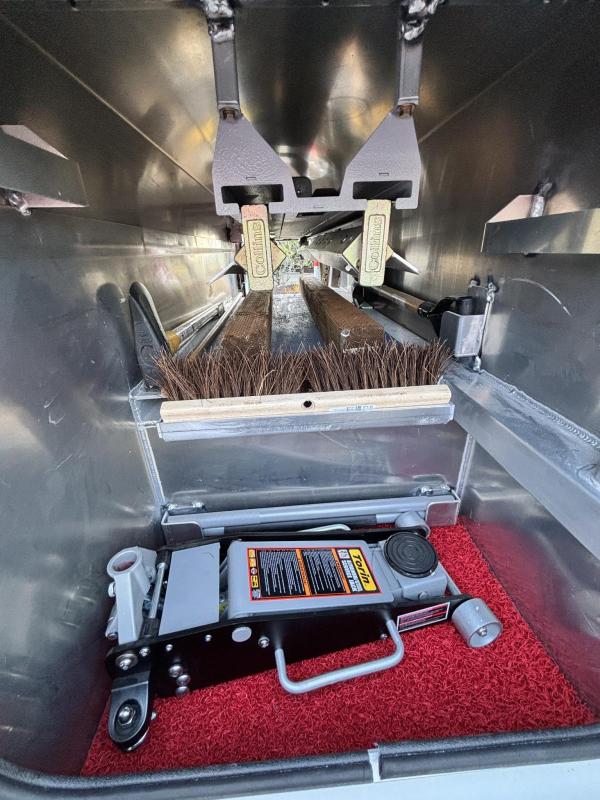

TB: Tray, Floorjack, Slide-In
TOW: Chain, Recovery, 20', 5/16", Grade 70, Cradle Grab Hooks, Single
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
TOW: Chains, Safety, Grade 80 Self-Locking Hooks, Pair
TOW: Dollies, Collins, 4:80 Tires, Aluminum Wheels, Aluminum Crossrails, Complete Set
TOW: Flare Case (Case Only)
TOW: Flares, 6 (F)0730(x6); (W)7703605(x6); (G)100783(x6)
TOW: Lumber, 4" x 4"s, 48" & 60"
TOW: Ratchets, 2", Wide-Handle, Finger-Hook, Pair
TOW: Snatch Block, 4-Ton
TOW: Strap Kit with Bag, Motorcycle, Wrecker, B/A
TOW: Strap, Steering Wheel
TOW: Straps, Chevron, Keyhole, Pair
TOW: Tiedowns, Dollie, Ratchets and Straps, Pair
TOW: Trailer Ball Kit, Convert-A Ball
TOW: Trailer Hitch Plate, Chevron, Standard
TOW: Winch Cable, 3/8", 150', Fiber Core, Self-Locking Hook

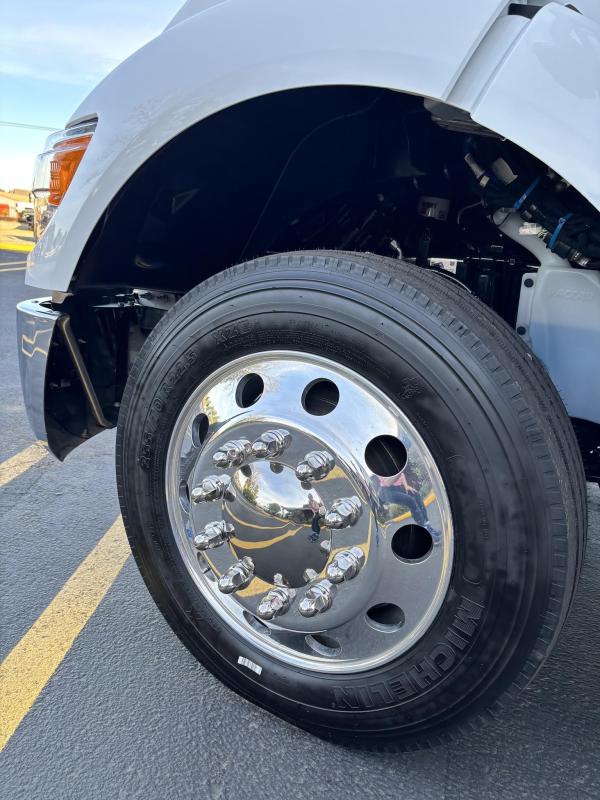

WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"
Notes
Distributor Paint for side boxes, Tunnel white.
Center section black
Need HD 43’ Pylon for this order. 124004475 to see if we can make it fit
Glow lights installed on bottom of tool boxes set to Amber for Running
White for Area lights on separate switch. Under body
Stainless dress up. under Distributor Accessories.
Under Dist. accessories 3900.00 cover Pylon

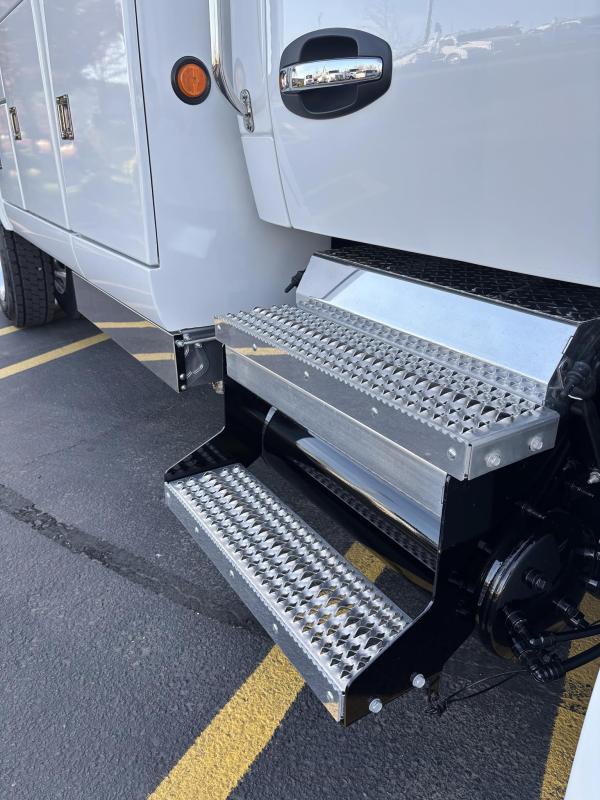

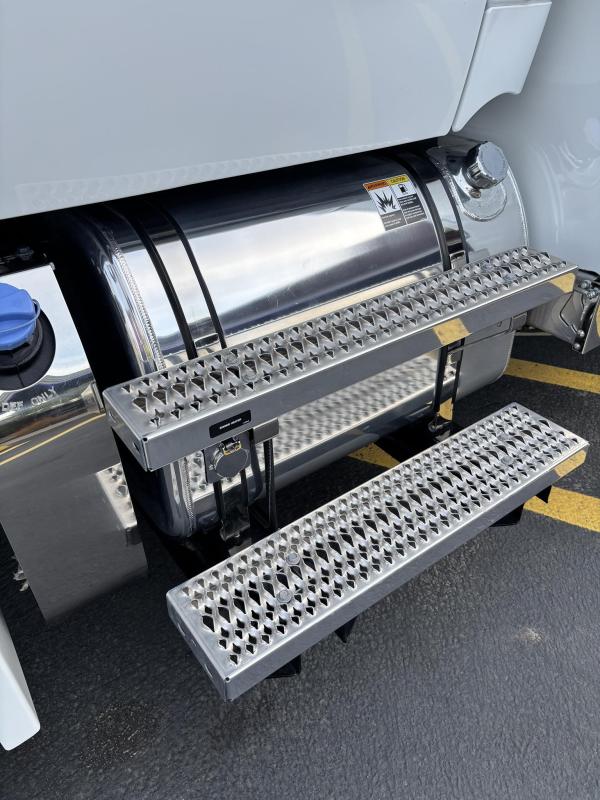

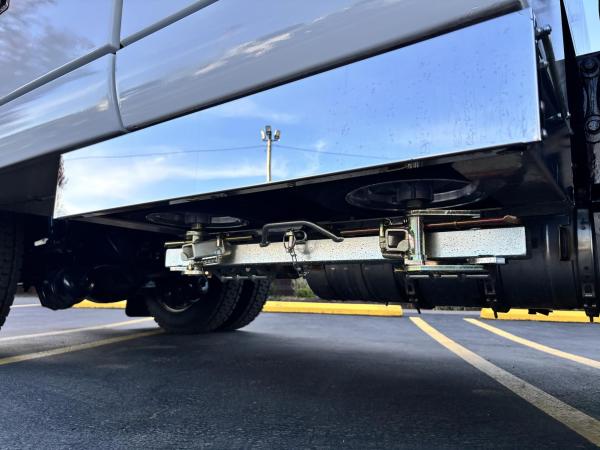

Aluminum underbody steps.
Can - Cones - rack behind the tunnel box.
