• A/C Condition New
• Air Conditioning Yes
• Axle Single
• Cab Extended Cab
• Collisionmitigationsystem No
• Color White
• Cruise Control Yes
• Dot Yes
• Drive 4x2
• Driver Position Left Hand Drive
• Dual Breathers No
• Dual Exhuast No
• Engine Brake No
• Engine Size 6.7
• EnginesizeUnit Engine Liter
• Exhaust Brake Yes
• Fuel Type Diesel
• Glider Kit No
• Gross Vehicle Weight 25500
• GrossvehicleweightUnit Pound
• Headache Rack No
• Heated Mirror Yes
• Horsepower 300
• HorsepowerUnit Horsepower
• Hours Meter Inaccurate 0
• Lift Axle No
• Mileage 211
• MileageUnit Mile
• Num Speeds 6 Spd
• Overdrive Yes
• Overhaul No
• Power Locks Yes
• Power Steering Yes
• Power Windows Both
• Ratio 4.88
• Super Singles No
• Suspension Air Ride
• Tilt Telescope Yes
• Tires 255/70R 22.5
• Transmanufacturer ALLISON
• Transmission Automatic
• Transmission Rebuilt No
• Transmission Type Allison RDS
• Turbo Yes
• Wet Kit No

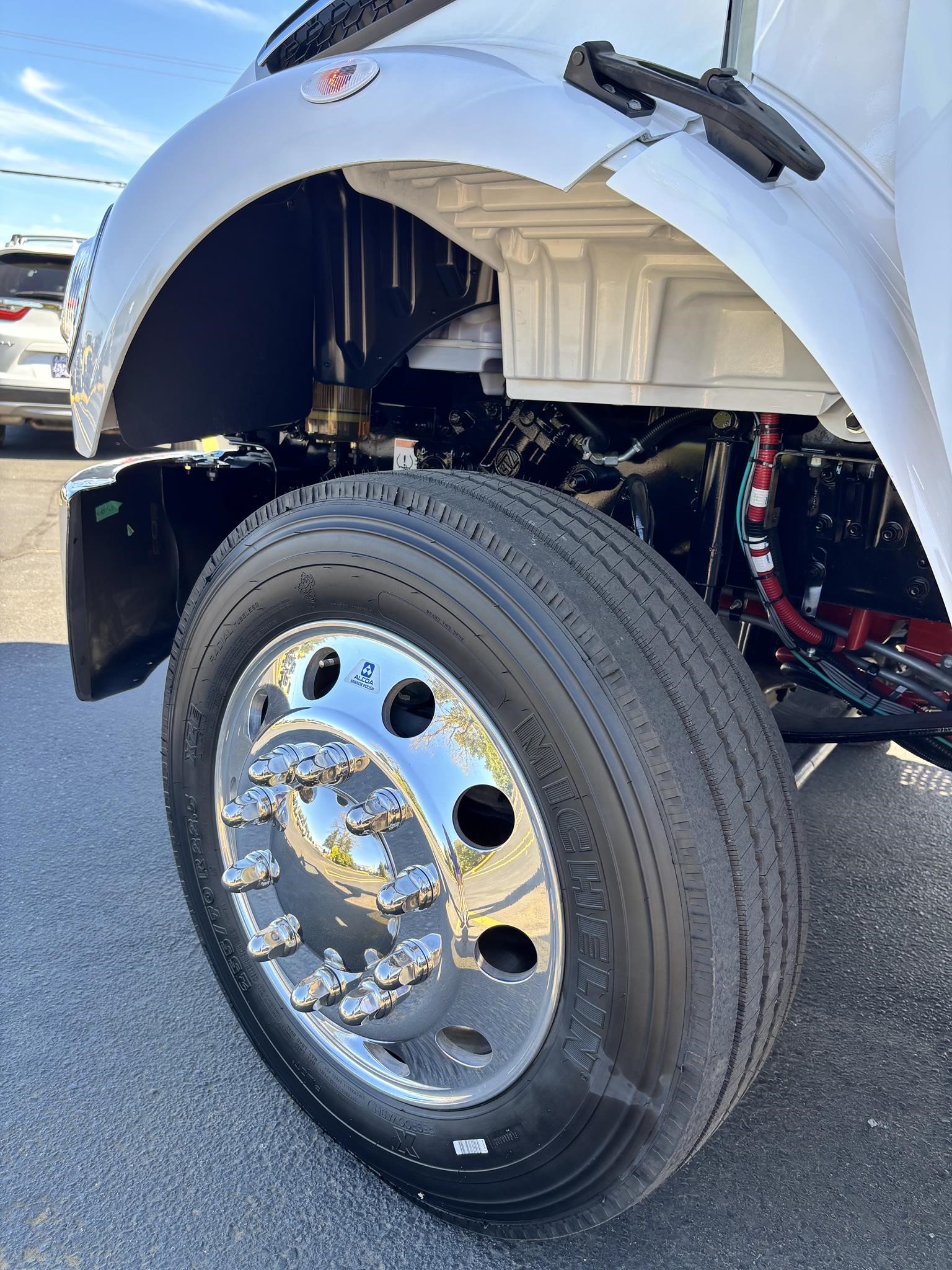

• Wheels Aluminum

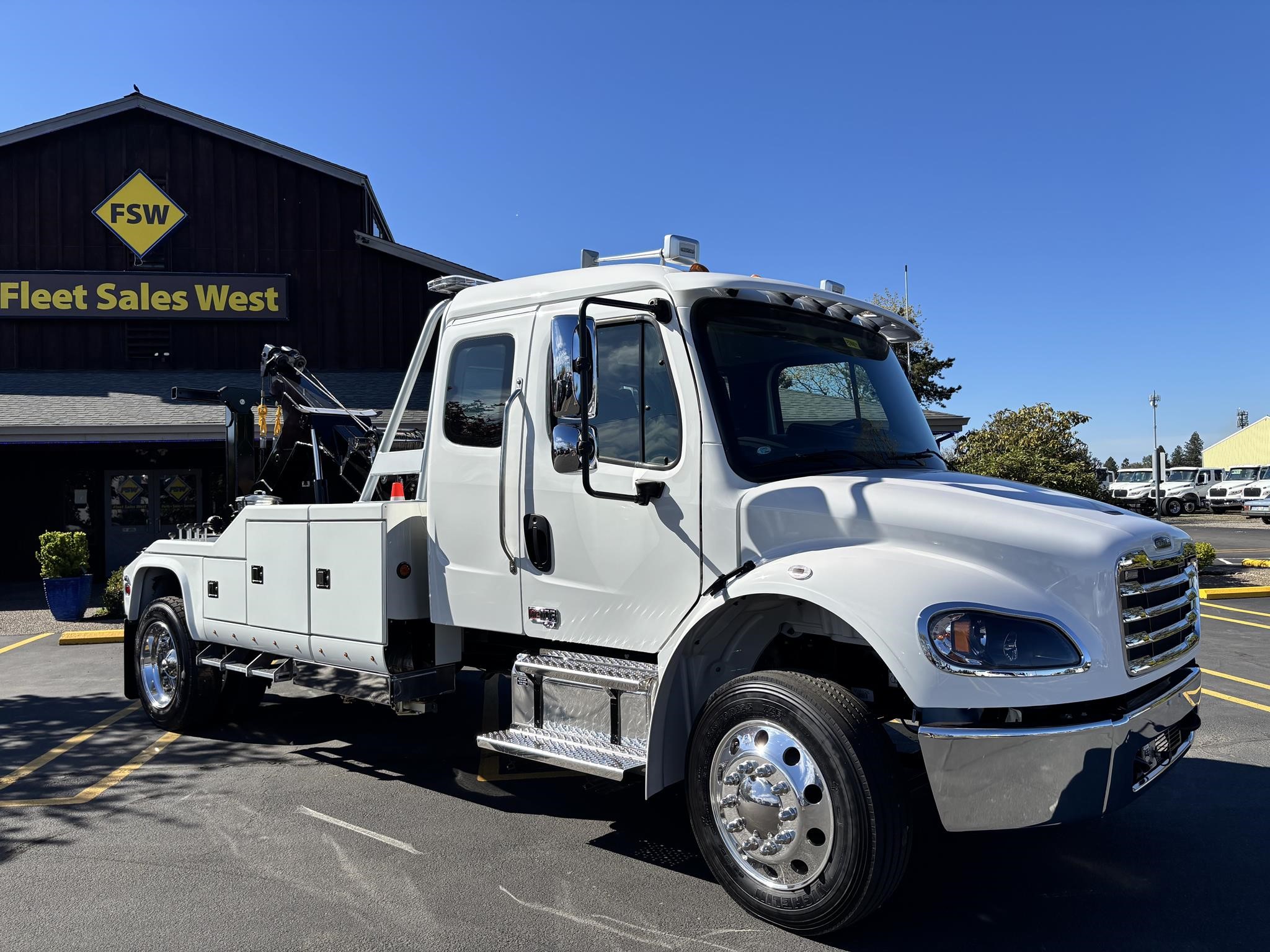

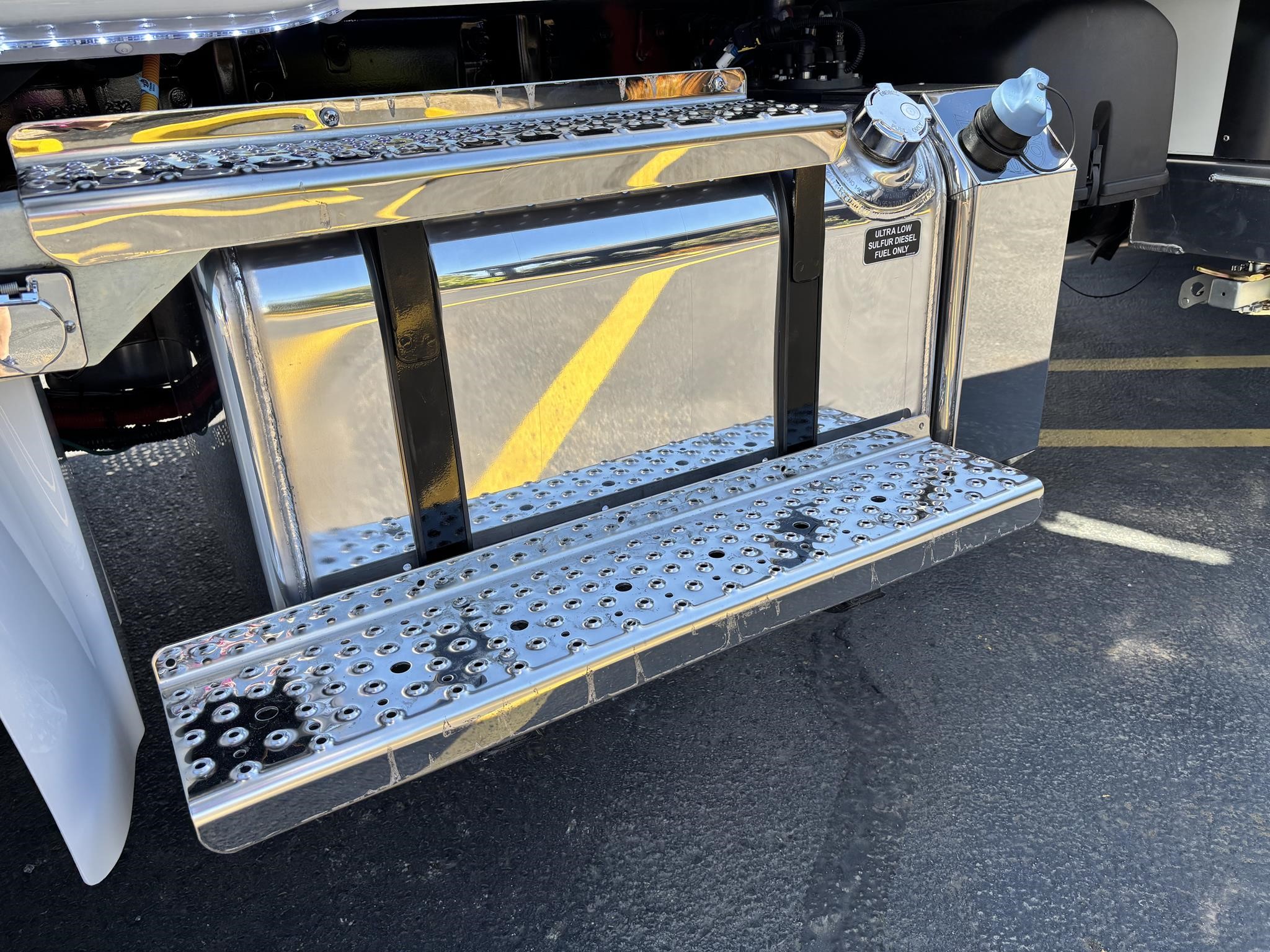

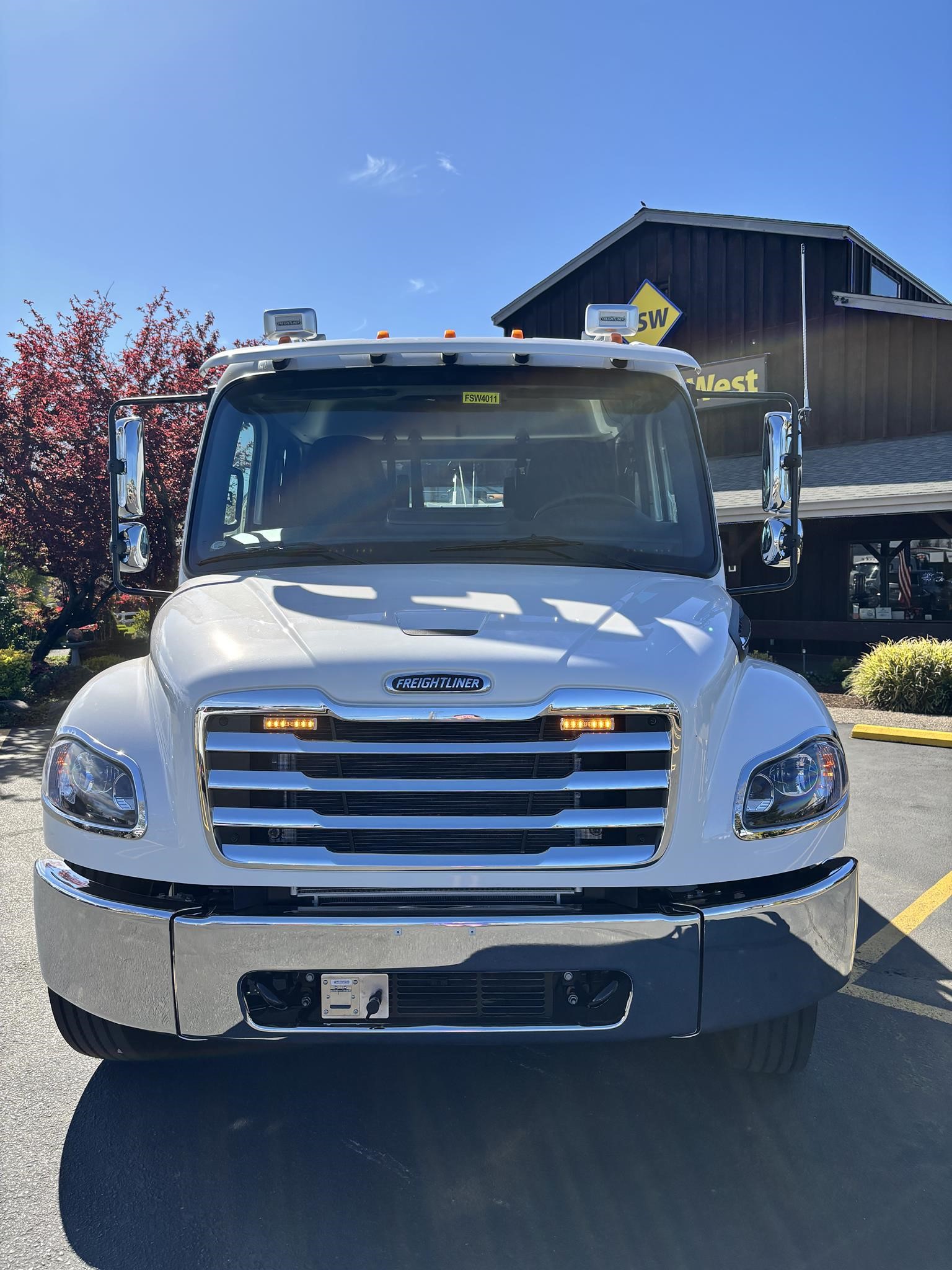

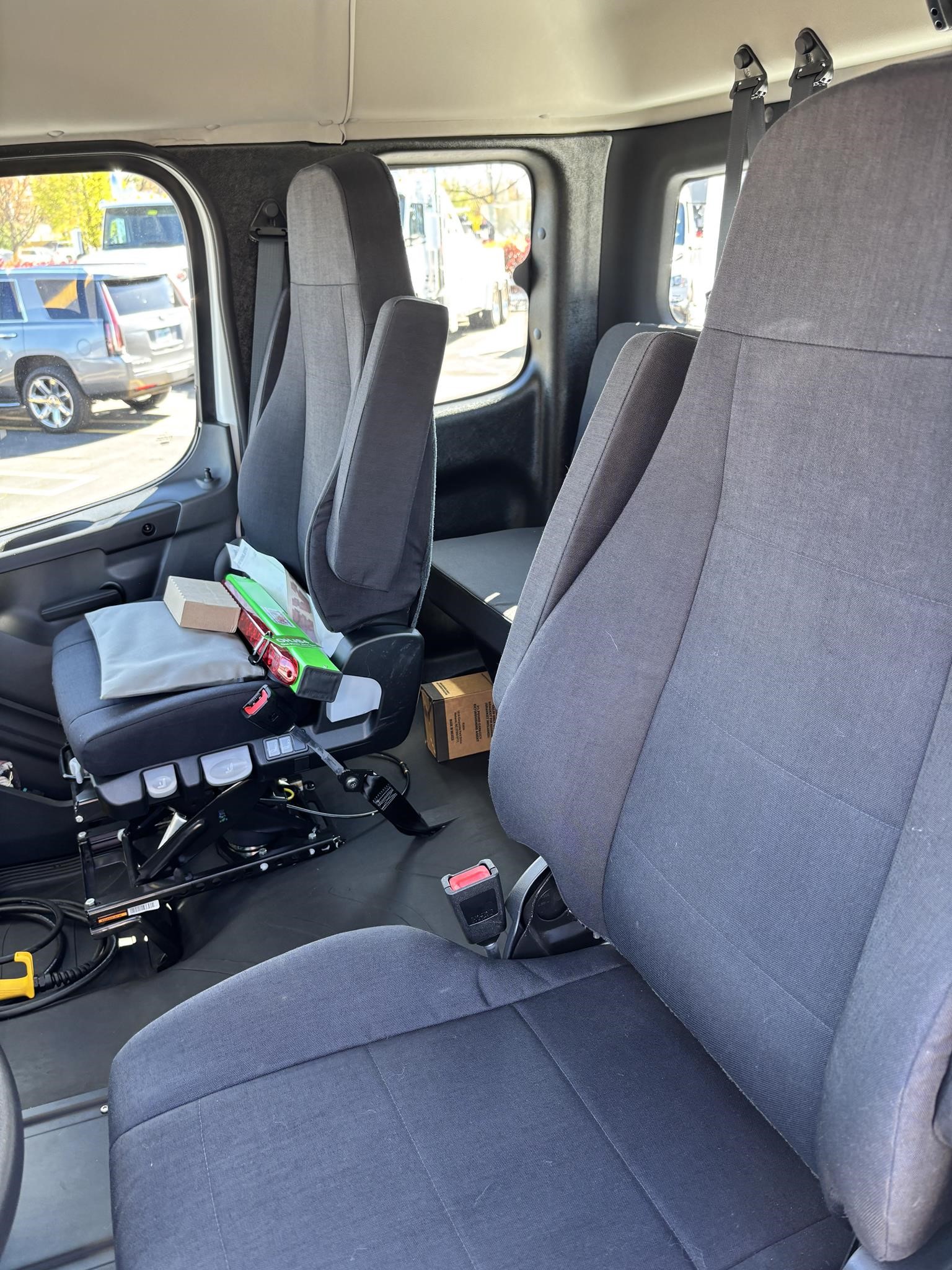

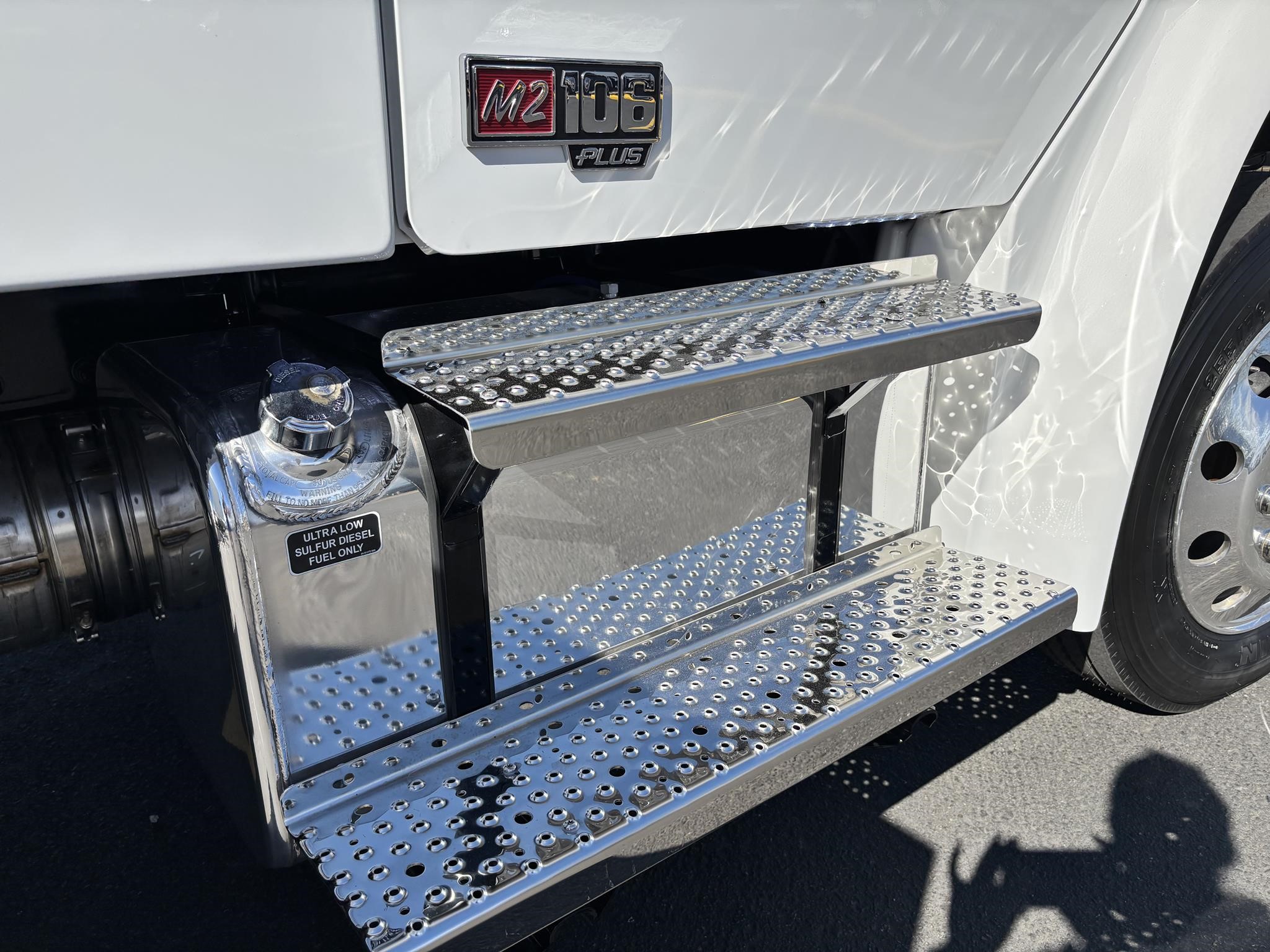

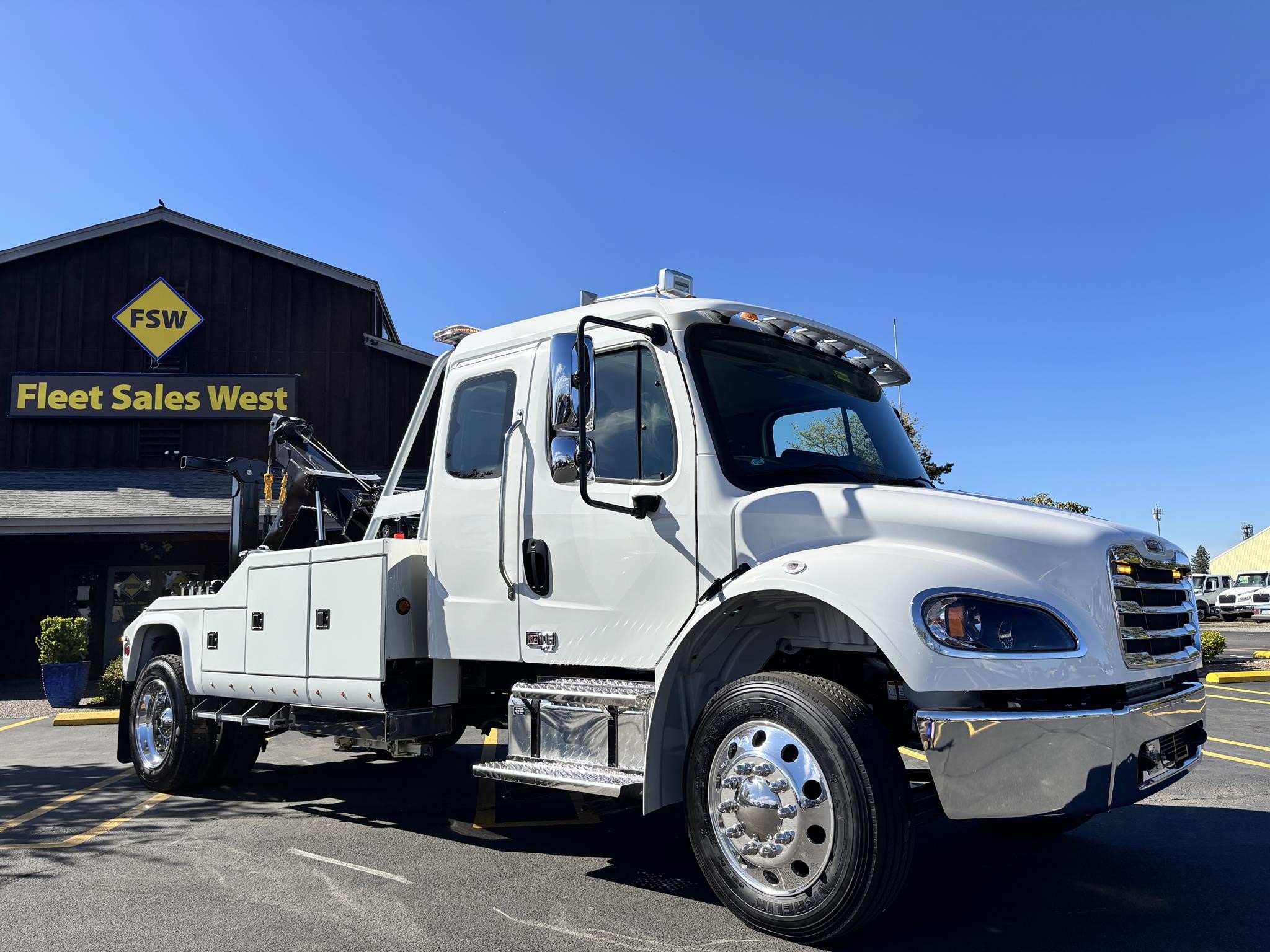

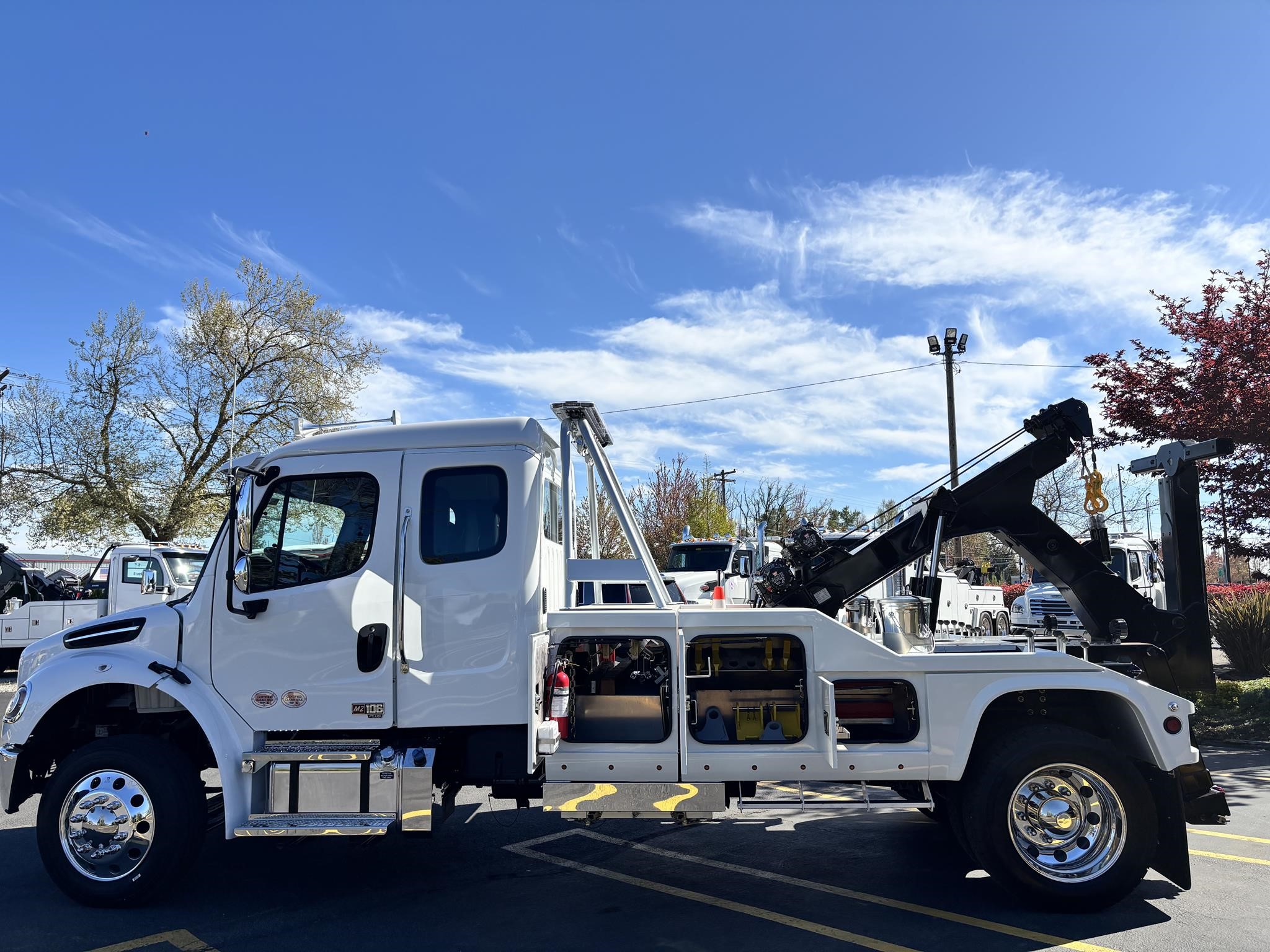

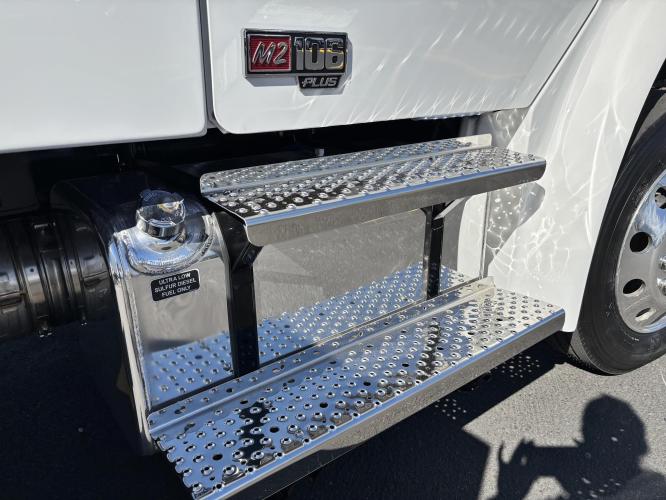

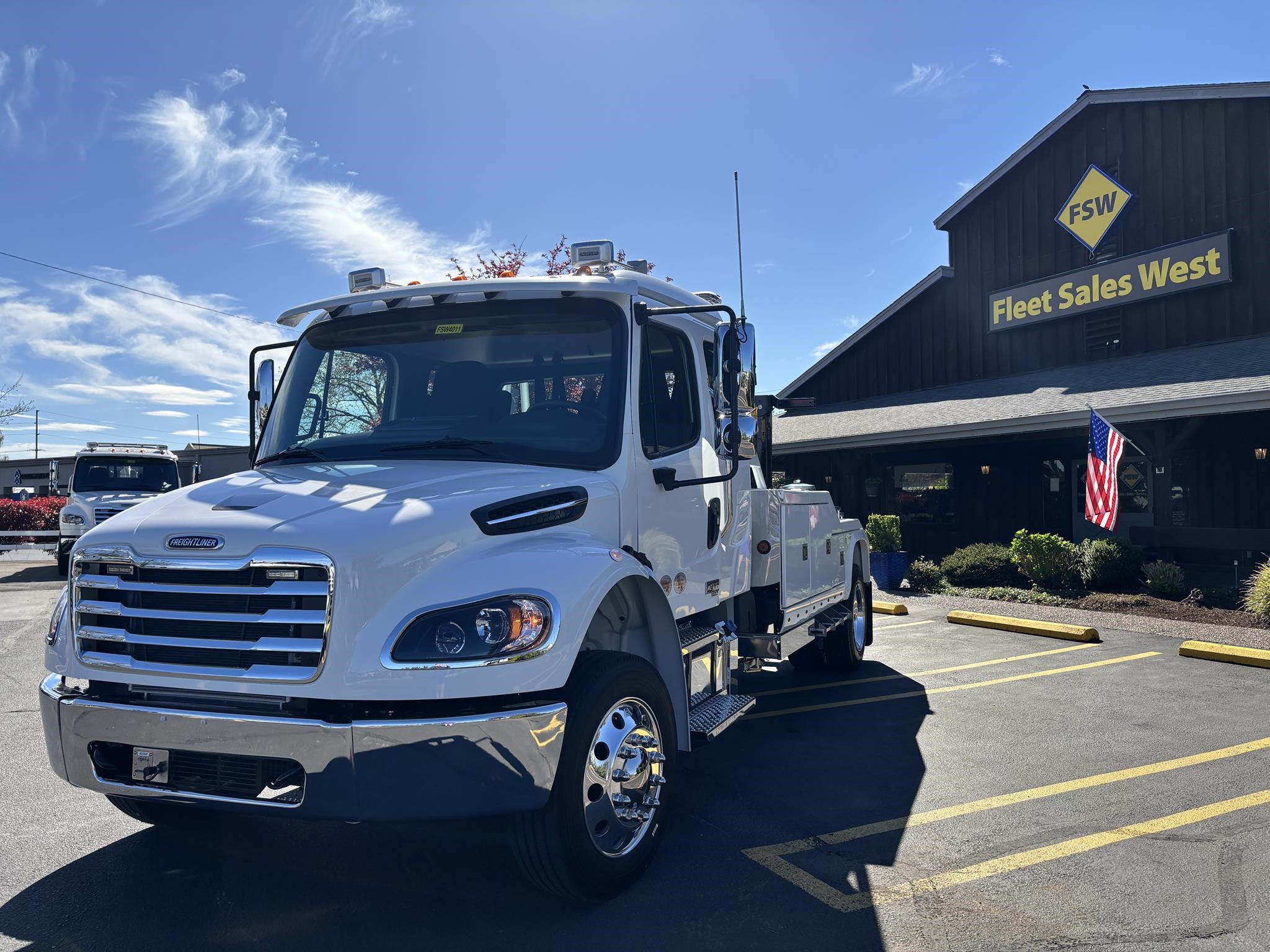

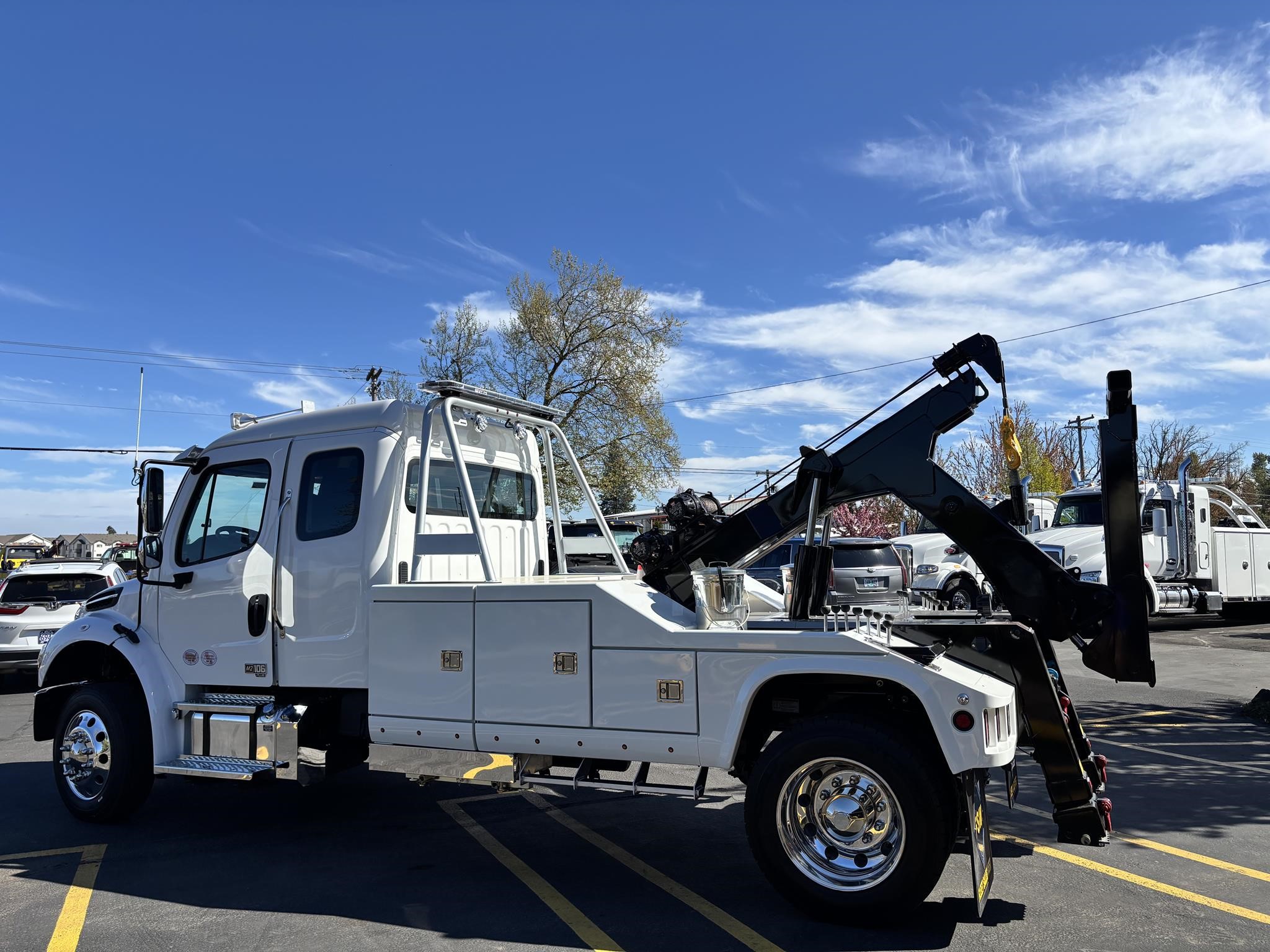

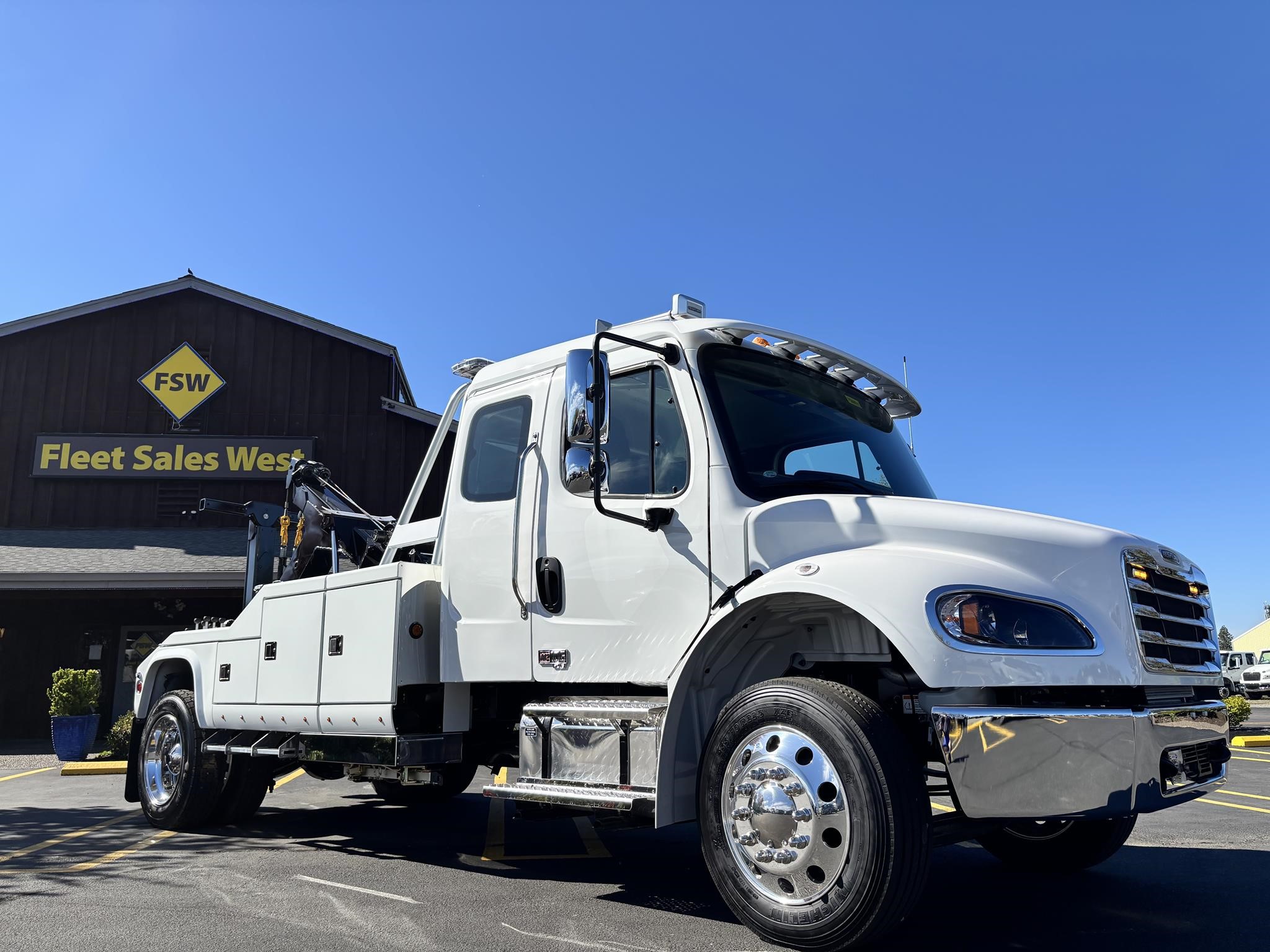

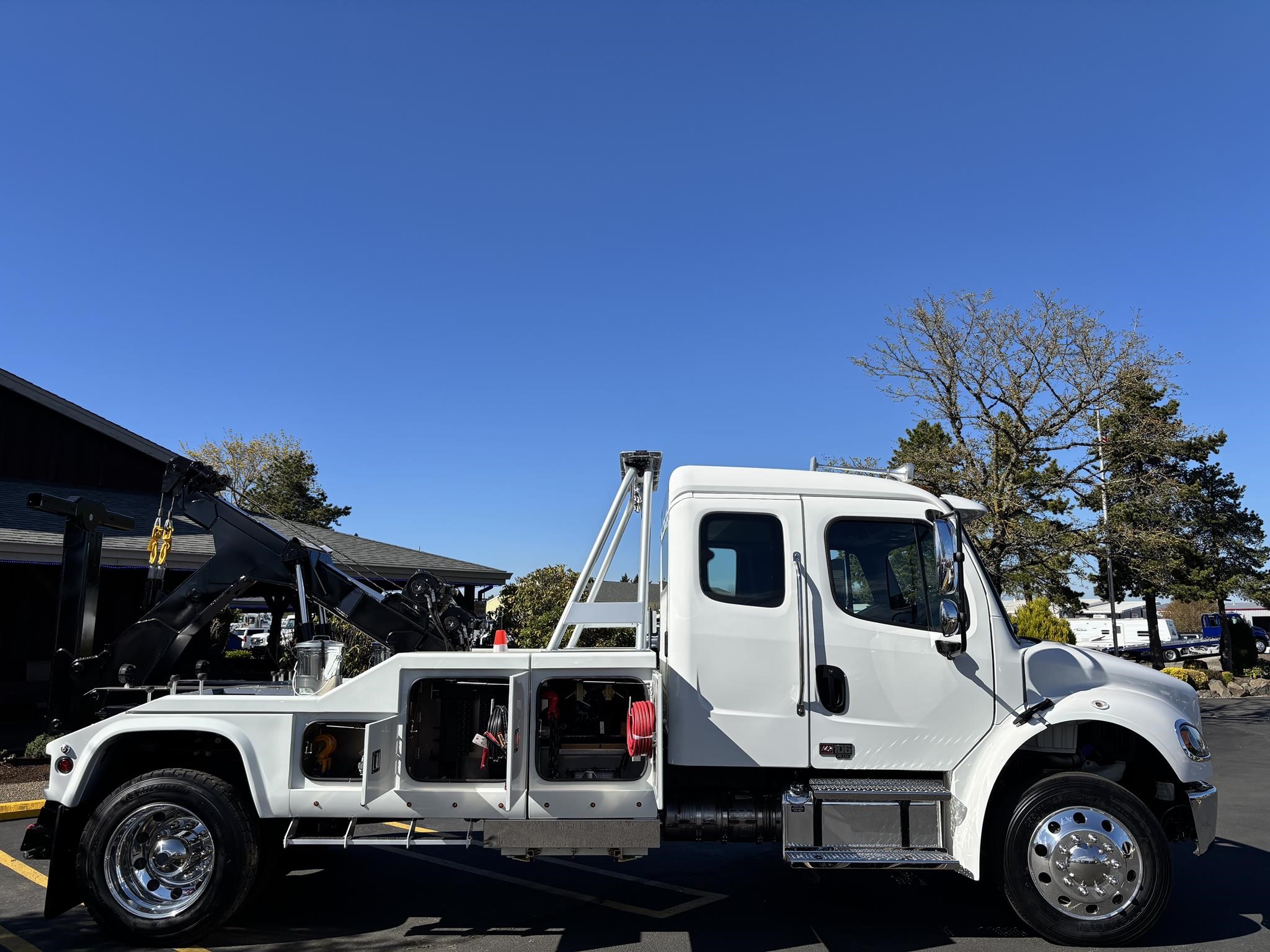

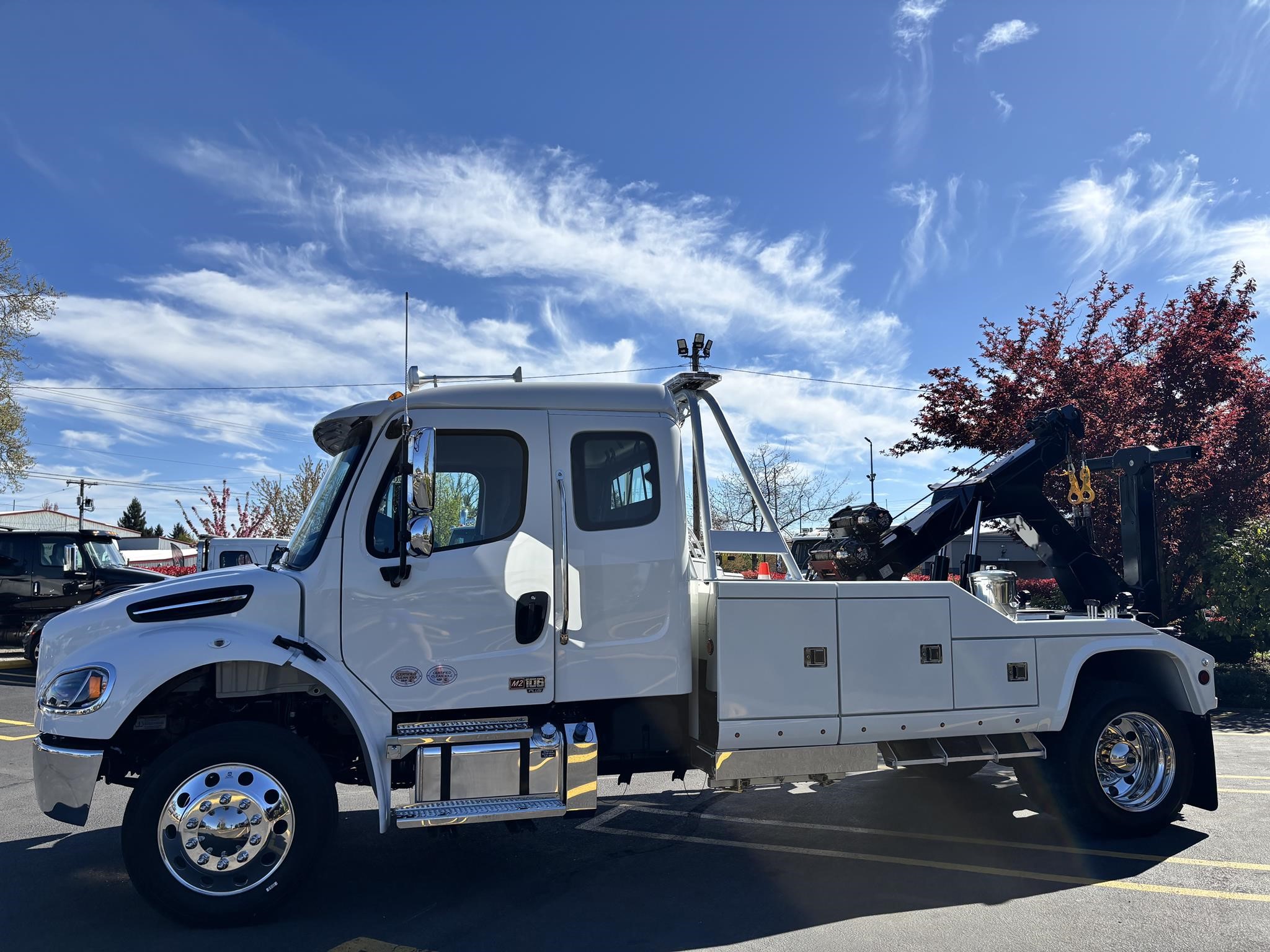

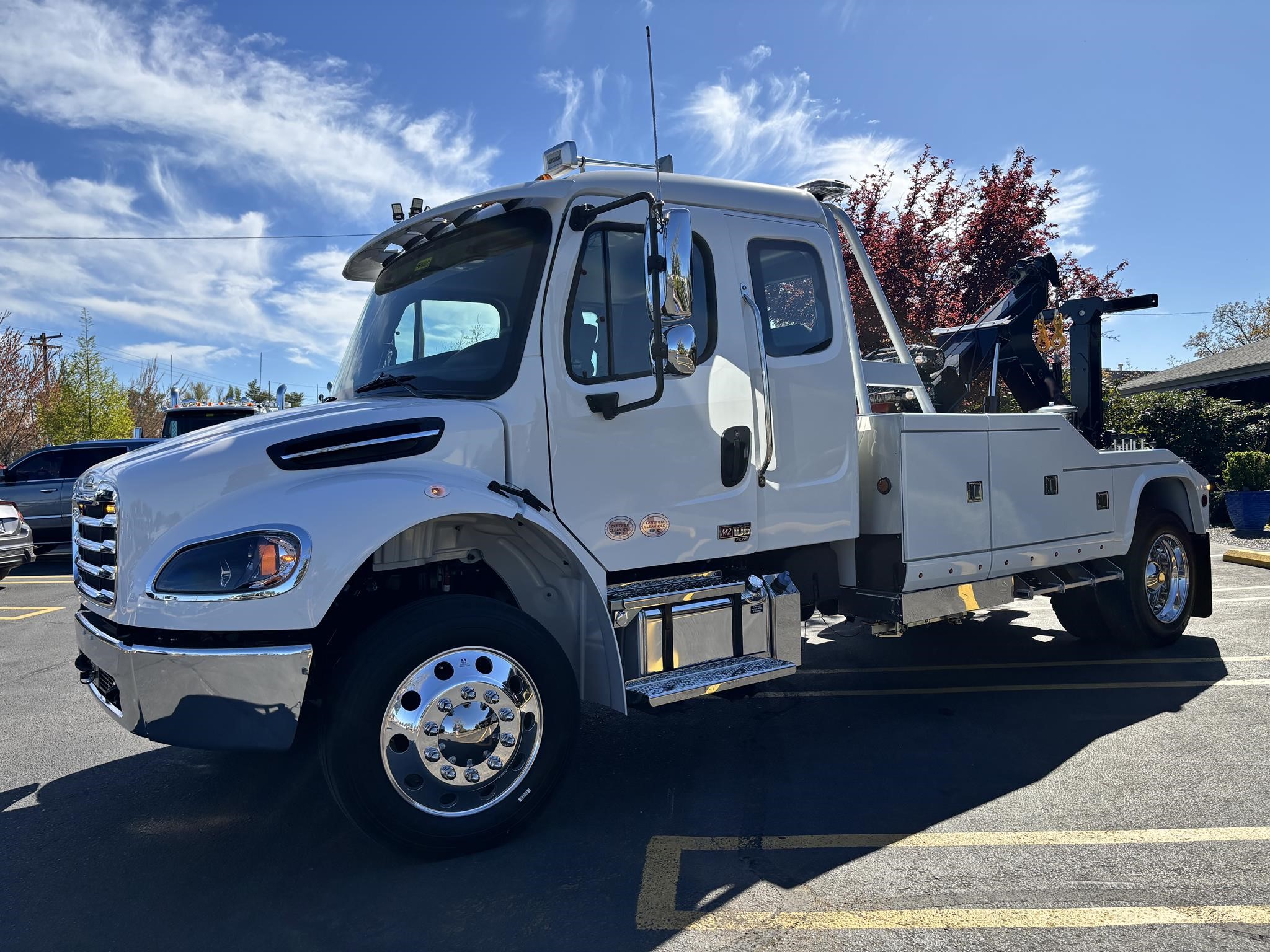

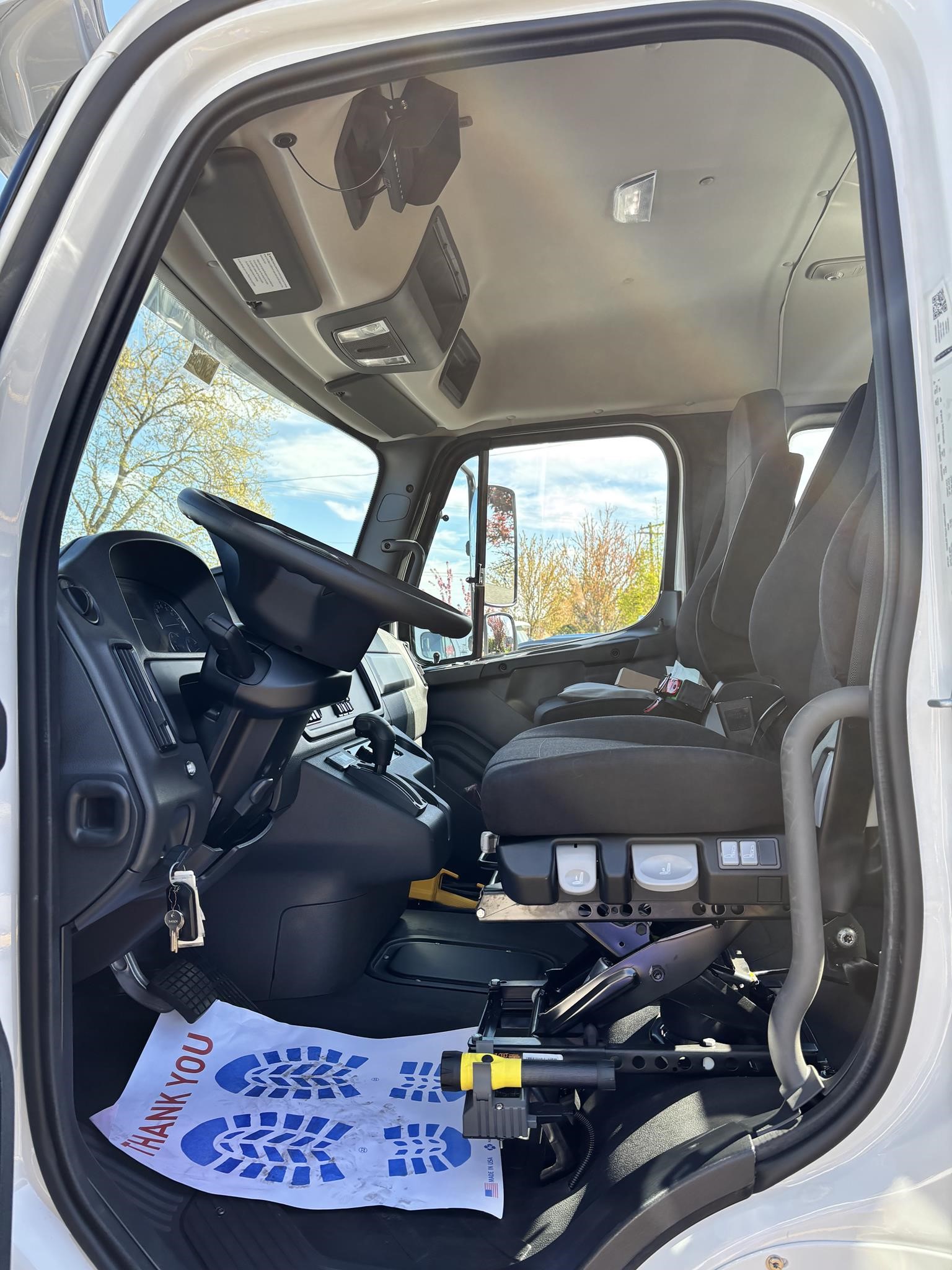

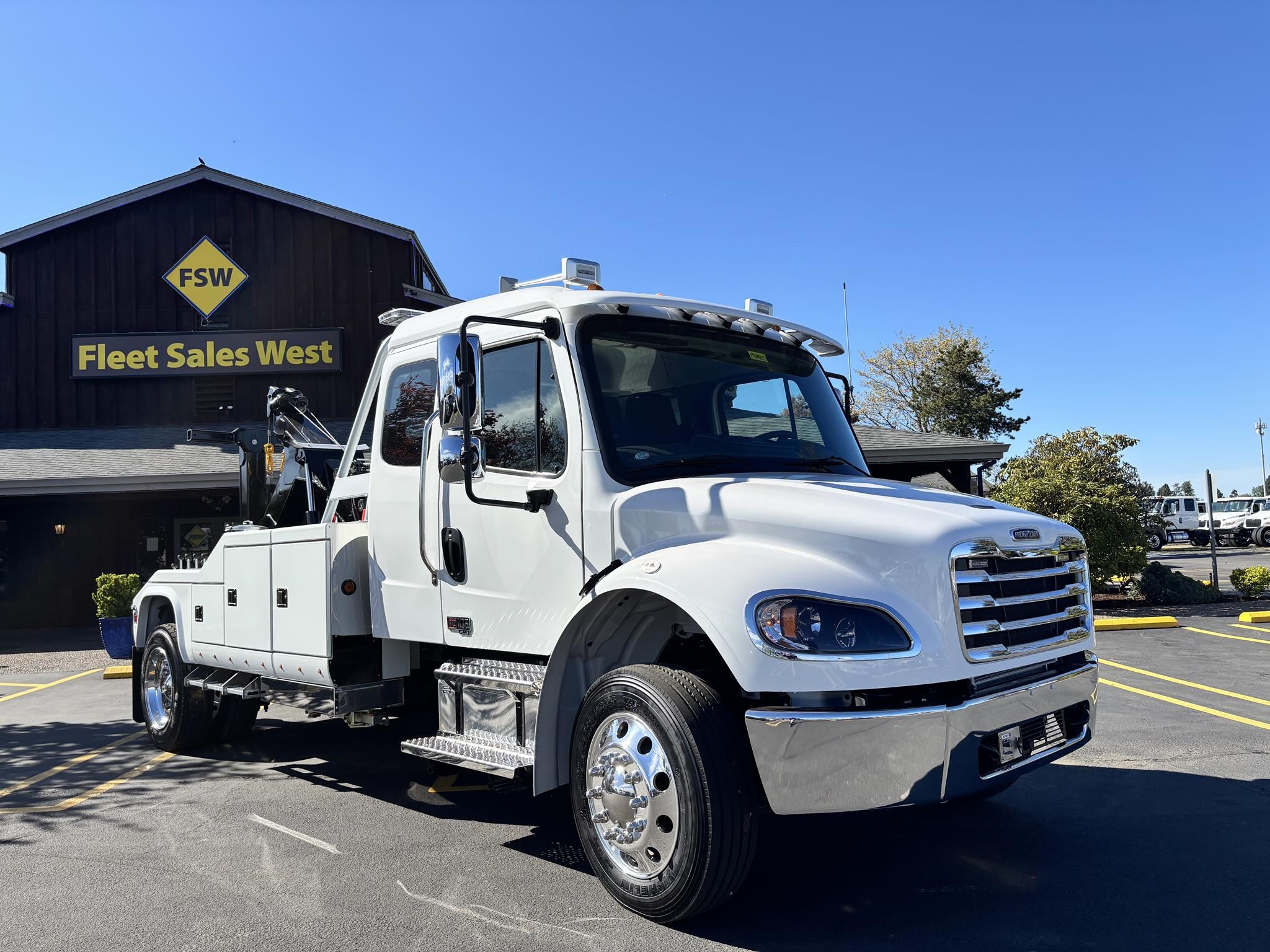

2025 FRTR M-2 106 plus 132BBC 300 HP Allison Automatic. Exhaust Brake. Air Brake package. Dual Aluminum 50-gallon tanks. Air Ride Driver seat, single bucket passenger seat. Rear Bench seat. Cordura cloth seat option. Visor. Dual 26” Hadley Air Horns. Air Ride Cab. Tilt Wheel., Cruise Control. AM/FM CD player. 10K front Axle, 21,000lb Rear Axle, 23,000lb Rear Air Ride Suspension. Chrome 3-piece bumper. 6 Factory Switches, Winch brake. LED POD headlight option. Locking rear diff. Dump Valve for Rear suspension. 25,500 GVWR
5-year 300K PPI Cummins extended warranty. . Allison 7-year Unlimited Miles warranty.

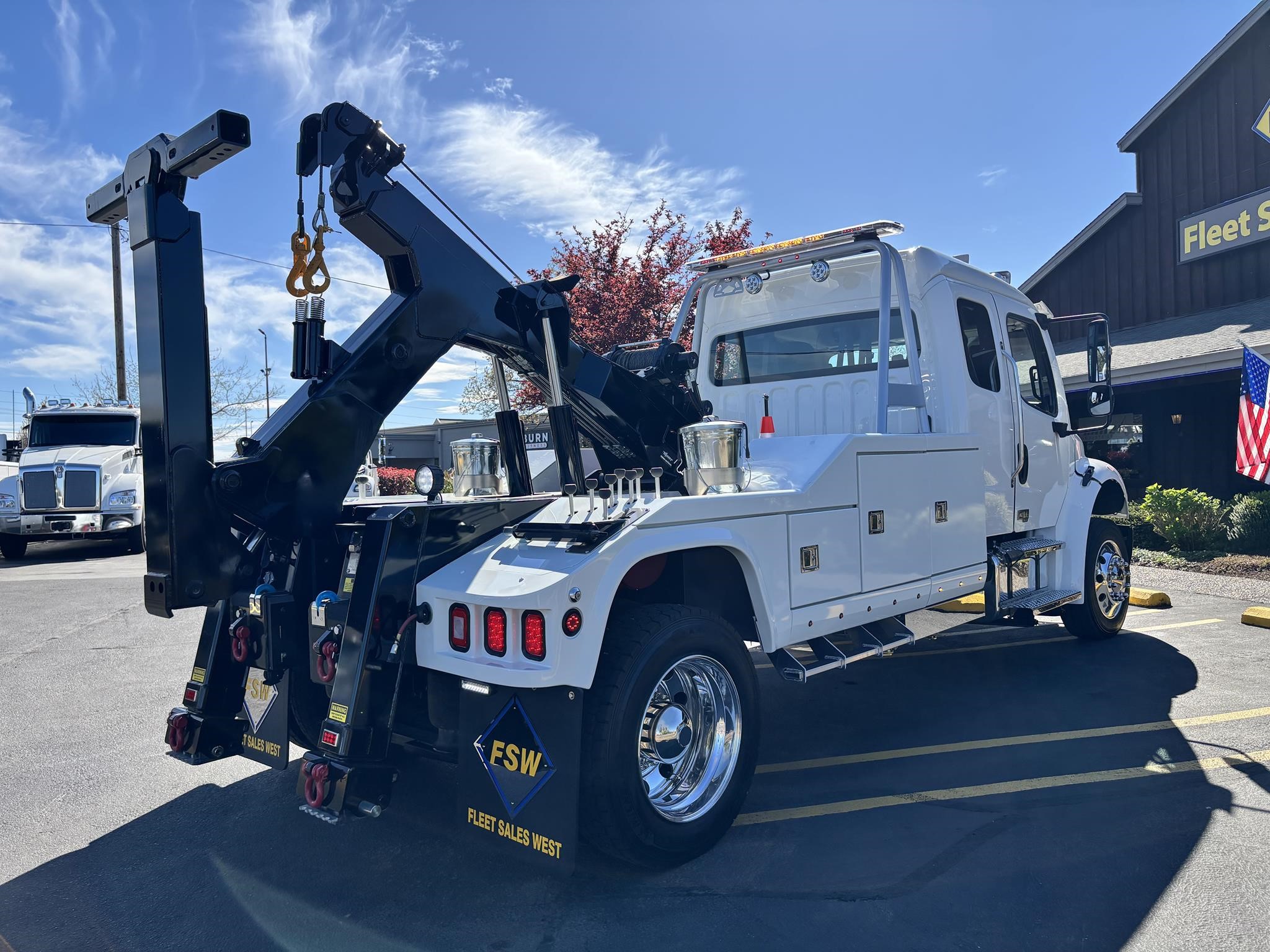

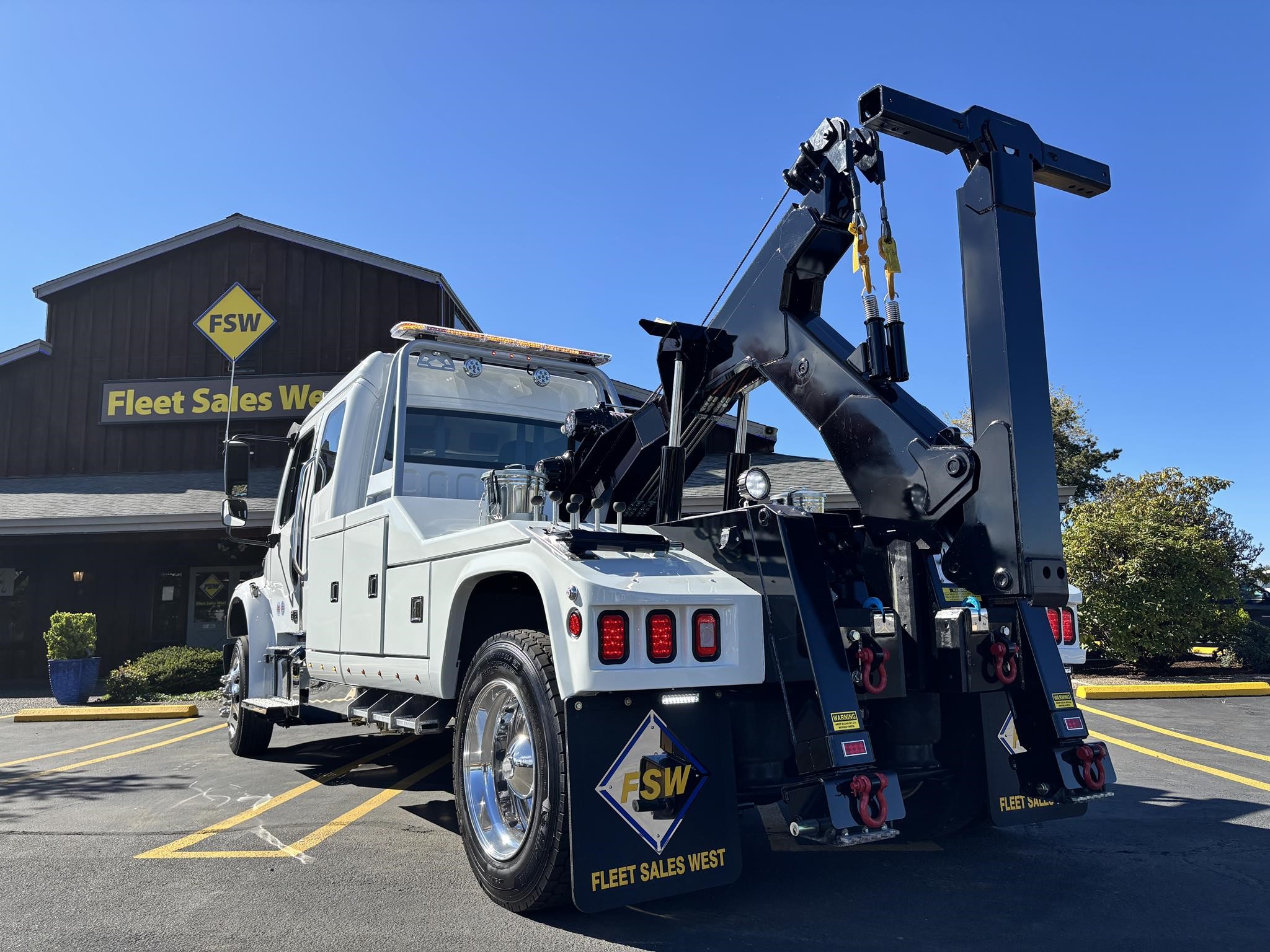

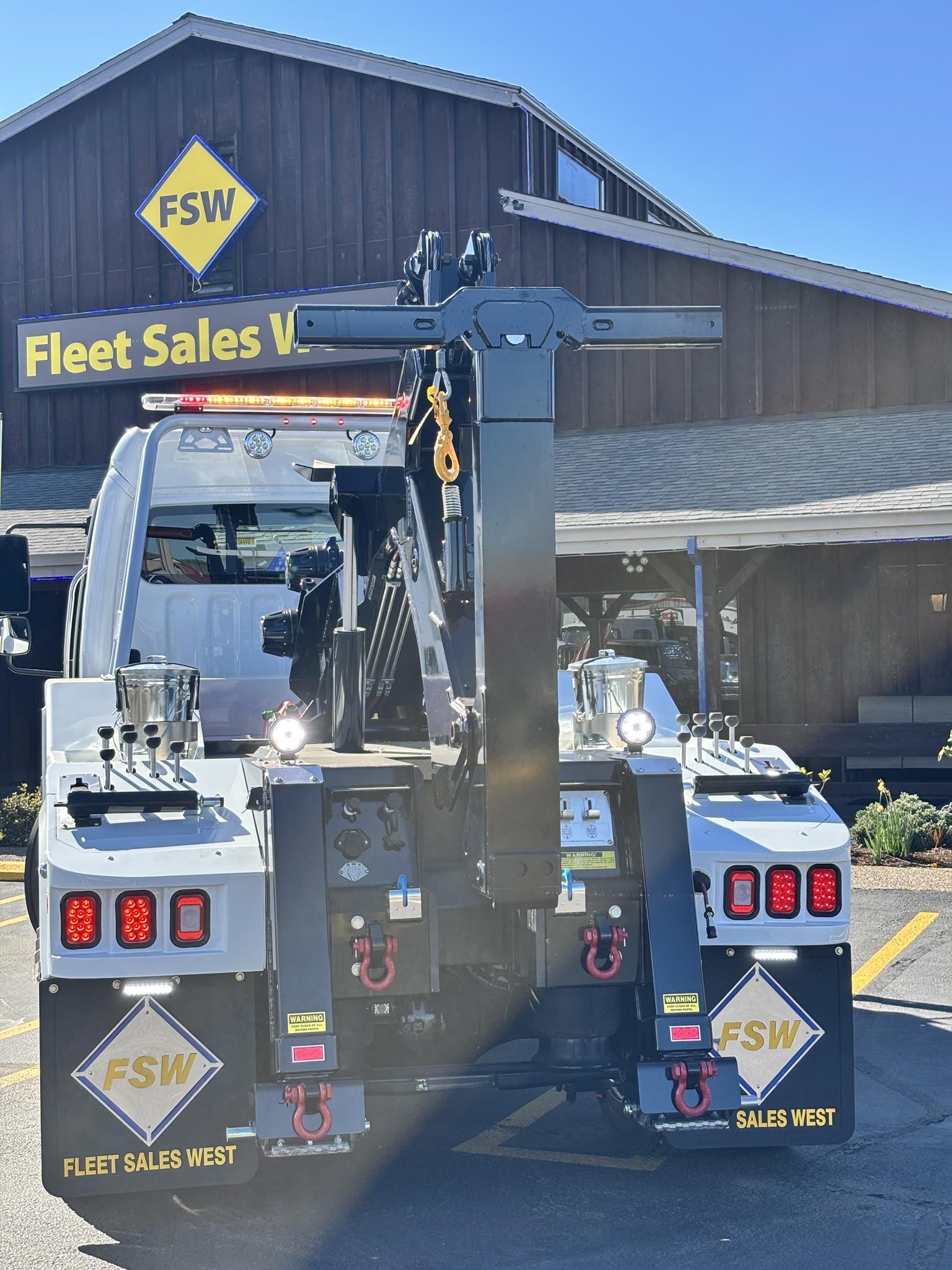

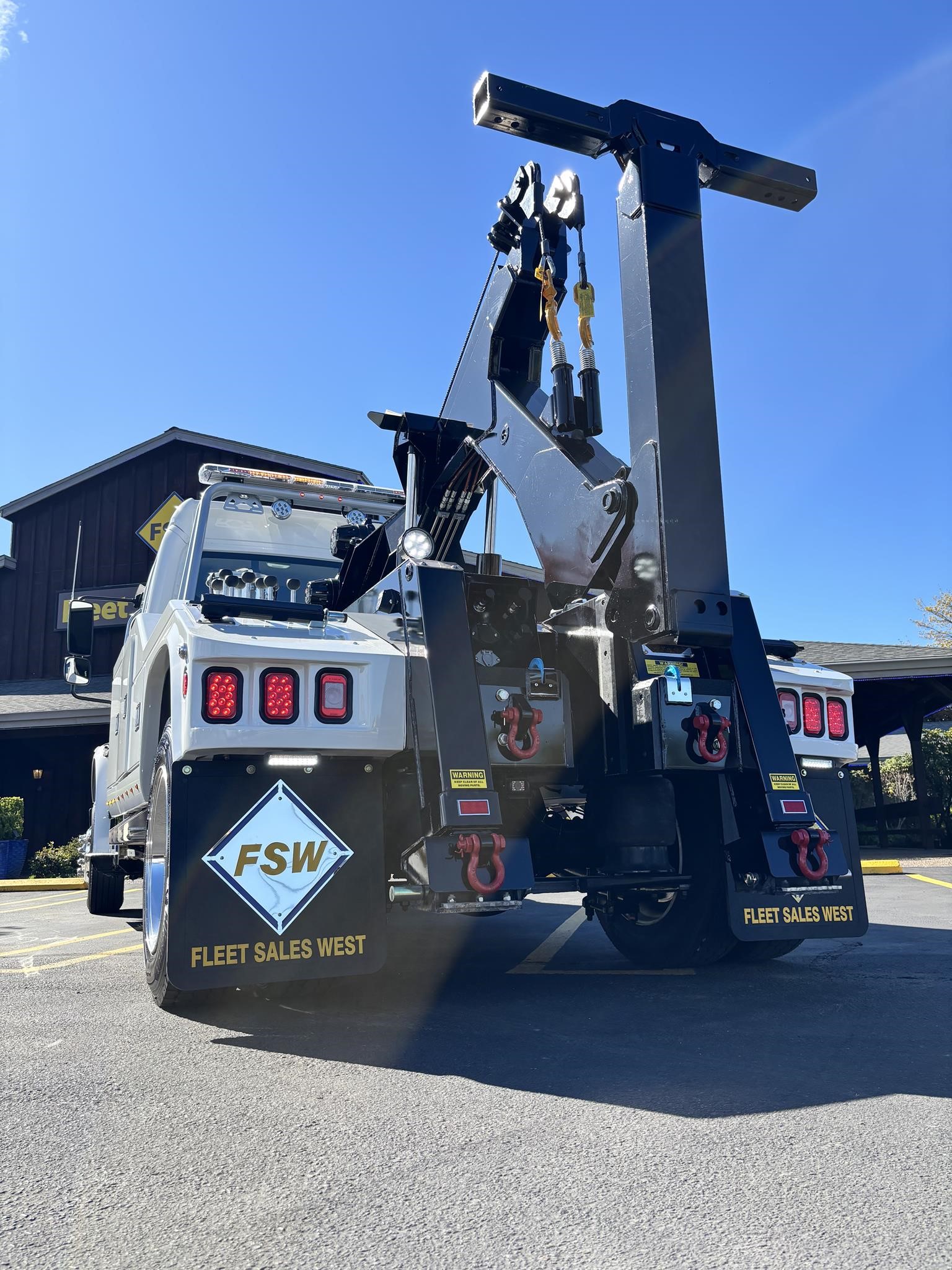

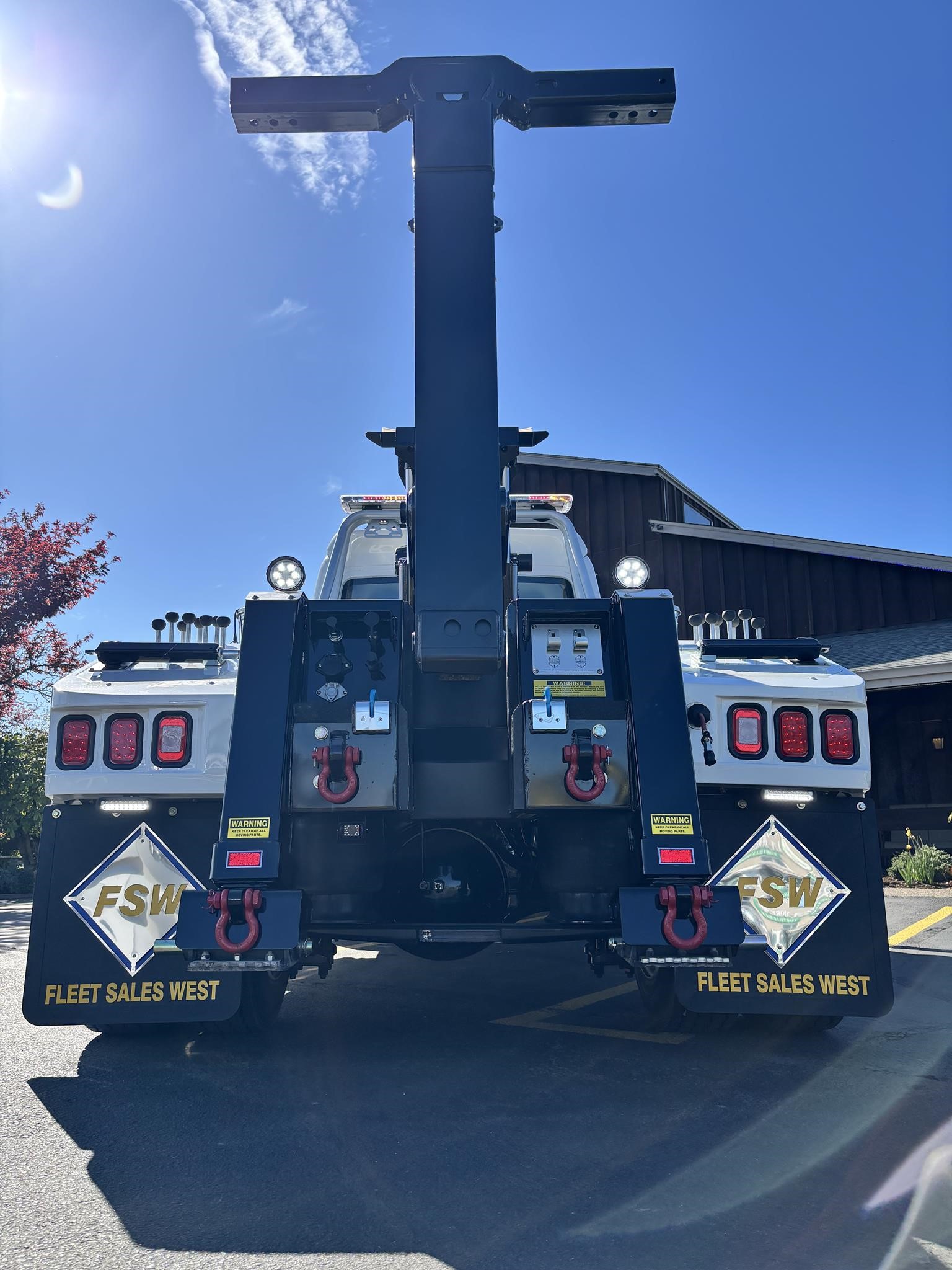

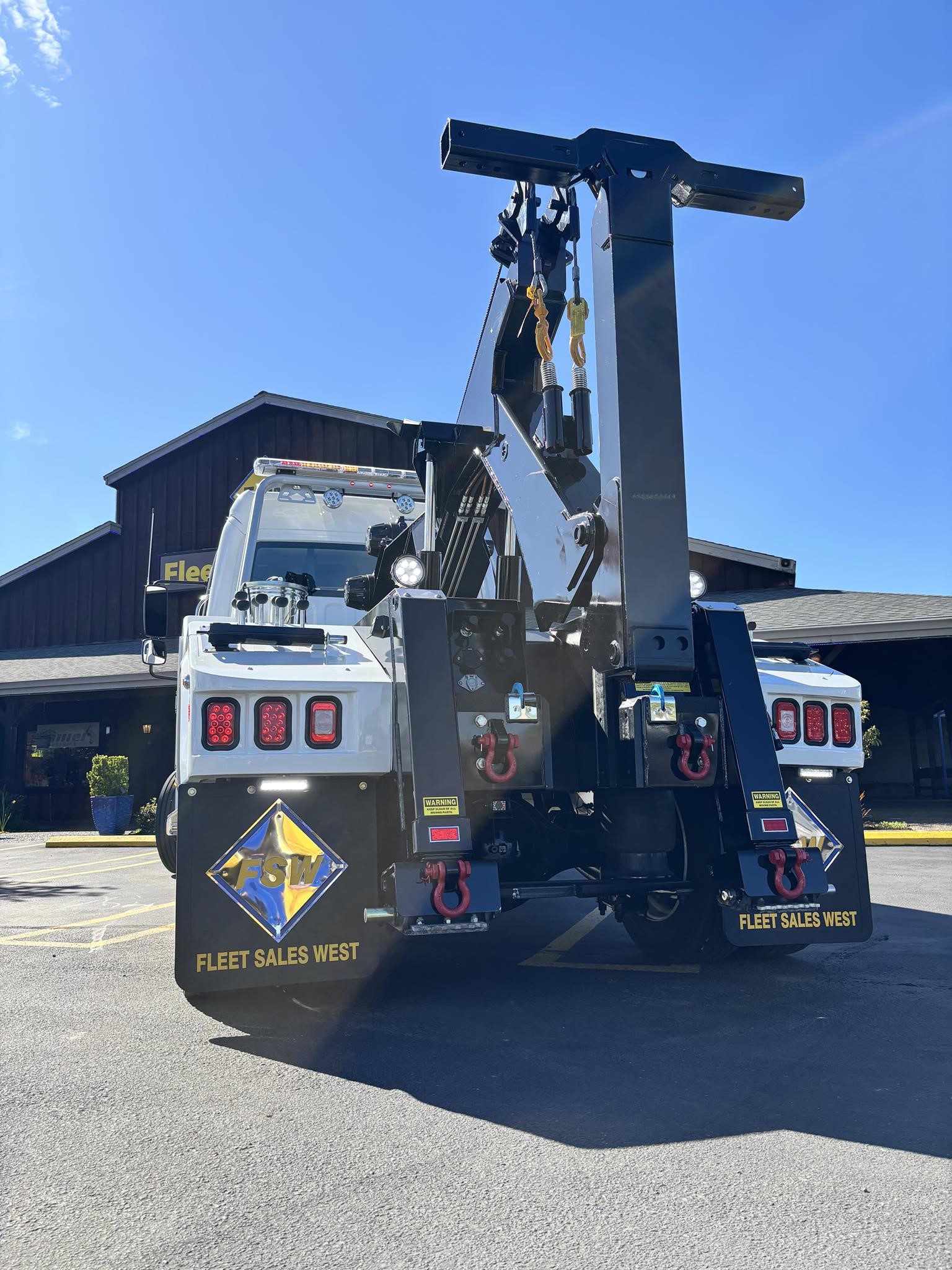

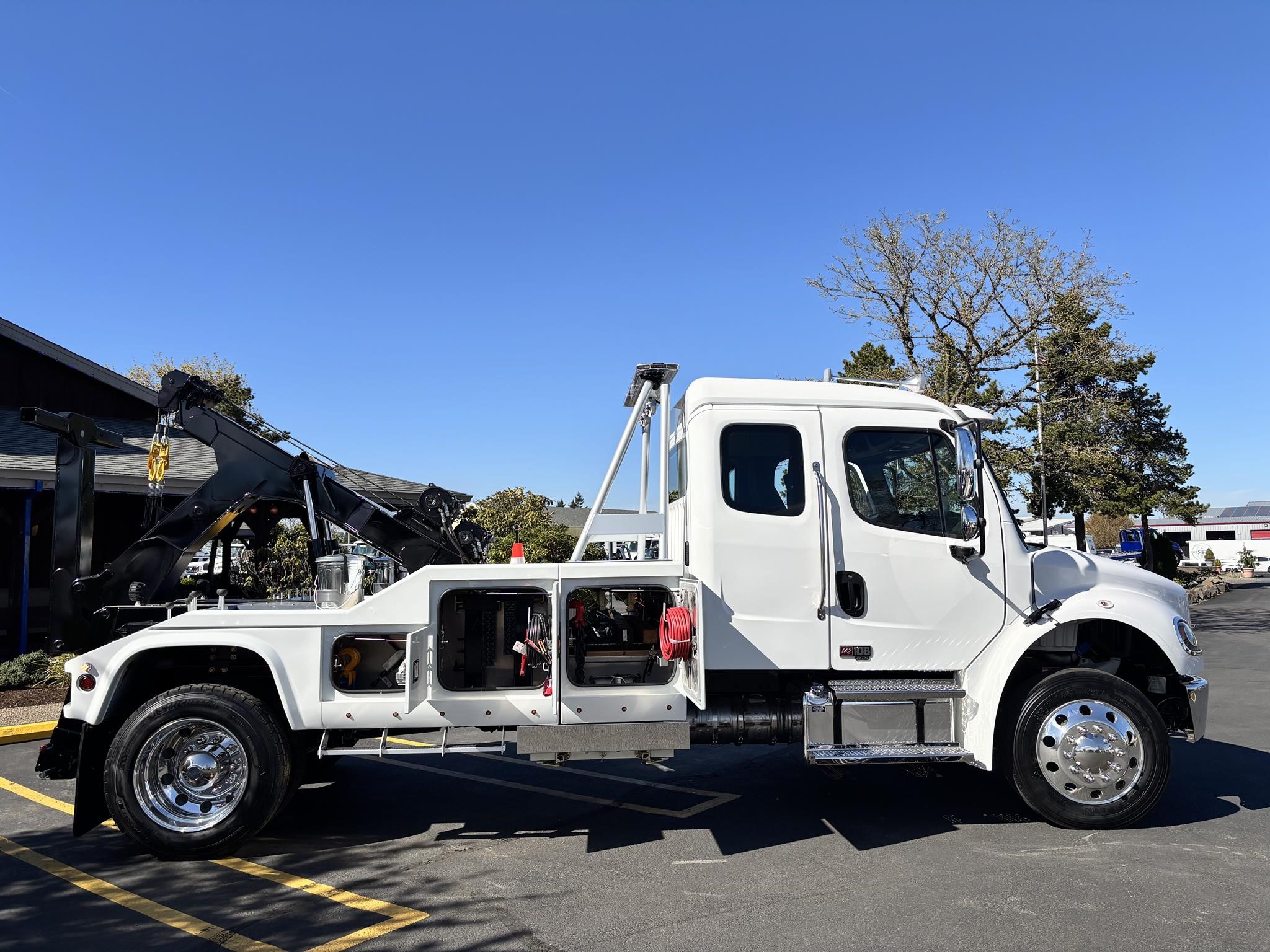

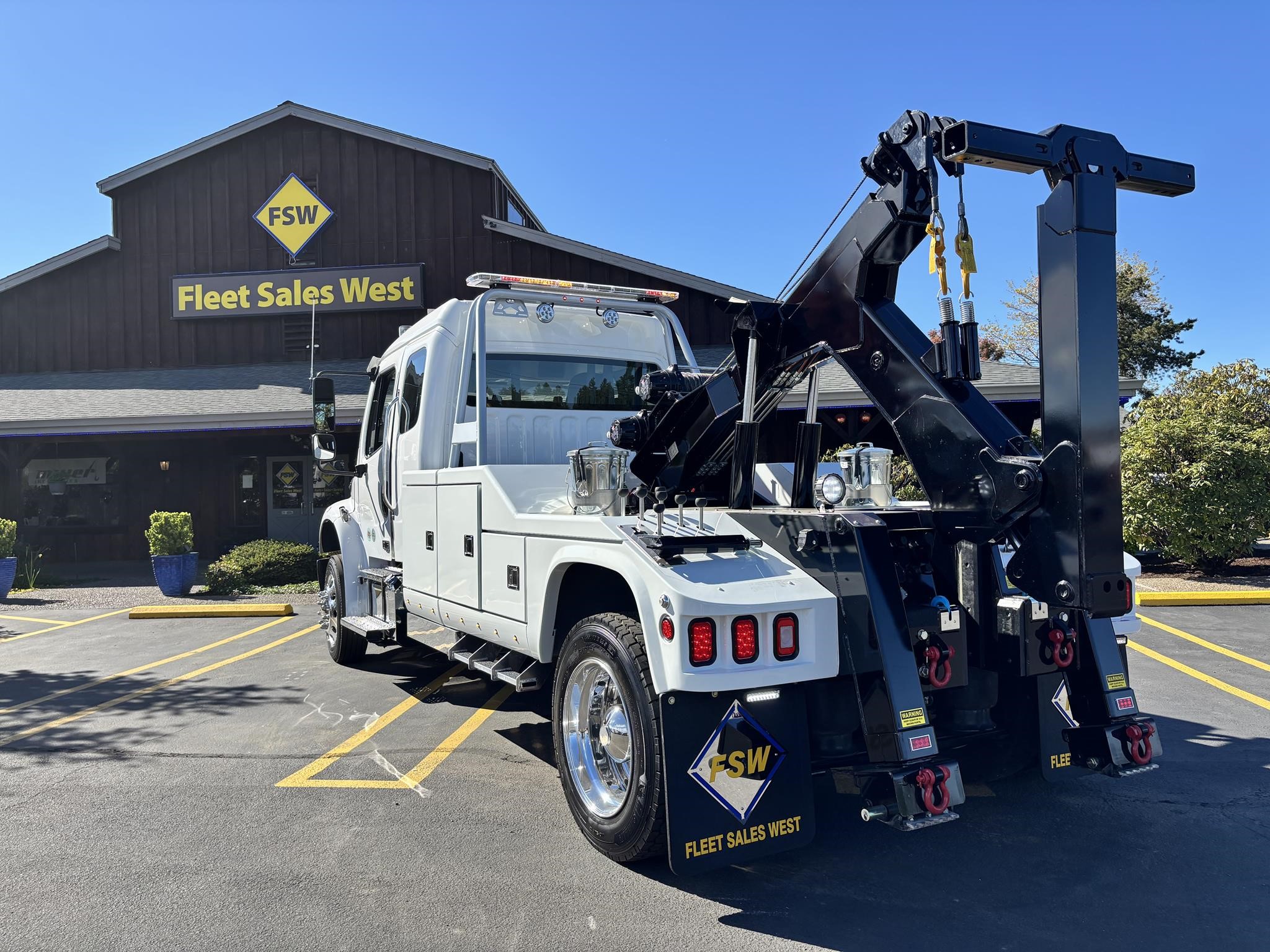

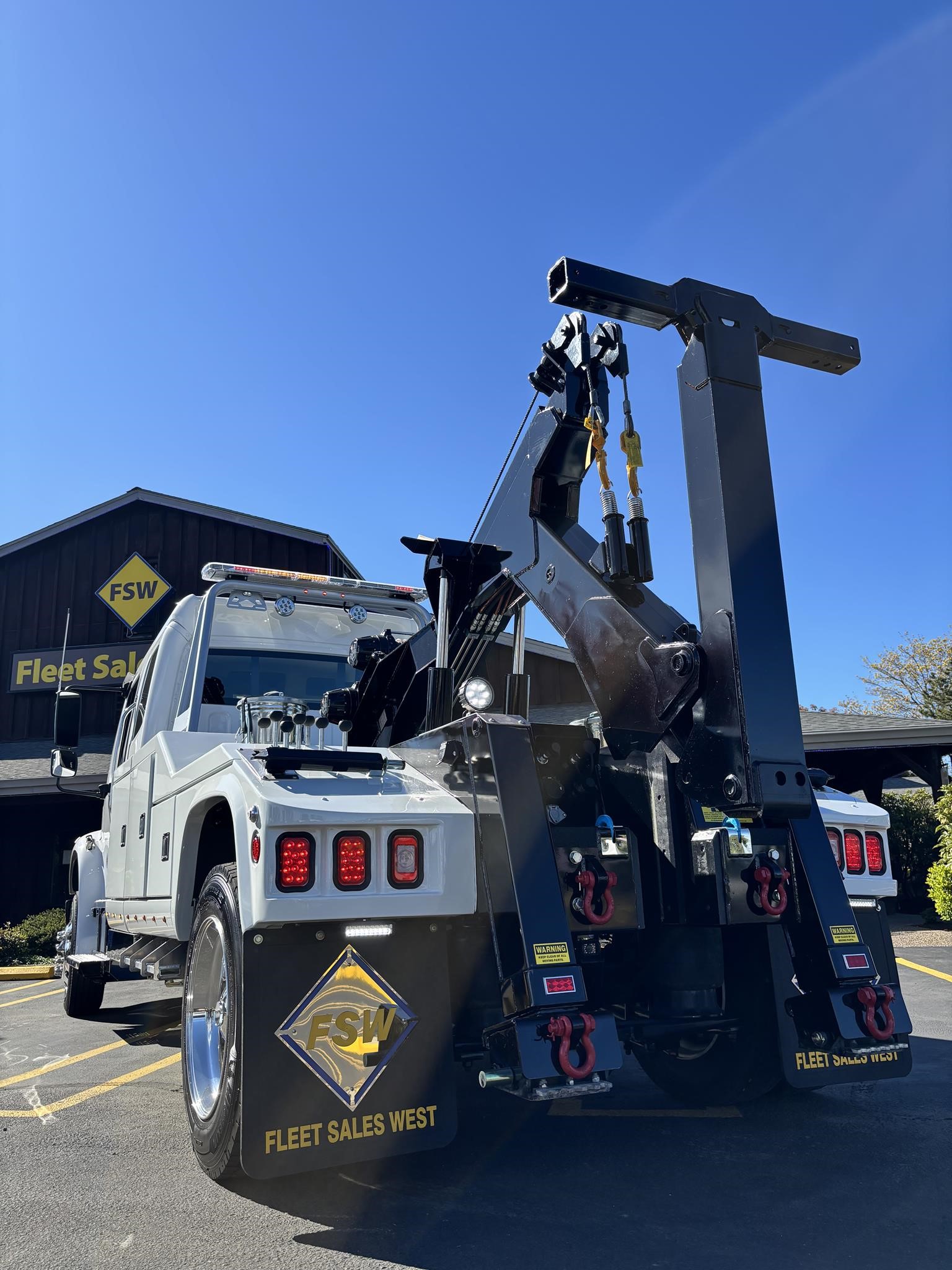

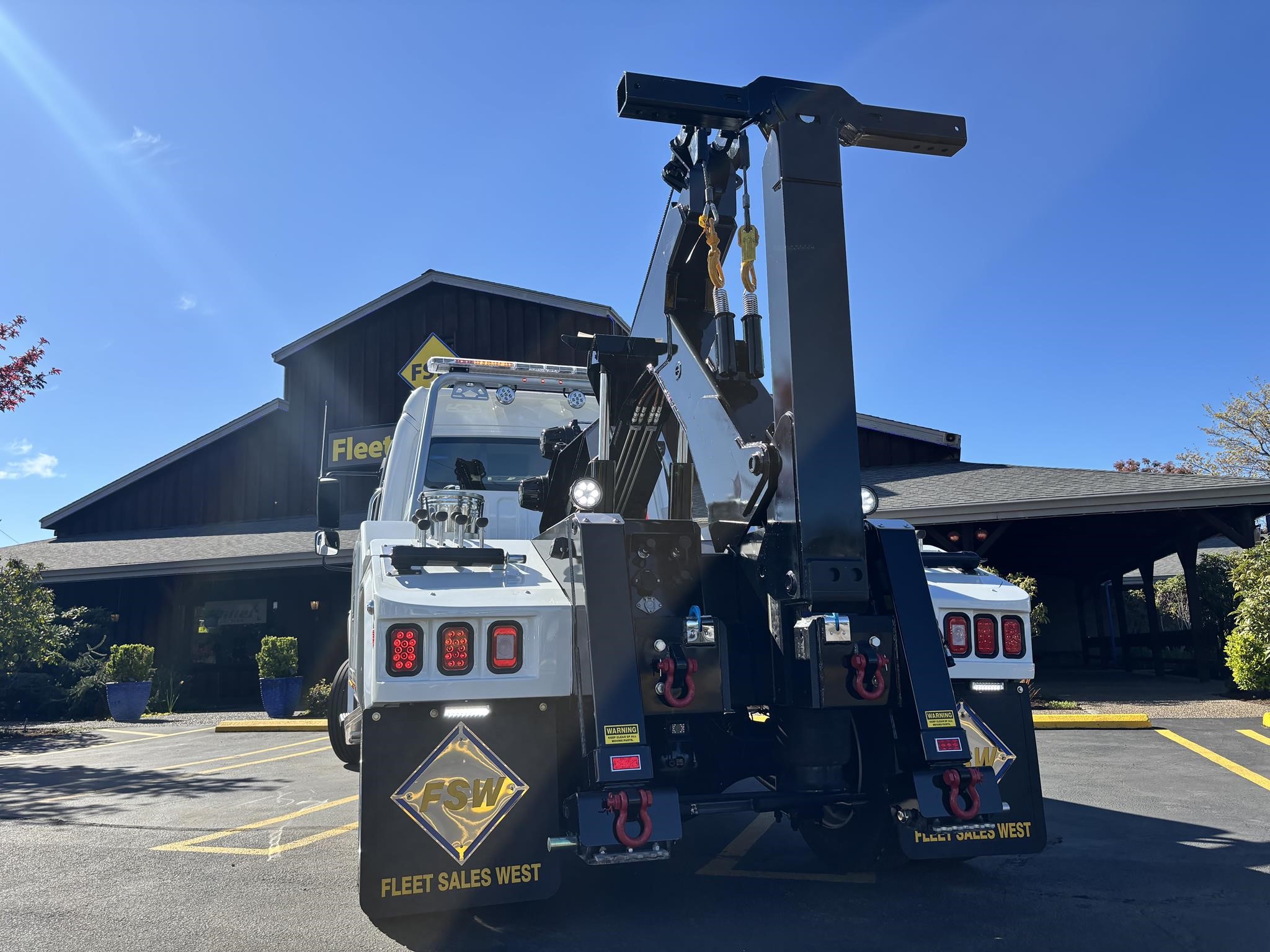

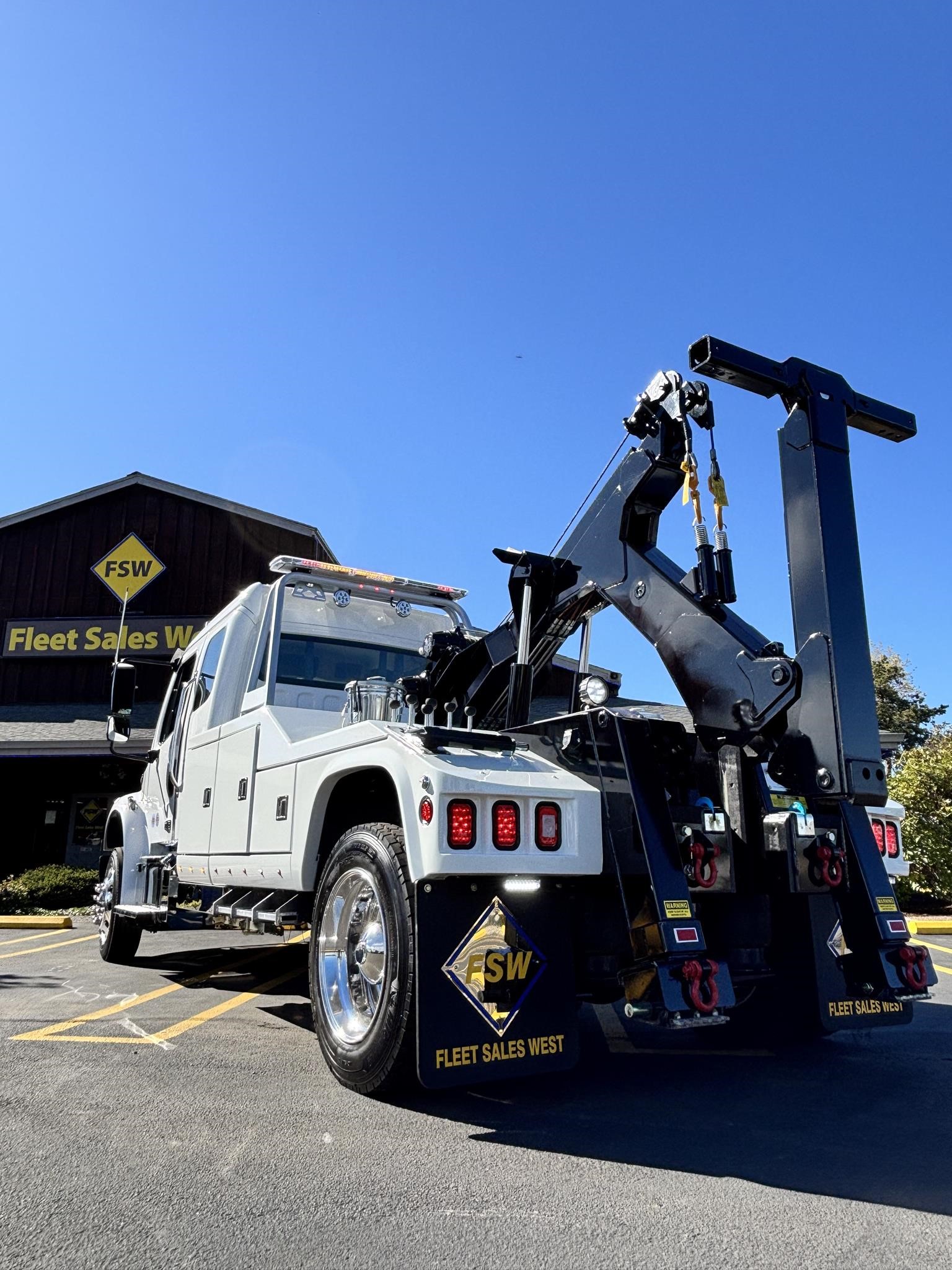

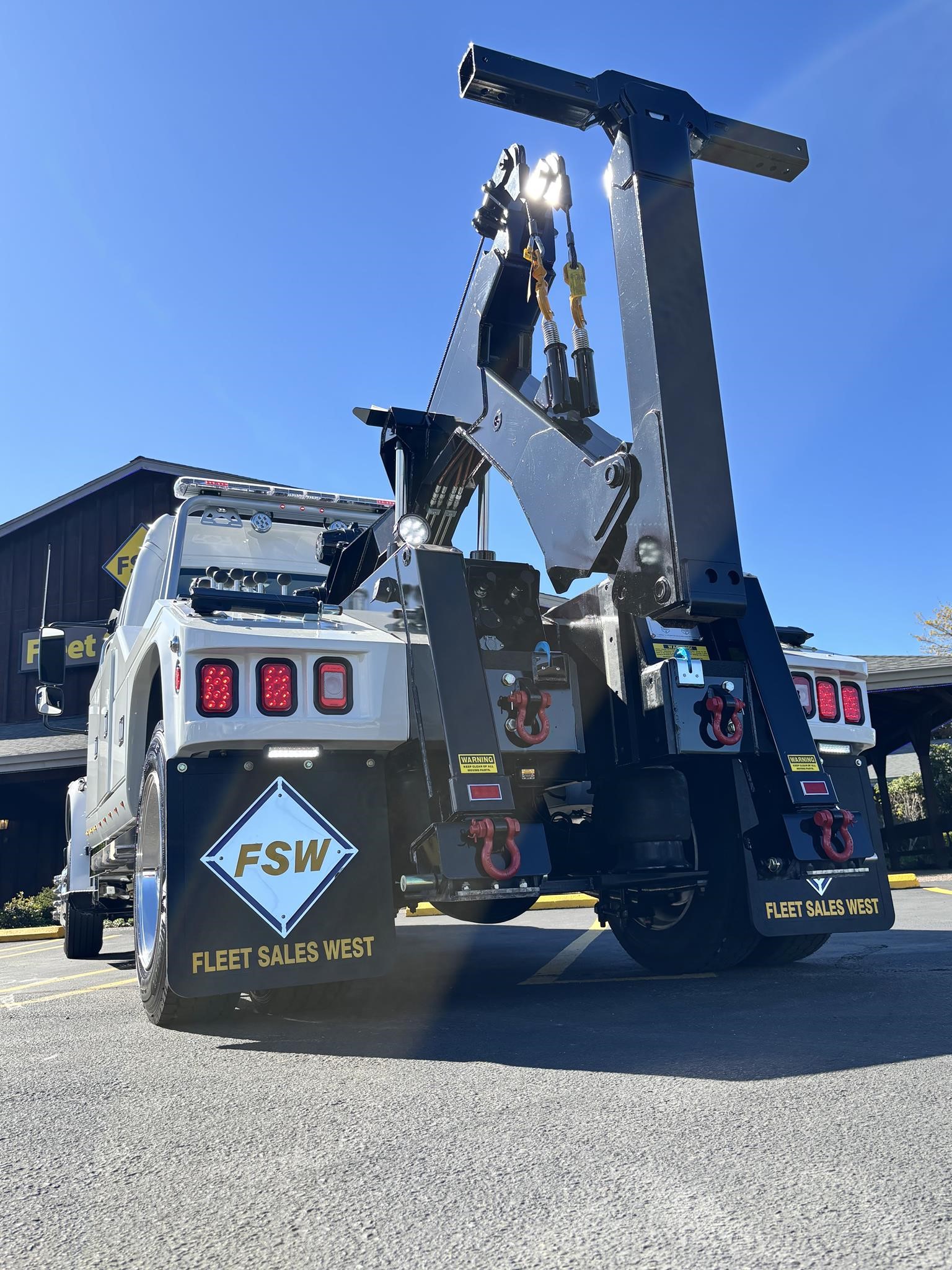

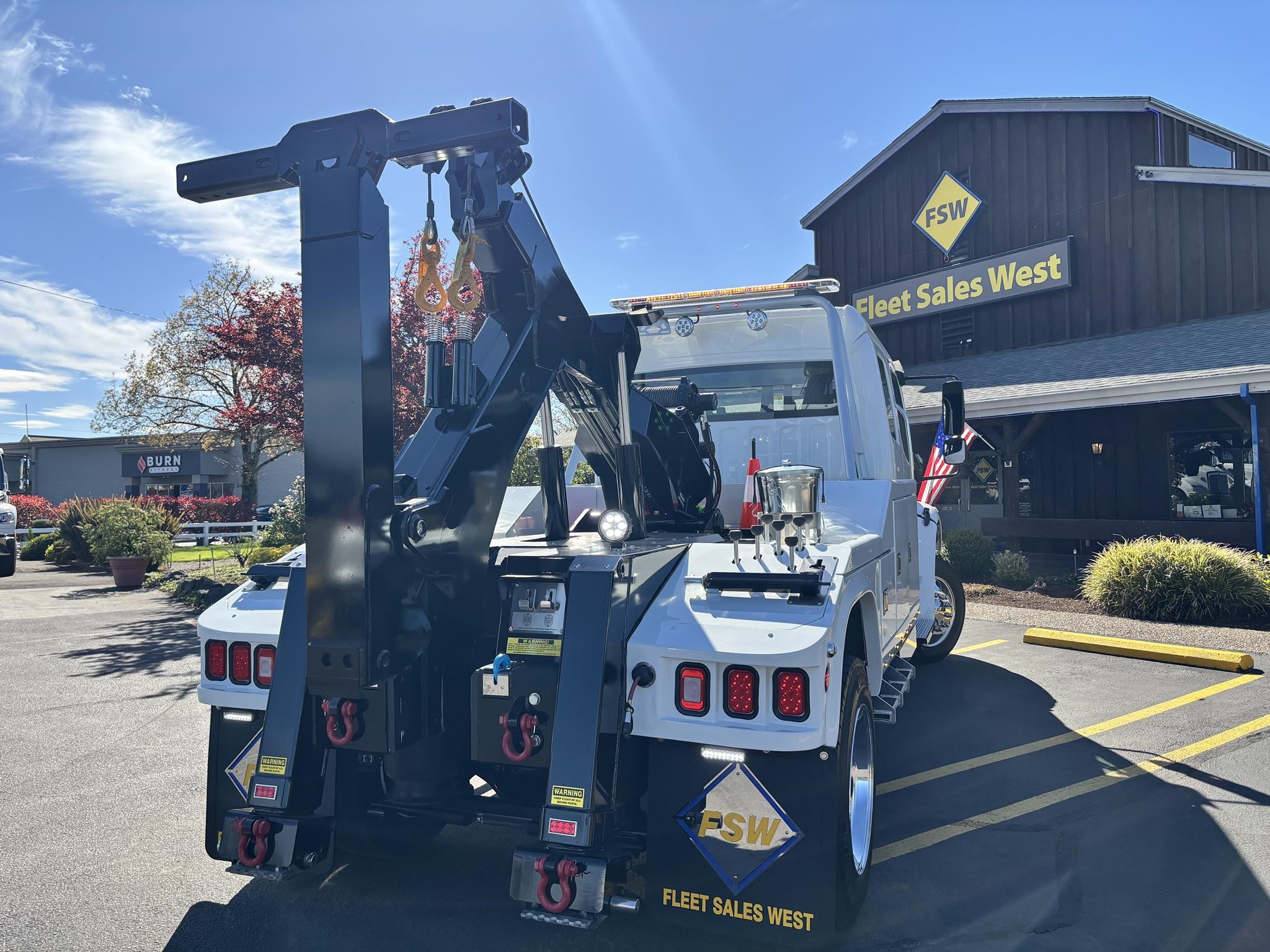

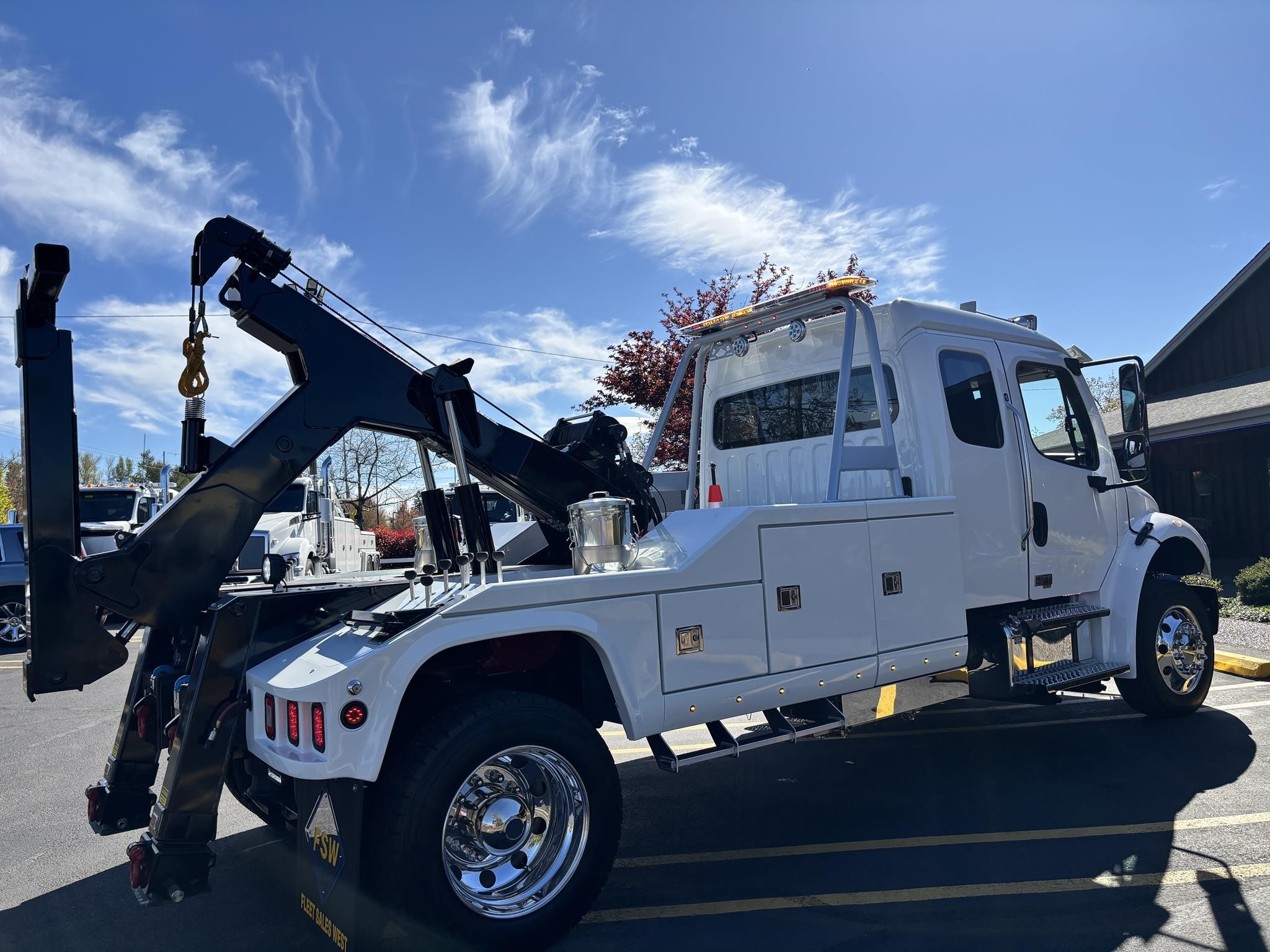

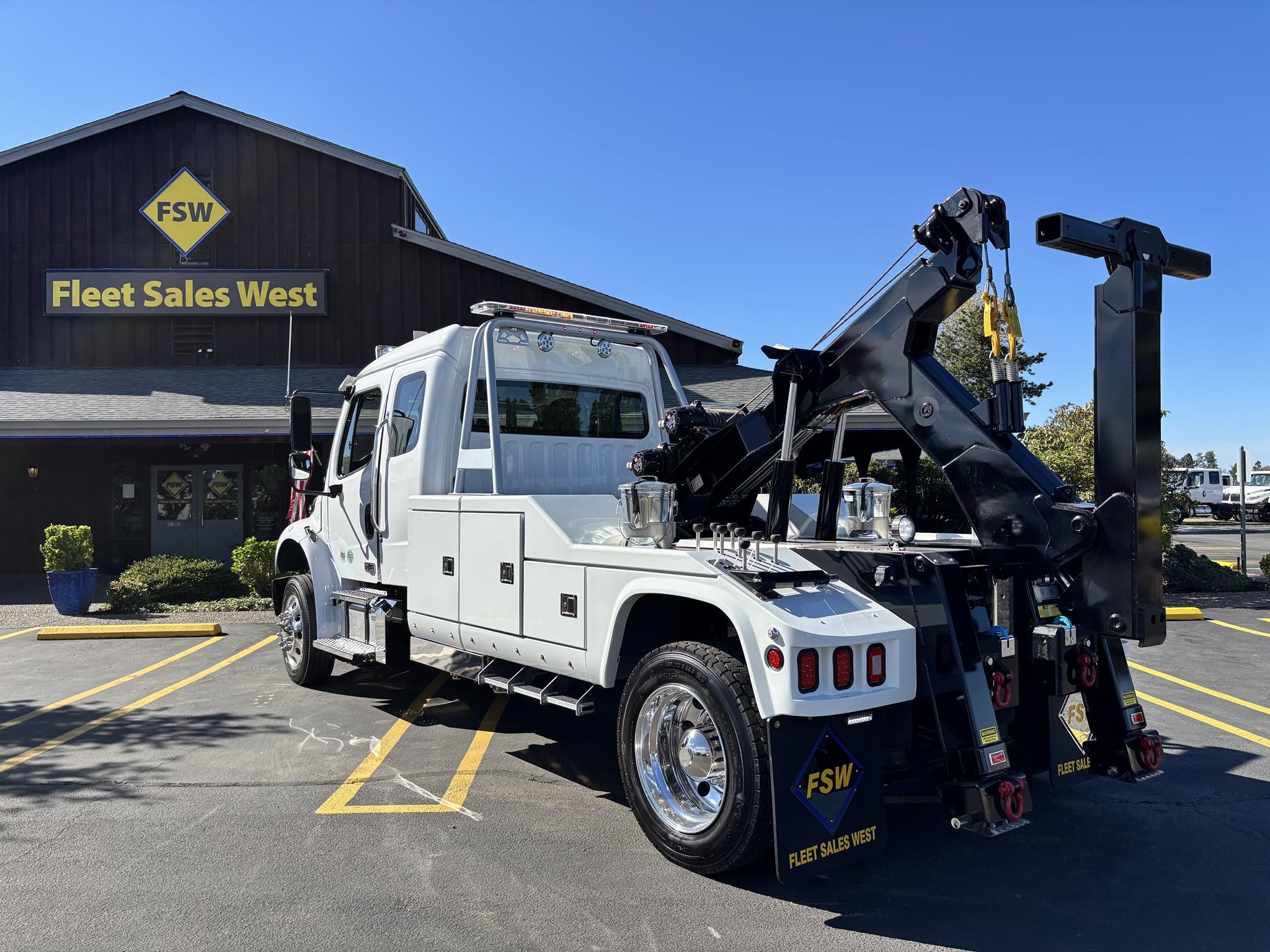

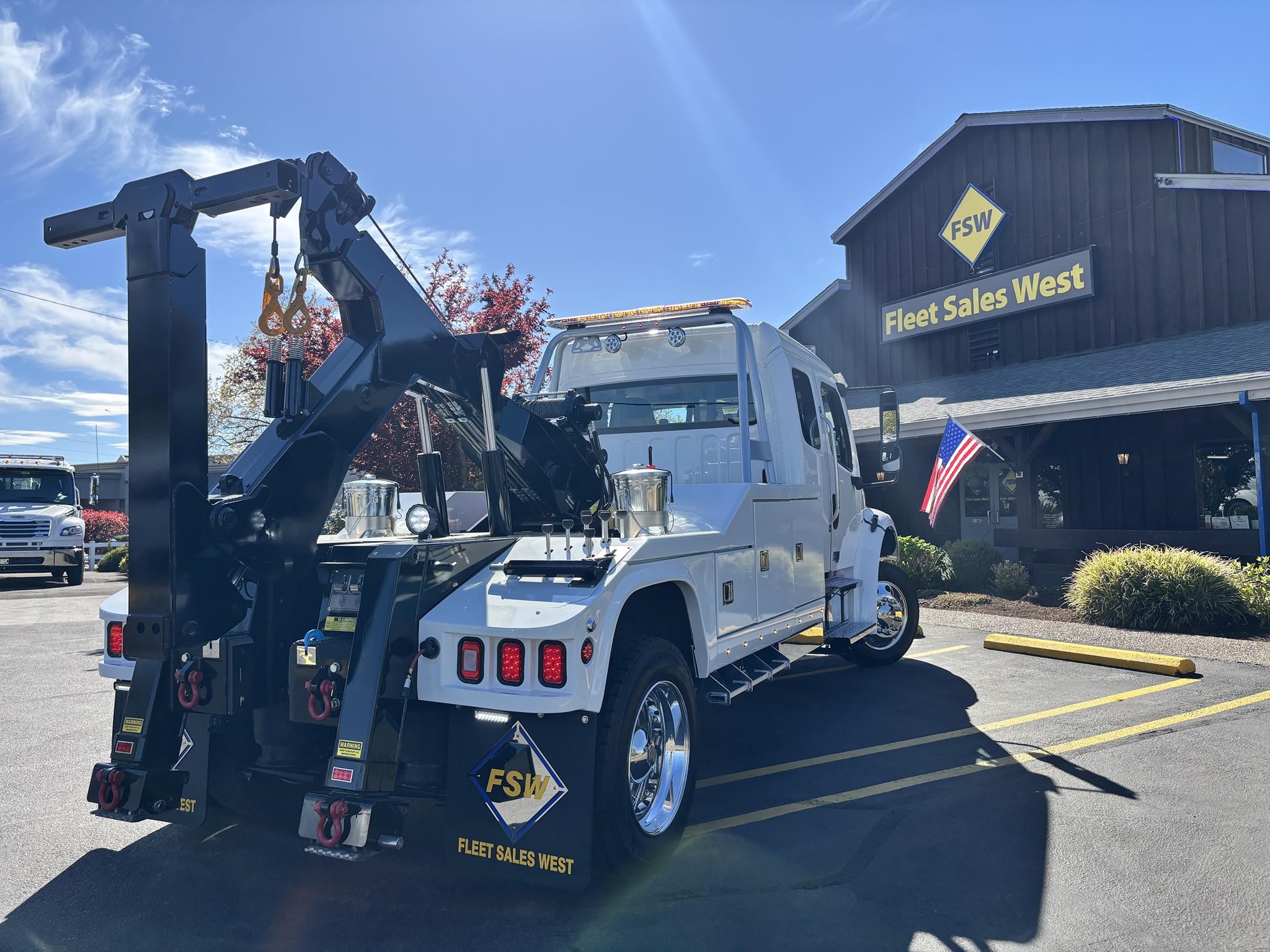

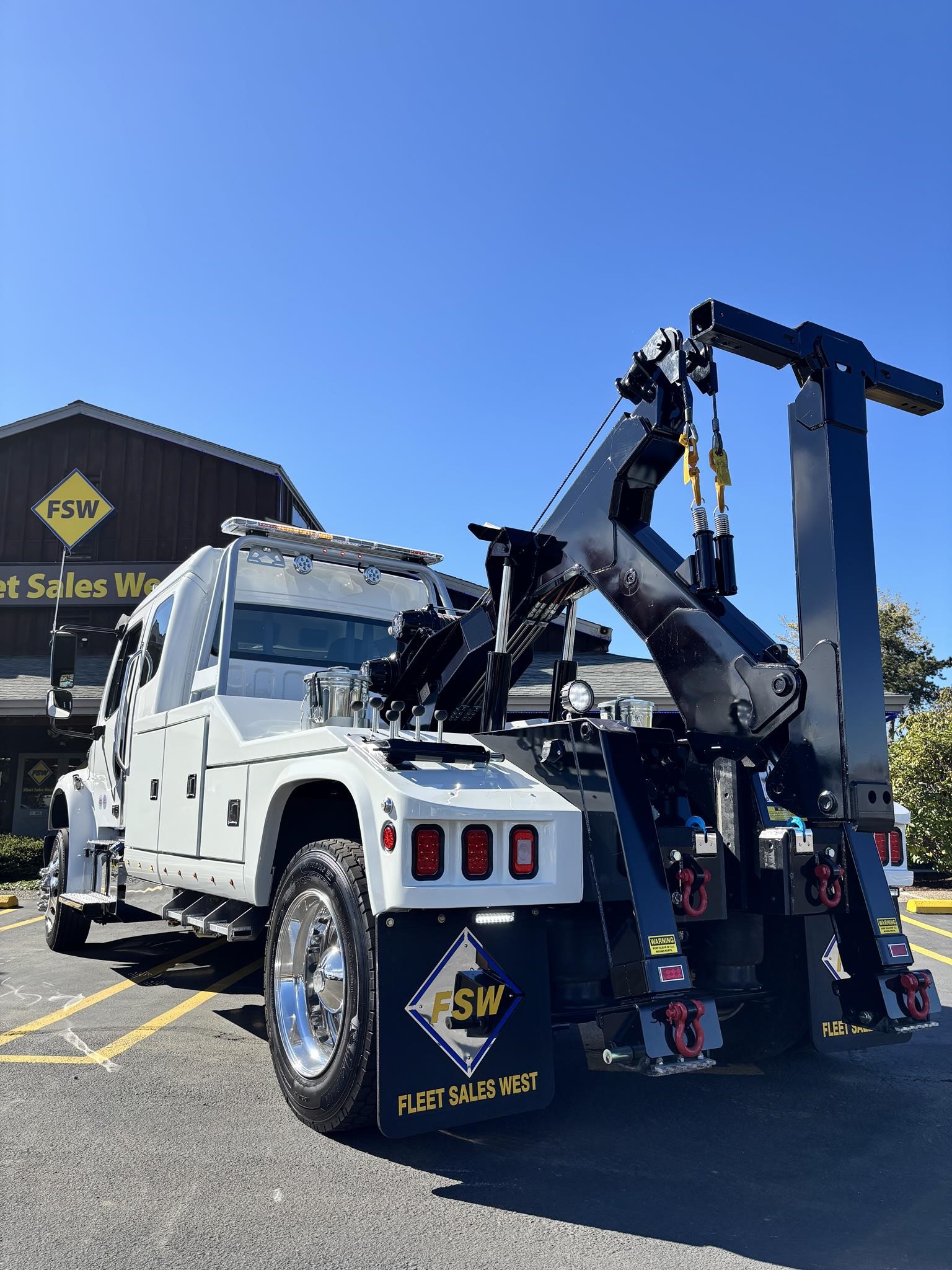

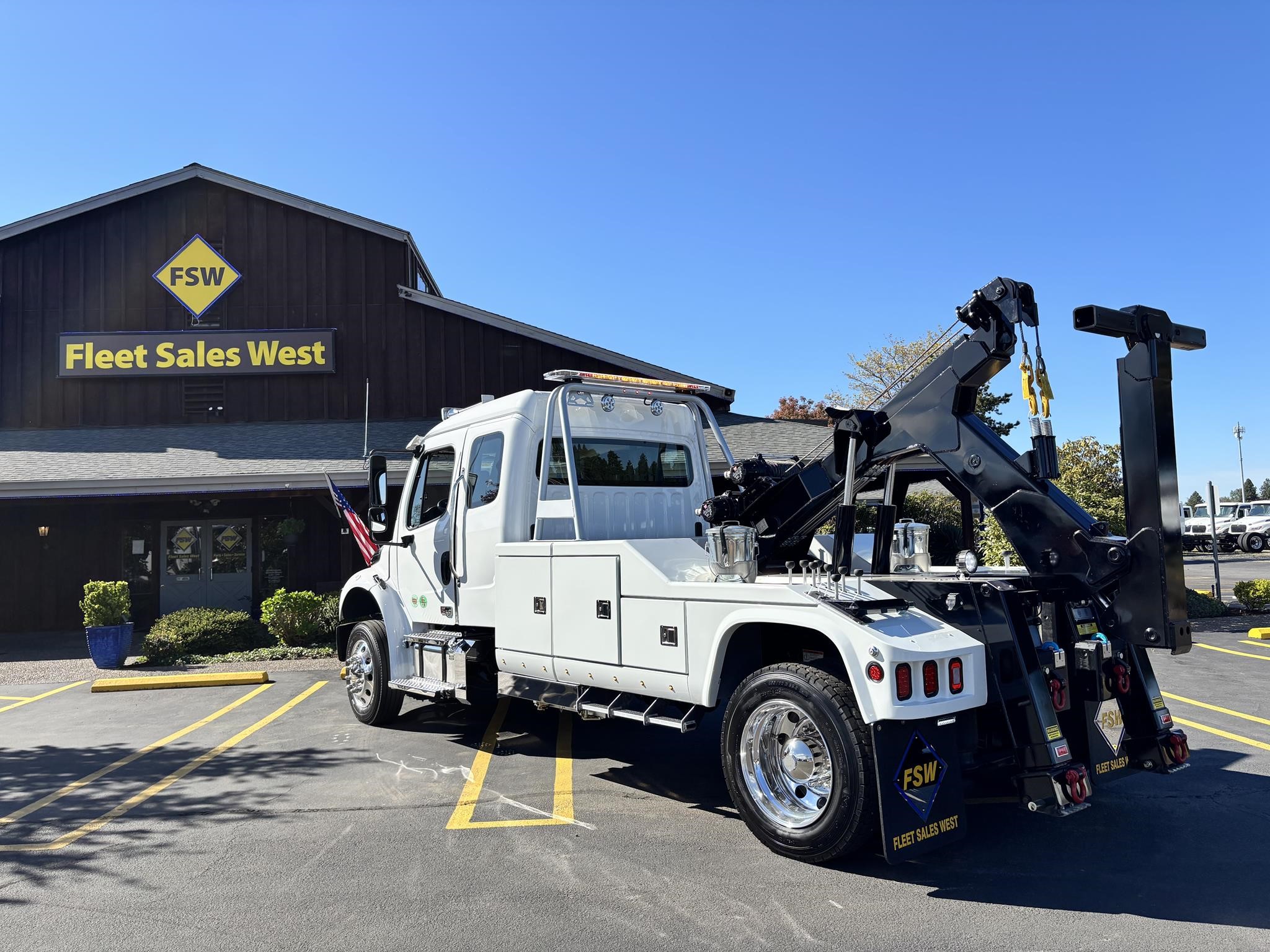

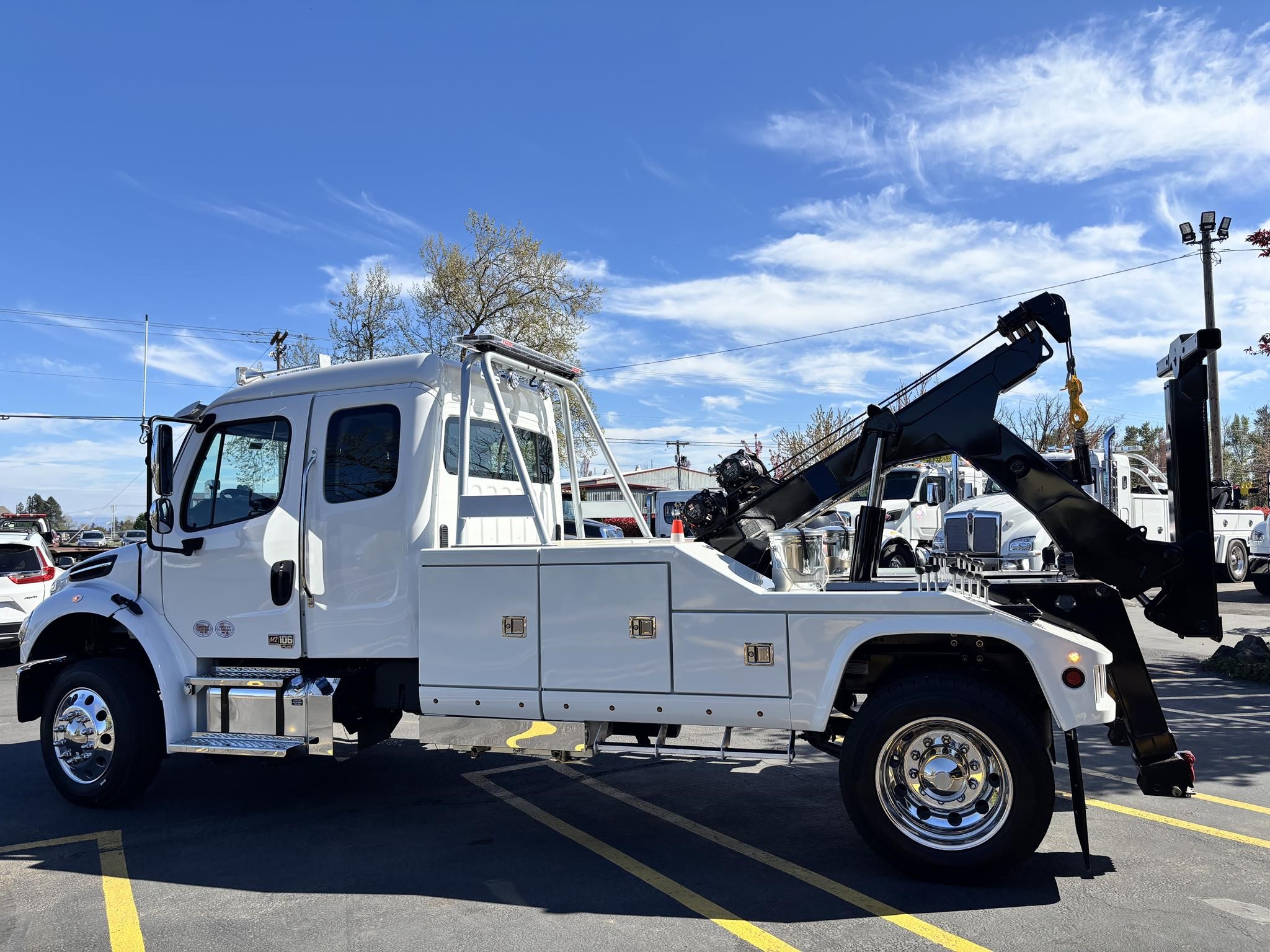

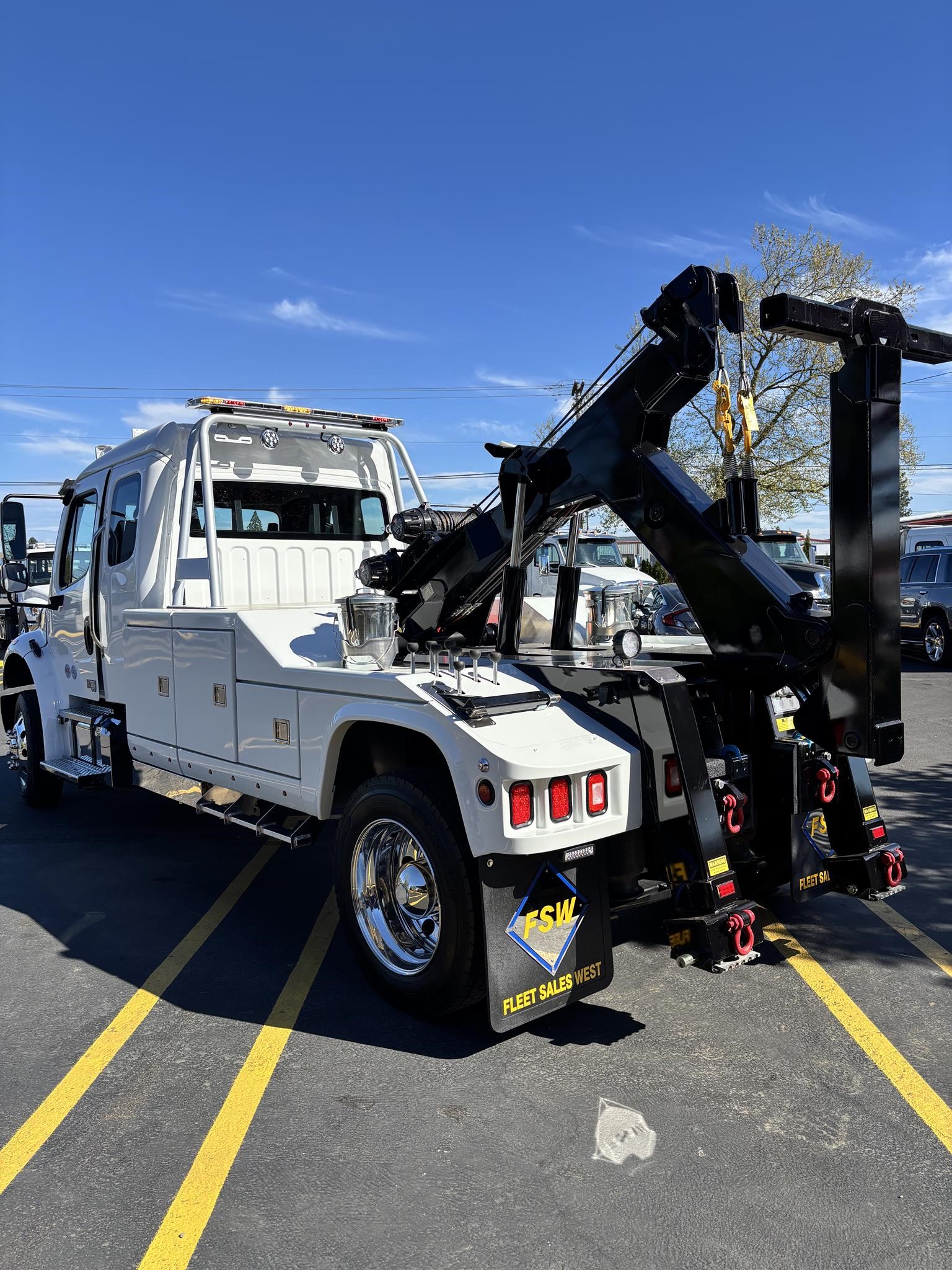

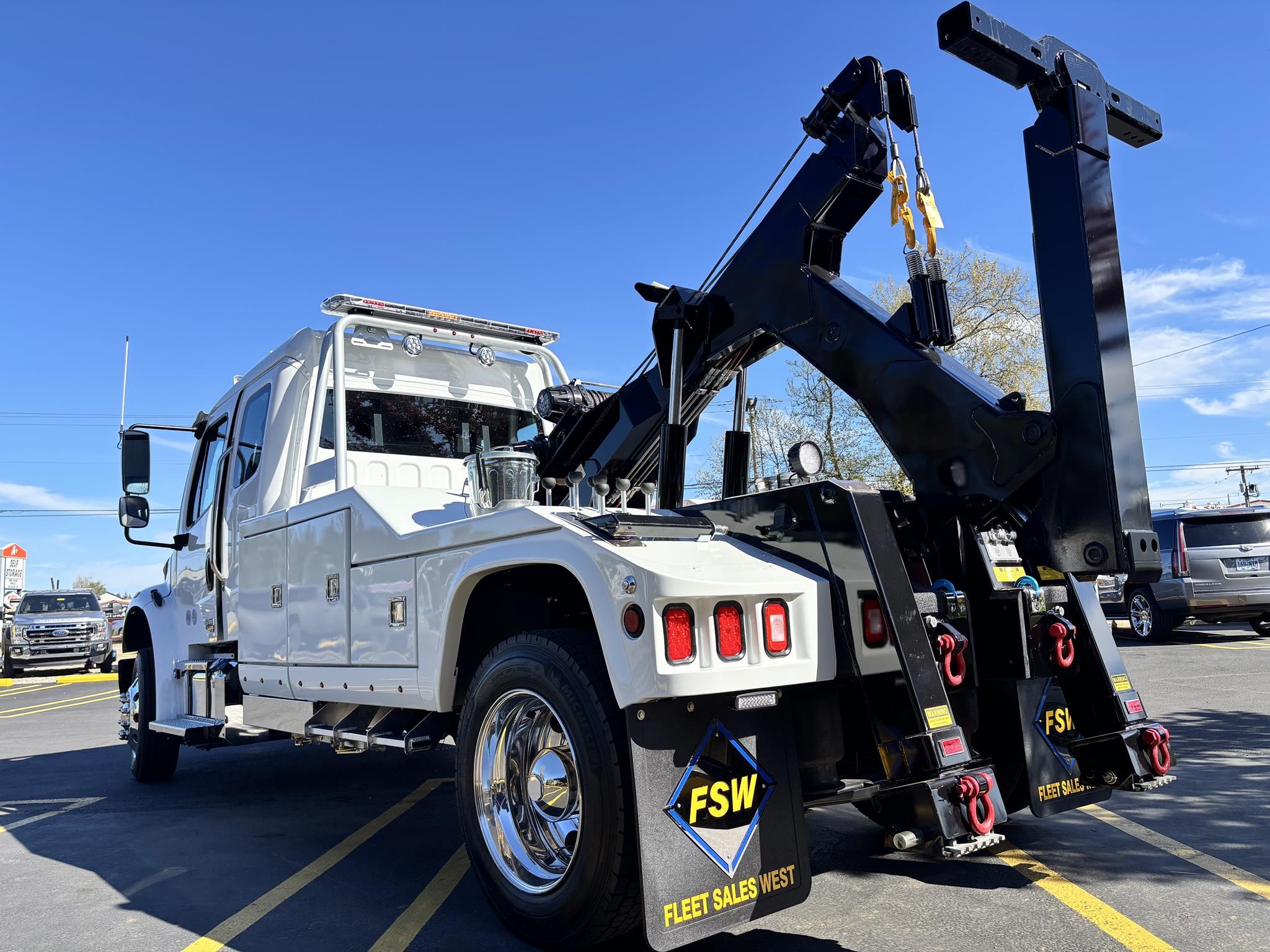

Chevron LMD 512 T 12 Ton Integrated Wrecker (Next Generation)

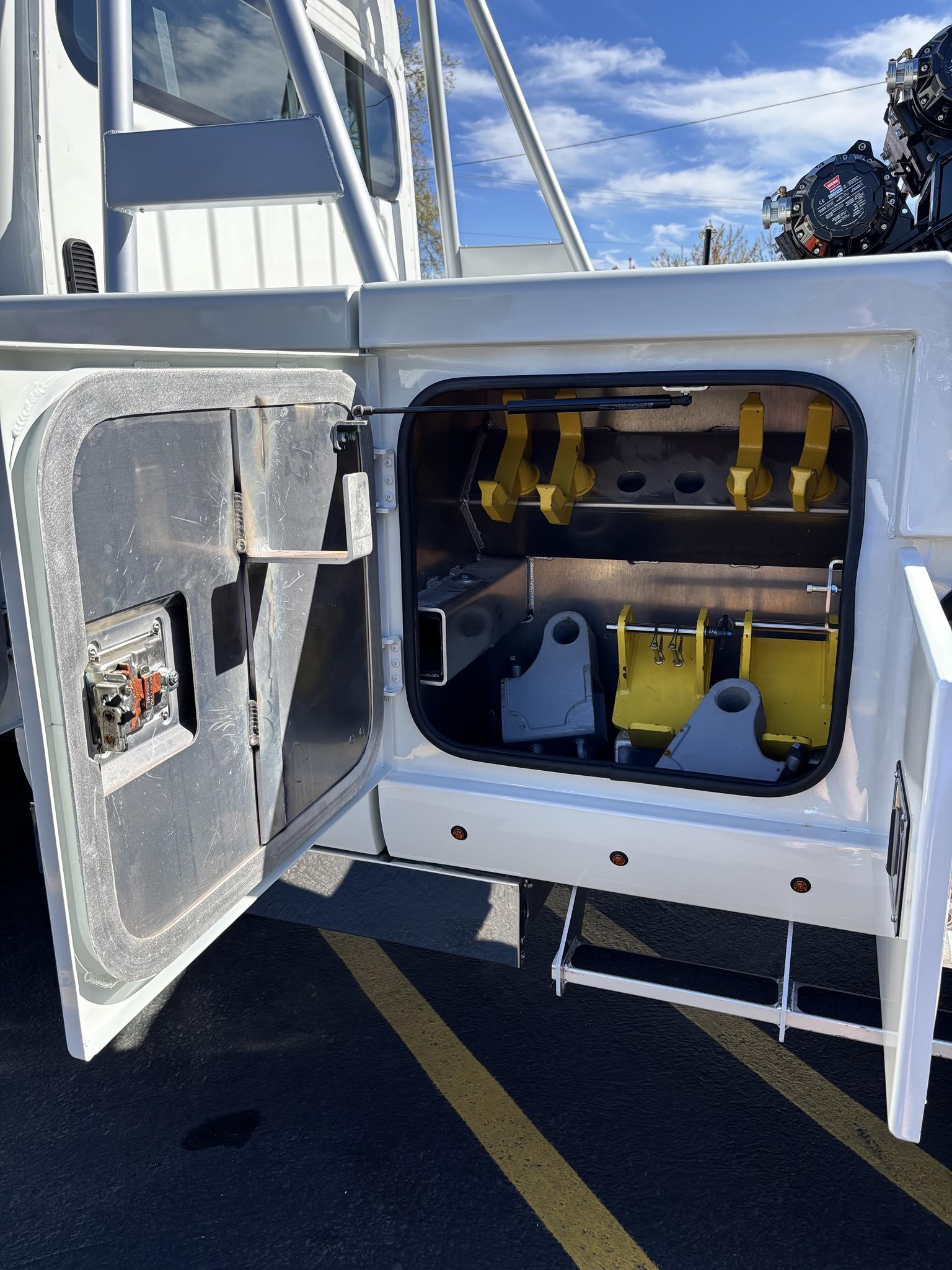

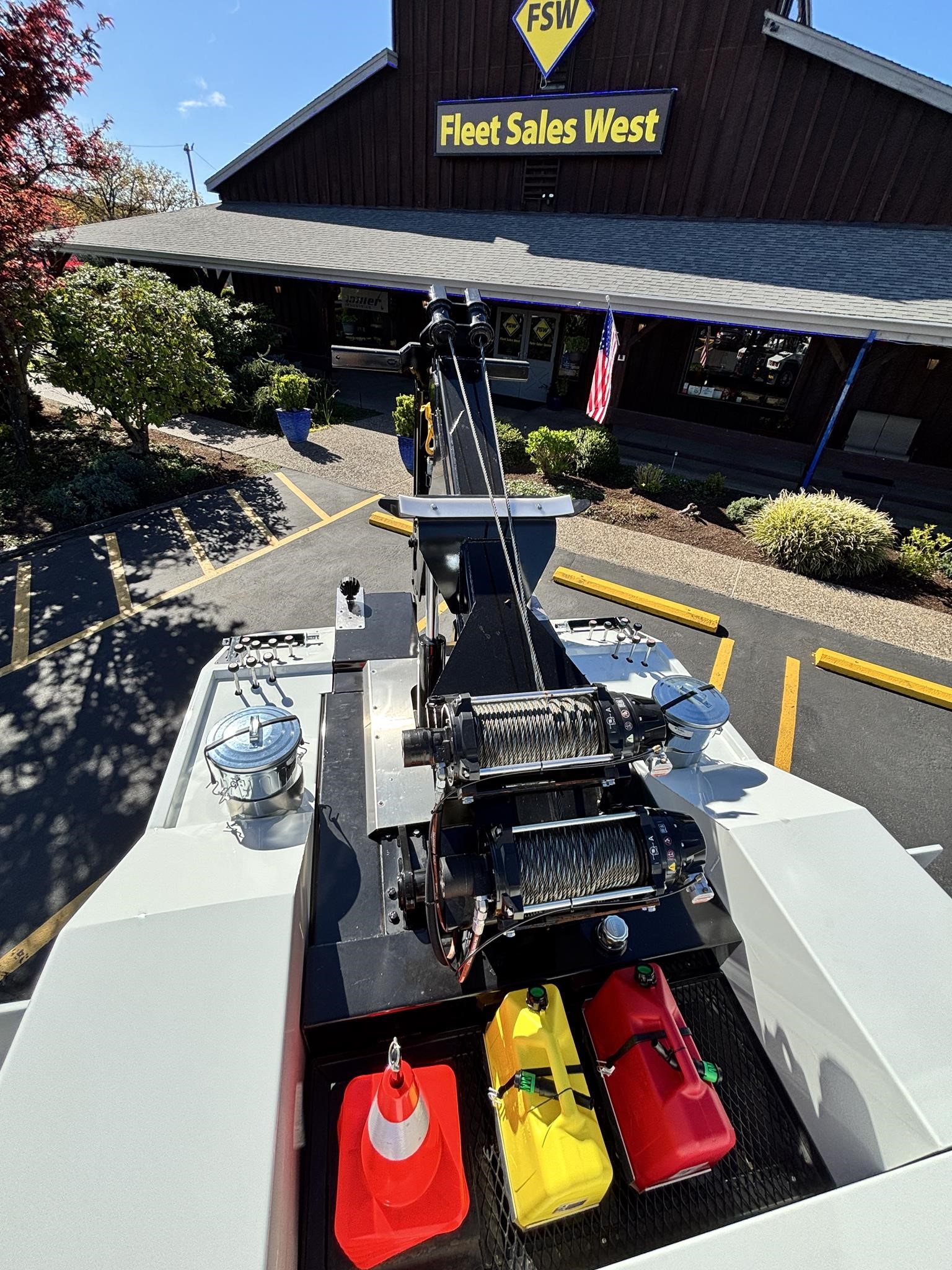

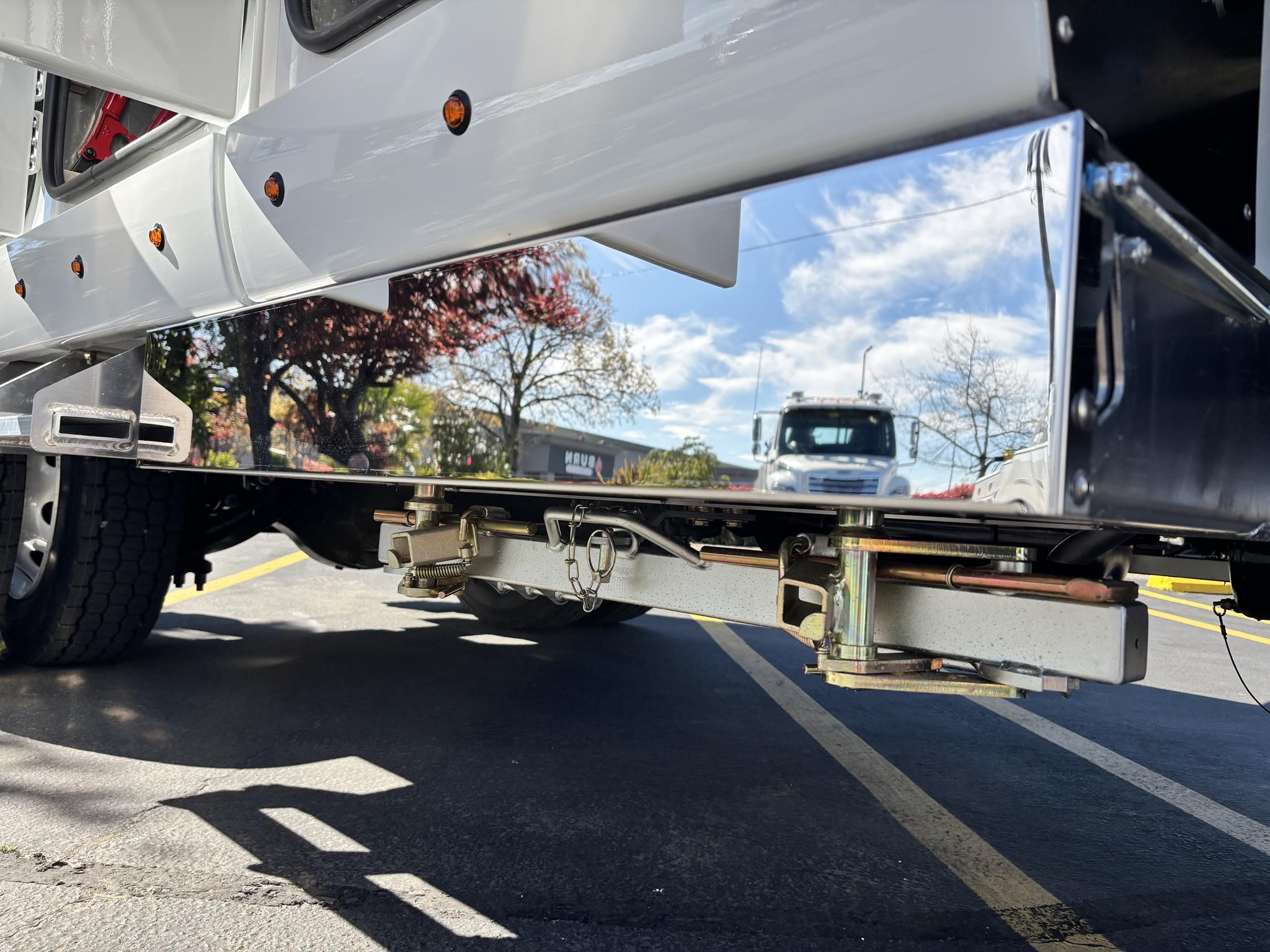

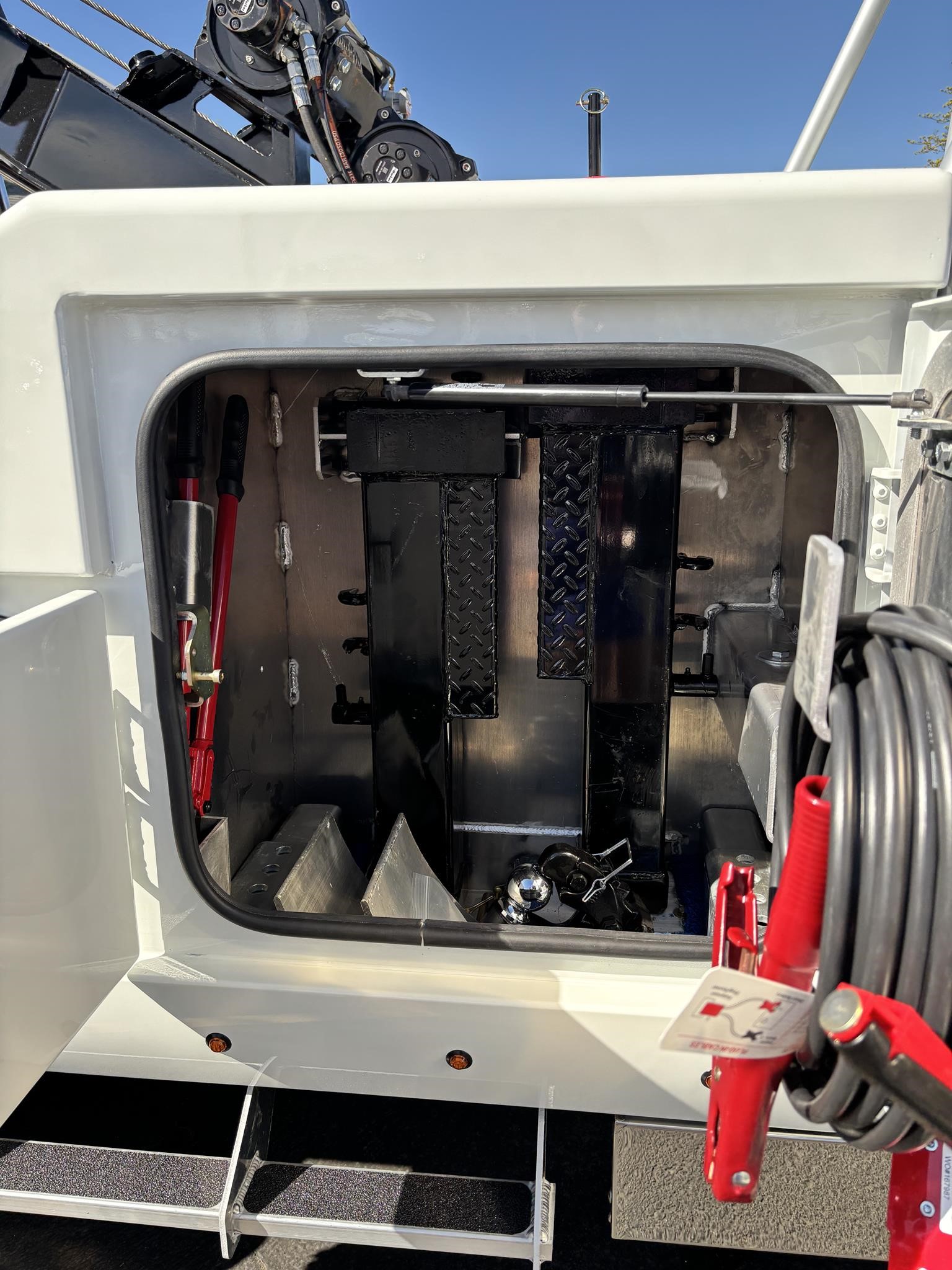

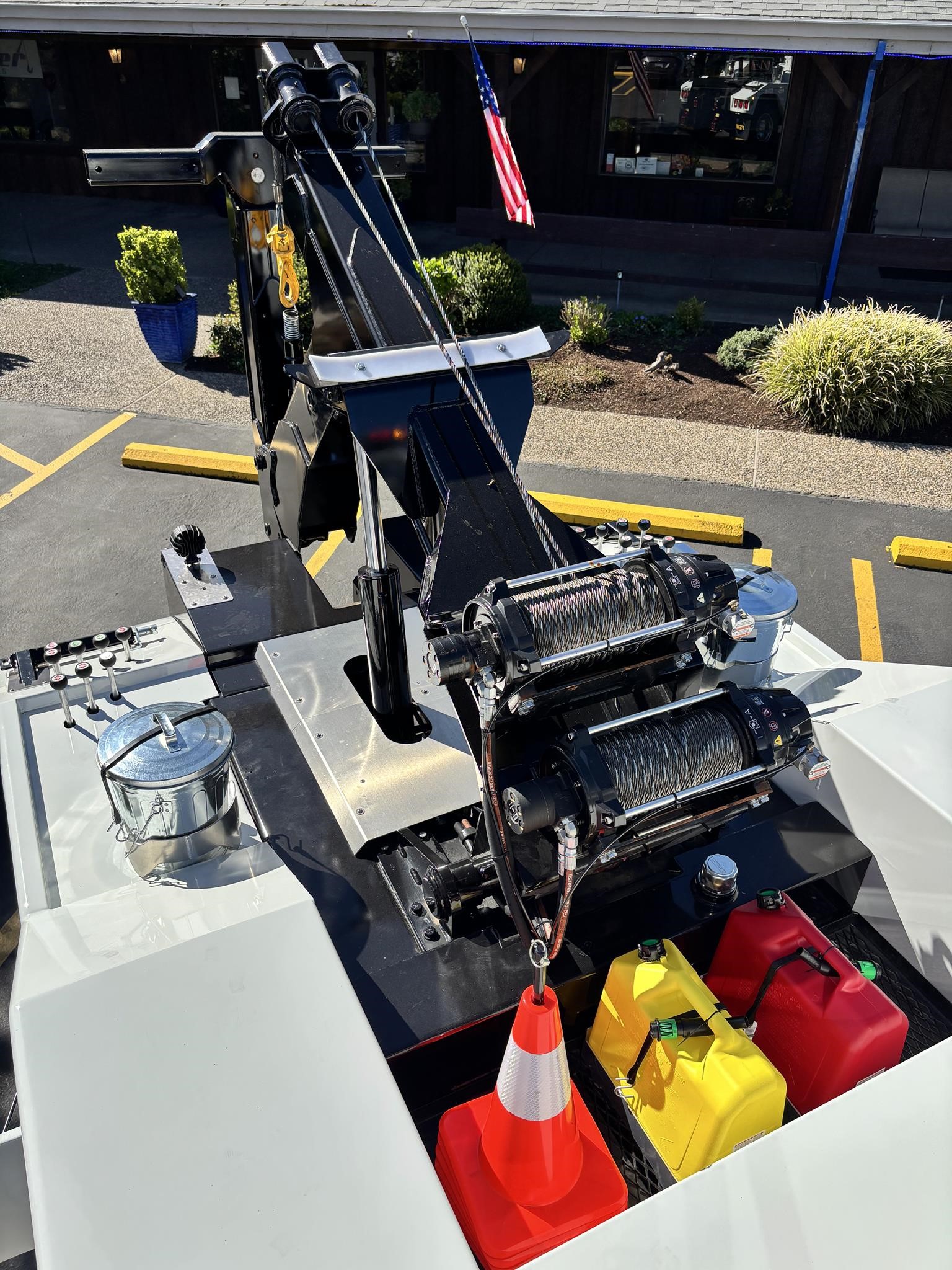

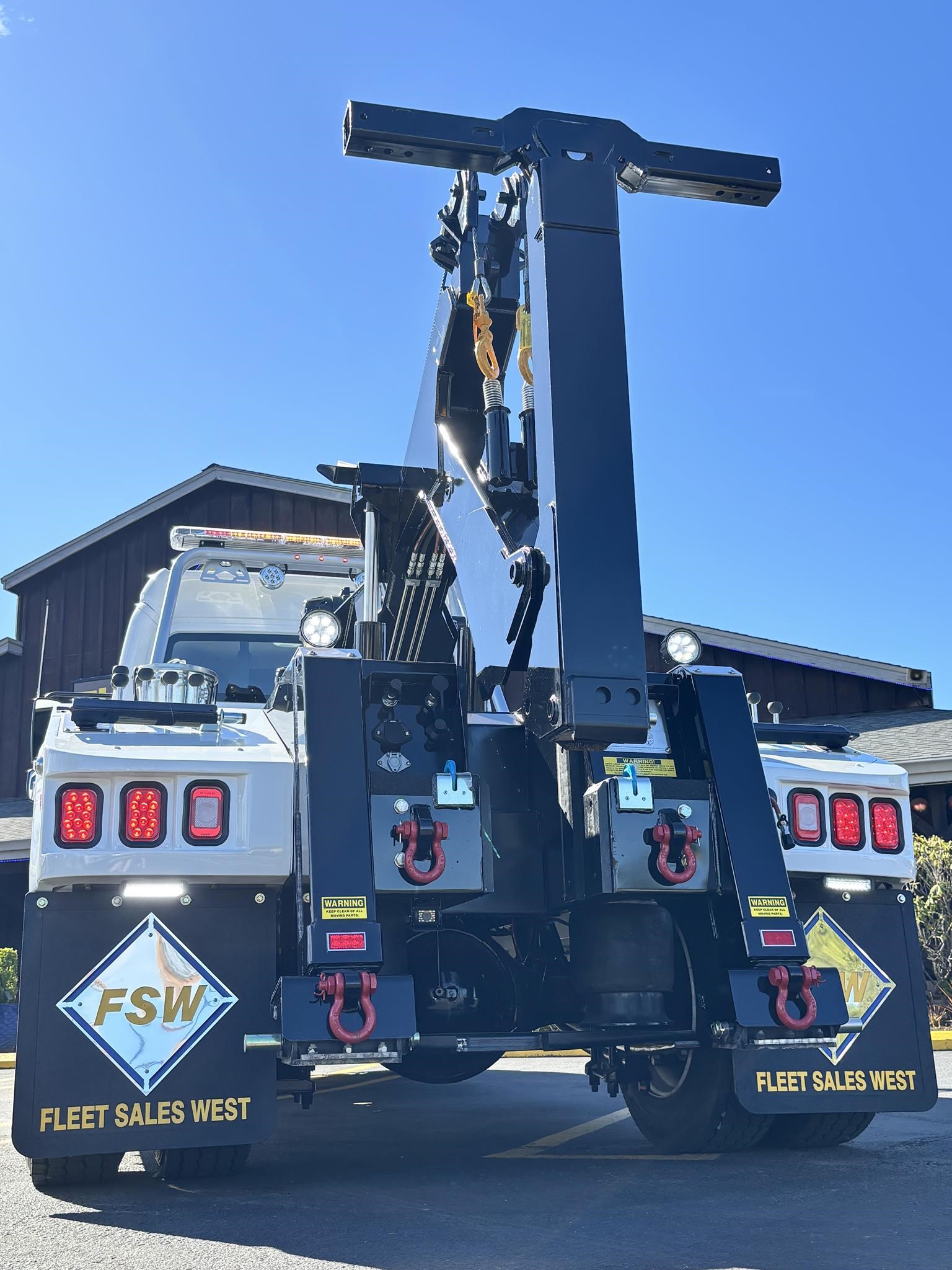

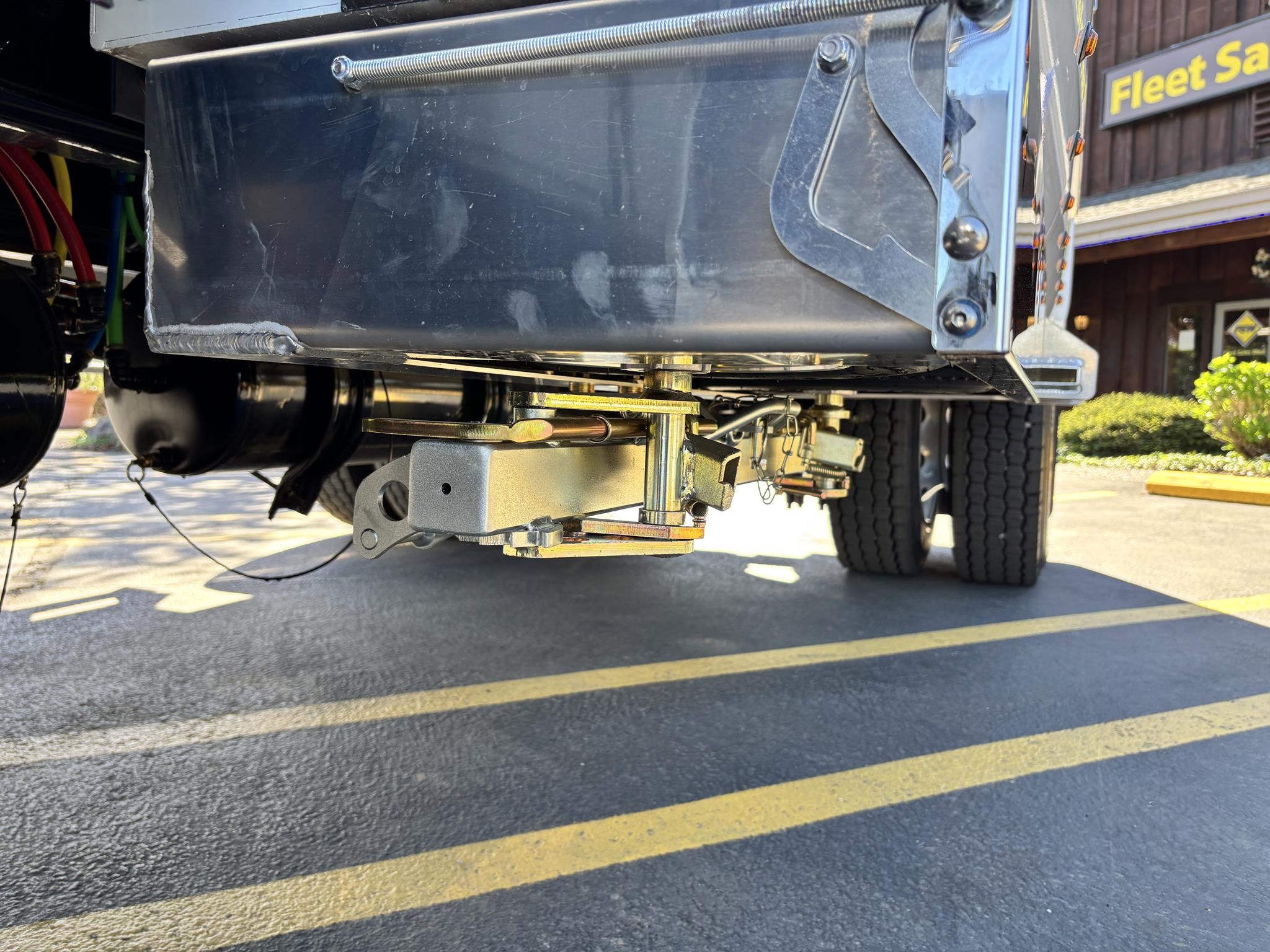

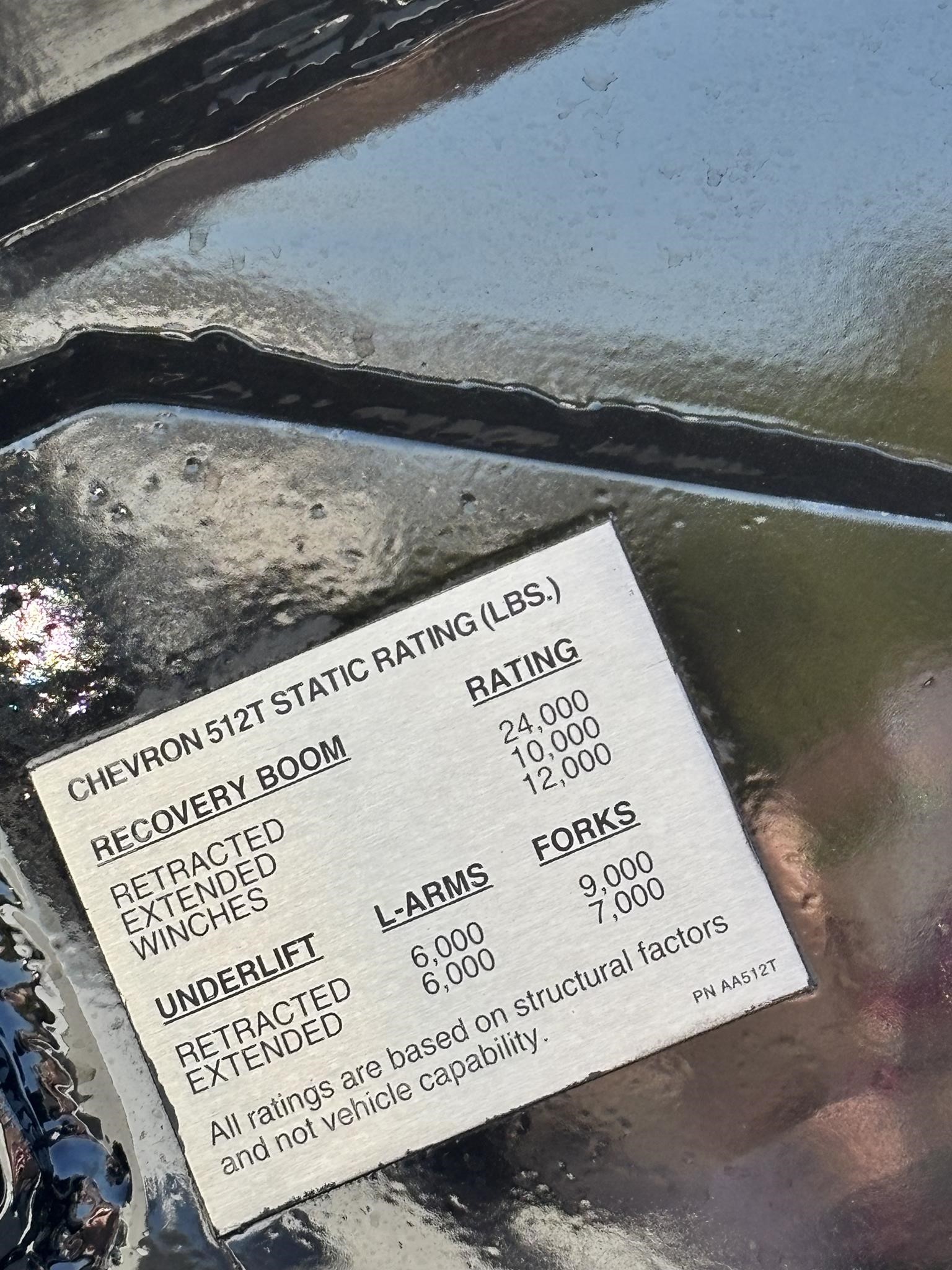

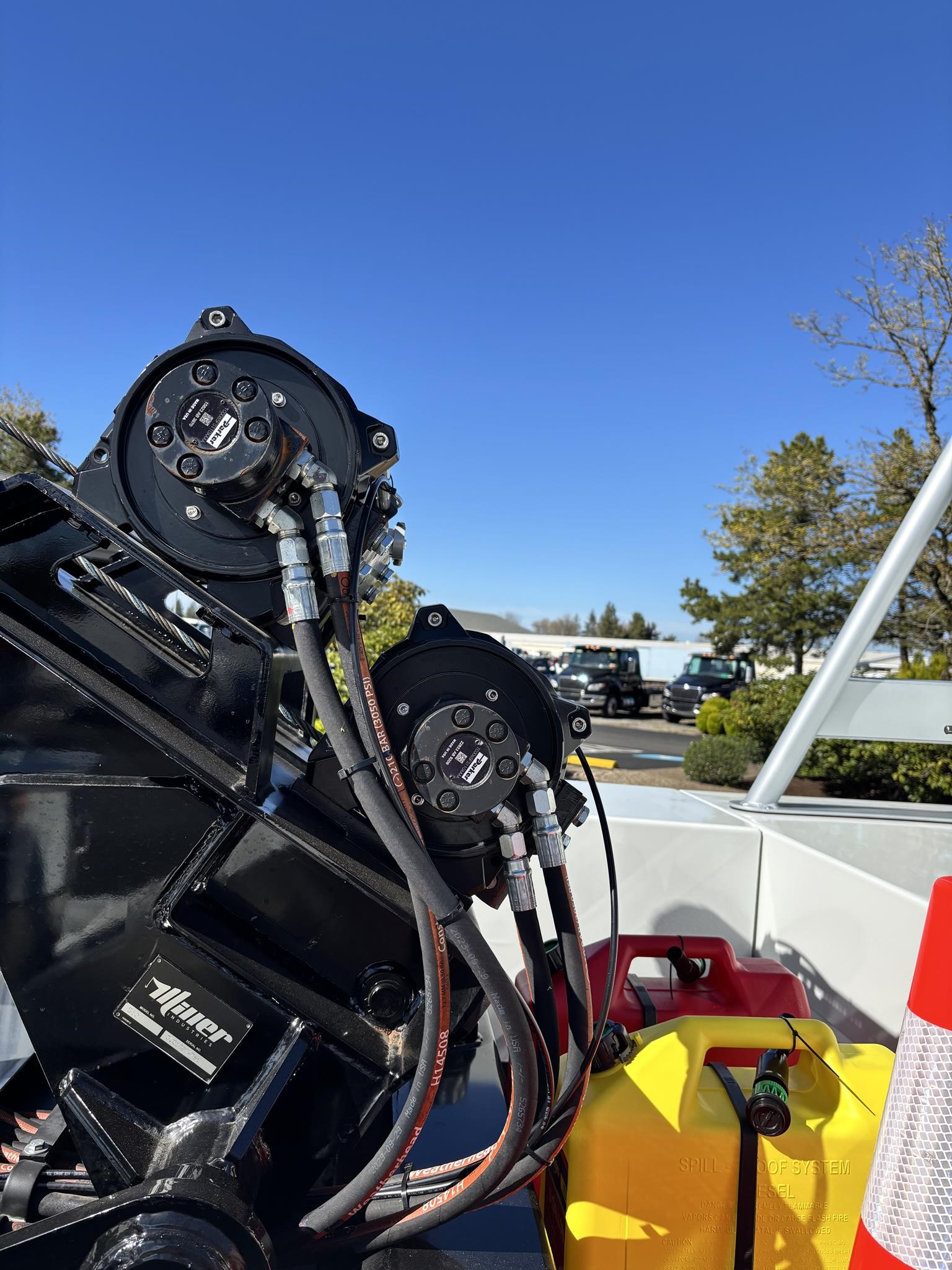

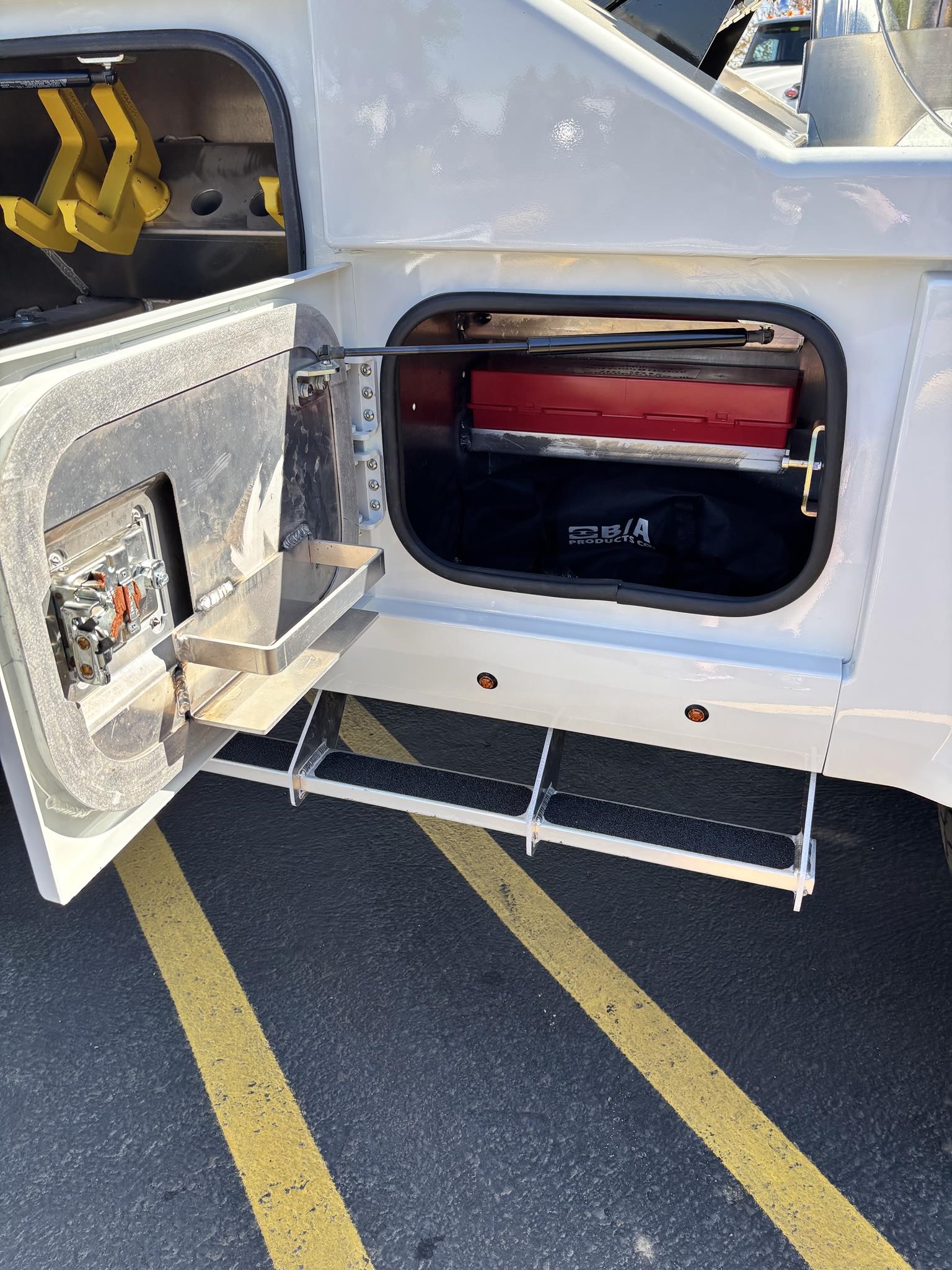

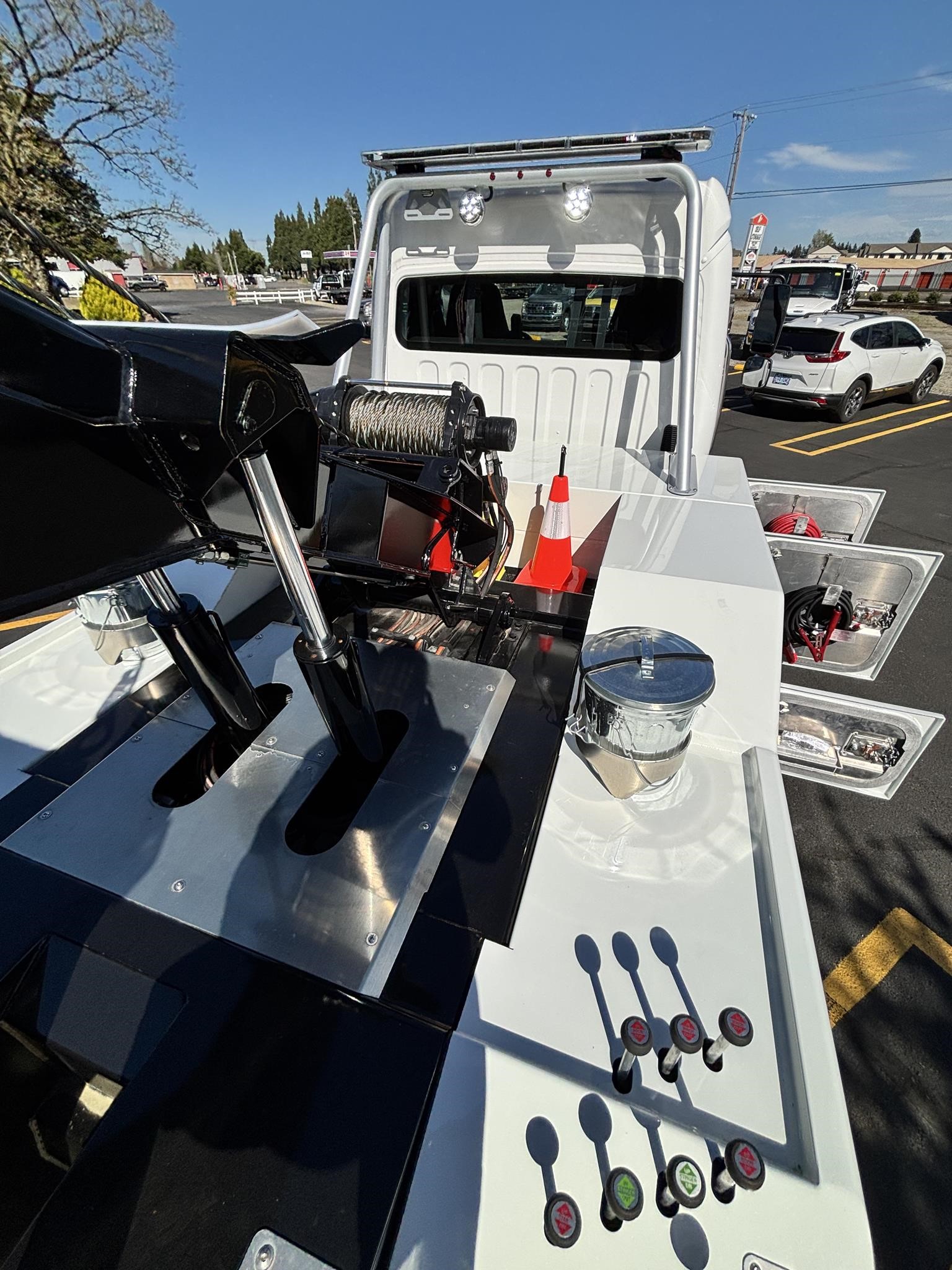

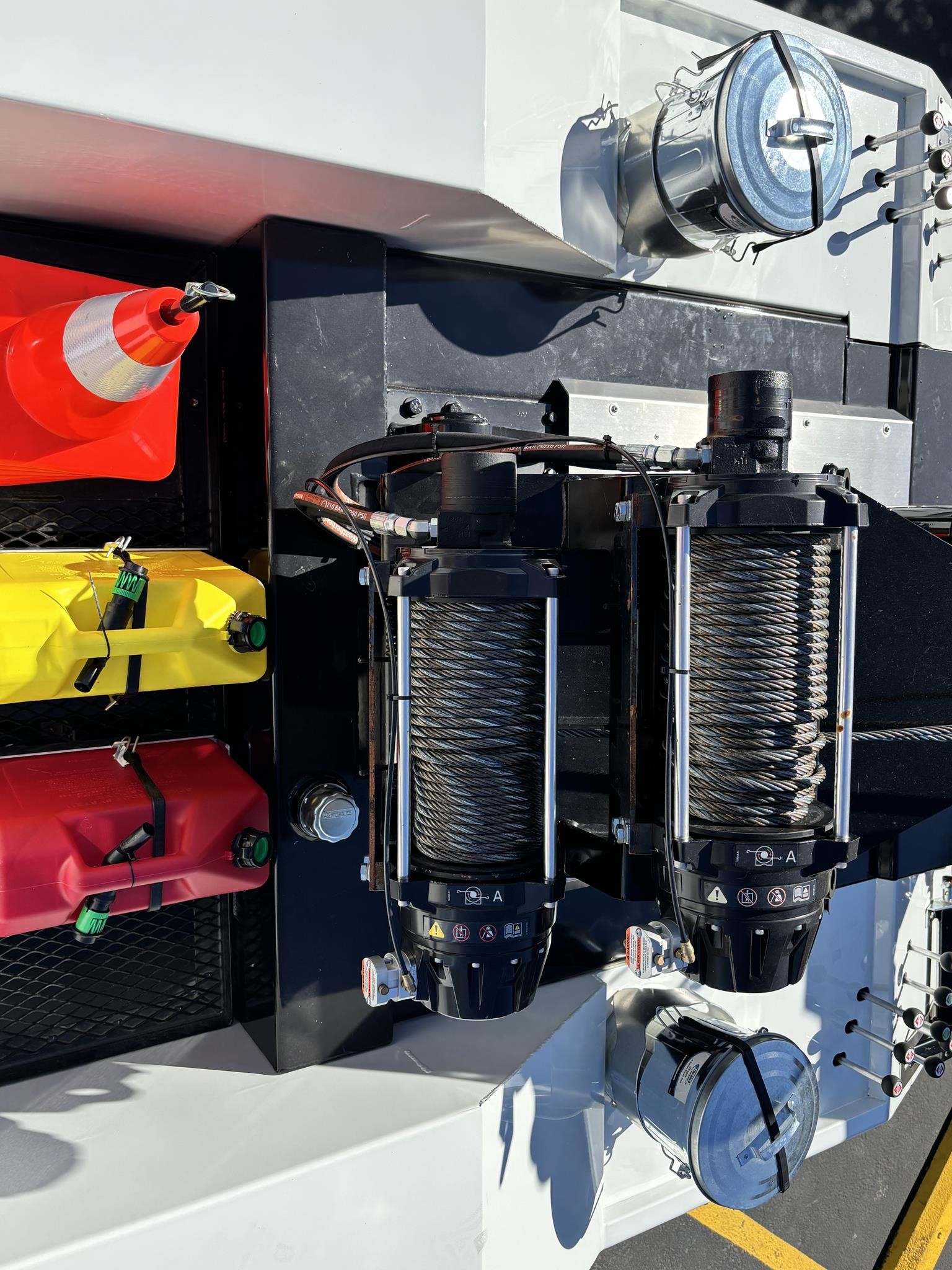

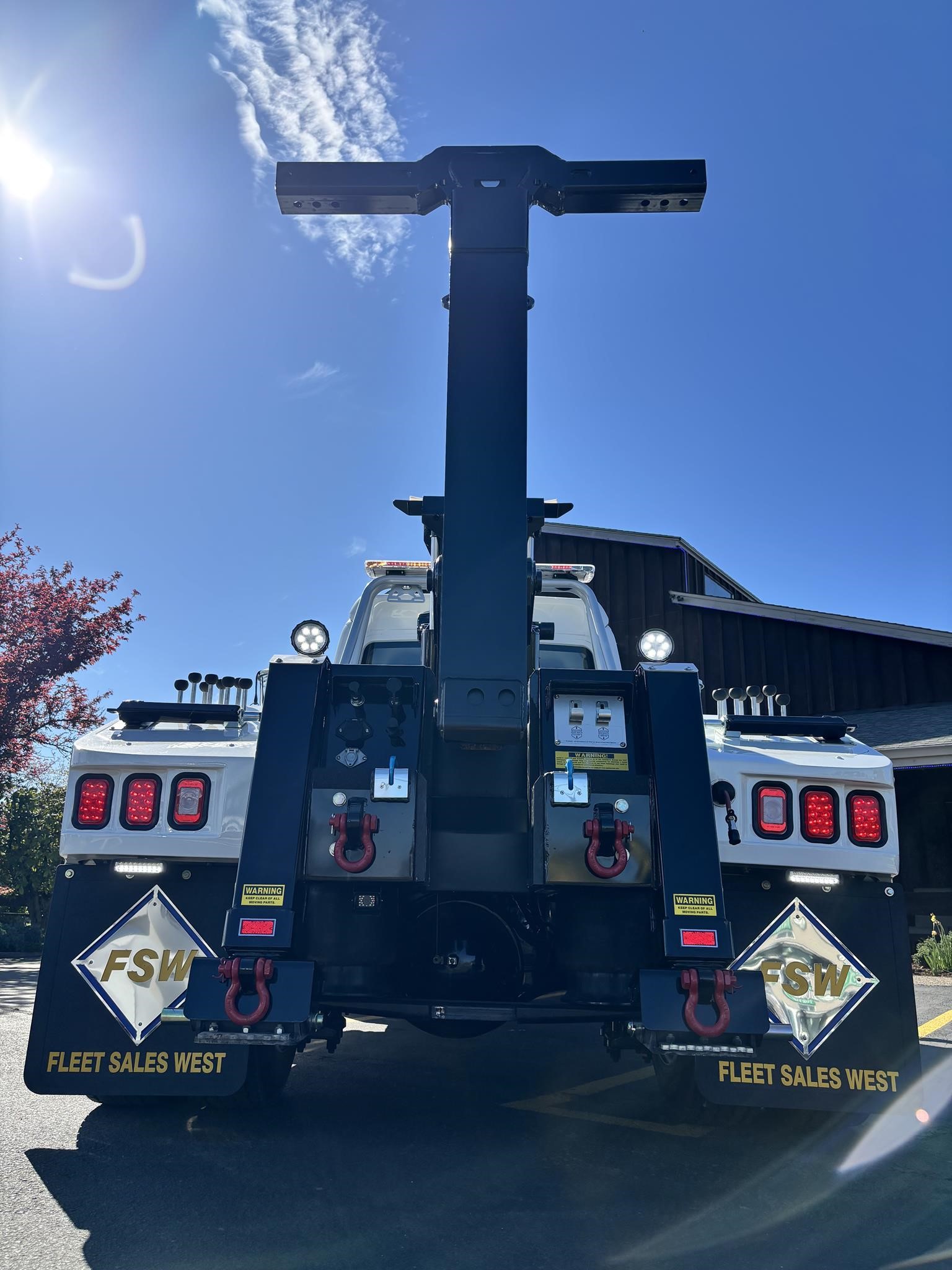

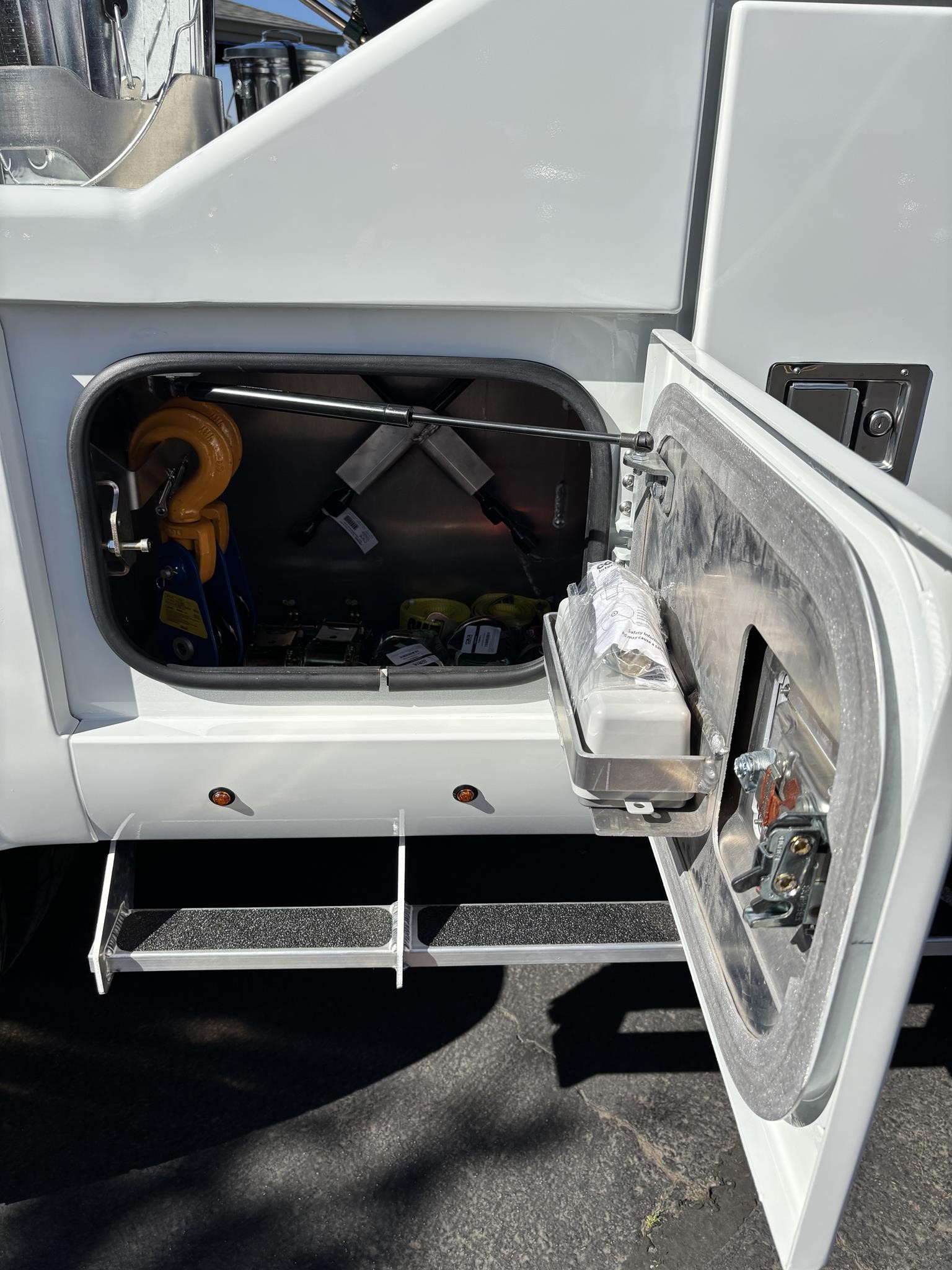

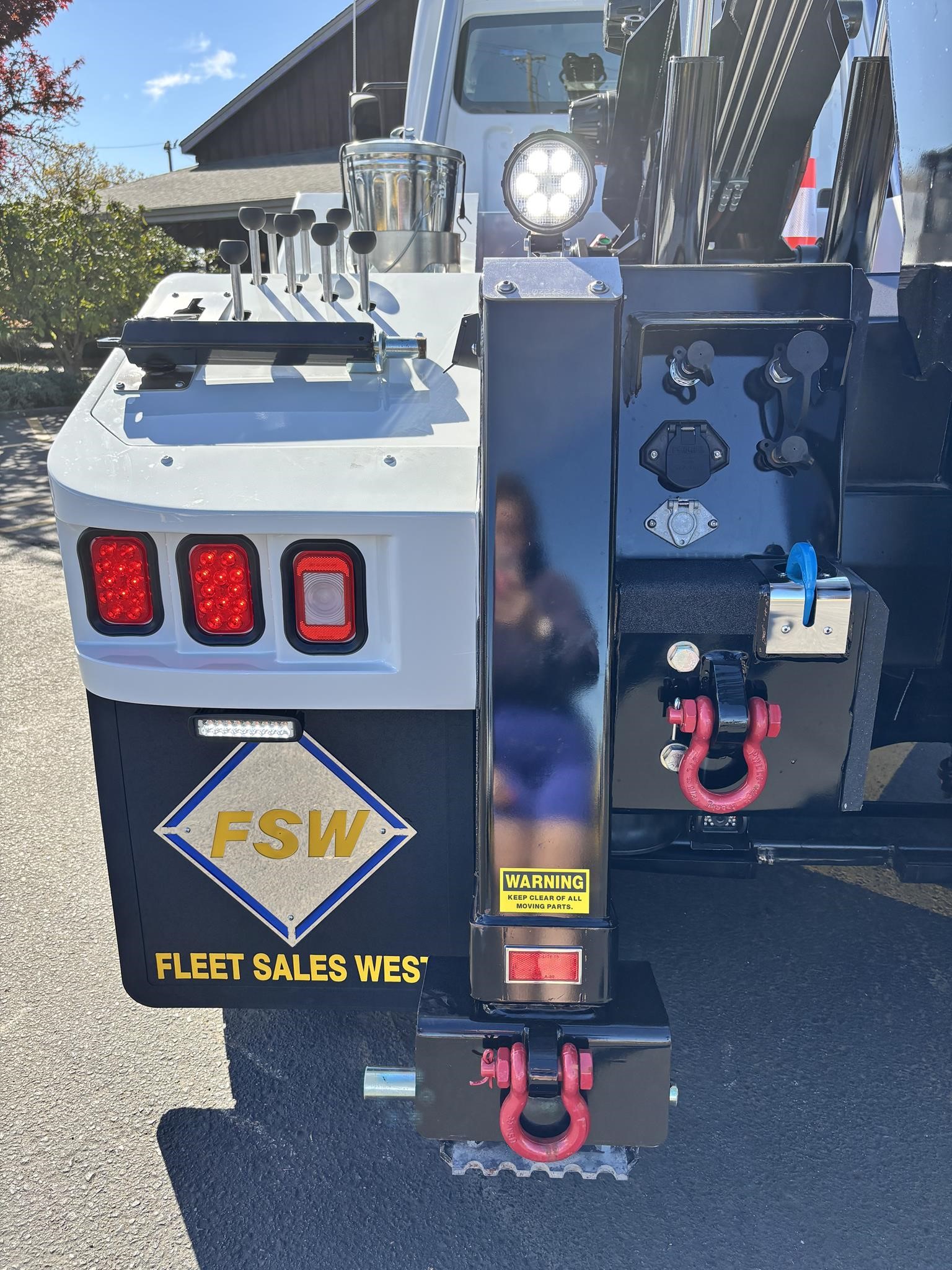

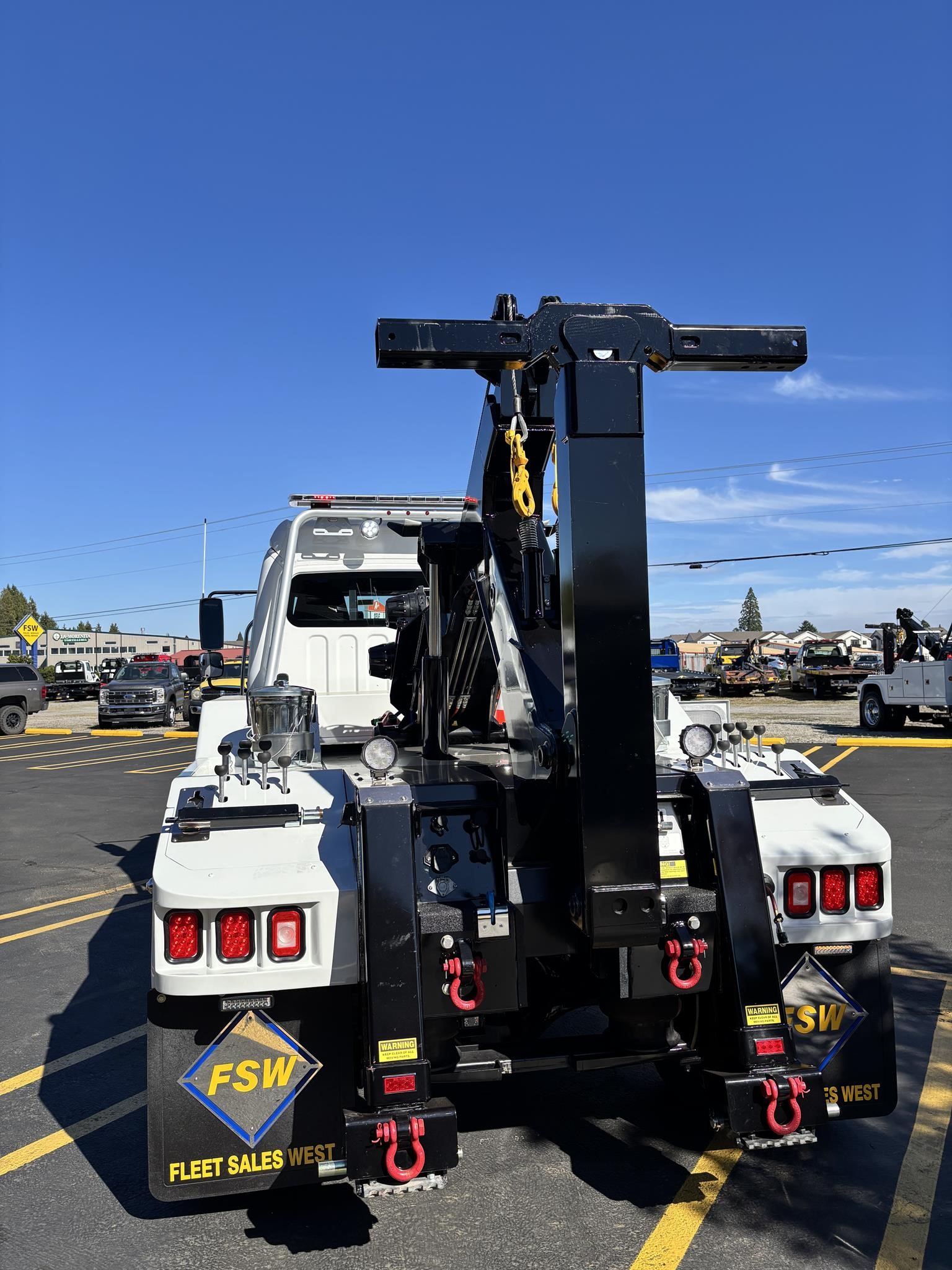

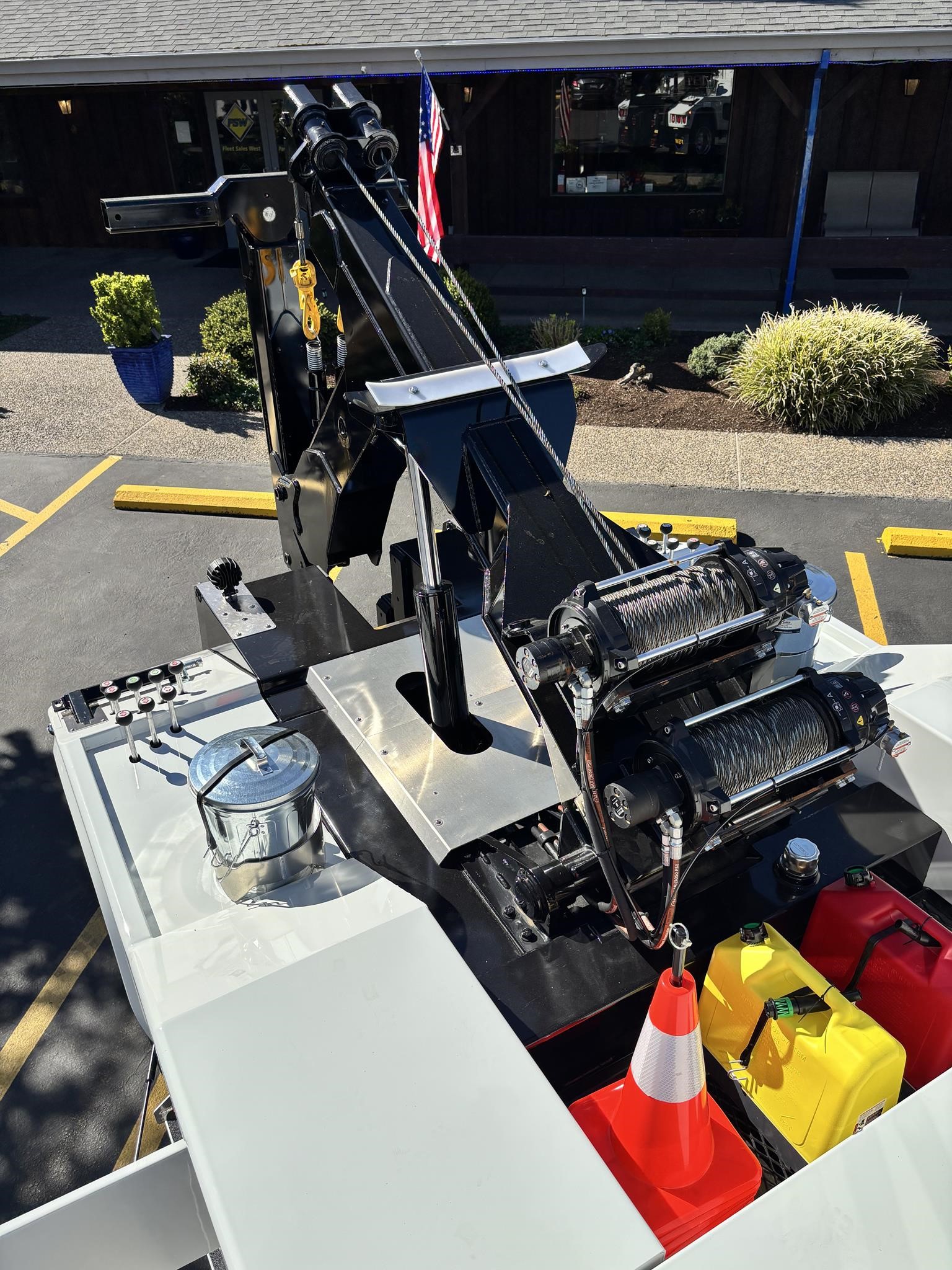

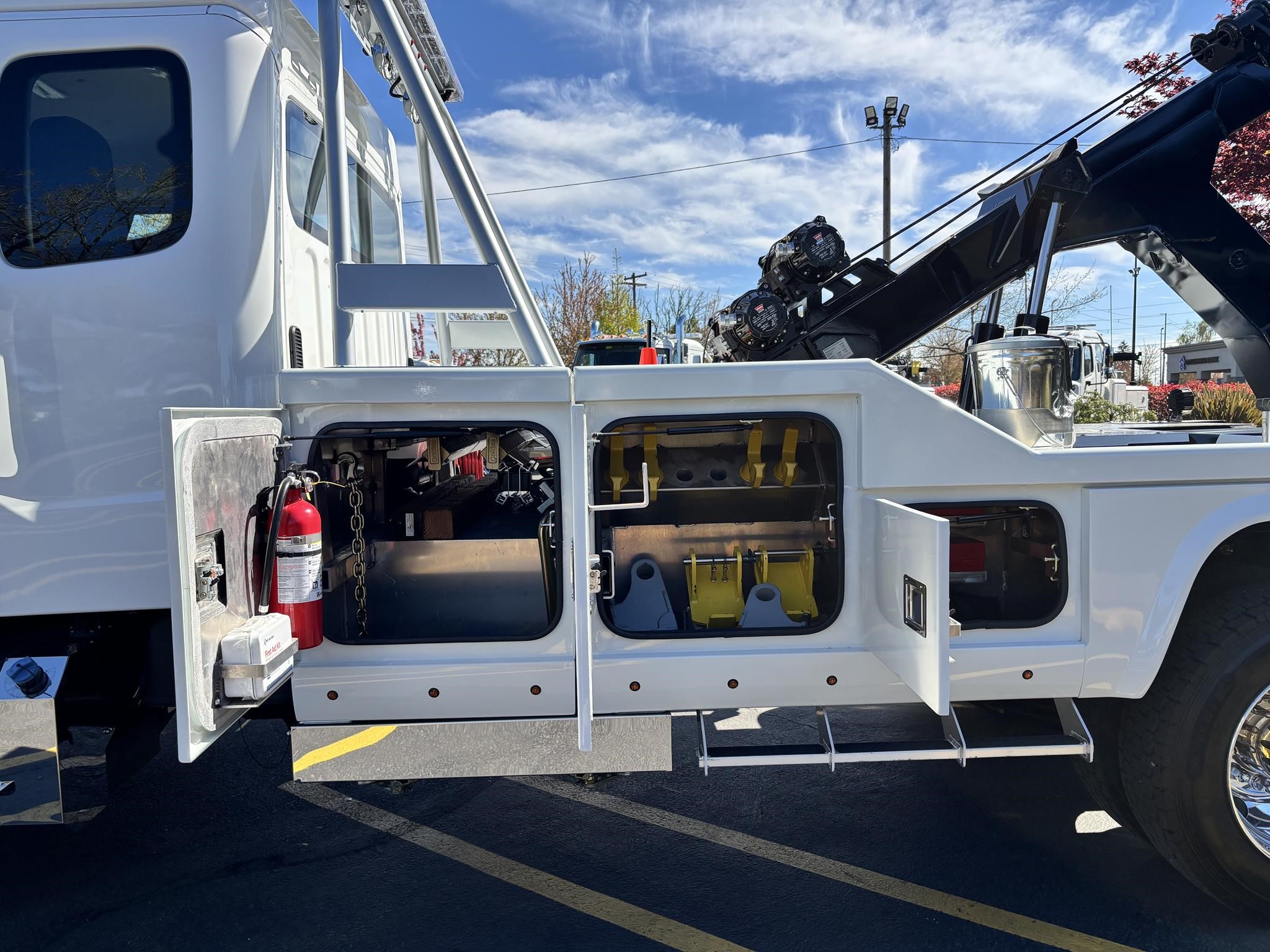

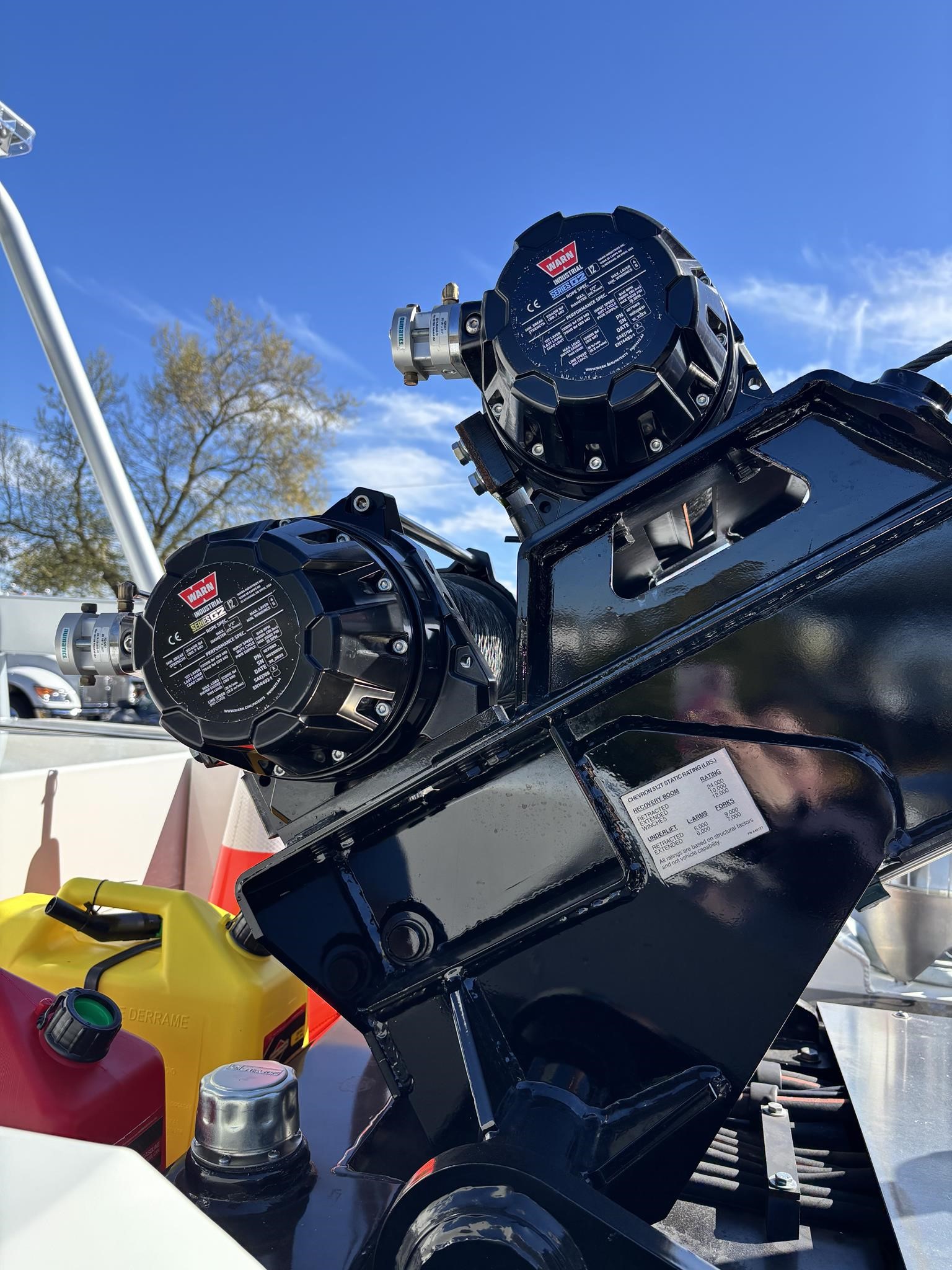

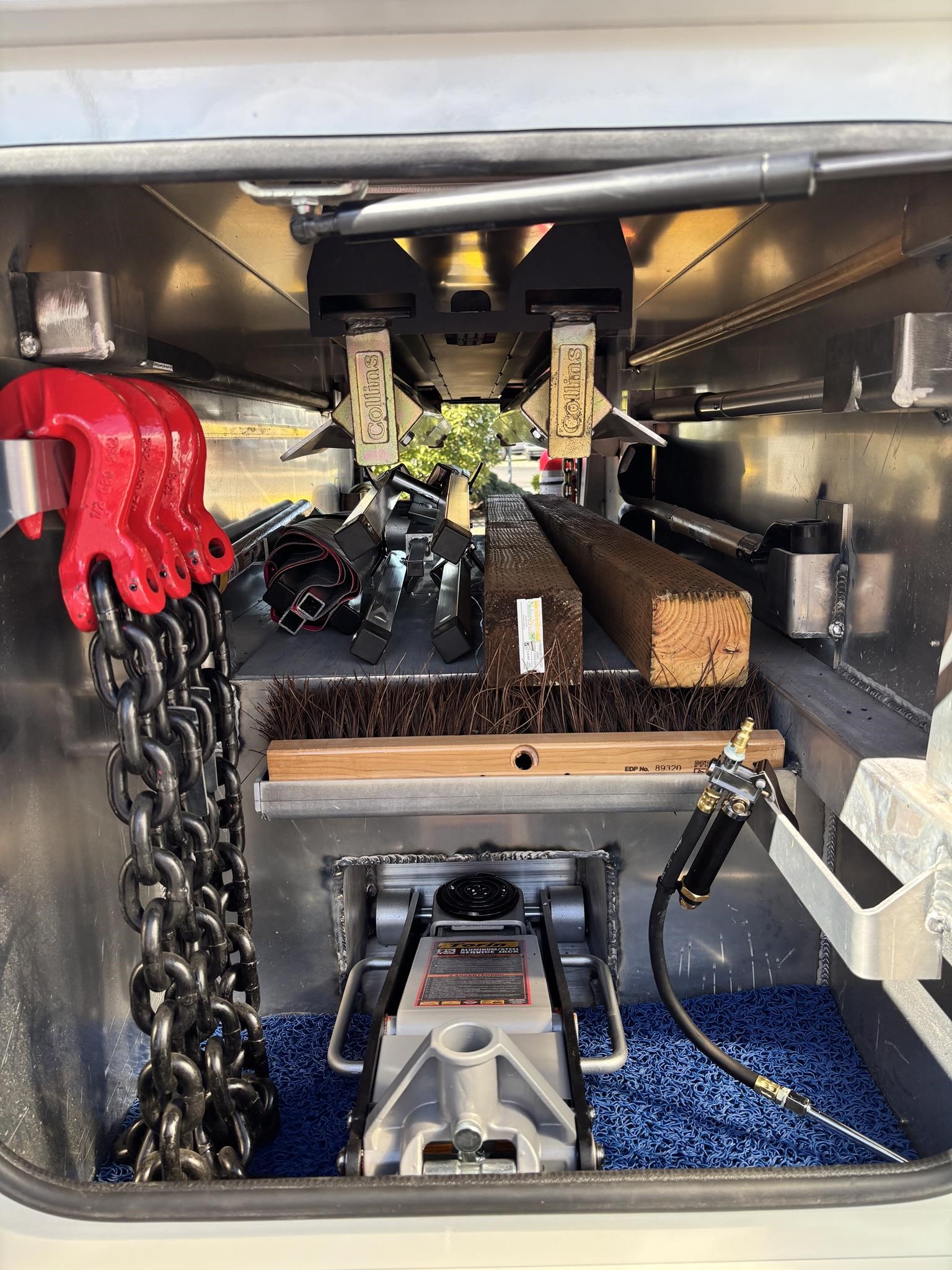

Aluminum modular body sides with two tool compartments on each side. Aluminum 28 in. tunnel through box with tool compartment lights. Tool compartment door closures on all doors “Warn” 12,000 lb. Planetary winches. 7/16” x 150 ft Cable per Drum. Cable Tensioners. Air Free Spool Winches (2) Switches on the Rear tailboard. 108” CA 6000 lb. L-arms. Elevated fork holders. Wheel straps and ratchets. Safety chain pockets. Safety chains.FMVSS 108 lighting (L.E.D.). Junction box with wire harness; pilot-operated holding valves. Lubrication fittings on all pivot points. Dual rear controls. Rear shackles. Two light plugs. Backup alarm. Mudflaps. 3-inch forks.4-inch forks; Spring shackle adapters. Low-profile offset fork holders. Under lift crossbar extensions. L-Arm Storage Pockets (Slope of Rear Deck). Body width is 96 inches, boom elevation is 41 degrees, boom reach past the tailboard is 71 inches, and under lift reach from tail. board to center of fork; 78.5 inches; Negative tilt range;10 degrees; Control valve; Sectional, 15 GPM, 2200 PSI; Oil reservoir; 13 gallons; Oil filters (2); 15 GPM, 10 Microns; BOOM;Retracted;24,000; Extended;10,000; Winch (1st layer); 12,000; Under lift; Retracted (forks) 9,900 Extended (forks); 7,000; Tow Capacity (rolling) 20,000. Body Serial # : 5121G234798

Hydraulic Rear Spades (408/512TA)

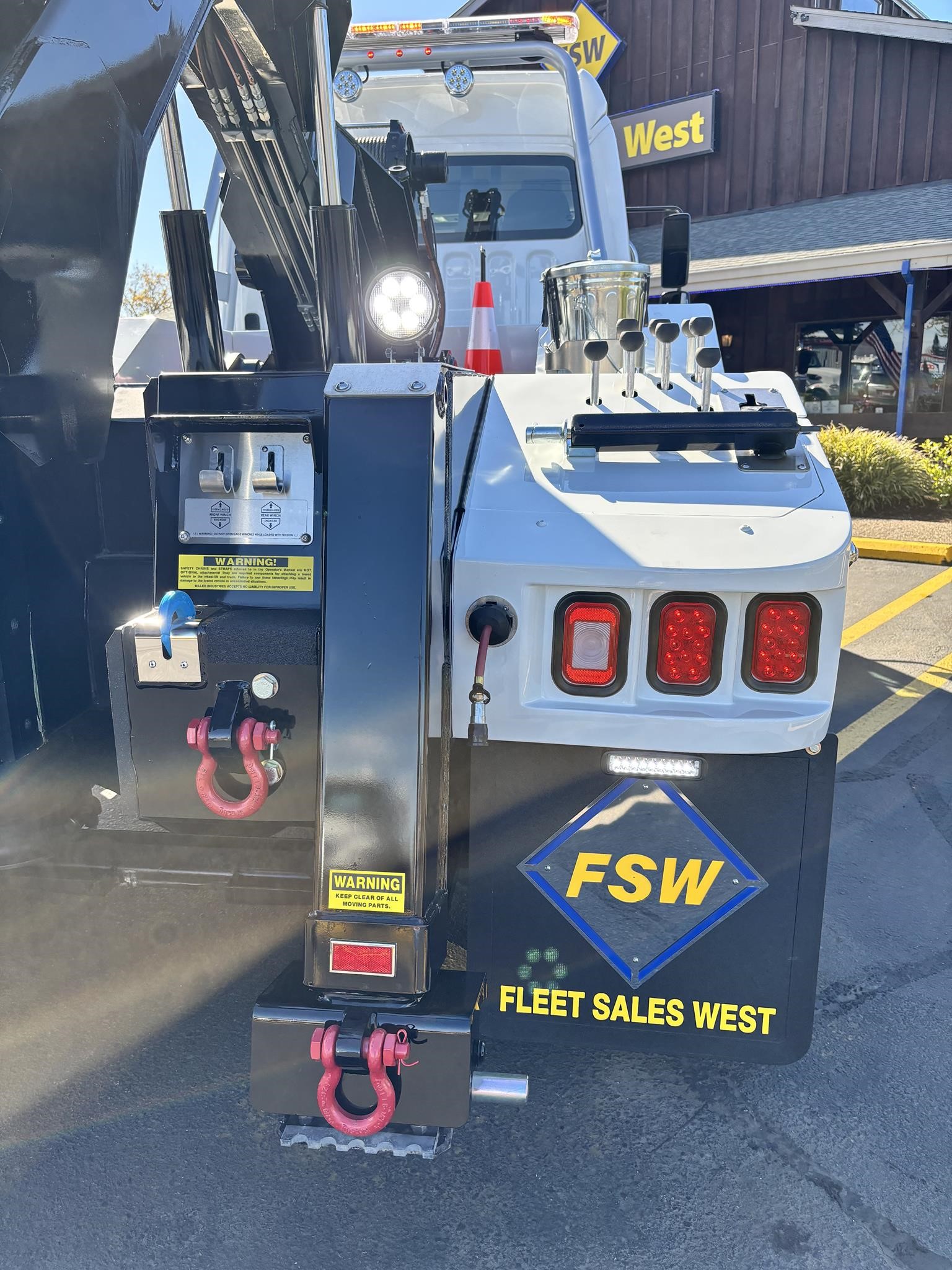

Lanyard Remote Control (Standard Crossbar)

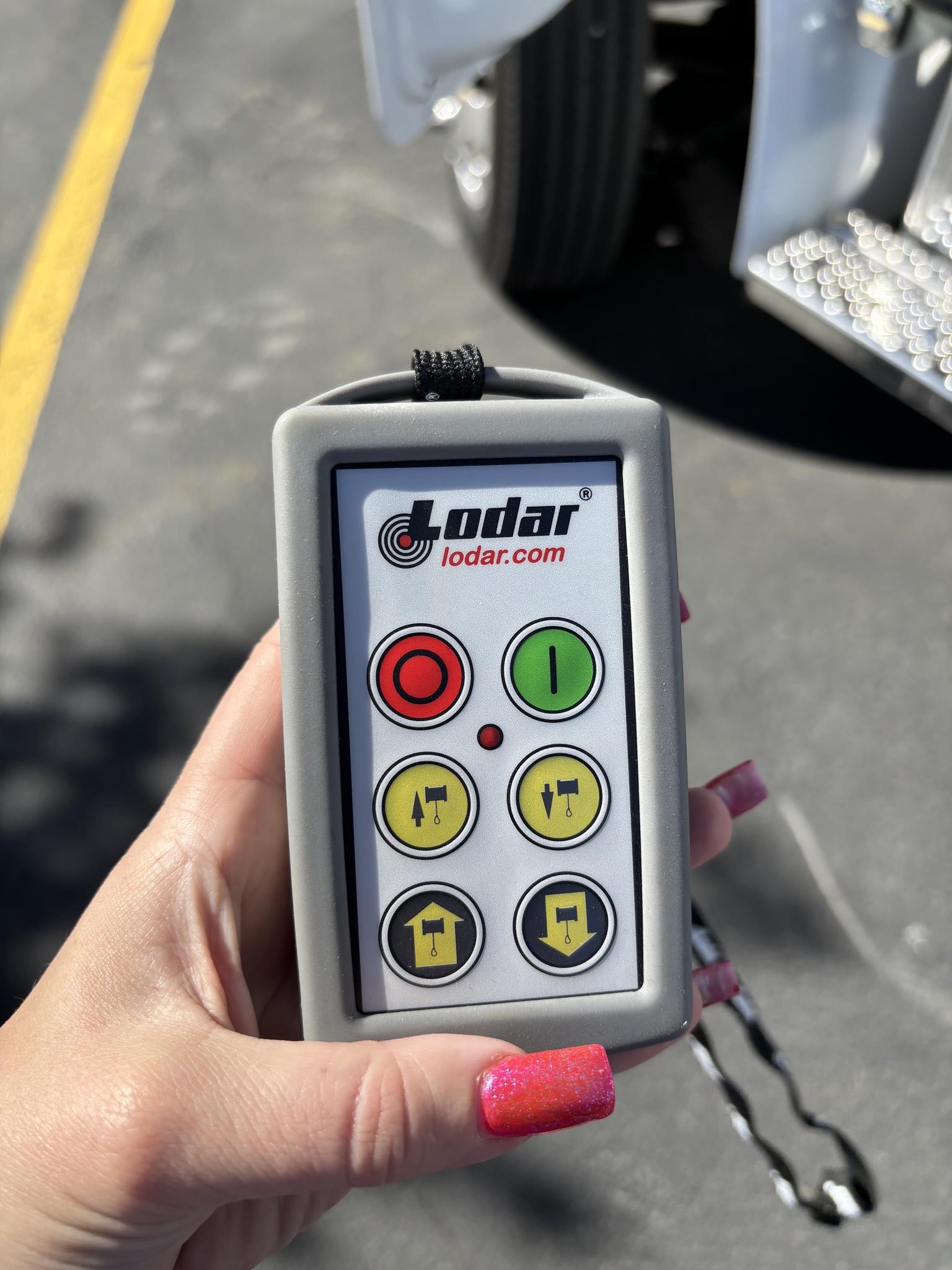

Wireless Remote Control (Twin Line)


Accessories
Air & Electric Kit
Muncie Hot Shift PTO (Allison or Aisin - 6 Bolt)
Offset Fork Holders (4x4 Crossbar, 4024, 1016, 512, Industrial Carriers)
Pintle Attachment - LD


Installation
2465 / V-24 / 512
Body Dress Up Kit (LD)
Dollies

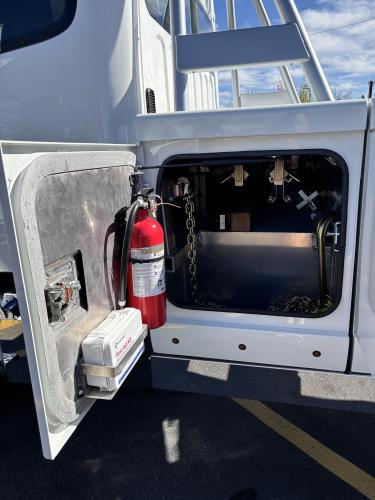

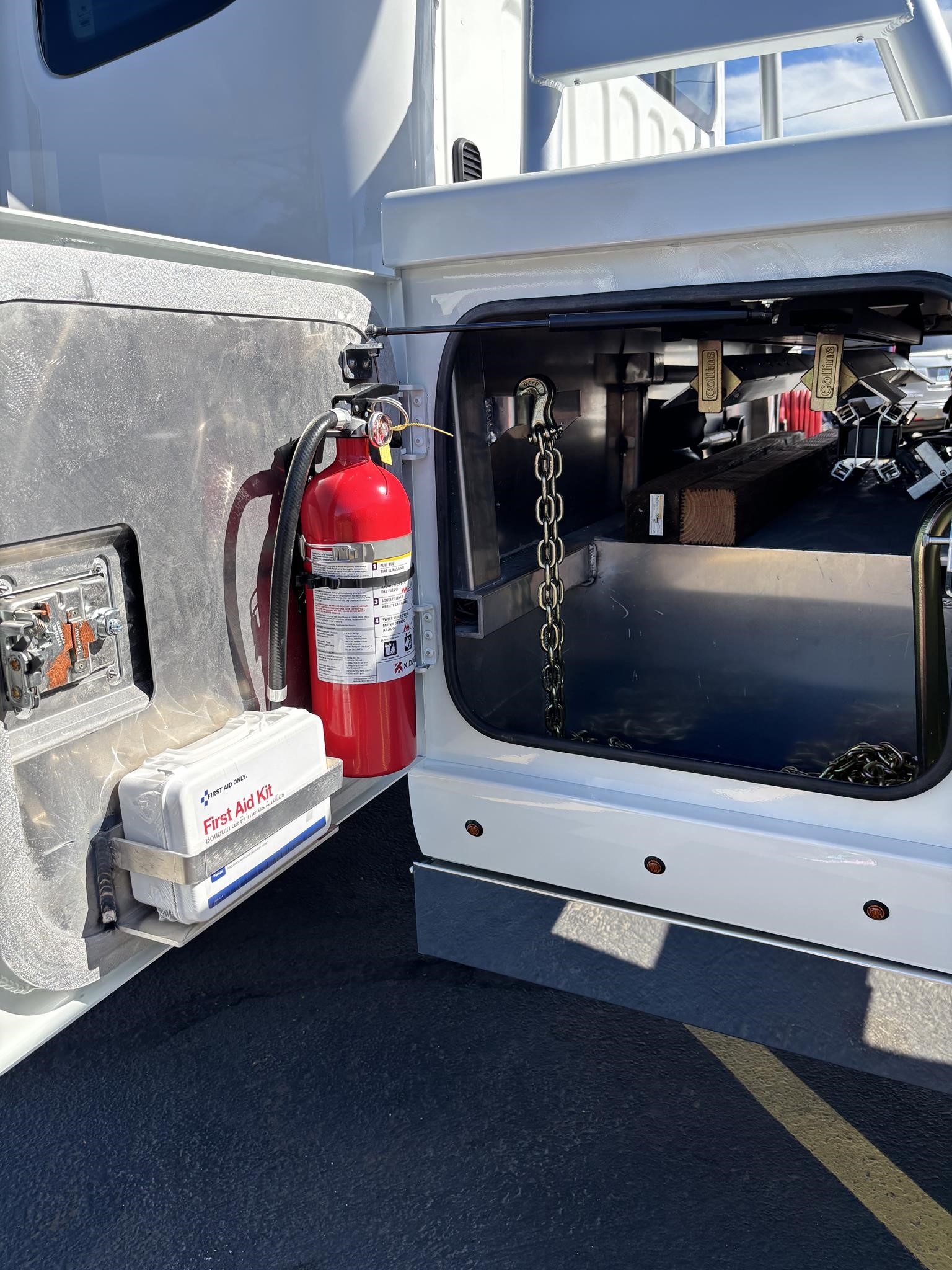

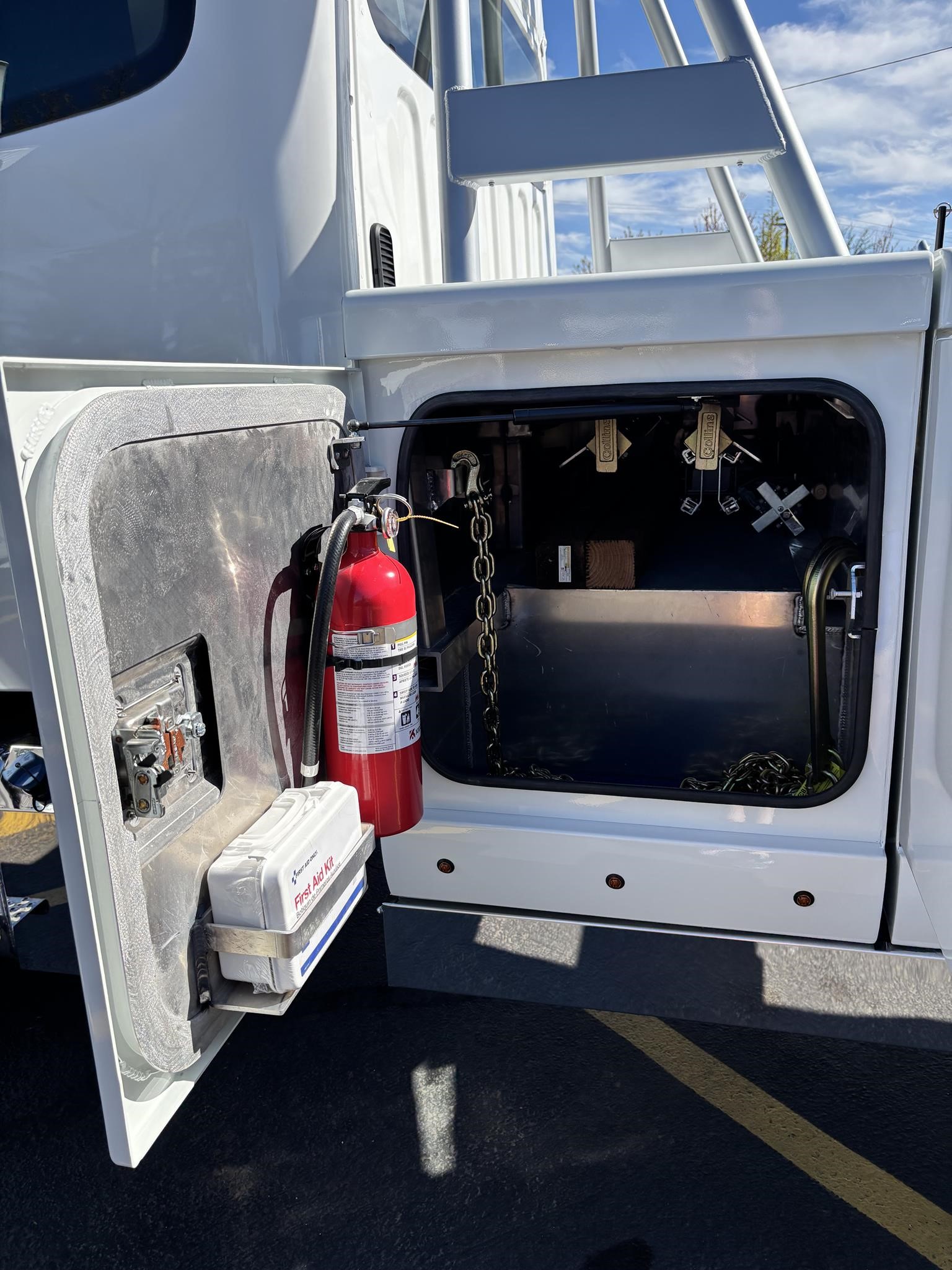

Fire Extinguisher
Fork Storage Rack (LD)
Hot Shift PTO - LD, CC, HD

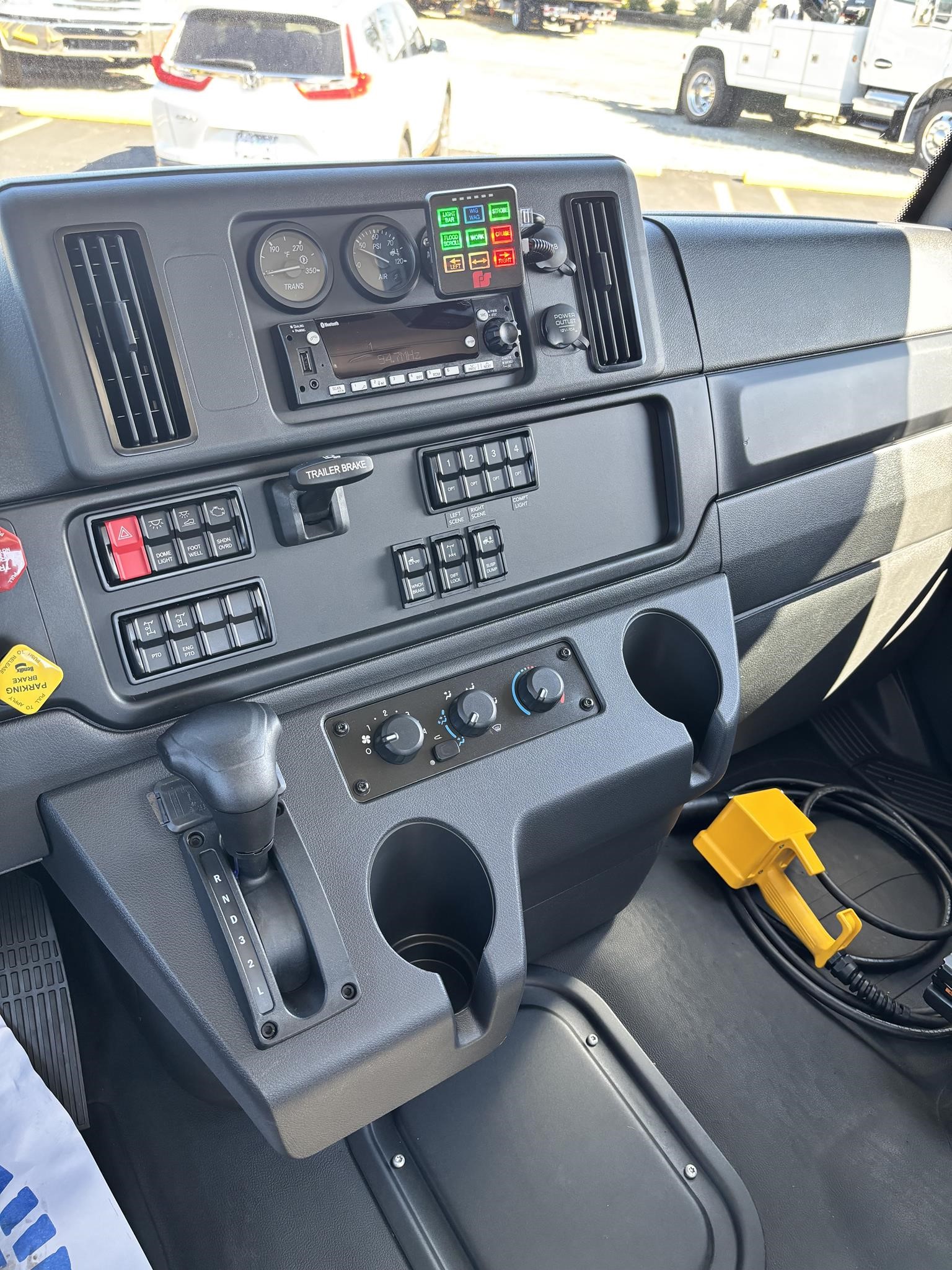

In-Dash Switch Panel
Install Trailer Ball Adapter (LD)
Jump Start Kit

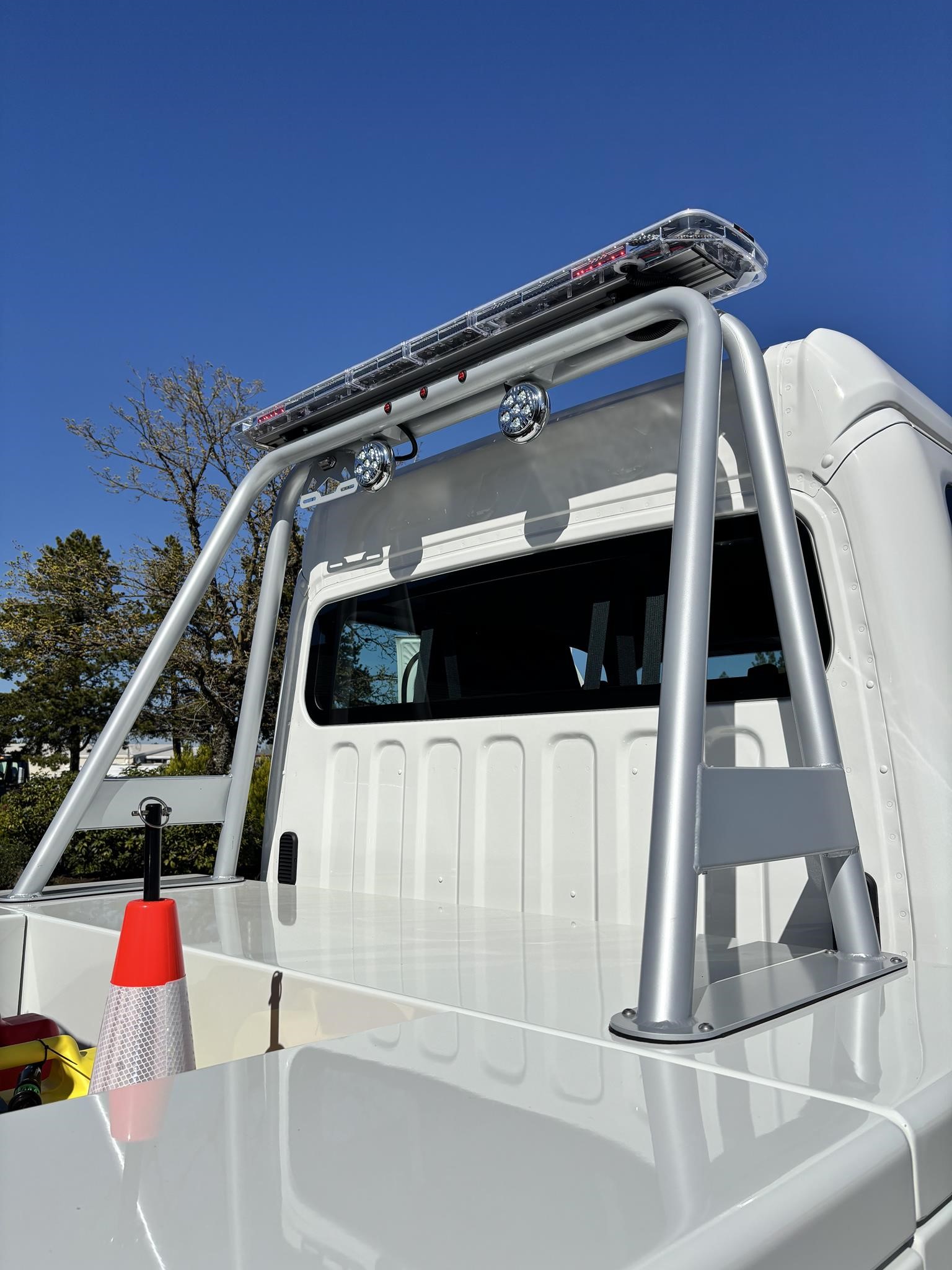

Light Bar (LD/CC)
Light duty bracket(s) installation
Live Air to Tailboard
Misc. Labor
Saddle Box (Each) LD
Snatch Block Storage Kit (Each)
Switch Panel Harness (Required for all LD Installs)
Work Lights (Pair)


Paint
Black Gloss Finish Paint (LD)
Paint - 2 Color - 108" CA Body (Chevron, LD)


DAA
ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
ACC: Air Inflate Kit: (F)68272; (W)68271; (G)61387
ACC: Air Protection Valve 90PSI required when adding air outlets

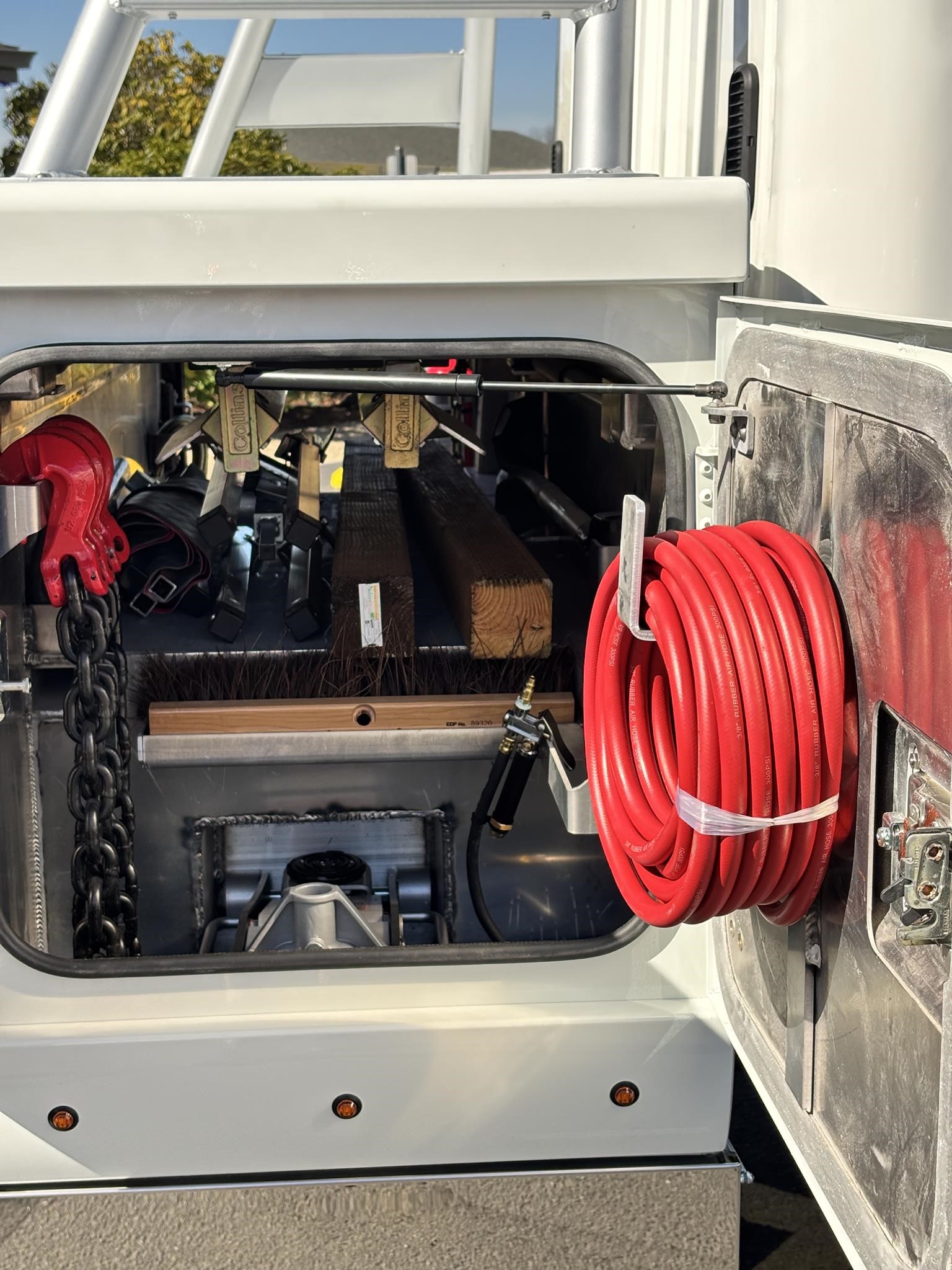

ACC: Air reel Enclosed- (ReelCraft™ 50' 1/4") -rear of Carrier subframe.
ACC: Boltcutters, 24"
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238

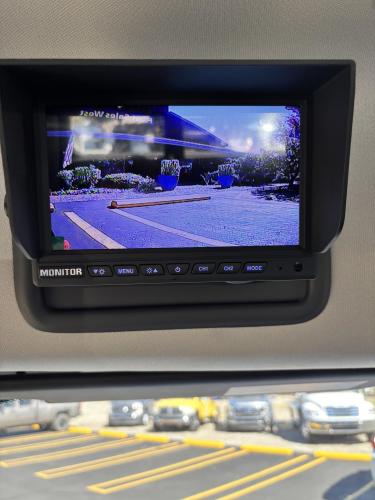

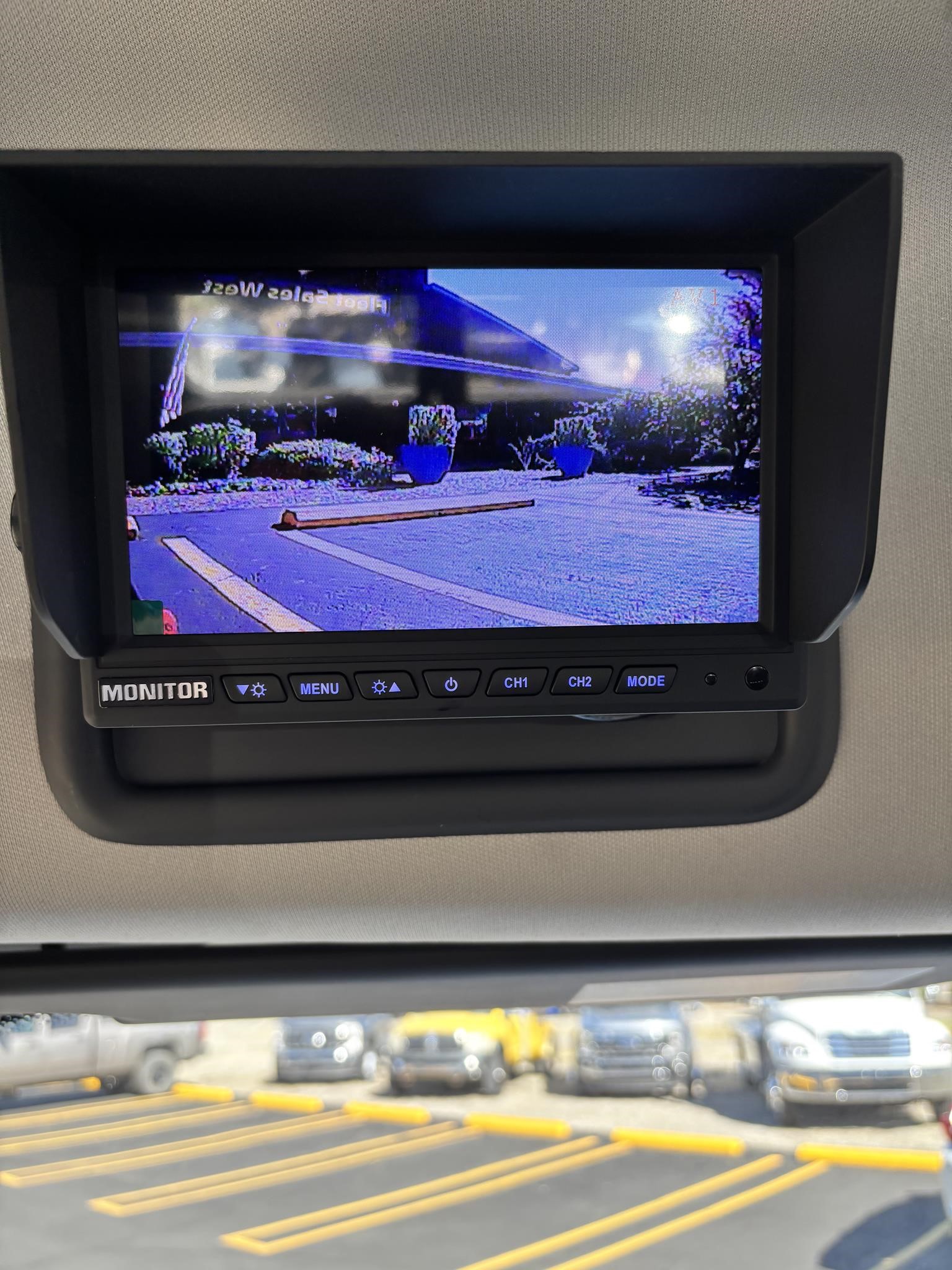

ACC: Camera, Back up 7" LCD Screen single camera system
ACC: Camera, Back up, 5" LCD Color Gemineye™
ACC: Cone, 18", Single: (F)CN-186R; (W)53858A; (G)100476
ACC: Driver Essentials Bag
ACC: Flashlight with DC Charger, Streamlight LED PolyStinger
ACC: Fuel Can, Diesel, 5-Gallon, Yellow
ACC: Fuel Can, Gas, 5-Gallon, Red
ACC: Fuel Can, Water, 5-Gallon, Blue

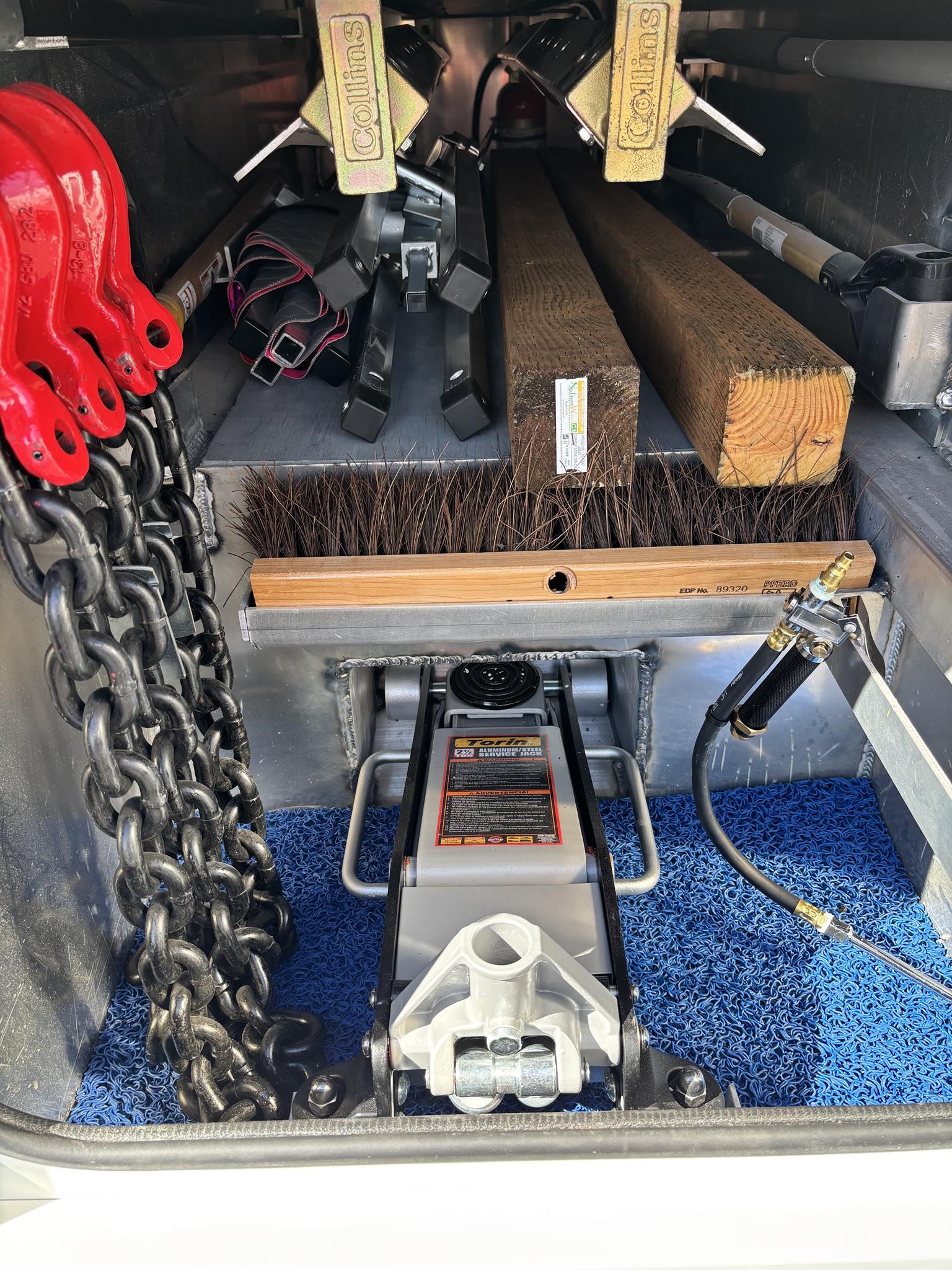

ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
ACC: Lockout Kit, One-Hand Jack Kit
ACC: Lug Wrenchs, 14" Metric/20" Standard
ACC: Pry Bar, 60"/51" (F)AMES1160100; (W)50020; (G)PPB-51
ACC: Shovel (F)AMES1572700; (W)Shovel; (G)Ame73-1564500
ACC: Sign, Wreck Ahead, 36", Fold-n-Roll with Stand and Carrying Case
ACC: Trash Can, 4-Gallon, Steel
ACC: Triangle Kit
B/M: Bracket Kit, Aluminum, required for all Medium-Duty Wreckers
B/M: Circuit Breaker Bracket
B/M: Dollie Axle Mount, Sliding, for Tunnel Box
B/M: Fuel Can Bracket, 5-Gallon, Deck-Mount, Aluminum, Single
B/M: Jumpstart/Air Coupler Bracket, Universal
B/M: Lumber Rack, Aluminum, for Streamliner Toolbox
B/M: Trash Can Ring, 4-Gallon, Deck-Mount, Aluminum
BOD: Chain Pocket Guards, Stainless Steel, Pair

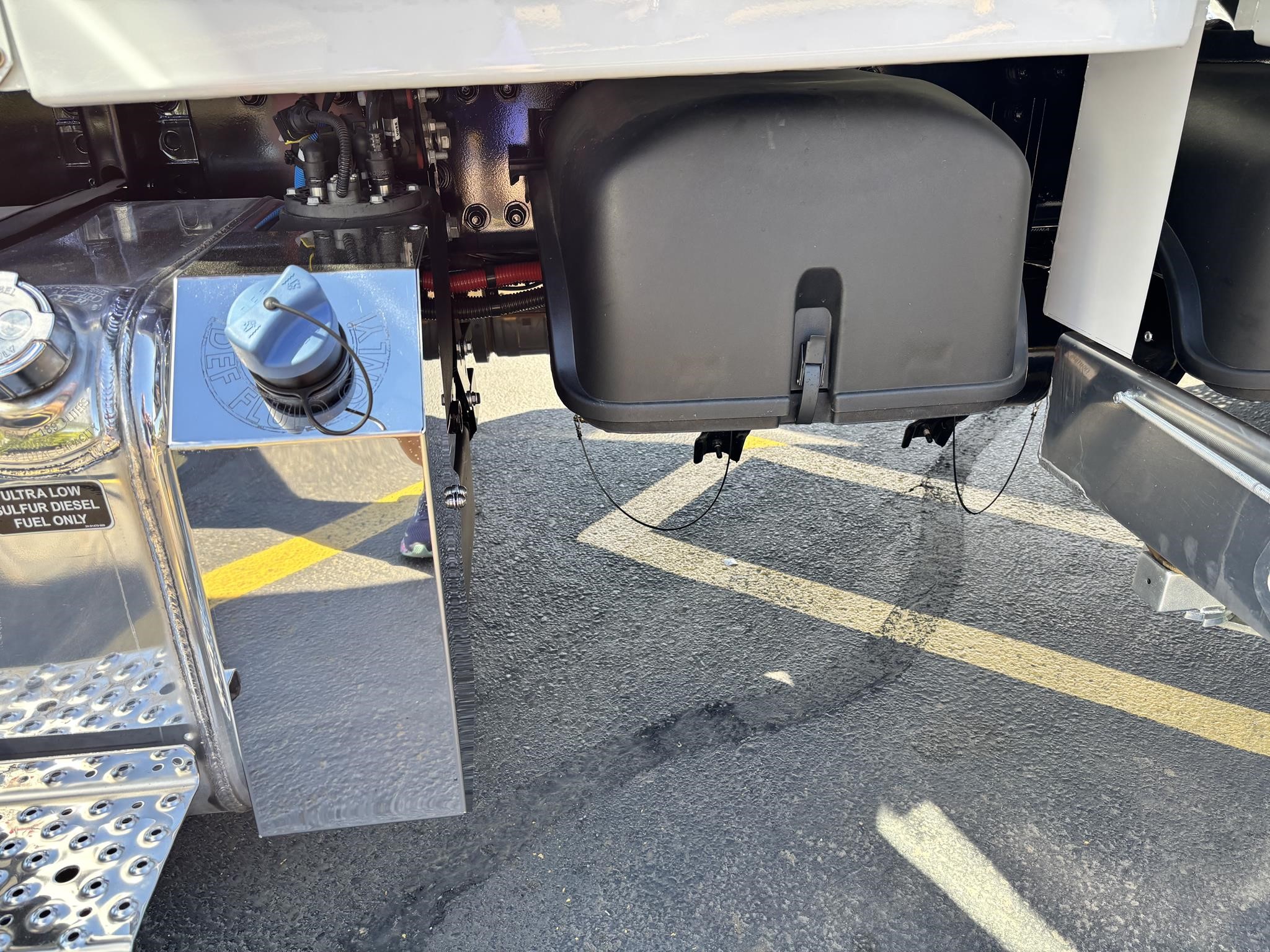

BOD: DEF Tank Cover, Stainless Steel, for 2016-Current Freightliner
BOD: Mudflap Weights, FSW, Stainless Steel, Pair
BOD: Mudflaps, 24" x 24", Pair LCG application
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"

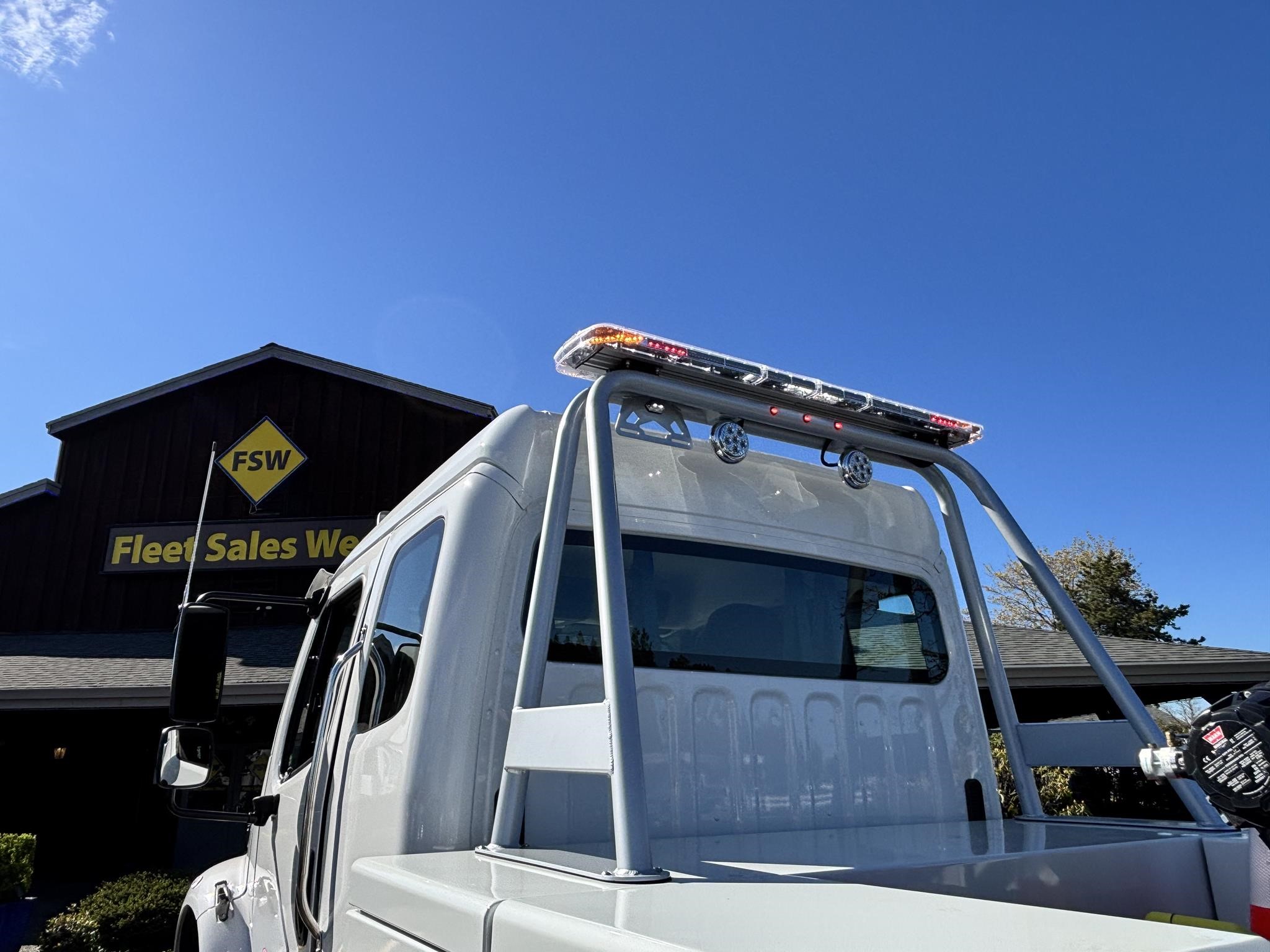

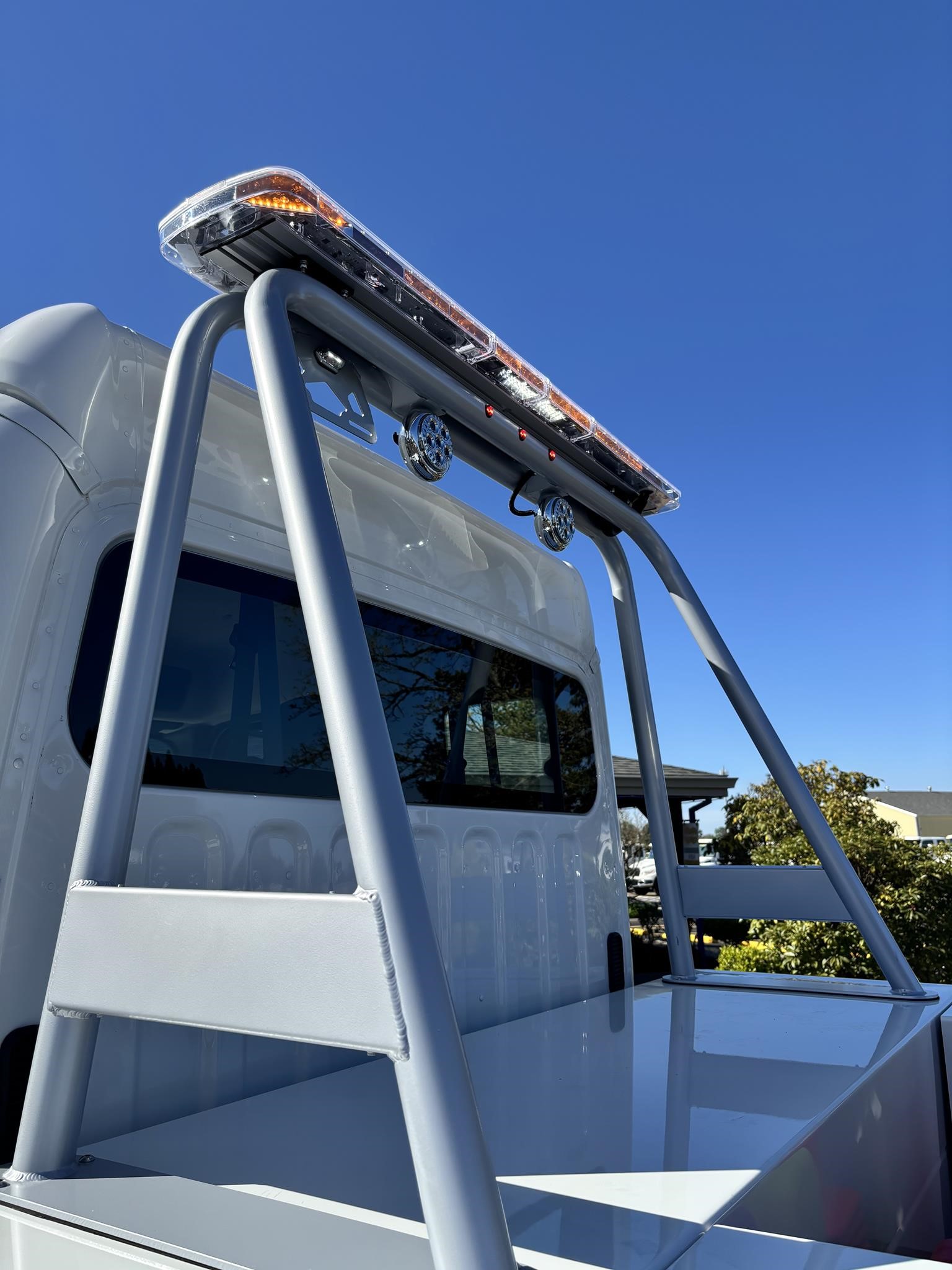

LB: Allegiant-Serial™24H w/TA 5 year warranty includes FS 12FXN controller for TA

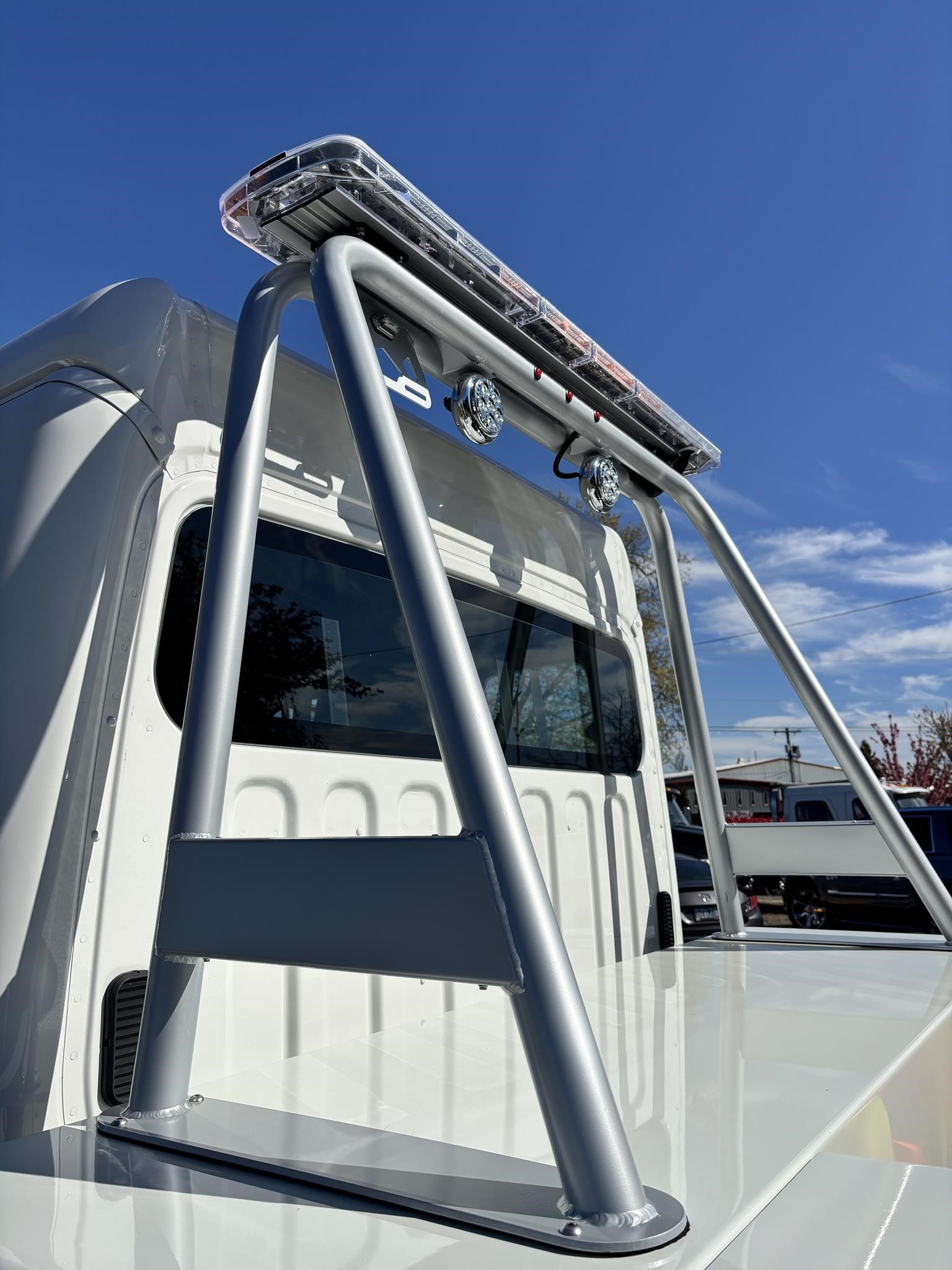

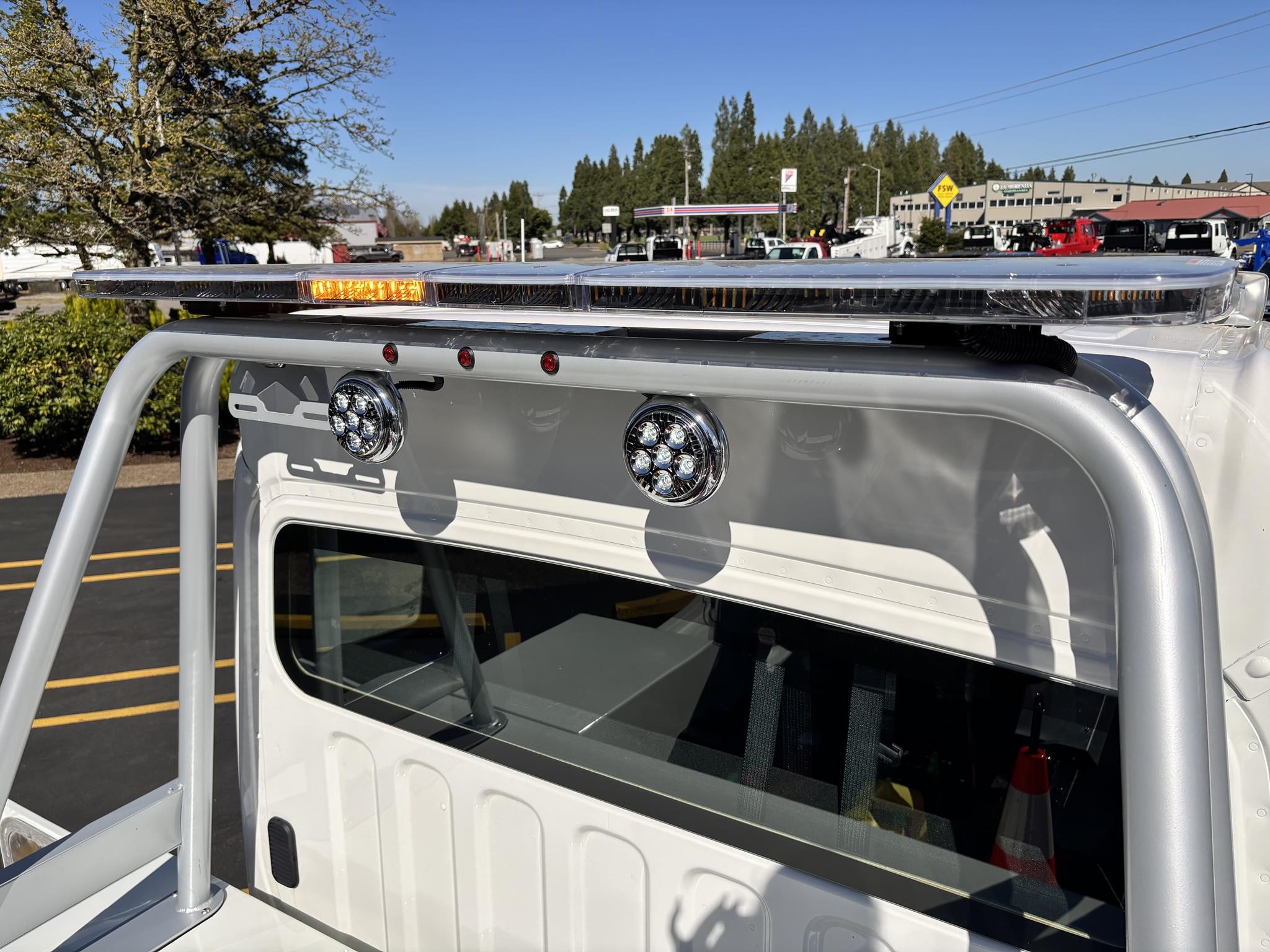

LIT: 25" Double Stack LED Light bar work lite- 20AMP
LIT: Breaker, 80-Amp, add 1 for each Jumpstart connection
LIT: Electrical Package, All except Hino & International - Main Harnesses + ATC Fuse Blocks

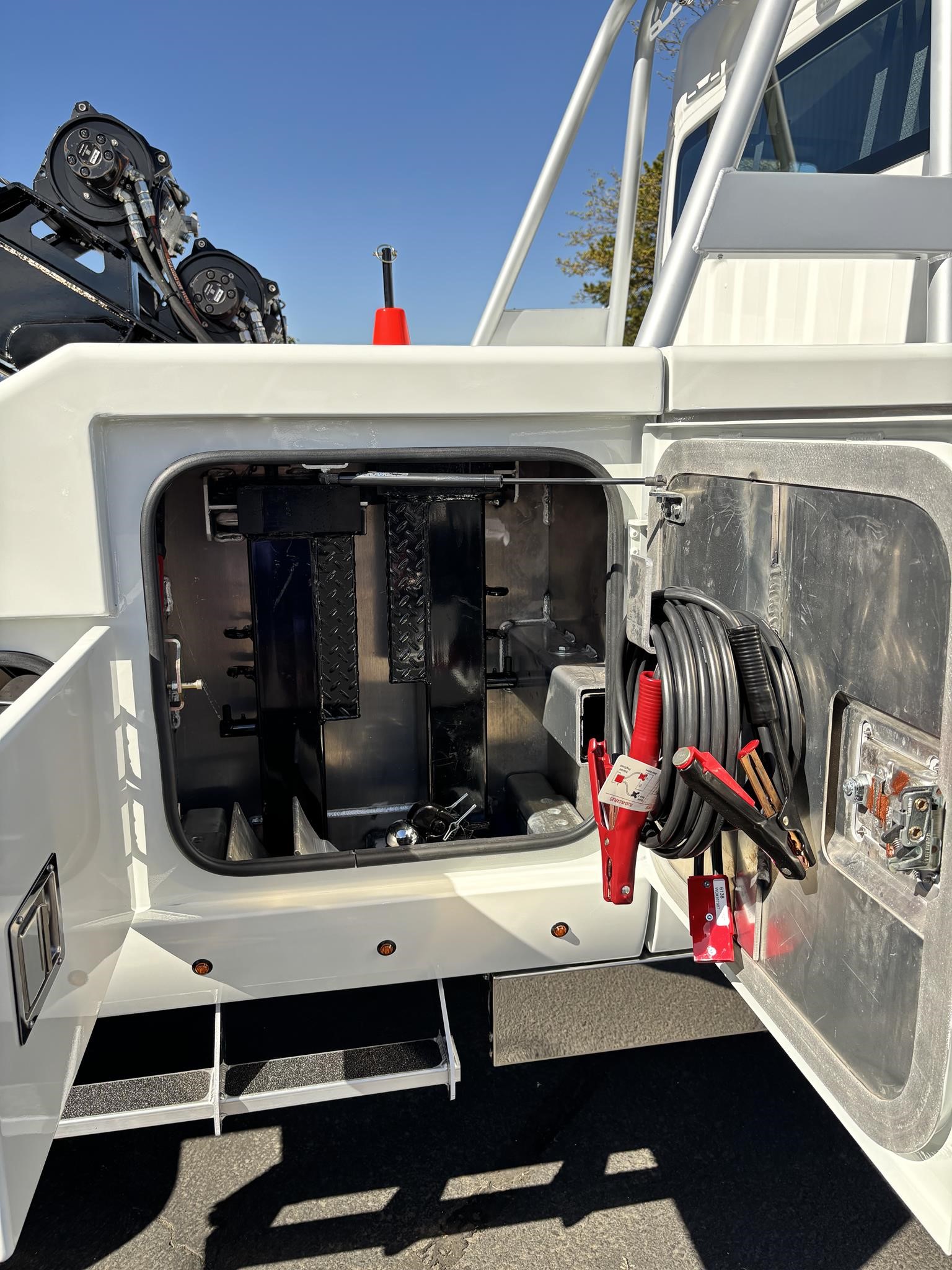

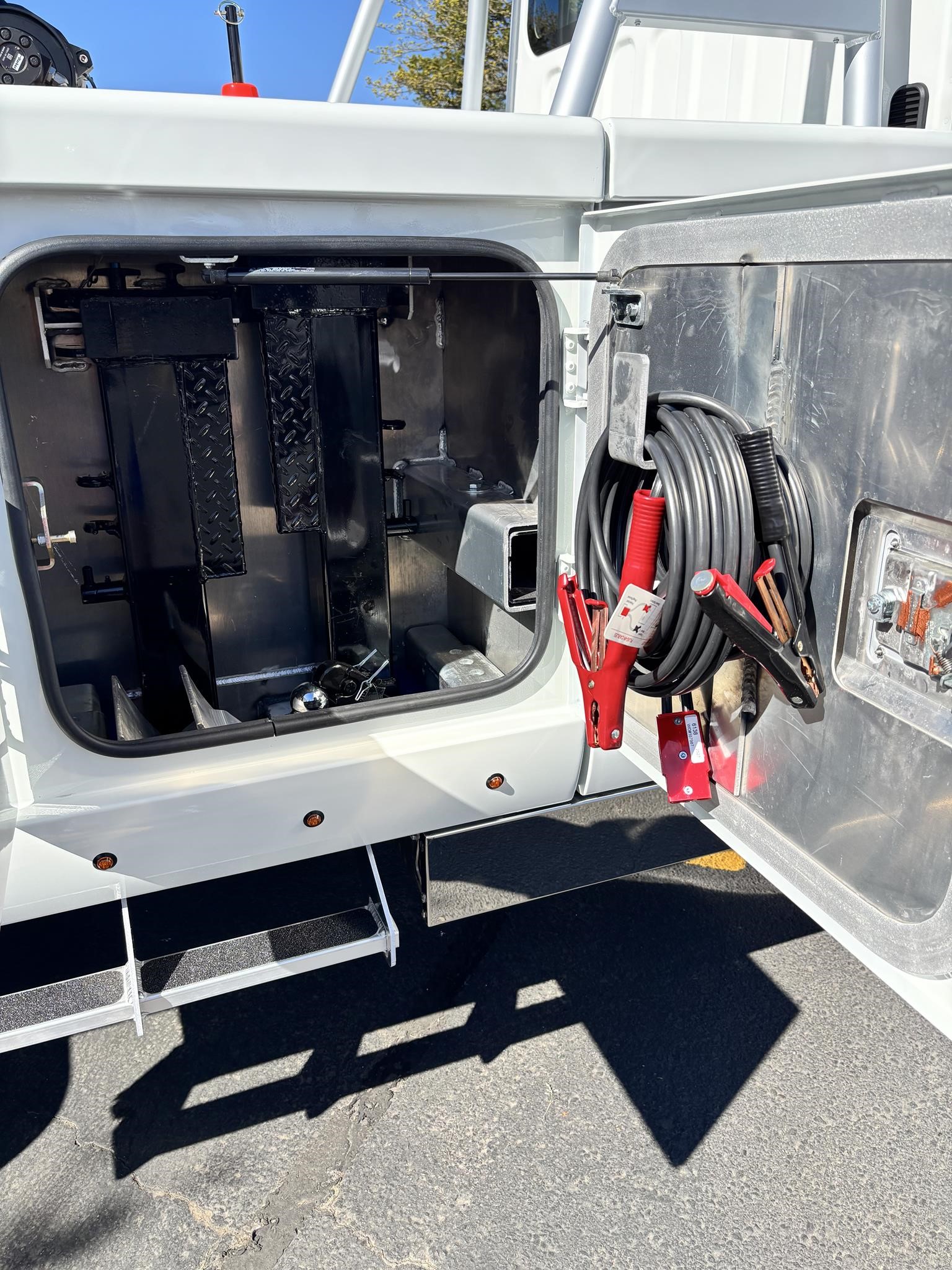

LIT: Jumpstart,Front- Brooking Flush-Mount Kit, with 25' Cables
LIT: PTO Light, LED
LIT: Tow Light, Wireless, TowMate, Limelight 22", LED - Warranty issues customer contacts TowMate directly.
LIT: Work light- 6" Rectangular LED Work Lamp w/ Amber Strobe ( Pair)
LIT: Worklights, Chrome LED 5" for Aluminum Pylon, Pair
LIT: Worklights, Round, 6", High-Intensity, 4800 Lumens, Pair
SH: Air Coupler, Front (F) 27808; (W) Auto Coupler; (G) 68237
SH: Air Coupler, Rear (Wrecker) (F) 27808; (W) Auto Coupler; (G) 68273
SH: Shop Supplies
SL: LED MARKER Flasher control Module
SL: Marker Bullet Light, 3/4", Amber for Wrecker Body
SL: Marker lights: ICC Lights, Three, 3/4", Red, Round DOT back of pylon
SL: Strip Light, 18", Cool White, LED, for Night Rider package
SL: Strip Lights, 18", White, LED, in Wrecker Toolboxes, Pair
SL: Strip Lights, 36", Amber/White, LED, Pair, Undercab
SL: Strobes, Amber Grille Lights, ST-6 Super-Thin, Pair, Chrome Bezels, Backing Plates, Wire Harness
SL: Strobes, Amber, M53, Clear-Lens, LED, Pair, Mounted at Rear of Wrecker, Wire Harnesses
TB: Bunks, Dollie, 4:80, SS Door, Pair
TB: PolyFloor, Blue, 50 Squares
TB: PolyFloor, Installation
TB: Tray, Floorjack, Slide-In

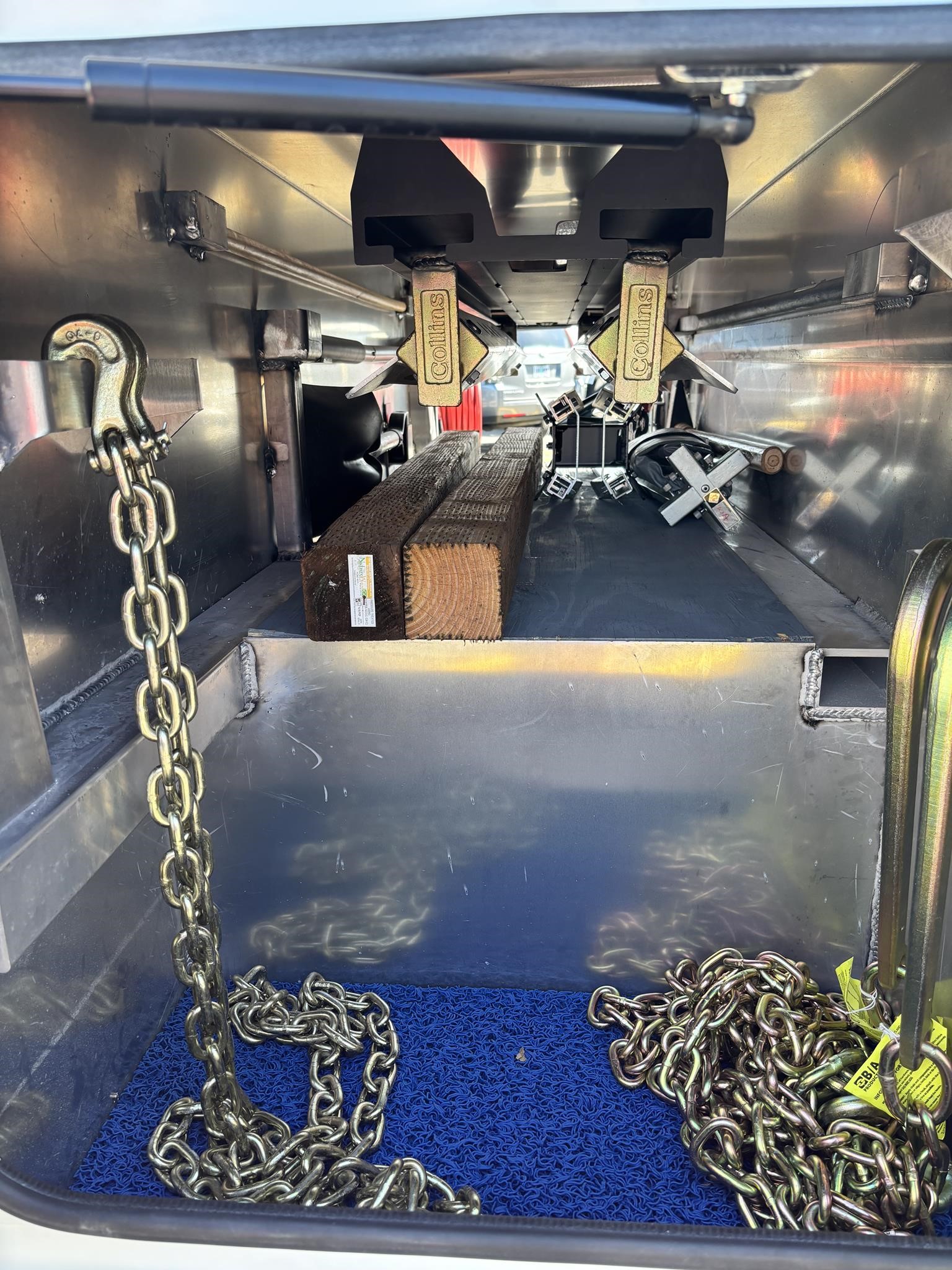

TOW: Chain, Recovery, 20', 5/16", Grade 70, Clevis Grab Hooks, Single
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
TOW: Dollies, Collins, 4:80 Tires, Aluminum Wheels, Aluminum Crossrails, Complete Set
TOW: Flare Case (Case Only)
TOW: Flares, 6 (F)0730(x6); (W)7703605(x6); (G)100783(x6)
TOW: Hooks, Self-Locking, 5/16", Grade 80, for Safety Chain, Pair
TOW: Lumber, 4" x 4"s, 48" & 60"

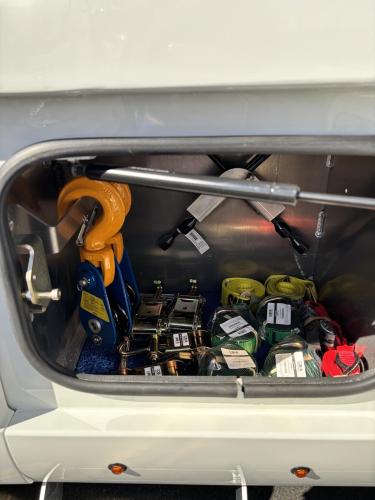

TOW: Snatch Block, 4-Ton, Yoke
TOW: Strap Kit with Bag, Motorcycle, Wrecker, B/A
TOW: Strap, Axle, 26", Single
TOW: Strap, Steering Wheel
TOW: Straps, Lasso, D-Ring, Pair
TOW: Tiedowns, Dollie, Ratchets and Straps, Pair
TOW: Trailer Ball Kit, Convert-A Ball
TOW: Winch Cable, 7/16", 150', Fiber Core, Self-Locking Hook

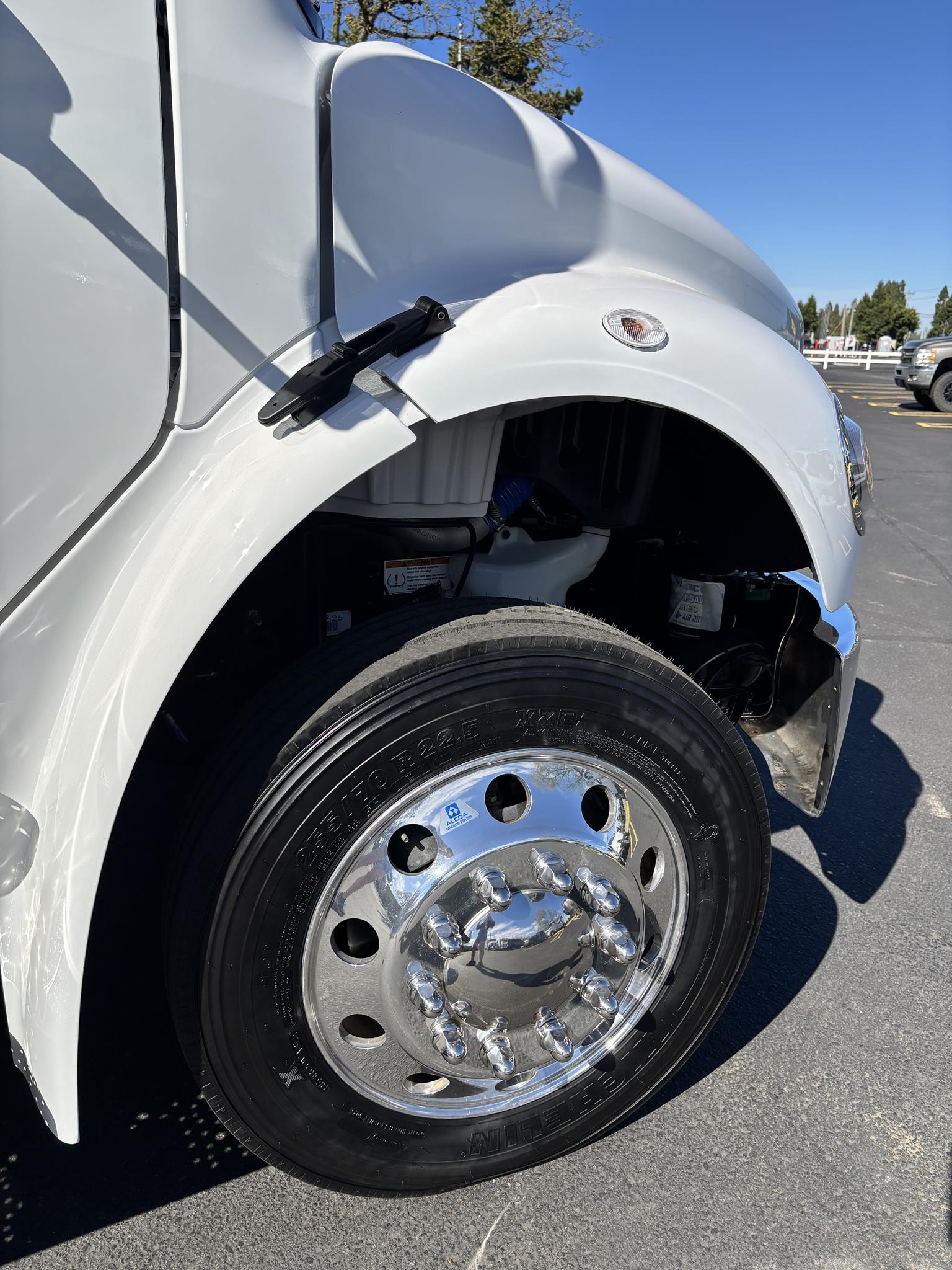

WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
WH: Hubcap Tool
WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"




Notes

Boom black - Wheelift Black - outriggers black
Cones in area between boom and back of tunnel box
Use blue roll matting fir inside tool boxes


WLE -6B076 x2 Round work lights - on top of stiff legs on top of deck. - can use ALT W0706510 series
Work-Light bar - mounted under pylon



Under Distributor Accessories:

Aluminum body steps (2) between dolly bunk and wheel well
30” side step JD Cross aluminum version.
2 x 5’ 1/2" G8 Recovery chain with matching hook ends, tagged.
Stainless body dress up kit; to include
1. Front of tunnel box
2. Chain pockets
