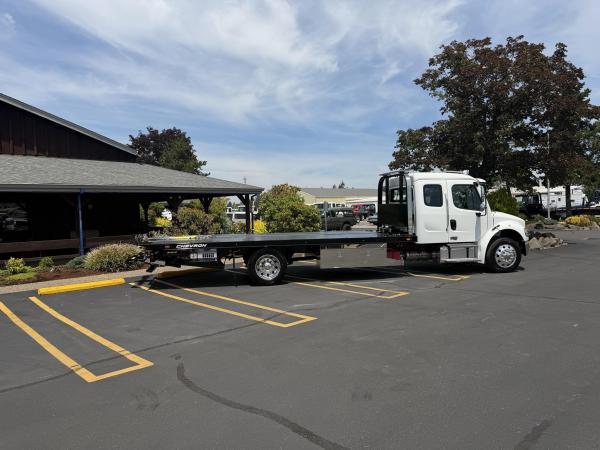

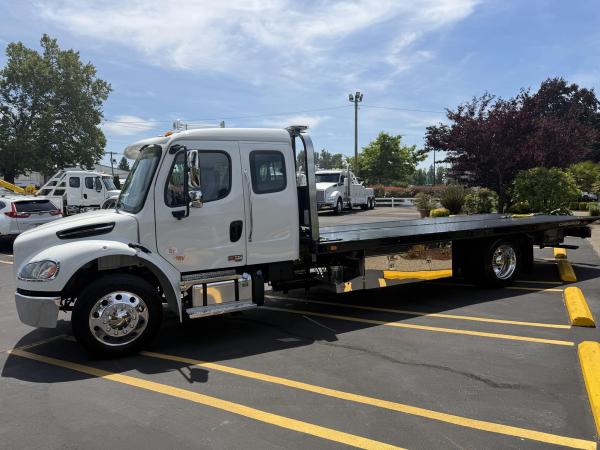

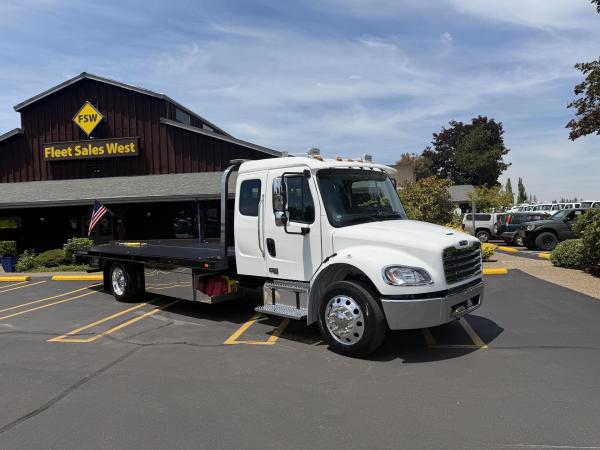

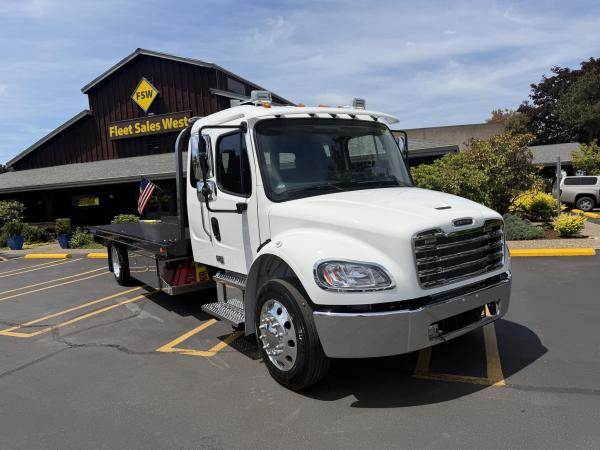

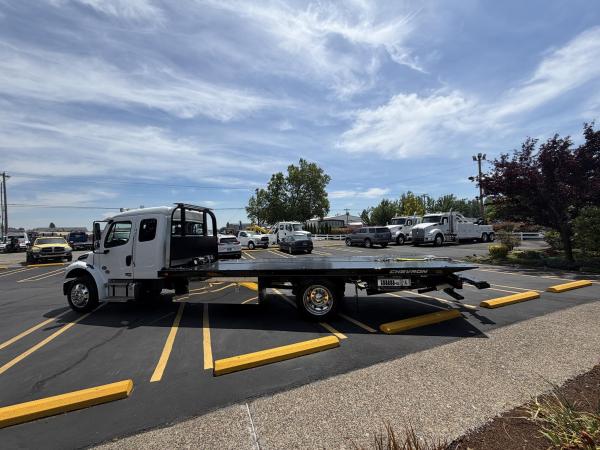

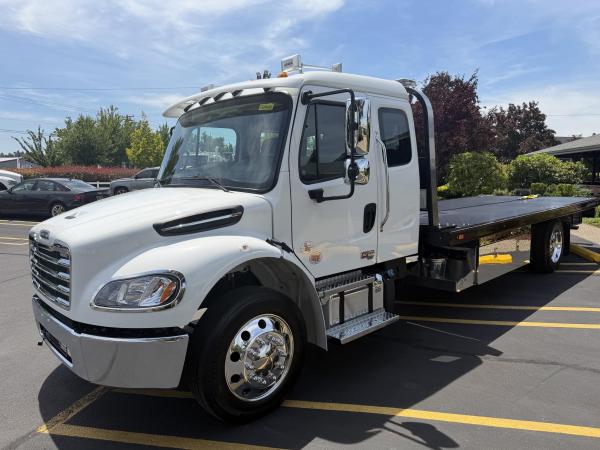

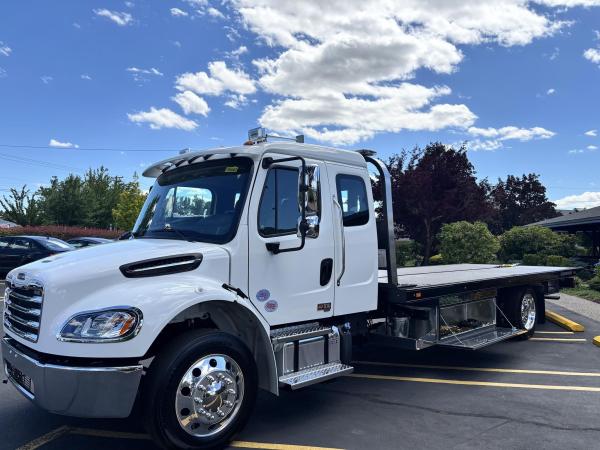

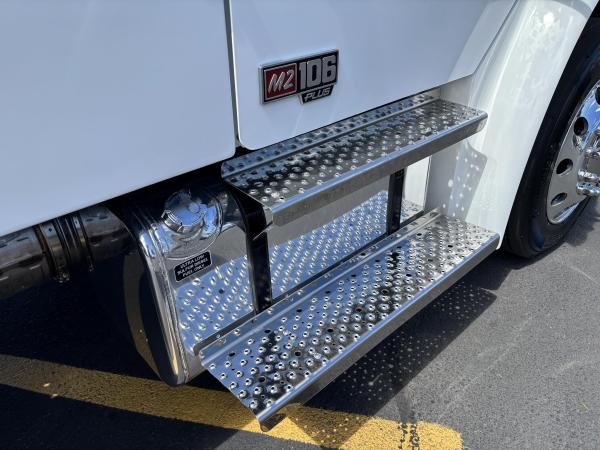

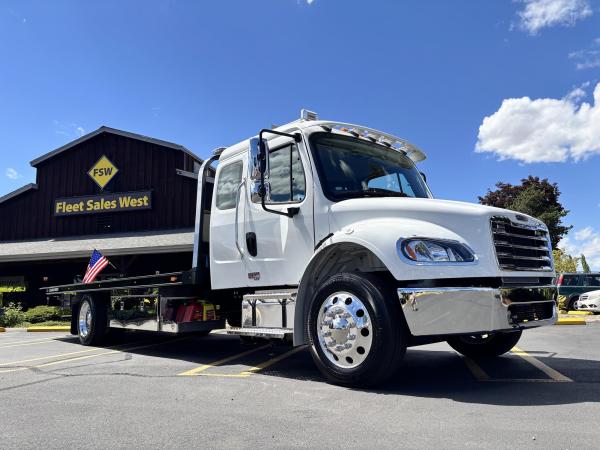

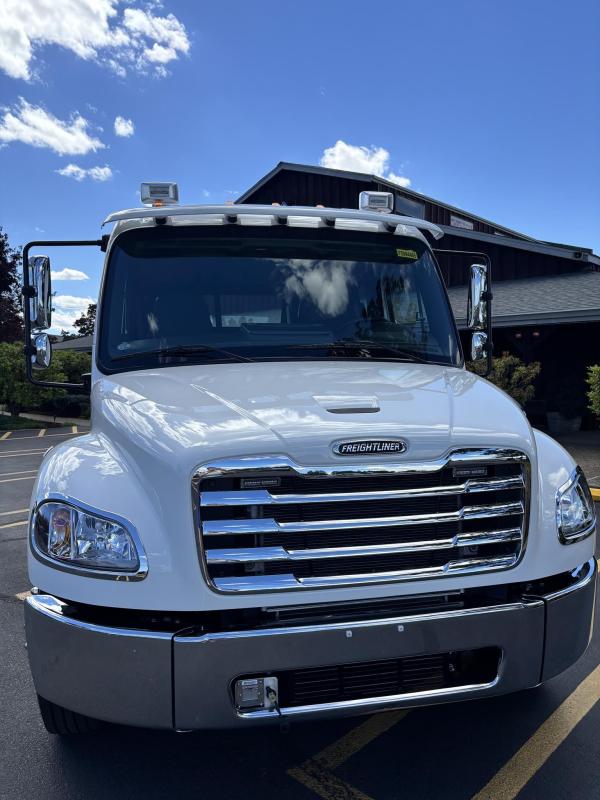

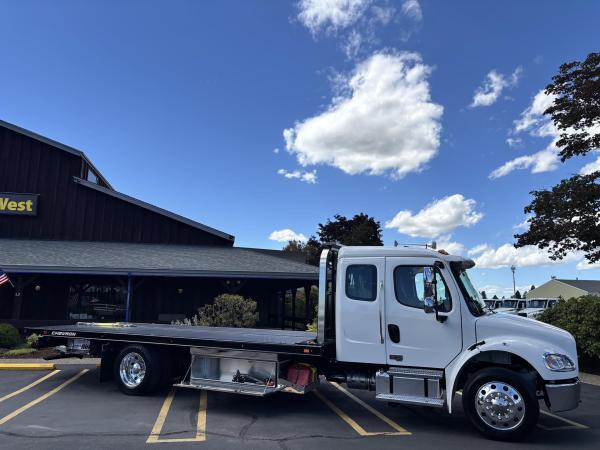

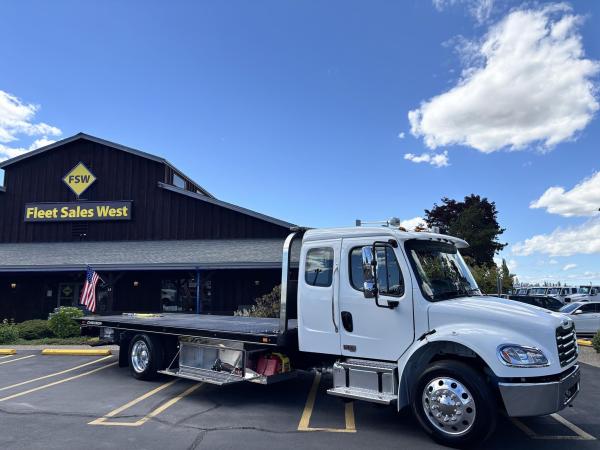

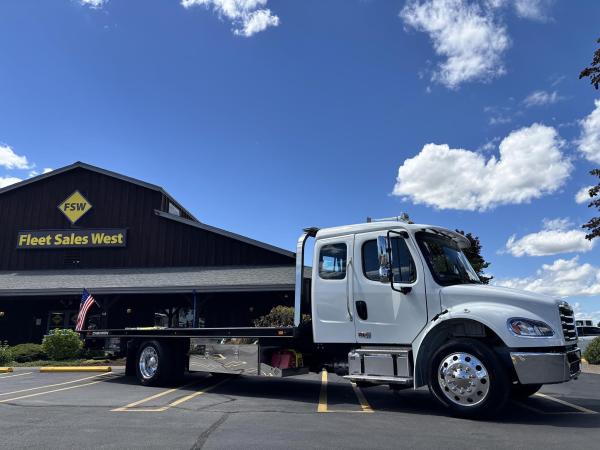

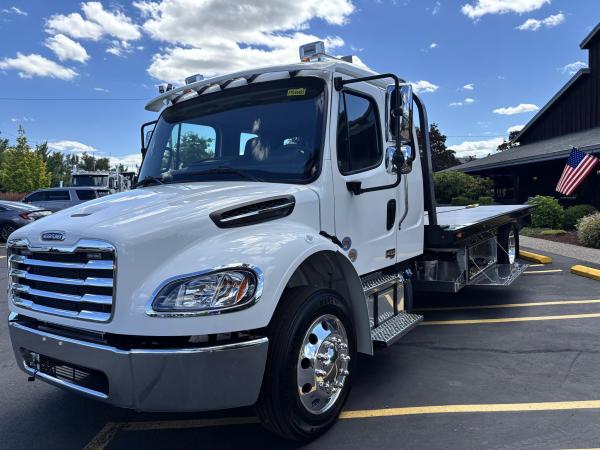

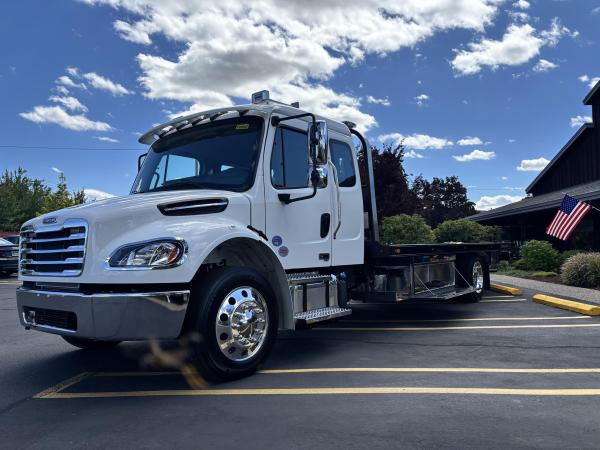

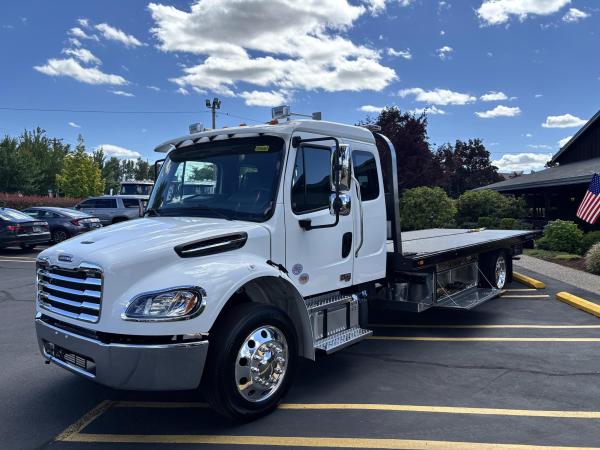

BUSINESS CLASS M2 106 PLUS

All Carriers

Specifications

• A/C Condition: New
• Air Conditioning: Yes
• Axle: Single
• Cab: Extended Cab
• Collisionmitigationsystem: No
• Color: White
• Cruise Control: Yes
• Drive: 4x2
• Driver Position: Left Hand Drive
• Dual Breathers: No
• Engine Brake: No
• Engine Size: 6.7
• EnginesizeUnit: Engine Liter
• Exhaust Brake: Yes
• Fuel Type: Diesel
• Glider Kit: No

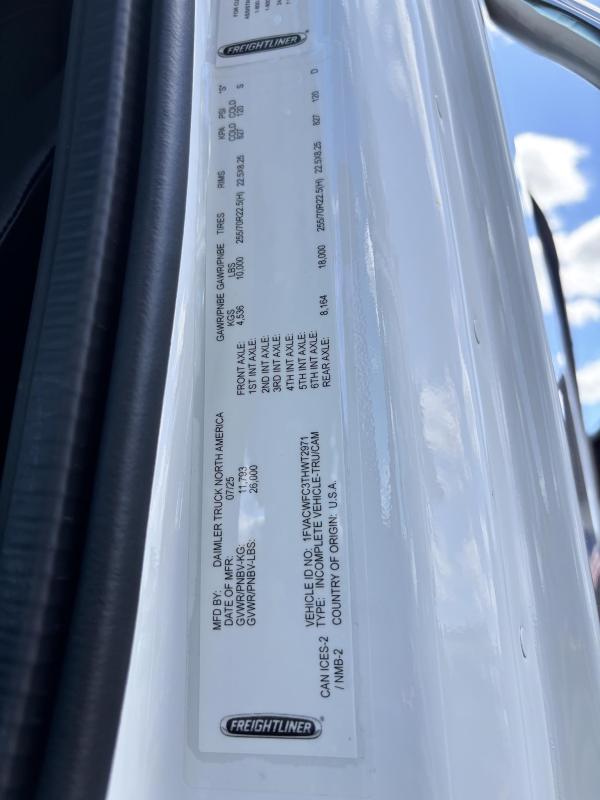

• Gross Vehicle Weight: 25500
• Gross Vehicle Weight Rating: Class 6
• GrossvehicleweightUnit: Pound
• Headache Rack: No
• Heated Mirror: Yes
• Hours Meter Inaccurate: 0

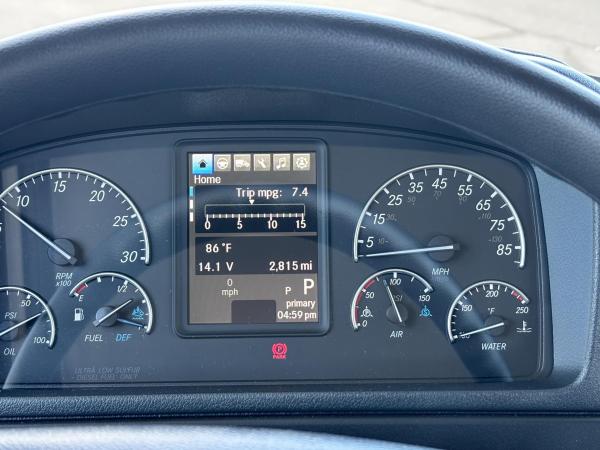

• Mileage: 211
• MileageUnit: Mile
• Navigation: No
• Num Speeds: 6 Spd
• Overdrive: Yes
• Overhaul: No
• Power Locks: Yes
• Power Steering: Yes
• Power Windows: Both
• Rebuilttitle: No
• Suspension: Air Ride
• Tilt Telescope: Yes

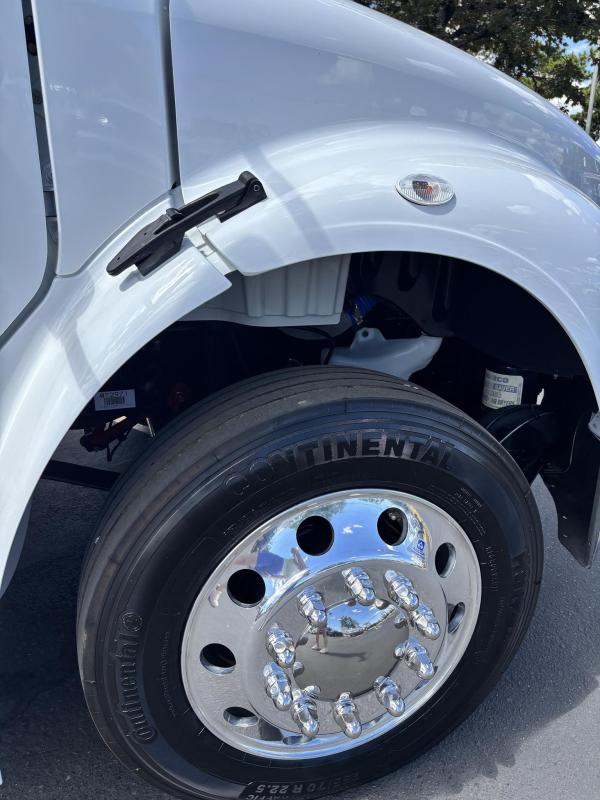

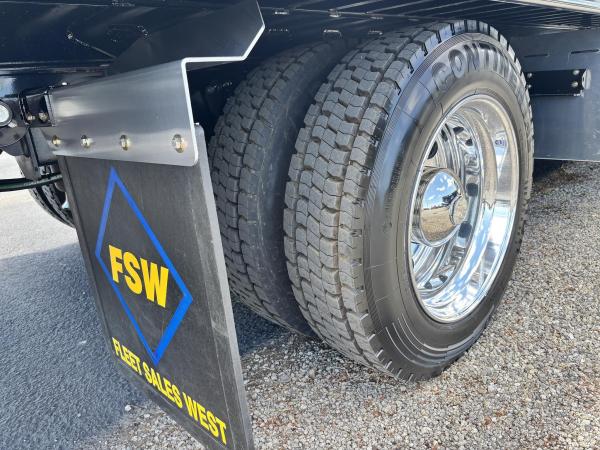

• Tires: 255/70R 22.5
• Transmanufacturer: ALLISON
• Transmission: Automatic
• Transmission Type: Allison RDS
• Turbo: Yes
• Wet Kit: No
• Wheels: Aluminum

General Description & Dealer Notes

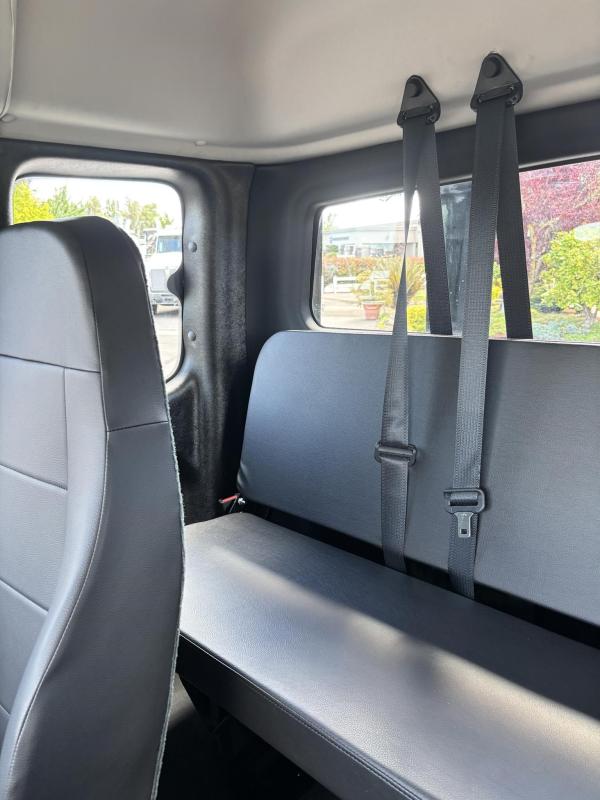

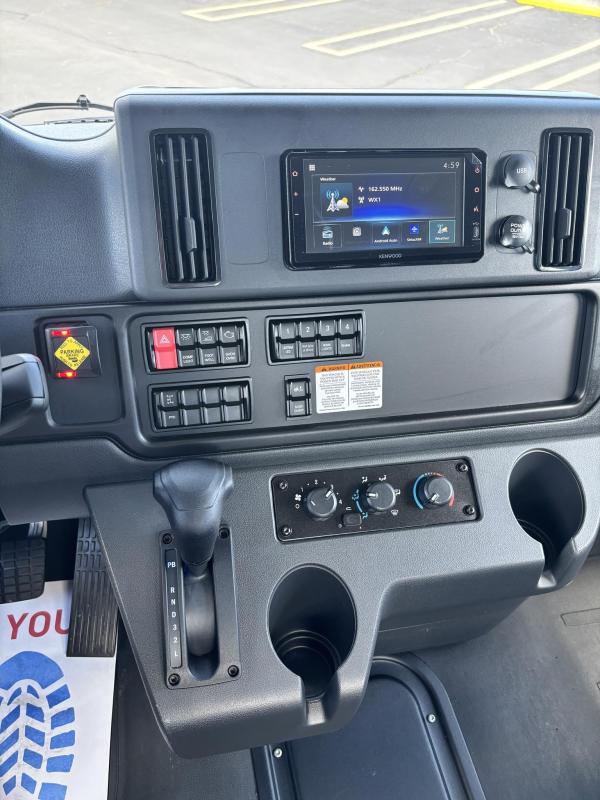

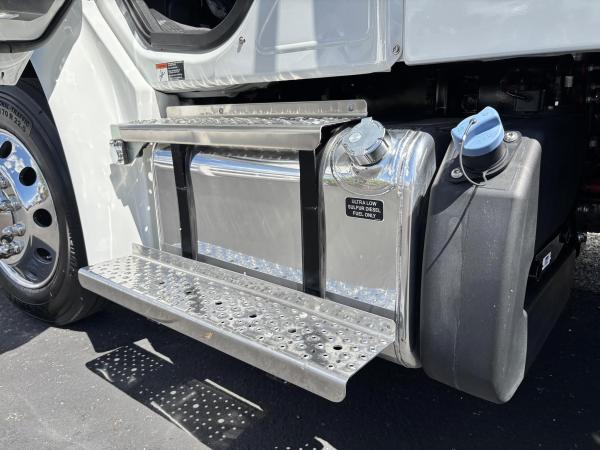

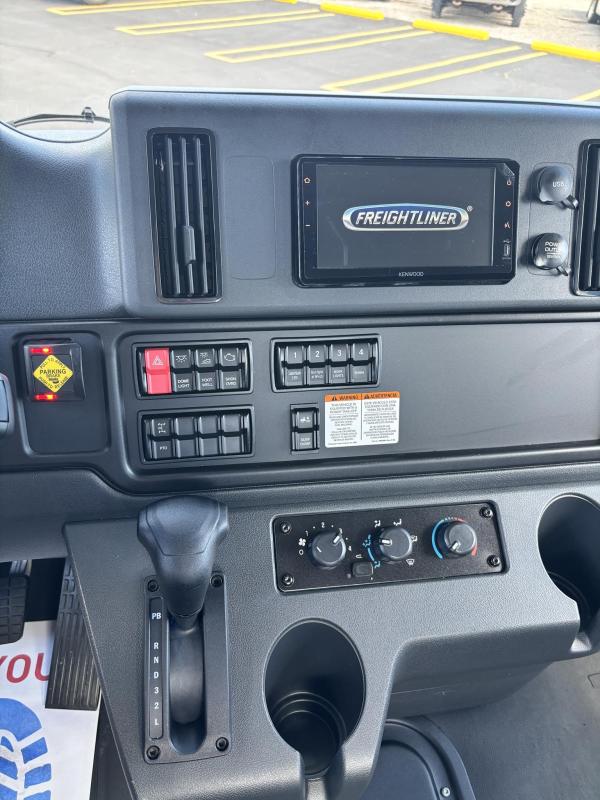

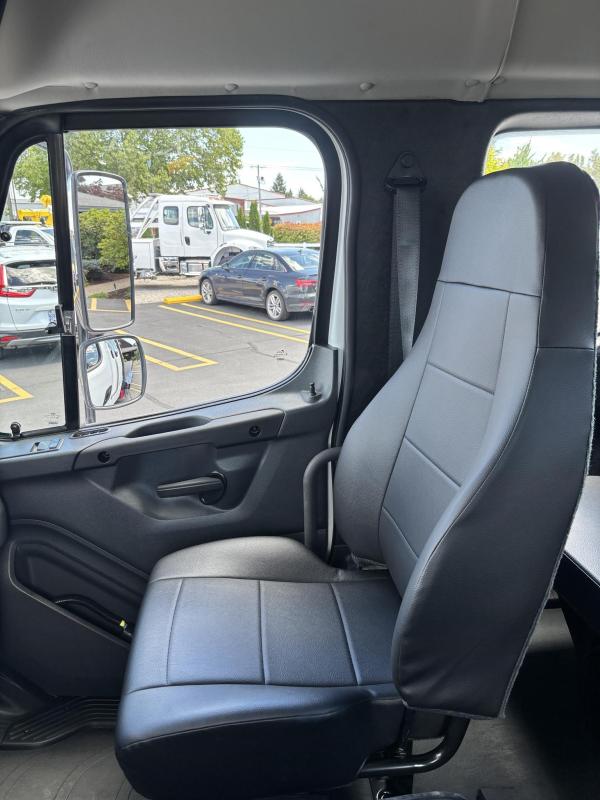

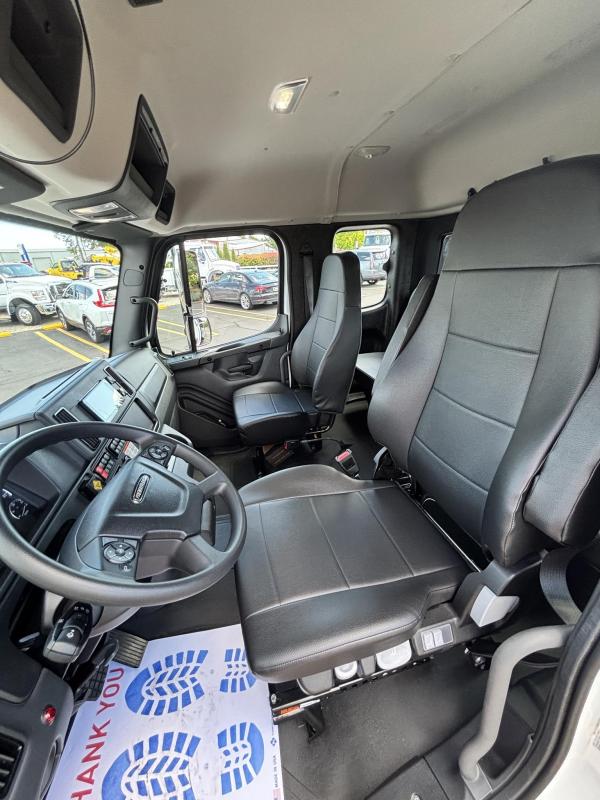

M-2 Alum. 132" BBC Cab; Cummins 6.7L Engine 260HP 660lbs Torque. Cummins Exhaust brake.Horton HT650 Frontal Air On/off Engine fan. Clutch. 2100 RDS Automatic Transmission 6 Speed. Phillips-TEMRO 750 Watt/115 Volt block heater. Dash Mounted T-Handle Cable Shift Control w/ park brake position. Synthetic Transmission Fluid.Synthetic 75W-90 Front Axle lube 10,000# front suspension. ARS-19.0-2 19,000# R-SERIES single rear axle. 4.88 Rear Axle Ratio.SYNTHETIC 75W-90 rear Axle lube. Airliner 18,000# Rear Suspension. Manual Dump Valve for Air Suspension. - Air brake package. Air Dryer w/Heater. 120KSI (Frame). 50 Gallon/Rectangular fuel tank aluminum: Alliance Fuel filter/Water separator with Primer pump. 255/70R22.5 Tires. Alum. 22.5X8.25 10-Hub pilot disc wheels. Dual West Coast Bright mirrors. 8" bright finish convex mirrors mounted under primary mirrors. Non-operating wing windows. Opal Gray Vinyl Interior. (2) Cup Holders; Heater, Defroster & Air Conditioner. Power windows. Single passenger seat. Air ride driver seat, Rear bench seat. Adjustable Tilt and Telescoping Steering Column. (6) IGN Controlled Extra Switches to junction block AND 1 Circuit at 30 Amp. Windshield Wiper motor with Delay marker light Switches self-canceling turn signal Switch with dimmer, Washer/Wiper & Hazard in Handle. Idle up, Cruise control. 22.5 Aluminum wheels 25,500 GVWR.

5-year 300K PPI Engine, injectors, Turbo coverage, Emissions. Warranty. Allison 7-year unlimited Transmission warranty

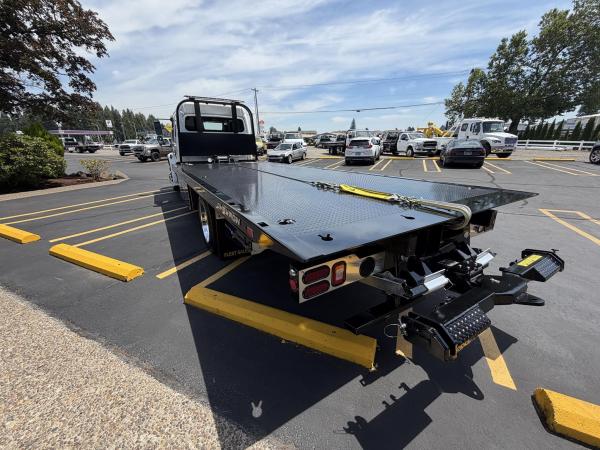

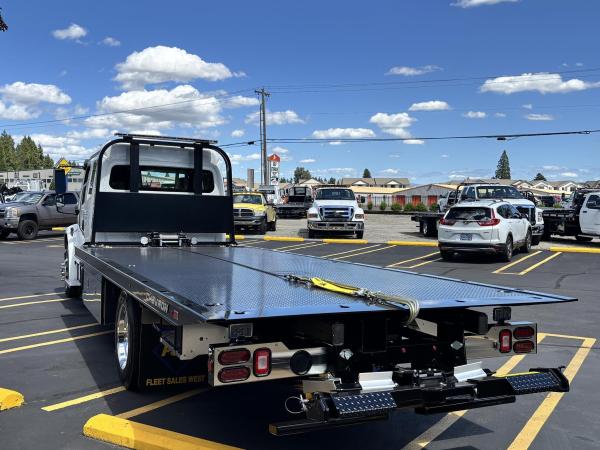

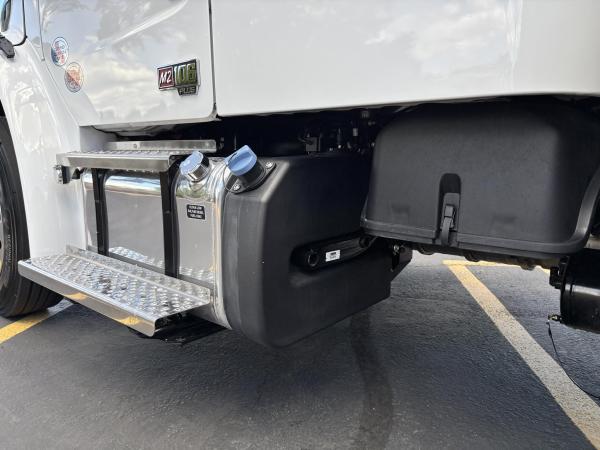

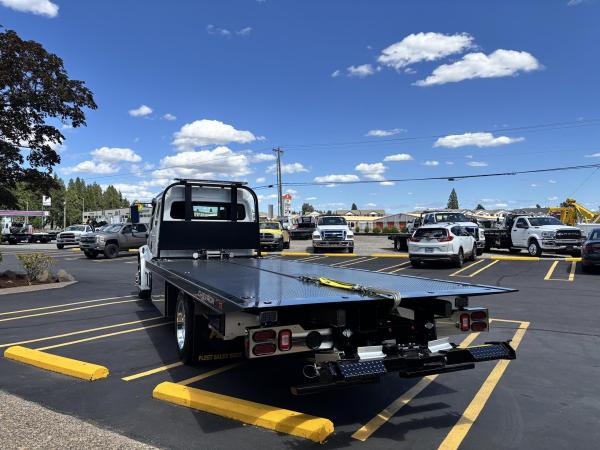

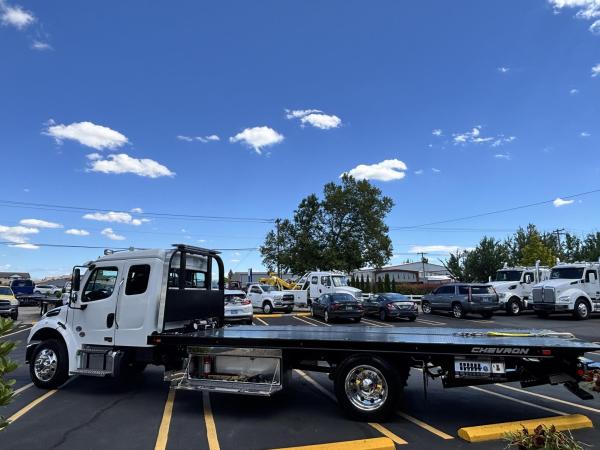

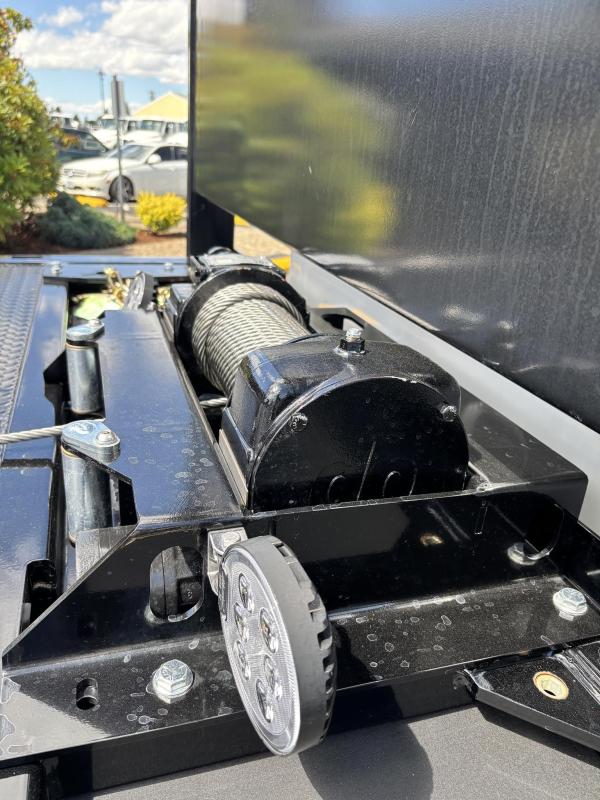

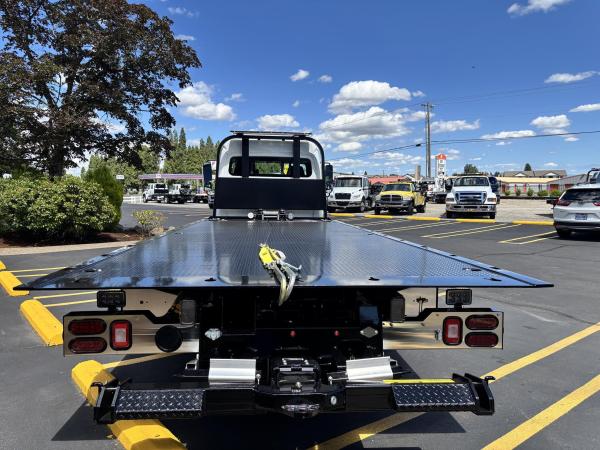

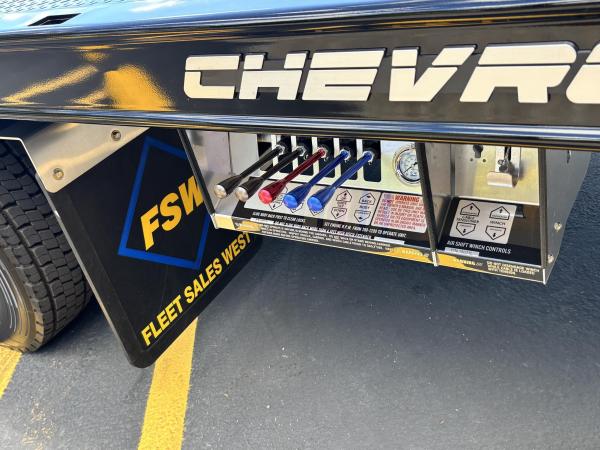

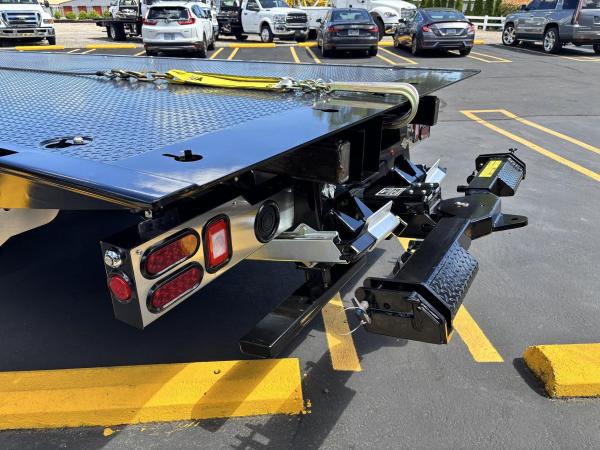

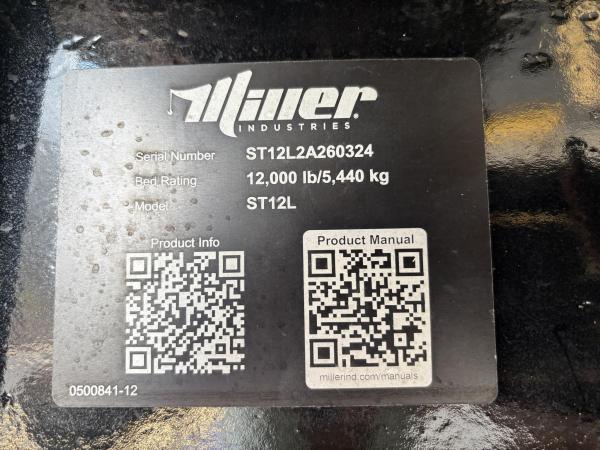

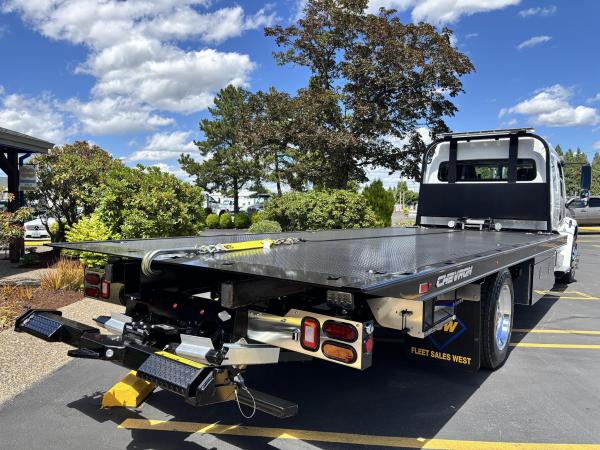

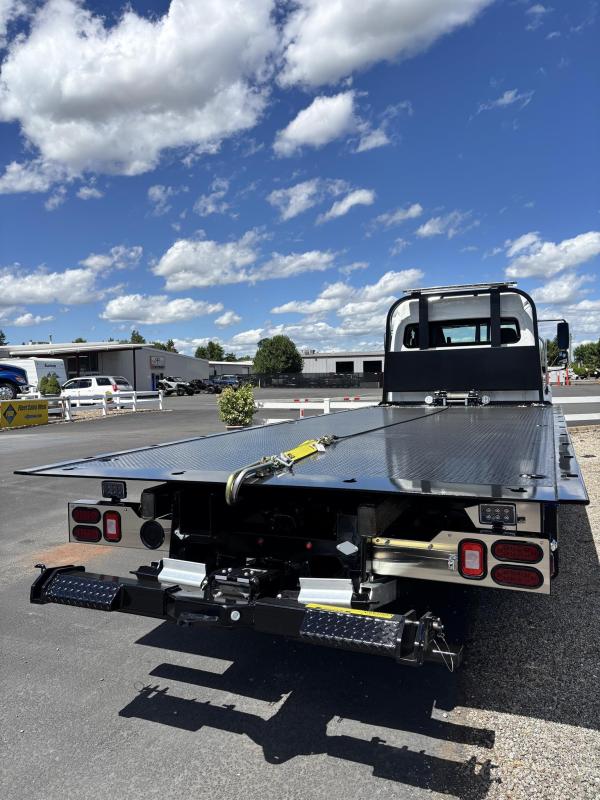

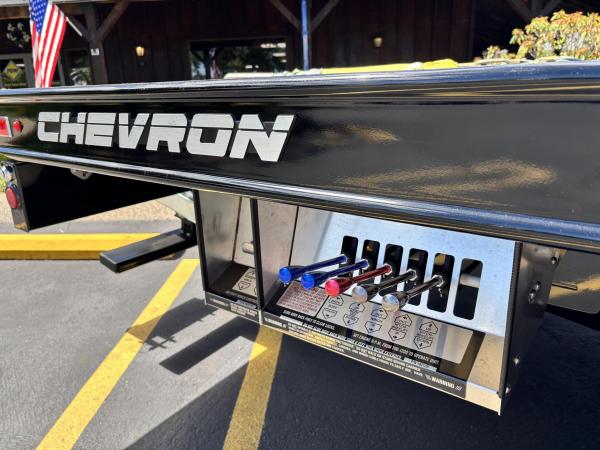

Century 21.5' Steel LCG (Low Center of Gravity) Carrier w/ Wheel Lift, 3/16 Deck Plate, 3x2 Corten Tube Crossmembers on 8 inch Centers, (4) Rear Chain Locks, (2) Front Chain Locks, (6) Floor Plate Chain Locks (3 per side), 8,000lb Worm Gear Winch, 3/8" x 50' Winch Cable, Illuminated Dual Controls, FMVSS 108 Lamp Group Shock Mounted Lighted, Direct Mount Pump, Cable Roller Guide w/ Tensioner, Winch Free Spool Extension, Back-Up Alarm, (2) Safety Chains, Mechanical Anti-tilt, Black Body Paint, 102" Wide Body, Inboard Tilt Cylinders, Floor Level Roll Formed w/ Punched Stake Pockets, 4,000lb Wheel Lift w/ Releasable L Arms, Fully Hydraulic Wheel Lift, (2) Safety Straps & Ratchets, (2) Rear Safety Chains, Body Lock w/ Nylatron Roller Bearings, & 12,000lb Deck Load Rating. Body Serial# ST12L2A260324

3/16” Deck Plate (10-20, Steel)

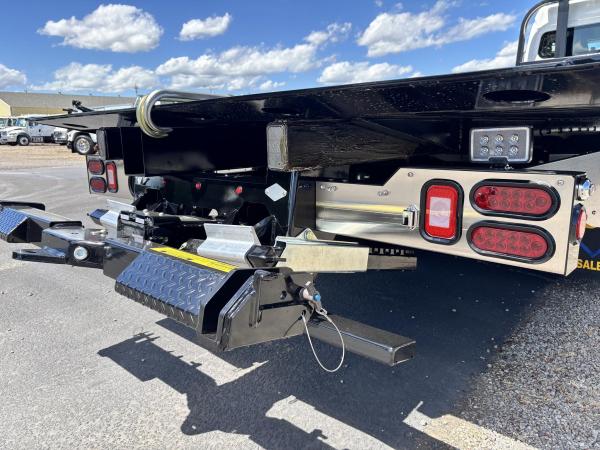

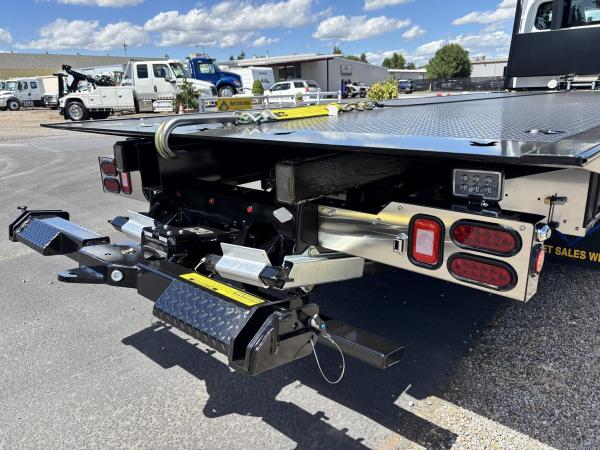

Conventional Wheel-Lift (10-16)
Floor Level Roll Formed with Punched Stake Pockets (Steel)
Marker Lights - Pee Wee Lights
Slide In Steel Tube L-Arms (10-16)
Standard Approach Plate (Steel)
Standard Bed (Steel)
0- Lights on Pylon
102" Wide (12-40, Steel)
11 Chain Lock Package - Deck Centered (steel)
21.5’ (10-16)
5-Light Configuration (10/12 Series)
6-Spool Capable
Air Free Spool, Driver & Passenger Side - Deck Winch(10-16)
Chain Baskets

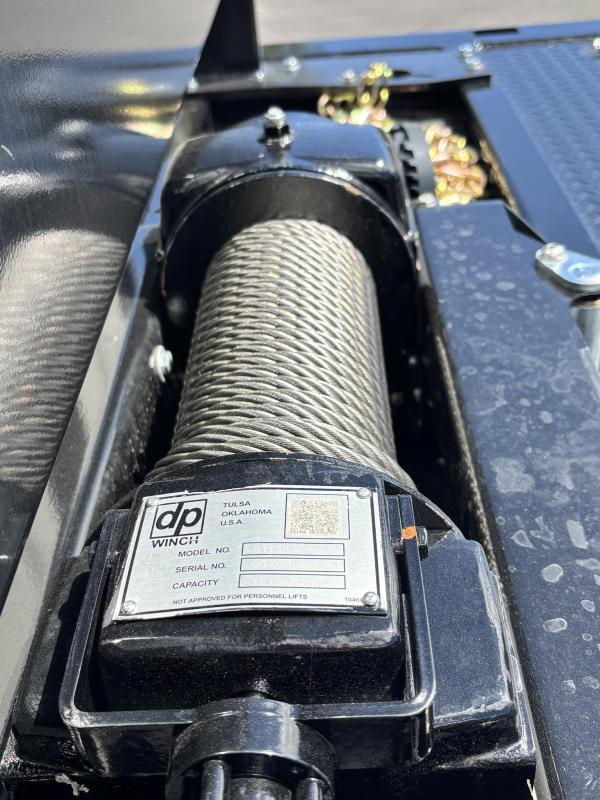

DP 12,000 lb. Worm Gear -


Accessories
Hot Shift PTO (Allision or Aisin - 6 Bolt)


Installation
10 - 16 Car Carrier
Fire Extinguisher
Hot Shift PTO - LD, CC, HD
In-Dash Switch Panel
Jump Start Kit
Light Bar (LD/CC)
Misc. Labor
Rotation Kit (CC)
Toolbox (each, CC)
Work Lights (Pair)


Paint
Bed - Factory Black (10-40, Steel)


DAA
ACC: Air Hose, 50': (F)7092RMA-600; (W)69711; (G)RR30806
ACC: Air Inflate Kit: (F)68272; (W)68271; (G)61387
ACC: Broom & Handle (F)OSB77003+81251; (W)00526CRNM; (G)AME63-15/16X60 + WEI40-25238
ACC: Fire Extinguisher, 5 lb.: (F)466425; (W)B500T; (G)USA10-22

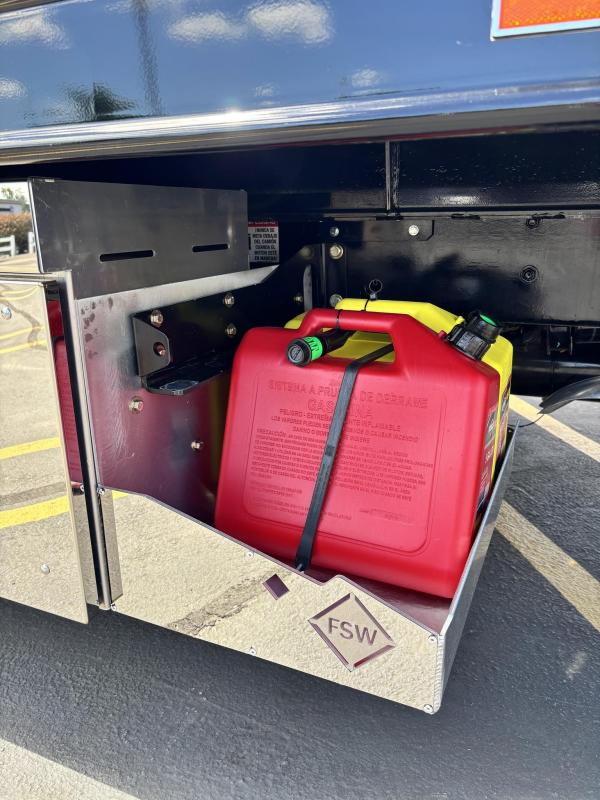

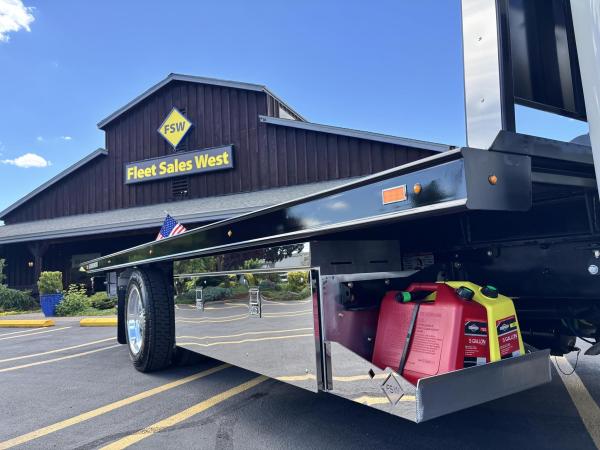

ACC: Fuel Can, Diesel, 5-Gallon, Yellow
ACC: Fuel Can, Gas, 5-Gallon, Red
ACC: Jack, 2.5-Ton, Aluminum/Steel, Torin
ACC: Splitting Maul (F)AMES1113115200; (W)Maul Axe; (G)TJ-8H

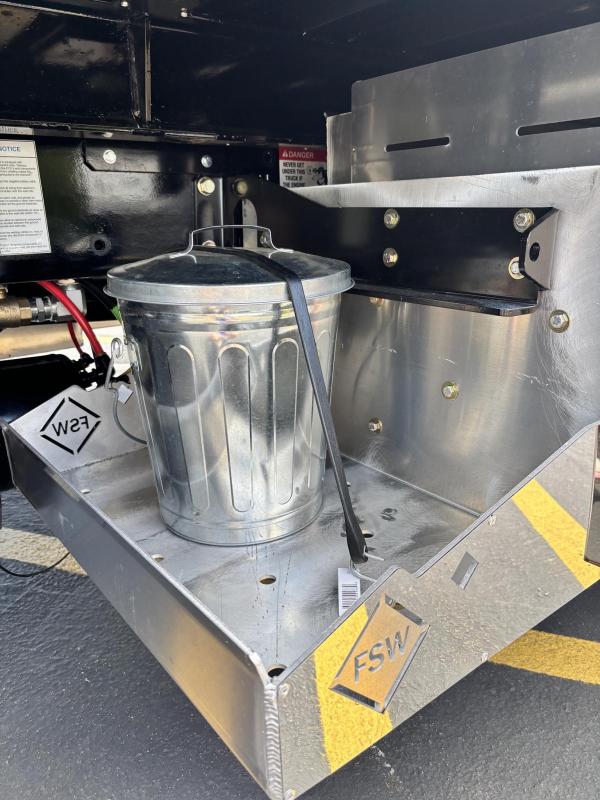

ACC: Trash Can, 4-Gallon, Steel
B/M: Circuit Breaker Bracket
B/M: Lumber Rack, Aluminum, for Streamliner Toolbox
BOD: Mudflaps, 24" x 24", Pair LCG application

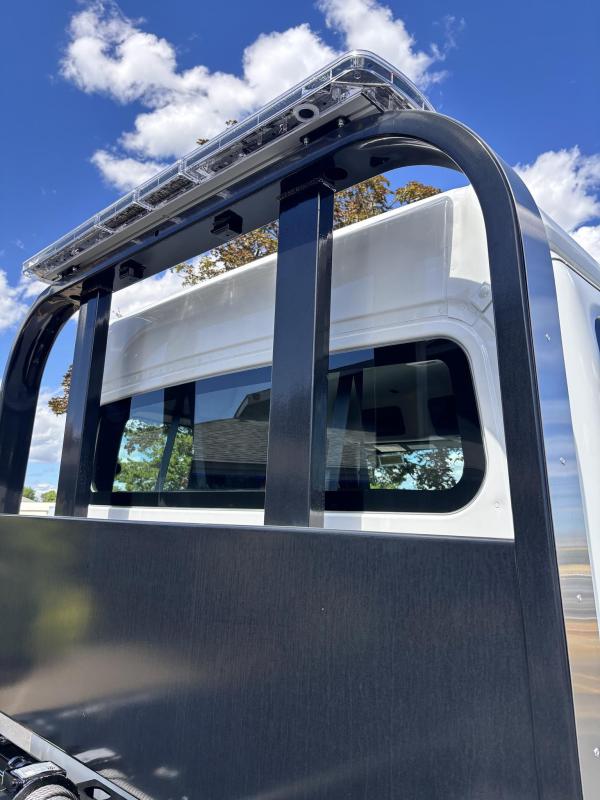

BOD: Pylon, Carrier, Bed-Mount, No Lights, SS Panels, Wire Harness
HYD: Ball Valve (Shut off for Hydraulic Tank) 1-1/4" or 1"

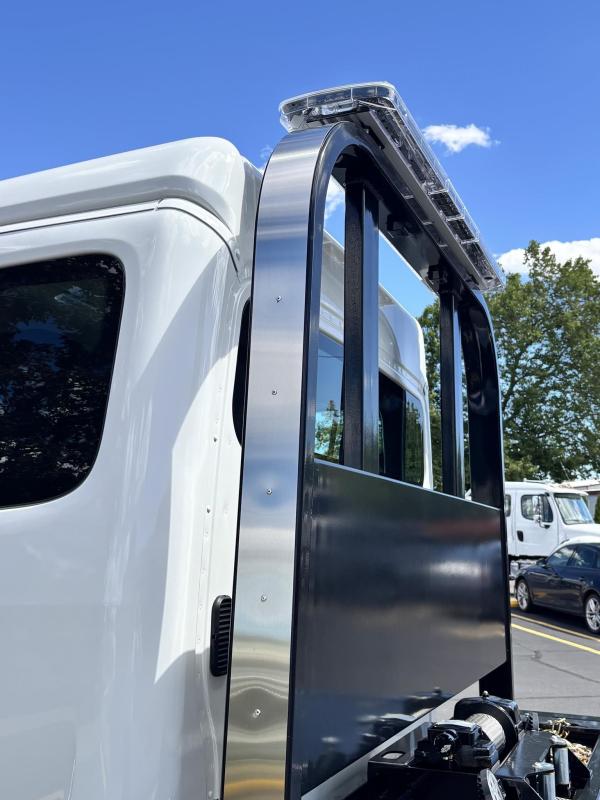

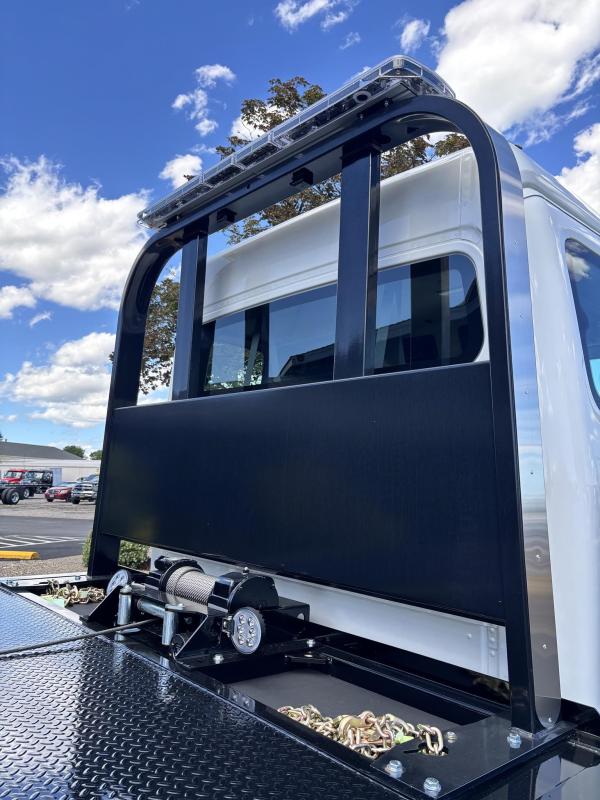

LB: Federal Allegiant 24 Head LED light bar 5 year warranty FSW Group light bar
LB: Star Phazer, 8-Head, Amber, 58"

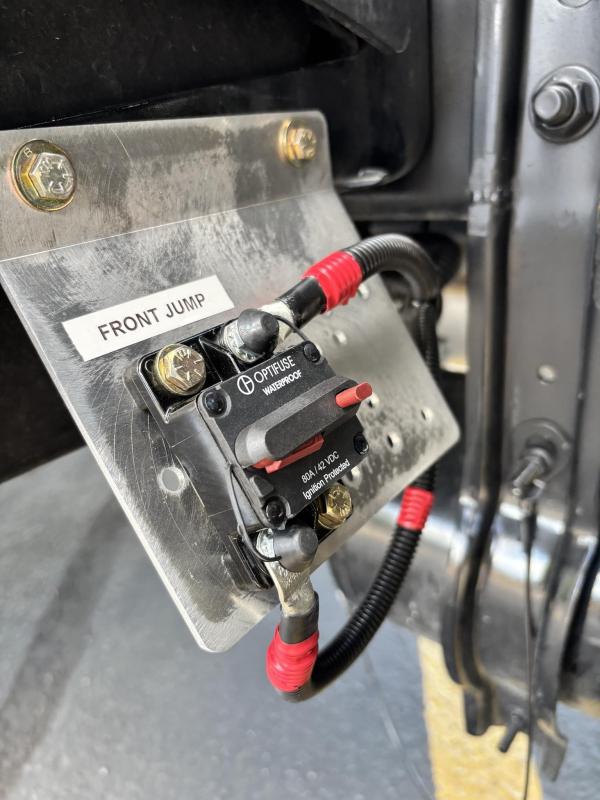

LIT: Breaker, 80-Amp, add 1 for each Jumpstart connection
LIT: Jumpstart, Plug-Mount Kit, STC, 25' Cable, STC
LIT: Strobes, Amber Grille Lights, Maxxima, 4 LED, Pair, Maxxima, Chrome Bezels, Wiring Harness
LIT: Strobes, Amber, M53, Clear-Lens, LED, Pair, for Tailboard Sides, Wire Harness
LIT: Tow Lights, LED, 30' Cord, Round-Magnet
LIT: Worklights, 4" Round, LED HD, Pair, Mounted at Winch, 1200 Lumens
LIT: Worklights, Rectangular, LED HD, Pair, for Lower Worklight (Required on LCG)
SH: Air Coupler, Passenger-Side Control Station SH: Air Coupler, Front (F) 27808; (W) Auto Coupler; (G) 68237
SH: Shop Supplies

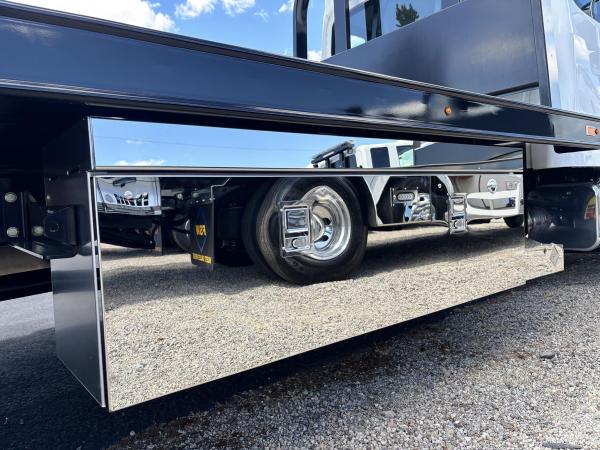

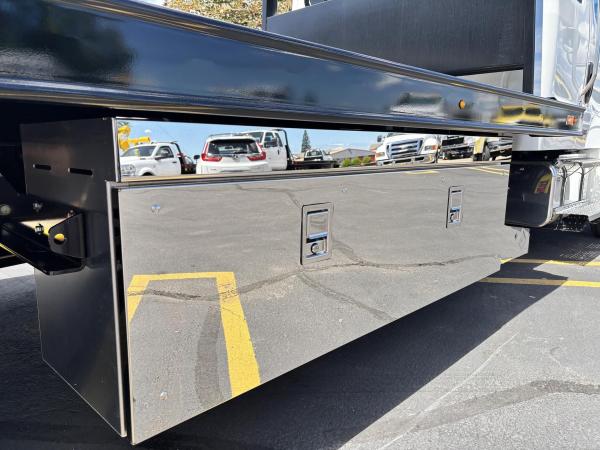

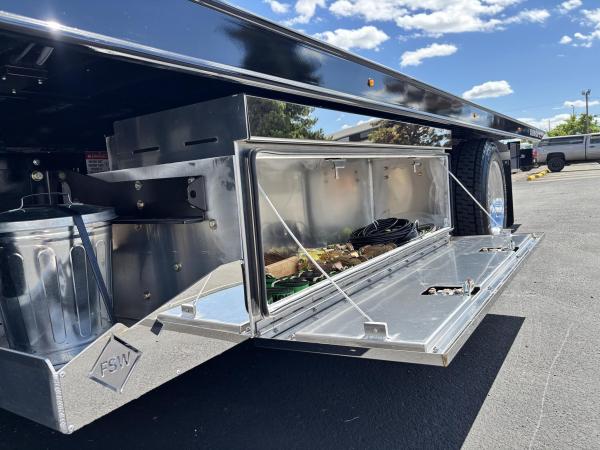

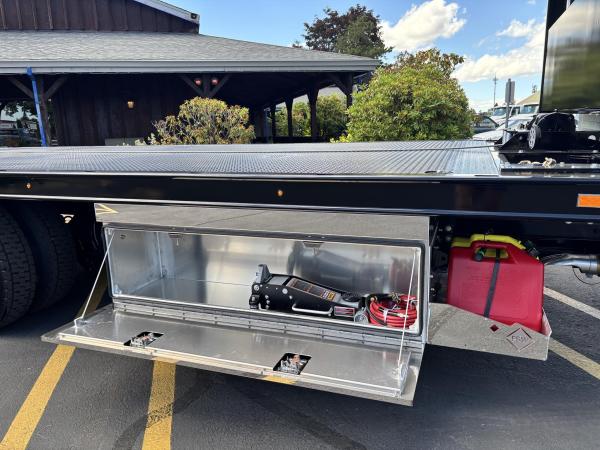

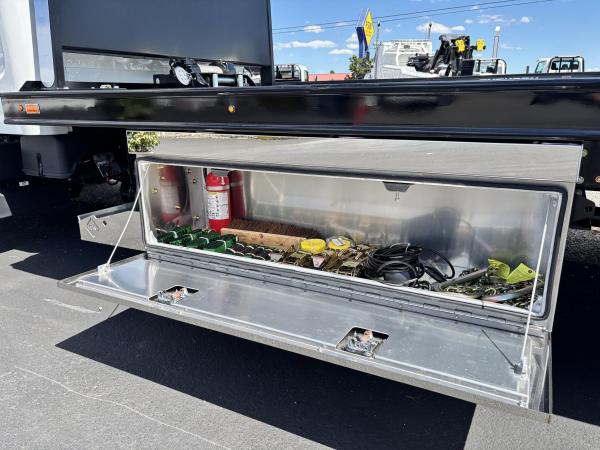

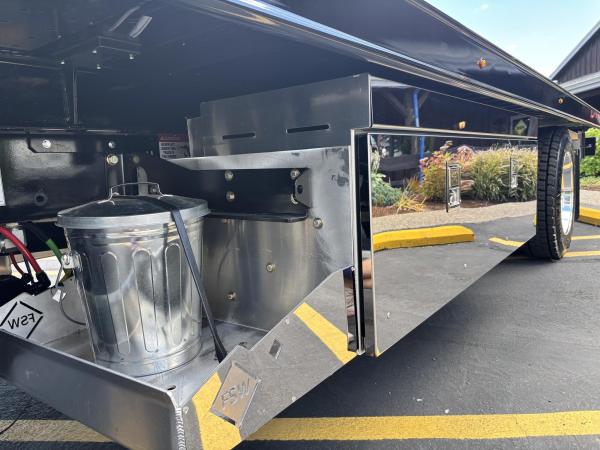

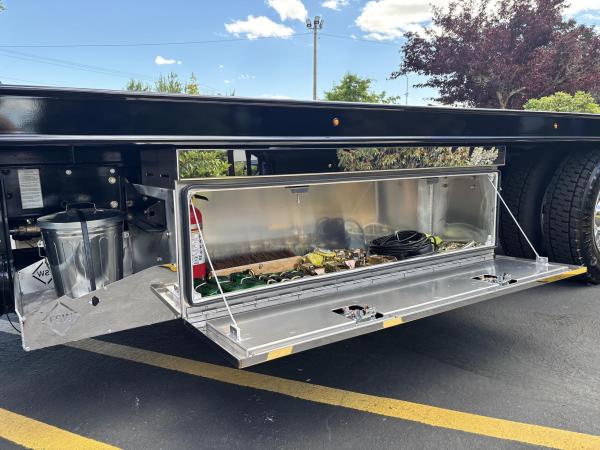

TB: Toolbox, Aluminum, 65" x 18", SS Door, Integrated Top Tray
TB: Tray, 18" Z-Bracket, FSW, Aluminum, SS Logo Plates
TOW: 8-Point Tiedown, Chain/Chain
TOW: Bridle, Polyester, 15" J-Hooks/T-Hooks
TOW: Chains, 10', 15" J-Hooks, Grade 70, Pair
WH: Hub Covers, Front, Stainless Steel, Pair
WH: Hub Covers, Rear, 10-Lug with 8.25" Axle, Pair
WH: Lug Nut Cover, 33 mm Front, SS, 2-9/16"
WH: Lug Nut Cover, 33 mm Rear, SS, 2-1/16"
